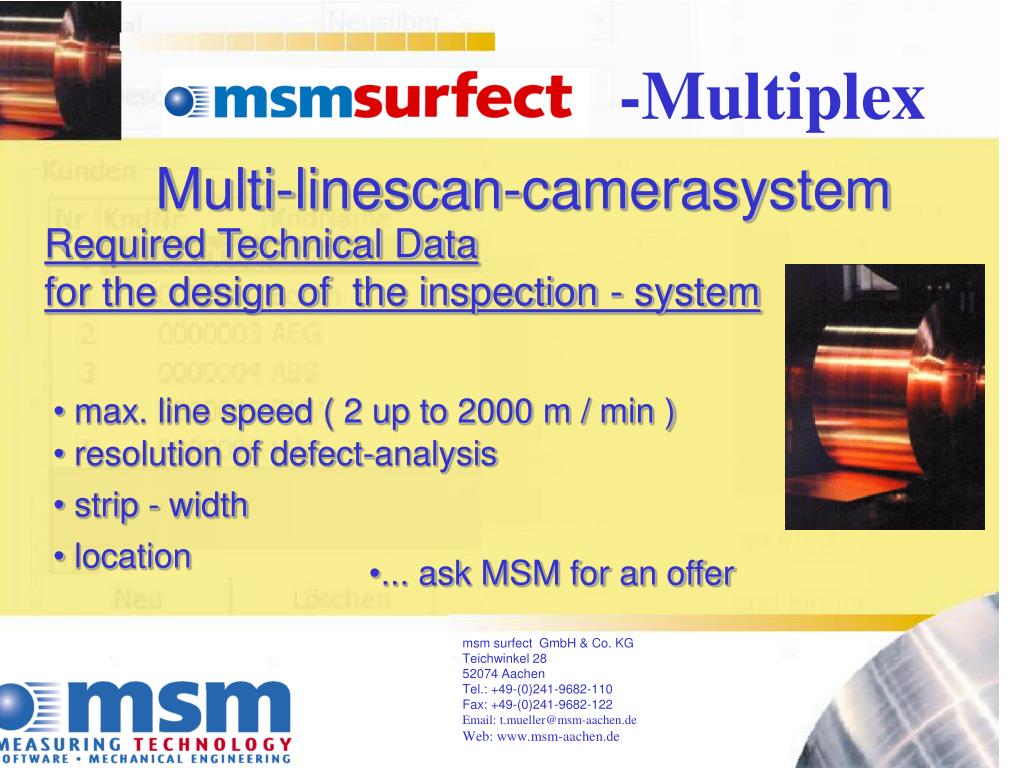

  1. -Multiplex Multi-linescan-camerasystem Required Technical Data for the design of the inspection - system • max. line speed ( 2 up to 2000 m / min ) • resolution of defect-analysis • strip - width • location • ... ask MSM for an offer msm surfect GmbH & Co. KG Teichwinkel 28 52074 Aachen Tel.: +49-(0)241-9682-110 Fax: +49-(0)241-9682-122 Email: t.mueller@msm-aachen.de Web: www.msm-aachen.de

  2. Fig. 1 scheme Surfect Z

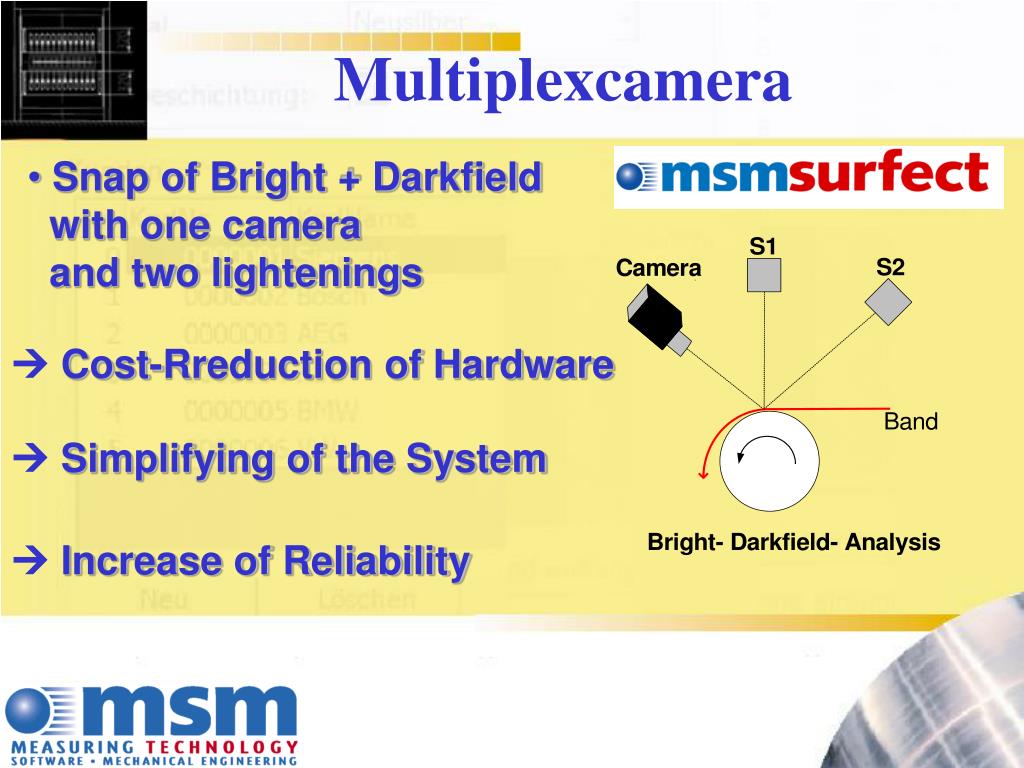

  3. Multiplexcamera • Snap of Bright + Darkfield with one camera • and two lightenings  Cost-Rreduction of Hardware  Simplifying of the System  Increase of Reliability
