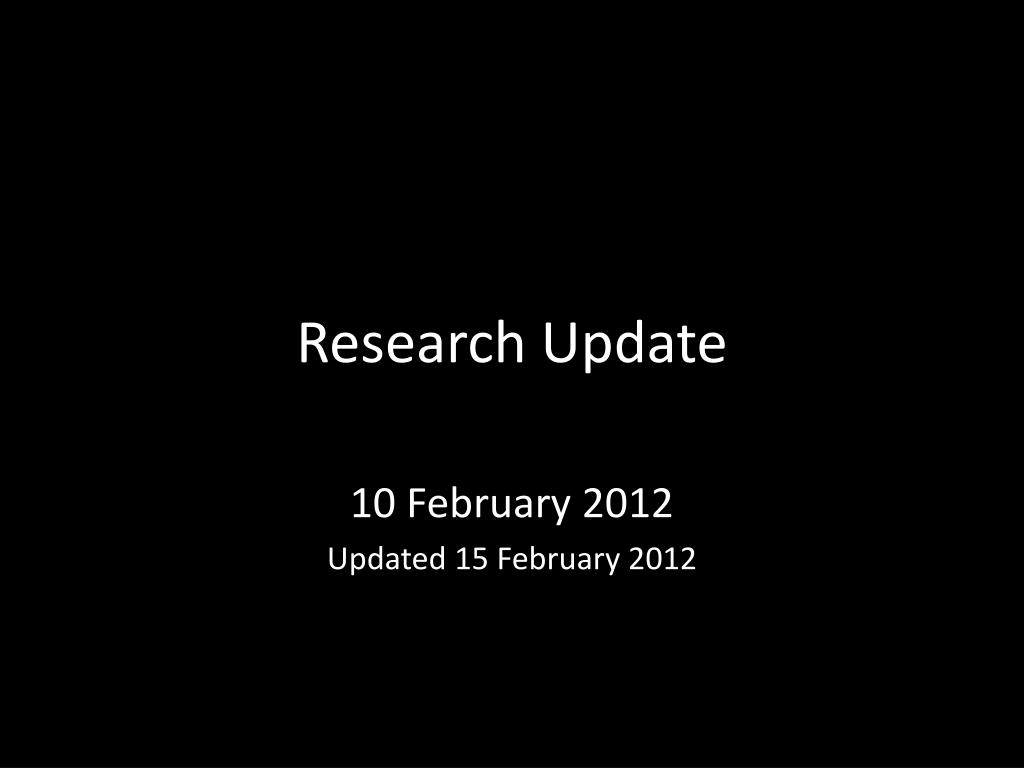

  1. Research Update 10 February 2012 Updated 15 February 2012

  2. Background • What is the reason for increased number of storm reports with the presence of an ALT? • Background conditions similar, ALT acts as trigger? • ALTs associated with increased CAPE?

  3. Procedure • Calculate MUCAPE at 6 different stations at 1800 UTC over the length of the climatology (n=1530) • Stations: CLT, RDU, LYH, RIC, IAD, PHL • Each is located in a different section of the domain (SW, SE, WC, EC, NW, NE) • MUCAPE is calculated from most unstable parcel in the lowest 180 hPa of the atmosphere • Dataset used: CFSR • Partitioned into ALT/Non–ALT based on whether or not an ALT was present at 1800 UTC

  4. CFSR NARR Whiskers: 10th and 90th percentile

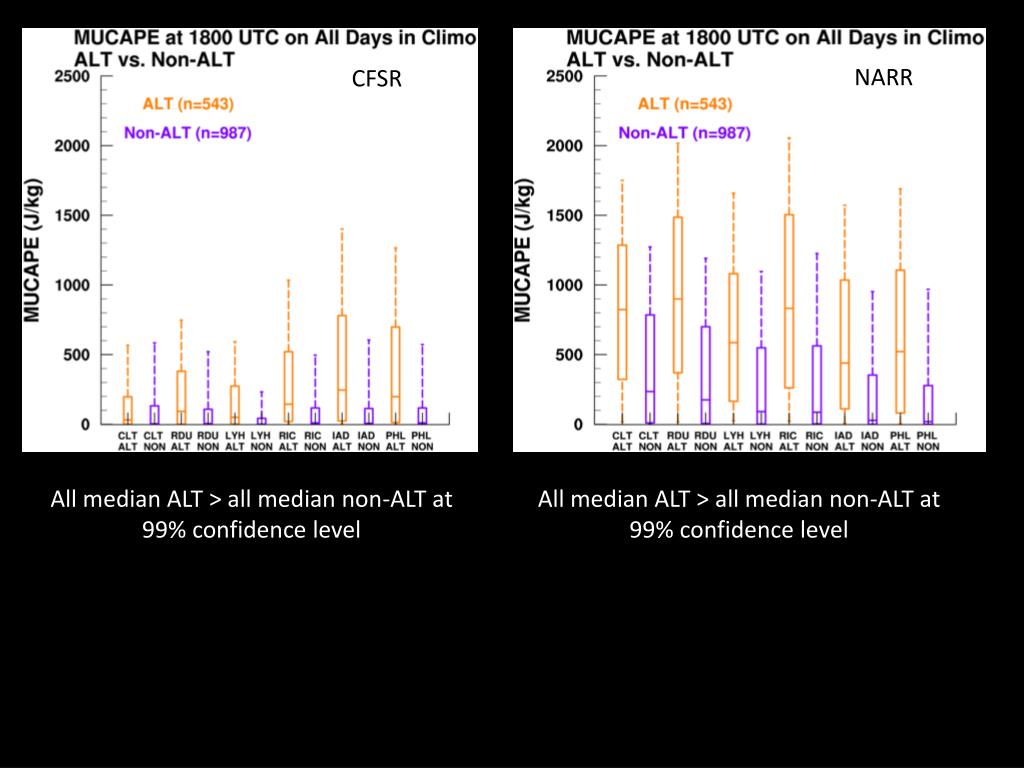

  5. CFSR NARR NARR All median ALT > all median non-ALT at 99% confidence level All median ALT > all median non-ALT at 99% confidence level Whiskers: 10th and 90th percentile

  6. CFSR NARR Whiskers: 10th and 90th percentile

  7. CFSR NARR Whiskers: 10th and 90th percentile

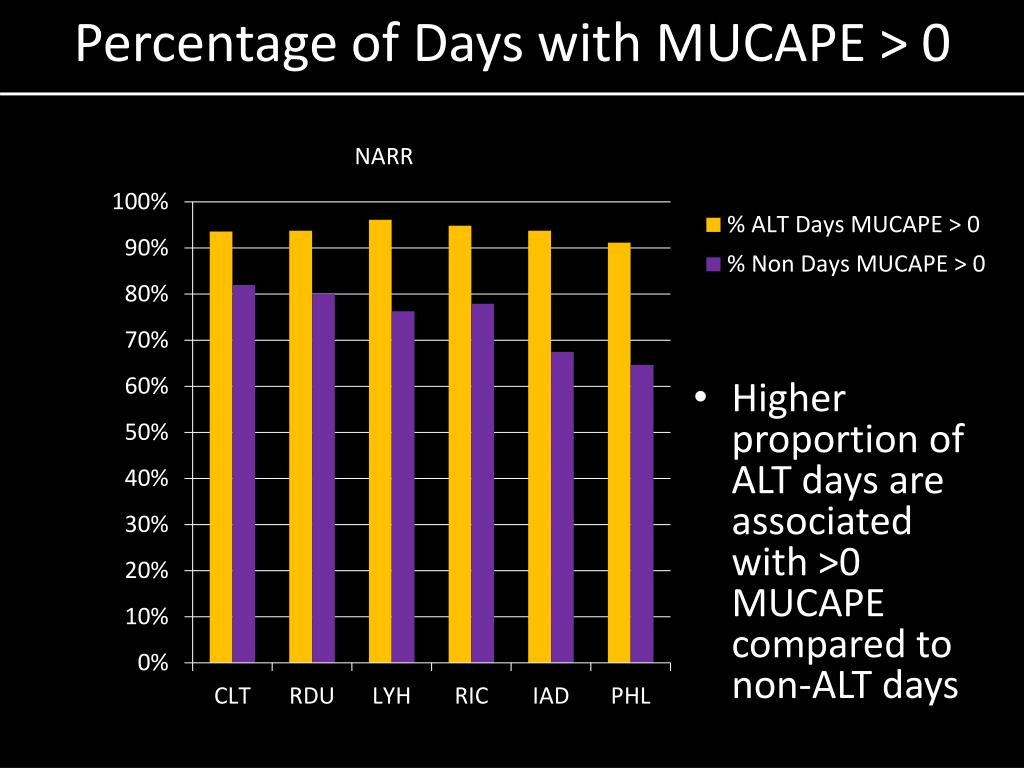

  8. Percentage of Days with MUCAPE > 0 NARR • Higher proportion of ALT days are associated with >0 MUCAPE compared to non-ALT days

  9. Whiskers: 10th and 90th percentile

  10. Whiskers: 10th and 90th percentile

  11. Percentage of Days with MUCAPE > 100 • Higher proportion of ALT days are associated with >100 MUCAPE compared to non-ALT days

  12. Key Results / Further Questions • MUCAPE > 0 is more likely on ALT Days • Median MUCAPE is mostly higher on ALT Days, especially at RIC, IAD and PHL • Median MUCAPE and 75th/90th percentiles are highest at IAD and PHL • MUCAPE values themselves may be a little low – dataset issues? • Could this help explain the maximum in storm reports near IAD? • Why are ALTs associated with higher MUCAPE? • ALTs associated with higher low-level θe? • ALTs associated with steeper low to mid-level lapse rates?

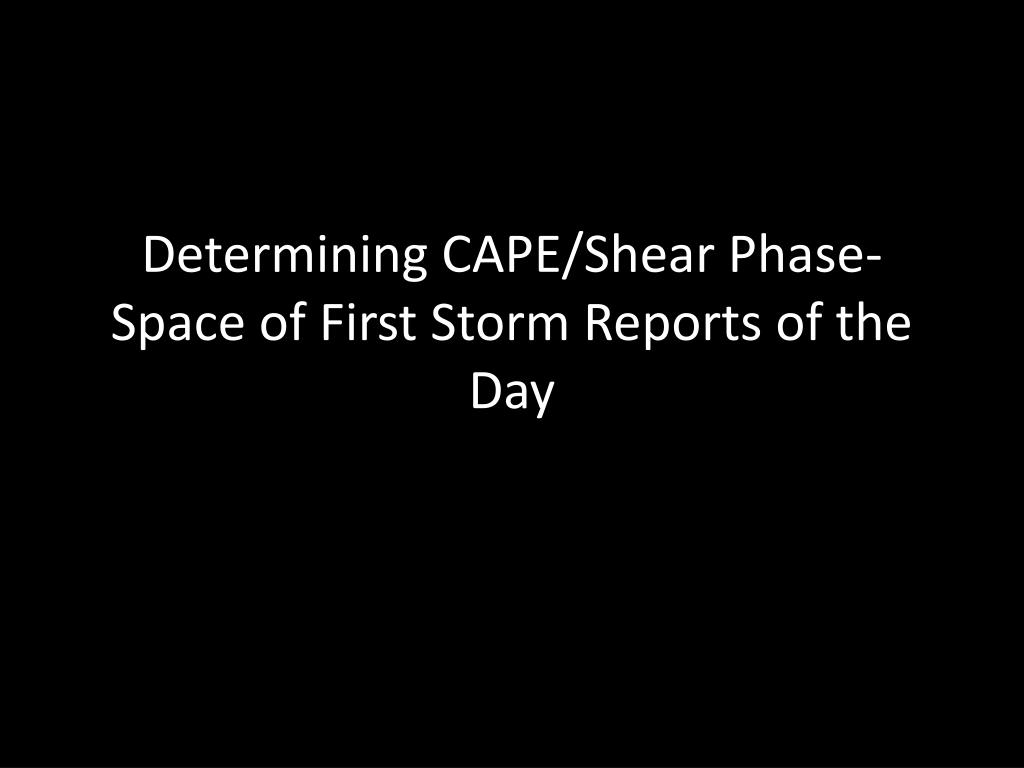

  13. Determining CAPE/Shear Phase-Space of First Storm Reports of the Day

  14. Objective • Determine CAPE/shear phase space in which severe thunderstorms in ALT Zone occur • This information could be useful to forecasters in determining if severe weather is expected

  15. Procedure • Find location and time of first severe report on a certain day (0400–0359 UTC) • Calculate MUCAPE and Sfc–500 hPa bulk shear at location of storm report using nearest NARR analysis time 0.5 to 3.5 hours prior to storm report (n=576) • First storm report occurred between 1530 and 0029 UTC on 76.3% of all days in climatology

  16. Problems from last time • Items (a), (b) and (c) are addressed in the following slides Email 13 Jan 2012

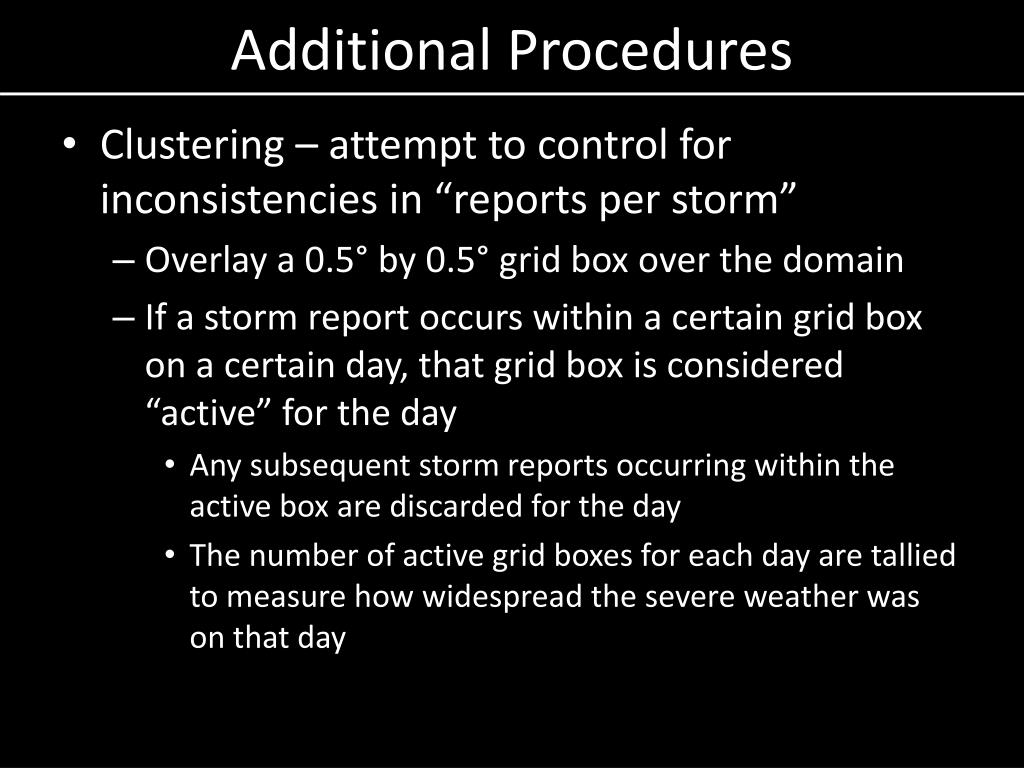

  17. Additional Procedures • Clustering – attempt to control for inconsistencies in “reports per storm” • Overlay a 0.5° by 0.5° grid box over the domain • If a storm report occurs within a certain grid box on a certain day, that grid box is considered “active” for the day • Any subsequent storm reports occurring within the active box are discarded for the day • The number of active grid boxes for each day are tallied to measure how widespread the severe weather was on that day

  18. 1st Report CAPE/Shear by Active Grid Boxes • Some evidence for higher MUCAPE/shear on highly convectively active days, but not likely to be a statistically significant difference

  19. Additional Procedures • Subsectioning – attempt to control for CAPE/shear of first storm report not being representative of environment in which most storm reports occur NORTH CENTER SOUTH

  20. North sector shows a higher proportion of days with greater areal coverage of convection

  21. South sector peaks earlier (1800 UTC) than north sector (2000 UTC) • Center sector has flat peak between 1800–2100 UTC

  22. 1st Report CAPE/Shear by Sectors

  23. 1st Report CAPE/Shear by Intervals of Active Grid Boxes per Day – North Sector • Not much to distinguish days with/without large areal coverage of severe weather

  24. 1st Report CAPE/Shear by Intervals of Active Grid Boxes per Day – Center Sector • Not much to distinguish days with/without large areal coverage of severe weather

  25. 1st Report CAPE/Shear by Intervals of Active Grid Boxes per Day – South Sector • Not much to distinguish days with/without large areal coverage of severe weather

  26. Few first storm reports occurred in this phase-space

  27. Few first storm reports occurred in this phase-space

  28. No first storm reports occurred in this phase-space

  29. 1st Report CAPE/Shear by Month – South Sector • Monthly variability exists in CAPE/shear of first storm reports

  30. 1st Report CAPE/Shear by Month – Center Sector • Monthly variability exists in CAPE/shear of first storm reports

  31. 1st Report CAPE/Shear by Month – North Sector • Monthly variability exists in CAPE/shear of first storm reports

  32. 1st Report CAPE/Shear by Intervals of Active Grid Boxes per Day – Center Sector, Jun, Jul, Aug • Even when broken up by month, still not much to distinguish days with/without large areal coverage of severe weather

  33. 1st Report CAPE/Shear by Intervals of Active Grid Boxes per Day – Center Sector, May & Sep • Some evidence of preference toward high shear/low CAPE during May and Sept., but “n” is small

  34. Key Results / Further Questions • Clustering/subsectioning approaches show: • North sector showed highest proportion of days with greater areal coverage of severe reports • North (south) sector has a peak in time of first severe report at 2000 (1800) UTC, with center sector showing a flat peak between 1800–2100 UTC • First storm reports in north (south) sector occur in environments of greater shear (CAPE), lesser CAPE (shear) than the other sectors • North sector shows an area on the CAPE/shear phase space where severe weather does not happen

  35. Key Results / Further Questions • Clustering/subsectioning approaches show: • In all sectors, median CAPE is higher in JJA, while median shear is higher in MS • Highest CAPE/lowest shear occurs in August in North/Central sectors; July/August in South sector • Boxplots show that CAPE/shear at first storm report is not a good indicator of how convectively active a particular day will be • Why? • Need dataset with better temporal resolution? • Background conditions are of less importance than the strength of forcing for ascent?

  36. Key Results / Further Questions • Given the background convective parameters of the ALT Zone, what is the role of the ALT/PFT in triggering convection in the ALT Zone? • We have seen that ALTs are associated with above-average MUCAPE, especially in the North Sector • Where does convection/severe weather occur with respect to the ALT/PFT? • What are the processes by which the ALT/PFT triggers/sustains/enhances convection?
