  1. Tekla Structures User Meeting 2008 Custom Components By: Glen Hutchinson

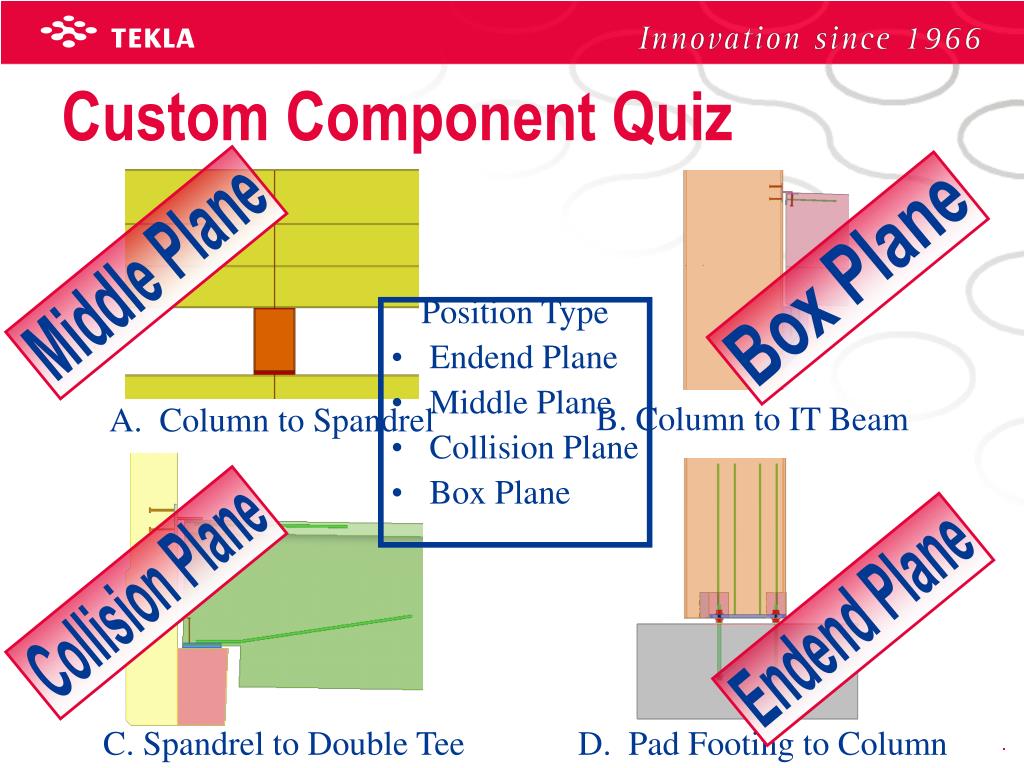

  2. Endend Plane Box Plane Collision Plane Middle Plane Custom Component Quiz • Position Type • Endend Plane • Middle Plane • Collision Plane • Box Plane B. Column to IT Beam A. Column to Spandrel C. Spandrel to Double Tee D. Pad Footing to Column

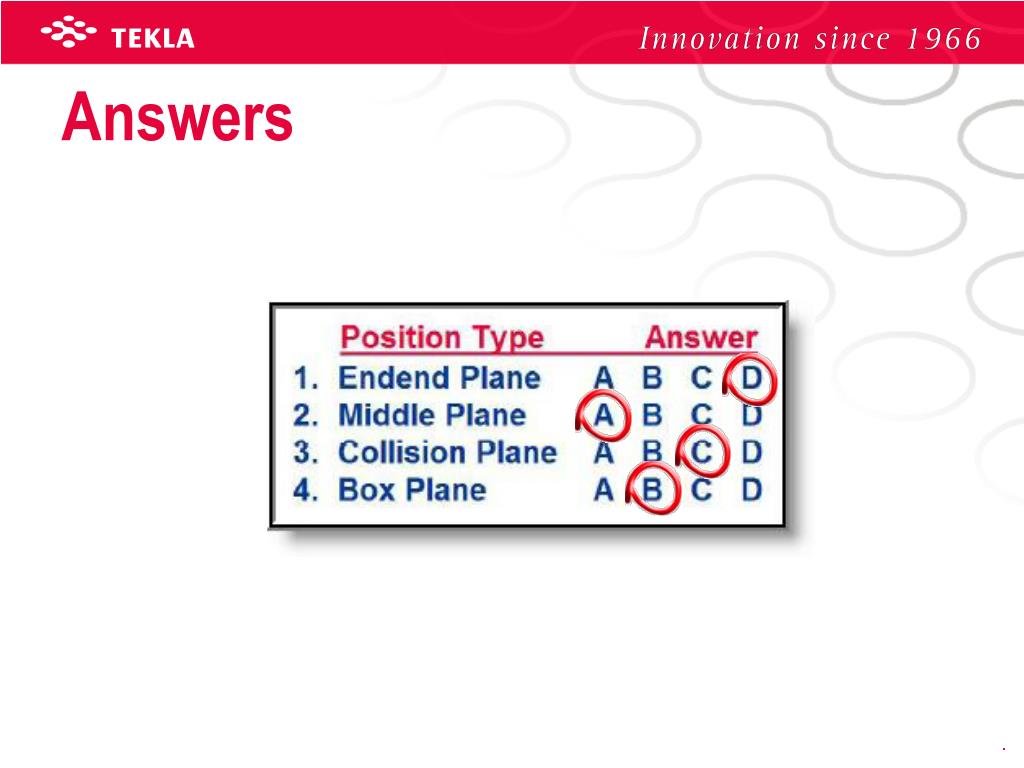

  3. Answers

  4. Custom Components Quiz • Middle Plane A. Column to Spandrel

  5. Custom Components Quiz • Box Plane B. Column to IT Beam

  6. Custom Components Quiz • Collision Plane

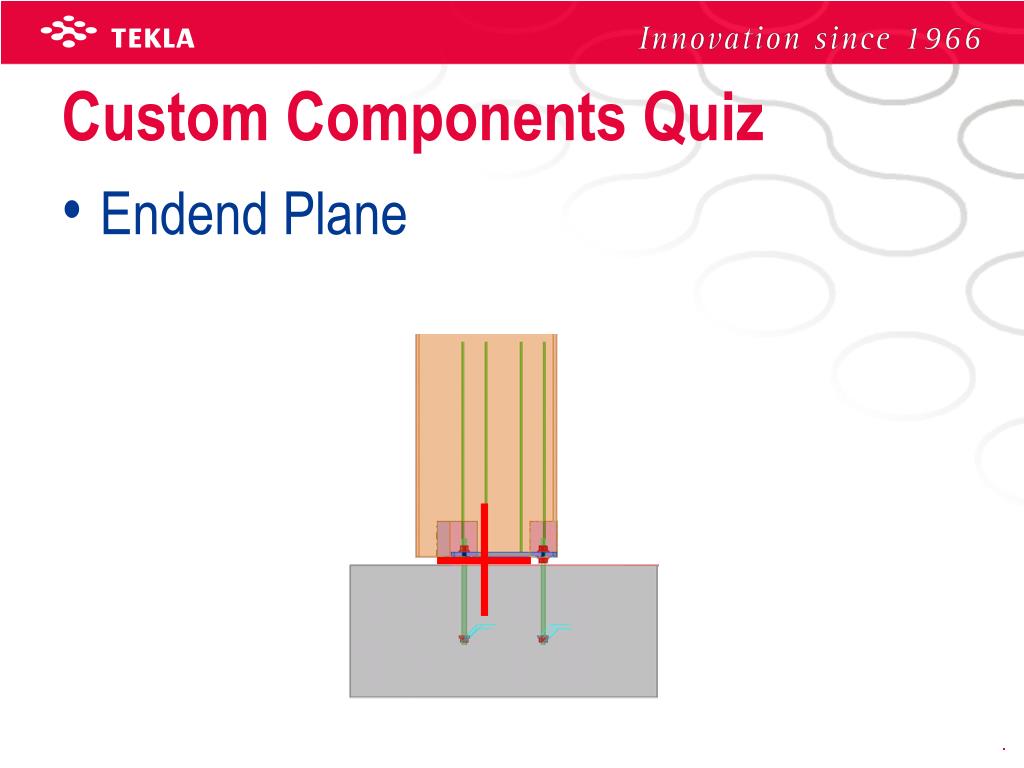

  7. Custom Components Quiz • Endend Plane

  8. Custom Components Agenda • CC’s and Database Size • ASCII Files • Create an ASCII file • CC .INP Backup • CC Location • Best Practices

  9. CC’s & Database Size V13.1 < x 2,000 = 20,000 attributes

  10. CC’s & Database Size V14.0 > • On average, 5 are not default • Store 10,000 Attributes • 50% less

  11. ASCII Files • ASCII simple text file • American Standard Code for Information Interchange • Tab delimited Columns

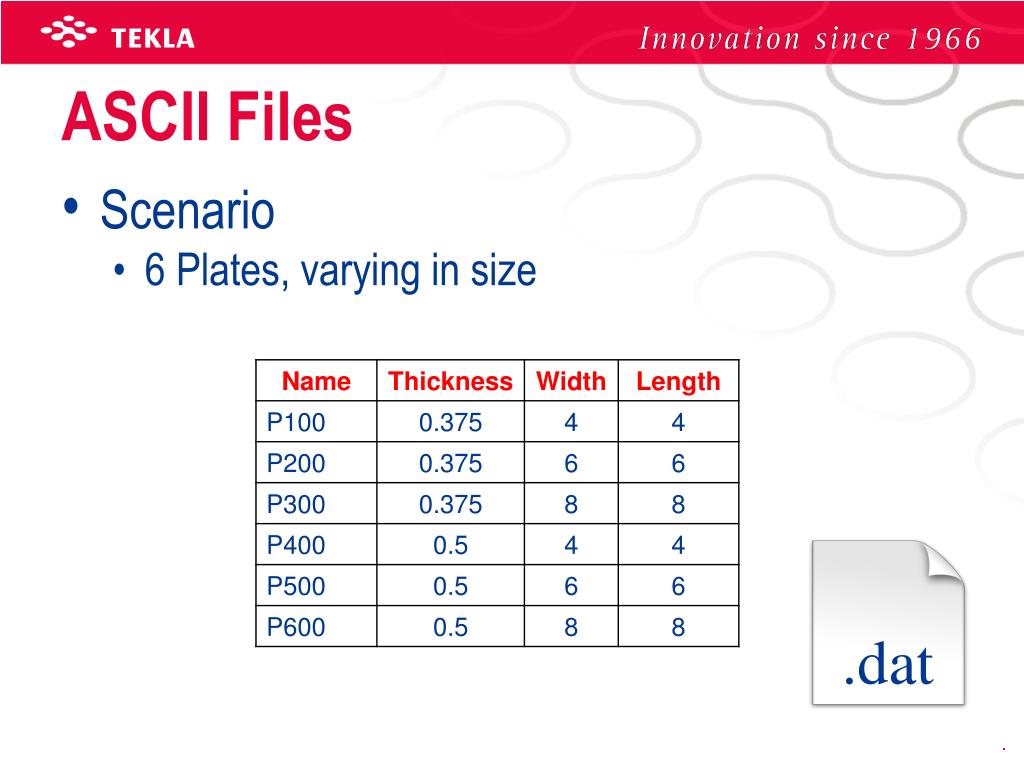

  12. .dat ASCII Files • Scenario • 6 Plates, varying in size

  13. ASCIIDemo

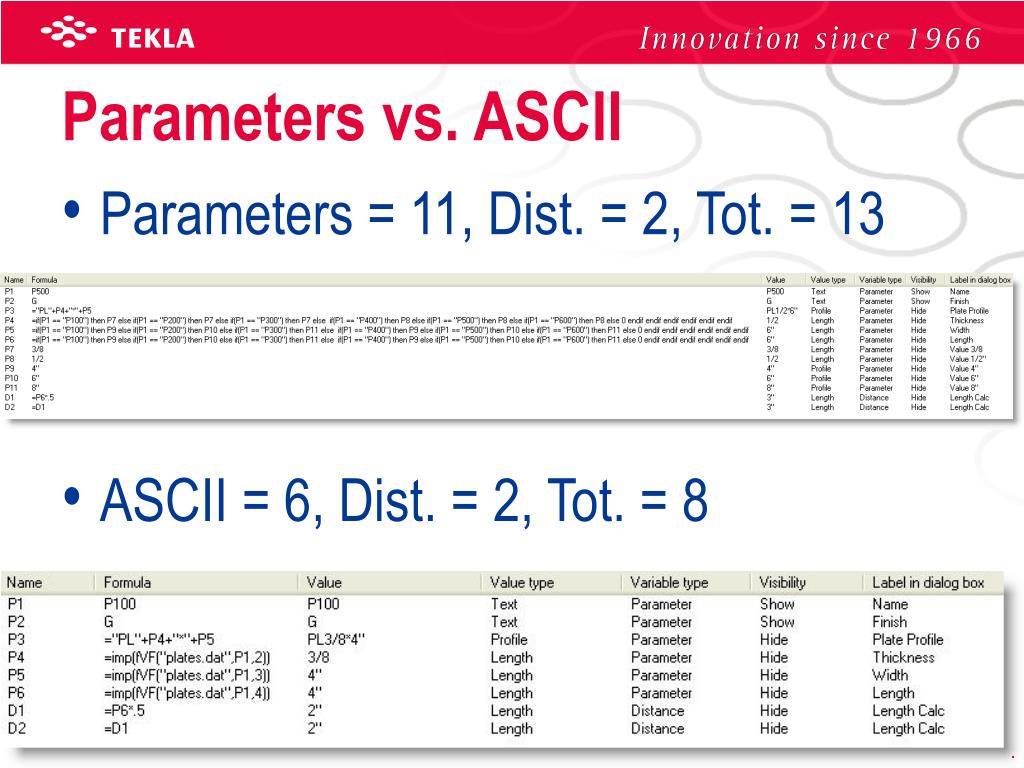

  14. Parameters vs. ASCII • Parameters = 11, Dist. = 2, Tot. = 13 • ASCII = 6, Dist. = 2, Tot. = 8

  15. Benefits of using ASCII • Modifying the CC is much Easier • Don’t have to mess with the .inp files • Adding Variables, much easier • The R&C are organized, table • Less attributes in the model

  16. .inp.bak .inp Custom Component .INP • Save a Custom Component an .inp • Also a .inp.bak • Useful when creating CC’s that contain pictures in them.

  17. CC Location • Model folders contain CustomComponentsDialogFiles • All CC .inp and .inp.bak are stored MODEL

  18. Best Practices • Keep It Light • Only Bind objects that you have to • Keep intelligence to a minimum • Keep It Simple • Don’t detail every little thing • Model only what you have to, so you can understand what the object is in the drawings.

  19. Old New Tips and Tricks • Add a line separating the variables CC • Edit the ***.inp located in CustomComponentsDialogFiles • Change number • Save ***.inp • Reopen the Model

  20. Tips and Tricks • Protect CC’s with a Password • Name = Password • Type =Text • Value = Your Password • Cannot be edited without the Password

  21. Thank You
