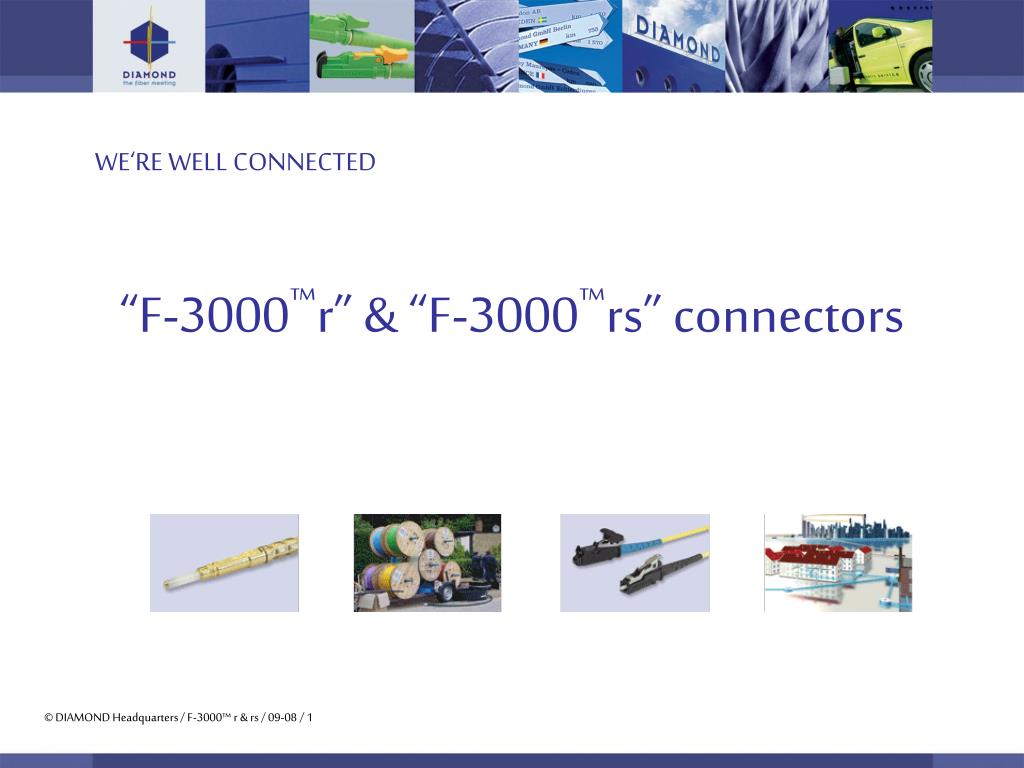

  1. “F-3000™r” & “F-3000™rs” connectors

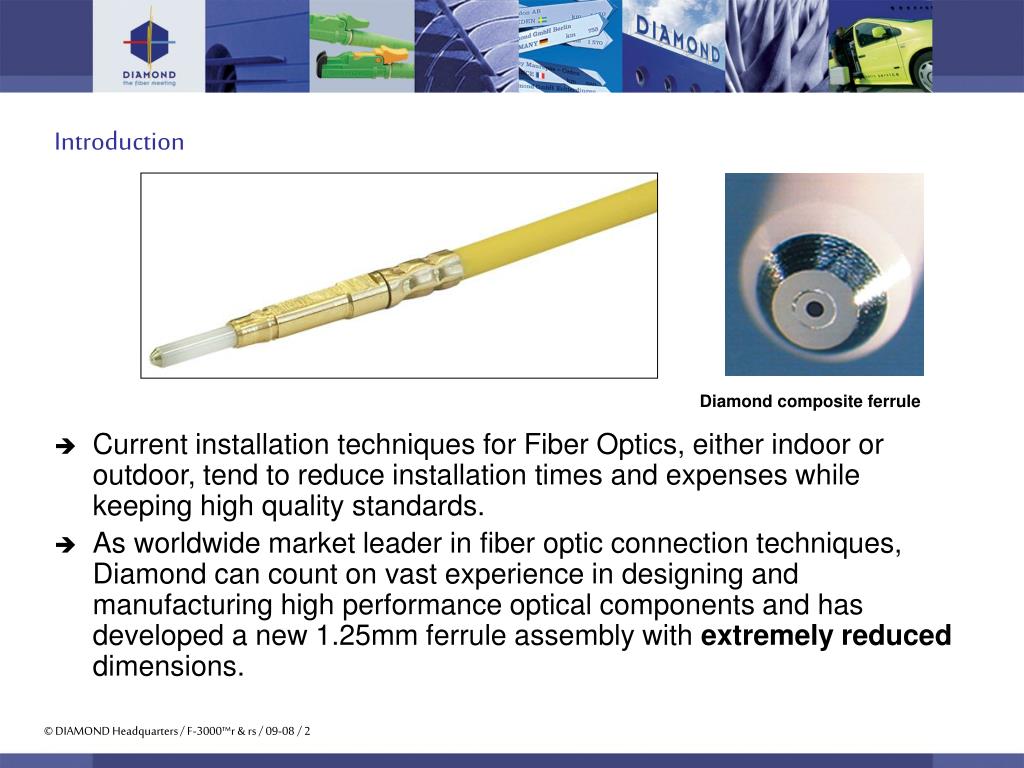

  2. Introduction • Current installation techniques for Fiber Optics, either indoor or outdoor, tend to reduce installation times and expenses while keeping high quality standards. • As worldwide market leader in fiber optic connection techniques, Diamond can count on vast experience in designing and manufacturing high performance optical components and has developed a new 1.25mm ferrule assembly with extremely reduced dimensions. Diamond composite ferrule

  3. Applications • This new compact pre-connectorized system is suitable to be blown into microducts, or to terminate Break-out cables of very reduced dimensions for easier installation into small ducts instead of using standard Break-out cables. • This system offers an easy and reliable solution to perform FTTx, LAN, Data processing Networks, Telecommunication Networks and other installations.

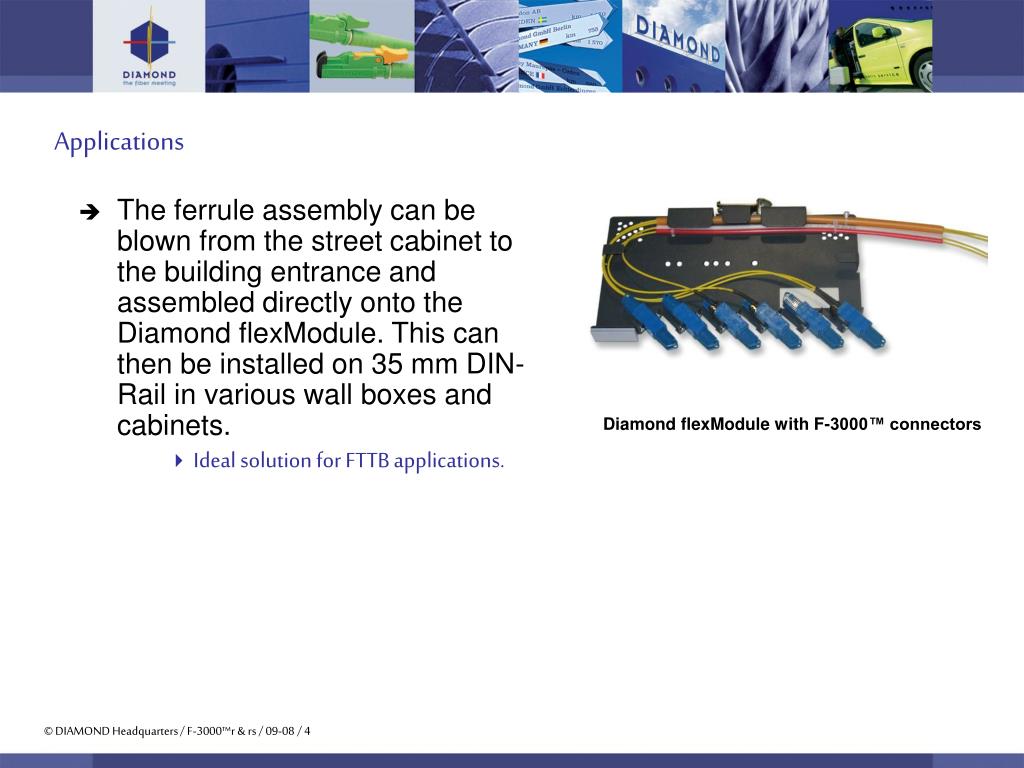

  4. Applications • The ferrule assembly can be blown from the street cabinet to the building entrance and assembled directly onto the Diamond flexModule. This can then be installed on 35 mm DIN-Rail in various wall boxes and cabinets. • Ideal solution for FTTB applications. Diamond flexModule with F-3000™ connectors

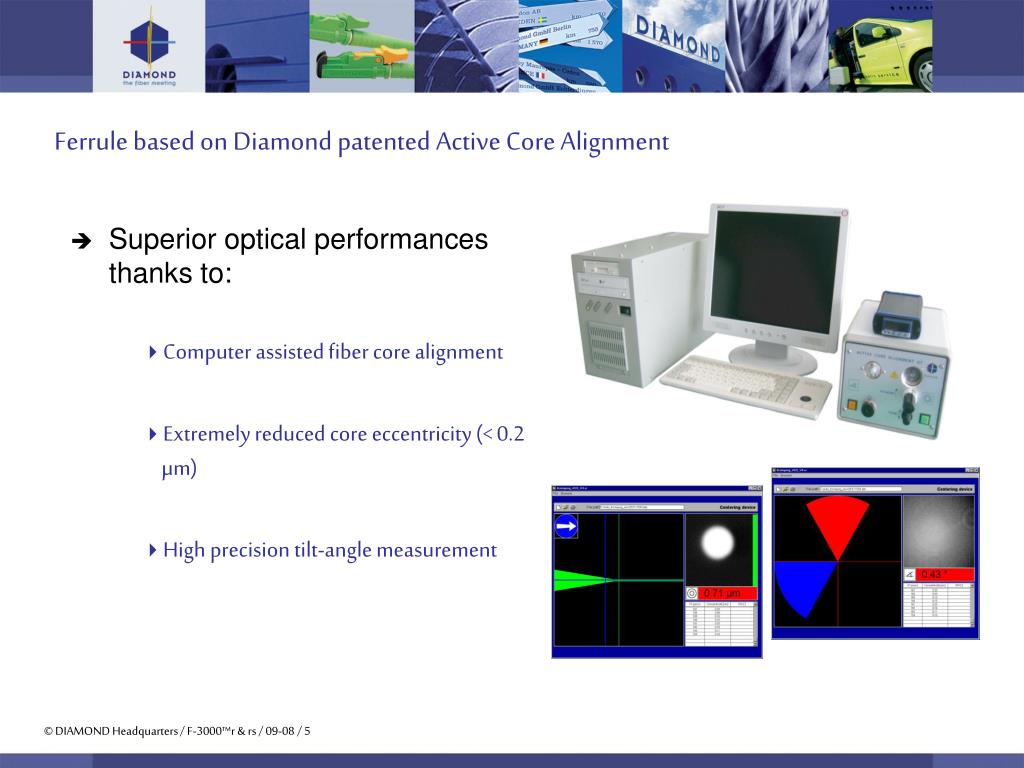

  5. Superior optical performances thanks to: Computer assisted fiber core alignment Extremely reduced core eccentricity (< 0.2 µm) High precision tilt-angle measurement Ferrule based on Diamond patented Active Core Alignment

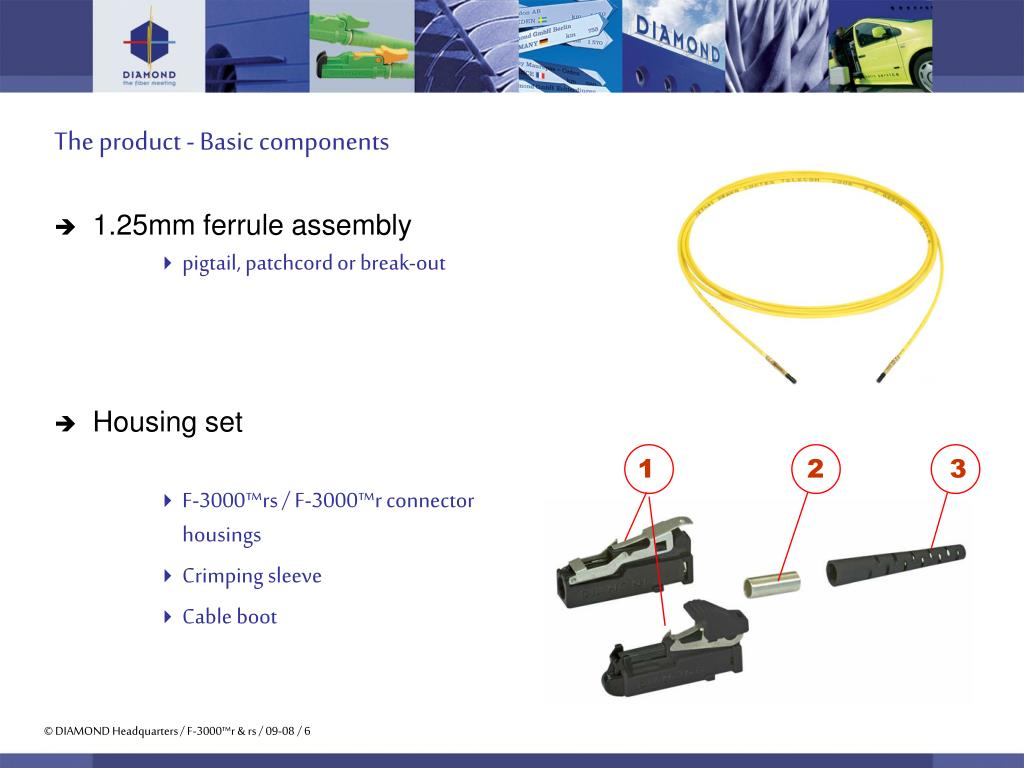

  6. 1.25mm ferrule assembly pigtail, patchcord or break-out Housing set F-3000™rs / F-3000™r connector housings Crimping sleeve Cable boot The product - Basic components 1 2 3

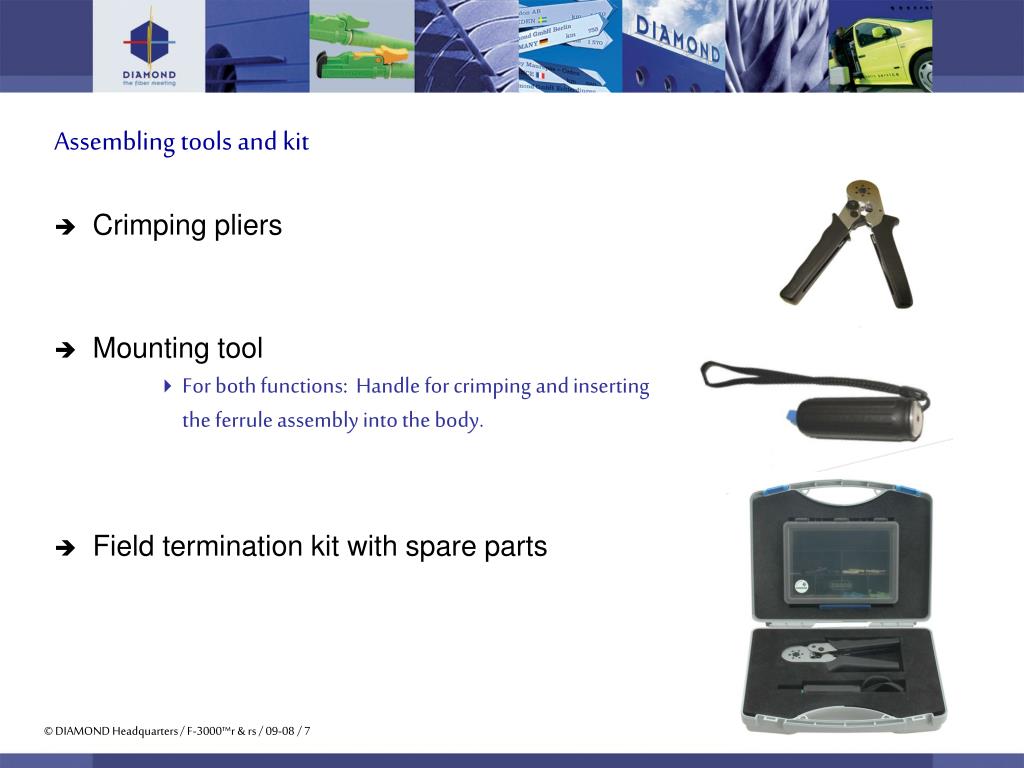

  7. Crimping pliers Mounting tool For both functions: Handle for crimping and inserting the ferrule assembly into the body. Field termination kit with spare parts Assembling tools and kit

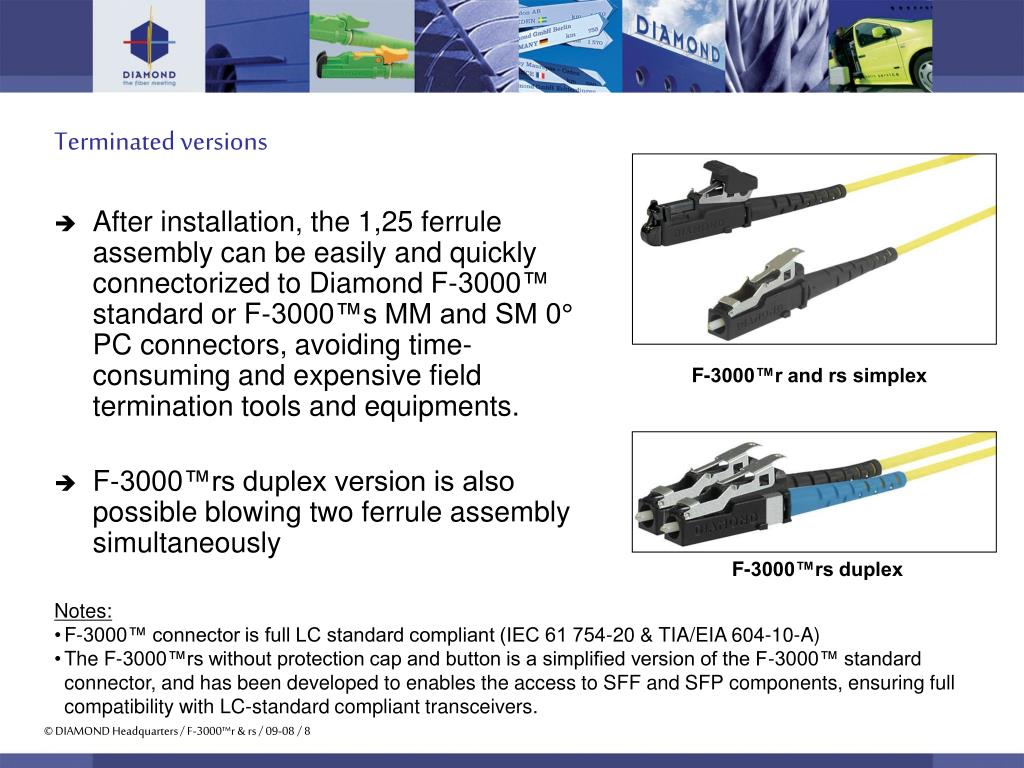

  8. After installation, the 1,25 ferrule assembly can be easily and quickly connectorized to Diamond F-3000™ standard or F-3000™s MM and SM 0° PC connectors, avoiding time-consuming and expensive field termination tools and equipments. F-3000™rs duplex version is also possible blowing two ferrule assembly simultaneously Terminated versions F-3000™r and rs simplex F-3000™rs duplex • Notes: • F-3000™ connector is full LC standard compliant (IEC 61 754-20 & TIA/EIA 604-10-A) • The F-3000™rs without protection cap and button is a simplified version of the F-3000™ standard connector, and has been developed to enables the access to SFF and SFP components, ensuring full compatibility with LC-standard compliant transceivers.

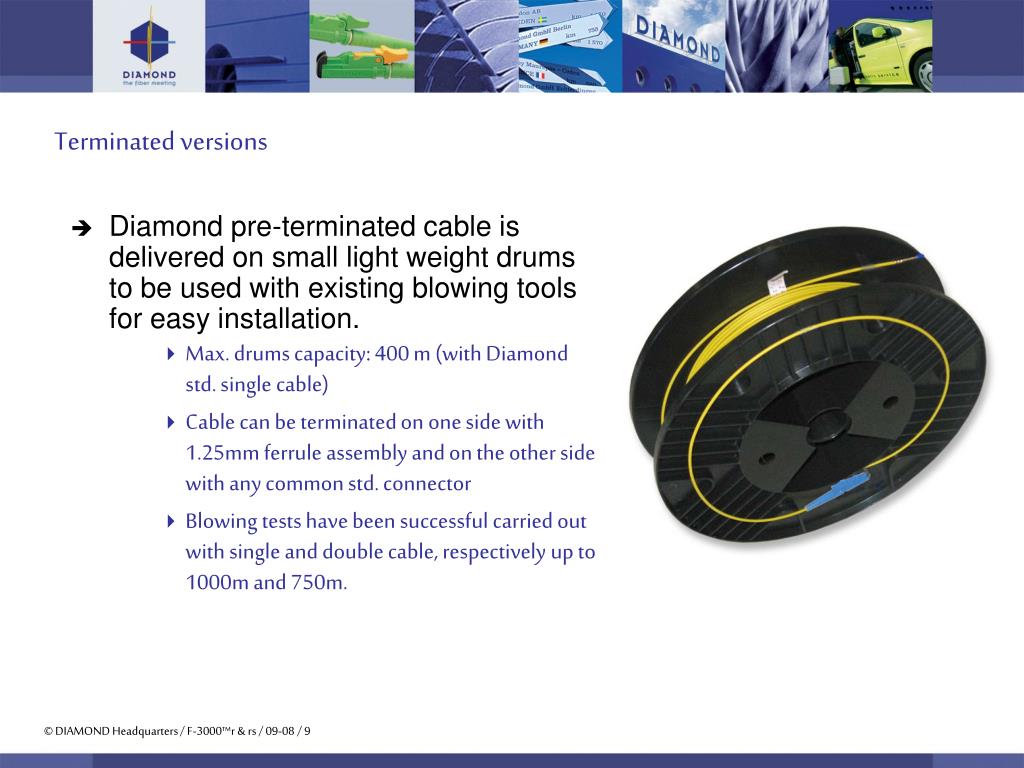

  9. Terminated versions • Diamond pre-terminated cable is delivered on small light weight drums to be used with existing blowing tools for easy installation. • Max. drums capacity: 400 m (with Diamond std. single cable) • Cable can be terminated on one side with 1.25mm ferrule assembly and on the other side with any common std. connector • Blowing tests have been successful carried out with single and double cable, respectively up to 1000m and 750m.

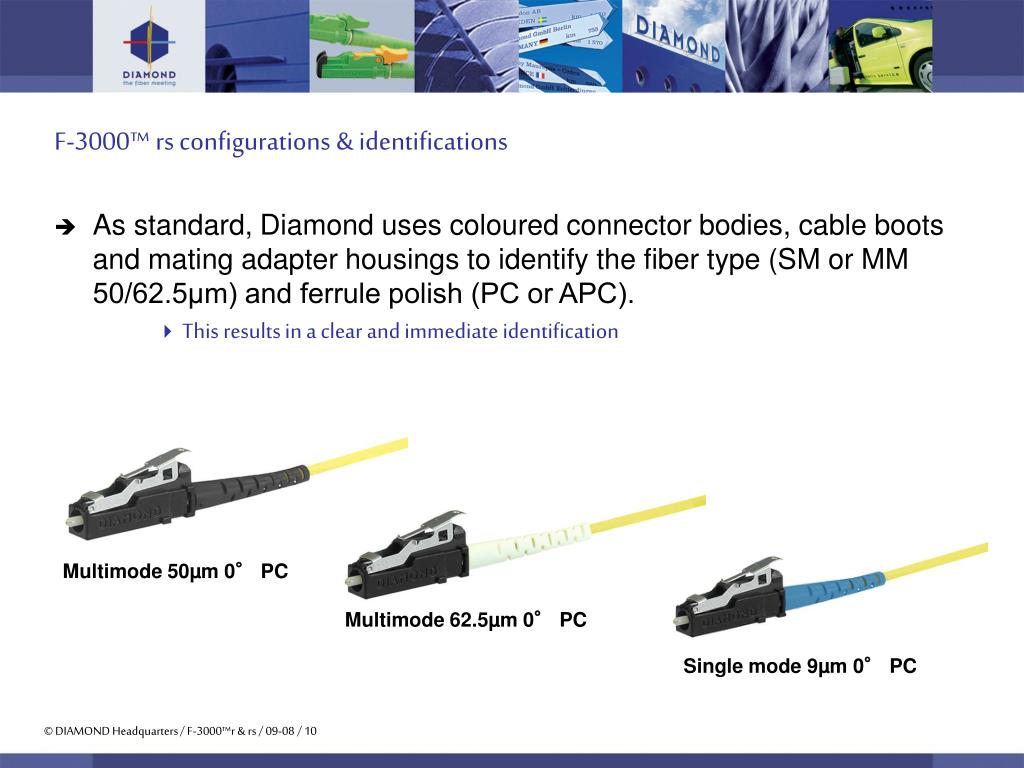

  10. F-3000™ rs configurations & identifications • As standard, Diamond uses coloured connector bodies, cable boots and mating adapter housings to identify the fiber type (SM or MM 50/62.5μm) and ferrule polish (PC or APC). • This results in a clear and immediate identification Multimode 50µm 0° PC Multimode 62.5µm 0° PC Single mode 9µm 0° PC

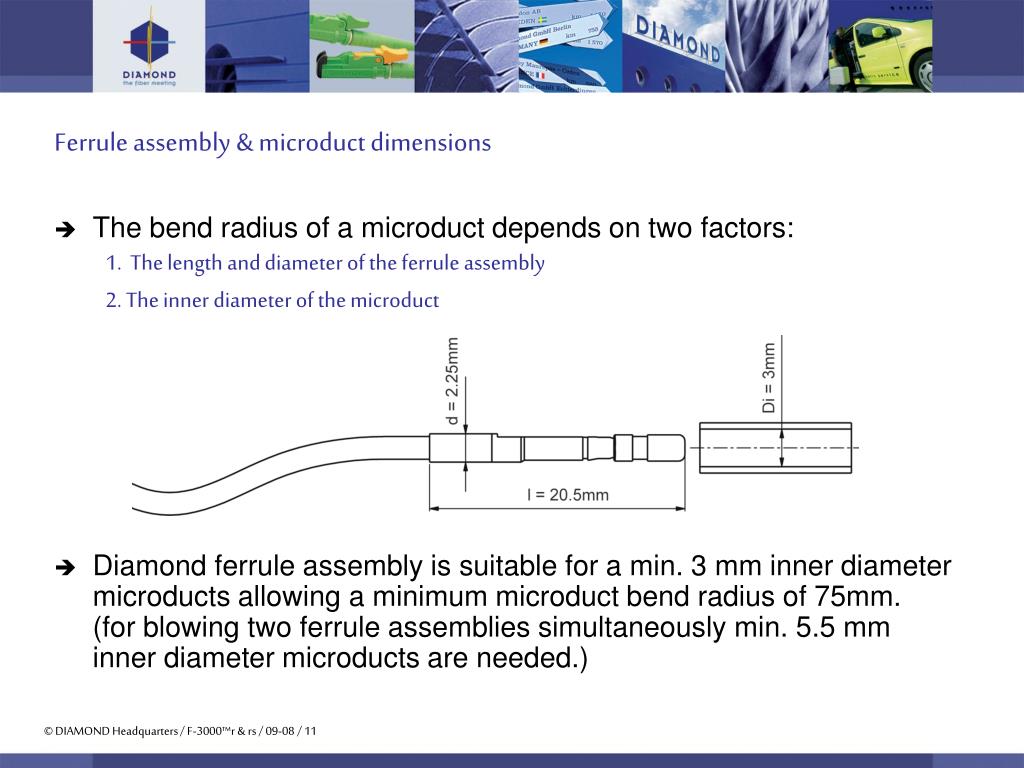

  11. Ferrule assembly & microduct dimensions • The bend radius of a microduct depends on two factors: • 1. The length and diameter of the ferrule assembly • 2. The inner diameter of the microduct • Diamond ferrule assembly is suitable for a min. 3 mm inner diameter microducts allowing a minimum microduct bend radius of 75mm. (for blowing two ferrule assemblies simultaneously min. 5.5 mm inner diameter microducts are needed.)

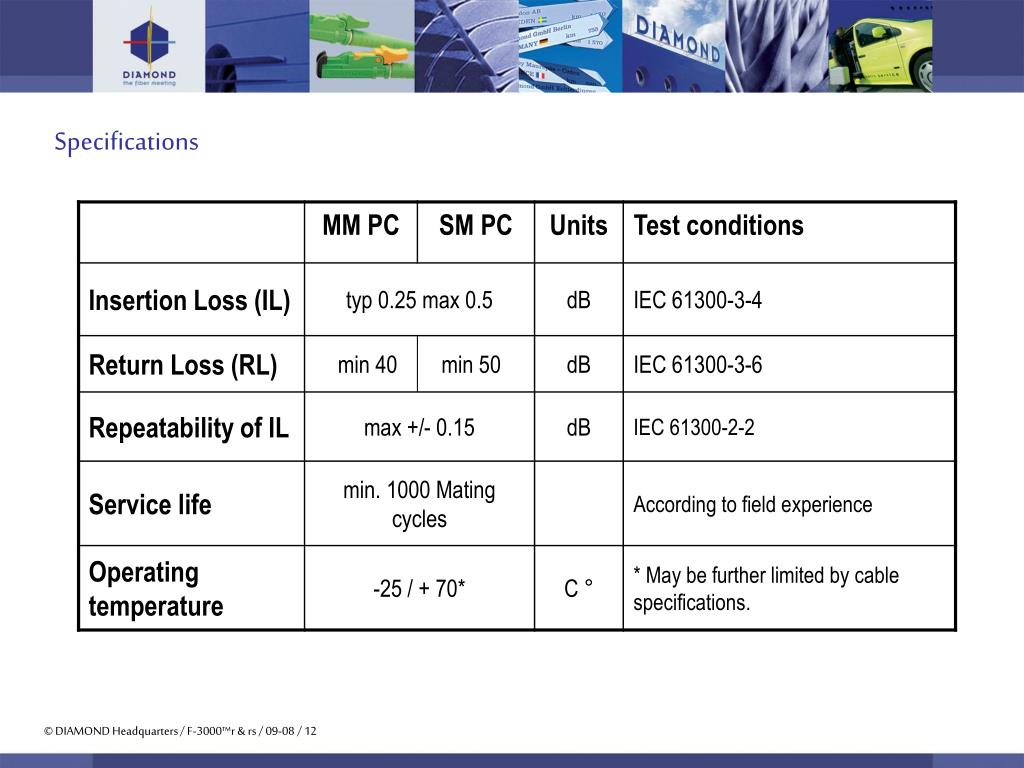

  12. Specifications

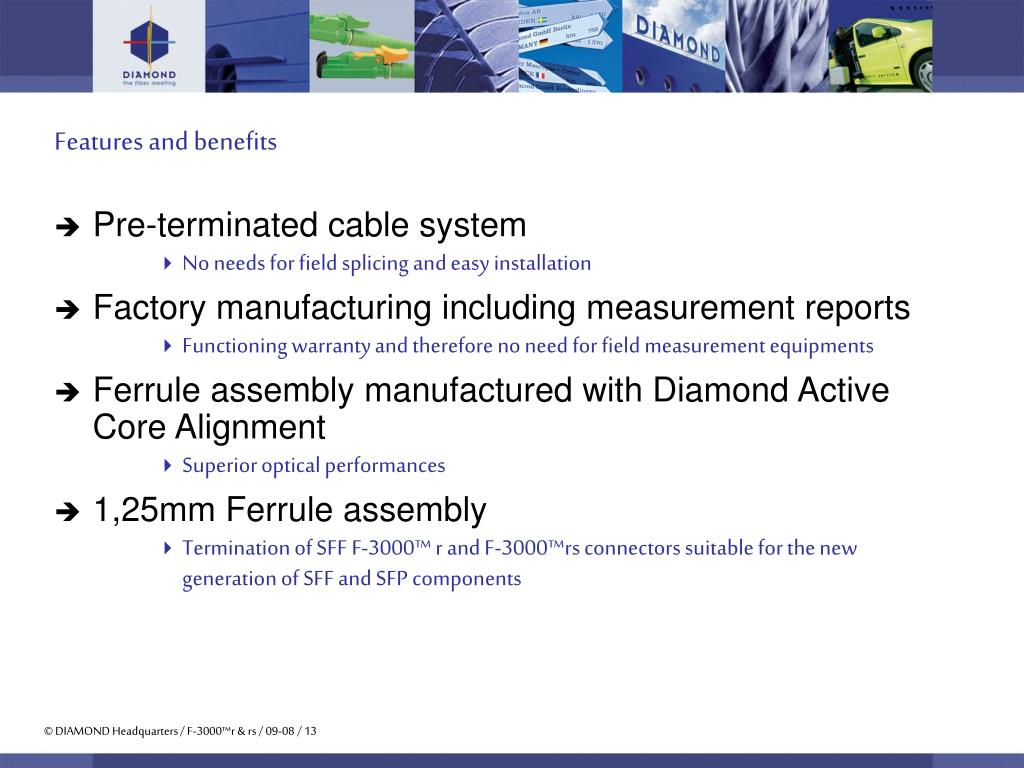

  13. Features and benefits • Pre-terminated cable system • No needs for field splicing and easy installation • Factory manufacturing including measurement reports • Functioning warranty and therefore no need for field measurement equipments • Ferrule assembly manufactured with Diamond Active Core Alignment • Superior optical performances • 1,25mm Ferrule assembly • Termination of SFF F-3000™ r and F-3000™rs connectors suitable for the new generation of SFF and SFP components
