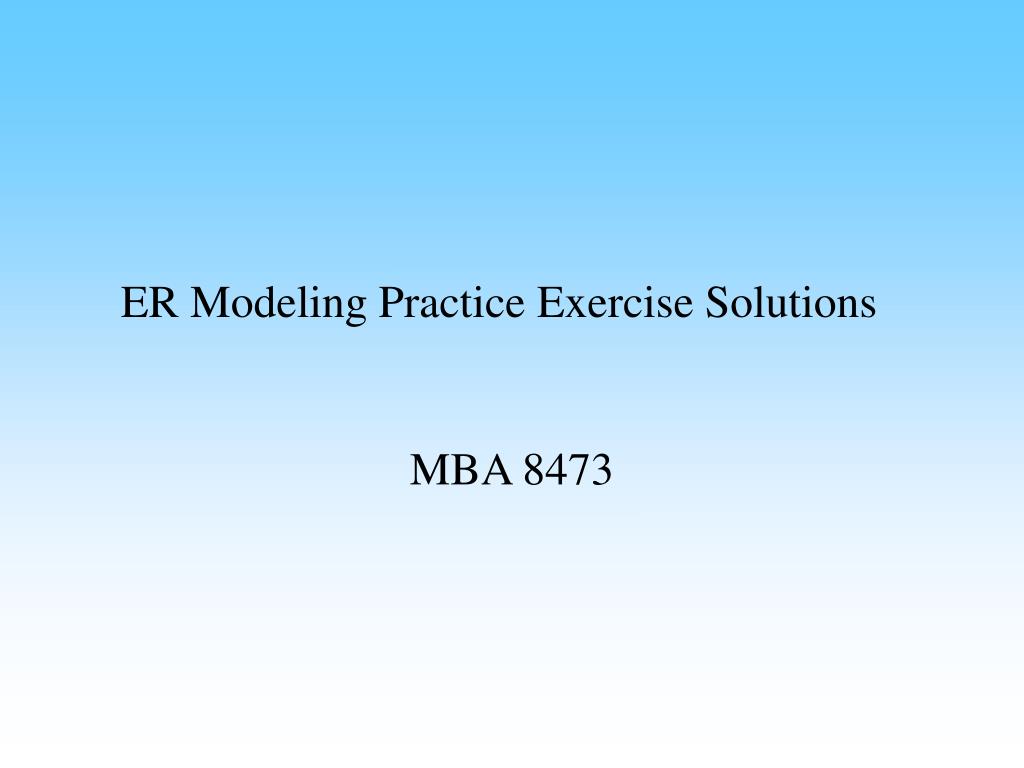

  1. ER Modeling Practice Exercise Solutions MBA 8473

  2. PROBLEM 1. (This is just one way of doing this problem. Other versions are possible depending on what assumptions you make). ENTITIES: CAR VIN# ARRIVAL-DATE DEALER-PRICE PRE-OWNED SELL-TIME-STAMP ... • ASSUMPTIONS: • (It will be beneficial to think about what a ‘car’ means • in this situation. Is it a car? Or, is it a sold-car? Etc.) • VIN# provides unique identification • Year of make can be found from VIN# • PRE-OWNED is a yes/no attribute MODEL MODEL-TYPE START-DATE LAST RECALL ... • MODEL-TYPE is unique • We are going to capture only the latest • recall info • Etc. etc. CUSTOMER CUSTOMER-ID-NUMBER CUST1-F-NAME CUST1-L-NAME … • We do not want to use ss# as unique identifier • To be a customer in the database the person • should have bought at least one car. • Etc etc.

  3. PROBLEM 1 continued: ER Model CUSTOMER bought SOLD-CAR 0 Is bought by Can belong to Has a • Relationship related assumptions: • One customer can buy many cars over time • A car can be bought by one customer only • To be a customer one has to buy a car • A car can have only one model • Etc. Etc. MODEL

  4. PROBLEM 2.Note that the ERD solution for problem 1 can meet most of the requirements of problem 2 except the fact that we do not need model info for problem 2. Only kink in this problem was the use of USED-CARS and NEW-CARS. In this particular case it is convenient to capture that as an attribute called PRE-OWNED (yes/no) like I already did for problem 1. Another way to treat this in the ERD will be to recognize two sub-type entities viz., USED-CAR And NEW-CAR for a super entity called CAR. Can be done like this: CAR Is a USED-CAR NEW-CAR

  5. PROBLEM 3. (This is just one way of doing this problem. Other versions are possible depending on what assumptions you make). Partial solution only. ENTITIES: CUSTOMER SOFTWARE SOFTWARE-TYPE BETA-STAGE (all beta-stage types may not be used at a given point of time) SALES-AGENT PROMOTION (PROMOTION-TYPE+DATE is unique identifier) Hints for the relationships: Customer and Software – zero/many to zero/many Software-type and Beta-stage – one to one (assumption: a given software type can only be in a one beta) Customer and Sales-agent – (many to one) See P&G example from class notes. Promotions (are sent to ) Customers – Many to many. You should be able to fill the rest from this! SOFTWARE and SOFTWARETYPE – one/one to one/one

  6. PROBLEM 3 continued: ER Model Can buy CUSTOMER SOFTWARE Was a SOFTWARE-TYPE 0 0 0 Receives Is assigned to Can be in a 0 PROMOTIONS BETA-STAGE SALES-AGENT
