  1. DISTANCE AND MEASUREMENT Prepared by Selçuk NAS This presentation is required office XP

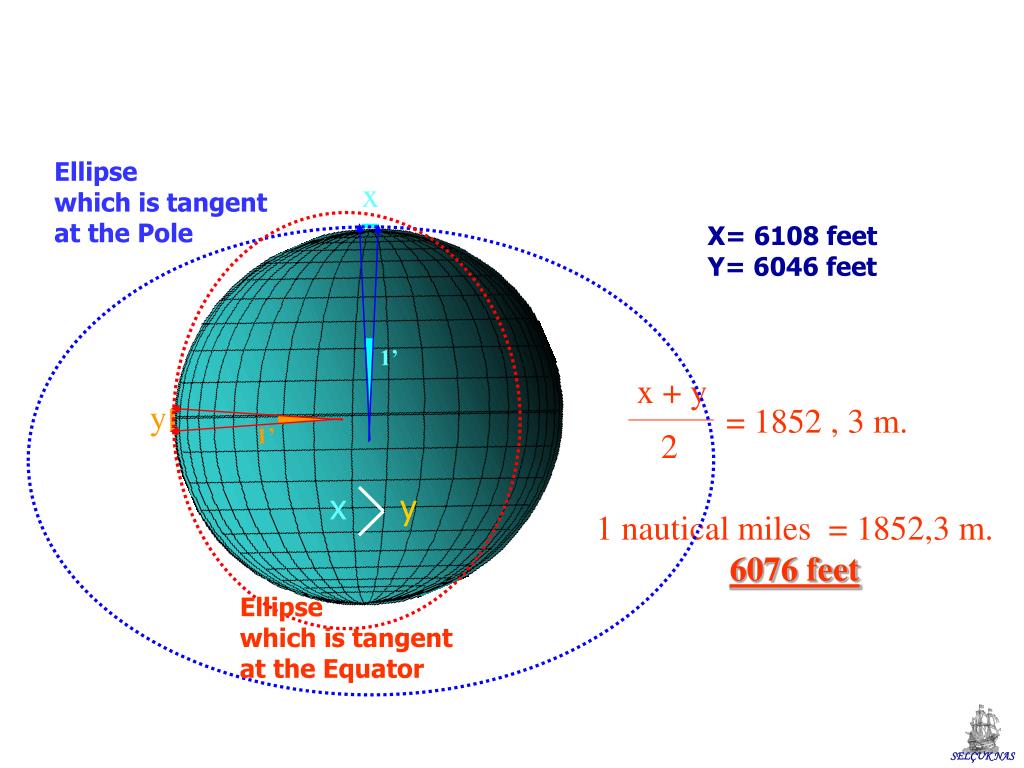

  2. x x + y xy = 1852 , 3 m. 2 1’ y 1’ 1 nautical miles = 1852,3 m. 6076 feet Ellipse which is tangent at the Pole X= 6108 feet Y= 6046 feet Ellipse which is tangent at the Equator

  3. 100 100 on equator = 10 x 60’ = 600’ = 600 Nautical Miles Stop it

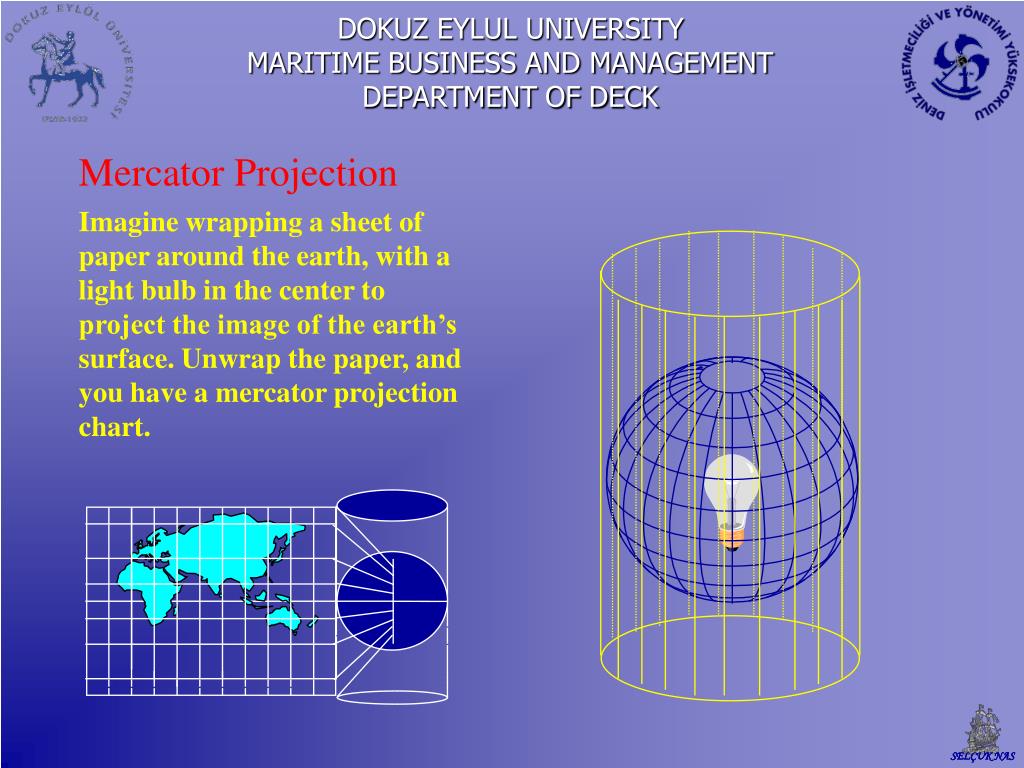

  4. SELÇUK NAS DOKUZ EYLUL UNIVERSITYMARITIME BUSINESS AND MANAGEMENTDEPARTMENT OF DECK Mercator Projection Imagine wrapping a sheet of paper around the earth, with a light bulb in the center to project the image of the earth’s surface. Unwrap the paper, and you have a mercator projection chart.

  5. DOKUZ EYLUL UNIVERSITYMARITIME BUSINESS AND MANAGEMENTDEPARTMENT OF DECK Great Circle - A circle formed on the surface of the earth by the intersection of a plane passing through the center of the earth, thereby dividing the earth into two equal parts.

  6. Composite Track 2495 NM San Diego Great Circle Route Rhumb Line 2730 NM Oahu, HI

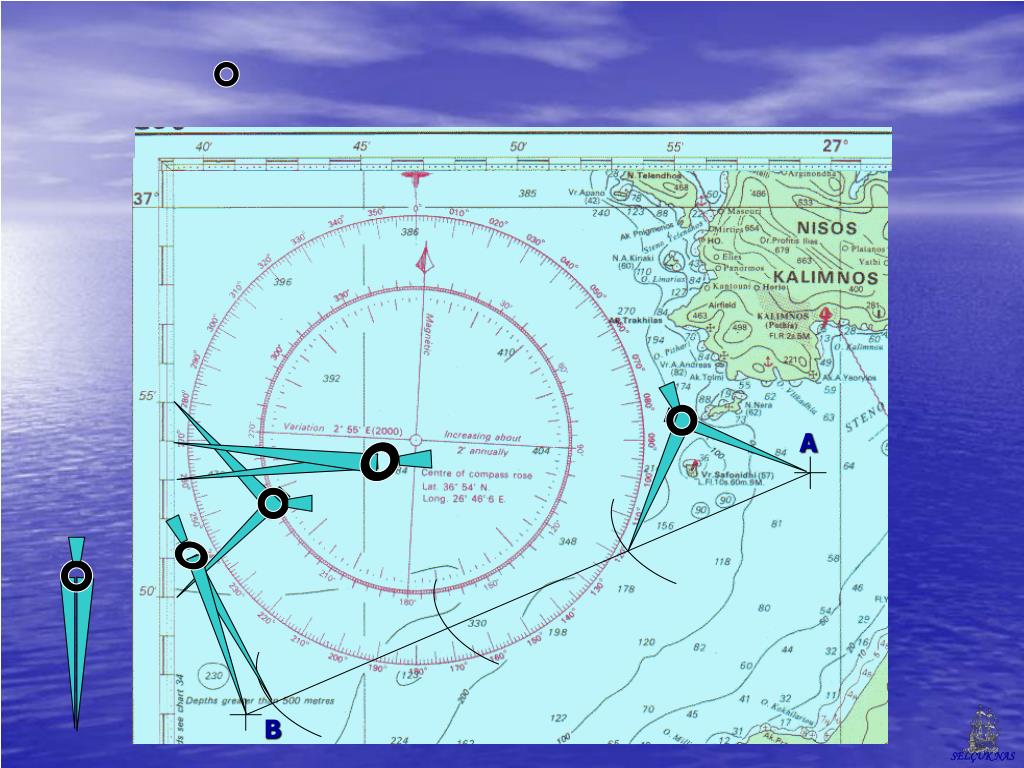

  7. A B

  8. 1 Deniz Mili (Nautical Miles): 1852,3 metre. 1 Deniz Mili : 2000 yarda (Yards) 1 Deniz Mili : 10 gomina (Cables) 1 Fit (Feet) : 30,48 cm. 1 Fit : 12 İnç (Inch) 1 İnç (Inch) : 2,54 cm. 1 Kulaç (Fathom) : 183 cm. 1 Kulaç : 6 Fit

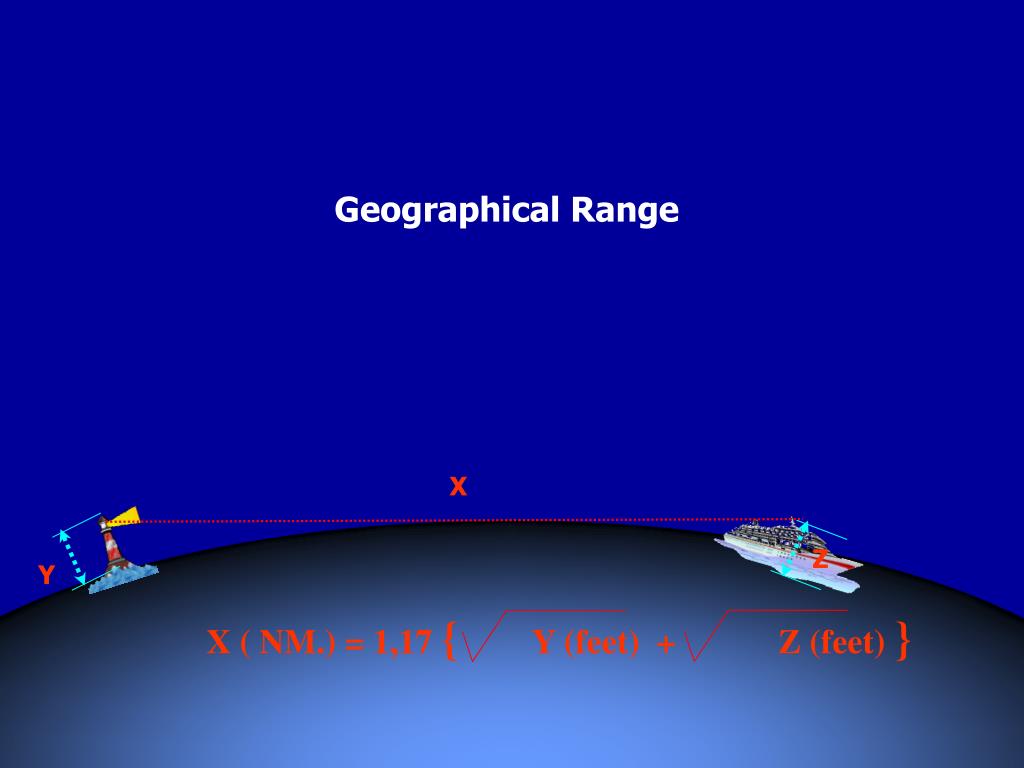

  9. X ( NM.) = 1,17 { Y (feet) + Z (feet) } Geographical Range X Z Y

  10. THIS PRESENTATION WAS PREPARED BY SELÇUK NAS E MAIL : snas@deu.edu.tr Mobile Phone : 0 532 331 51 31 Phone : 0 90 232 278 22 30 Address : Dokuz Eylul Universitesi, Deniz Isletmeciligi ve Yonetimi Yuksekokulu, Kaynaklar Yerleskesi, Buca, Izmir, TURKEY You can use all my product where ever you want.
