  1. COMBI BOXES IN USE

  2. 400 Hz PCA POTABLE WATER What is a Combi Box

  3. Is a system of ground support service points • Is a box that can take the full weight any ramp vehicle • Is a box that comes standard with drain connections • Is hot dipped galvanized for 100 years of in ground service Water Pit PCA Pit

  4. COMBI BOX GRUND SUPPORT SYSTEM

  5. Is a system to reduce mobile GSE equipment • Is a system to reduce air pollution • Is a system to speed aircraft turnarounds • Is a system to reduce collision damage • Is a system to lower you operating expenses

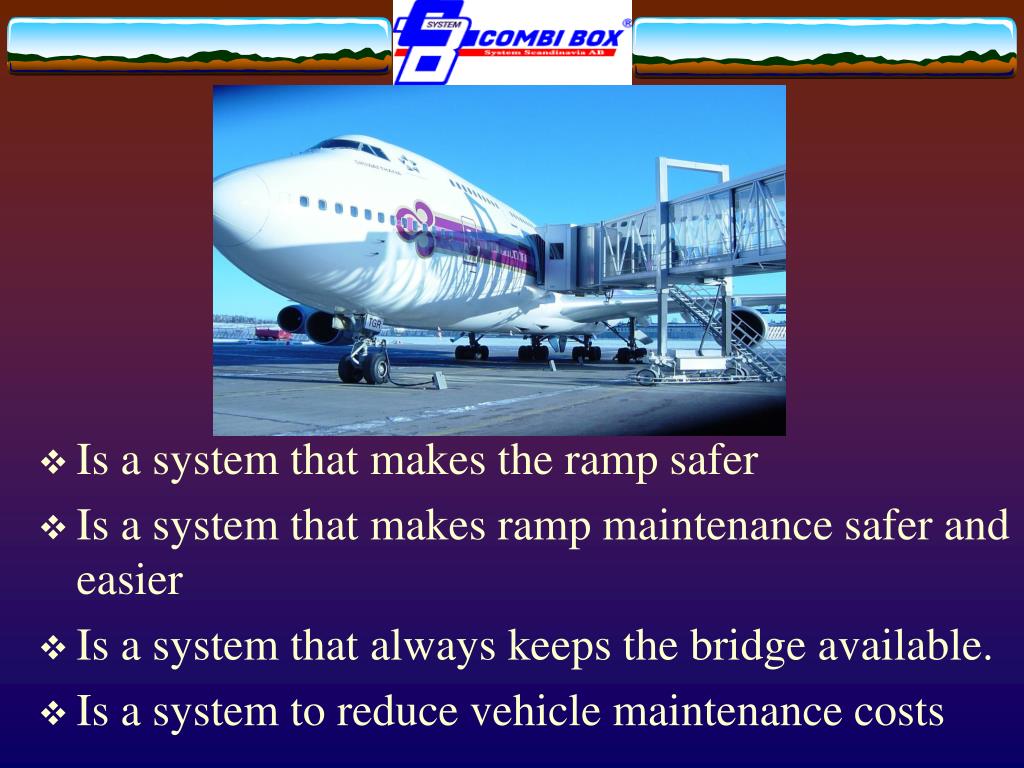

  6. Is a system that makes the ramp safer • Is a system that makes ramp maintenance safer and easier • Is a system that always keeps the bridge available. • Is a system to reduce vehicle maintenance costs

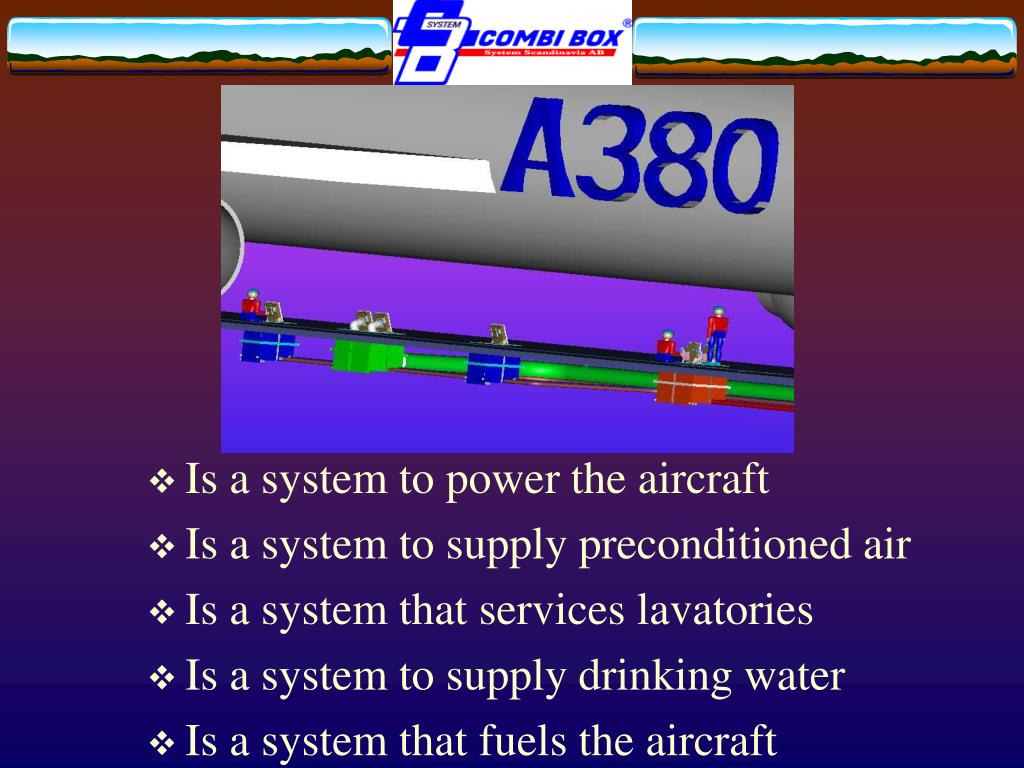

  7. Is a system to power the aircraft • Is a system to supply preconditioned air • Is a system that services lavatories • Is a system to supply drinking water • Is a system that fuels the aircraft

  8. 400 Hz PITS • 400-hertz supply • Takes supply off bridge • Reduces cable length • Available with 2 cables • Removes switches from plug

  9. 400 Hz IN USED • Small oppening flap to allow cables connect to the aircraft. • Lid can remain close while pit operating

  10. PCA PIT • Energy saving per year of $4000. Per gate • Zero maintenance of bridge tubes & long hoses • Uses 20 m of hose • Available with 2 hoses • Takes PCA off bridge

  11. PCA IN USED

  12. Central PCA Plant

  13. POTABLE WATER PIT • ISO/IATA standard water quality • Continuous circulation of water • Tank Drainage collection via yellow hose • No need to spray water into gate area

  14. FRESH WATER RECIRCULATION UNIT

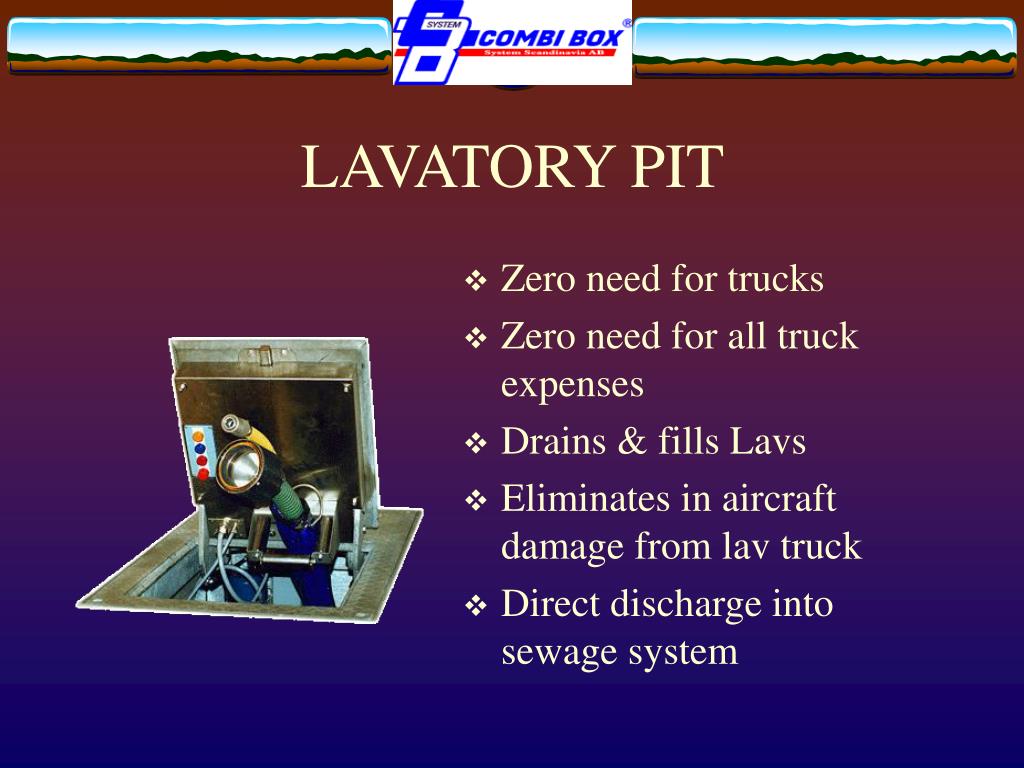

  15. LAVATORY PIT • Zero need for trucks • Zero need for all truck expenses • Drains & fills Lavs • Eliminates in aircraft damage from lav truck • Direct discharge into sewage system

  16. LAVATORY UNIT • Vacuum system that operates pits • Two tanks • One in vacuum • One pressure discharging • System supports 12 gates • Fully Programmable

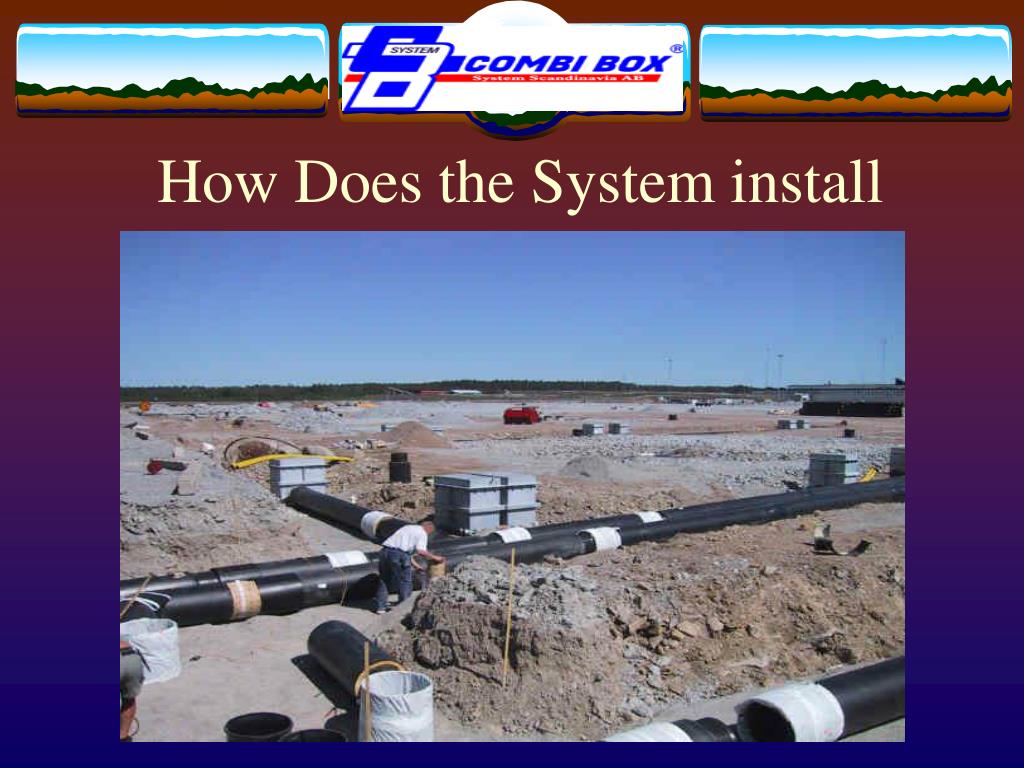

  17. How Does the System install

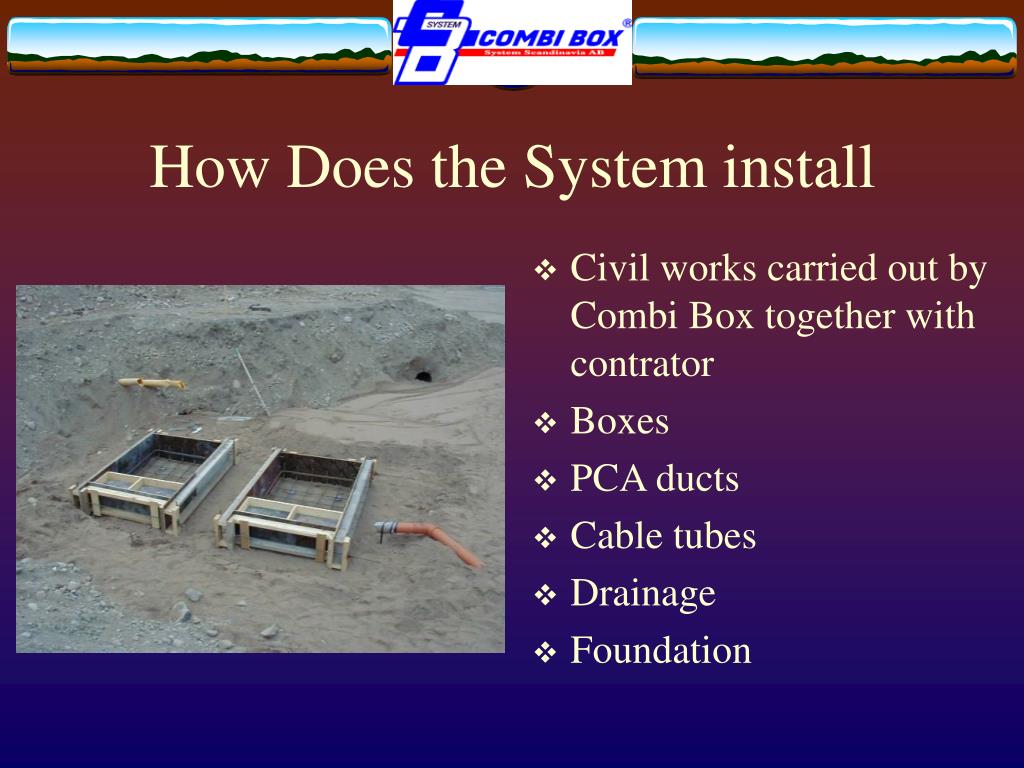

  18. How Does the System install • Civil works carried out by Combi Box together with contrator • Boxes • PCA ducts • Cable tubes • Drainage • Foundation

  19. CIVIL WORKS • Only a foundation is required • Levelers are on the box itself • All service lines are below grade and frost line

  20. Civil works • Normal grade and compaction techniques are used up to concrete pour • No crown needed around box

  21. Does your Ramp look like this clean ? • Presto a clean ramp • All service underground • Clean area for snow removal • Box lids are heated for snow and ice melting • Smooth operation
