  1. Optimized Data Migration within a System of Linked Medical Research Databases By Jared Christopherson U. of Connecticut

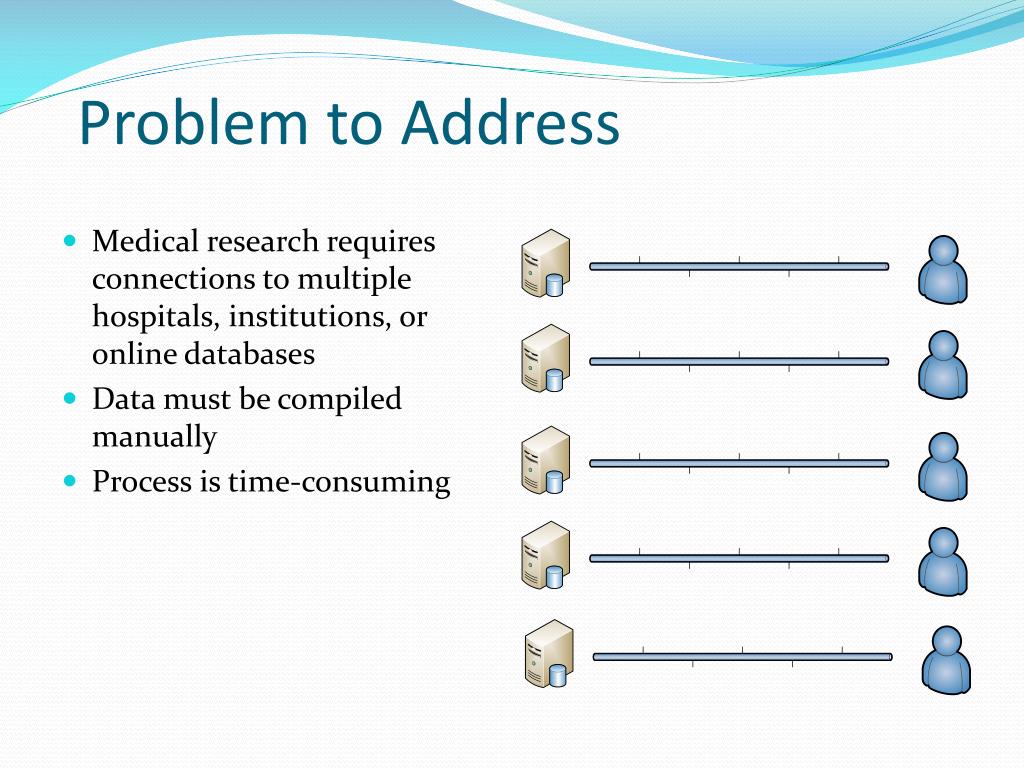

  2. Problem to Address • Medical research requires connections to multiple hospitals, institutions, or online databases • Data must be compiled manually • Process is time-consuming

  3. General Project Goal

  4. Project Goals: • Present data as though from a single source • Give the researcher flexibility with viewing the data • Optimize data flow with site caching

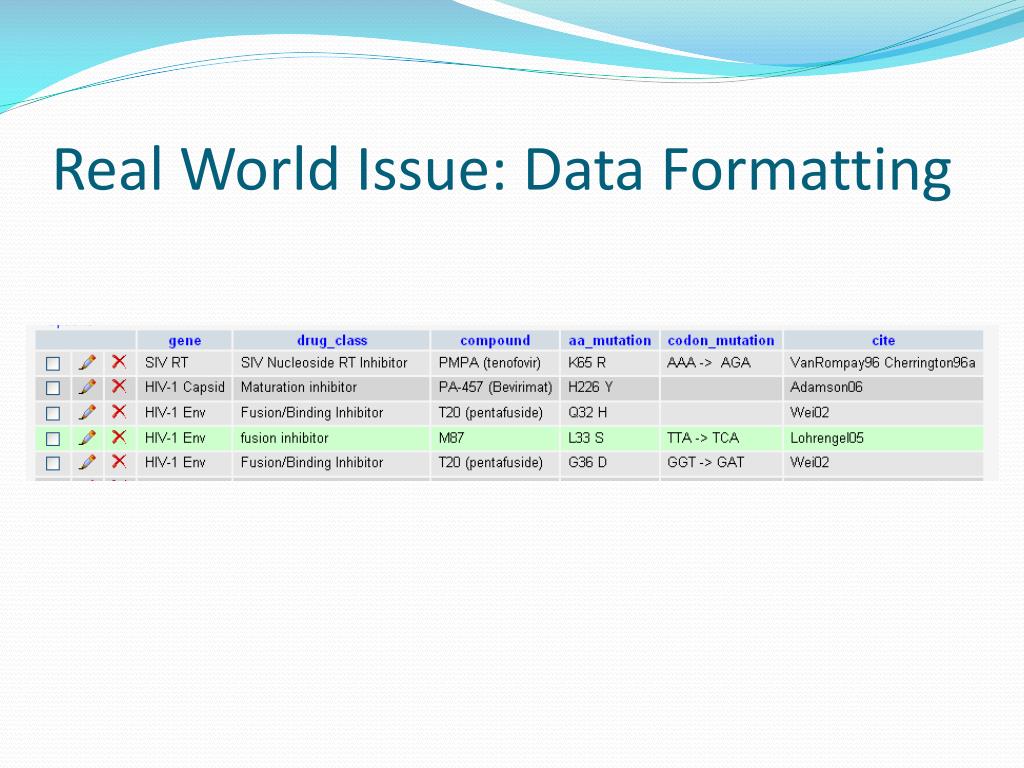

  5. Real World Issue: Data Formatting

  6. Real World Issue: Data Formatting

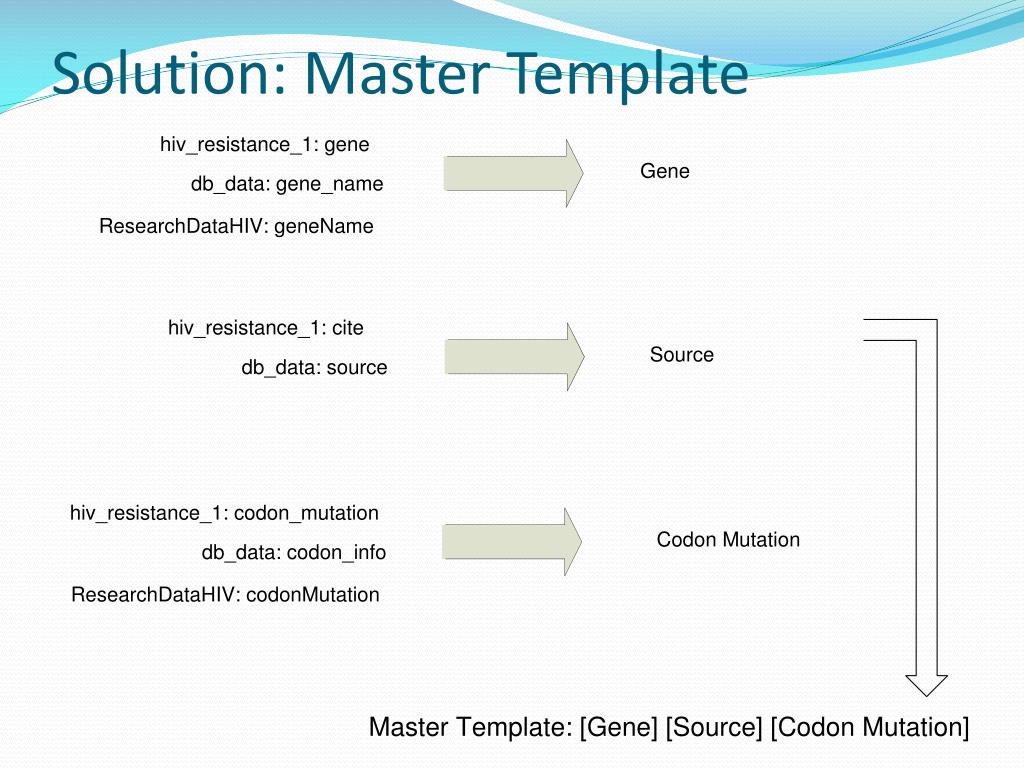

  7. Solution: Master Template

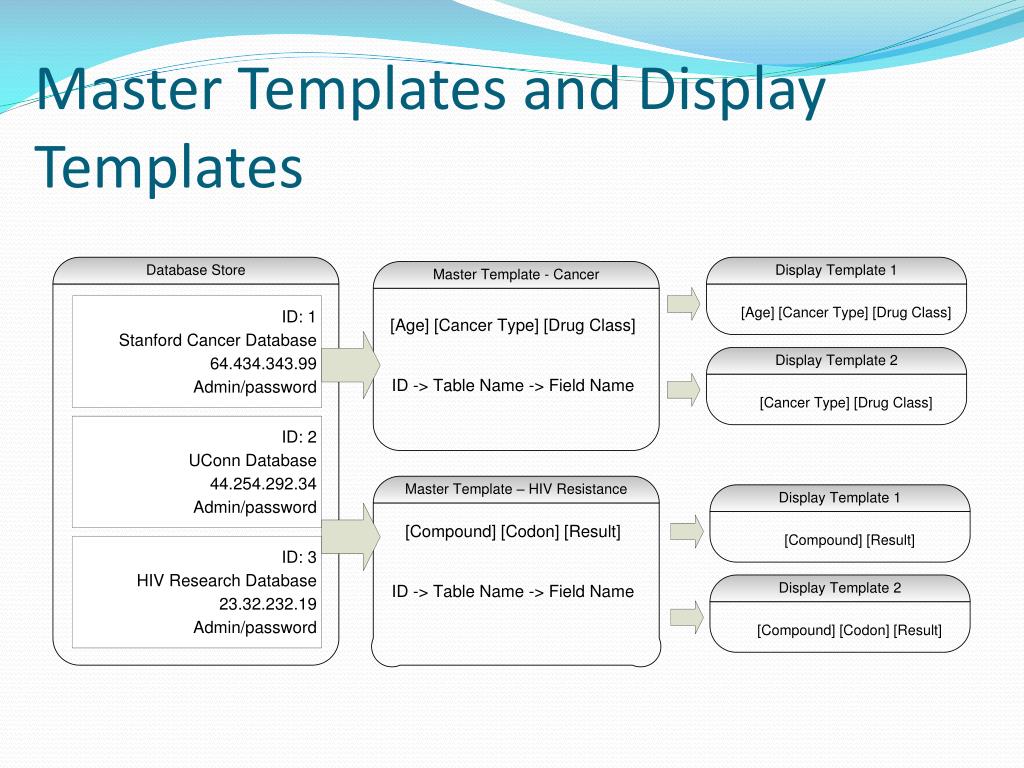

  8. Master Templates and Display Templates

  9. Basic Functionality • Provides a simple search for users • Researchers have the option of selecting a pre-set Display Template to only display data relevant to their needs • Queries each database individually according to the Master Template • Returns results and (optionally) compiles them into a single list • Use AJAX to return results for each database

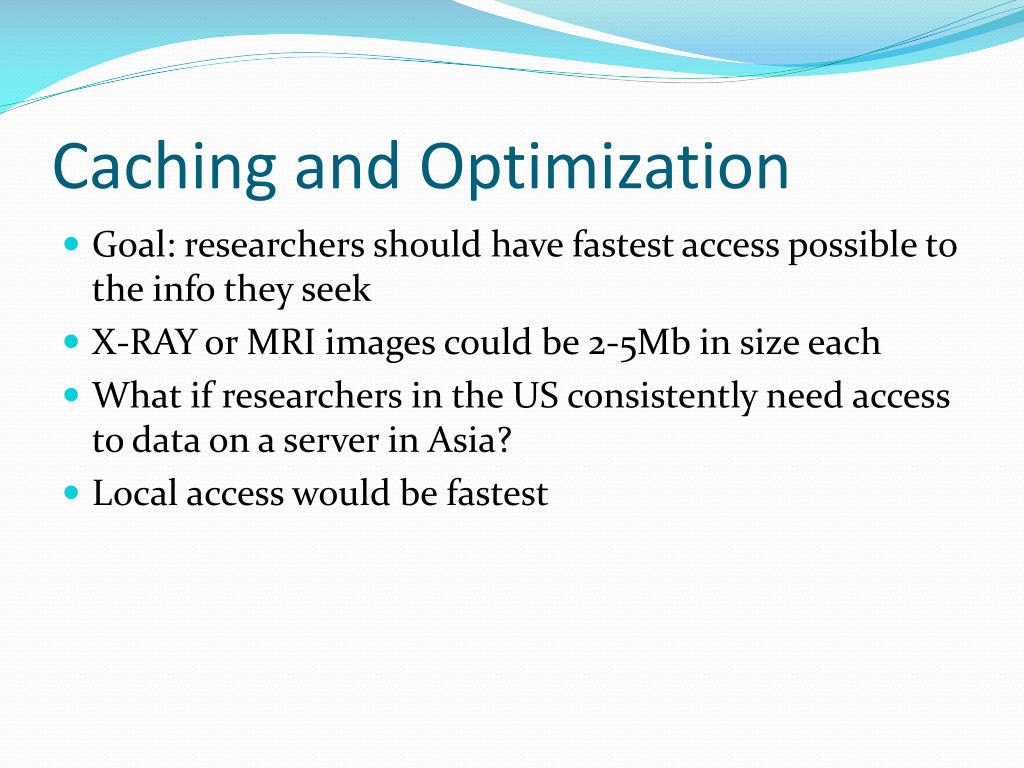

  10. Caching and Optimization • Goal: researchers should have fastest access possible to the info they seek • X-RAY or MRI images could be 2-5Mb in size each • What if researchers in the US consistently need access to data on a server in Asia? • Local access would be fastest

  11. Caching Goal

  12. Caching and Optimization: Possible Solutions • Move everything to a central server • Move records around as they are accessed • Cache everything • Cache databases based on usage

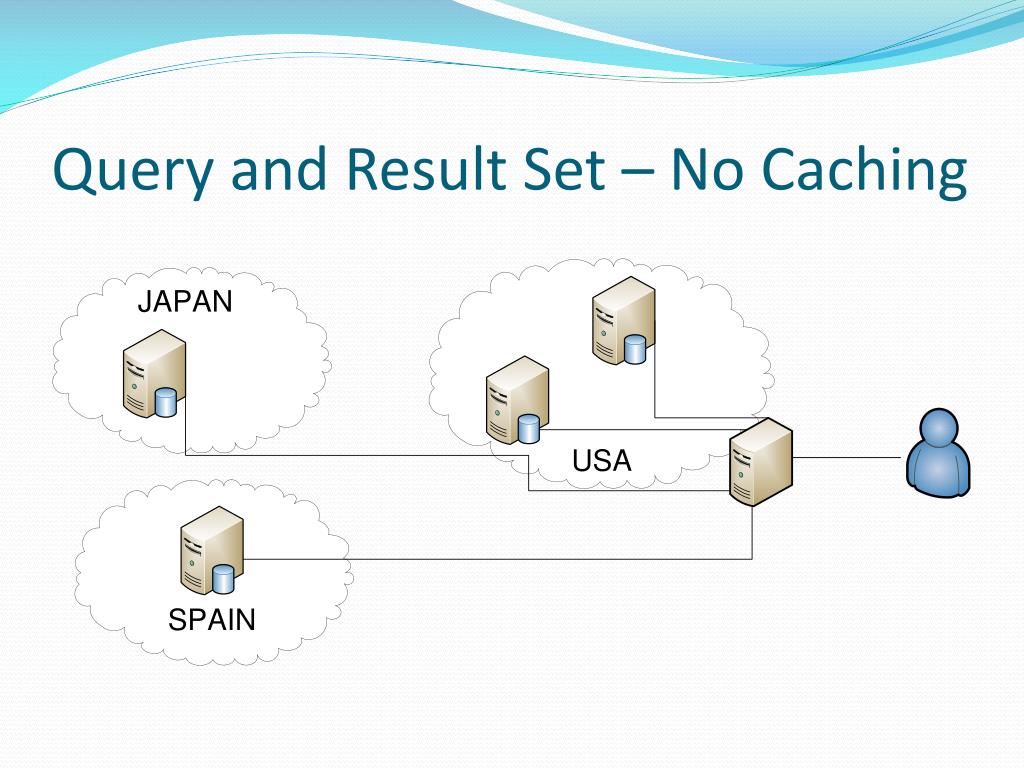

  13. Query and Result Set – No Caching

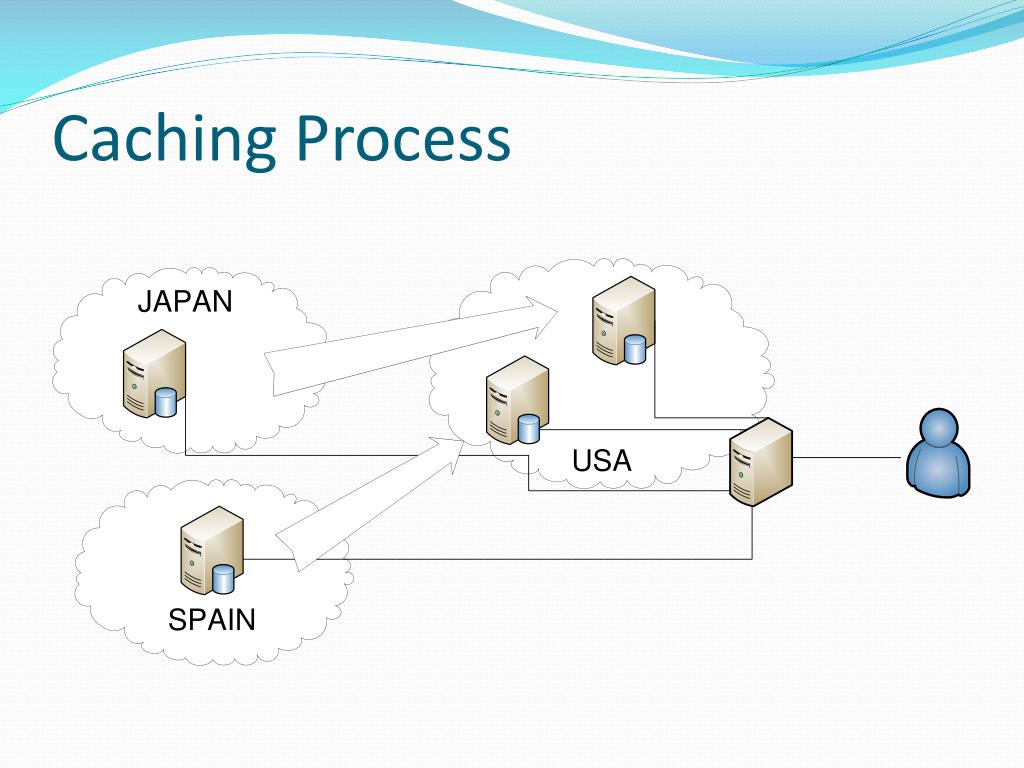

  14. Caching Process

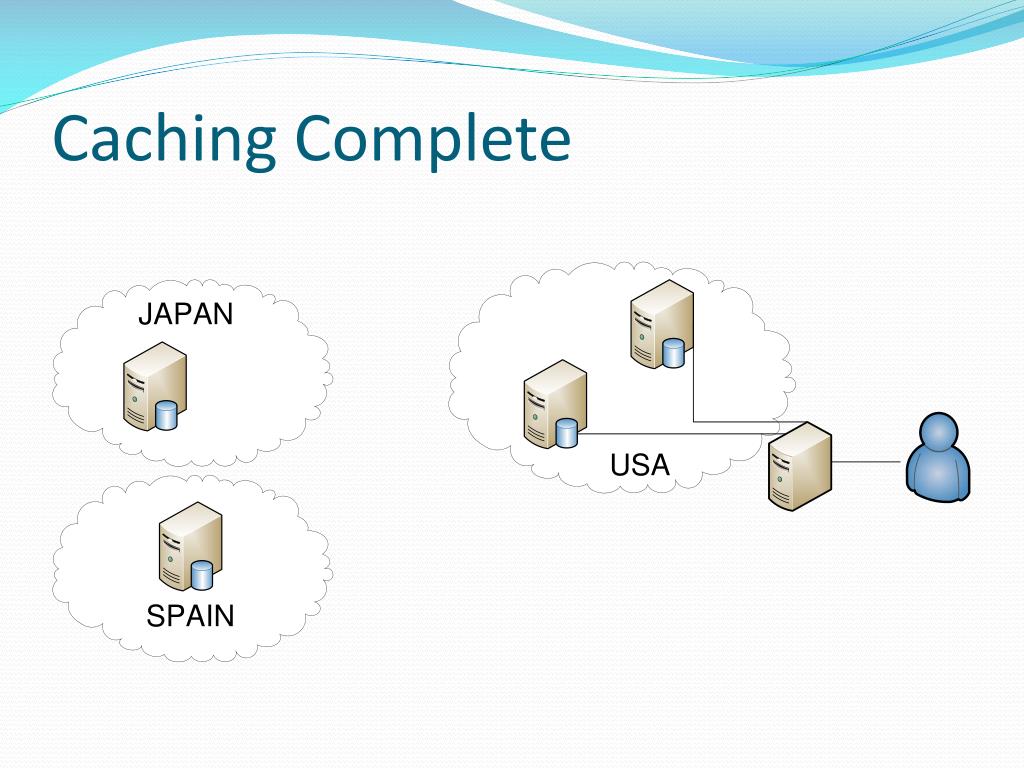

  15. Caching Complete

  16. Region Caching

  17. Database Caching Queue – What to cache? For each region, determines the top external servers used based on a percentage of queries

  18. Database Caching Queue • Need a method to determine the most heavily requested external databases for each region • Track statistics: • Convert IP address -> region whenever a user performs a search • Increment result count for the record that keeps track of the region ID and database ID

  19. DB Queue to Cache

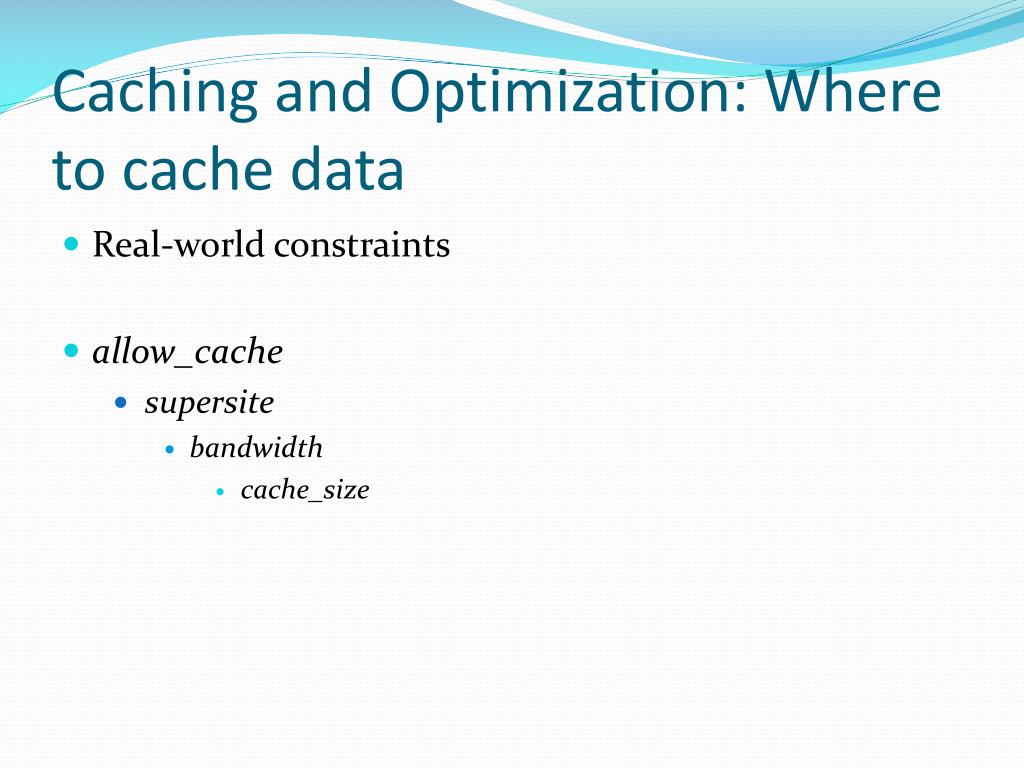

  20. Caching and Optimization: Where to cache data • Real-world constraints • allow_cache • supersite • bandwidth • cache_size

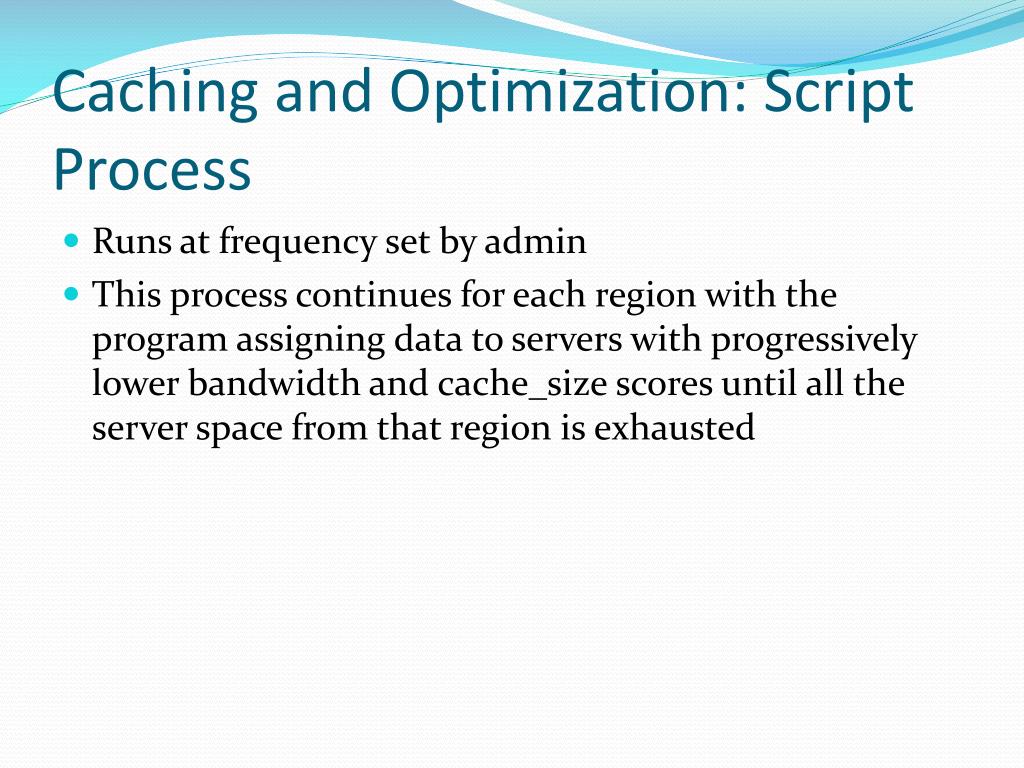

  21. Caching and Optimization: Script Process Runs at frequency set by admin This process continues for each region with the program assigning data to servers with progressively lower bandwidth and cache_size scores until all the server space from that region is exhausted

  22. Caching and Optimization: Script Process At the end, each region should have as many local copies of the most frequently requested databases as possible Cached copies are read-only

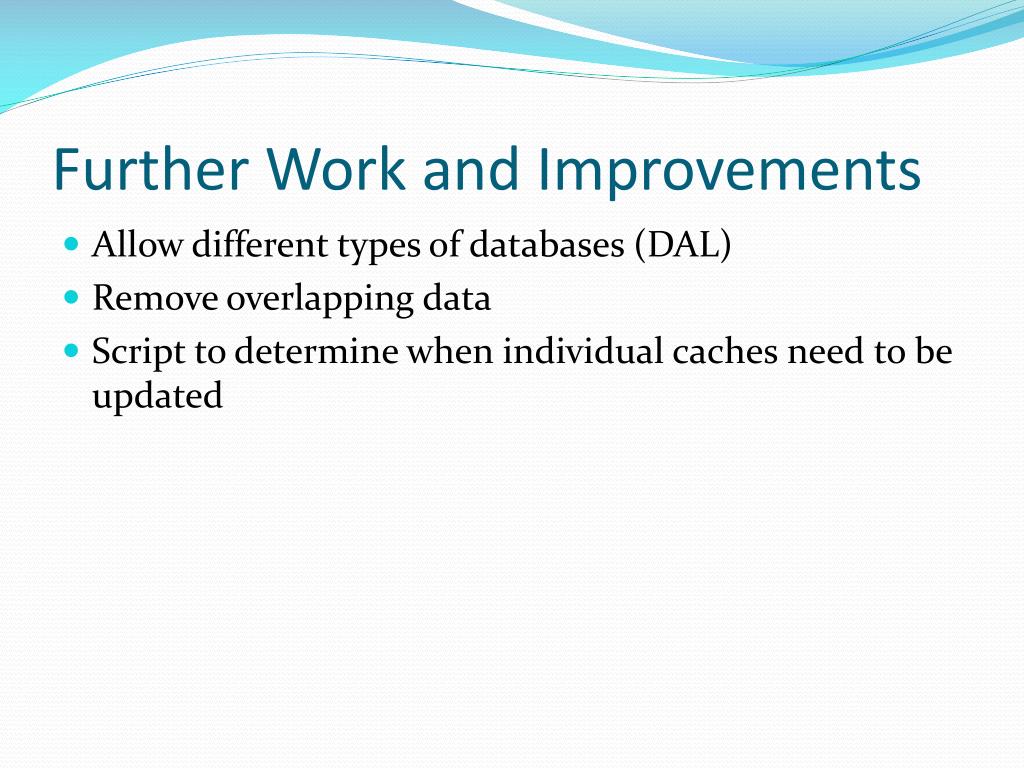

  23. Further Work and Improvements • Allow different types of databases (DAL) • Remove overlapping data • Script to determine when individual caches need to be updated
