  1. Warm Electronics,Grounding and EMC PACS IBDR Martin von Berg Warm Electronics

  2. Warm Electronics Overview Warm Electronics

  3. Warm Electronics Development • BOLA • Mechanical design updated • Box thermal behavior modeling in progress • JFET modeling for effect of temperature on performance in progress • BOLC • Mechanical design BOLC updated (2 stacked boxes) • Analogue board prototype ready for performance test • Bolometer bias board (QM1) ready for design • “300mK” temperature control prototype designed • FPGA implementation of IEEE1355 under test at CSL • Most digital functions designed, except bolometer sequencer Warm Electronics

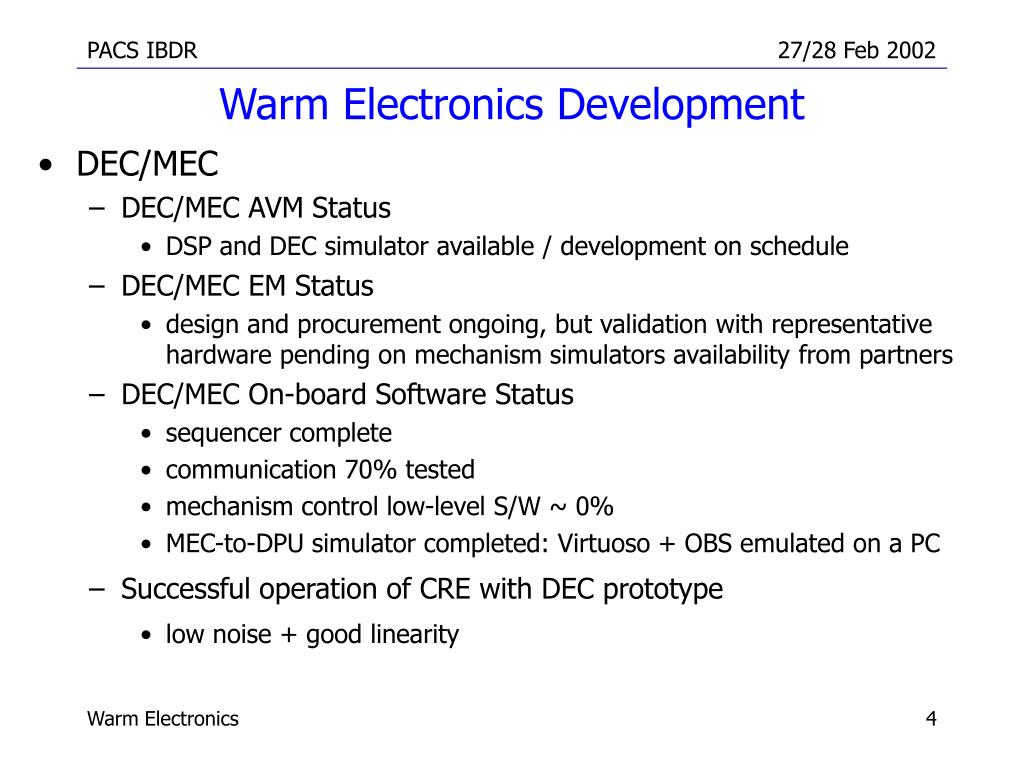

  4. Warm Electronics Development • DEC/MEC • DEC/MEC AVM Status • DSP and DEC simulator available / development on schedule • DEC/MEC EM Status • design and procurement ongoing, but validation with representative hardware pending on mechanism simulators availability from partners • DEC/MEC On-board Software Status • sequencer complete • communication 70% tested • mechanism control low-level S/W ~ 0% • MEC-to-DPU simulator completed: Virtuoso + OBS emulated on a PC • Successful operation of CRE with DEC prototype • low noise + good linearity Warm Electronics

  5. Grounding Concept Warm Electronics

  6. Grounding Concept • Distributed Star Ground • SVM Panel is S/C GND (Chassis) • Housings to S/C GND • Internal GND flexible on S/C GND • Overshields on S/C GND via Backshells 360° • Symmetric lines ar far as possible • Galvanic Decoupling • Shields to internal GND on driven side • Document PACS-ME-LI-006 Warm Electronics

  7. EMC Design • Analysis by T. Bax • PSpice Simulation by T. Bax • Cryo Harness definition  Information Flux Problem Transfer impedance, Microphonic Noise • Open topics: • Connection from CVV to SVM • Calculation of ESD-Sensitivity Warm Electronics

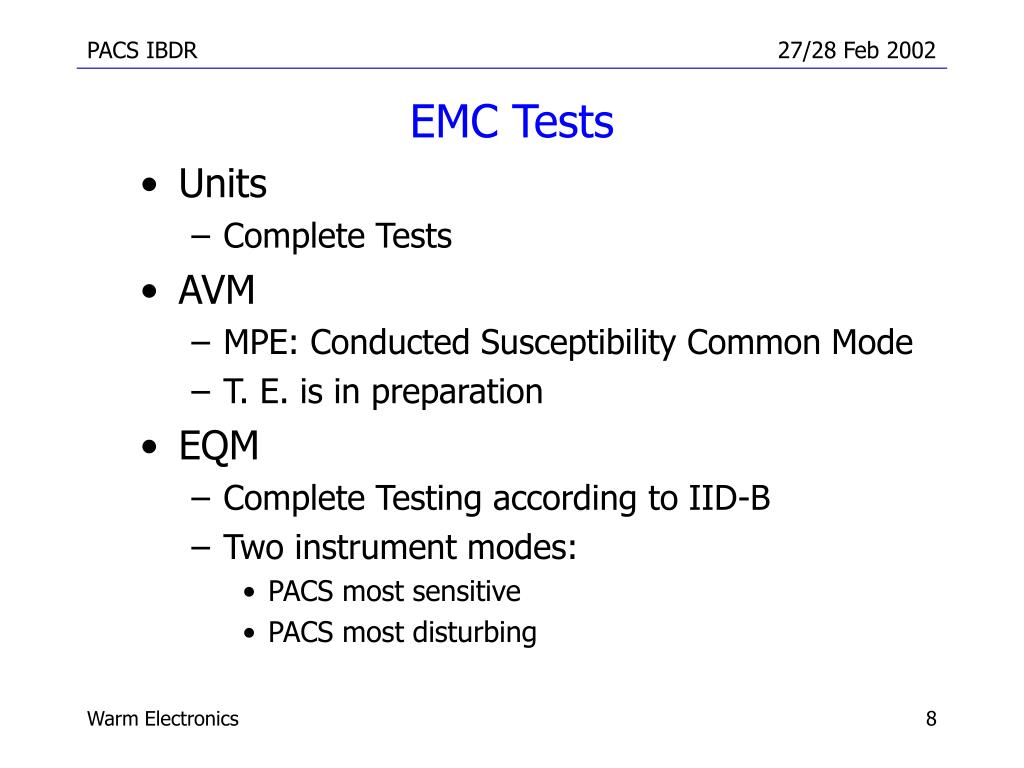

  8. EMC Tests • Units • Complete Tests • AVM • MPE: Conducted Susceptibility Common Mode • T. E. is in preparation • EQM • Complete Testing according to IID-B • Two instrument modes: • PACS most sensitive • PACS most disturbing Warm Electronics

  9. Other Aspects • Mechanical I/F to SVM • Dimensions of BOLC and DECMEC • Connector positions • Mass of BOLC and DECMEC • Distribution Board fixed but missing Resistor values Warm Electronics

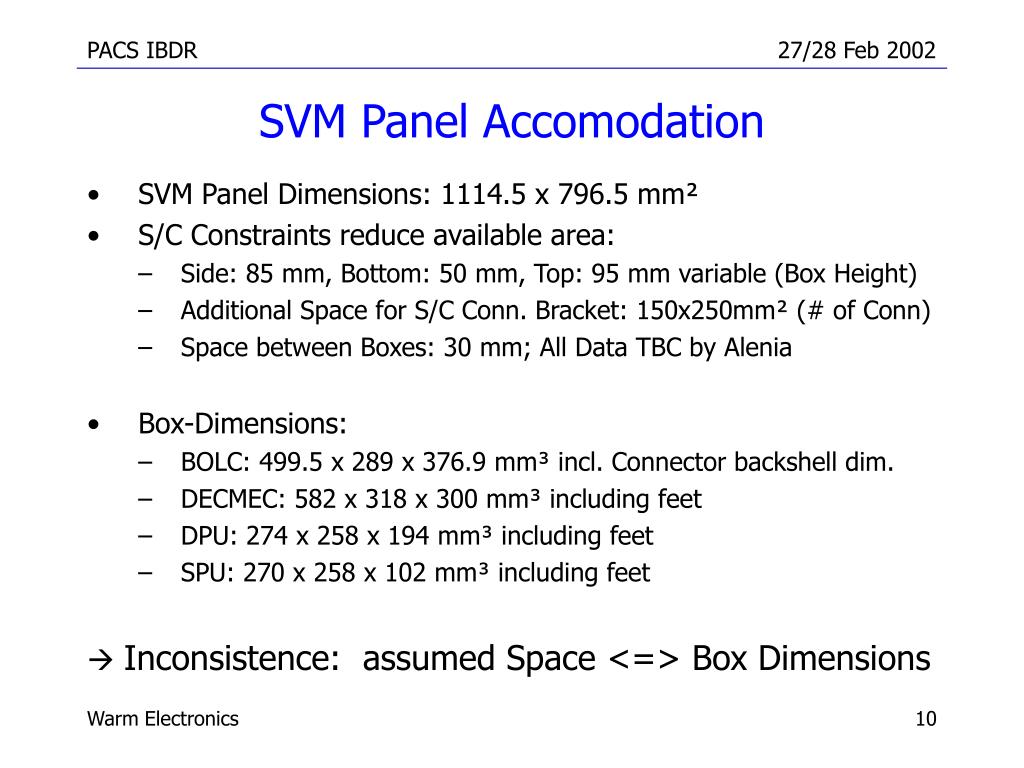

  10. SVM Panel Accomodation • SVM Panel Dimensions: 1114.5 x 796.5 mm² • S/C Constraints reduce available area: • Side: 85 mm, Bottom: 50 mm, Top: 95 mm variable (Box Height) • Additional Space for S/C Conn. Bracket: 150x250mm² (# of Conn) • Space between Boxes: 30 mm; All Data TBC by Alenia • Box-Dimensions: • BOLC: 499.5 x 289 x 376.9 mm³ incl. Connector backshell dim. • DECMEC: 582 x 318 x 300 mm³ including feet • DPU: 274 x 258 x 194 mm³ including feet • SPU: 270 x 258 x 102 mm³ including feet  Inconsistence: assumed Space <=> Box Dimensions Warm Electronics

  11. SVM Panel Accomodation • Proposal: • Stack the two SPUs • Reduce Length of DECMEC to less than 560 mm • Move lateral BOLC Connectors  Accomodation and Harness routing is possible Warm Electronics
