1. DATE’02 AccuPower: An Accurate Power Estimation Tool for Superscalar Microprocessors* Dmitry Ponomarev, Gurhan Kucuk, Kanad Ghose Department of Computer Science State University of New York Binghamton, NY 13902-6000 http://www.cs.binghamton.edu/~lowpower 5th Design, Automation and Test in Europe Conference (DATE-02), March 2002 *supported in part by DARPA through the PAC-C program and NSF

2. DATE’02 Motivation • Power dissipation is an increasingly important issue for both embedded systems and high-end superscalar CPUs • Accurate power estimation tools are needed • Existing publicly available tools: • Wattch, TEM2P2EST (both based on Simplescalar) • SimplePower (not applicable to superscalar datapaths)

3. DATE’02 Motivation (cont) • Simplescalar: lumps the issue queue, the reorder buffer (ROB) and the physical register file (PRF) into the Register Update Unit (RUU). • Real datapaths: • issue queues, ROBs and PRFs are implemented as separate structures • Number of entries and number of ports to these structures are quite disparate. • Thus: power can not be estimated accurately using Simplescalar

4. DATE’02 AccuPower: 3 components • True cycle-level microarchitectural simulators for three datapath variations currently in use • Library of VLSI layouts for major datapath components • Power estimator

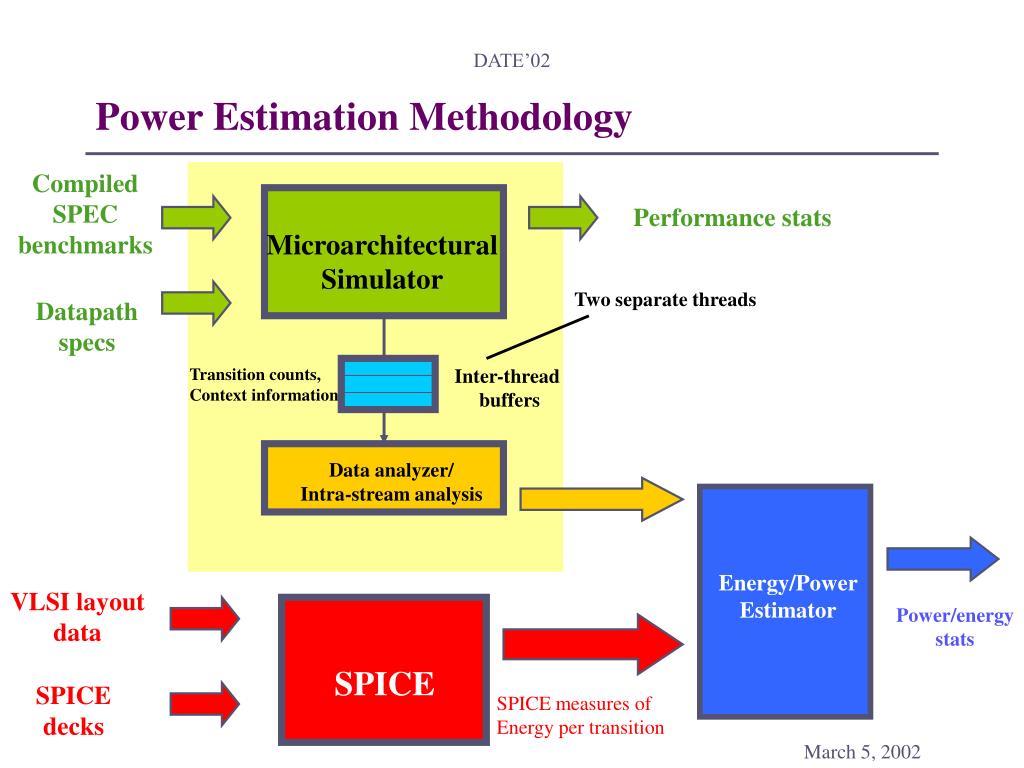

5. DATE’02 Power Estimation Methodology Compiled SPEC benchmarks Performance stats Microarchitectural Simulator Two separate threads Datapath specs Transition counts, Context information Inter-thread buffers Data analyzer/ Intra-stream analysis Energy/Power Estimator VLSI layout data Power/energy stats SPICE SPICE decks SPICE measures of Energy per transition

6. DATE’02 Datapath A Physical Register File Instruction Issue Architectural register file PRF Function Units FU1 D/RN Fetch RF /Dis FU2 ROB ARF IQ FUm Instruction dispatch EX Result forwarding buses

7. DATE’02 Datapath B Physical Register File Instruction Issue Architectural register file PRF Function Units ROB FU1 D/RN Fetch RF /Dis FU2 ARF IQ FUm Instruction dispatch EX Status update

8. DATE’02 Datapath C Instruction Issue Architectural register file Function Units FU1 Fetch D/RN/Dispatch FU2 ROB / PRF ARF IQ FUm Instruction dispatch EX Result/status forwarding buses

9. DATE’02 AccuPower features • Detailed cycle-level simulation of major datapath components and interconnections • Detailed and accurate simulation of the on-chip cache hierarchy • Built-in models of three major datapath variations • Implementation of cutting-edge techniques for power/energy reduction at the microarchitectural and circuit-level • Use of SPICE coefficients for accuracy

10. DATE’02 Microarchitectural simulators • Actual out-of-order execution is modeled • 2-cycle pipelined fetch mechanism is implemented • Contention for the bus between L1 and L2 caches is modeled, as well as the contention for the off-chip interconnection • Decode/Rename/Dispatch mechanism is implemented as 2 pipeline stages. • Realistic forwarding delays are assumed

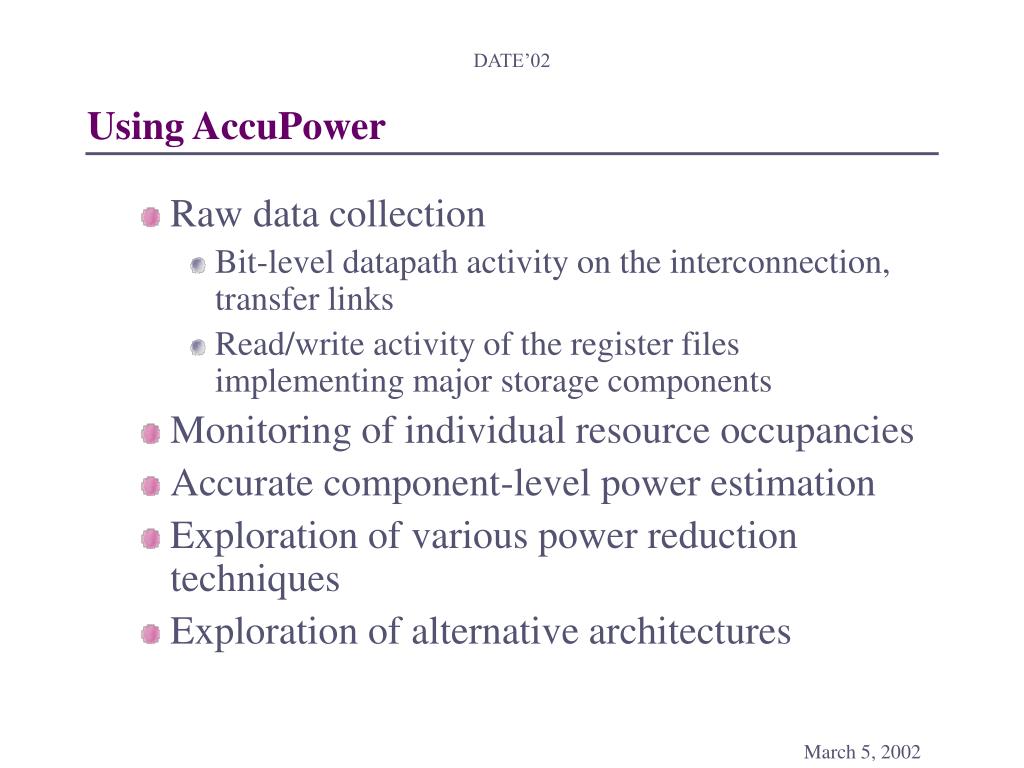

11. DATE’02 Using AccuPower • Raw data collection • Bit-level datapath activity on the interconnection, transfer links • Read/write activity of the register files implementing major storage components • Monitoring of individual resource occupancies • Accurate component-level power estimation • Exploration of various power reduction techniques • Exploration of alternative architectures

12. DATE’02 Resource Usage in Superscalar Datapath: Example (fpppp)

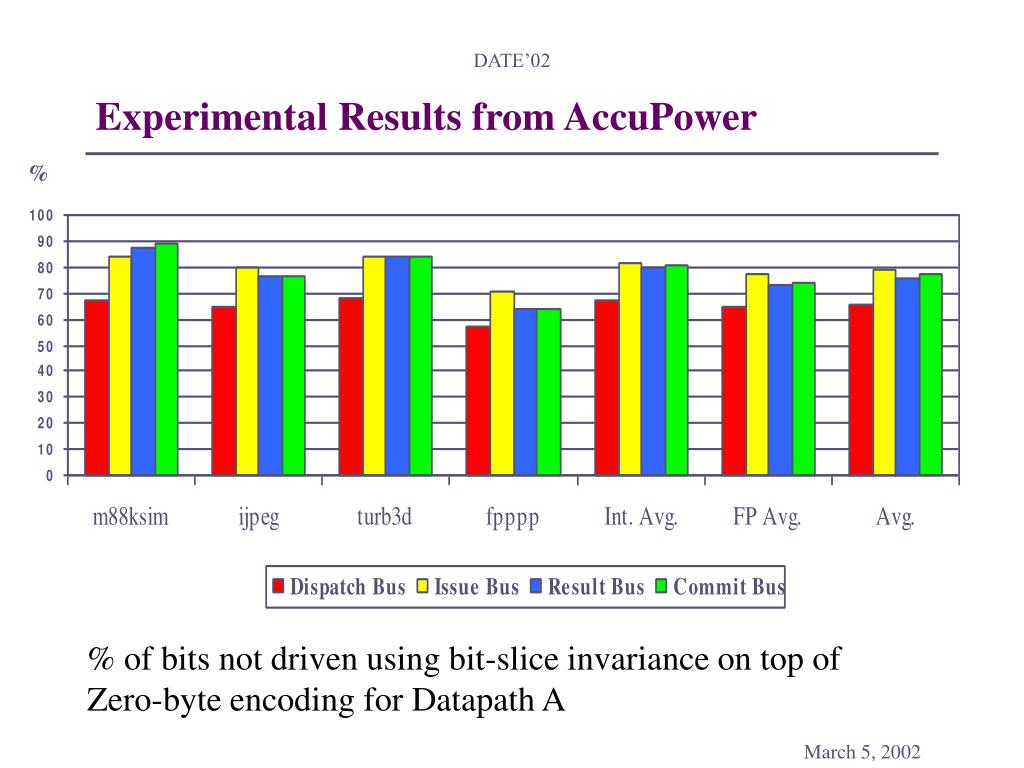

13. DATE’02 Experimental Results from AccuPower % % of bits not driven using bit-slice invariance on top of Zero-byte encoding for Datapath A

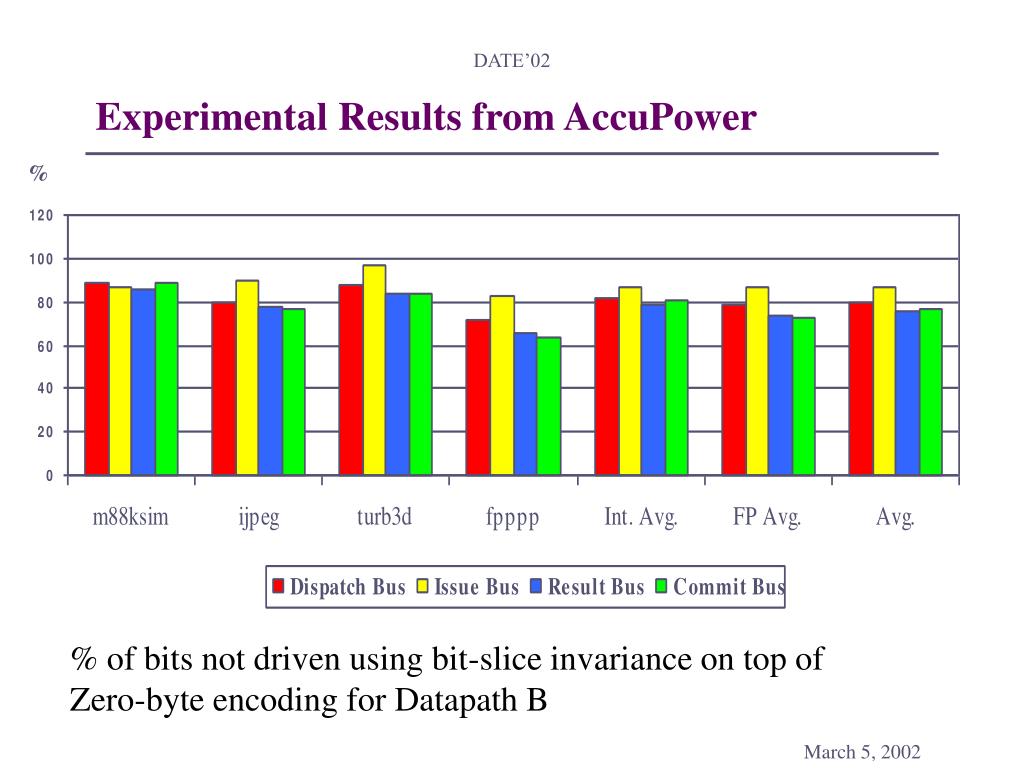

14. DATE’02 Experimental Results from AccuPower % % of bits not driven using bit-slice invariance on top of Zero-byte encoding for Datapath B

15. DATE’02 Experimental Results from AccuPower Power (mW) Power dissipation within the ROB for a 4-way superscalar processor (Datapath C)

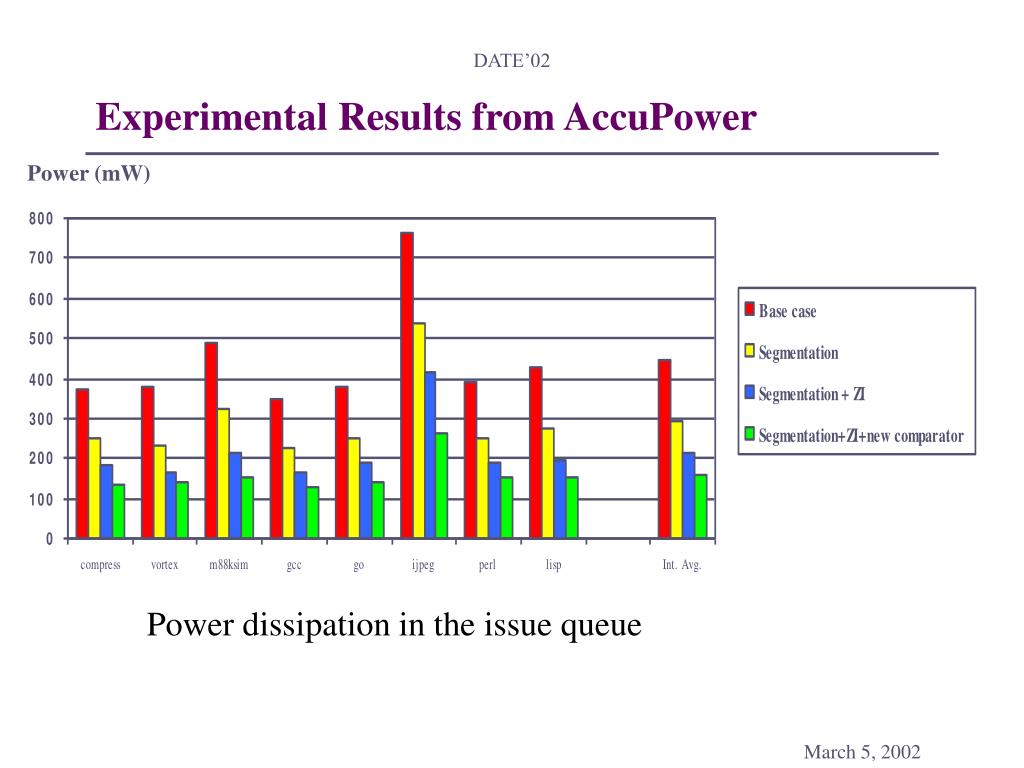

16. DATE’02 Experimental Results from AccuPower Power (mW) Power dissipation in the issue queue

17. DATE’02 Concluding remarks • AccuPower is a collection of microarchitectural simulators, library of VLSI layouts and the power estimator • The tool provides capabilities for ACCURATE analysis of power/performance tradeoffs in a superscalar processor. • Public release is planned in the near future.
