Aim:

Aim:. k. 1. 2. 3. 4. 6. How do we prove lines are parallel?. 5. l. 7. 8. Do Now:. 1) Name 4 pairs of corresponding angles. 2) Name 2 pairs of alternate interior angles. 3) Name 2 pairs of alternate exterior angles.

freja
Télécharger la présentation

Aim:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

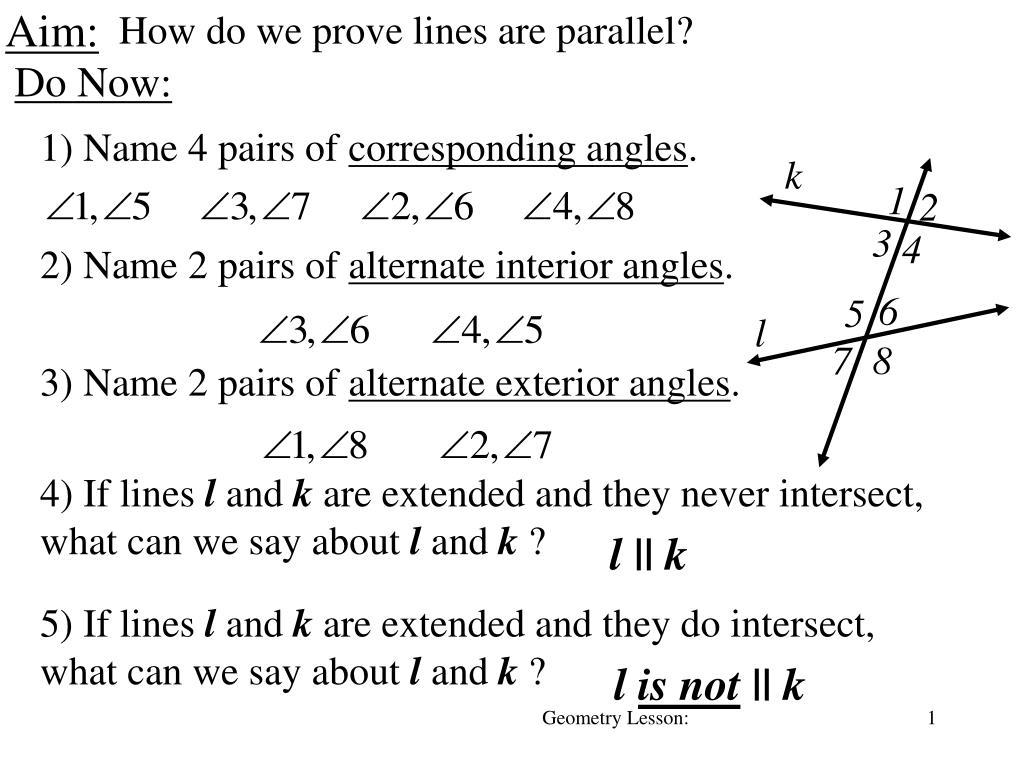

  1. Aim: k 1 2 3 4 6 How do we prove lines are parallel? 5 l 7 8 Do Now: 1) Name 4 pairs of corresponding angles. 2) Name 2 pairs of alternate interior angles. 3) Name 2 pairs of alternate exterior angles. 4) If lines l and k are extended and they never intersect, what can we say about l and k ? l || k 5) If lines l and k are extended and they do intersect, what can we say about l and k ? l is not || k Geometry Lesson:

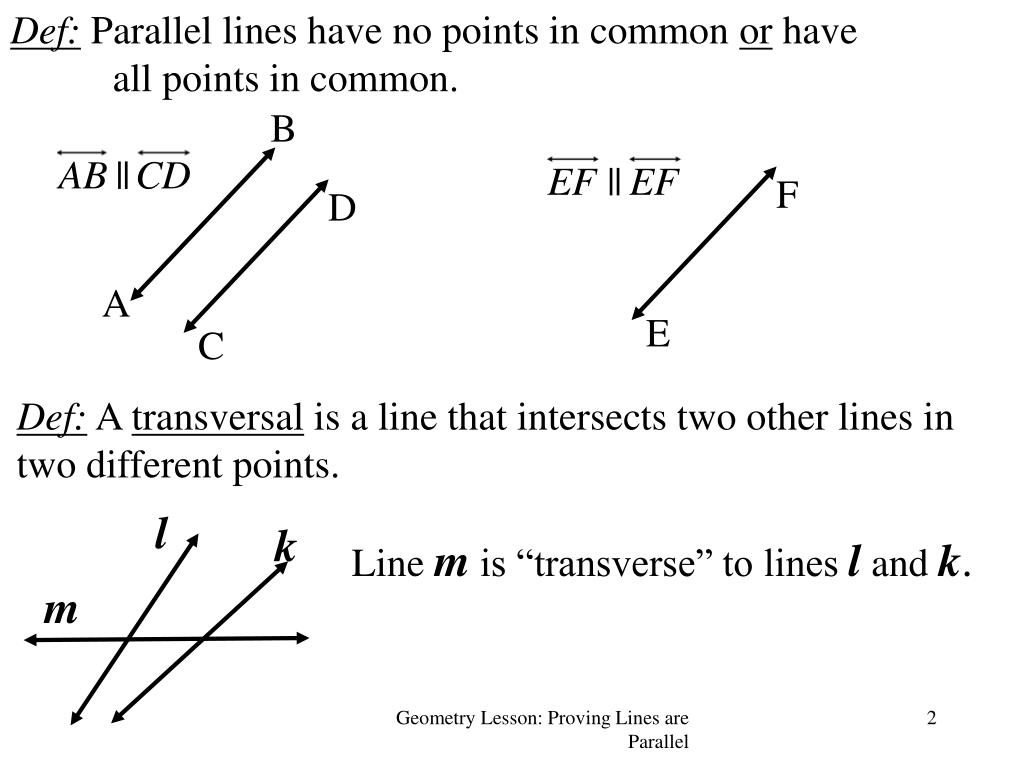

  2. Def: Parallel lines have no points in common or have all points in common. B F D A E C l k Line m is “transverse” to lines l and k. m Def. Parallel: Def: Transversal Def: A transversal is a line that intersects two other lines in two different points. Geometry Lesson: Proving Lines are Parallel

  3. 4 8 3 7 2 6 1 5 Transversals/ angle pairs: Geometry Lesson: Proving Lines are Parallel

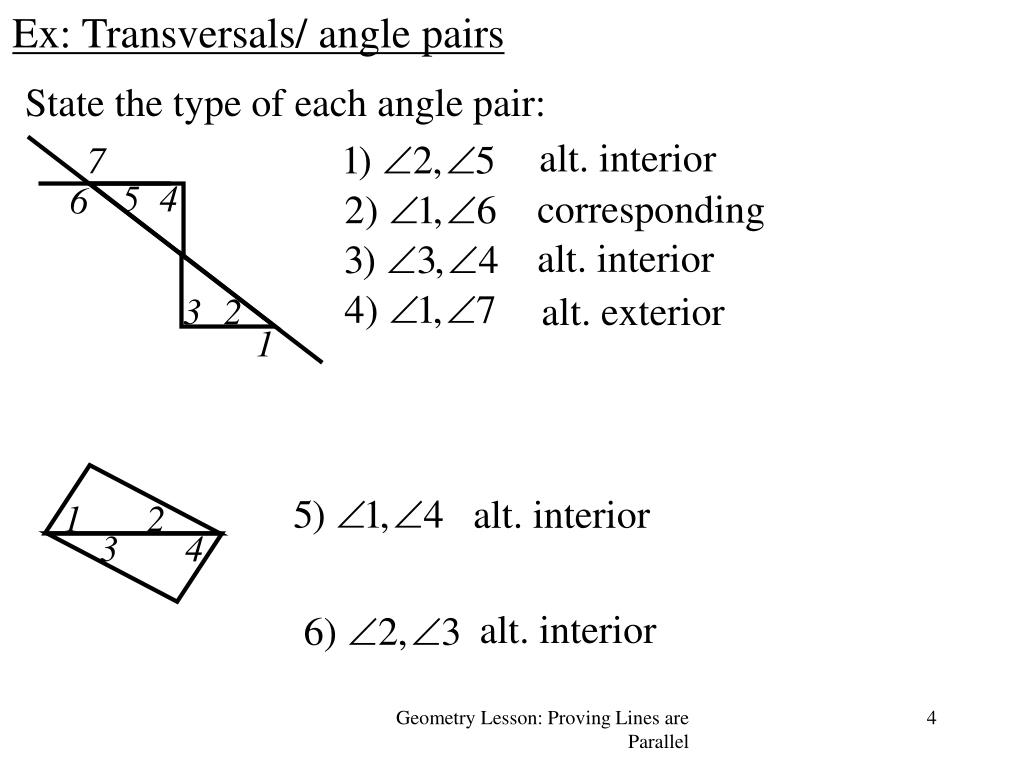

  4. 7 5 4 6 3 2 1 1 2 3 4 Ex: Transversals/ angle pairs State the type of each angle pair: alt. interior corresponding alt. interior alt. exterior alt. interior alt. interior Geometry Lesson: Proving Lines are Parallel

  5. l 4 8 Theorem #11: 3 7 2 Two lines cut by a transversal are parallel if a pair of corresponding angles are congruent. 6 1 5 Theorem #12: Two lines cut by a transversal are parallel if a pair of alternate interior angles are congruent. Theorem #13: Two lines cut by a transversal are parallel if a pair of interior angles on the same side of the transversal are supplementary. Theorem #14: Two lines perpendicular to the same line are parallel. Proving lines parallel m k Geometry Lesson: Proving Lines are Parallel

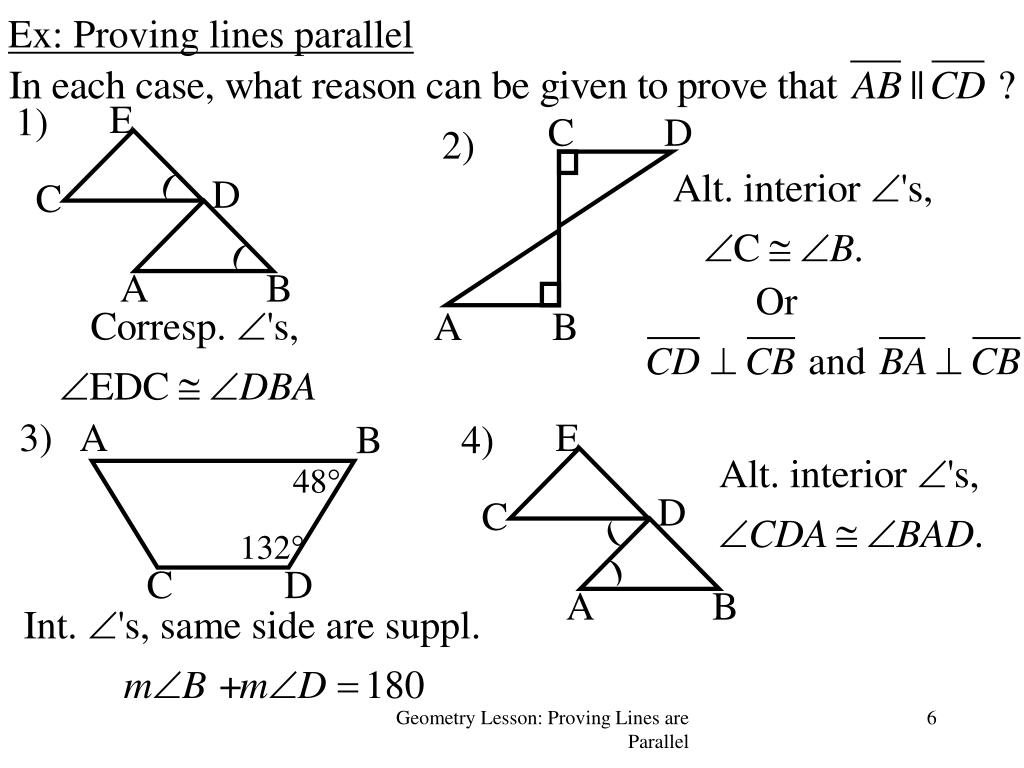

  6. 1) E ( D C ( A B A B C D 2) 3) E 4) 48 D 132 C ( C D ) A B A B Ex: Proving lines parallel Or Geometry Lesson: Proving Lines are Parallel

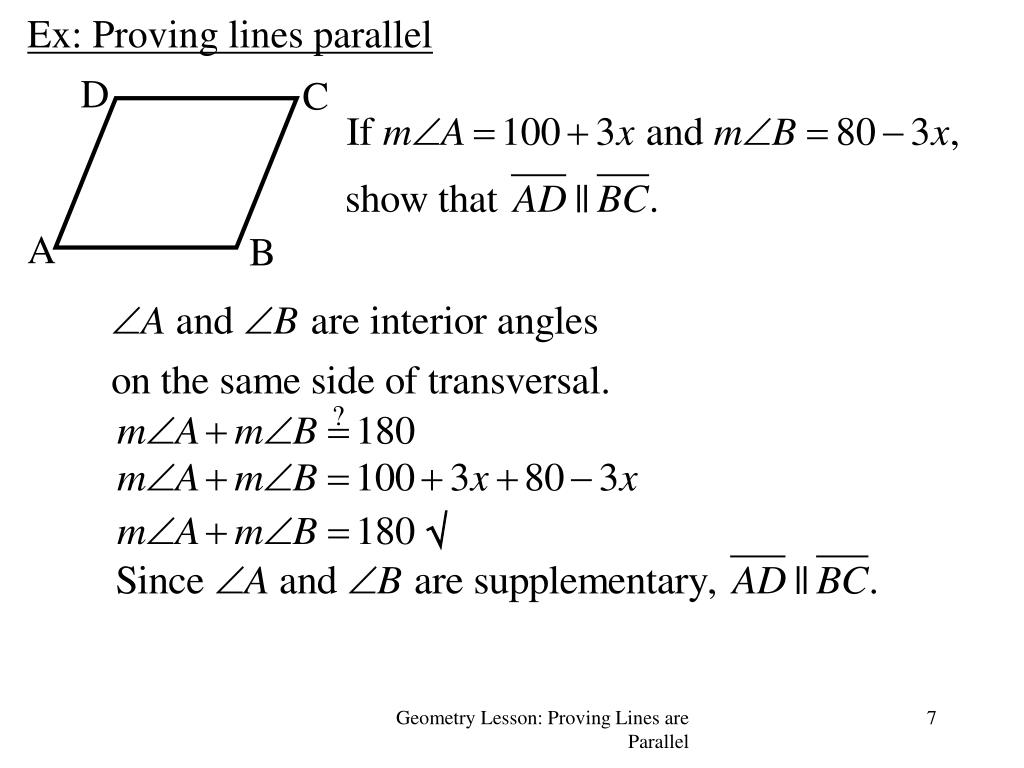

  7. D C A B ?  Ex: Proving lines parallel Geometry Lesson: Proving Lines are Parallel

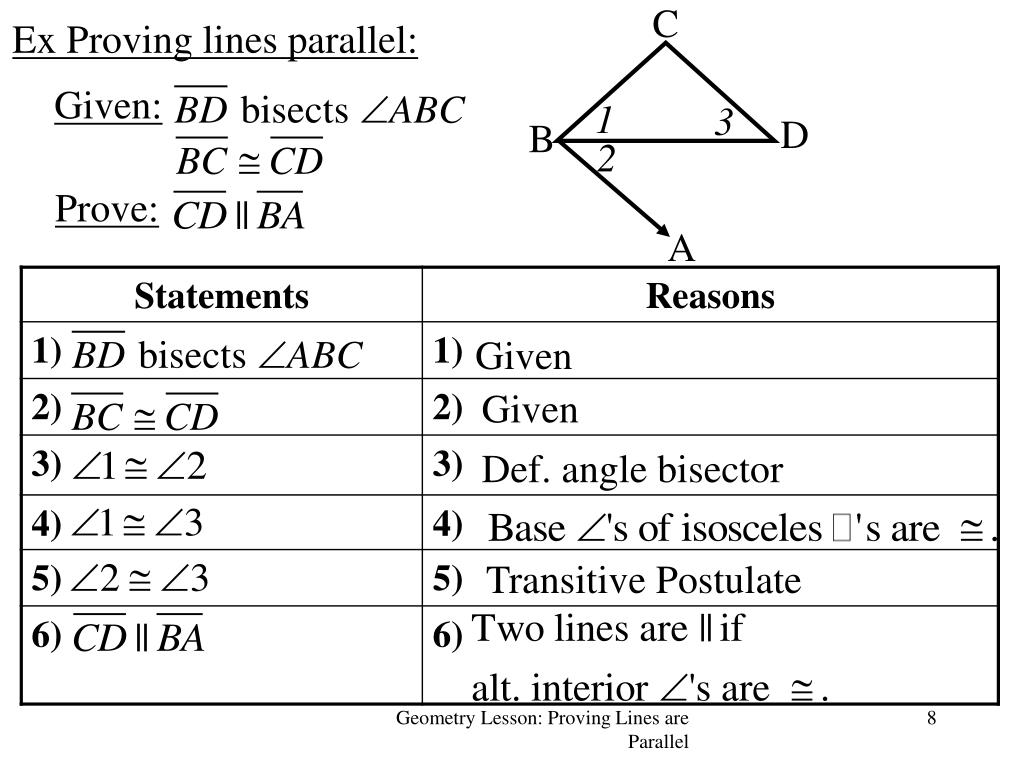

  8. C Given: 1 3 D B 2 Prove: A Ex Proving lines parallel: Given Given Def. angle bisector Transitive Postulate Geometry Lesson: Proving Lines are Parallel

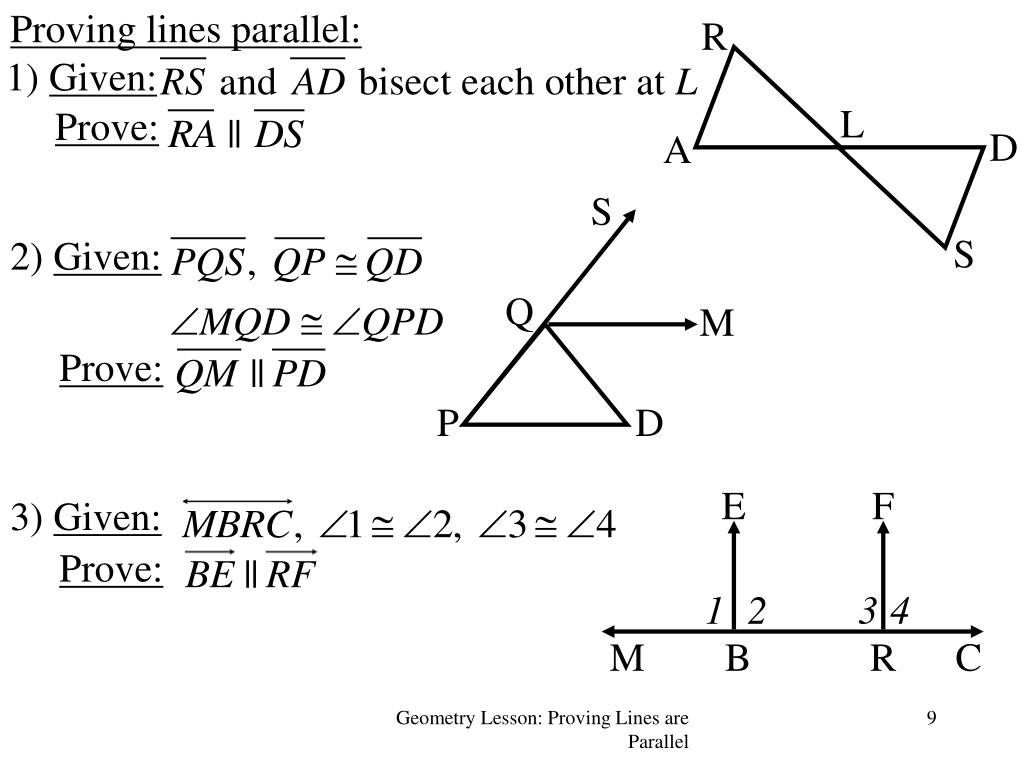

  9. R L D A S S Q M 3) Given: E F Prove: P D 1 2 3 4 M B R C Proving lines parallel: 1) Given: Prove: 2) Given: Prove: Geometry Lesson: Proving Lines are Parallel
