  1. OVERVIEW OF MAPPING WORKS Directorate of Census Operations Madhya Pradesh Bhopal

  2. Census Organization is well known as one of the largest producer of Thematic maps in the country. • Cartography has been an integral part of Census since 1872. • Maps were prepared by Traditional Cartography till 1991. • Digital Cartography (GIS Based) has been applied in Census Mapping since 2001 Census. • A large variety of Thematic & Administrative Maps such as State, District, Sub-District, Village, Town and Wards in Towns are prepared by the organization. • Census Mapping is done in two phases : Pre Census Mapping & Post Census Mapping.

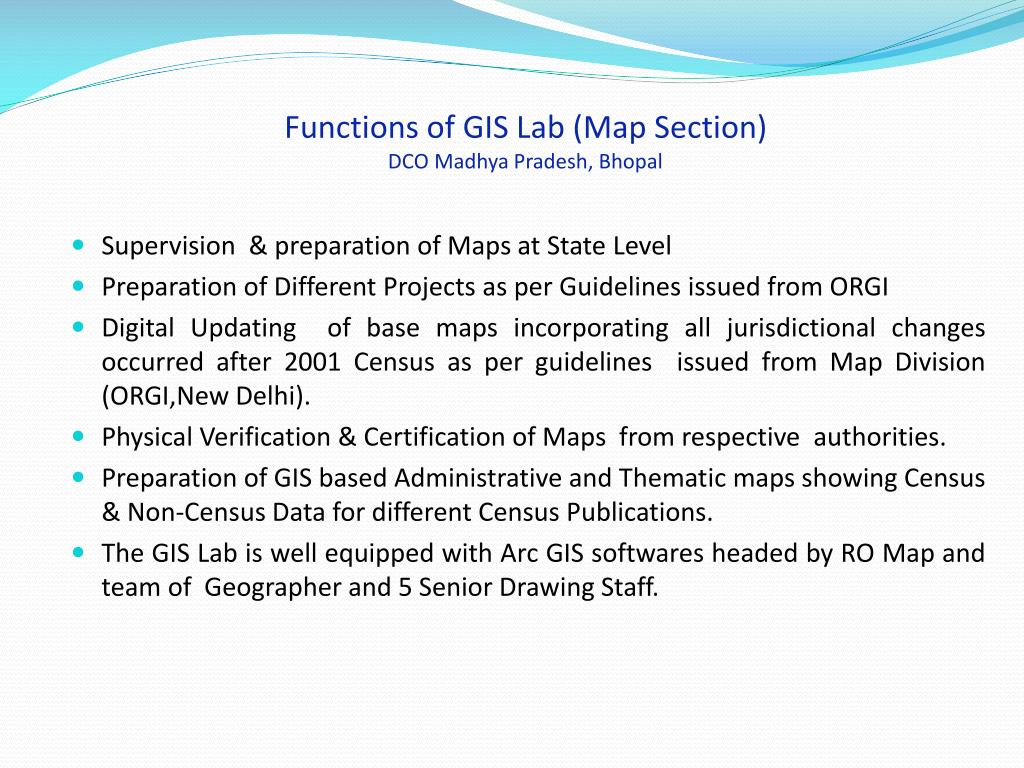

  3. Functions of GIS Lab (Map Section)DCO Madhya Pradesh, Bhopal • Supervision & preparation of Maps at State Level • Preparation of Different Projects as per Guidelines issued from ORGI • Digital Updating of base maps incorporating all jurisdictional changes occurred after 2001 Census as per guidelines issued from Map Division (ORGI,New Delhi). • Physical Verification & Certification of Maps from respective authorities. • Preparation of GIS based Administrative and Thematic maps showing Census & Non-Census Data for different Census Publications. • The GIS Lab is well equipped with Arc GIS softwares headed by RO Map and team of Geographer and 5 Senior Drawing Staff.

  4. GIS LAB OF MAP SECTION

  5. Work flow of Mapping Works Based on GIS Environment Maps acquired from Different Sources Scanning Digital Processing Real World Census Publications Mapping in GIS Environments Output of Maps

  6. Phases of Census Mapping Pre Census Mapping Post Census Mapping

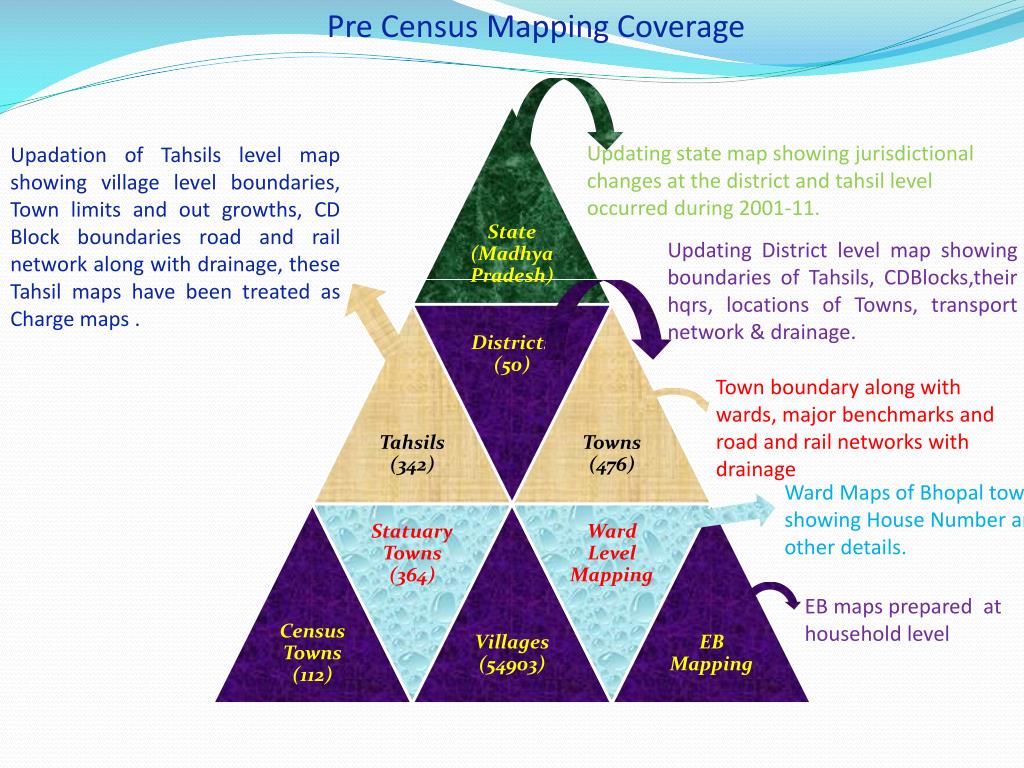

  7. Pre Census Mapping Coverage Updating state map showing jurisdictional changes at the district and tahsil level occurred during 2001-11. Upadation of Tahsils level map showing village level boundaries, Town limits and out growths, CD Block boundaries road and rail network along with drainage, these Tahsil maps have been treated as Charge maps . Updating District level map showing boundaries of Tahsils, CDBlocks,theirhqrs, locations of Towns, transport network & drainage. Town boundary along with wards, major benchmarks and road and rail networks with drainage Ward Maps of Bhopal town showing House Number and other details. EB maps prepared at household level

  8. Updated State Map

  9. Updated District Level Map

  10. Updated Tahsil Level Map

  11. GIS Town Mapping Project: Bhopal Nagar Nigam: Office of the Registrar General India had undertaken a GIS Mapping project for capital towns to create separate digital ward & their EB maps showing their House Numbers ,transport network, and important landmarks with the objective to use the same in the population enumeration work of 2011 Census.

  12. Town Level Map

  13. Ward Level Map

  14. EB Level Map

  15. Post Census Mapping Publications Provisional Population Totals Paper I &II Administrative Atlas Census Atlas Administrative Atlas DCHB Town Directory GIS Based Town Mapping Administrative Atlas DCHB

  16. Selected Thematic/Time Series Maps of Census Publications 2011

  17. SELECTED MAPS OF HOUSING ATLAS OF MADHYA PRADESH – 2011 BASED ON HOUSES, HOUSEHOLD AMENITIES AND ASSETS

  18. Selected Maps of Administrative Atlas of Madhya Pradesh 2011

  19. SALIENT FEATURES • Administrative Atlas of Madhya Pradesh 2011 has been prepared and published. • It shows the latest administrative maps of the state. • The volume has three parts. Part I contains Position of State in India followed by administrative divisions (Divisions, Districts and Tahsils) on state map 2011 and Jurisdictional changes occurred at district and tahsil level during 2001-11. • Part II consists of evolution of administrative divisions of the state from the year 1951 to 2001. • Part III shows all 50 district and 342 tahsil maps of 2011 showing all villages and other details such as transport network and physical features.

  20. PART - I

  21. PART - I

  22. PART - I

  23. PART - II

  24. PART - II

  25. PART - II

  26. PART - II

  27. PART - II

  28. PART - II

  29. PART - III District Map

  30. Tahsil Map

  31. SELECTED THEMATIC MAPS OF PRIMARY CENSUS ABSTRACT MADHYA PRADESH - 2011
