Correlation of Discrete-Time Signals

Correlation of Discrete-Time Signals. Transmitted Signal, x(n). Reflected Signal, y(n) = x(n-D) + w(n). 0. T. Cross-Correlation. Cross-correlation of x(n) and y(n) is a sequence, r xy (l) Reversing the order, r yx (l) => . Similarity to Convolution. No folding (time-reversal)

garima
Télécharger la présentation

Correlation of Discrete-Time Signals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

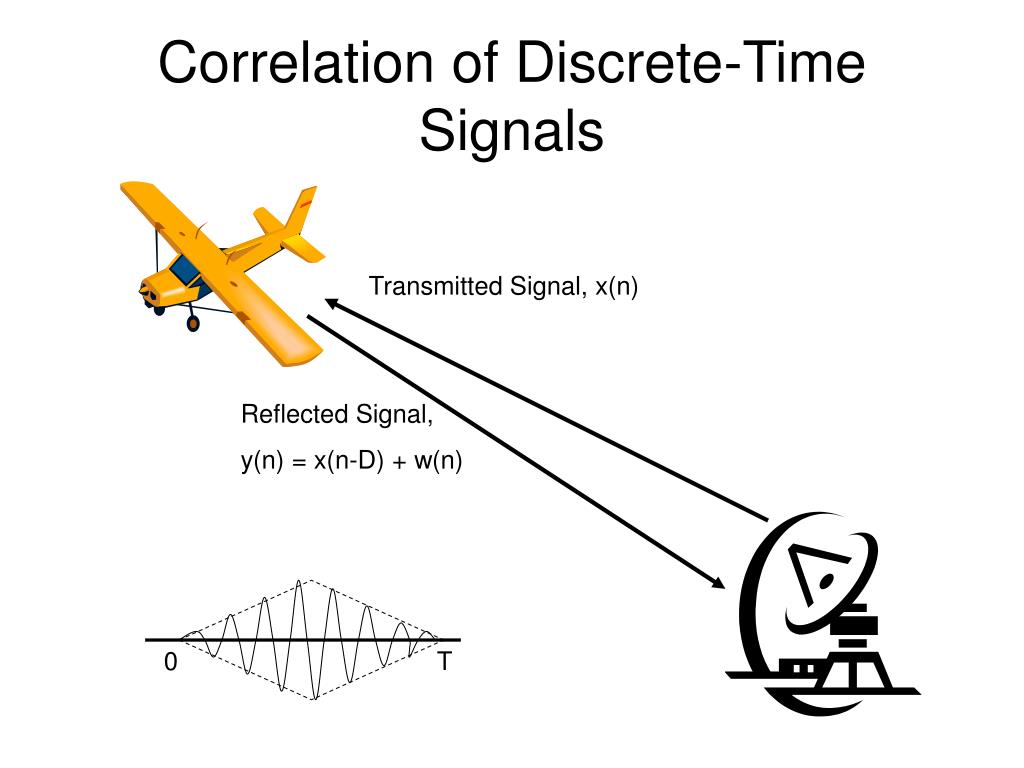

  1. Correlation of Discrete-Time Signals Transmitted Signal, x(n) Reflected Signal, y(n) = x(n-D) + w(n) 0 T

  2. Cross-Correlation • Cross-correlation of x(n) and y(n) is a sequence, rxy(l) • Reversing the order, ryx(l) • =>

  3. Similarity to Convolution • No folding (time-reversal) • In Matlab: • Conv(x,fliplr(y))

  4. Auto-Correlation • Correlation of a signal with itself • Used to differentiate the presence of a like-signal, e.g., zero or one • Even function

  5. Properties • Two sequences, x(n) and y(n), with finite energy • Find energy of z(n) Ex Ey

  6. Quadratric in (a/b) and positive, discriminant is non-negative: For crosscorrelation case: For autocorrelation case: Maximum value occurs with zero lag (when signals are perfectly matched) Often normalized to range [-1,1]:

  7. Periodic Sequences • Power signals crosscorrelation: • Define auto and crosscorrelations over one period of the signals • If x(n) and y(n) are periodic signals with period N: • Correlations are also periodic with period N

  8. y(n)=x(n)+w(n)

  9. LTI Systems • Convolution, output of LTI system • Crosscorrelation between the output and input signal: • Similarly, input to output is:

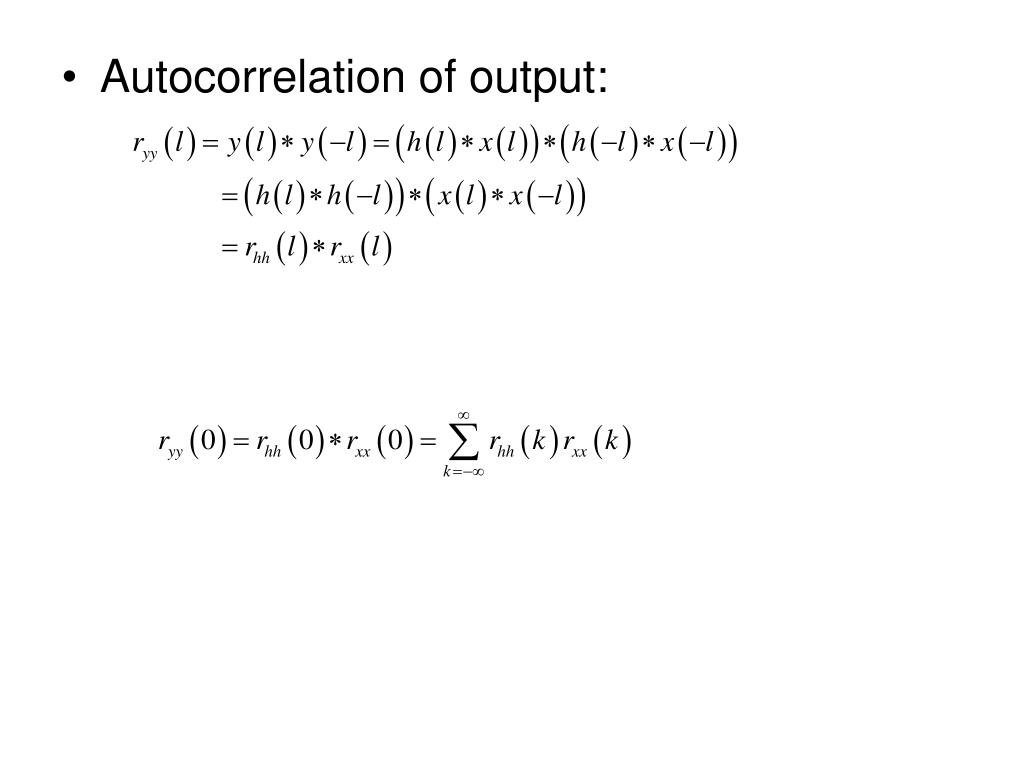

  10. Autocorrelation of output:
