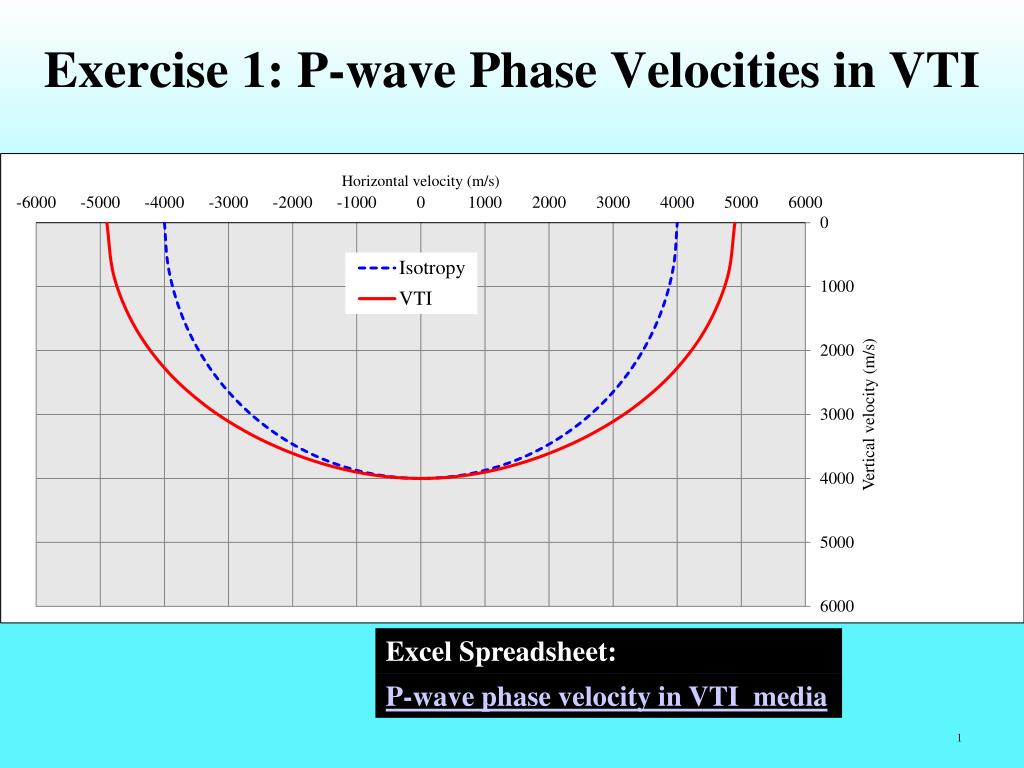

  1. Exercise 1: P-wave Phase Velocities in VTI Excel Spreadsheet: P-wave phase velocity in VTI media

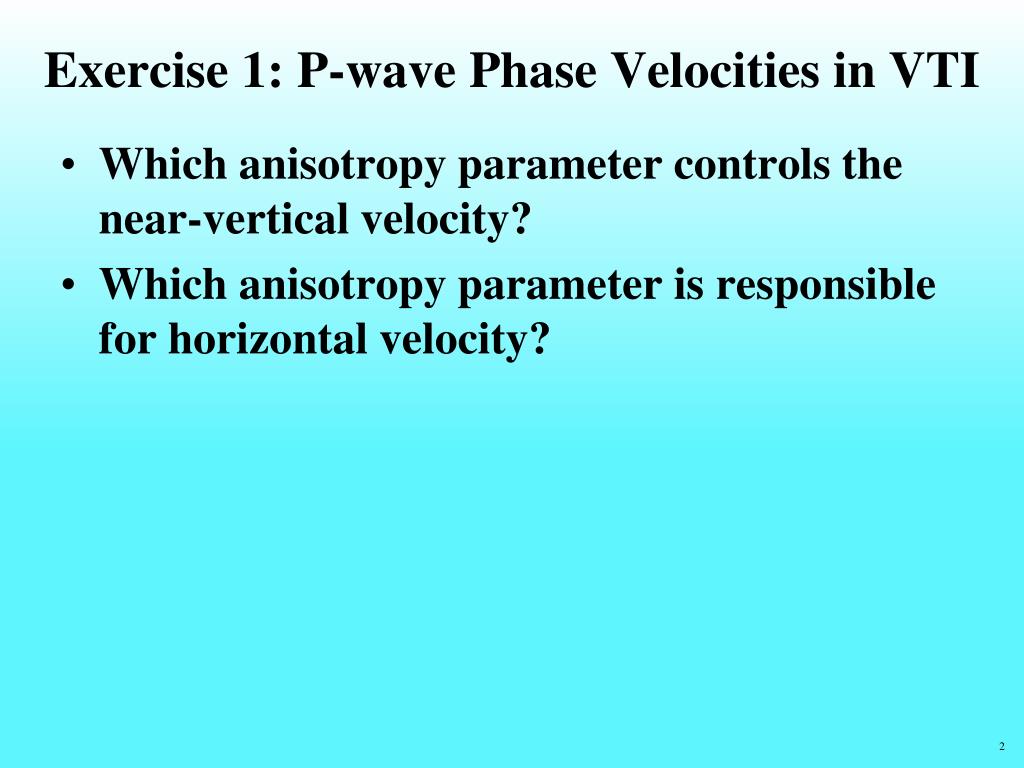

  2. Exercise 1: P-wave Phase Velocities in VTI • Which anisotropy parameter controls the near-vertical velocity? • Which anisotropy parameter is responsible for horizontal velocity?

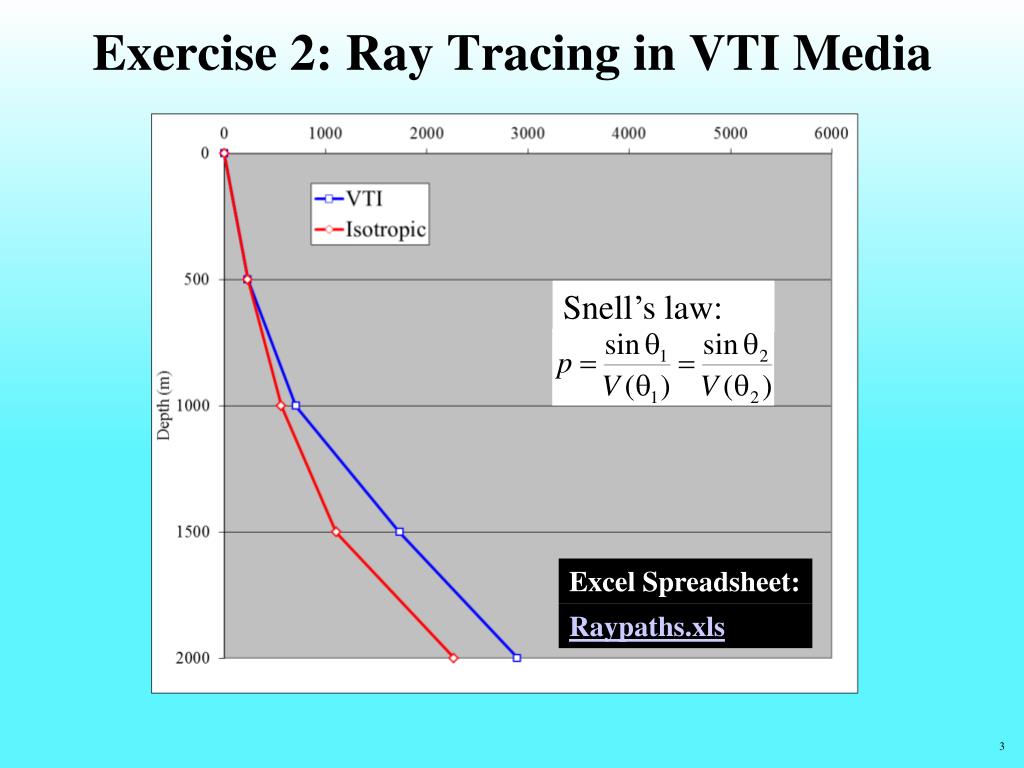

  3. Exercise 2: Ray Tracing in VTI Media Snell’s law: Excel Spreadsheet: Raypaths.xls

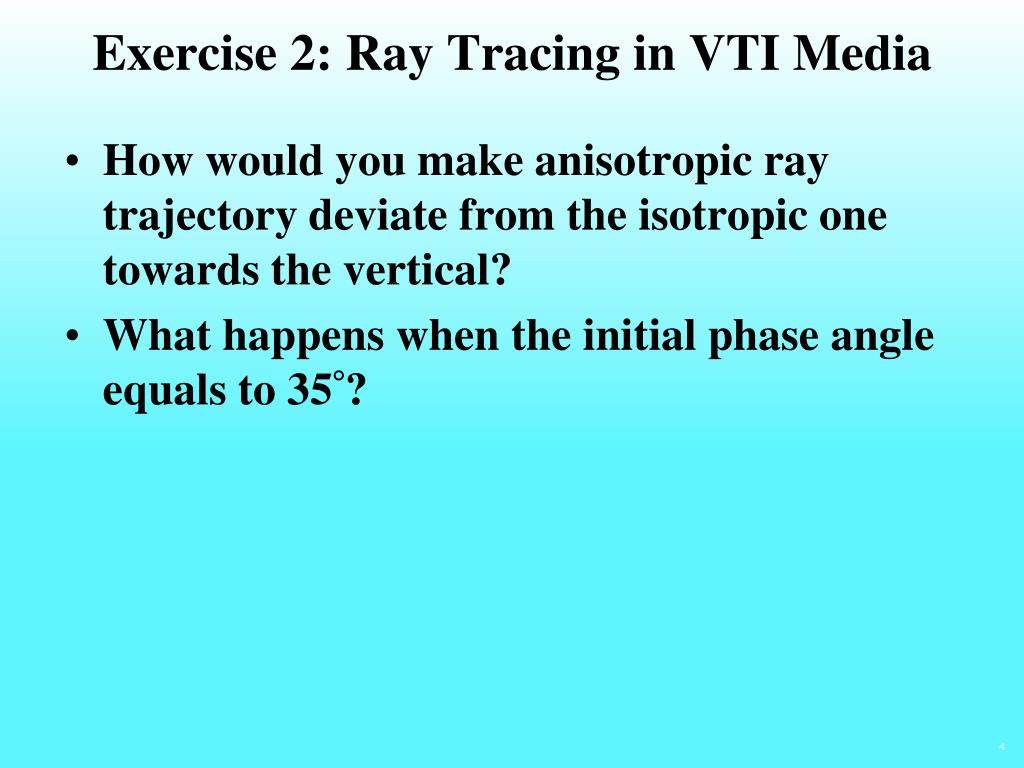

  4. Exercise 2: Ray Tracing in VTI Media • How would you make anisotropic ray trajectory deviate from the isotropic one towards the vertical? • What happens when the initial phase angle equals to 35°?

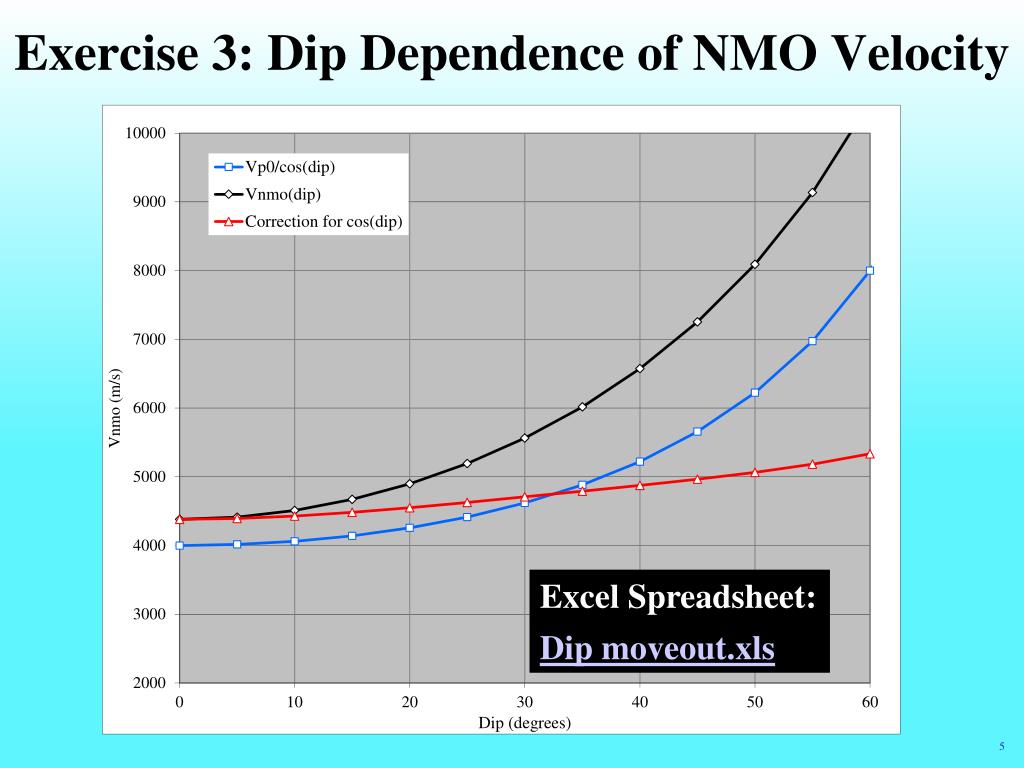

  5. Exercise 3: Dip Dependence of NMO Velocity Excel Spreadsheet: Dip moveout.xls

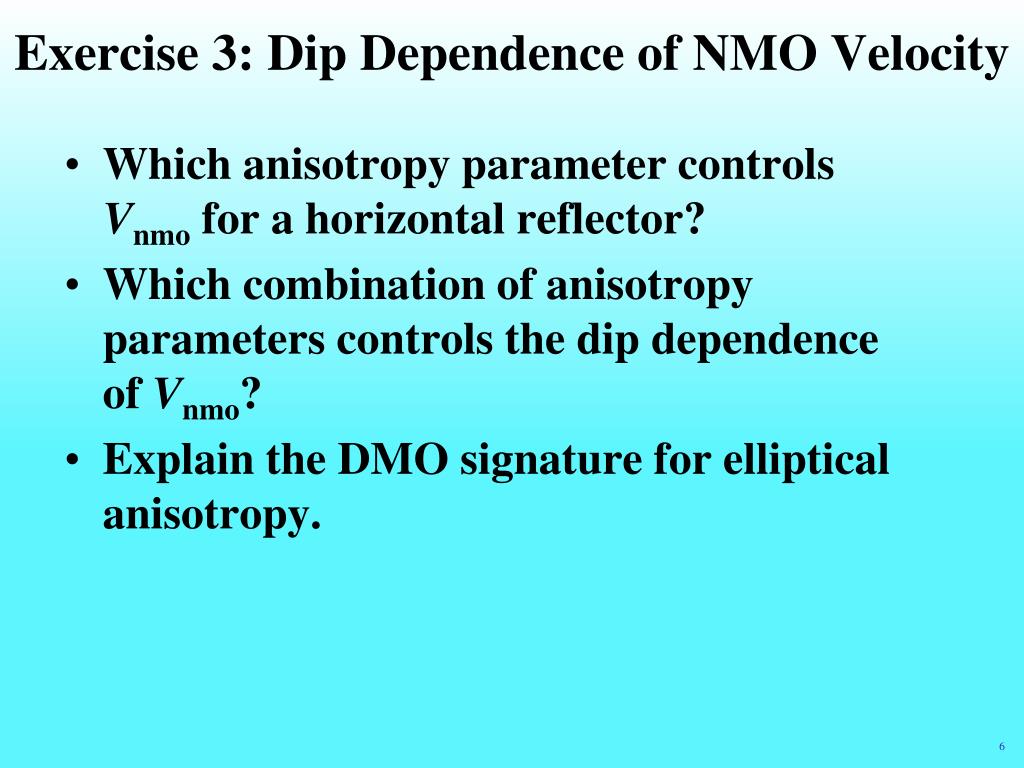

  6. Exercise 3: Dip Dependence of NMO Velocity • Which anisotropy parameter controls Vnmofor a horizontal reflector? • Which combination of anisotropy parameters controls the dip dependence of Vnmo? • Explain the DMO signature for elliptical anisotropy.

  7. Exercise 4: Correction of Nonhyperbolic Moveout Excel Spreadsheet: Nonhyperbolic moveout.xls

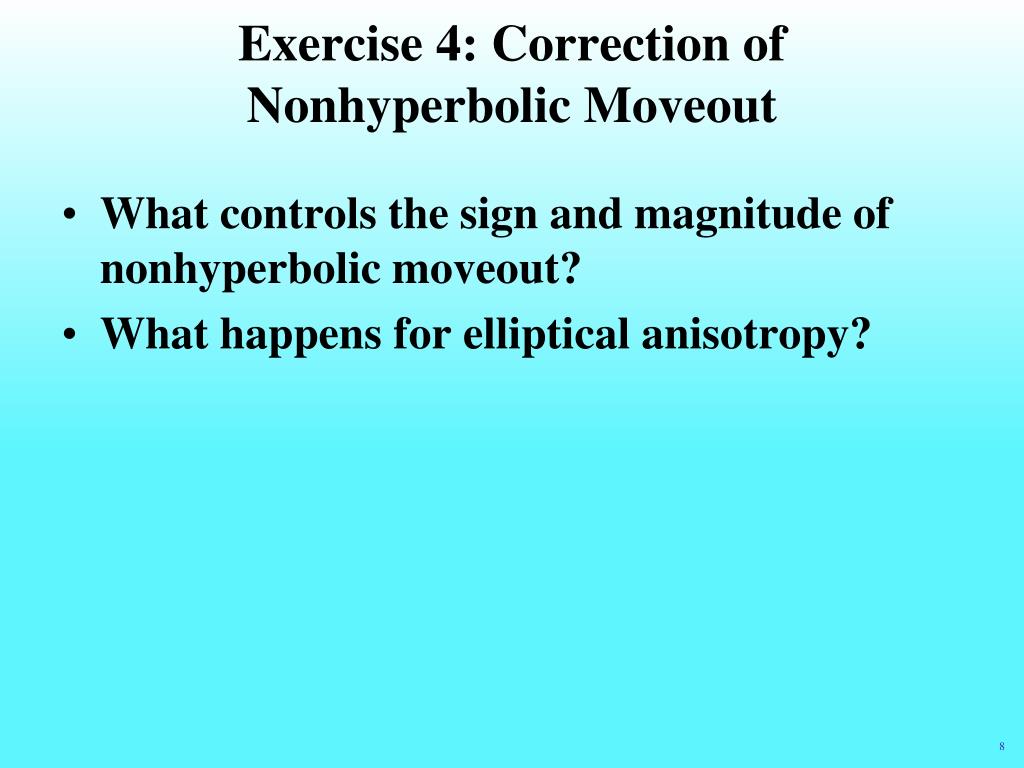

  8. Exercise 4: Correction of Nonhyperbolic Moveout • What controls the sign and magnitude of nonhyperbolic moveout? • What happens for elliptical anisotropy?
