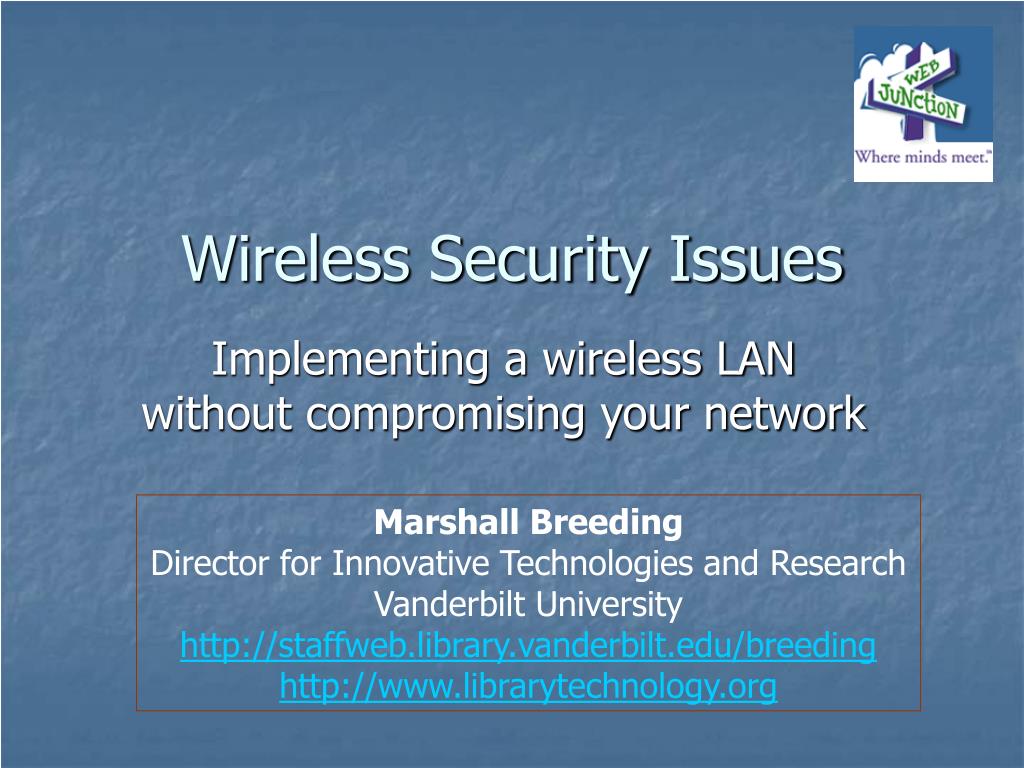

  1. Wireless Security Issues Implementing a wireless LAN without compromising your network Marshall Breeding Director for Innovative Technologies and Research Vanderbilt University http://staffweb.library.vanderbilt.edu/breeding http://www.librarytechnology.org

  2. Security concerns • Eavesdropping a major concern • Unprotected wireless access points are an easy of entry for mobile hackers • Many rogue Wireless LANS were put up in corporate networks without IT support or adequate security • War Driving / War Chalking • Some war driving / freeloading happens in residential settings

  3. Positioning your wireless network • Libraries should already have a network security architecture that separates public access computing from the business network • Adding a wireless LAN is easy when the library already has a solid security environment in place

  4. Encryption necessary to ensure security • Sensitive data must be encrypted when transmitted across any untrusted network • Most Encryption algorithms uses a secure key to encode the data and decode it after transmission • The longer the key, the more difficult it is to use brute force to decrypt the message • WEP uses 40, 64, or 128 (WEP2) bit keys

  5. Wired Equivalency Privacy • Optional Encryption scheme part of the 802.11b specification • RC4 encryption • Single key encrypts all traffic • No system for key management • Hackers can easily recover the key • WEP often not enabled • WEP can be defeated by sophisticated hackers • Provides a barrier to most potential intruders

  6. Wireless Hacking tools • At least two open source tools are available for recovering 802.11 WEP keys: • WEPCrack http://wepcrack.sourceforge.net/ • AirSnort http://airsnort.shmoo.com/

  7. 802.11i • Security Standard for the 802.11 arena • Includes WPA and RSN (Robust Security Network) • Relies on 802.1x specification for port-based user and device authentication • Ratified June 2004 • Marketed as WPA2

  8. WPA • Wi-Fi Protected Access • Enhanced security over WEP • TKIP • Available now • Backwardly compatible with WEP – requires only a firmware upgrade.

  9. Temporal Key Integrity Protocol (TKIP) • 128 bit encryption keys • Each packet encrypted with a different key based on a 48-bit serial number, incremented with each use. • Avoids replay attacks • Relies on a base key with is generated when a device associates with the base station • Ideally unique base keys transmitted during 802.1x authentication • Pre-shared keys used otherwise

  10. WPA2 • WPA + AES = WPA2 • Advanced Encryption Standard instead of TKIP • Stronger encryption algorithm • Not guaranteed to be backwardly compatible with existing WEP equipment • Personal version uses pre-shared key • Enterprise version uses 802.1X authentication through RADIUS server.

  11. WPA/802.1x Diagram • See: • http://www.infoworld.com/infoworld/img/20FEwifi_in-x.gif

  12. Wi-Fi Security Services • SecureMyWiFi (http://www.witopia.net/) • RADIUS authentication and security key distribution service • Operates with AP’s that support WPA-Enterprise or WPA2-Enterprise • $29 annual fee

  13. Virtual Private Networks (VPN) • A technology that offers strong security • Common approach for remote users that rely on accessing organizational resources through the Internet • Applicable to wireless users on premises • Enhances security / adds inconvenience.

  14. WEP Security

  15. VPN Security

  16. Conclusions • Solutions are available that provide solid security for wireless networks • Trade-off between convenience and security. • Open wireless networks can be operated without jeopardizing the library’s business network
