  1. VHDL ELEC 311 Digital Logic and Circuits Dr. Ron Hayne Images Courtesy of Cengage Learning

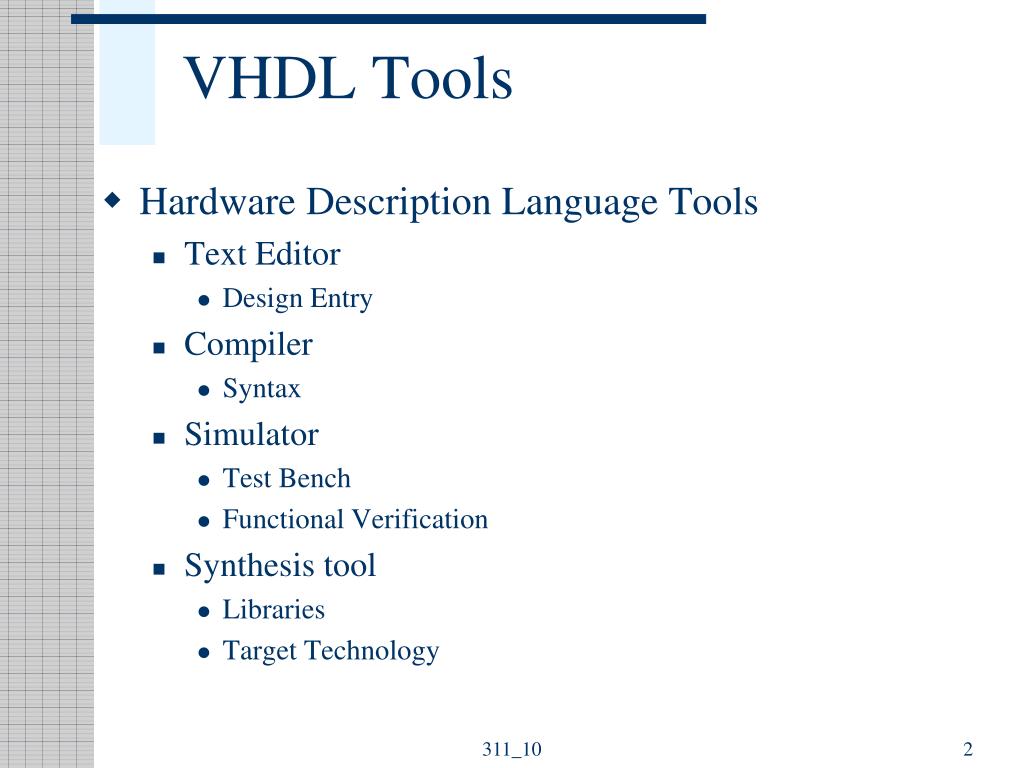

  2. VHDL Tools • Hardware Description Language Tools • Text Editor • Design Entry • Compiler • Syntax • Simulator • Test Bench • Functional Verification • Synthesis tool • Libraries • Target Technology 311_10

  3. Entity Component interface Inputs Outputs Architecture Structural Dataflow Behavioral VHDL Model 311_10

  4. Propagation Delays 311_10

  5. Std_Logic_Vectors 311_10

  6. Multiplexers 311_10

  7. Design Hierarchy 311_10

  8. 4-bit Ripple-Carry Adder entity Adder4 is port(A, B: in bit_vector(3 downto 0); Ci: in bit; S: out bit_vector(3 downto 0); Co: out bit); end Adder4; 311_10

  9. VHDL Types • Predefined Types • IEEE Standard Logic 311_10

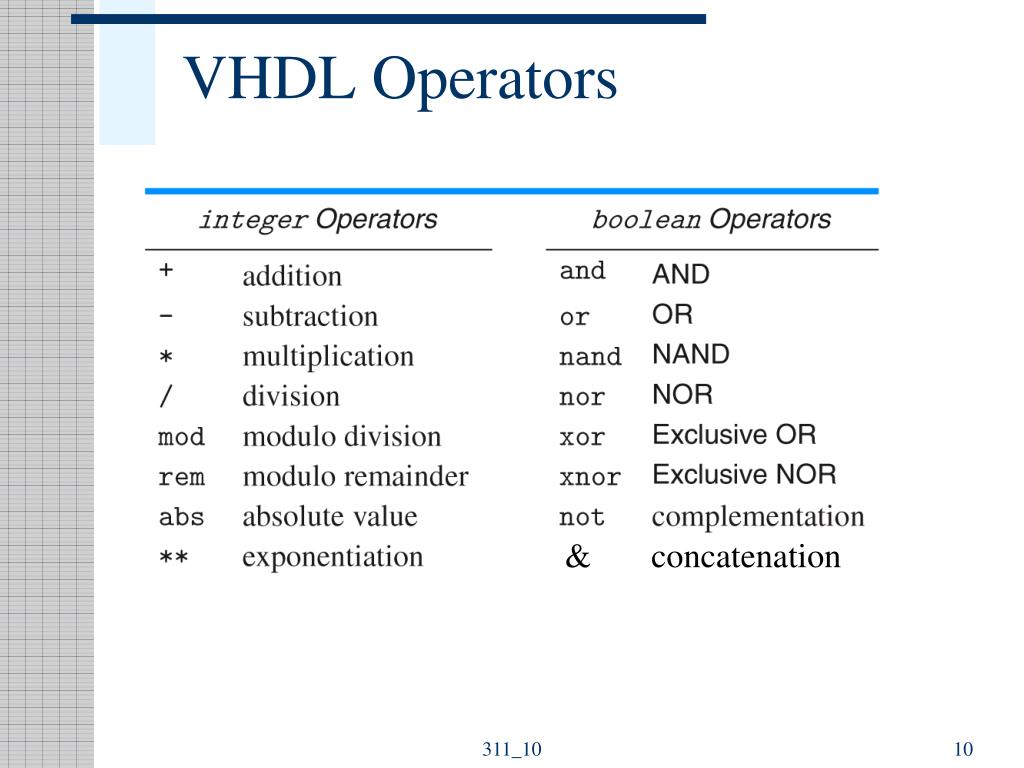

  10. VHDL Operators & concatenation 311_10

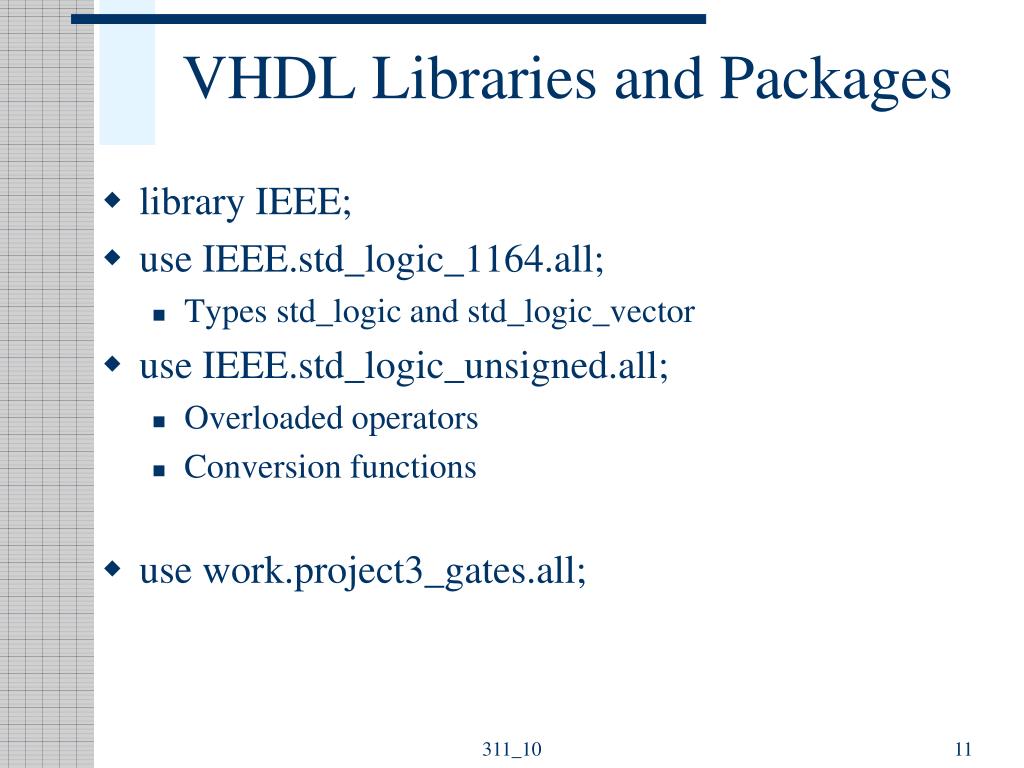

  11. VHDL Libraries and Packages • library IEEE; • use IEEE.std_logic_1164.all; • Types std_logic and std_logic_vector • use IEEE.std_logic_unsigned.all; • Overloaded operators • Conversion functions • use work.project3_gates.all; 311_10

  12. Project 3 VHDL • Structural Description • Entity • Structural Architecture • Package • Component declarations • Dataflow descriptions 311_10

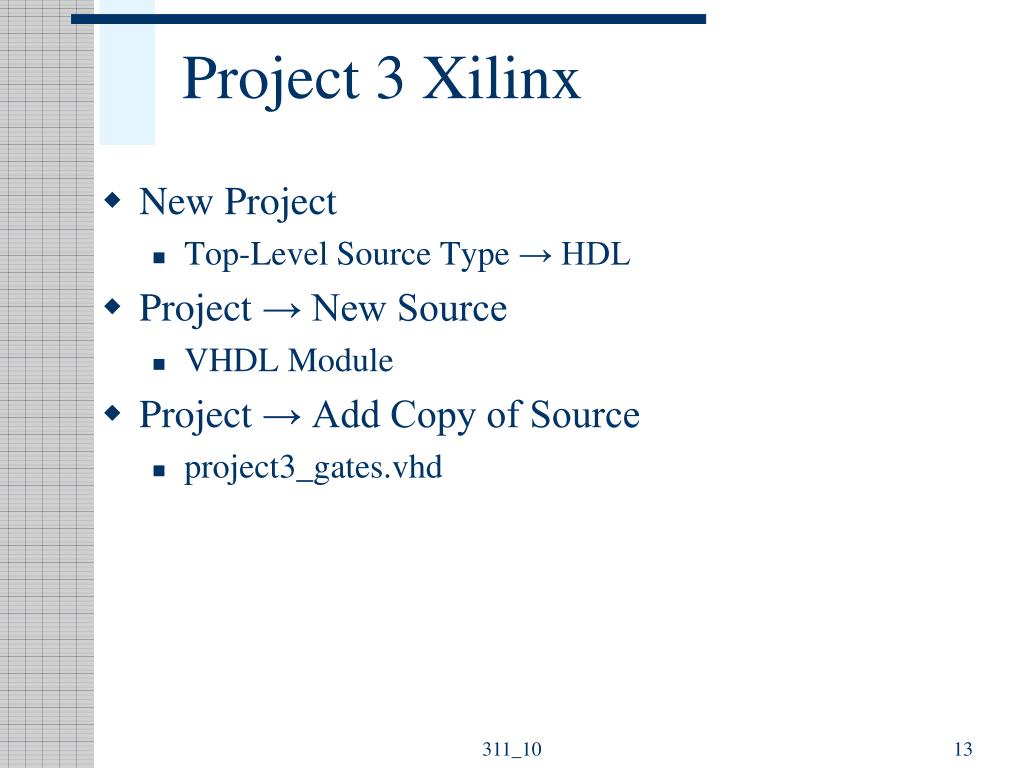

  13. Project 3 Xilinx • New Project • Top-Level Source Type → HDL • Project→ New Source • VHDL Module • Project→ Add Copy of Source • project3_gates.vhd 311_10

  14. New Source 311_10

  15. 311_10

  16. Summary • Entity • Architecture • Structural • Dataflow • Behavioral • Types • Operators • Libraries and Packages 311_10
