A Security-centric Ring-based Software Architecture

1. Fighting Mechanism Population Infrastructure Organic Essentials Leadership A Security-centric Ring-based Software Architecture Jay-Evan J. Tevis John A. Hamilton, Jr. Western Illinois University Auburn University Macomb, IL Auburn, AL A Security-centric Ring-based Software Architecture

2. Introduction • Software systems are vulnerable to many different forms of attack • Protection of such systems can be improved by viewing their key components from the perspective of an enemy attacker A Security-centric Ring-based Software Architecture

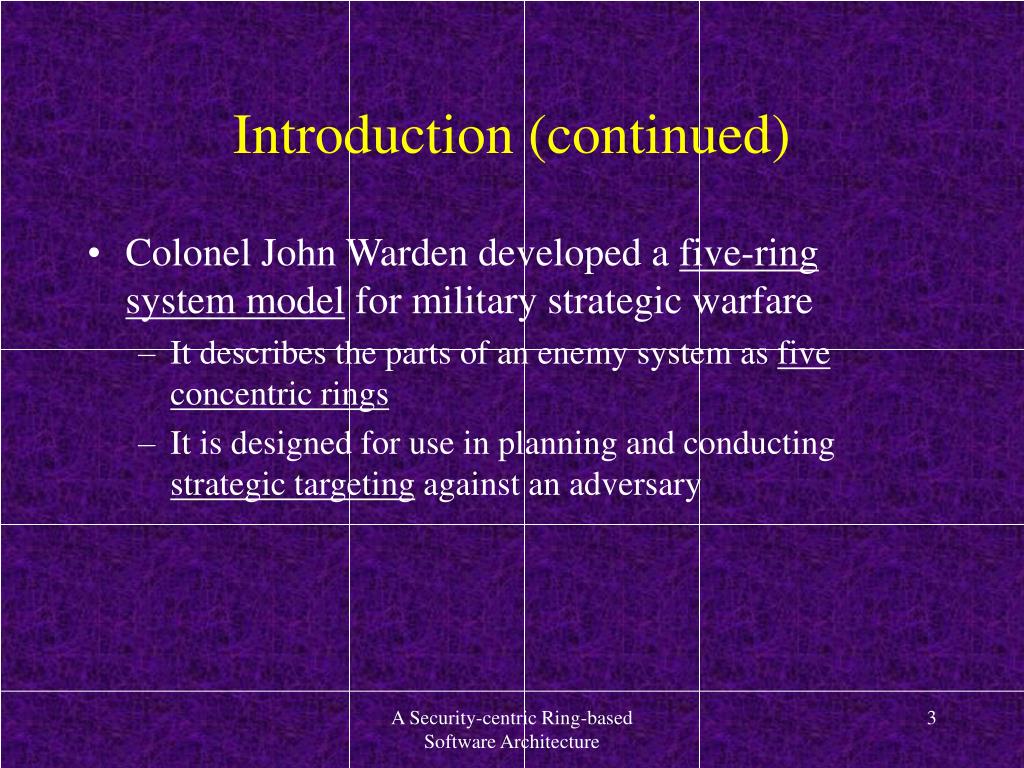

3. Introduction (continued) • Colonel John Warden developed a five-ring system model for military strategic warfare • It describes the parts of an enemy system as five concentric rings • It is designed for use in planning and conducting strategic targeting against an adversary A Security-centric Ring-based Software Architecture

4. Introduction (continued) • We apply this model to computer software architecture in a similar manner to identify • What system-level components are essential • How these components can be better protected through a security-focused software architectural design A Security-centric Ring-based Software Architecture

5. Overview • Security-centric software architectures • Design of a ring-based software architecture • A computer security adaptation using Warden’s concentric rings • Adapting Warden’s model to computer security • Protecting centers of gravity in a software system • Conclusion and future plans A Security-centric Ring-based Software Architecture

6. 1. Security-centric Software Architectures A Security-centric Ring-based Software Architecture

7. 1. Security-centric Software Architectures Critical Concepts in the Security Domain [Neumann] • Multi-level security • Restrict flow of information from higher-security entities to lower-security entities • Multi-level integrity • Restrict dependencies between entities of higher integrity with entities of lower integrity • Multi-level availability • Restrict dependencies between entities of higher availability with entities of lower availability A Security-centric Ring-based Software Architecture

8. 1. Security-centric Software Architectures Multiple Security Rings [Gemini] • High assurance security • Hardware and kernel-enforced protection • Multi-level security • Enforcement of organizational access controls • Cryptographic communication security • IPSec-based authentication, confidentiality, and integrity • Integrated information systems security • Protection at transport and network layers A Security-centric Ring-based Software Architecture

9. 1. Security-centric Software Architectures Properties of Ring-based Software Architectures [Schell] • Memory segmentation • Three protection rings • (0) Security kernel • Located in the most protected ring • Enforces mandatory access controls • (1) Operating system • (2) Applications • According to Schell, such ring-based architectures are applied in research but are not widely deployed in industry A Security-centric Ring-based Software Architecture

10. 1. Security-centric Software Architectures Ring-based Program Execution Policy [Nguyen and Levin] • Mandatory access control (All users including root) • Four ring-based execution domains • (0) Operating System • (1) Administration • (2) Privileged application • (3) Unprivileged application • Programs assigned to a less privileged ring are unable to execute or access objects allocated in a more privileged ring A Security-centric Ring-based Software Architecture

11. 2. Design of a Ring-based Software Architecture A Security-centric Ring-based Software Architecture

12. 2. Design of a Ring-based Software Architecture Ring 4 Ring 3 Ring 2 Ring 1 Ring 0 Ring-based Architectural Style A Security-centric Ring-based Software Architecture

13. 2. Design of a Ring-based Software Architecture Ring-based Architectural Style [Bachmann] • A variation of the layered architectural style • Innermost ring is the lowest-numbered layer; outermost ring is the highest-numbered layer • Geometric adjacency of two rings denotes an “ability to use” relation • Each entity in a specific ring can communicate with another entity A Security-centric Ring-based Software Architecture

14. 2. Design of a Ring-based Software Architecture Ring-based Architectural Style (continued) • Entities within a ring have no inherent adjacency; consequently, they are an unordered set • This tends towards more of a peer-to-peer environment within a ring • Any entity in an inner ring is accessible only by an entity in the closest outer ring • To access an inner ring, an entity in the adjacent outer ring must be used as the mediator or interface A Security-centric Ring-based Software Architecture

15. 2. Design of a Ring-based Software Architecture Features of Rings as Interfaces • Confidentiality (privacy) • Authentication (who created or sent the data) • Integrity (data has not been altered) • Non-repudiation (responsibility for the request) • Access control (preventing misuse of resources) • Availability (permanence or non-erasure of data) A Security-centric Ring-based Software Architecture

16. 2. Design of a Ring-based Software Architecture Features of Rings as Gates[Fernandez] • A set of protection rings corresponds to domains of execution with hierarchical levels of trust • Gates serve as protected entry points between rings • Entering a ring is done through a gate that checks the access rights of a process A Security-centric Ring-based Software Architecture

17. 2. Design of a Ring-based Software Architecture Design Patterns for a Ring-based Software Architecture [Fernandez] • File authorization • Access control for virtual address space • Execution domain • Reference monitor • Controlled execution environment A Security-centric Ring-based Software Architecture

18. 3. A Computer Security Adaptation using Warden’s Concentric Rings A Security-centric Ring-based Software Architecture

19. 3. A Computer Security Adaptation using Warden’s Concentric Rings Fighting Mechanism Population Infrastructure Organic Essentials Leadership Warden’s Five-Ring Model [Warden] A Security-centric Ring-based Software Architecture

20. 3. A Computer Security Adaptation using Warden’s Concentric Rings Body State Drug Cartel Electric Grid Leadership Brain -eyes -nerves Government -comm. -security Leader -comm. -security Central control OrganicEssentials Food and oxygen EnergyMoney Coca source plus conversion Input(Hydro- electric) Infrastructure Vessels, bones, muscles Roads, airfields, factories Roads, airways, sea lanes Transmission lines Population Cells People Growers Workers FightingMechanism Leukocyte Military, firemen Street soldiers Lineman Five-Ring Model Applied to Other Domains [Warden] A Security-centric Ring-based Software Architecture

21. 3. A Computer Security Adaptation using Warden’s Concentric Rings Software Security Adaptation of Warden’s Model Physical security measures Application software System bus and data controllers BIOS, system utilities, drivers Executable code, sensors A Security-centric Ring-based Software Architecture

22. 3. A Computer Security Adaptation using Warden’s Concentric Rings Computer Security Rings • (Ring 0) The executable code itself and software controlling the system sensors and I/O sensors • (Ring 1) BIOS, device drivers, system utilities (scheduler, swapper, I/O, memory, file system, power) • (Ring 2) Software controlling the system bus, data lines, antennas, and converters • (Ring 3) Application software (handling and transforming of user data) • (Ring 4) Software controlling physical security measures to deal with an external attack or an intrusion A Security-centric Ring-based Software Architecture

23. 5. Protecting Centers of Gravity in a Software System A Security-centric Ring-based Software Architecture

24. 5. Protecting Centers of Gravity in a Software System Centers of Gravity • Centers of gravity are the components that are instrumental to a system’s function and survival • The five rings in Warden’s model constitute five centers of gravity • Each ring is a possible target requiring protection • Without the functioning inner rings, an outer ring becomes a useless appendage • Software engineers should ensure that the security protection for the software in each ring cannot be easily defeated A Security-centric Ring-based Software Architecture

25. 5. Protecting Centers of Gravity in a Software System (0) Leadership Ring • Consists of the executable code itself and software controlling the system sensors and I/O sensors • Failure of any critical components in the leadership ring leads to failure of the complete system • Critical components must be identified and given the highest level of protection • No vulnerability should exist that would allow changes to the program executable code without approval of the leadership ring • Only the leadership ring should be able to disable or change system sensors • With the innermost ring protected, each remaining ring must also be protected to avoid the threat of strategic paralysis A Security-centric Ring-based Software Architecture

26. 5. Protecting Centers of Gravity in a Software System (1) Organic Essentials Ring • Consists of the BIOS, device drivers, and system utilities (scheduler, swapper, I/O, memory, file system, power) • The organic essentials ring must be protected through redundancy and system surveillance (alternate software, software checking on each other, and possibly backup devices) A Security-centric Ring-based Software Architecture

27. 5. Protecting Centers of Gravity in a Software System (2) Infrastructure Ring • Consists of software controlling the system bus, data lines, antennas, and converters • The infrastructure ring must also be protected by redundancyof software, alternate control and alternate data routing • Backup components are needed for each of the major data conduits of the software system • Signals, shared memory, pipes, system bus, communication paths • The protection facilities must detect and minimize lost conduits or a denial of service attack and reroute data or delete data-jamming traffic in order to thwart such an attack A Security-centric Ring-based Software Architecture

28. 5. Protecting Centers of Gravity in a Software System (3) Population Ring • Consists of application software (handling and transforming of user data) • Attack of the population ring is less of an impact on the inner rings because of the low relationship (i.e., dependency) of the system processes on the the application processes • One major threat is exhaustion of memory or filling up of buffers • Another threat is corruption or destruction of the contents of the data when in transit into and among processes • Approaches for protection include buffer monitoring, parity error-detection mechanisms and sliding window protocols A Security-centric Ring-based Software Architecture

29. 5. Protecting Centers of Gravity in a Software System (4) Fighting Mechanism Ring • Consists of software controlling physical security measures to deal with an external attack or an intrusion • The fighting mechanism ring is not as critical if each of the inner rings has been equipped with software security protection mechanisms • Nevertheless, centralizing the attacking role in this ring supports the software engineering principle of cohesion • Protection includes not only attacking outward, but also the sending of warnings to inner rings • When designing security measures, the detection and handling of threats should always assume a parallel attack in a ring or among rings and also a diversion attack • System security should not be centered on a single thread of protection located in this outermost ring A Security-centric Ring-based Software Architecture

30. 6. Conclusion and Future Plans A Security-centric Ring-based Software Architecture

31. 6. Conclusion and Future Plans Conclusion • The importance of computer system security demands better security-centric software architectures • Warden’s five-ring model provides a way to portray a computer system as viewed by an enemy attacker • This modeling technique identifies the software components of each ring and the centers of gravity needing the most protection • It also points out the need for layered software defenses against computer security threats A Security-centric Ring-based Software Architecture

32. 6. Conclusion and Future Plans Future Plans • Compare and contrast the ring-based security-centric software architecture to the monolithic software architecture used by the Linux operating system • Implement a prototype operating system that utilizes a security-centric ring-based software architecture approach based on Warden’s model A Security-centric Ring-based Software Architecture
