  1. Forward Tracking in the ILD Detector

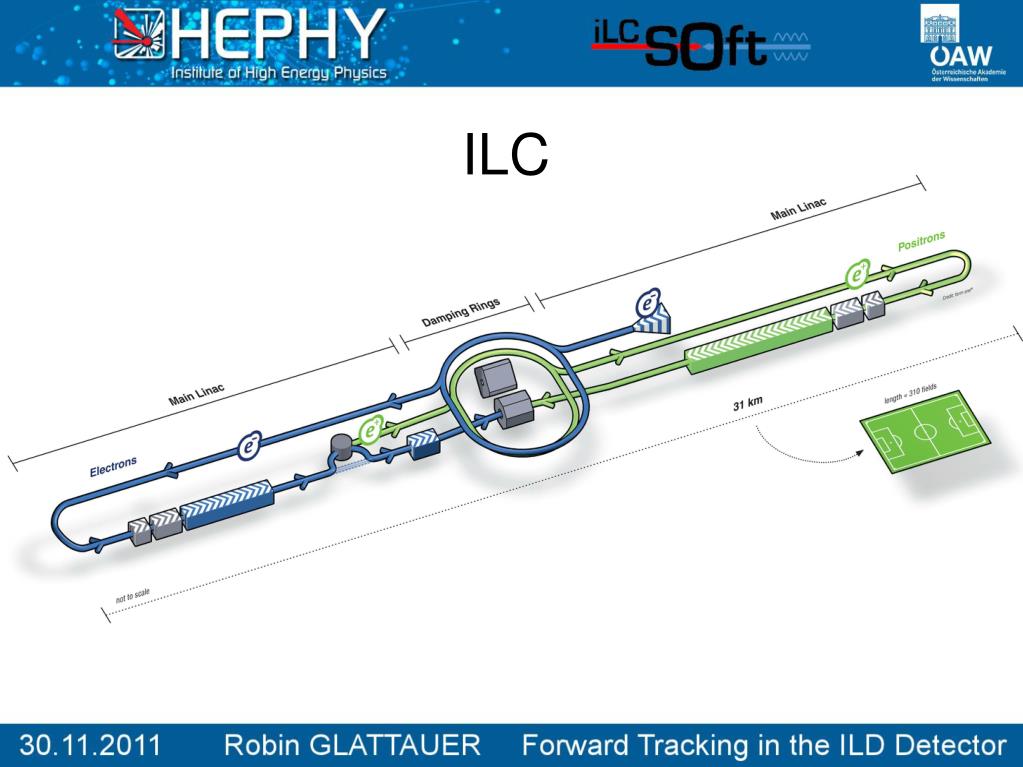

  2. ILC

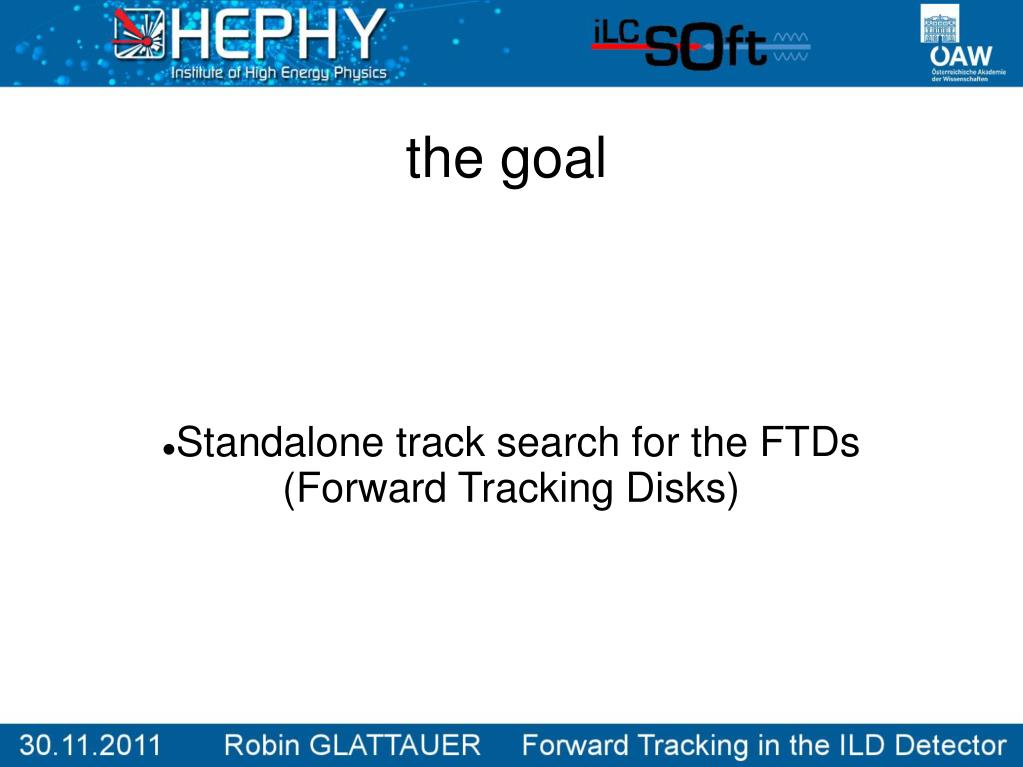

  3. Standalone track search for the FTDs (Forward Tracking Disks) the goal

  4. Track Reconstruction Vertextion Reconstruction Digitizer

  5. Why not combine with TPC tracking?

  6. TPC

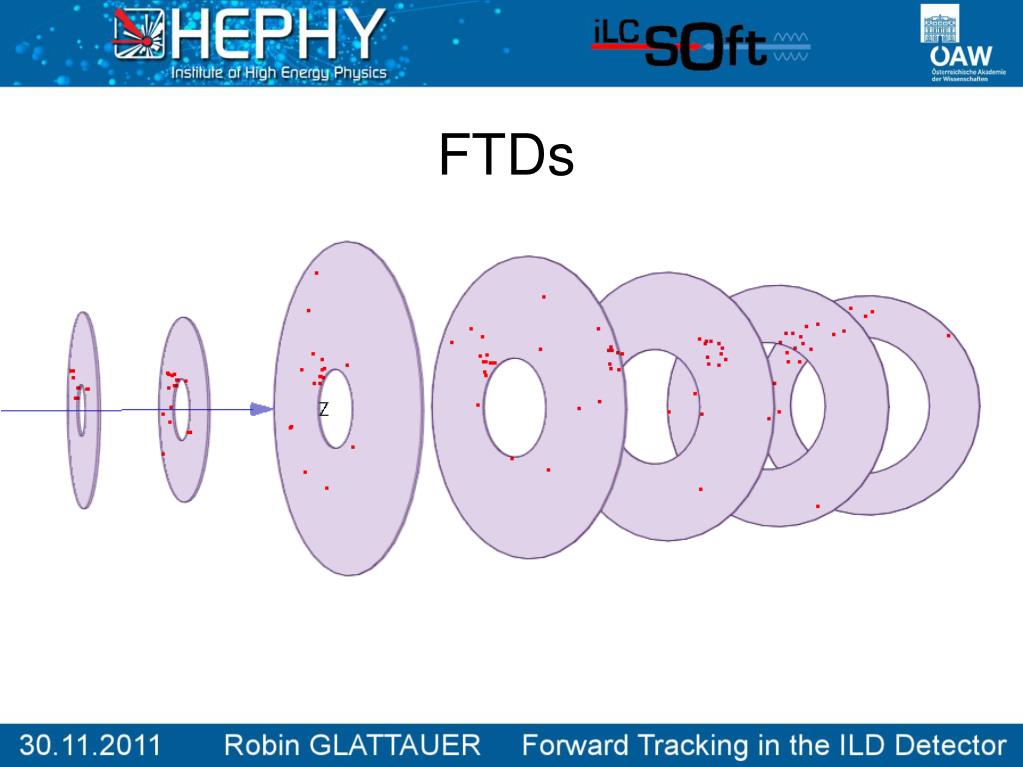

  7. FTDs

  8. Methods • Cellular Automaton • Kalman Filter • Hopfield Neural Network

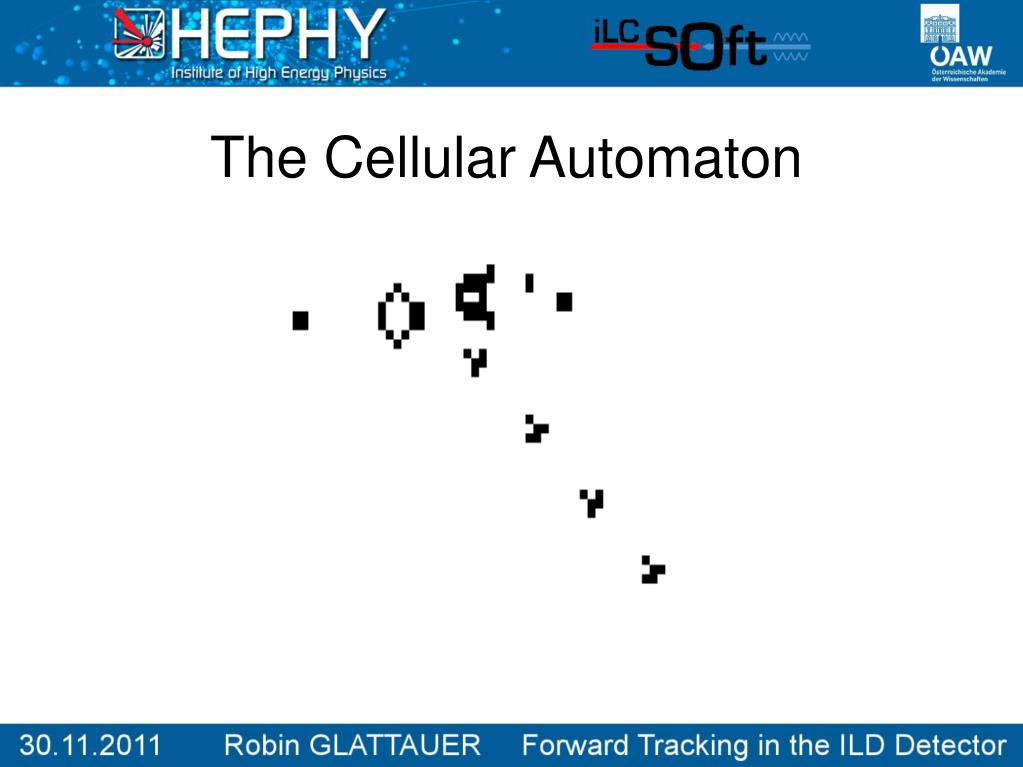

  9. The Cellular Automaton

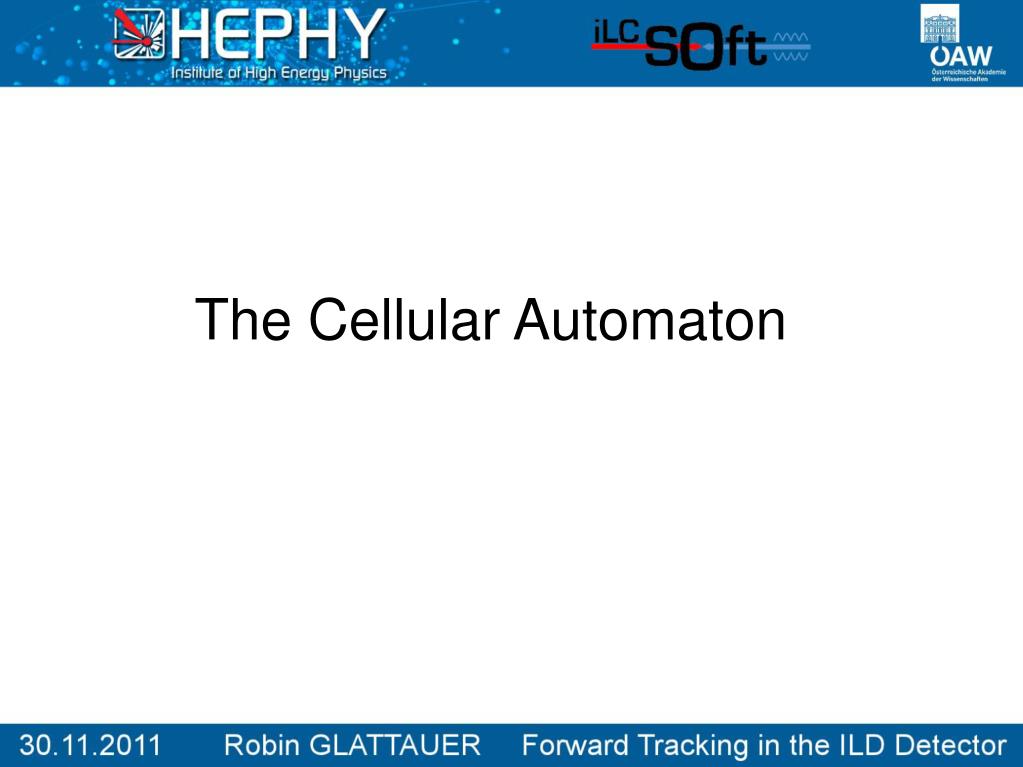

  10. The Cellular Automaton

  11. It's about rules

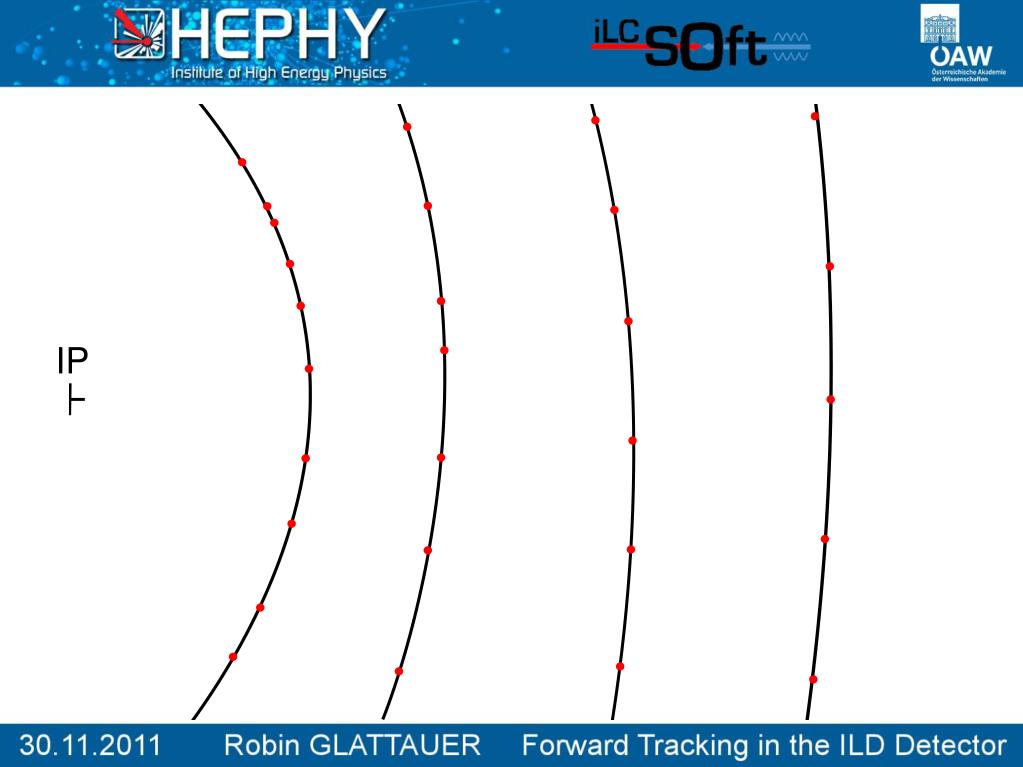

  12. IP

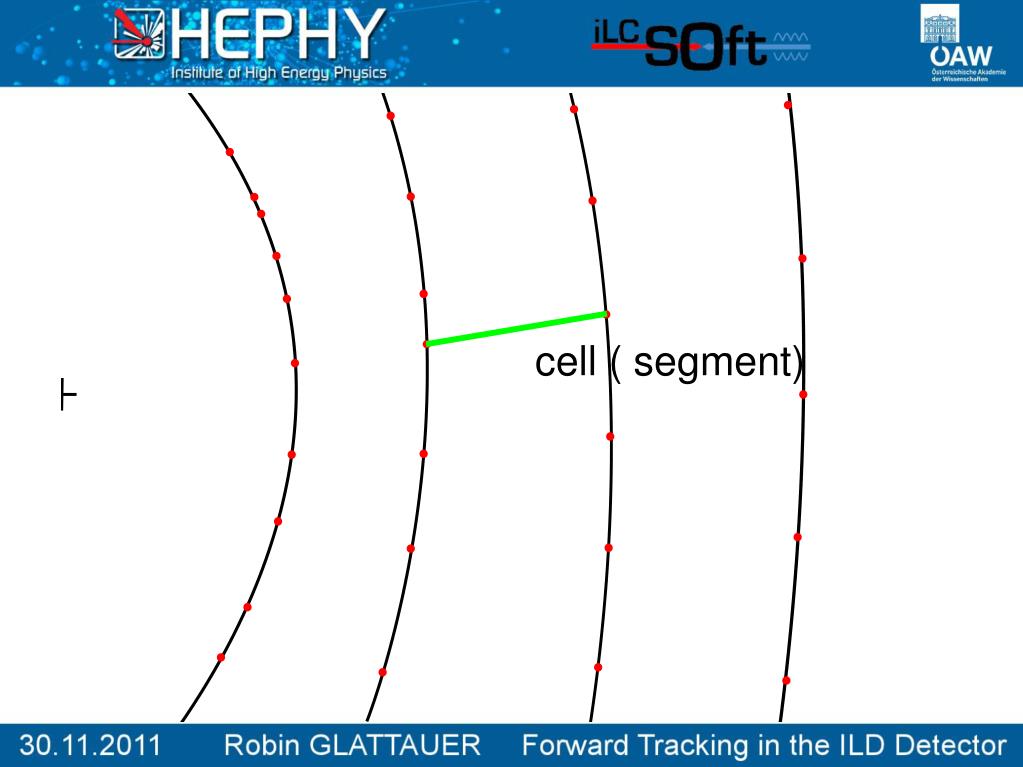

  13. cell ( segment)

  14. state 0

  15. On the FTDs

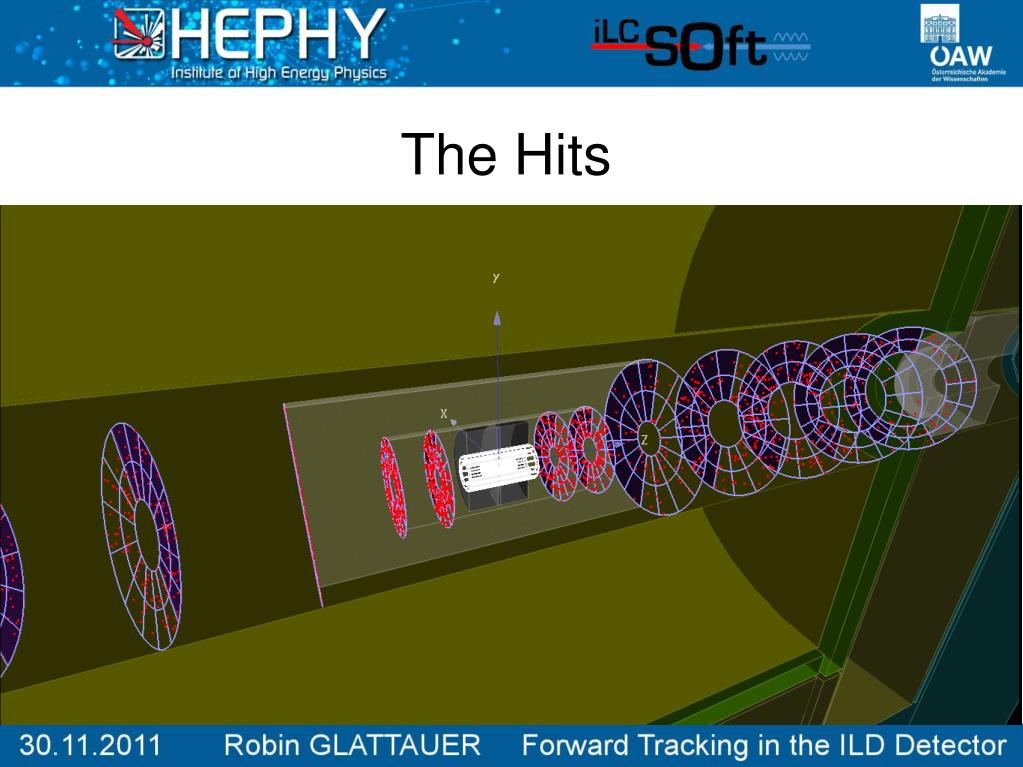

  16. The Hits

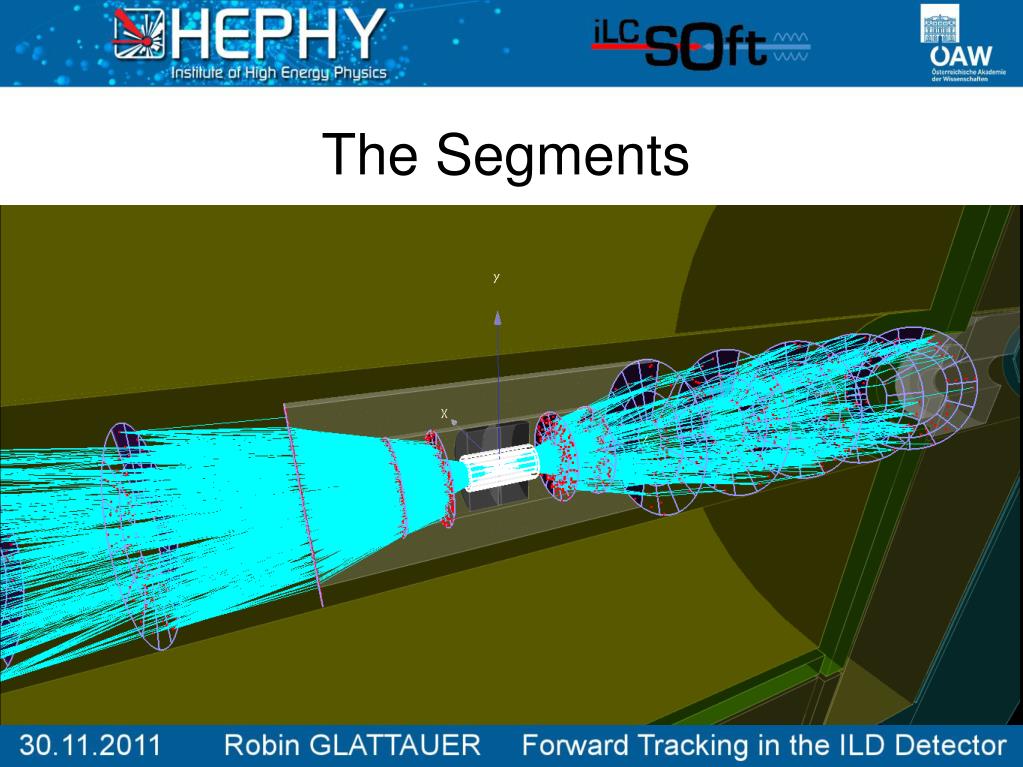

  17. The Segments

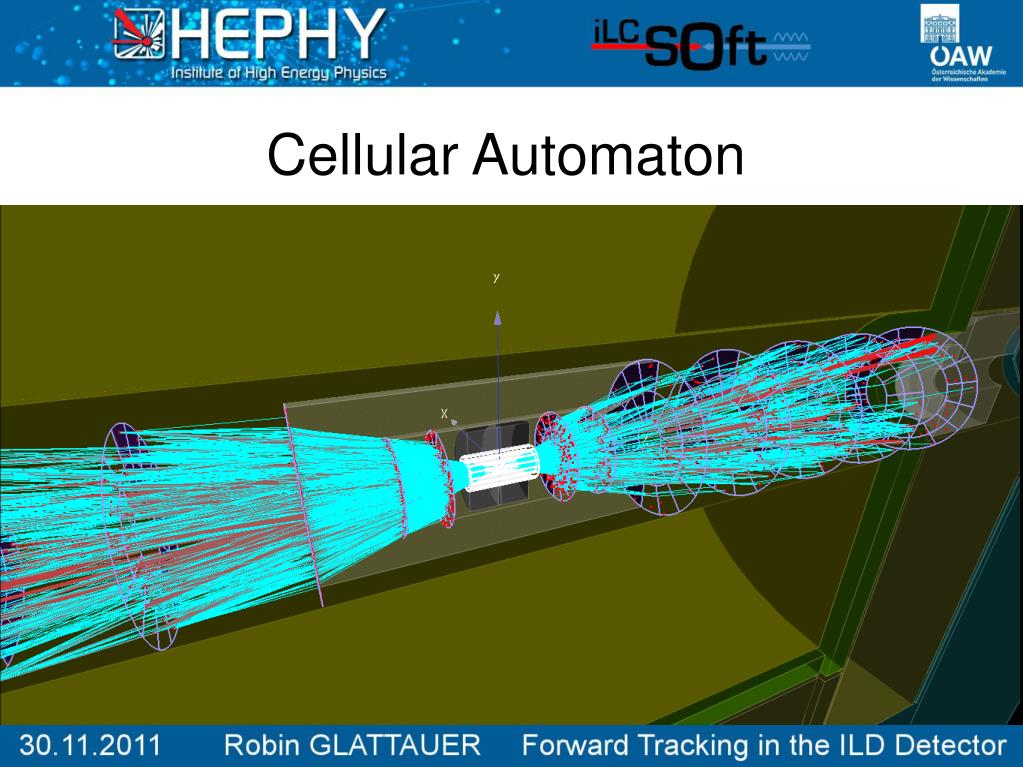

  18. Cellular Automaton

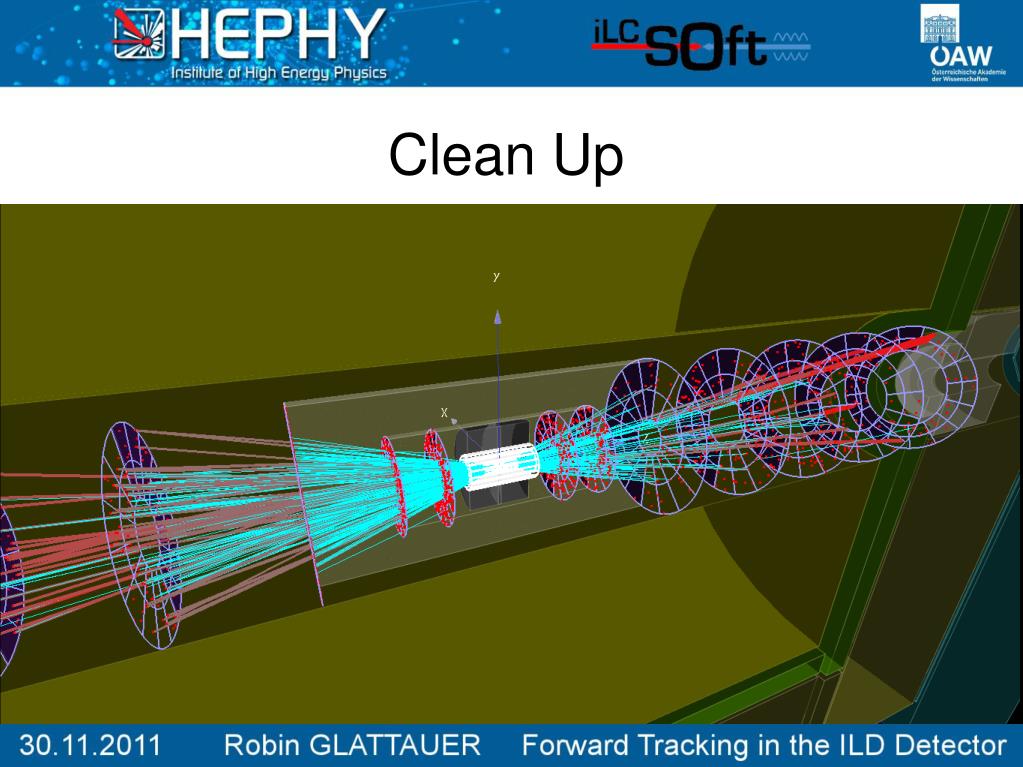

  19. Clean Up

  20. Longer Segments

  21. Cellular Automaton

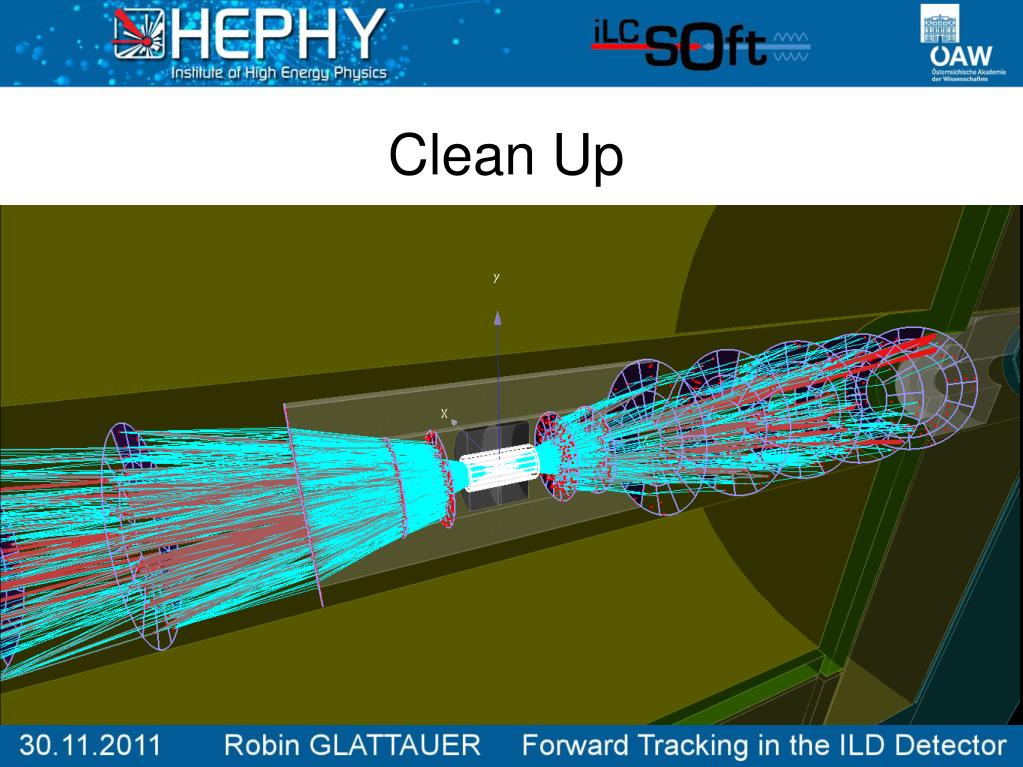

  22. Clean Up

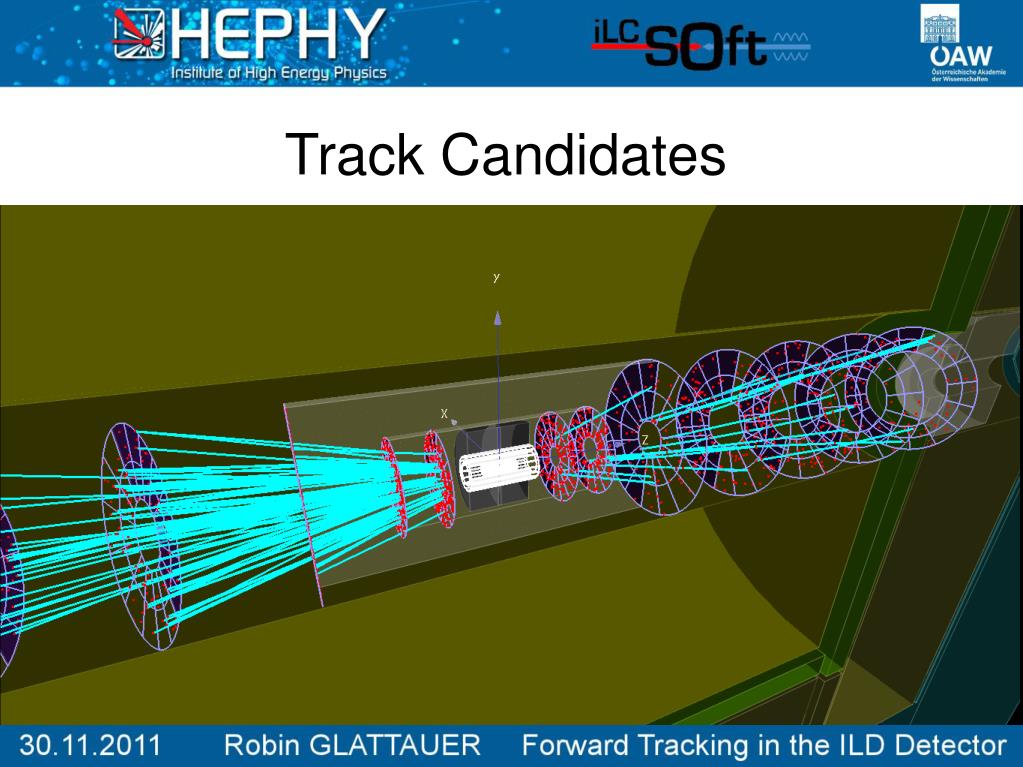

  23. Track Candidates

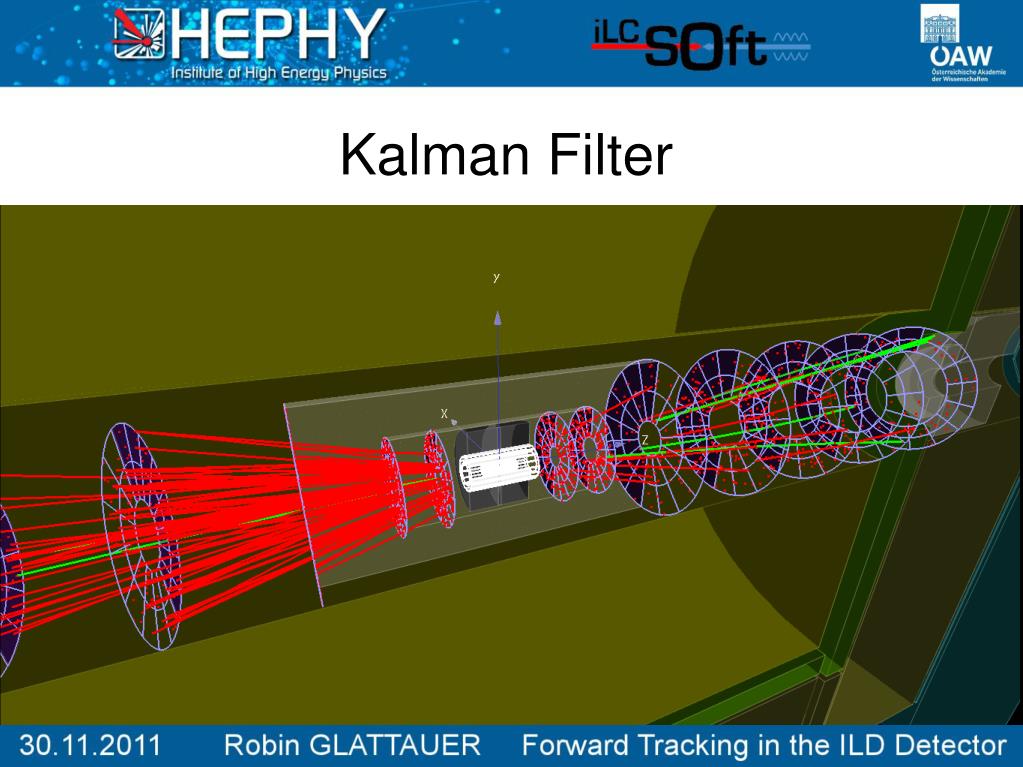

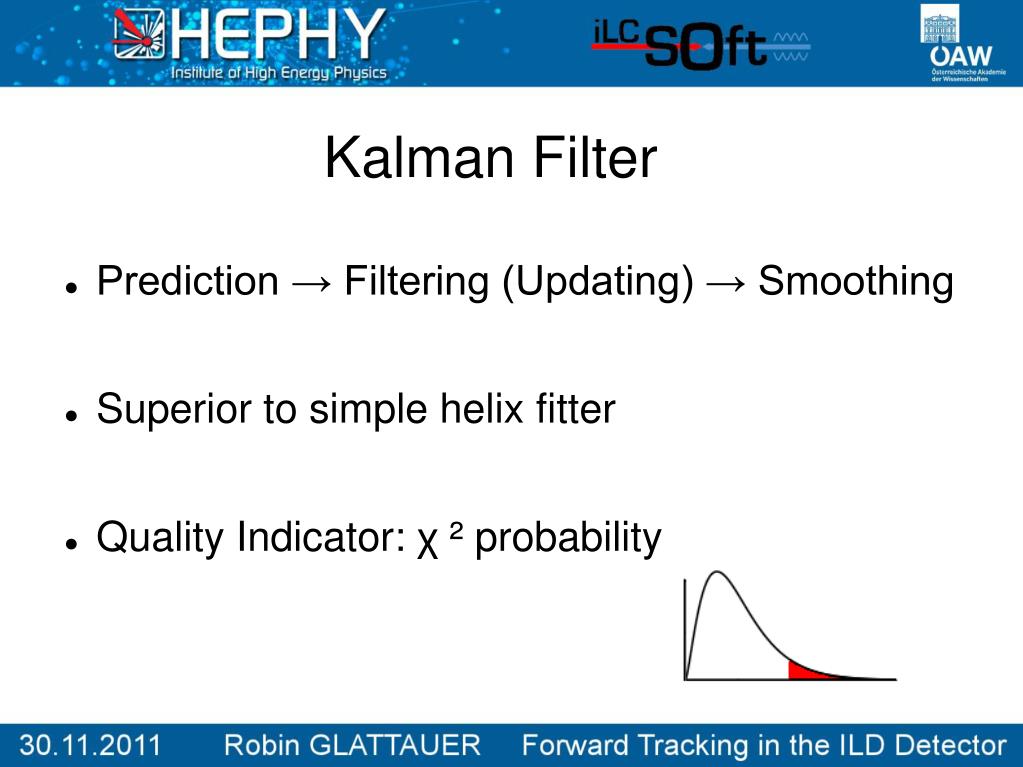

  24. Kalman Filter • Prediction → Filtering (Updating) → Smoothing • Superior to simple helix fitter • Quality Indicator: χ ² probability

  25. Kalman Filter • Prediction → Filtering (Updating) → Smoothing • Superior to simple helix fitter • Quality Indicator: χ ² probability

  26. Track Candidates

  27. Kalman Filter

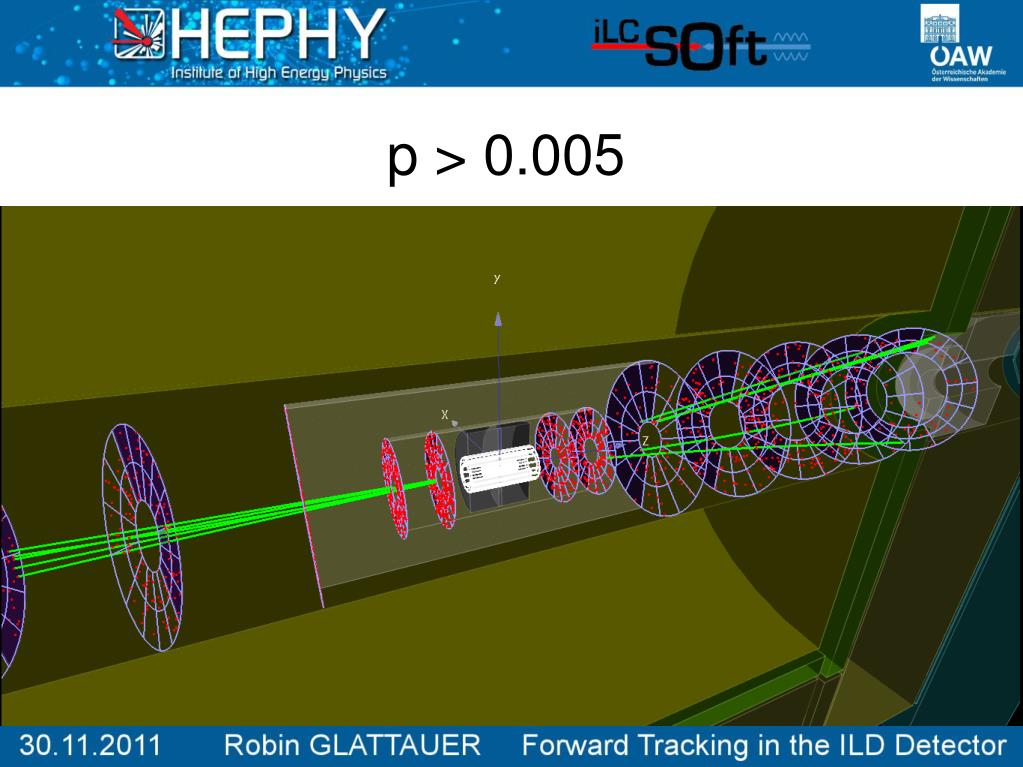

  28. p > 0.005

  29. The Hopfield Neural Network • Track ↔ Neuron • Goal: the global minimum

  30. T=0 T=1 T=2

  31. Background • Inner 2 disks are pixel detectors • How many bunch crossings? • 100 BX * hit density ≈ 900 hits / pixel disk

  32. Ghost hits • Outer 5 disks are strip detectors • Solution: shallow angle

  33. At the moment • Conversion to new geometry (staggered petals) • Debugging and efficiency • Seperating core form implementation • Sensible use of Hopfield Neural Network • Robustification • Picking up hits from other places • More analysis • Individual steering for pattern recognition → xml file • Measure the improvement (old vs. new software)

  34. Thanks to • Rudi Frühwirth and Winfried Mitaroff • Steve Aplin, Frank Gaede and Jan Engels • And Jakob Lettenbichler (Belle 2)

  35. Thank you!
