  1. Java Unit 5: Applets and Graphics Drawing and Filling Geometric Shapes

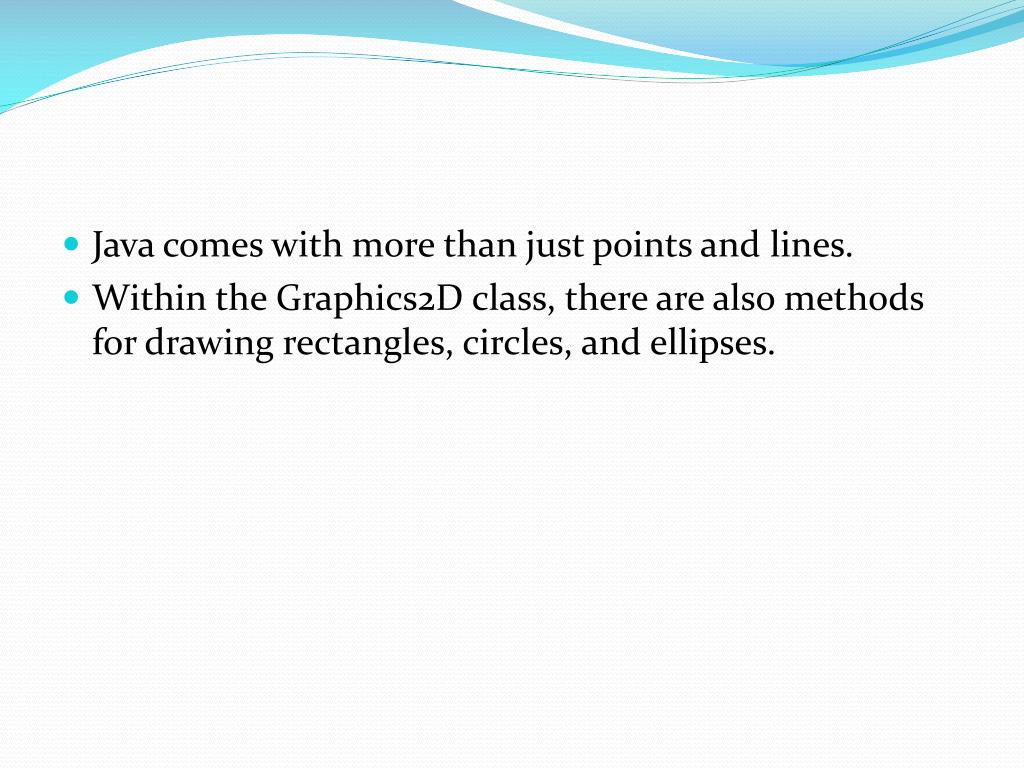

  2. Java comes with more than just points and lines. • Within the Graphics2D class, there are also methods for drawing rectangles, circles, and ellipses.

  3. Graphics2D g2 = (Graphics2D) g;Rectangle2D.Double myRectangle = new Rectangle2D.Double(10, 20, 30, 40);g2.draw(myRectangle);myRectangle = new Rectangle2D.Double(50, 20, 30, 40);g2.fill(myRectangle);

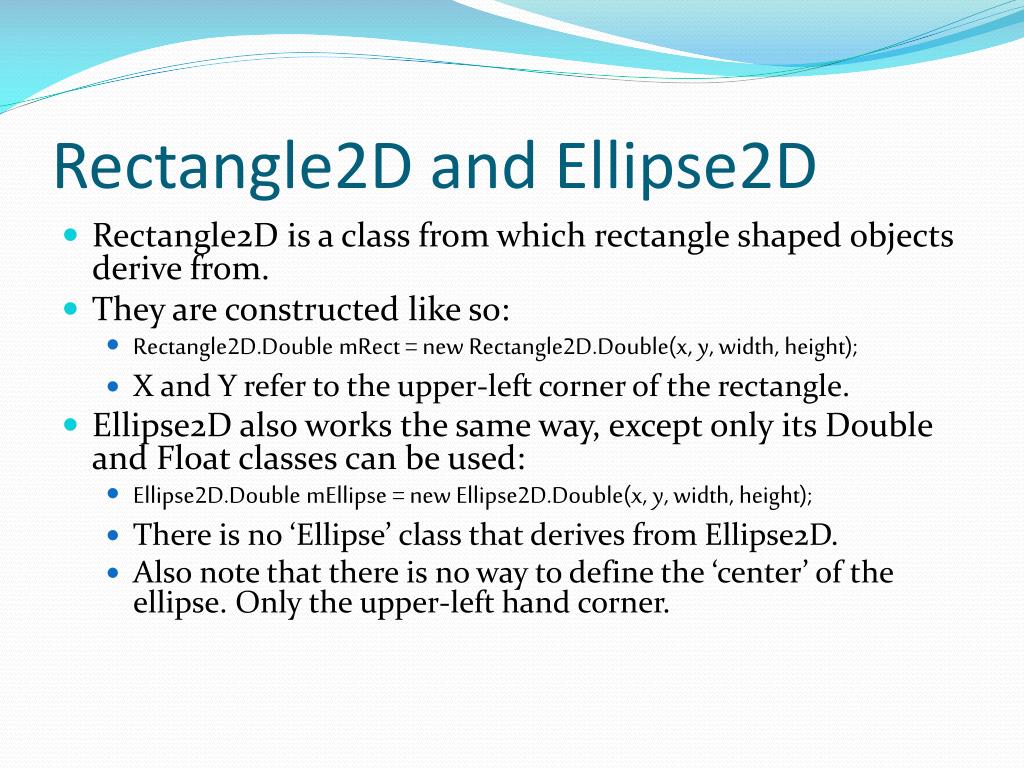

  4. Rectangle2D and Ellipse2D • Rectangle2D is a class from which rectangle shaped objects derive from. • They are constructed like so: • Rectangle2D.Double mRect = new Rectangle2D.Double(x, y, width, height); • X and Y refer to the upper-left corner of the rectangle. • Ellipse2D also works the same way, except only its Double and Float classes can be used: • Ellipse2D.Double mEllipse = new Ellipse2D.Double(x, y, width, height); • There is no ‘Ellipse’ class that derives from Ellipse2D. • Also note that there is no way to define the ‘center’ of the ellipse. Only the upper-left hand corner.

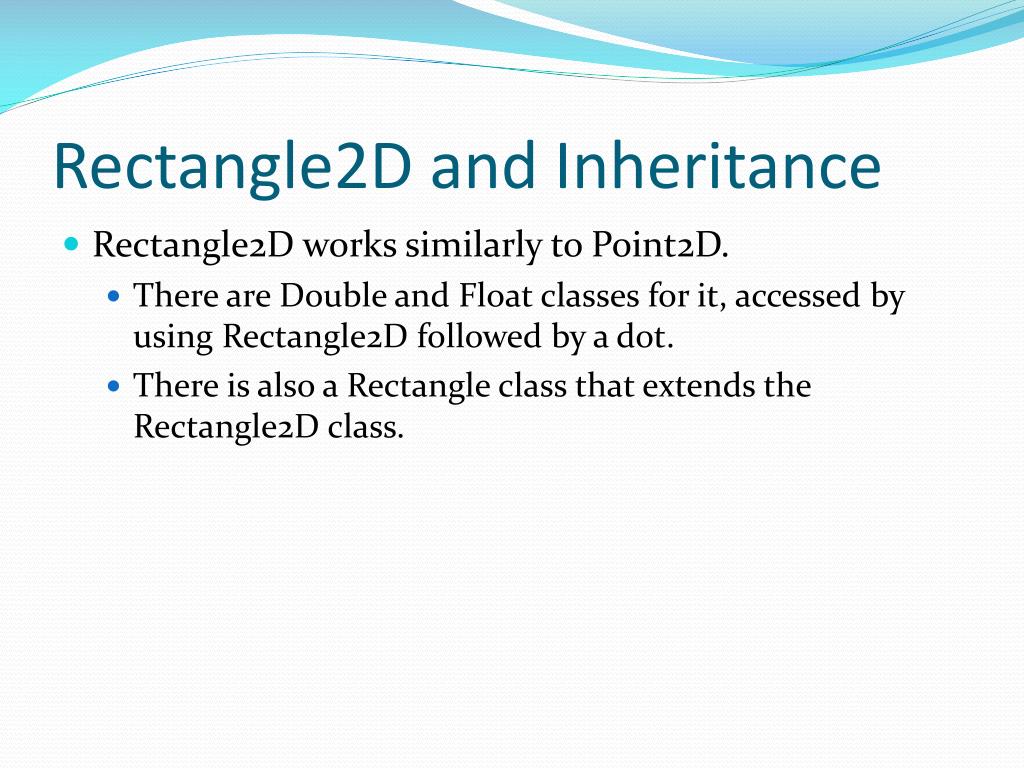

  5. Rectangle2D and Inheritance • Rectangle2D works similarly to Point2D. • There are Double and Float classes for it, accessed by using Rectangle2D followed by a dot. • There is also a Rectangle class that extends the Rectangle2D class.

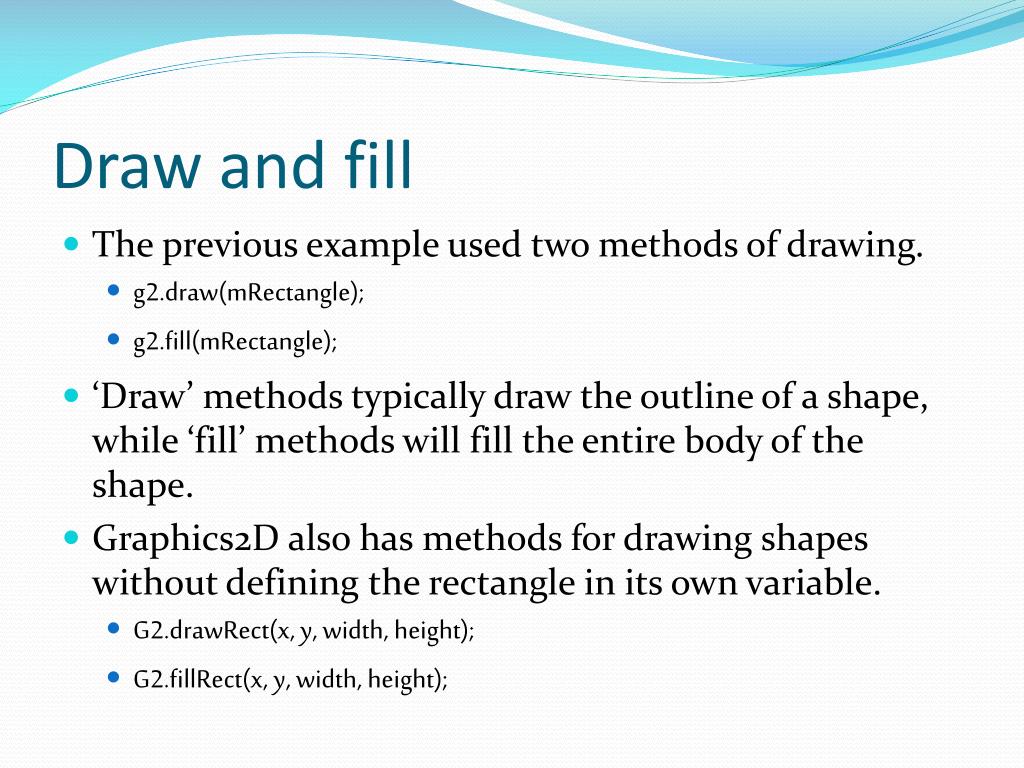

  6. Draw and fill • The previous example used two methods of drawing. • g2.draw(mRectangle); • g2.fill(mRectangle); • ‘Draw’ methods typically draw the outline of a shape, while ‘fill’ methods will fill the entire body of the shape. • Graphics2D also has methods for drawing shapes without defining the rectangle in its own variable. • G2.drawRect(x, y, width, height); • G2.fillRect(x, y, width, height);

  7. Java Unit 5: Applets and Graphics Colors

  8. Much Excite! • Tired of dull and boring shape drawings? • The Java API has a built-in Color class, too! • Include it in your project today with: • import java.awt.Color;

  9. Color doesn’t follow naming conventions!? • There is a way to fetch pre-defined colors from the Color class. There are constants built into Color, named according to the color they should represent. • Examples: • Color.red, Color.blue, Color.magenta, Color.white… • Notice that even though they are constants, they are completely spelled with lower case letters.

  10. Creating your own colors • Colors can be constructed like: • Color myCol = new Color(float r, float g, float b); • r, g, and b are values between 0.0 and 1.0, with 0.0 being no color, and 1.0 being the maximum amount of one color that can be used. • Color myCol = new Color(0.75F, 0.0F, 0.25F); • Notice that we are using floats instead of doubles for this constructor. • It is important to remember that all ‘float’ values end with an ‘F’. This denotes that it is a float value, and not a double value. Without it, there would be a compiler error.

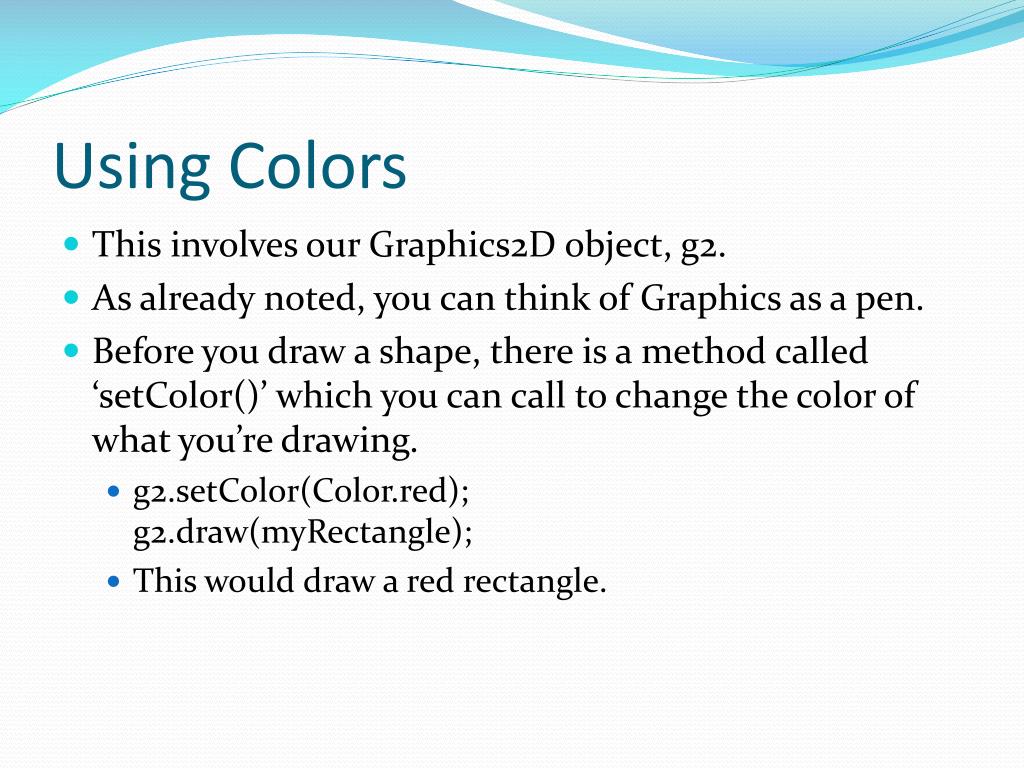

  11. Using Colors • This involves our Graphics2D object, g2. • As already noted, you can think of Graphics as a pen. • Before you draw a shape, there is a method called ‘setColor()’ which you can call to change the color of what you’re drawing. • g2.setColor(Color.red);g2.draw(myRectangle); • This would draw a red rectangle.

  12. Java Unit 5: Applets and Graphics Text

  13. Words!! • Of course, it’s also possible to draw text onto graphical output, as well as defining fonts for drawing. • Graphics2D’s drawString method: • G2.drawString(String text, int x, int y); • When defining x and y, you are defining where the text’s left-hand base line is (typically, the bottom of the text), and not the upper-left hand corner of where text is being drawn.

  14. Fonts!! • You may want to change the font that we use in drawing. • Import this class: • import java.awt.Font; • Among the system supplied fonts in Java are: • Serif • SansSerif • Monospaced • Dialog • DialogInput

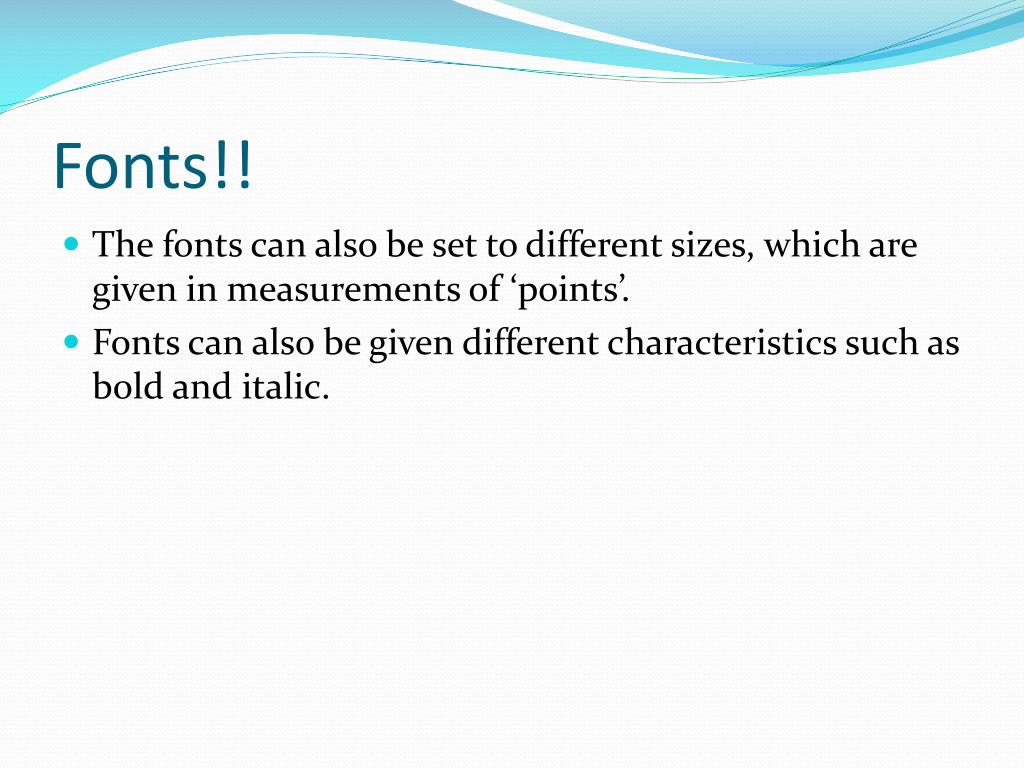

  15. Fonts!! • The fonts can also be set to different sizes, which are given in measurements of ‘points’. • Fonts can also be given different characteristics such as bold and italic.

  16. Fonts in Action!! • Font myFont = new Font(“Serif”, Font.BOLD, 16);g2.setFont(myFont);g2.drawString(“My text”, 20, 30); • The constructor for Font takes in a string containing the name of the font, an integer constant defined in the Font class, and the point size as an integer. • Just like with colors, we are calling the setFont() method to set the font before we draw the text. • Finally, we draw the string like usual.

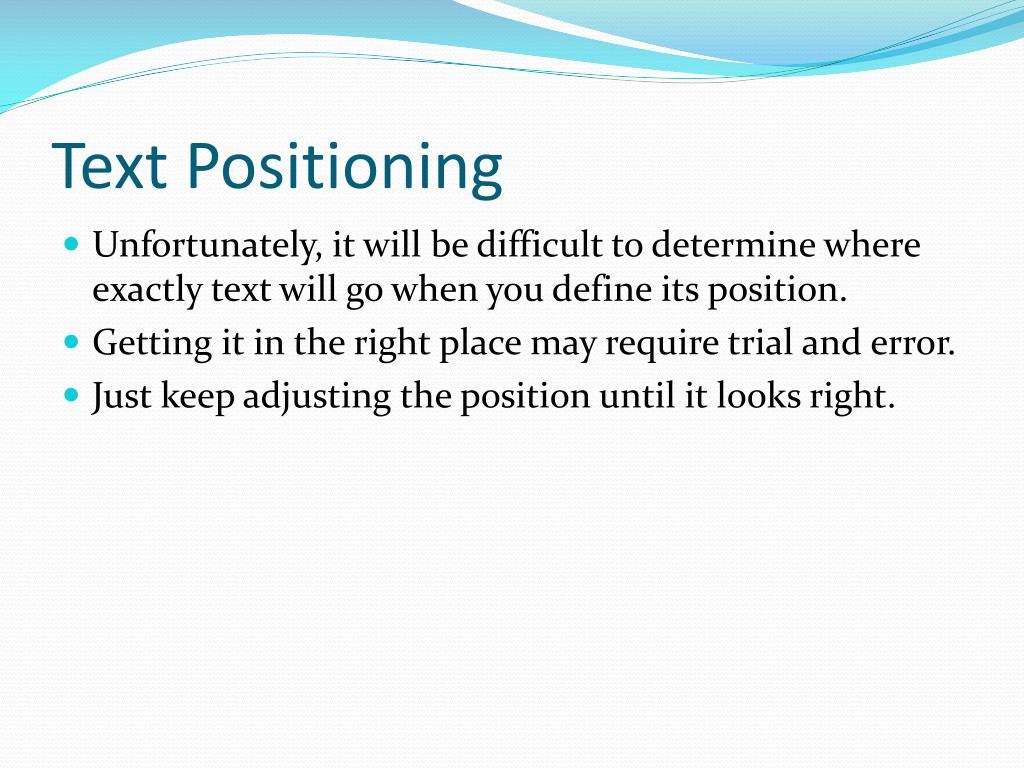

  17. Text Positioning • Unfortunately, it will be difficult to determine where exactly text will go when you define its position. • Getting it in the right place may require trial and error. • Just keep adjusting the position until it looks right.

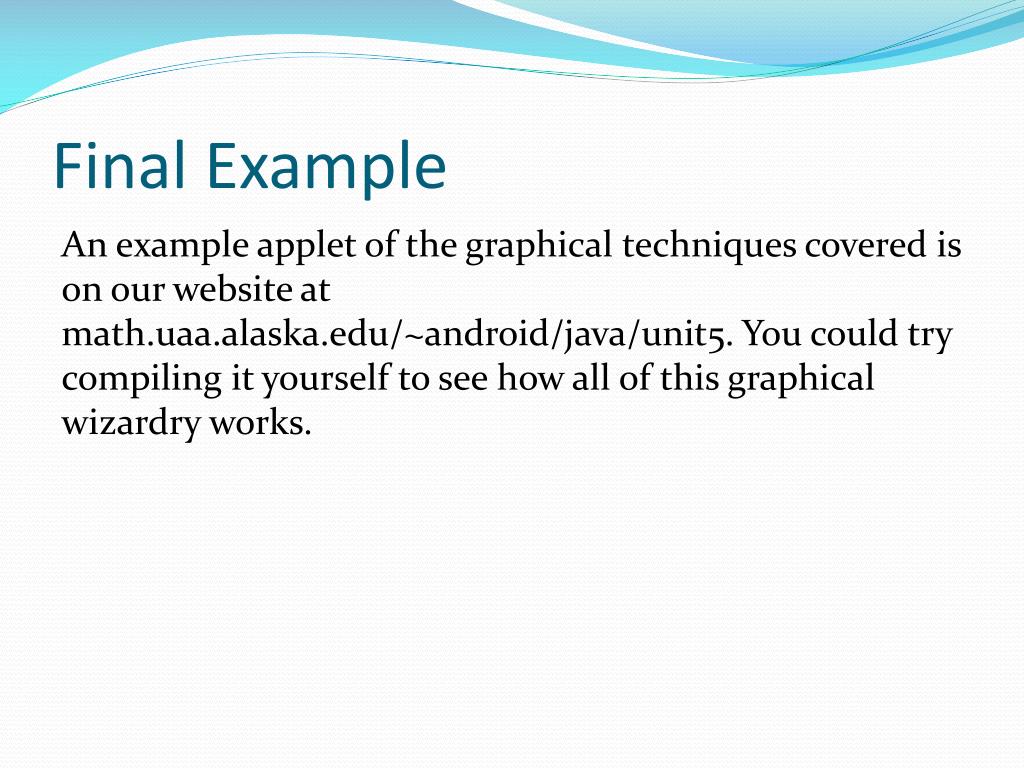

  18. Final Example An example applet of the graphical techniques covered is on our website at math.uaa.alaska.edu/~android/java/unit5. You could try compiling it yourself to see how all of this graphical wizardry works.

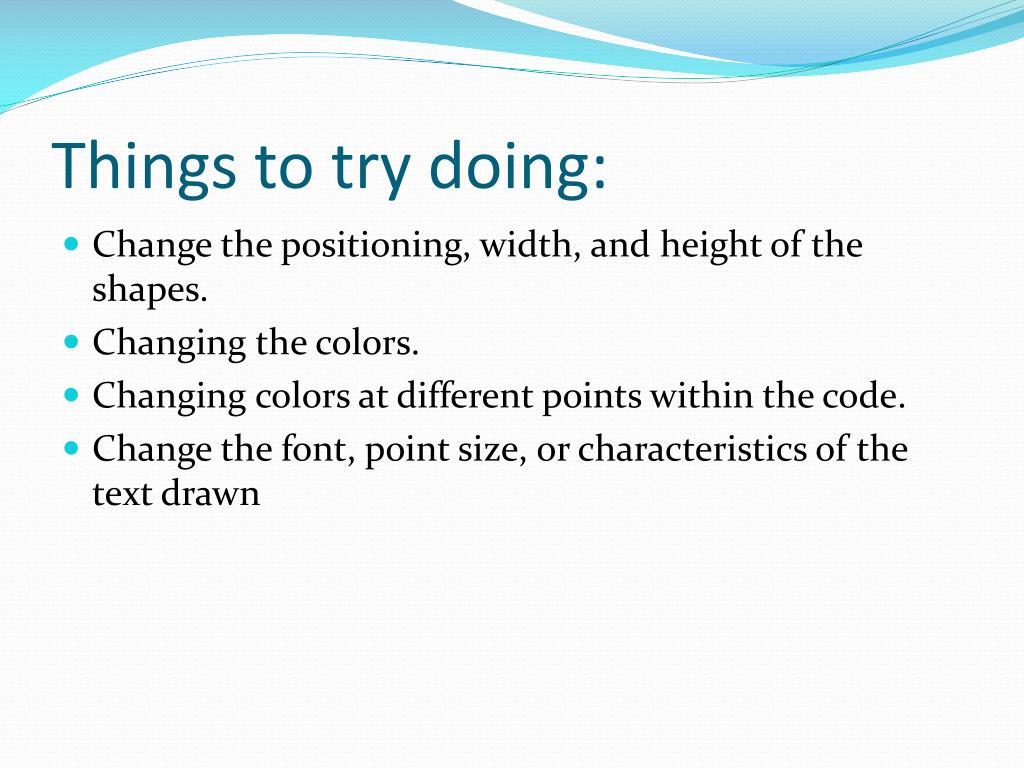

  19. Things to try doing: • Change the positioning, width, and height of the shapes. • Changing the colors. • Changing colors at different points within the code. • Change the font, point size, or characteristics of the text drawn
