  1. More than One Way to Skin a Cat? The Charge-to-Mass Ratio of the Electron

  2. Historical Context • Cathode rays were known to carry negative charge. • The carrier of the charge was unknown. • This experiment was performed to explore “the nature of the Cathode Rays.” (J.J. Thomson, 1897)

  3. Historical Significance • This experiment was thus one of the first to provide evidence of subatomic particles. • “I can see no escape from the conclusion that [cathode rays] are charges of negative electricity carried by particles of matter.” • J.J. Thomson (1897)

  4. The Experiment • The Apparatus • J.J. Thomson’s method • My method

  5. The Apparatus • Cathode ray tube • Screen • Parallel plates • Helmholtz coils

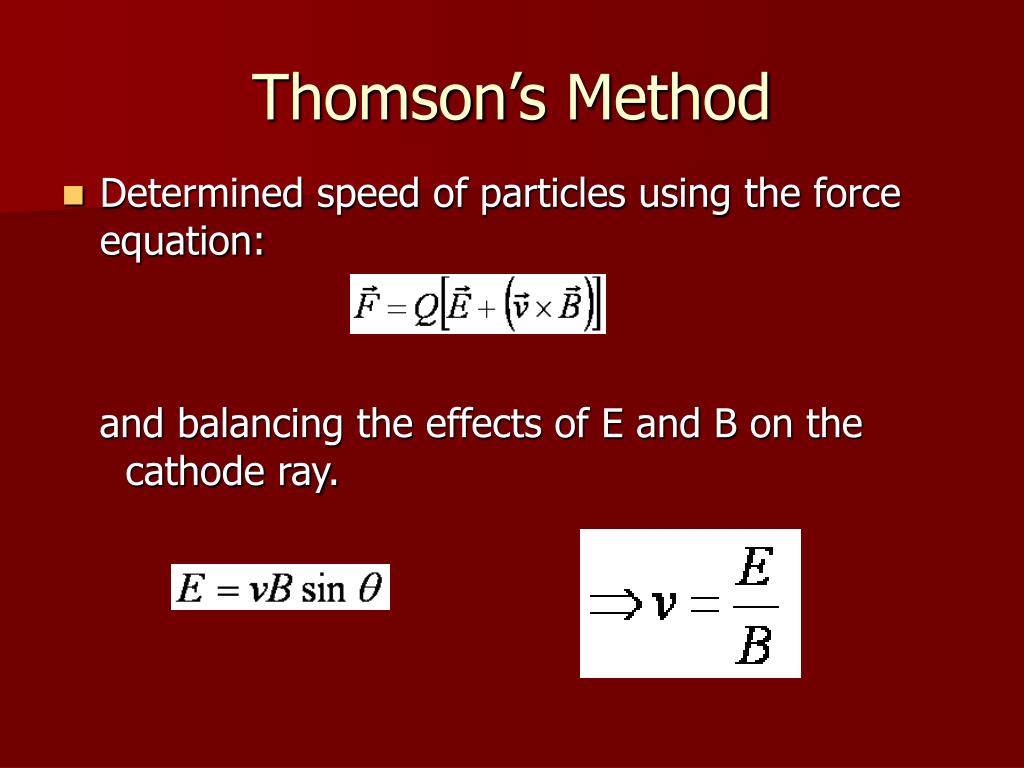

  6. Determined speed of particles using the force equation: and balancing the effects of E and B on the cathode ray. Thomson’s Method

  7. Thomson’s Method (cont’d) • Measured R, the radius of the beam’s path without the E field. • Calculated e/m. and

  8. I don’t know what Thomson found… But the currently accepted value of e/m is 1.7588 x 1011 C kg-1

  9. My Method • Only one high voltage supply. • Used the “gun equation” to find speed. The “gun equation”: The speed:

  10. My Method (cont’d) • Then I followed Thomson’s lead. • Measured R. • Calculated e/m using “my” equation for speed. and

  11. My Results e/m = (1.97 ± 0.133) x 1011 C kg-1 Recall that the accepted value is 1.7588 x 1011 C kg-1 That’s a difference of %Δ = 11.88%.

  12. Possible Explanations • My results are correct. • The high voltage source was not calibrated correctly. • Cathode ray gun was tilted.

  13. References • Griffiths, D.J. (1999). “Magnetostatics.” In A. Reeves (Ed.), Introduction to electrodynamics (pp. 202-254). Upper Saddle River, NJ: Prentice Hall. • Smith, G.E. (2001). “J.J. Thomson and the electron.” In J.Z. Buchwald (Ed.) and A. Warwick (Ed.), Histories of the electron (pp. 21-76). Cambridge, MA: The MIT Press. • Tuckerman, M.E. (2007). J.J. Thomson’s experiment and the charge-to-mass ratio of the electron. Retrieved December 13, 2007, from New York Univ.: General Chemistry I: Honors, Website: http://www.nyu.edu/classes/tuckerman/honors.chem/lectures/lecture_2/node1.html
