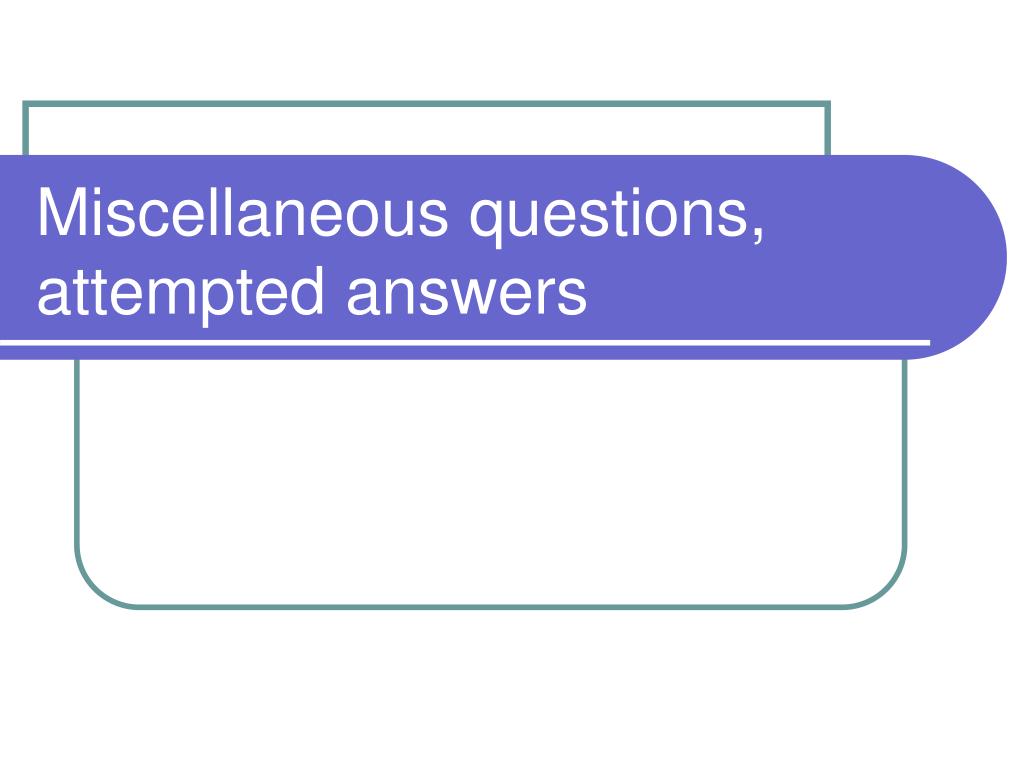

Miscellaneous questions, attempted answers

Miscellaneous questions, attempted answers

Topic 1: “Composite” procedures Q: Some procedures consist of several separate sub-procedures. If SNOMED has concepts for the individual procedures, how do we link them? A: You can’t. But your medical record system potentially could.

Huh? • SNOMED has no attribute allowing a post-coordinated link between multiple procedures to express that they are performed (and billed) as a single diagnostic or therapeutic procedure consisting of multiple steps • Implementation problem => implementation solution?

Now what? • Enter separate codes for each part of the composite procedure • Request a pre-coordinated concept for the composite procedure • Pursue implementation solution?

Example 1: Treadmill exam for roarers Coders have been using: • Laryngoscopy P1-25700 • Use of treadmill P7-40460

Exactly what is this? Diagnostic procedure consisting of exercise on treadmill followed by laryngoscopy to evaluate laryngeal function to rule in/rule out partial or complete laryngeal paralysis (“roarer”)

Problems with existing approach: Laryngoscopy P1-25700 is not defined as a diagnostic procedure (includes therapeutic laryngoscopy as well) Use of treadmill P7-40460 is defined specifically as therapeutic ISA Physiotherapy class activities ISA Physical therapy procedure

Option 1: Option 1: Enter separate but more specific procedures to capture more information: • Progressive exercise test on treadmill • Diagnostic laryngoscopy • Laryngeal function studies • Has method Patient evaluation • Has procedure site Laryngeal structure • Has intent Diagnostic intent

Option 2 (better): Request new concept, to be defined as: Treadmill exercise test and laryngoscopy to evaluate laryngeal function ISA Progressive exercise test on treadmill ISA Diagnostic laryngoscopy ISA Laryngeal function studies

Caveat: Do not attempt to post-coordinate (nor will we pre-coordinate) “Roarer” to this procedure The object of the evaluation is laryngeal function, not a specific diagnosis which may or may not be present

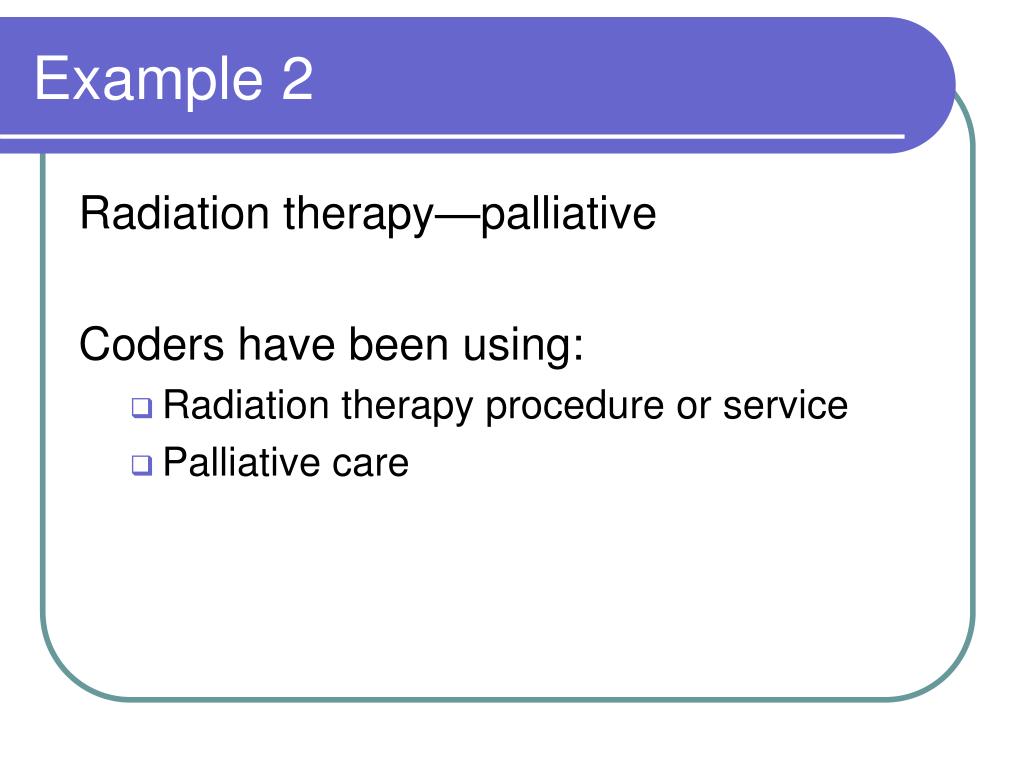

Example 2 Radiation therapy—palliative Coders have been using: • Radiation therapy procedure or service • Palliative care

Exactly what is this? Radiotherapy with a particular intent (to palliate rather than to cure the condition being treated)

Problems with existing approach: • Palliative radiotherapy is not a composite procedure, but a single procedure with a particular intent (palliation) • Using a second procedure Palliative care does not specify that the intent of the radiotherapy is palliative

Solution: In this case, SNOMED already contains an appropriate pre-coordinated concept: Palliative course of radiotherapy 168528

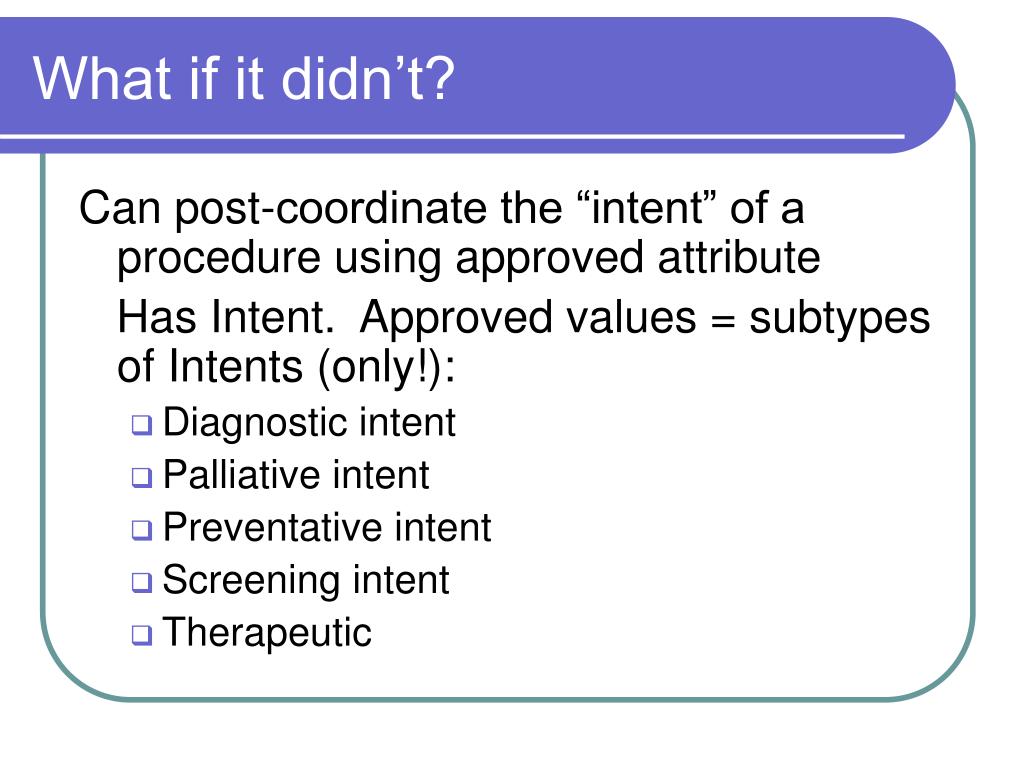

What if it didn’t? Can post-coordinate the “intent” of a procedure using approved attribute Has Intent. Approved values = subtypes of Intents (only!): • Diagnostic intent • Palliative intent • Preventative intent • Screening intent • Therapeutic

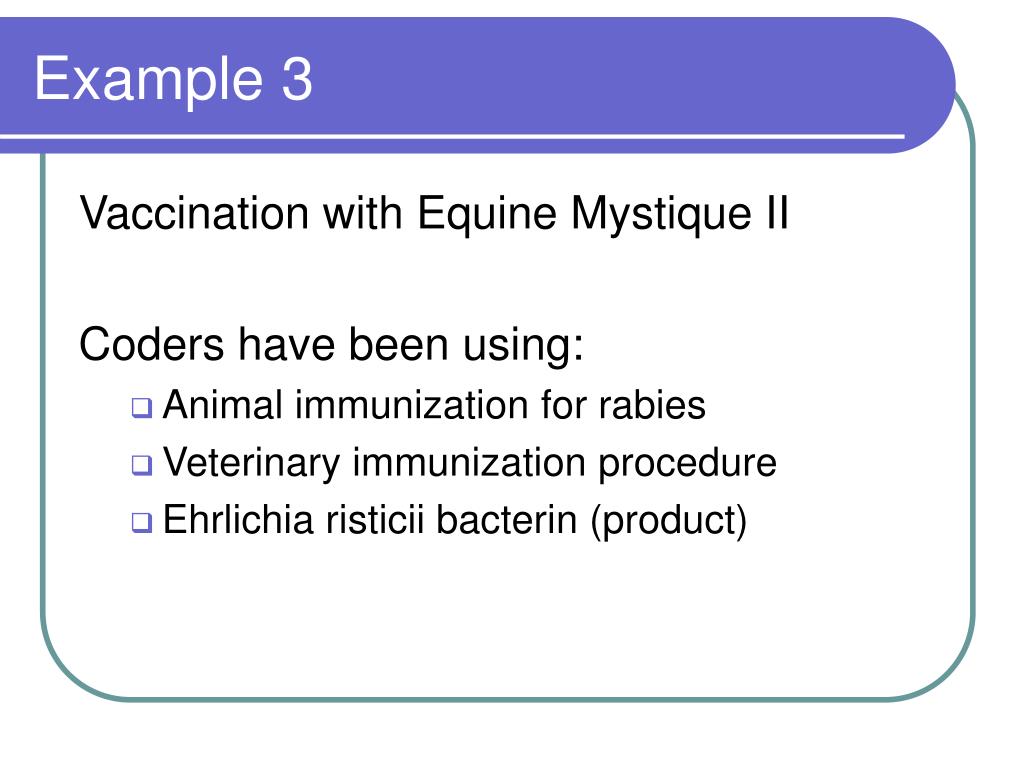

Example 3 Vaccination with Equine Mystique II Coders have been using: • Animal immunization for rabies • Veterinary immunization procedure • Ehrlichia risticii bacterin (product)

Exactly what is this? Administration of a particular brand-name vaccine containing inactivated rabies vaccine and Ehrlichia risticil bacterin This is a SINGLE procedure in which two immunizing substances are administered

Problems with existing approach: • Veterinary immunization procedure is properly only a navigational, not defining, concept • Ehrlichia risticii bacterin not linked to any “administration” procedure • Only substances, not products, can be linked to ANY procedure. Substances are linked as active ingredients to products containing them.

Solution: Immunization procedure + Direct substance Rabies antigen (substance) Direct substance Ehrlichia risticii bacterin (substance) Note: this is our preferred approach to ALL immunization procedures. Such construction should be stored in your systems as “local pre-coordinations” ---ie,an extension of SNOMED.

Example 4: Ventral basket stabilization (cervical) Coders using: • Cervical arthrodesis by anterior technique (procedure) • Spinal fusion with graft (procedure)

Exactly what is this? Fusion of cervical vertebrae by anterior technique using a “spinal basket” (also known as a “spinal cage”).

Problems with existing approach: • Device used (basket or cage) not captured • Spinal fusion with graft is specifically defined as a bone graft • Site of Spinal fusion with graft not specified as cervical

Solution Cervical arthrodesis by anterior technique Direct device Spinal cage Note: can request creation of this as a pre- coordinated concept

Topic 2: Procedure vs. action/access Q: Do we need to use a concept defined as a “Procedure” to code a procedure or can we use a concept defined as an “Action” or “Access”? A: You MUST use a procedure

What if the procedure isn’t in SNOMED… but the “action” is? • Request a new procedure concept • Choose the closest appropriate procedure concept and post-coordinate Has method [action] Access [access]

Caveat: use approved values ONLY • Approved values for Has method: • Subtypes of Action 129264002 • Approved values for Access: • Subtypes of Surgical access values 309795001

Danger, Will Robinson! • Make sure the procedure you choose contains nothing in its definition that is NOT true of the procedure you are coding • PLEASE contact us for guidance on post-coordinating actions and accesses as these can be tricky

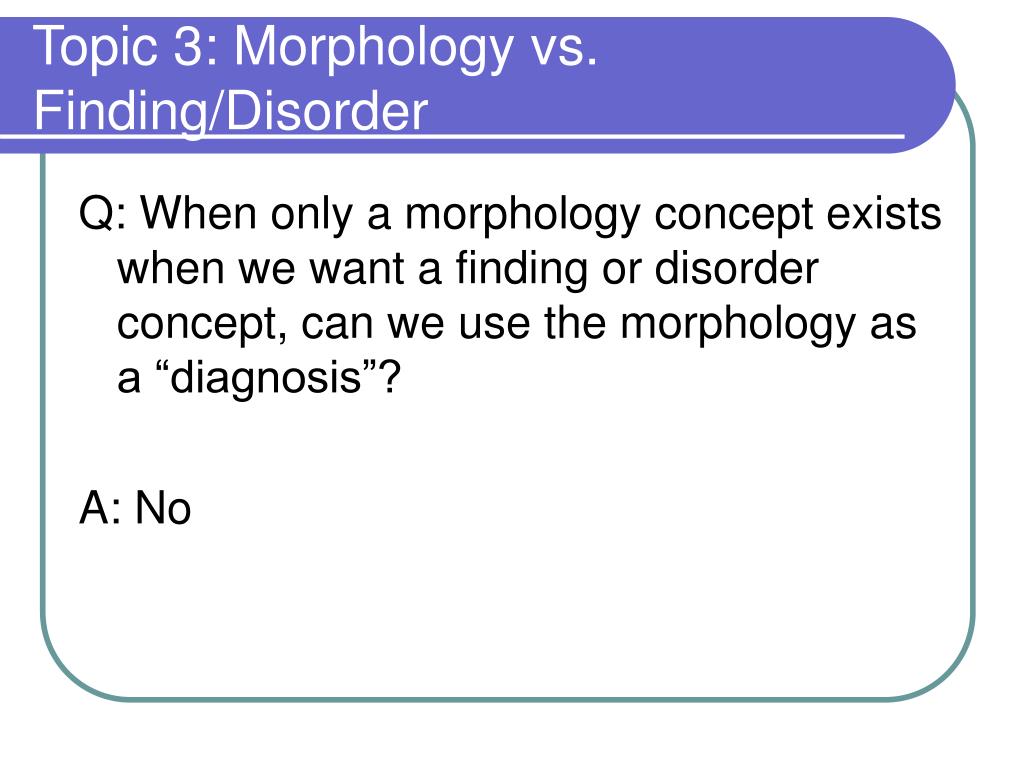

Topic 3: Morphology vs. Finding/Disorder Q: When only a morphology concept exists when we want a finding or disorder concept, can we use the morphology as a “diagnosis”? A: No

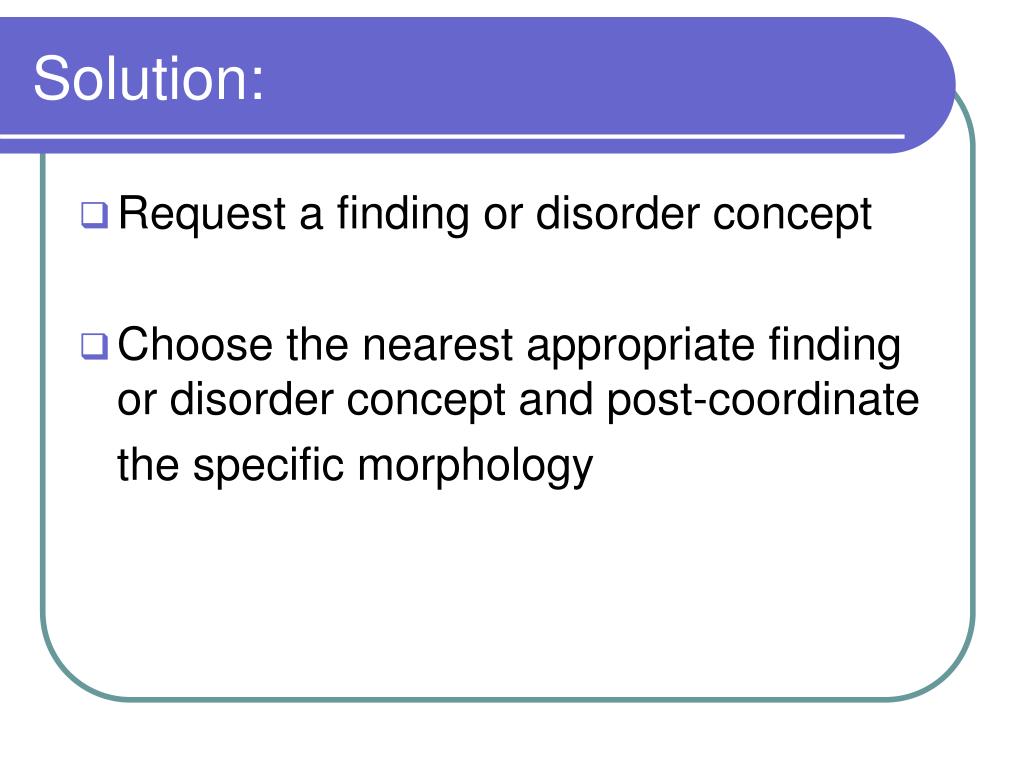

Solution: • Request a finding or disorder concept • Choose the nearest appropriate finding or disorder concept and post-coordinate the specific morphology

Example: Hydrops (accumulation of fluid in placenta) User finds no such disorder in SNOMED but does find: Hydrops (morphologic abnormality)

Solution: Disorder of placenta Associated morphology Hydrops

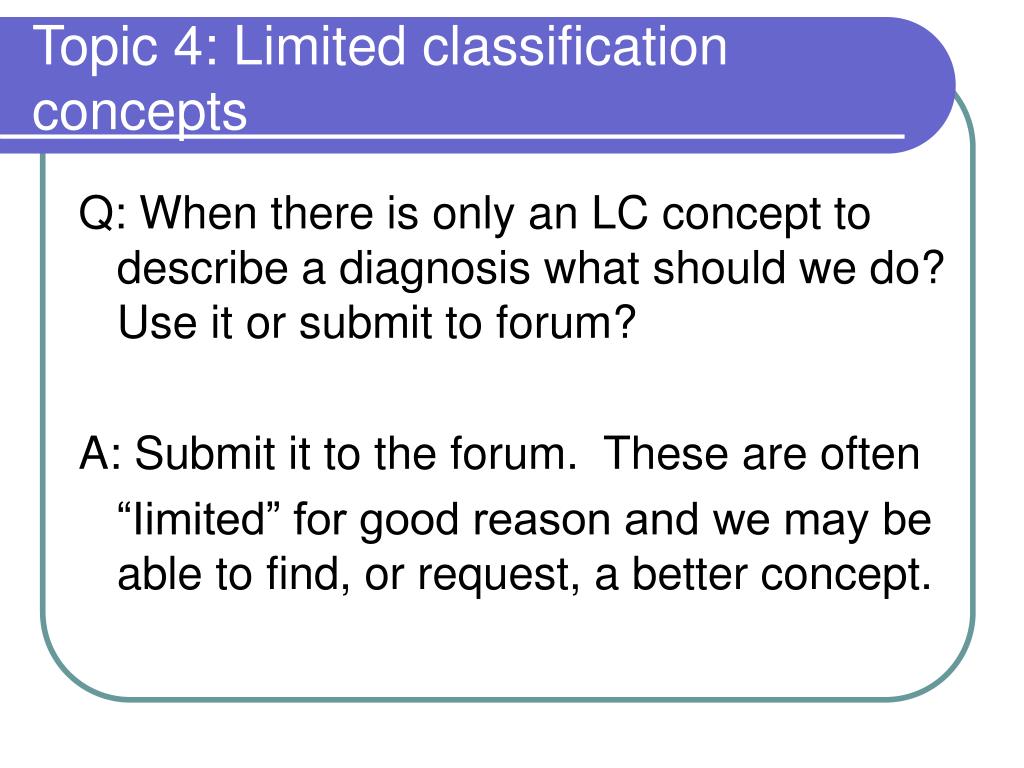

Topic 4: Limited classification concepts Q: When there is only an LC concept to describe a diagnosis what should we do? Use it or submit to forum? A: Submit it to the forum. These are often “Iimited” for good reason and we may be able to find, or request, a better concept.

Topic 5: Chemotherapy Q: How do we code chemotherapy, since Chemotherapy procedure 108234007 is not a subtype of General Administration (which is what we use for other drugs? A: Use Administration of anti-neoplastic agent 363688001 (synonym Chemotherapy)

Topic 6: Neoplasia stages Q: How can we post-coordinate the “Stage” of a neoplasia? A: Depends on whom you ask

Approach #1: Post-coordinate as follows: Neoplasm X (disorder) Interprets Malignancy stage (observable entity) Has interpretation: Stage Y SNOMED is likely to adopt this approach

Approach #2: Post-coordinate as follows: Neoplasm X Has staging Stage Y Jeff prefers this approach (and frankly so do I) BUT…

CLASH OF THE TITANS! Q: So whose way do we follow? A: Approach #2 is simpler (and more aesthetically pleasing). But if you implement this approach, you will not be able to exchange data with those who follow the SNOMED-recommended method.

Caveat: Need to request veterinary staging values as existing staging values are based on human medicine and are not equivalent.

Topic 6: How do we post-coordinate: • Topographic modifiers (distal, proximal) • General site descriptors (deep, superficial) • Distributions (focal, generalized) • Histologic grade of a neoplasm (well-differentiated) • Remission phases (partial remission, etc) • Certainty of diagnosis (possible, suspect) A: You can’t. SNOMED has no approved attributes by which these can be post-coordinated

Don’t try this at home Q: But you’ve got a secret method to post-coordinate this stuff, right? A: No. We do not know how to do this, we do not recommend doing this, we would not do this, we will not sanction doing this.

Severities: your lucky day Q: How do we post-coordinate the severity of a disorder? A: Use Severity (attribute) • allowed values for this attribute: subtypes of Severity of illness (qualifier value) This is an approved attribute with approved values

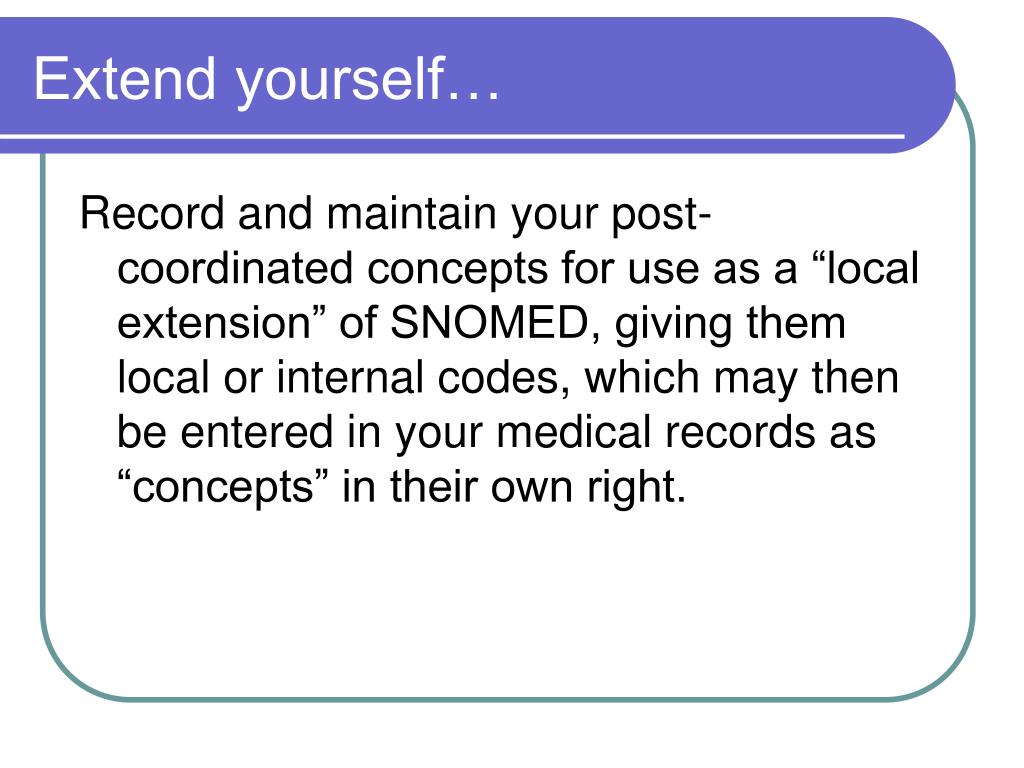

Extend yourself… Record and maintain your post-coordinated concepts for use as a “local extension” of SNOMED, giving them local or internal codes, which may then be entered in your medical records as “concepts” in their own right.

Extension core information • SNOMED has specific mechanisms for assigning concept identifiers in "extensions" (see SNOMED for details) • Extensions are created by users adding their own rows to SNOMED tables (concepts,synonyms and relationships) • The care and feeding of local extensions is the responsibility of their “keepers”

Yes, we have no bananas SNOMED cannot and should not be expected to supply all the functionality necessary to support infinite granularity in electronic medical records. Adding functionality can exponentially increase complexity and potential for error and must proceed with care. • Use only constructions that SNOMED CAN support.

The role of the medical record Accuracy and expressivity depend on: • the nomenclature • content (vocabulary) • syntax (means to connect items in vocabulary) • the medical records system • how much context can it supply?

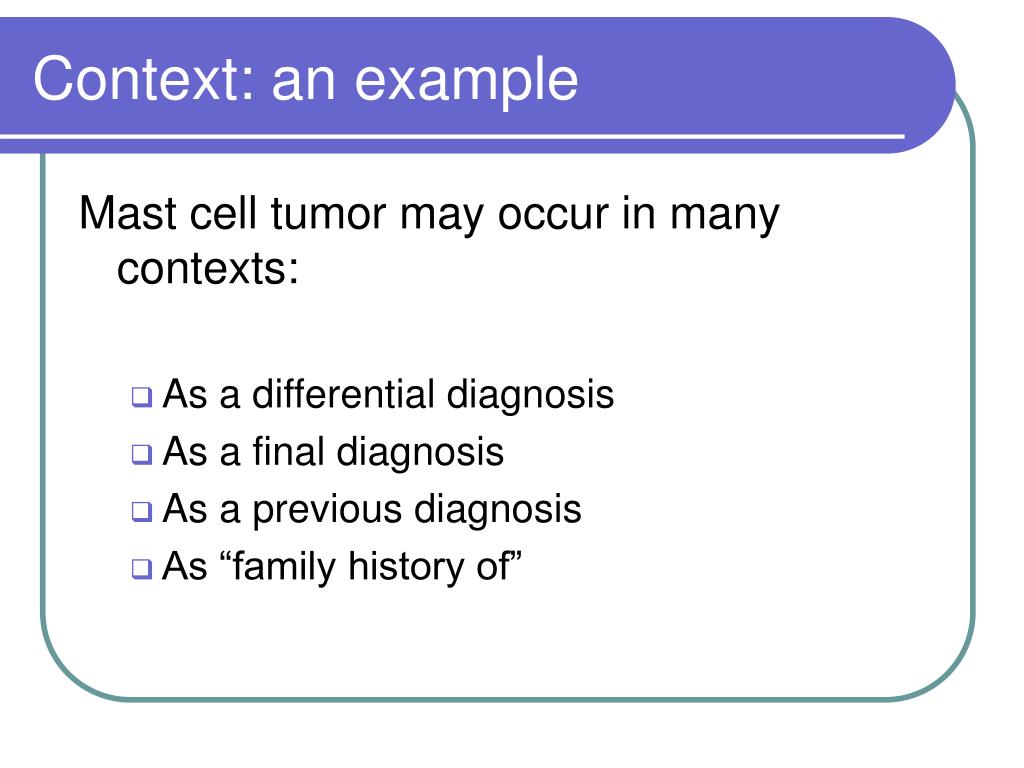

Context: an example Mast cell tumor may occur in many contexts: • As a differential diagnosis • As a final diagnosis • As a previous diagnosis • As “family history of”

Pre-coordinated approach to context Multiple, pre-coordinated concepts: • Mast cell--differential diagnosis • Mast cell--final diagnosis • Mast cell--previous diagnosis • Mast cell--family history of

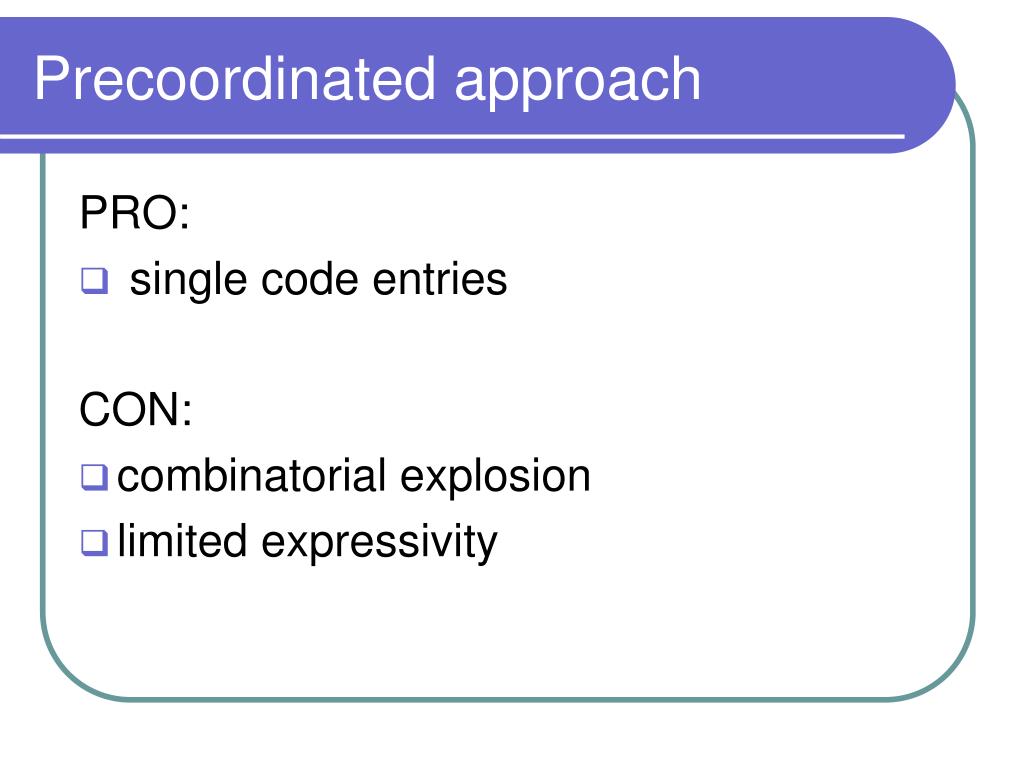

Precoordinated approach PRO: • single code entries CON: • combinatorial explosion • limited expressivity

Post-coordinated approach to context Create and maintain links between core concept and “context” concepts: • Core concept: • Mast cell tumor • Context concepts: • Differential diagnosis • Final diagnosis • Previous diagnosis • Family history of Linkage concepts: ??

Post-coordinated approach PRO: • Greater expressivity • Fewer concepts required CON: • Requires sophisticated syntax + style guide • Requires more sophisticated users • Requires permanent links between concepts in post-coordinated construction
