ORTHOGRAPHIC PROJECTIONS { MACHINE ELEMENTS }

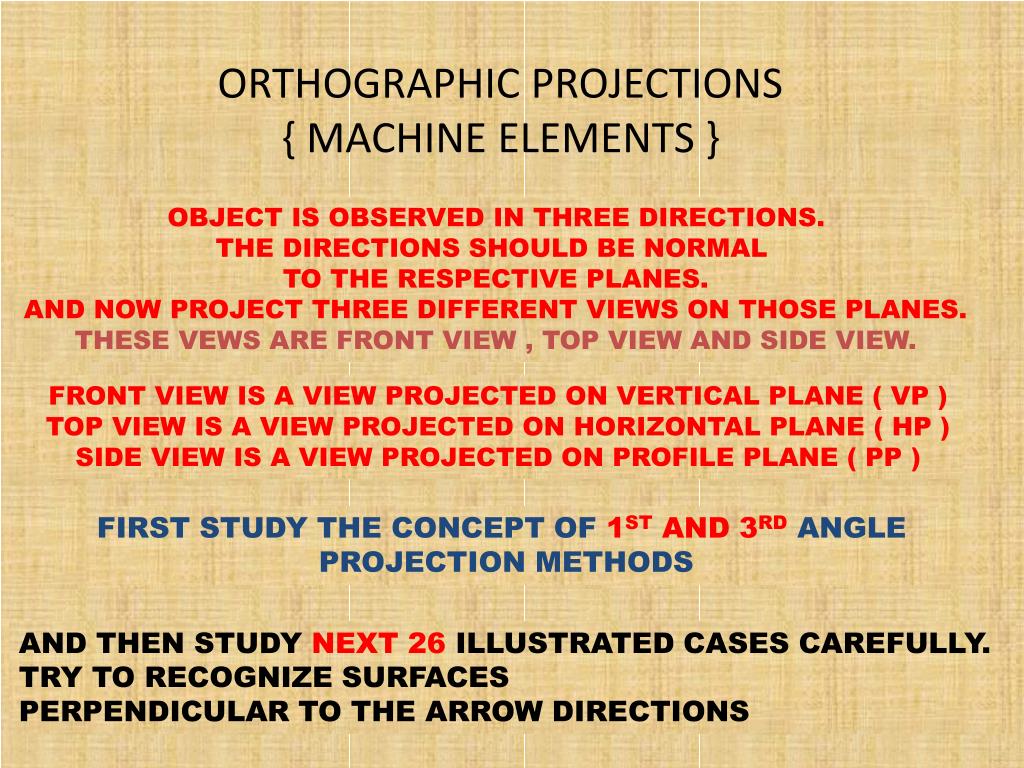

1. ORTHOGRAPHIC PROJECTIONS { MACHINE ELEMENTS } OBJECT IS OBSERVED IN THREE DIRECTIONS. THE DIRECTIONS SHOULD BE NORMAL TO THE RESPECTIVE PLANES. AND NOW PROJECT THREE DIFFERENT VIEWS ON THOSE PLANES. THESE VEWS ARE FRONT VIEW , TOP VIEW AND SIDE VIEW. FRONT VIEW IS A VIEW PROJECTED ON VERTICAL PLANE ( VP ) TOP VIEW IS A VIEW PROJECTED ON HORIZONTAL PLANE ( HP ) SIDE VIEW IS A VIEW PROJECTED ON PROFILE PLANE ( PP ) FIRST STUDY THE CONCEPT OF 1ST AND 3RD ANGLE PROJECTION METHODS AND THEN STUDY NEXT 26 ILLUSTRATED CASES CAREFULLY. TRY TO RECOGNIZE SURFACES PERPENDICULAR TO THE ARROW DIRECTIONS

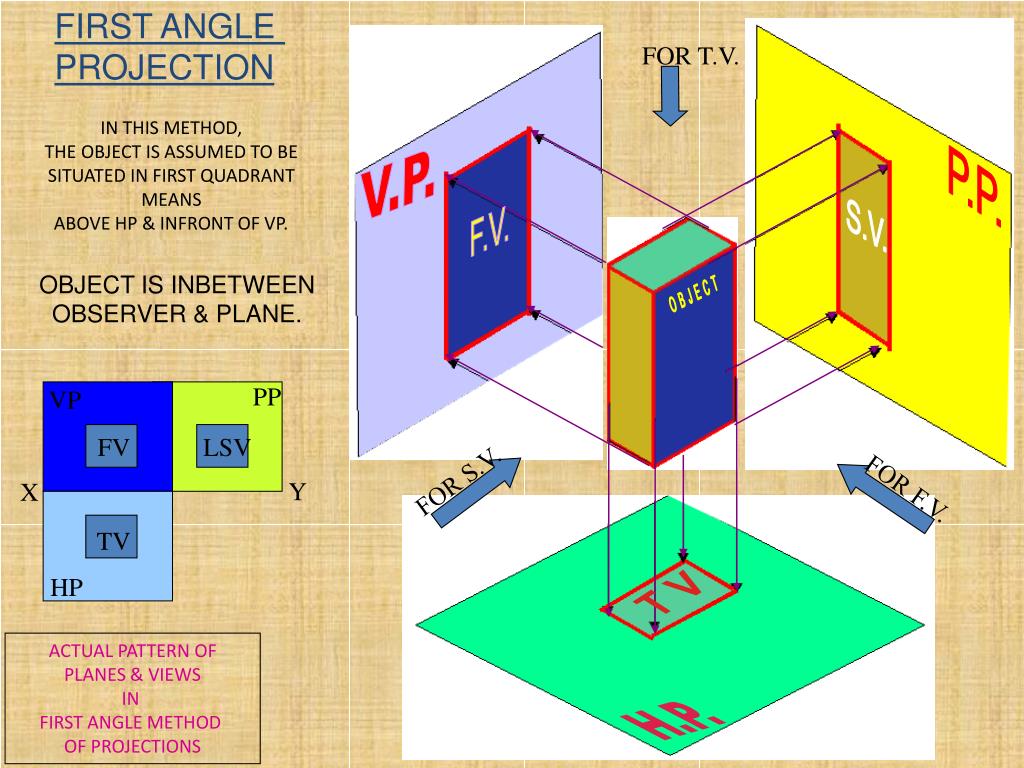

2. FIRST ANGLE PROJECTION FOR T.V. PP VP FOR S.V. FOR F.V. FV LSV Y X TV HP IN THIS METHOD, THE OBJECT IS ASSUMED TO BE SITUATED IN FIRST QUADRANT MEANS ABOVE HP & INFRONT OF VP. P.P. V.P. S.V. F.V. OBJECT IS INBETWEEN OBSERVER & PLANE. OBJECT ACTUAL PATTERN OF PLANES & VIEWS IN FIRST ANGLE METHOD OF PROJECTIONS

3. FOR T.V. FOR S.V. FOR F.V. THIRD ANGLE PROJECTION IN THIS METHOD, THE OBJECT IS ASSUMED TO BE SITUATED IN THIRD QUADRANT ( BELOW HP & BEHIND OF VP. ) PLANES BEING TRANSPERENT AND INBETWEEN OBSERVER & OBJECT. P.P. V.P. OBJECT TV X Y S.V. F.V. FV LSV ACTUAL PATTERN OF PLANES & VIEWS OF THIRD ANGLE PROJECTIONS

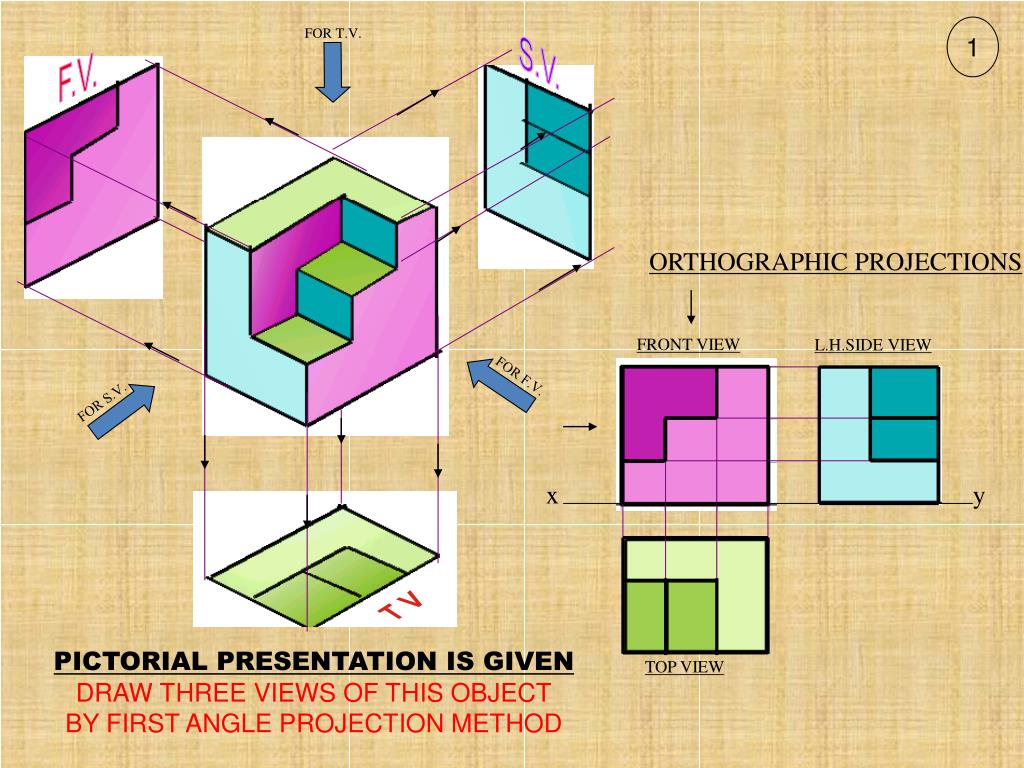

4. x y 1 FOR T.V. S.V. F.V. ORTHOGRAPHIC PROJECTIONS FRONT VIEW L.H.SIDE VIEW FOR F.V. FOR S.V. PICTORIAL PRESENTATION IS GIVEN DRAW THREE VIEWS OF THIS OBJECT BY FIRST ANGLE PROJECTION METHOD TOP VIEW

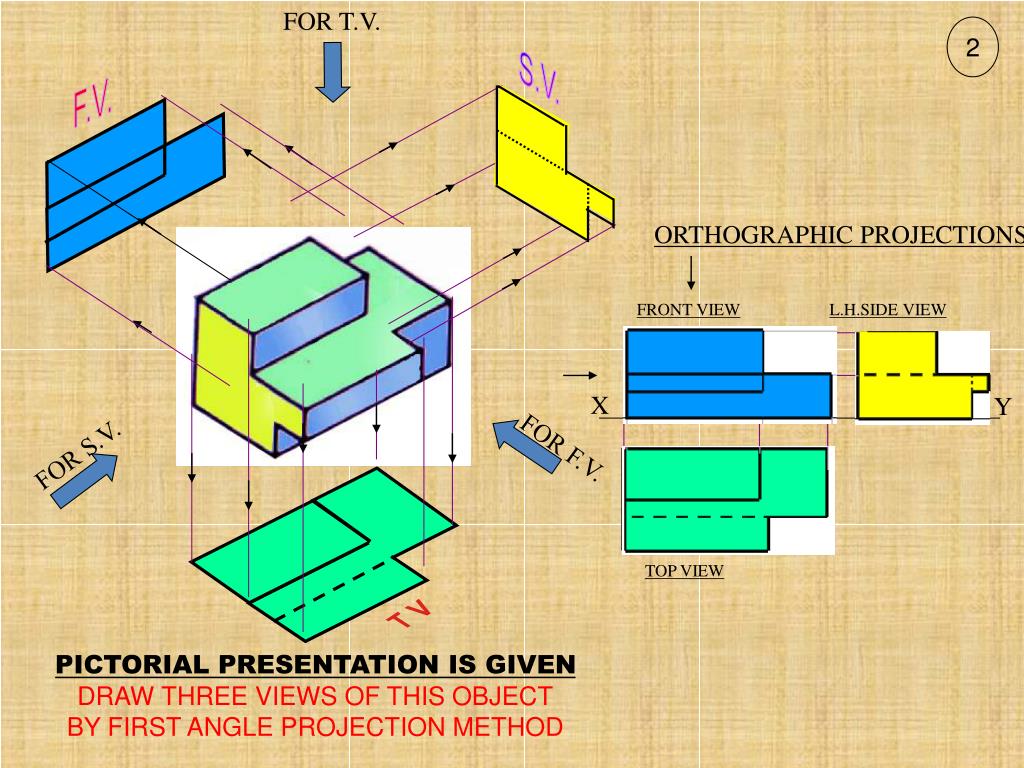

5. FOR T.V. FOR F.V. X Y FOR S.V. 2 S.V. F.V. ORTHOGRAPHIC PROJECTIONS FRONT VIEW L.H.SIDE VIEW TOP VIEW PICTORIAL PRESENTATION IS GIVEN DRAW THREE VIEWS OF THIS OBJECT BY FIRST ANGLE PROJECTION METHOD

6. X Y 3 FOR T.V. S.V. F.V. ORTHOGRAPHIC PROJECTIONS L.H.SIDE VIEW FRONT VIEW FOR F.V. FOR S.V. TOP VIEW PICTORIAL PRESENTATION IS GIVEN DRAW THREE VIEWS OF THIS OBJECT BY FIRST ANGLE PROJECTION METHOD

7. FOR T.V. X Y FOR S.V. FOR F.V. 4 S.V. F.V. ORTHOGRAPHIC PROJECTIONS L.H.SIDE VIEW FRONT VIEW TOP VIEW PICTORIAL PRESENTATION IS GIVEN DRAW THREE VIEWS OF THIS OBJECT BY FIRST ANGLE PROJECTION METHOD

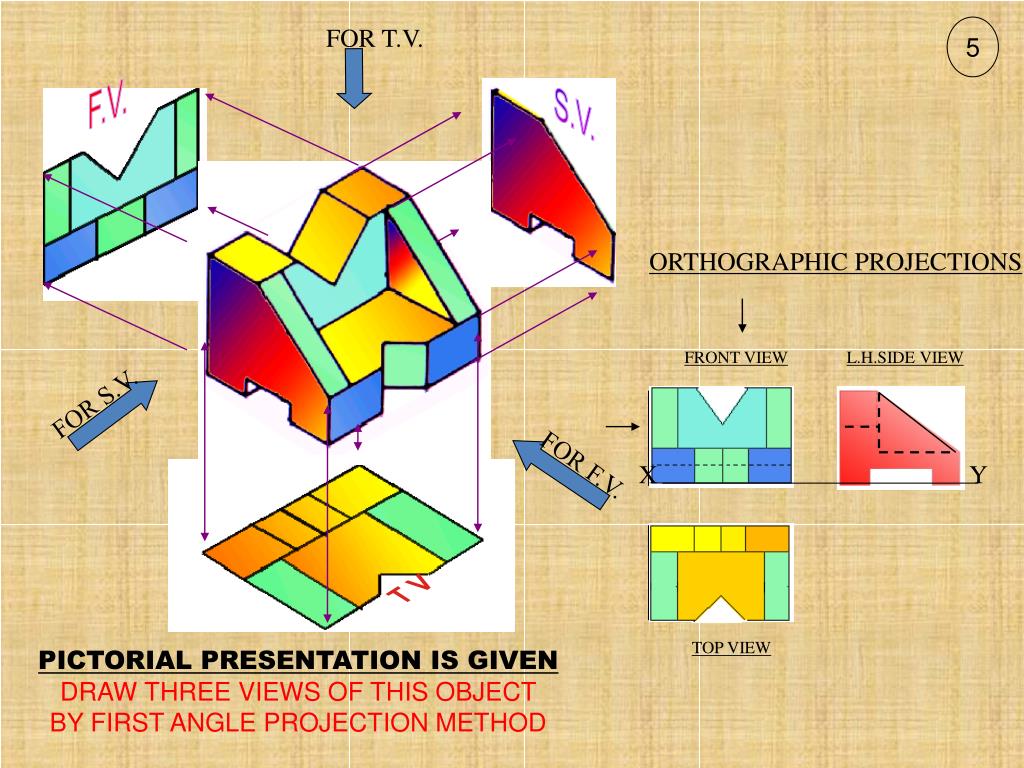

8. FOR T.V. X Y FOR S.V. FOR F.V. 5 F.V. S.V. ORTHOGRAPHIC PROJECTIONS FRONT VIEW L.H.SIDE VIEW TOP VIEW PICTORIAL PRESENTATION IS GIVEN DRAW THREE VIEWS OF THIS OBJECT BY FIRST ANGLE PROJECTION METHOD

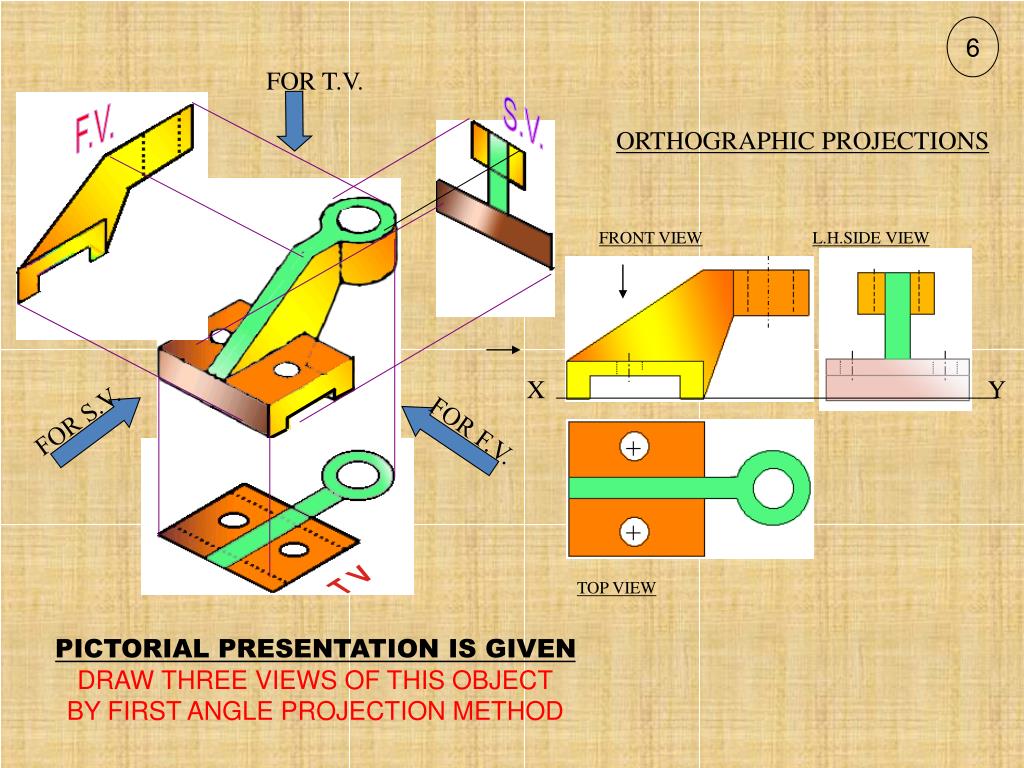

9. FOR T.V. X Y FOR S.V. FOR F.V. 6 S.V. F.V. ORTHOGRAPHIC PROJECTIONS FRONT VIEW L.H.SIDE VIEW TOP VIEW PICTORIAL PRESENTATION IS GIVEN DRAW THREE VIEWS OF THIS OBJECT BY FIRST ANGLE PROJECTION METHOD
