  1. L2CS Technical Description Tom Stansell

  2. Technical Agenda • Signal Development Framework • Objectives and Constraints • The L2 Civil Signal (L2CS) Description • Signal Performance Characteristics • Design Decisions and Tradeoffs • Eventual Civil Signal Options

  3. Signal Development Framework Objectives and Constraints

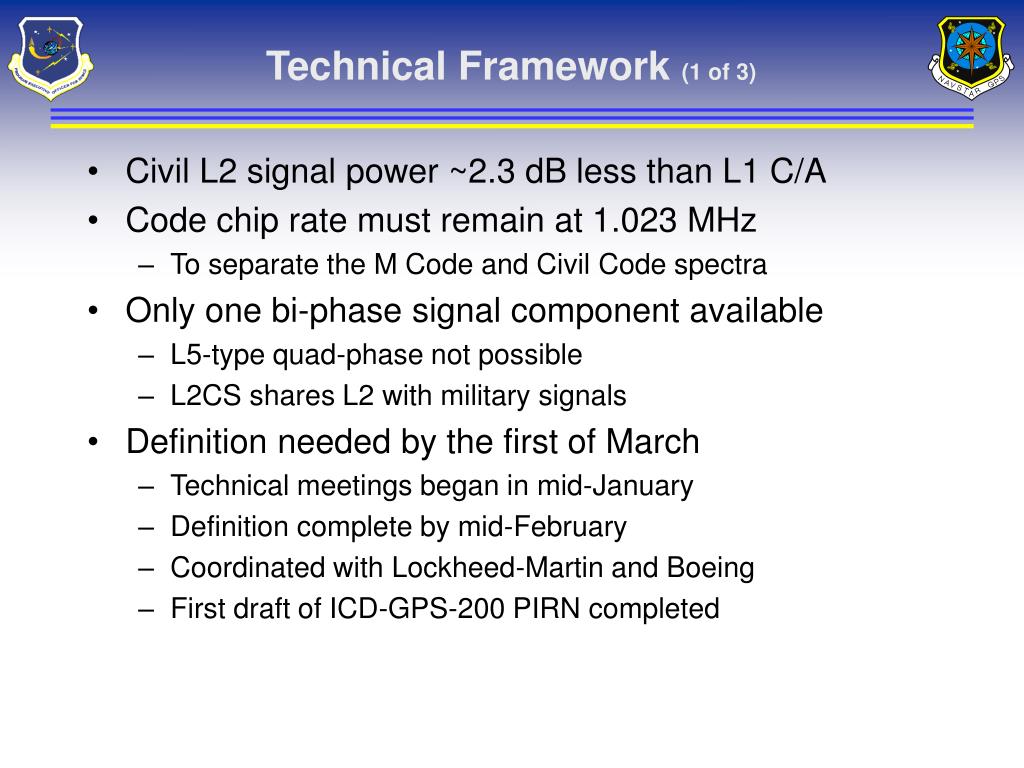

  4. Technical Framework (1 of 3) • Civil L2 signal power ~2.3 dB less than L1 C/A • Code chip rate must remain at 1.023 MHz • To separate the M Code and Civil Code spectra • Only one bi-phase signal component available • L5-type quad-phase not possible • L2CS shares L2 with military signals • Definition needed by the first of March • Technical meetings began in mid-January • Definition complete by mid-February • Coordinated with Lockheed-Martin and Boeing • First draft of ICD-GPS-200 PIRN completed

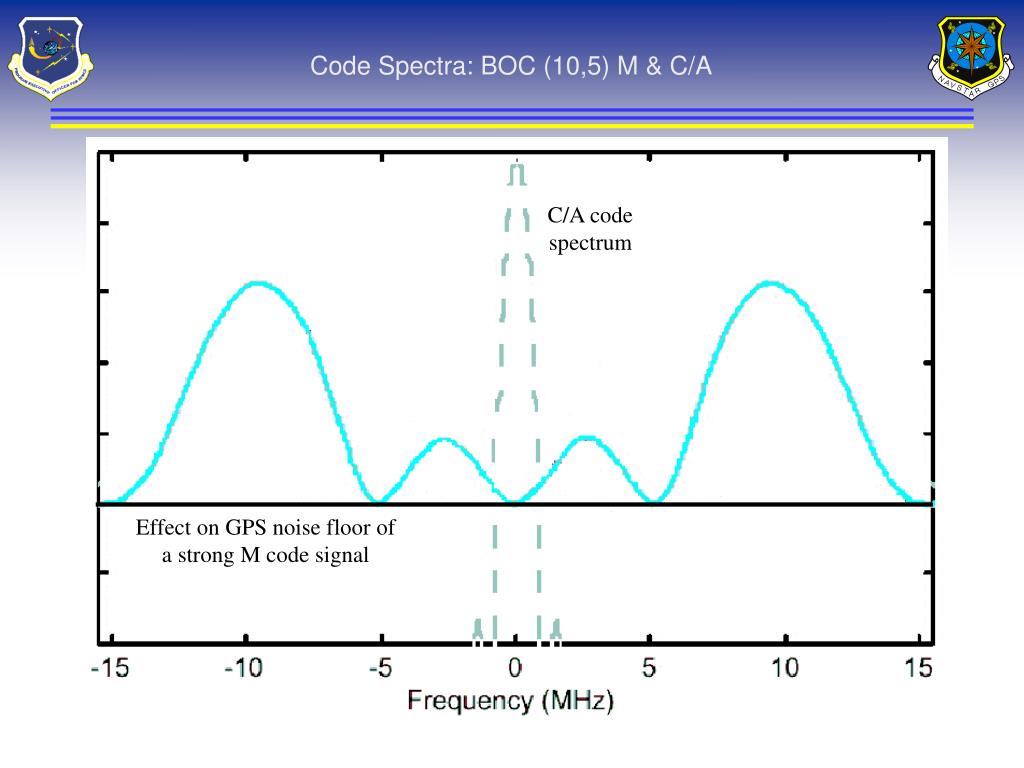

  5. Code Spectra: BOC (10,5) M & C/A C/A code spectrum Effect on GPS noise floor of a strong M code signal

  6. One Civil Component on L1 L1 Phase RelationshipsCivil is 3 dB stronger than P/Y

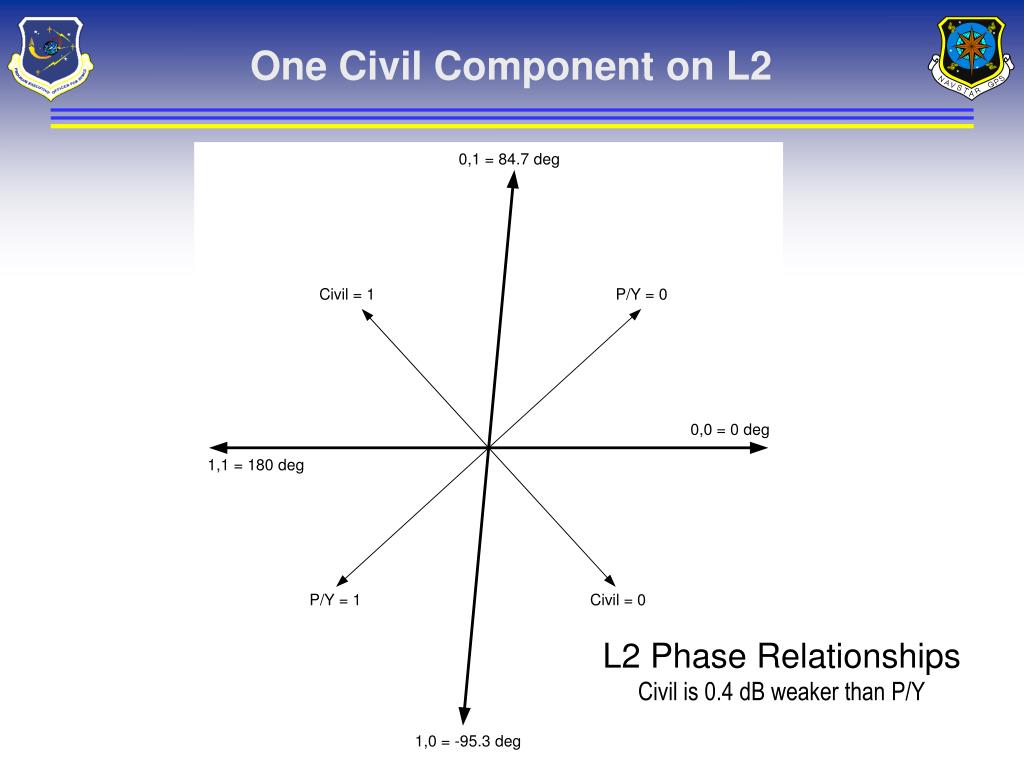

  7. One Civil Component on L2 L2 Phase RelationshipsCivil is 0.4 dB weaker than P/Y

  8. Technical Framework (2 of 3) • Serve the current large and valuable dual frequency survey, science, and machine control applications • Approximately 50,000 in service • Primary need is for robust carrier phase measurements • Typically use semi-codeless L2 access, but many also are equipped with an L2 C/A capability • Improve cross-correlation for single frequency applications (e.g., wooded areas or indoor navigation) • A strong C/A code signal can interfere with weak signals • Receiver technology has advanced enormously compared with the 1970s when C/A was developed • The outdated C/A should be replaced with a better code

  9. Technology Has Changed 1984 2001 Consumer 12 channel digital with color map Consumer 12 channel digital for under $100 5 Channel Analog

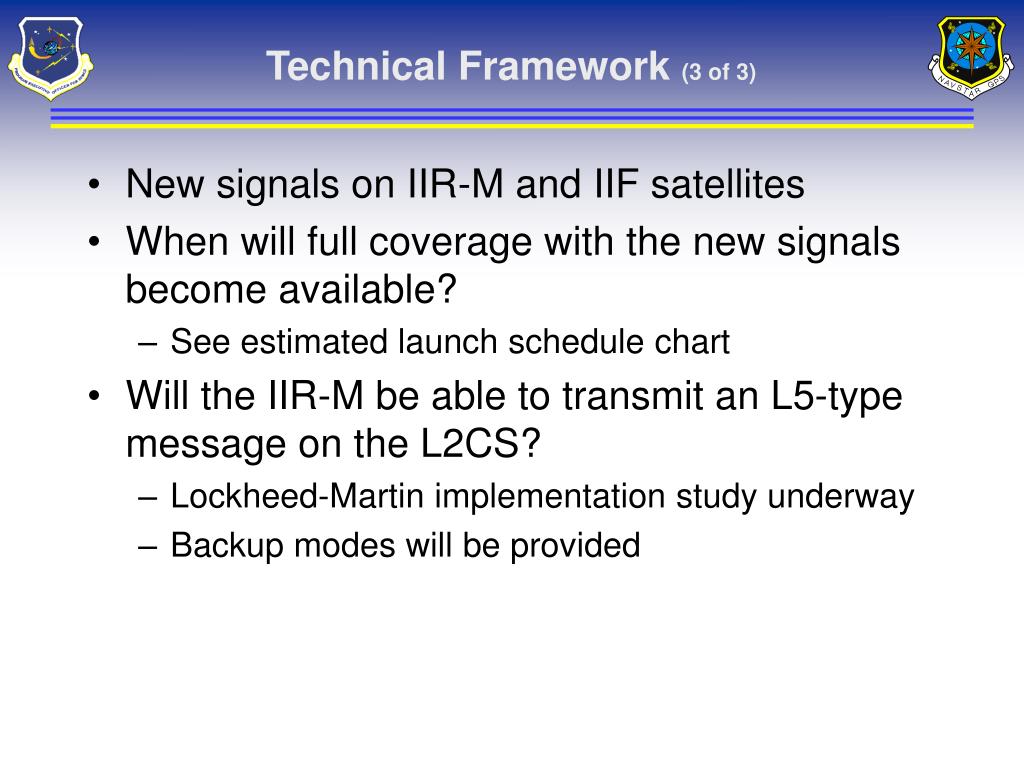

  10. Technical Framework (3 of 3) • New signals on IIR-M and IIF satellites • When will full coverage with the new signals become available? • See estimated launch schedule chart • Will the IIR-M be able to transmit an L5-type message on the L2CS? • Lockheed-Martin implementation study underway • Backup modes will be provided

  11. Signals on IIR, IIR-M, & IIF

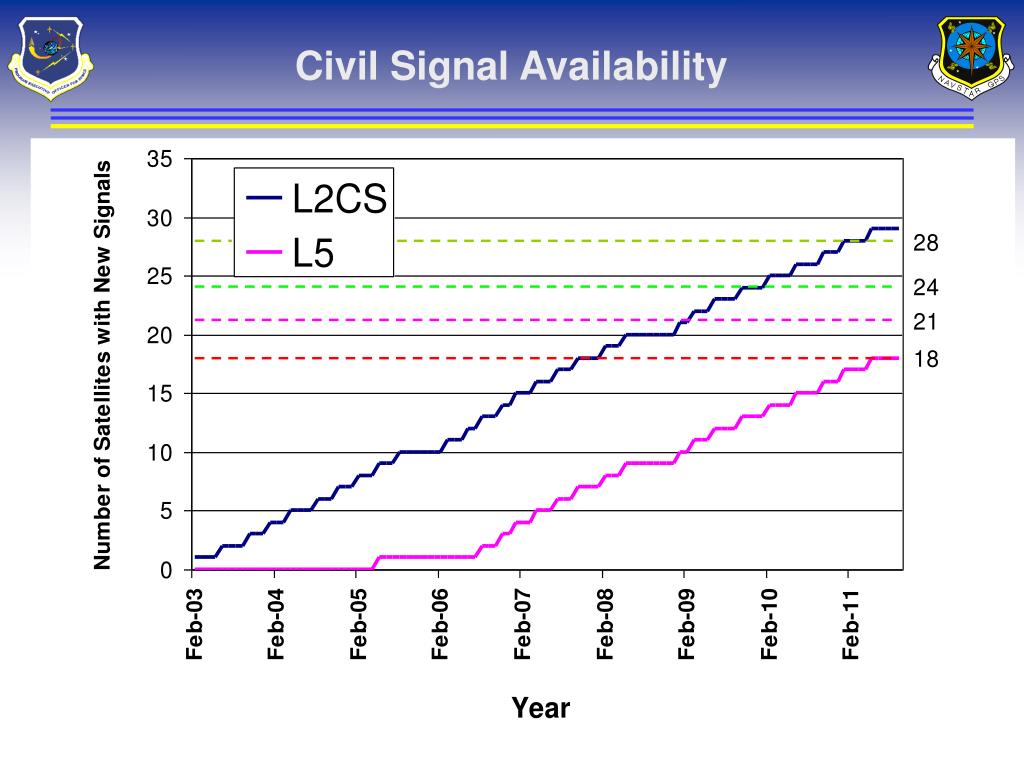

  12. Civil Signal Availability

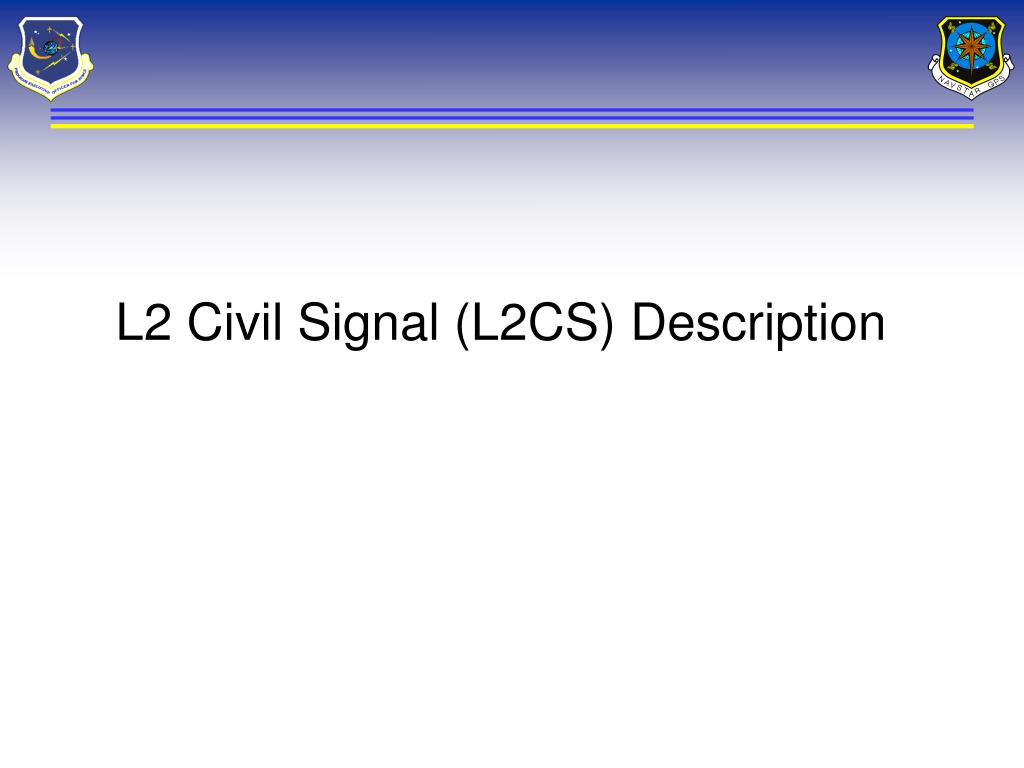

  13. L2 Civil Signal (L2CS) Description

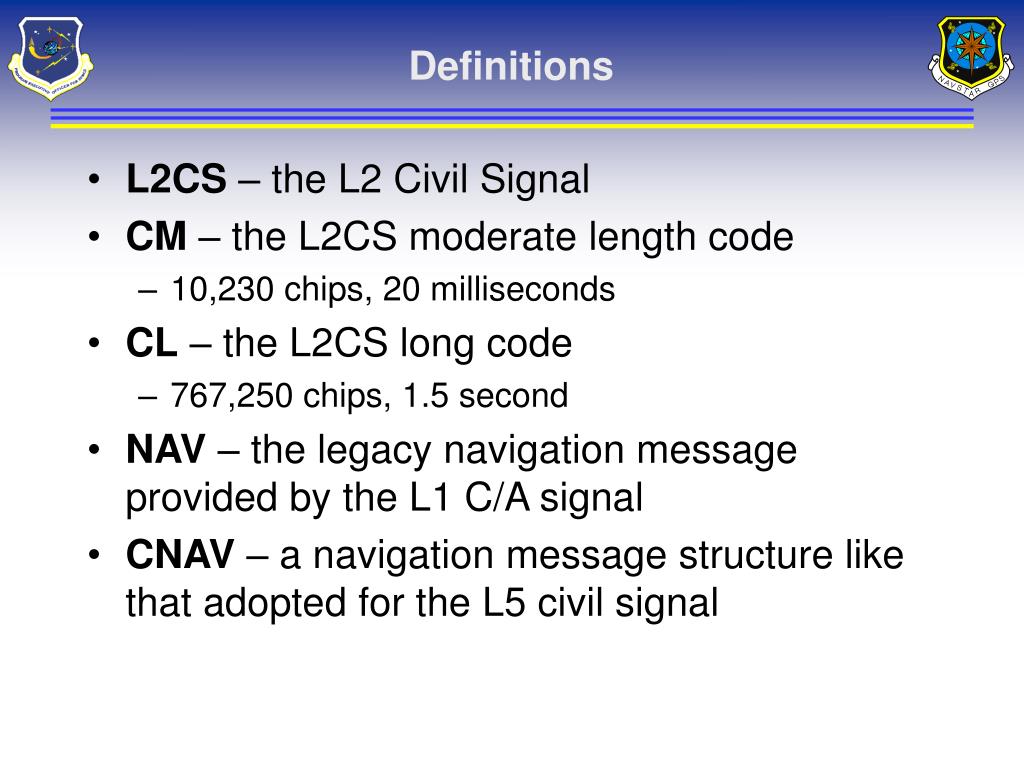

  14. Definitions • L2CS – the L2 Civil Signal • CM – the L2CS moderate length code • 10,230 chips, 20 milliseconds • CL – the L2CS long code • 767,250 chips, 1.5 second • NAV – the legacy navigation message provided by the L1 C/A signal • CNAV – a navigation message structure like that adopted for the L5 civil signal

  15. IIF Signal Generation

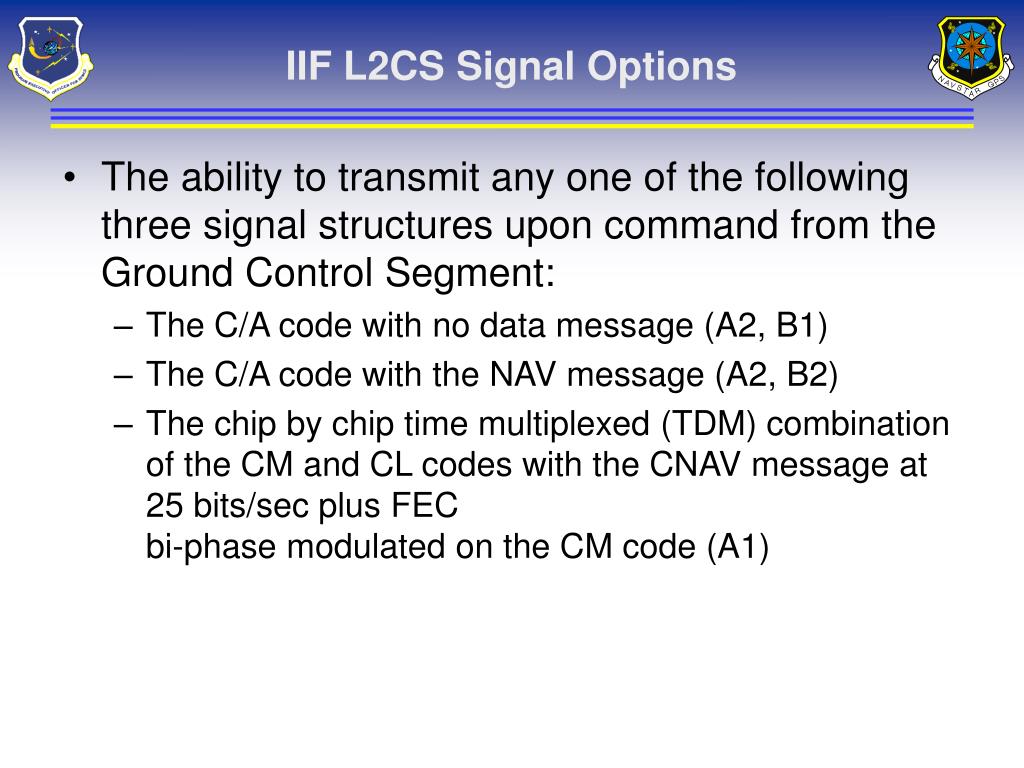

  16. IIF L2CS Signal Options • The ability to transmit any one of the following three signal structures upon command from the Ground Control Segment: • The C/A code with no data message (A2, B1) • The C/A code with the NAV message (A2, B2) • The chip by chip time multiplexed (TDM) combination of the CM and CL codes with the CNAV message at 25 bits/sec plus FEC bi-phase modulated on the CM code (A1)

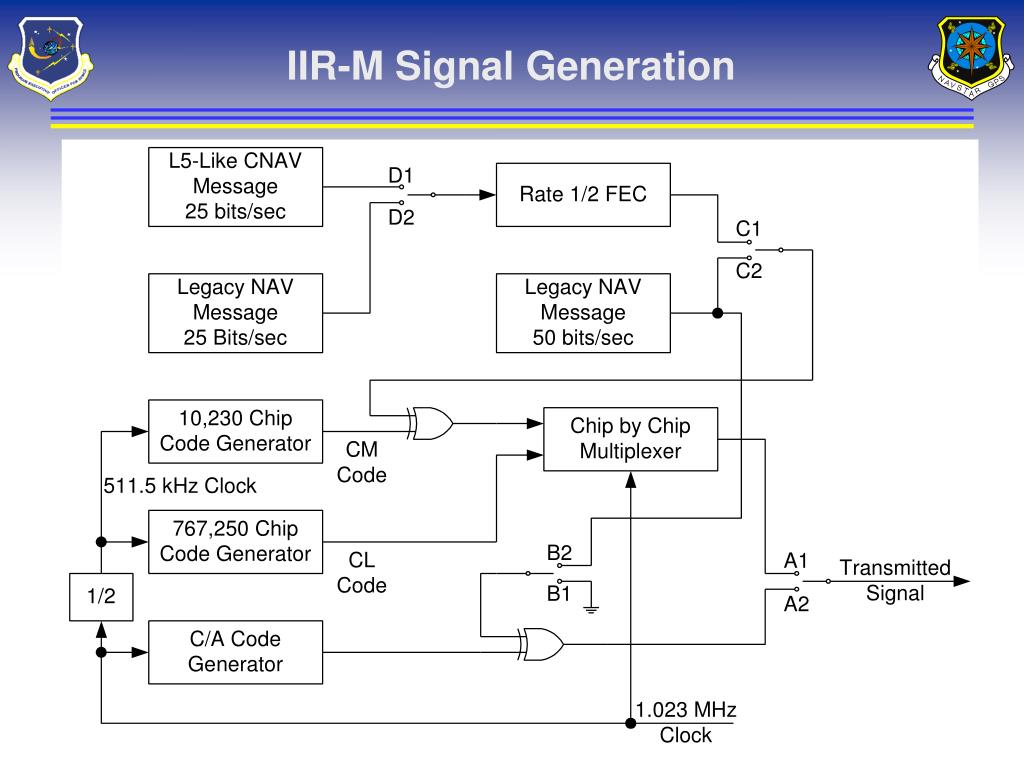

  17. IIR-M Signal Generation B1 is a potential software option to be uploaded by the Control Segment

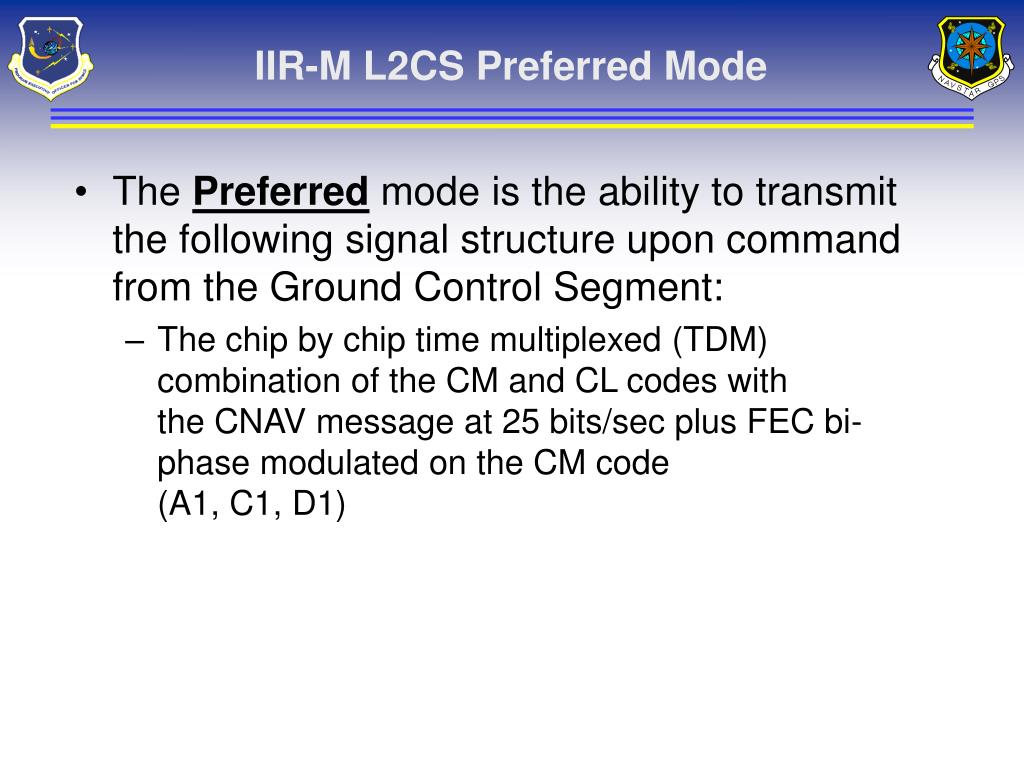

  18. IIR-M L2CS Preferred Mode • The Preferred mode is the ability to transmit the following signal structure upon command from the Ground Control Segment: • The chip by chip time multiplexed (TDM) combination of the CM and CL codes with the CNAV message at 25 bits/sec plus FEC bi-phase modulated on the CM code (A1, C1, D1)

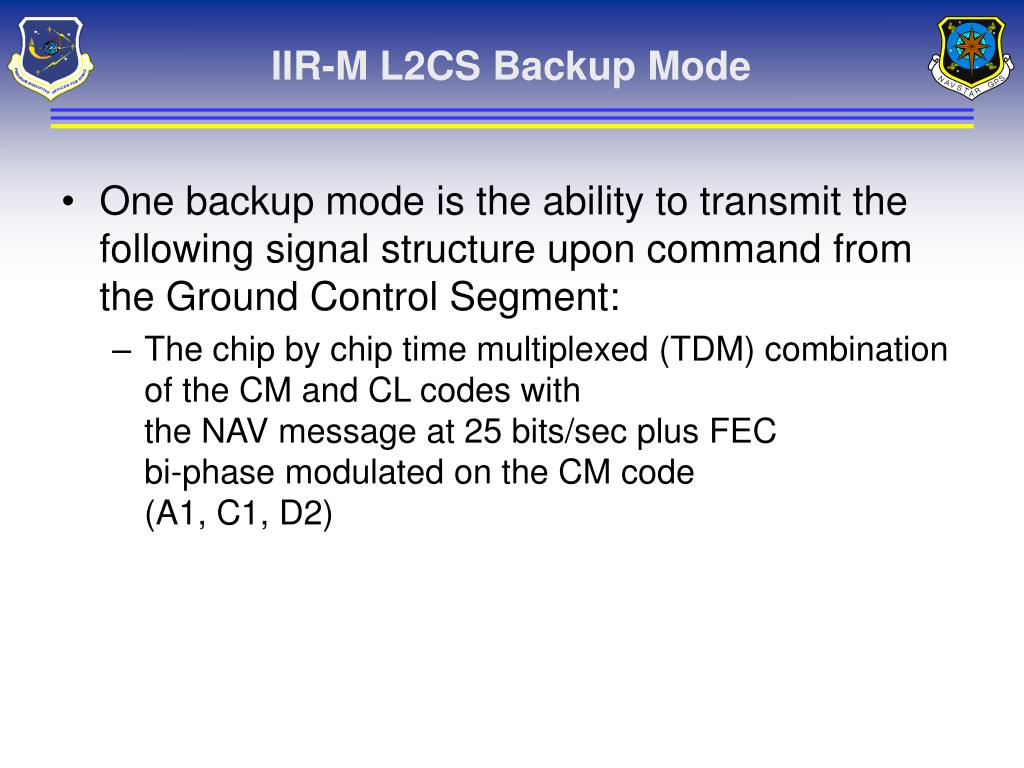

  19. IIR-M L2CS Backup Mode • One backup mode is the ability to transmit the following signal structure upon command from the Ground Control Segment: • The chip by chip time multiplexed (TDM) combination of the CM and CL codes with the NAV message at 25 bits/sec plus FEC bi-phase modulated on the CM code (A1, C1, D2)

  20. IIR-M L2CS Optional Modes • The ability to transmit any one of the following three signal structures upon command from the Control Segment: • The C/A code with no data message (A2, B1) • The C/A code with the NAV message (A2, B2) • The chip by chip time multiplexed (TDM) combination of the CM and CL codes with the NAV message at 50 bits/sec bi-phase modulated on the CM code (A1, C2) • Control Segment implementation is under evaluation for these & the previous options

  21. L2CS Code Characteristics • Codes are disjoint segments of a long-period maximal code • 27-stage linear shift register generator (LSRG) with multiple taps is short-cycled to get desired period • Selected to have perfect balance • A separate LSRG for each of the two codes • Code selection by initializing the LSRG to a fixed state specified for the SV ID and resetting (short-cycling) after a specified count for the code period or at a specified final state • 1 cycle of CL & 75 cycles of CM every 1.5 sec

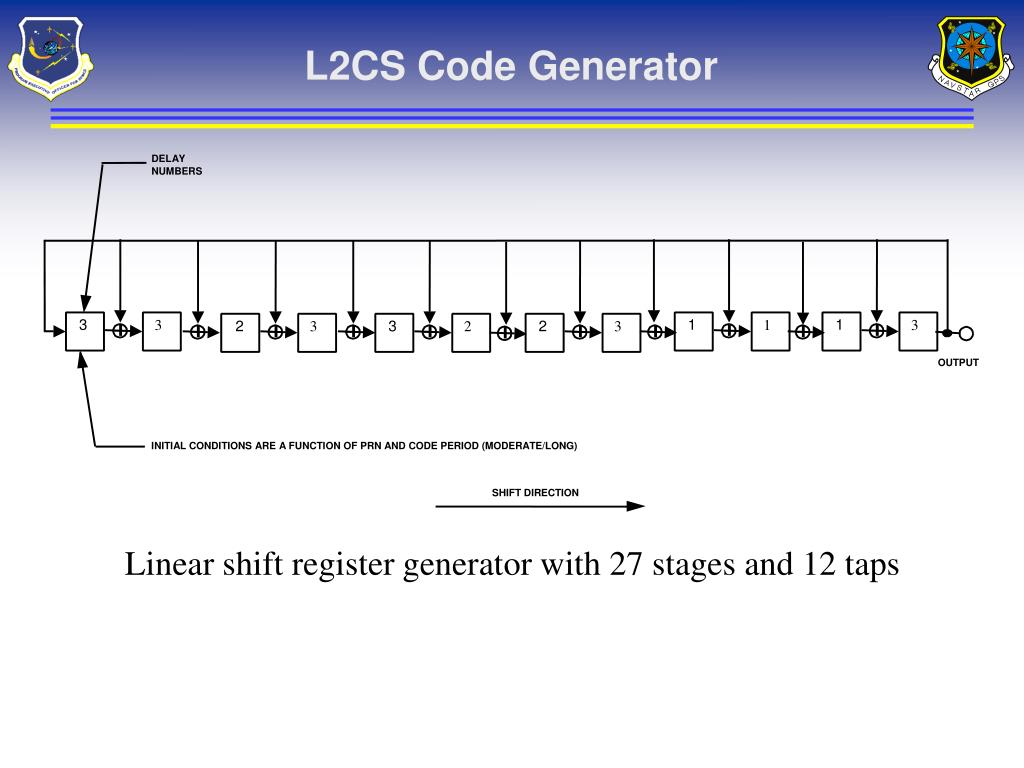

  22. L2CS Code Generator Linear shift register generator with 27 stages and 12 taps

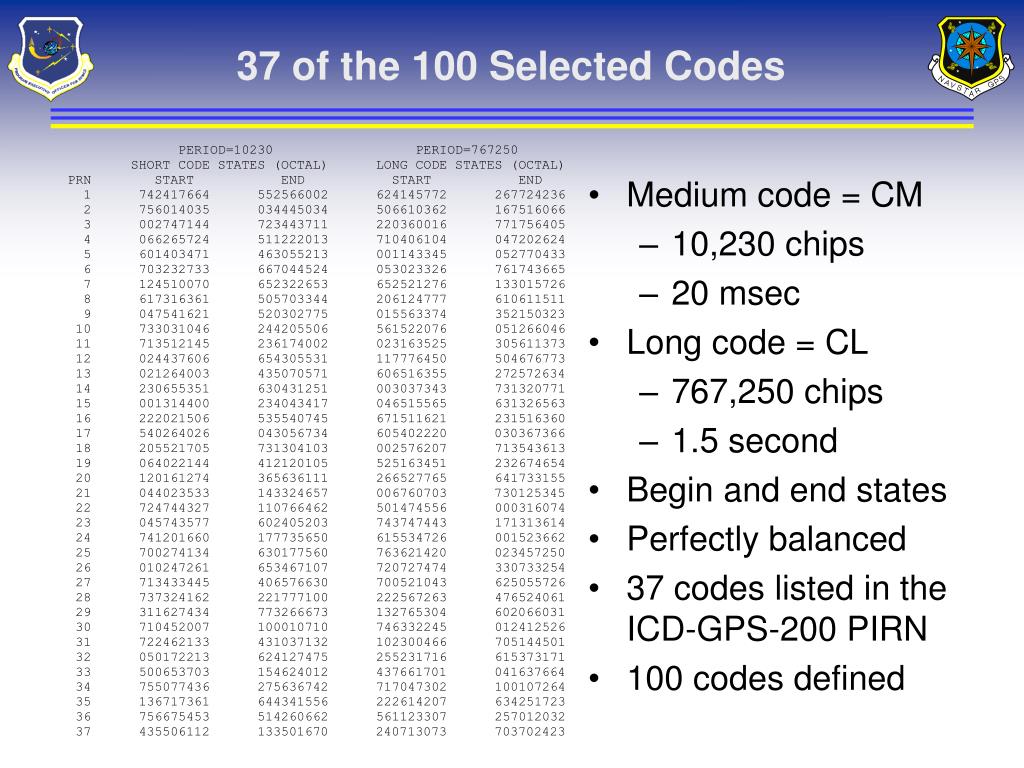

  23. Medium code = CM 10,230 chips 20 msec Long code = CL 767,250 chips 1.5 second Begin and end states Perfectly balanced 37 codes listed in the ICD-GPS-200 PIRN 100 codes defined 37 of the 100 Selected Codes

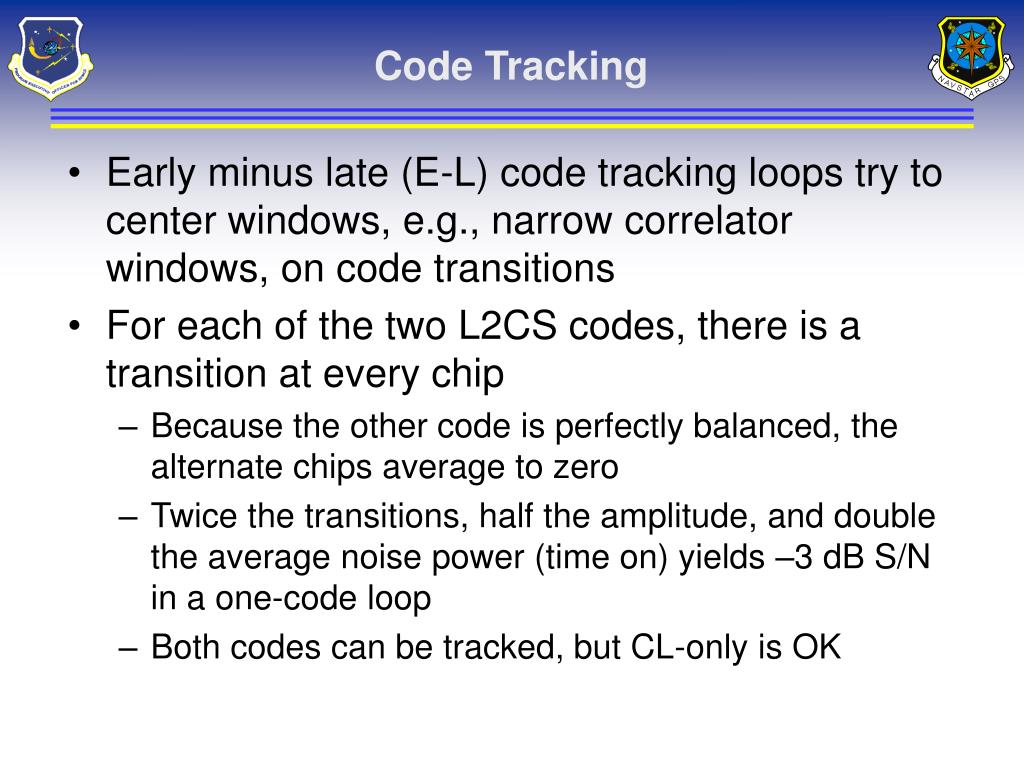

  24. Code Tracking • Early minus late (E-L) code tracking loops try to center windows, e.g., narrow correlator windows, on code transitions • For each of the two L2CS codes, there is a transition at every chip • Because the other code is perfectly balanced, the alternate chips average to zero • Twice the transitions, half the amplitude, and double the average noise power (time on) yields –3 dB S/N in a one-code loop • Both codes can be tracked, but CL-only is OK

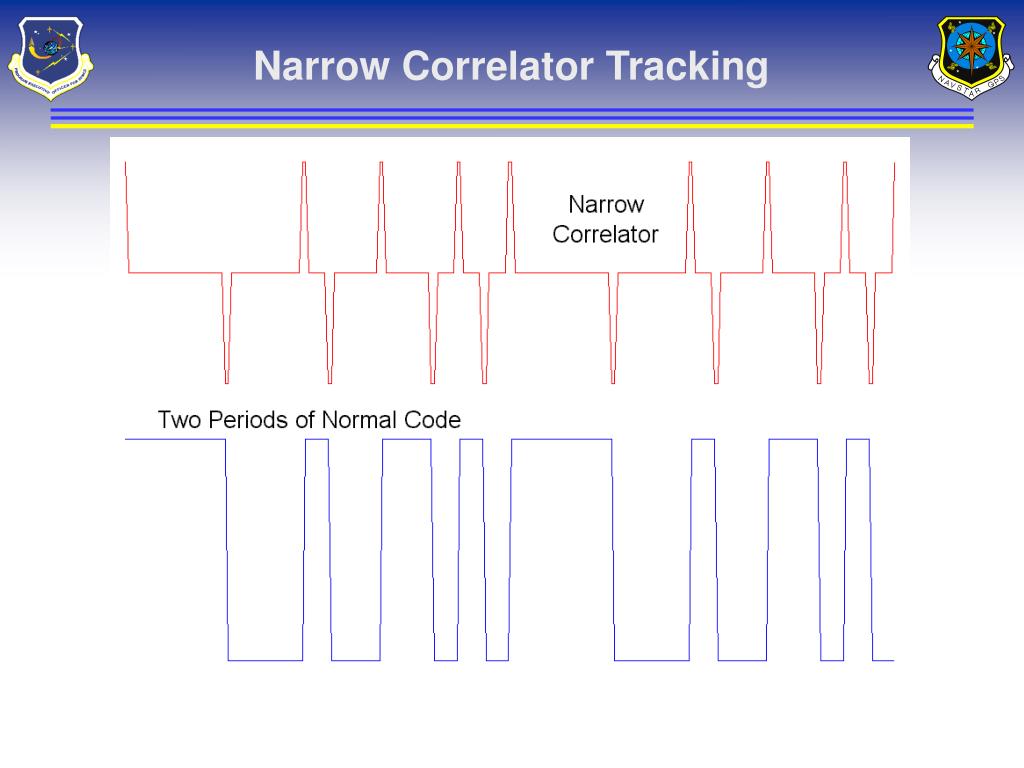

  25. Narrow Correlator Tracking

  26. Narrow Correlator on L2CS

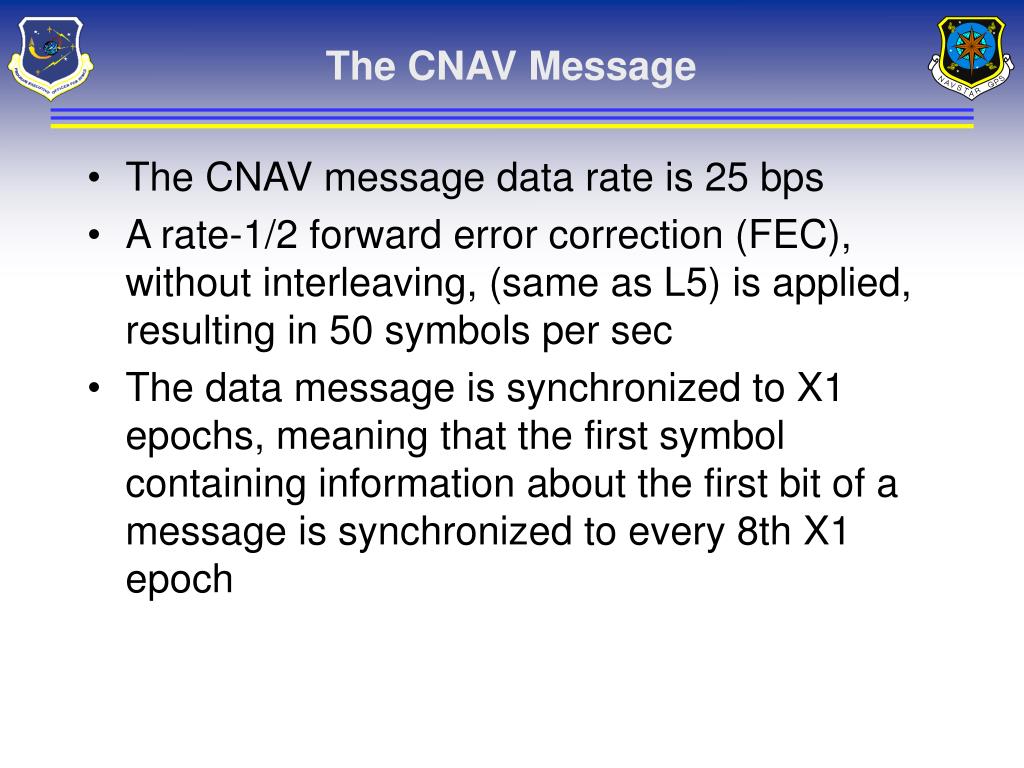

  27. The CNAV Message • The CNAV message data rate is 25 bps • A rate-1/2 forward error correction (FEC), without interleaving, (same as L5) is applied, resulting in 50 symbols per sec • The data message is synchronized to X1 epochs, meaning that the first symbol containing information about the first bit of a message is synchronized to every 8th X1 epoch

  28. CNAV Message Content • The CNAV message content is the same as defined for the L5 signal with the following differences and notes: • Because of the reduced bit rate, the sub-frame period will be 12 seconds rather than 6 seconds • The time parameter inserted into each data sub- frame will properly represent the 12-second epoch defined by each sub-frame • The terms provided by the Control Segment representing time bias between the P code and the civil codes for L1, L2, and L5 will be included

  29. Message Sequence Options Type 4 message gives one satellite almanac per sub-frame

  30. CNAV Message Sequencing • Message sequences will be determined by the Control Segment. One possible sequence is three sub-frames grouped into repeating frames of 36 seconds, each containing Ephemeris 1 and Ephemeris 2 messages plus another sub-frame • The third sub-frame of each 36 second frame contains one almanac message or another message when and as needed

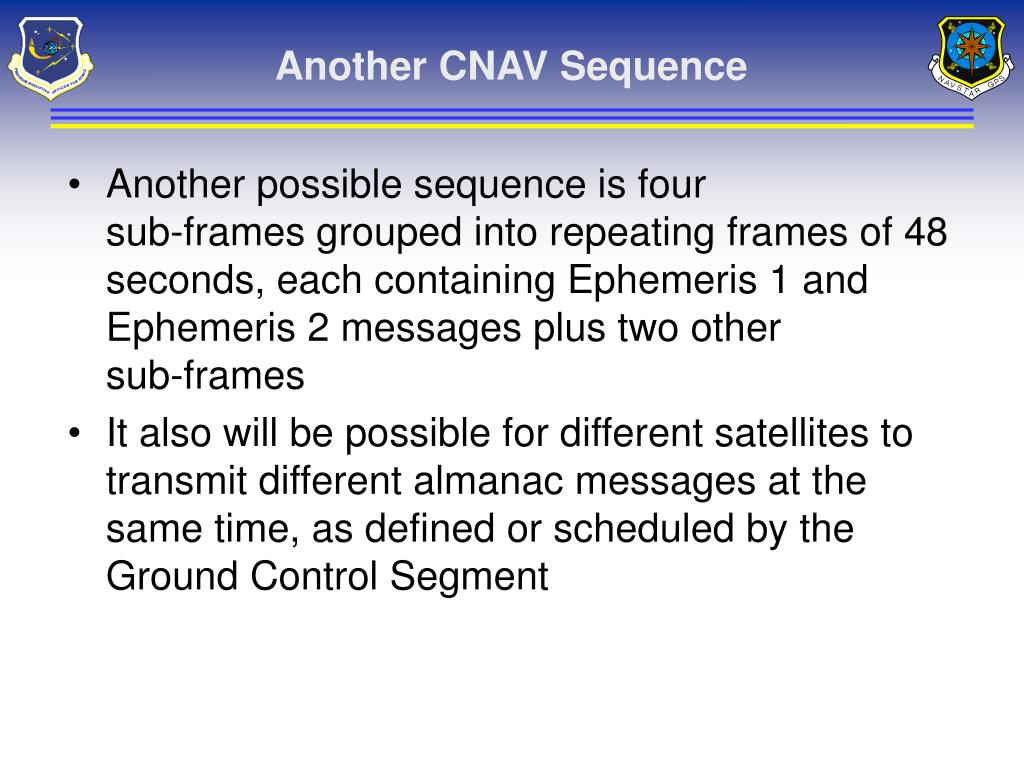

  31. Another CNAV Sequence • Another possible sequence is four sub-frames grouped into repeating frames of 48 seconds, each containing Ephemeris 1 and Ephemeris 2 messages plus two other sub-frames • It also will be possible for different satellites to transmit different almanac messages at the same time, as defined or scheduled by the Ground Control Segment

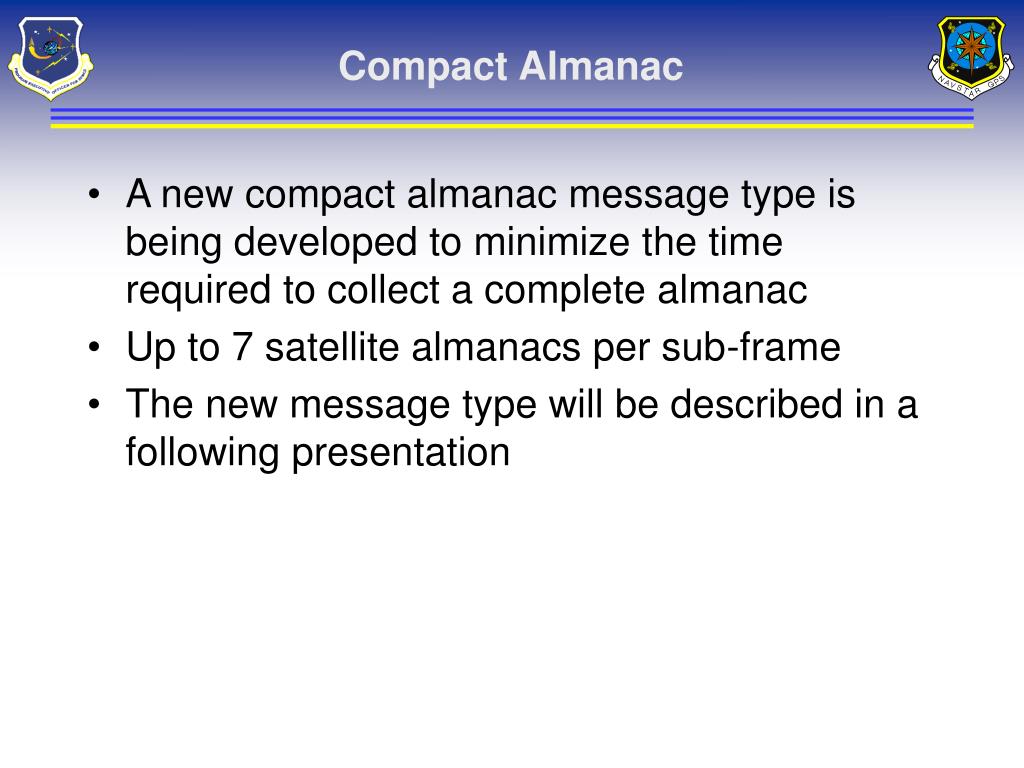

  32. Compact Almanac • A new compact almanac message type is being developed to minimize the time required to collect a complete almanac • Up to 7 satellite almanacs per sub-frame • The new message type will be described in a following presentation

  33. Signal Performance Characteristics

  34. Relative Channel Power Comparing L2CS with C/A on L2

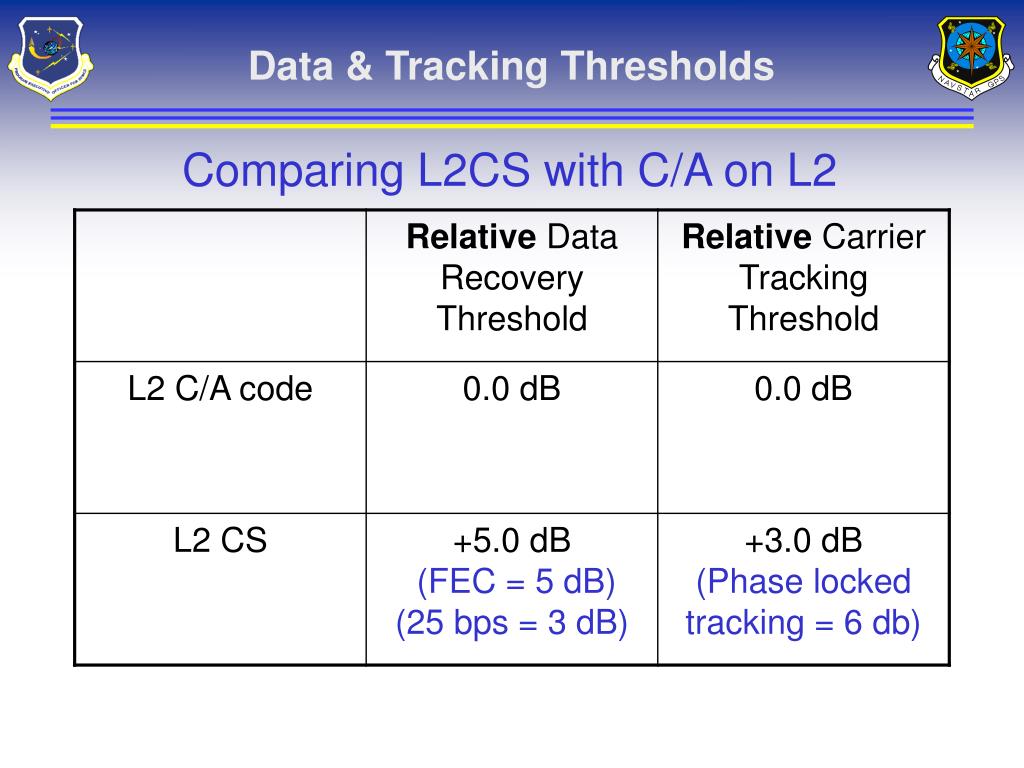

  35. Data & Tracking Thresholds Comparing L2CS with C/A on L2

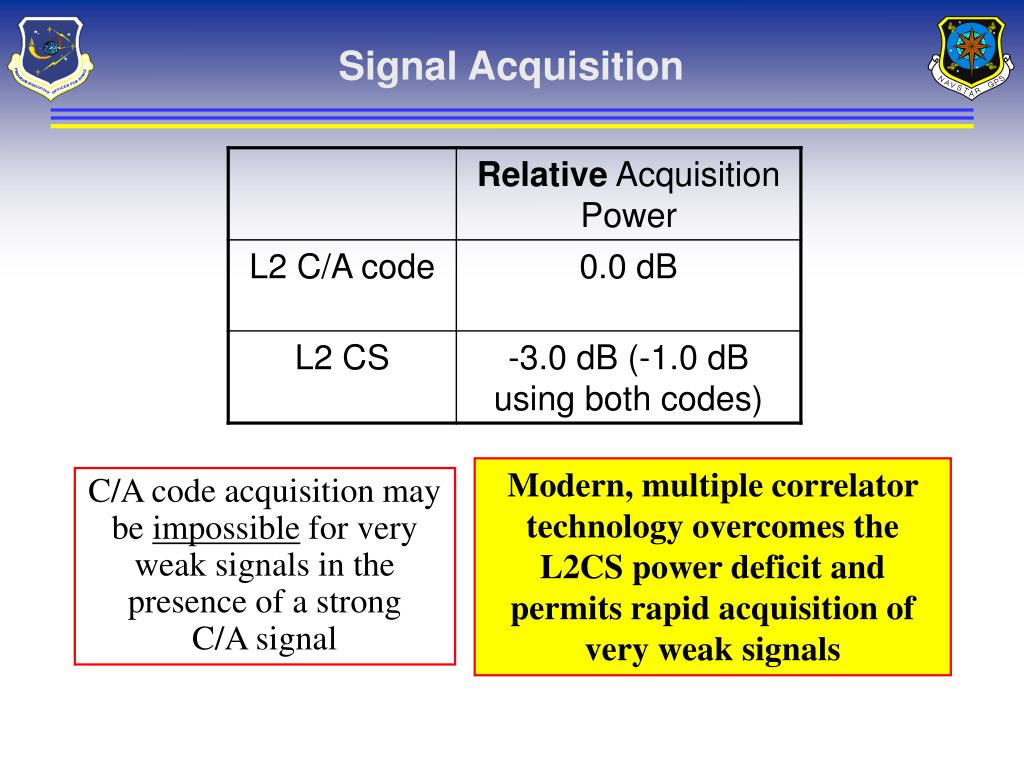

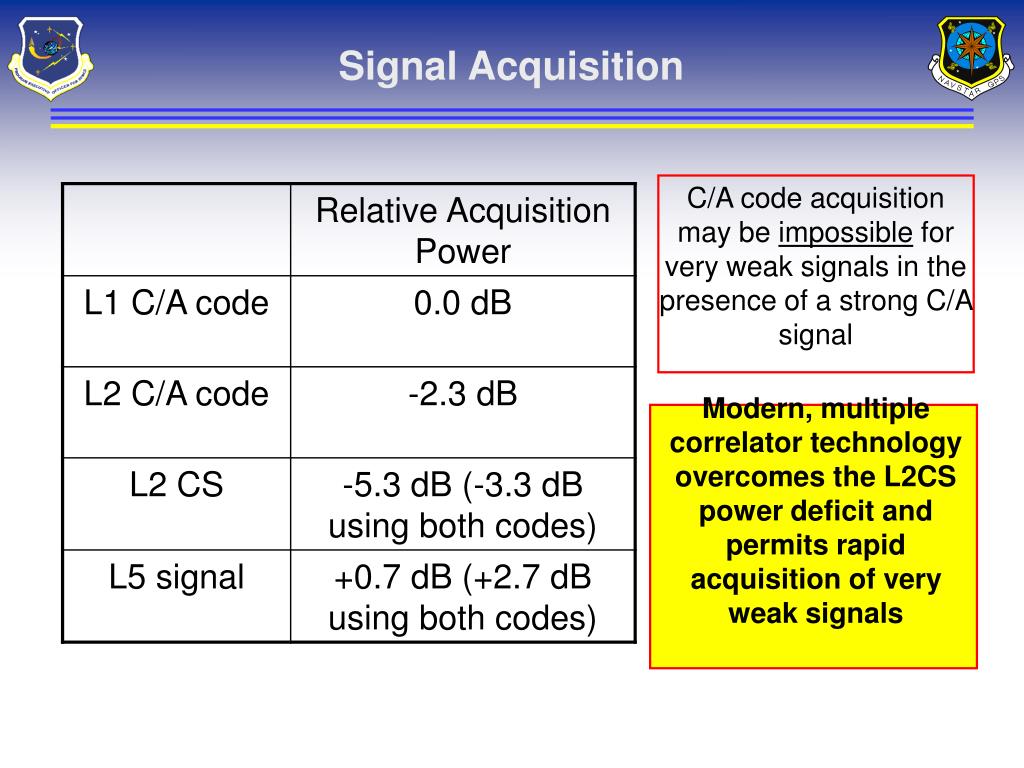

  36. Signal Acquisition Modern, multiple correlator technology overcomes the L2CS power deficit and permits rapid acquisition of very weak signals C/A code acquisition may be impossible for very weak signals in the presence of a strong C/A signal

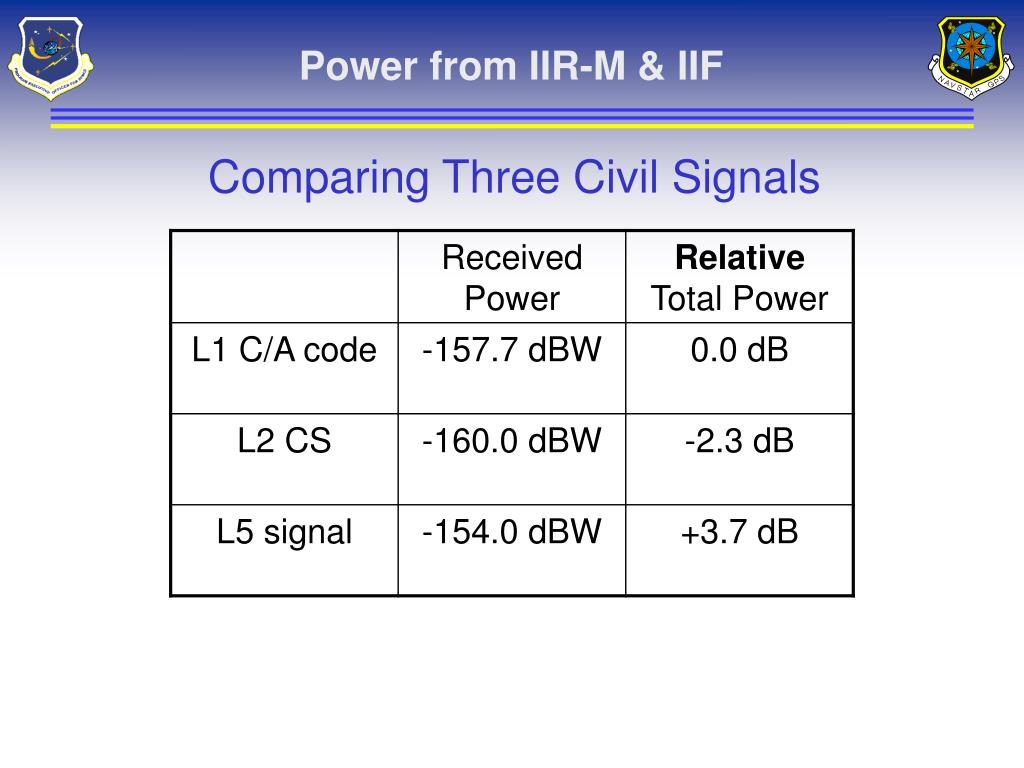

  37. Power from IIR-M & IIF Comparing Three Civil Signals

  38. Relative Channel Power Comparing Three Civil Signals

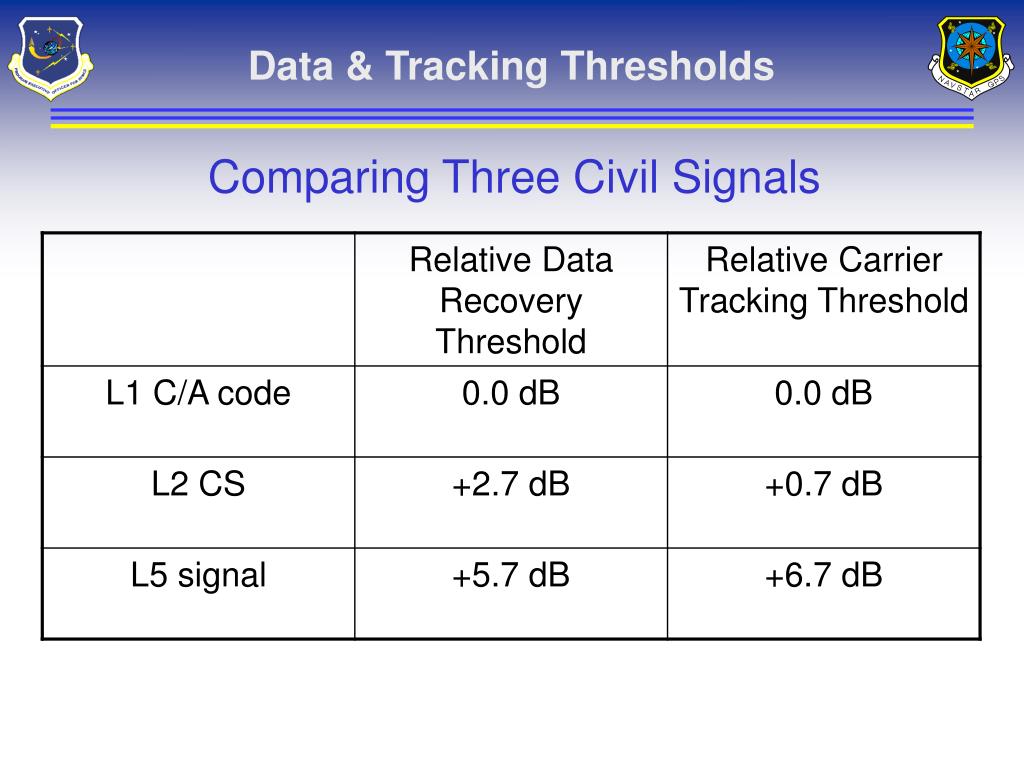

  39. Data & Tracking Thresholds Comparing Three Civil Signals

  40. C/A code acquisition may be impossible for very weak signals in the presence of a strong C/A signal Modern, multiple correlator technology overcomes the L2CS power deficit and permits rapid acquisition of very weak signals Signal Acquisition

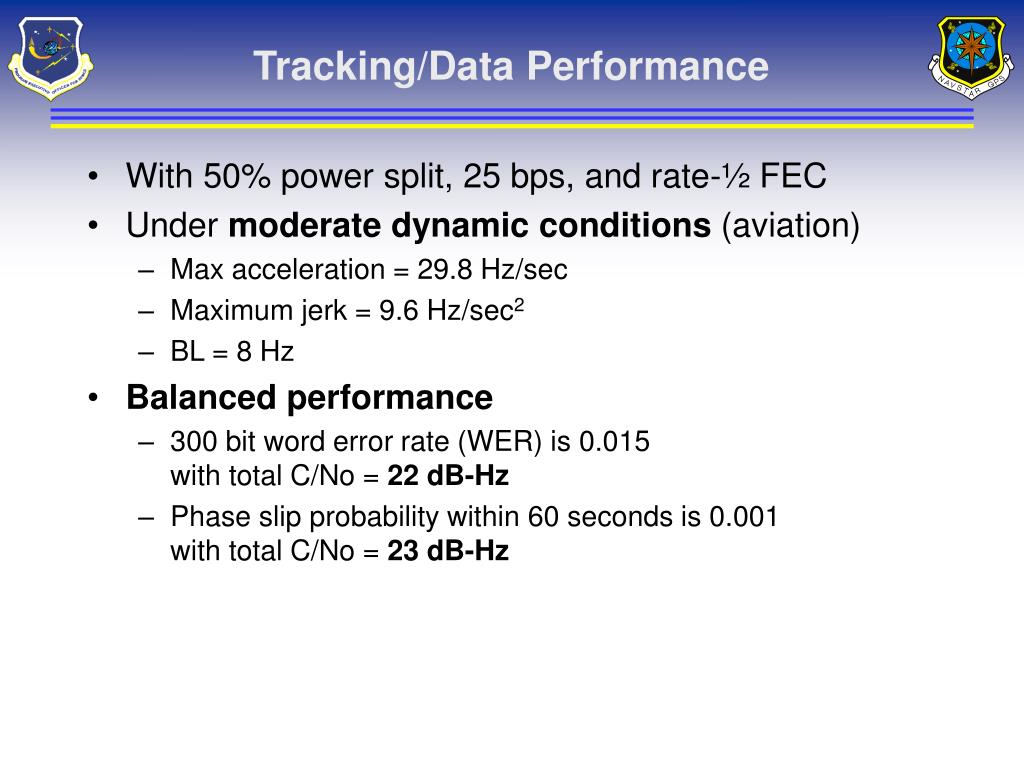

  41. Tracking/Data Performance • With 50% power split, 25 bps, and rate-½ FEC • Under moderatedynamic conditions (aviation) • Max acceleration = 29.8 Hz/sec • Maximum jerk = 9.6 Hz/sec2 • BL = 8 Hz • Balanced performance • 300 bit word error rate (WER) is 0.015 with total C/No = 22 dB-Hz • Phase slip probability within 60 seconds is 0.001 with total C/No = 23 dB-Hz

  42. Tracking/Data Performance • With 50% power split, 25 bps, and rate-½ FEC • Under highdynamic conditions • Max acceleration = 300 Hz/sec • Maximum jerk = 100 Hz/sec2 • BL = 15 Hz • Performance • 300 bit word error rate (WER) of 0.015 with total C/No = 24.5 dB-Hz • Phase slip probability in 60 seconds of 0.001 with total C/No = 25.5 dB-Hz

  43. Design Decisions and Tradeoffs Why two codes?Why TDM? Why Chip by Chip? Why L5 type message? Why FEC?

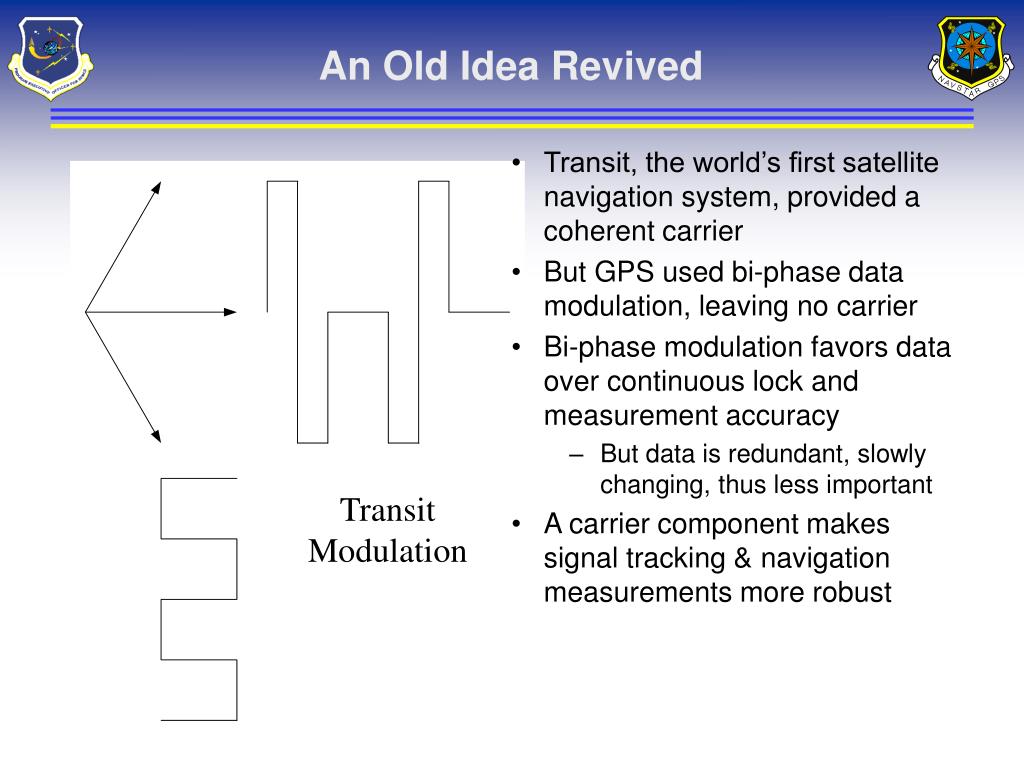

  44. An Old Idea Revived • Transit, the world’s first satellite navigation system, provided a coherent carrier • But GPS used bi-phase data modulation, leaving no carrier • Bi-phase modulation favors data over continuous lock and measurement accuracy • But data is redundant, slowly changing, thus less important • A carrier component makes signal tracking & navigation measurements more robust TransitModulation

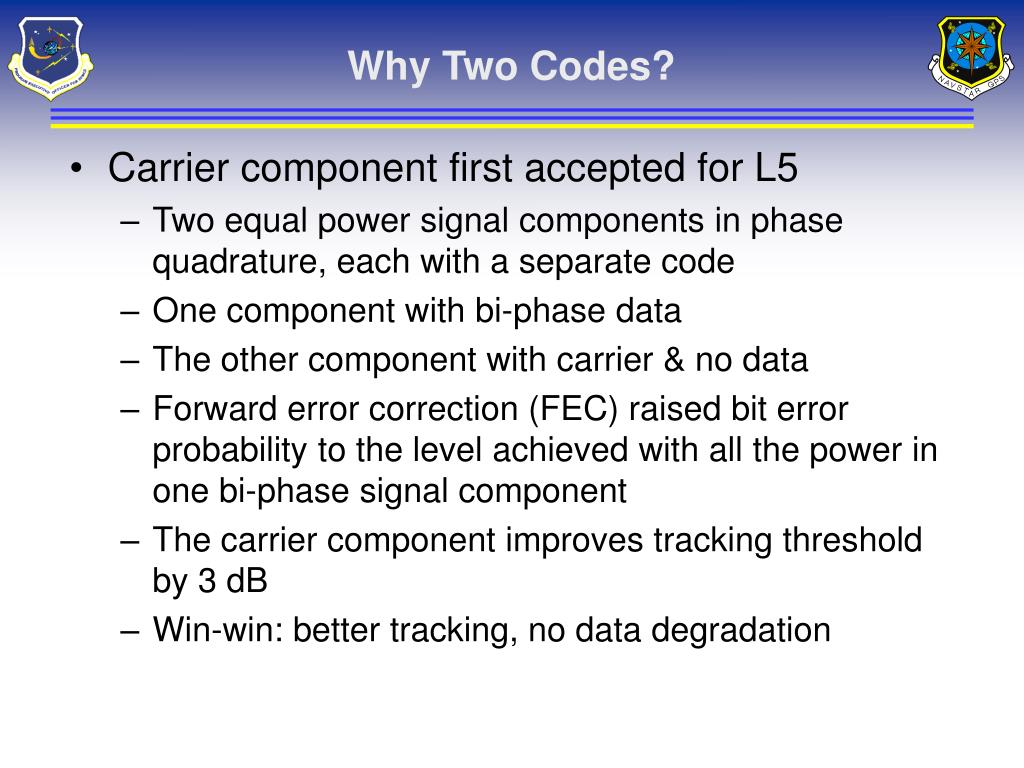

  45. Why Two Codes? • Carrier component first accepted for L5 • Two equal power signal components in phase quadrature, each with a separate code • One component with bi-phase data • The other component with carrier & no data • Forward error correction (FEC) raised bit error probability to the level achieved with all the power in one bi-phase signal component • The carrier component improves tracking threshold by 3 dB • Win-win: better tracking, no data degradation

  46. Two L2 Codes • Quad phase was not available for L2 • Two codes provided by time multiplexing one bi-phase signal component • Data with forward error correction on moderate length code, CM • No data on the long CL code, provides a carrier component and a 3 dB better tracking threshold • Longer CL code improves crosscorrelation

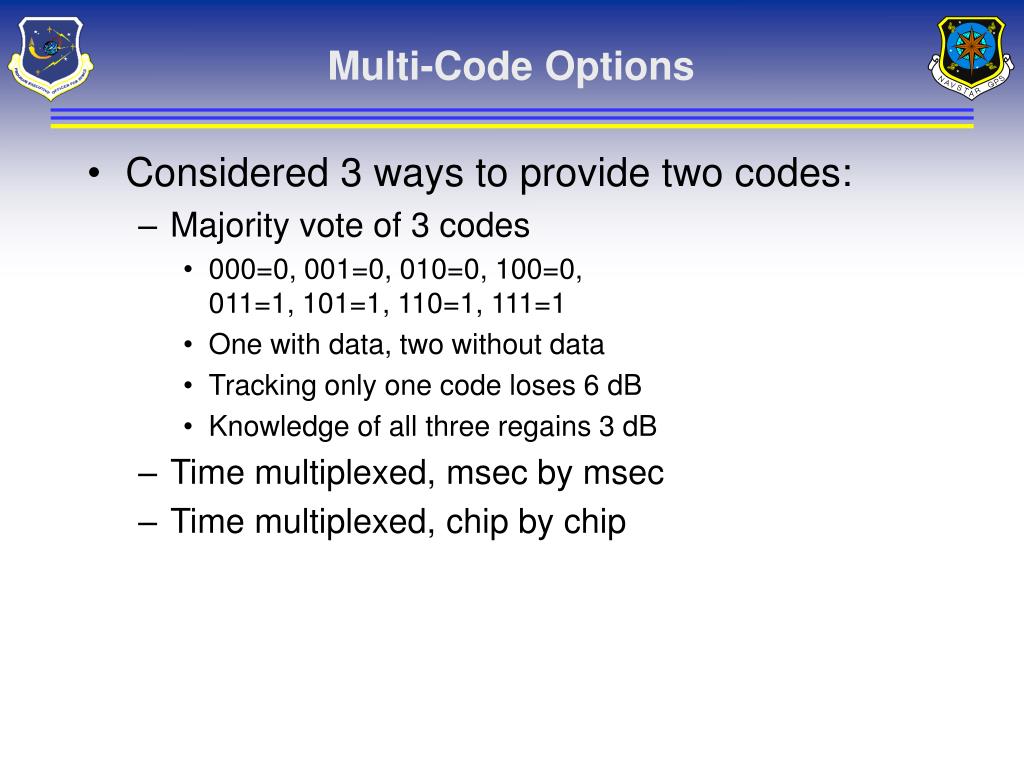

  47. Multi-Code Options • Considered 3 ways to provide two codes: • Majority vote of 3 codes • 000=0, 001=0, 010=0, 100=0, 011=1, 101=1, 110=1, 111=1 • One with data, two without data • Tracking only one code loses 6 dB • Knowledge of all three regains 3 dB • Time multiplexed, msec by msec • Time multiplexed, chip by chip

  48. Chip by Chip TDM Chosen • Majority vote eliminated because: • Requires 3 rather than 2 code generators • Requires synch to all 3 codes for best results • No other advantage found • Msec by msec TDM eliminated because: • Requires care to avoid 500 Hz sidetone • No other advantage found • Selected chip by chip TDM • Simple to implement with no disadvantages

  49. Code Length Considerations • The peak cross-correlation between existing C/A codes is ‑23.9 dB • The Gold bound for period 1023 chips • C/A codes are inadequate for indoor navigation • Correlation sidelobe examples for TDM candidates • 20 msec period: 29 dB below full correlation • 200 msec period: 36 dB below full correlation • 1.5 sec period: 47 dB below full correlation

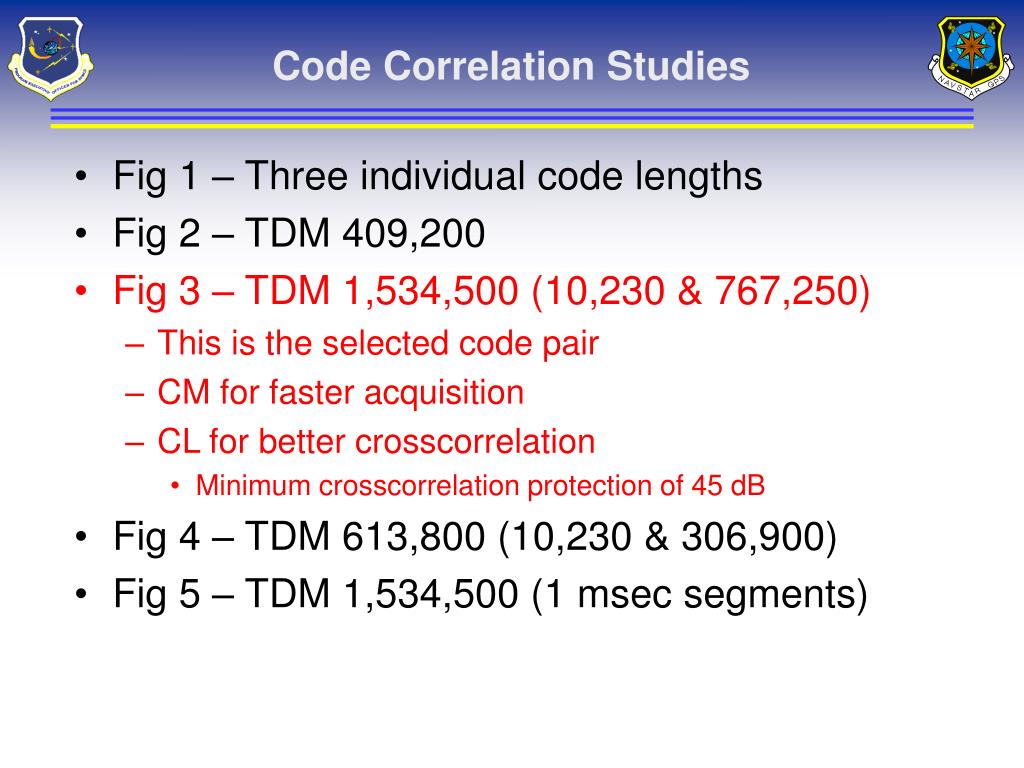

  50. Code Correlation Studies • Fig 1 – Three individual code lengths • Fig 2 – TDM 409,200 • Fig 3 – TDM 1,534,500 (10,230 & 767,250) • This is the selected code pair • CM for faster acquisition • CL for better crosscorrelation • Minimum crosscorrelation protection of 45 dB • Fig 4 – TDM 613,800 (10,230 & 306,900) • Fig 5 – TDM 1,534,500 (1 msec segments)
