  1. Gaining an understanding of complex application database relationships UNYOYG November 14, 2008 Ray Makela

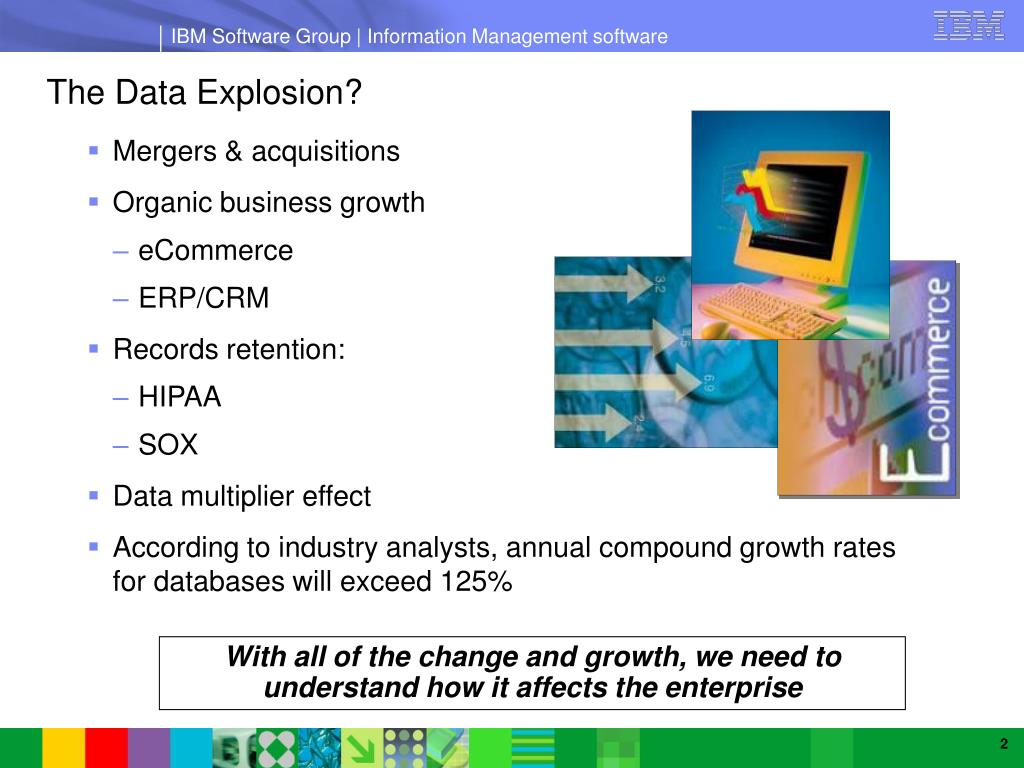

  2. The Data Explosion? • Mergers & acquisitions • Organic business growth • eCommerce • ERP/CRM • Records retention: • HIPAA • SOX • Data multiplier effect • According to industry analysts, annual compound growth rates for databases will exceed 125% With all of the change and growth, we need to understand how it affects the enterprise

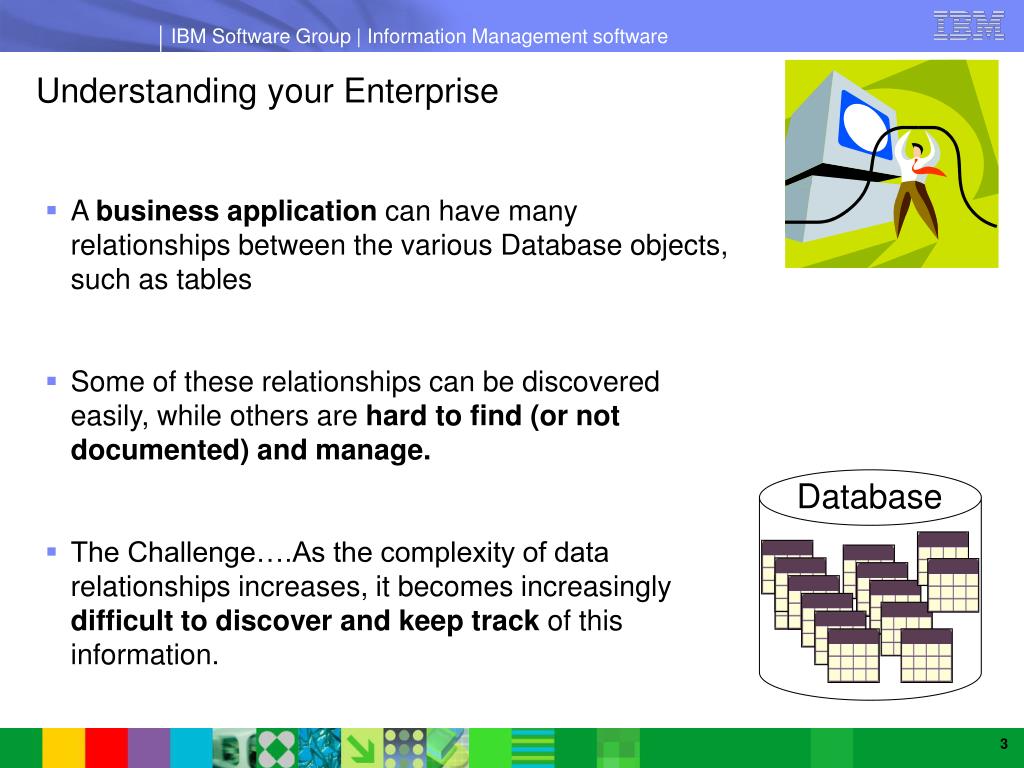

  3. Database Understanding your Enterprise • A business application can have many relationships between the various Database objects, such as tables • Some of these relationships can be discovered easily, while others are hard to find (or not documented) and manage. • The Challenge….As the complexity of data relationships increases, it becomes increasingly difficult to discover and keep track of this information.

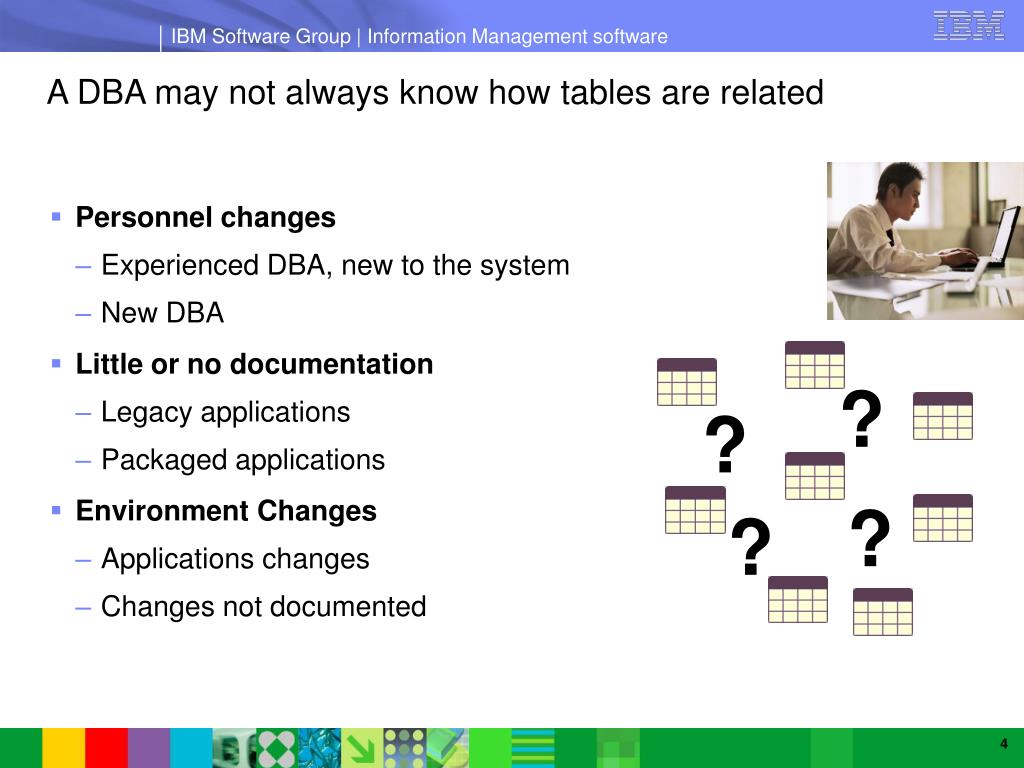

  4. A DBA may not always know how tables are related • Personnel changes • Experienced DBA, new to the system • New DBA • Little or no documentation • Legacy applications • Packaged applications • Environment Changes • Applications changes • Changes not documented ? ? ? ?

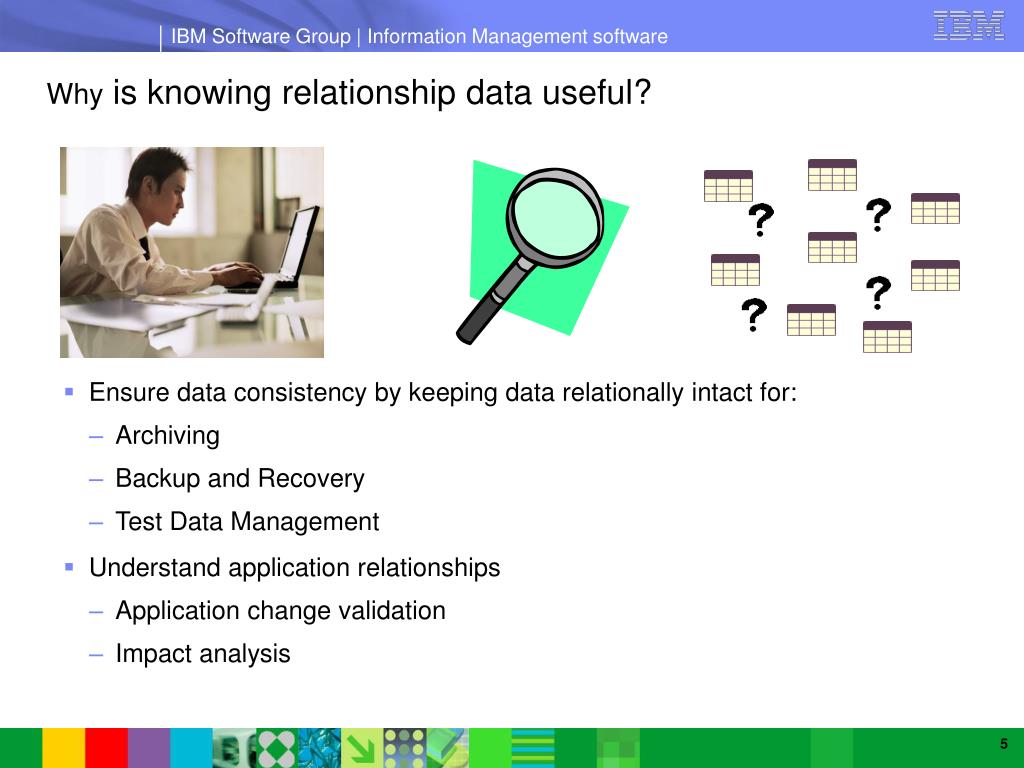

  5. Why is knowing relationship data useful? • Ensure data consistency by keeping data relationally intact for: • Archiving • Backup and Recovery • Test Data Management • Understand application relationships • Application change validation • Impact analysis

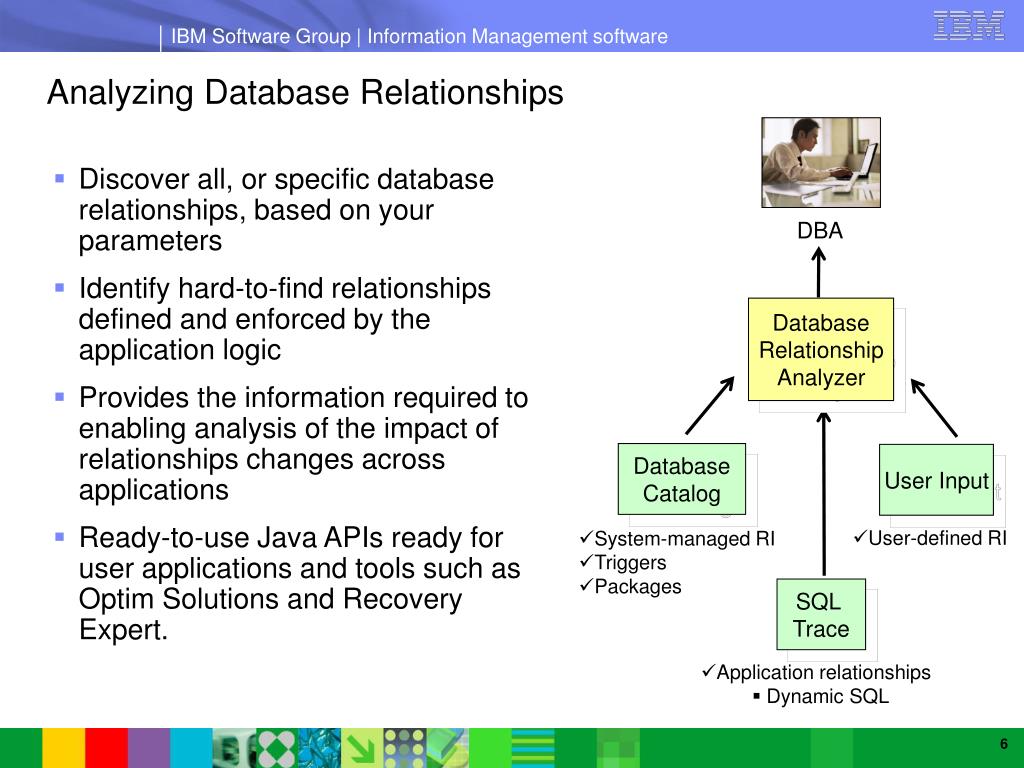

  6. DBA Database Relationship Analyzer SQL Trace Database Catalog User Input • Application relationships • Dynamic SQL • System-managed RI • Triggers • Packages • User-defined RI Analyzing Database Relationships • Discover all, or specific database relationships, based on your parameters • Identify hard-to-find relationships defined and enforced by the application logic • Provides the information required to enabling analysis of the impact of relationships changes across applications • Ready-to-use Java APIs ready for user applications and tools such as Optim Solutions and Recovery Expert.

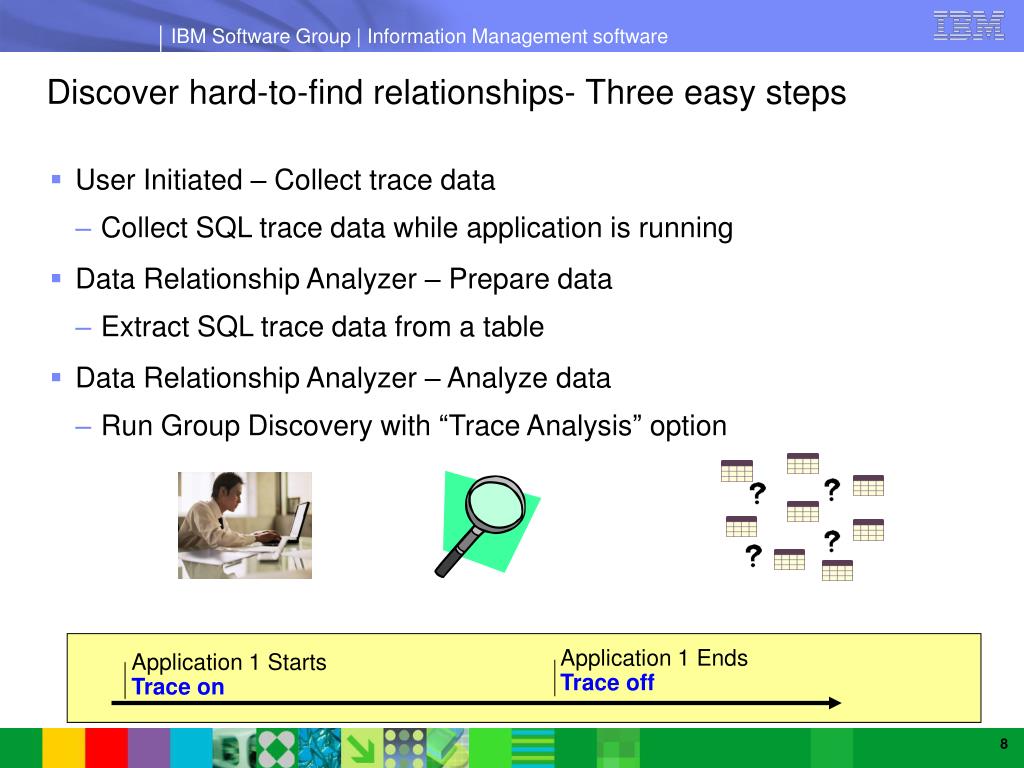

  7. Application 1 Ends Trace off Application 1 Starts Trace on Discover hard-to-find relationships- Three easy steps • User Initiated – Collect trace data • Collect SQL trace data while application is running • Data Relationship Analyzer – Prepare data • Extract SQL trace data from a table • Data Relationship Analyzer – Analyze data • Run Group Discovery with “Trace Analysis” option

  8. Group – 1st Run Emp, Address Group Compare Results Group – 2nd Run Emp, Address, Salary Compare Group Discovery Results • Compare Group Discovery results between a baseline run and a subsequent run to determine if changes have occurred and understand differences

  9. Compare Group Discovery Results • Compare database relationships between baseline and update relationship analysis to understand differences

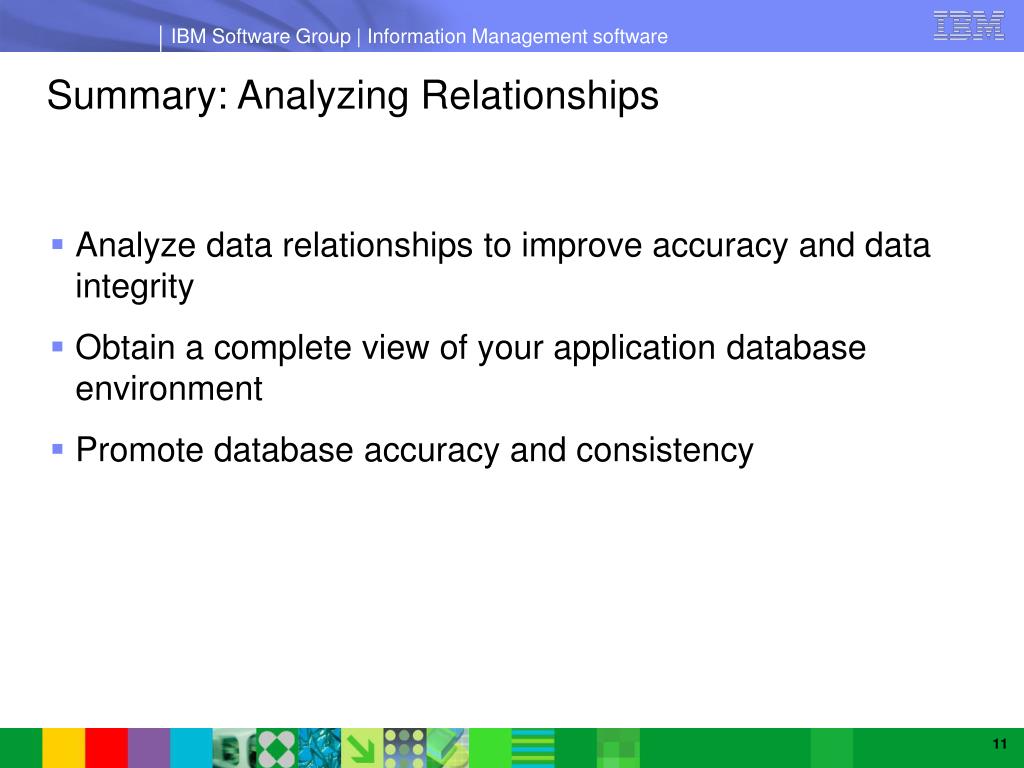

  10. Summary: Analyzing Relationships • Analyze data relationships to improve accuracy and data integrity • Obtain a complete view of your application database environment • Promote database accuracy and consistency
