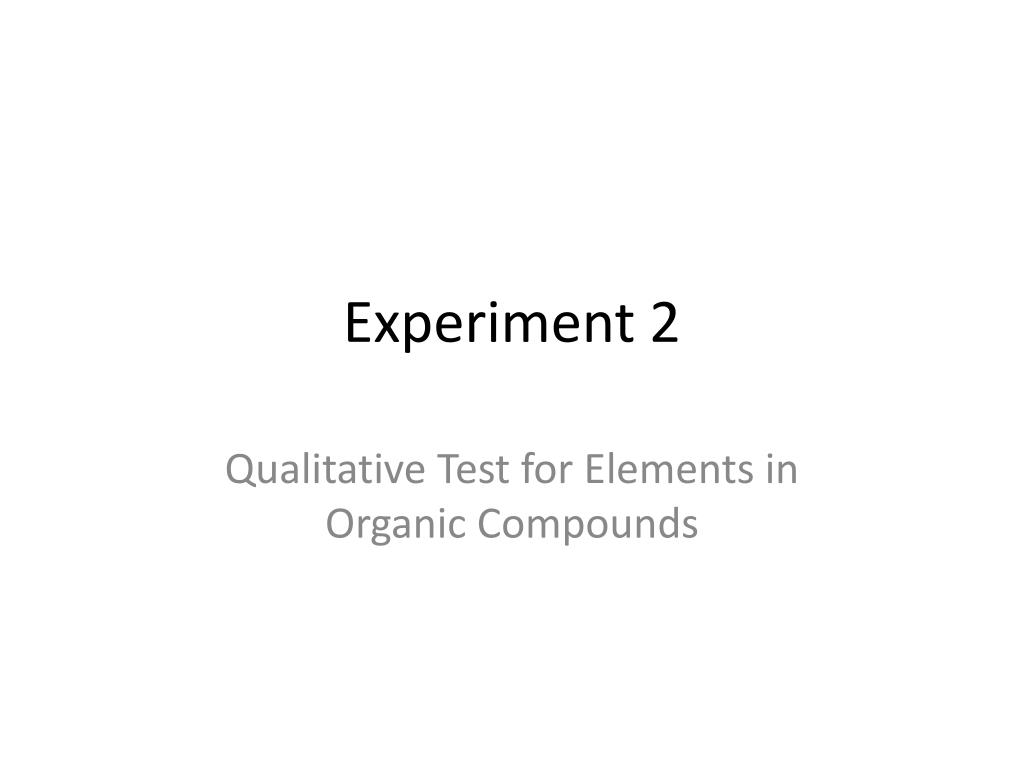

  1. Experiment 2 Qualitative Test for Elements in Organic Compounds

  2. Organic Compounds • Contains the element Carbon • Carbon’s ability to form strong covalent bond to other carbon is the single property of carbon atom that accounts for the existence of the study of organic chemistry. • It can also form strong covalent bonds with other elements such as H, O, N, S, etc.

  3. Functional groups • Is an atom or a group of atoms with characteristic chemical and physical properties. • Can contain heteroatom(s) and/or multiple bonds • Determines a molecule’s shape, properties, and the type of reactions it undergoes • There are three types of most common functional groups • Hydrocarbon • Single bond to a heteroatom • Compounds containing C=O group *The symbol “R” is used to represent any carbon chains or rings

  4. Organic Molecules and Functional Groups Functional Groups: Hydrocarbons Hydrocarbons are compounds made up of only the elements carbon and hydrogen. They may be aliphatic or aromatic.

  5. Organic Molecules and Functional Groups Functional Groups: Heteroatoms

  6. Functional Groups: Carbonyl groups • Contain carbon-oxygen double bond (C=O)

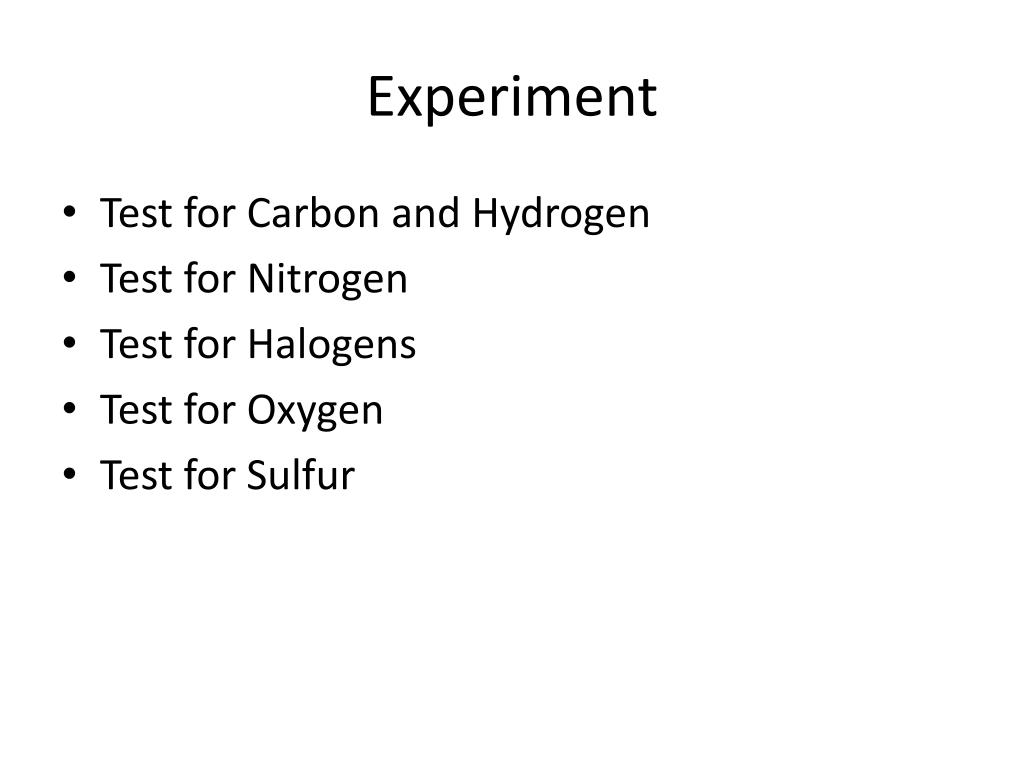

  7. Experiment • Test for Carbon and Hydrogen • Test for Nitrogen • Test for Halogens • Test for Oxygen • Test for Sulfur

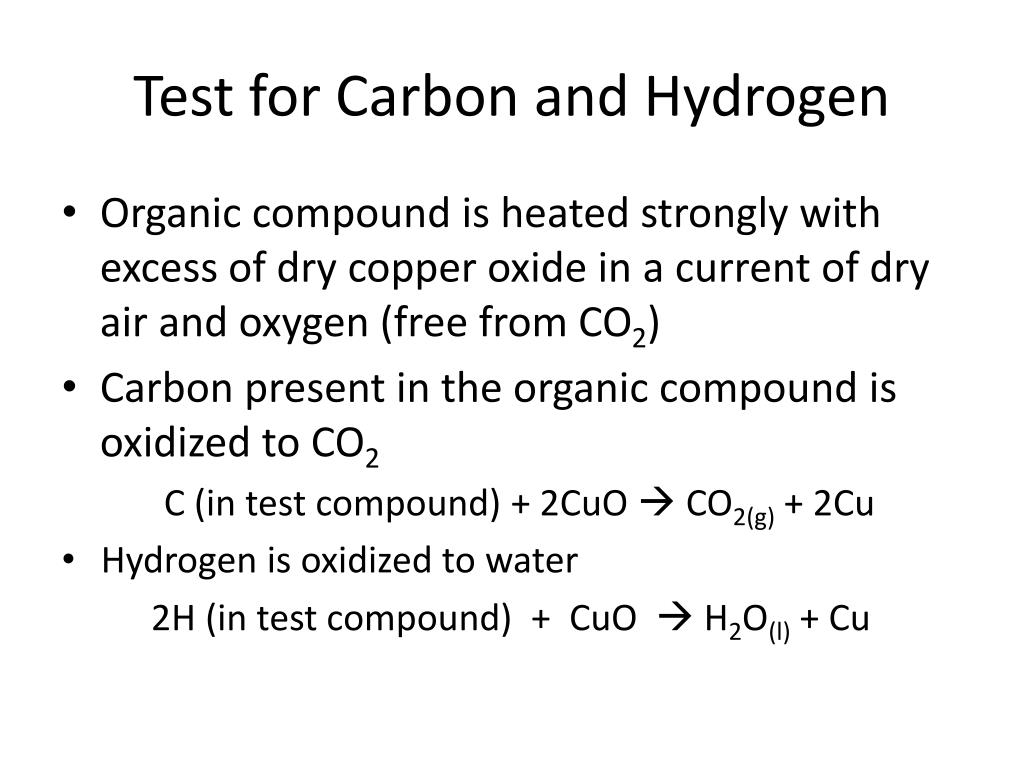

  8. Test for Carbon and Hydrogen • Organic compound is heated strongly with excess of dry copper oxide in a current of dry air and oxygen (free from CO2) • Carbon present in the organic compound is oxidized to CO2 C (in test compound) + 2CuO  CO2(g) + 2Cu • Hydrogen is oxidized to water 2H (in test compound) + CuO  H2O(l) + Cu

  9. Test for Carbon and Hydrogen • Test compound: Glucose

  10. Test for Carbon and Hydrogen • Positive Result: A white precipitate forms at the test tube with lime water and as well as presence of droplets of water in the tube Ca(OH)2(aq) + CO2(g) CaCO3(s) + H2O(l) (lime water)

  11. Test for Nitrogen • Also called “Soda-lime test” • Test Sample: Urea

  12. Test for Nitrogen • A pinch of organic compound is heated strongly in a dry test tube with soda lime (NaOH + CaO) • Positive Result: A smell of ammonia indicates presence of nitrogen + NaOH(s) + CaO(s) 2NH3(g) + Na2CO3

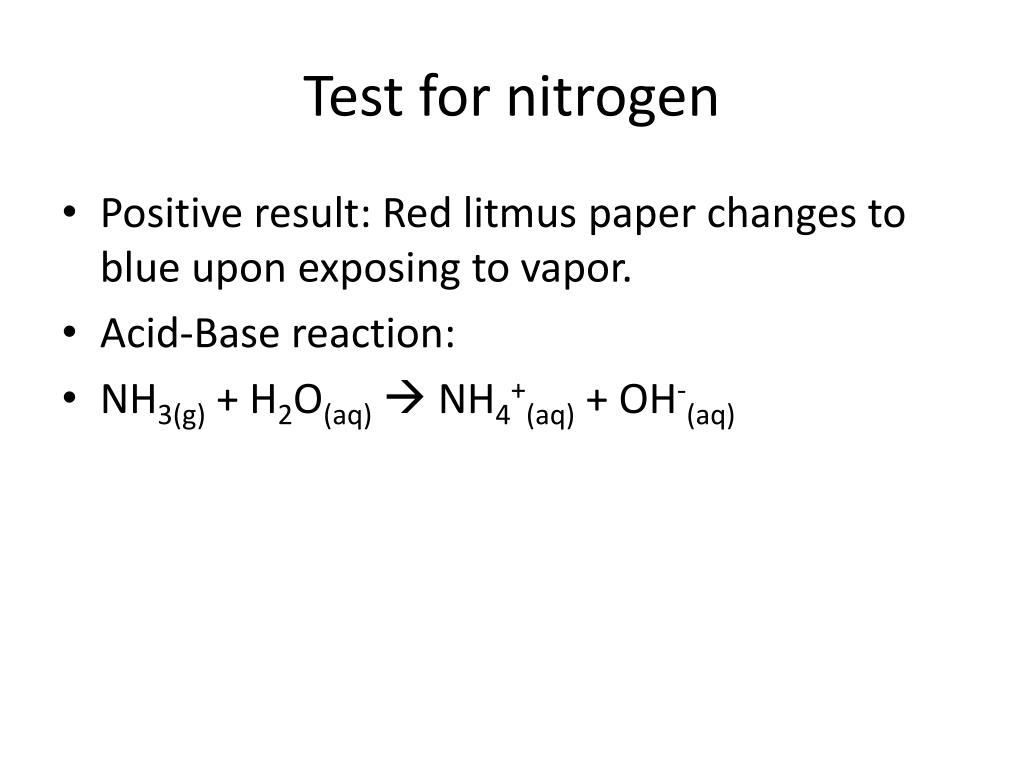

  13. Test for nitrogen • Positive result: Red litmus paper changes to blue upon exposing to vapor. • Acid-Base reaction: • NH3(g) + H2O(aq) NH4+(aq) + OH-(aq)

  14. Test for nitrogen • Limitation: • Soda lime test is not a reliable confirmatory test for the presence of nitrogen since some nitrogen containing compound such as nitro (-NO2), or azo compounds (-N=N-)

  15. Test for Halogens • Beilstein Test • A clean and bent copper wire is heated in a non luminous flame until it ceases to impart green flame. It is then dip in organic halide. • Positive result: a visible blue-green flame indicating the formation of volatile cupric halide. • The test is used to confirm the presence of halogens in a certain compound

  16. Test for Halogens • Silver Nitrate Test • Monochloroacetic acid is reacted with silver nitrate in the presence of hot distilled water and nitric acid. • Positive result: formation of white precipitate indicating the formation of AgCl(s)

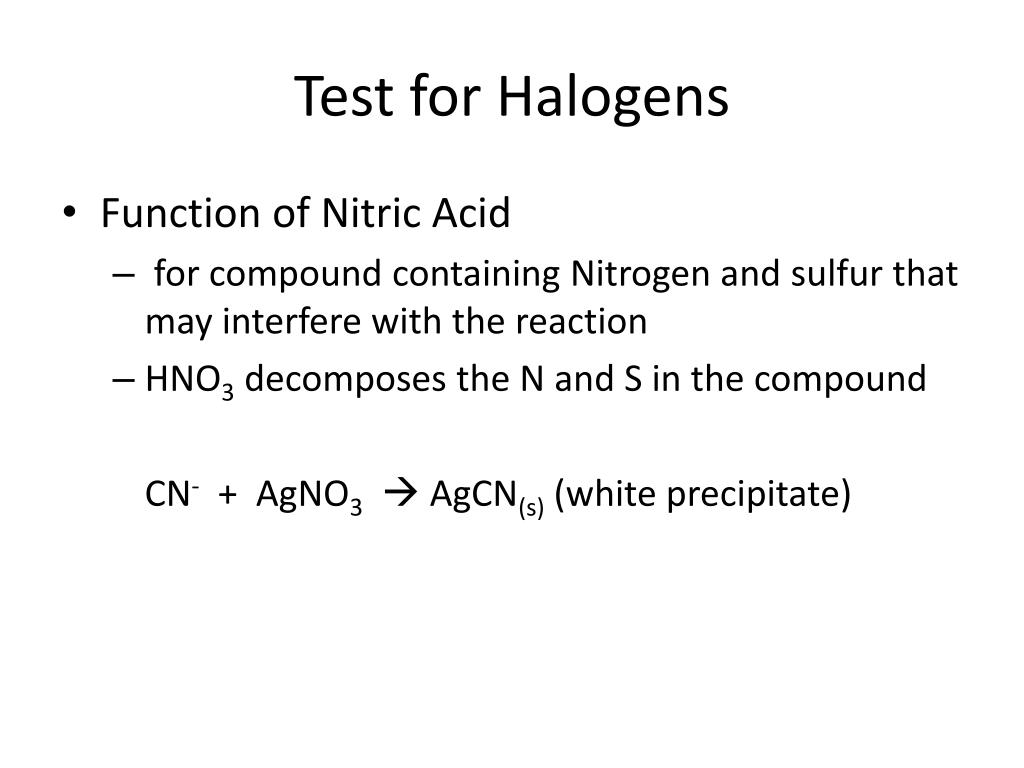

  17. Test for Halogens • Function of Nitric Acid • for compound containing Nitrogen and sulfur that may interfere with the reaction • HNO3 decomposes the N and S in the compound CN- + AgNO3 AgCN(s) (white precipitate)

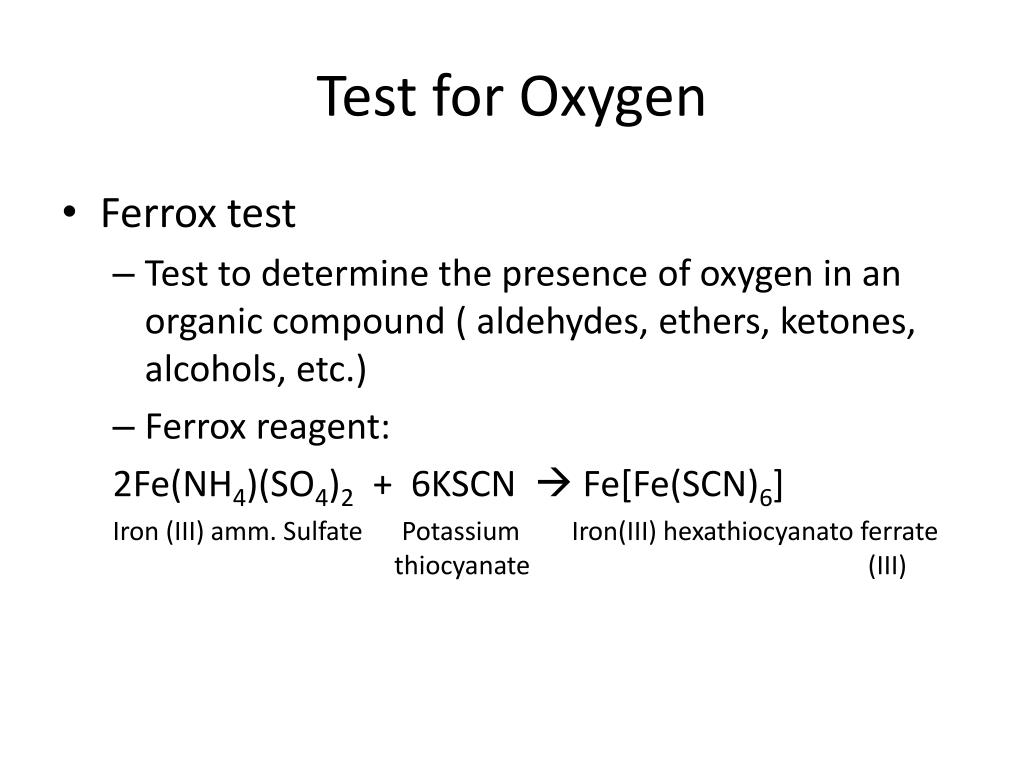

  18. Test for Oxygen • Ferrox test • Test to determine the presence of oxygen in an organic compound ( aldehydes, ethers, ketones, alcohols, etc.) • Ferrox reagent: 2Fe(NH4)(SO4)2 + 6KSCN  Fe[Fe(SCN)6] Iron (III) amm. Sulfate Potassium Iron(III) hexathiocyanato ferrate thiocyanate (III)

  19. Test for Oxygen • The prepared ferrox paper is dipped in the test solution (hexane, alcohol, ether). • Positive result: red to reddish-purple solution upon mixing with the test sample. • Ethanol and ether showed positive result while hexane exhibited no change in color of solution

  20. Test for Sulfur • Lead acetate test • Albumin is a protein that consist of cystein

  21. Test for Sulfur • In strongly basic solution, the amino acid cysteine will react to lead ions (Pb2+) forming black precipitate, PbS. • Heating is necessary to be able to break up the polypeptide chains • Positive Result: Black precipitate after heating

  22. Summary
