On: An Artificial Immune System for E-mail Classification

1. Internal Presentation by:Lei WangPervasive and Artificial Intelligenge research group http://diuf.unifr.ch/pai On: An Artificial Immune System for E-mail Classification Andy Secker, Alex Freitas, Jon Timmis Computing Laboratory, University of Kent Canterbury, Kent, UK http://www.cs.kent.ac.uk/~ads3 19/02/2004

2. An Artificial Immune System for E-mail Classification Andy Secker, Alex Freitas, Jon Timmis Computing Laboratory, University of Kent Canterbury, Kent, UK http://www.cs.kent.ac.uk/~ads3 19/02/2004

3. Significance • With the increase in information on the Internet, the strive to find more effective tools for distinguishing between interesting and non-interesting material is increasing. • This paper provides an immune-inspired algorithm called AISEC that is capable of continuously classifying electronic mail as interesting and non-interesting without the need for re-training. • Comparing with a naïve Bayesian classifier, the system proposed in this paper performs as well as the naïve Bayesian system and has a great potential for augmentation.

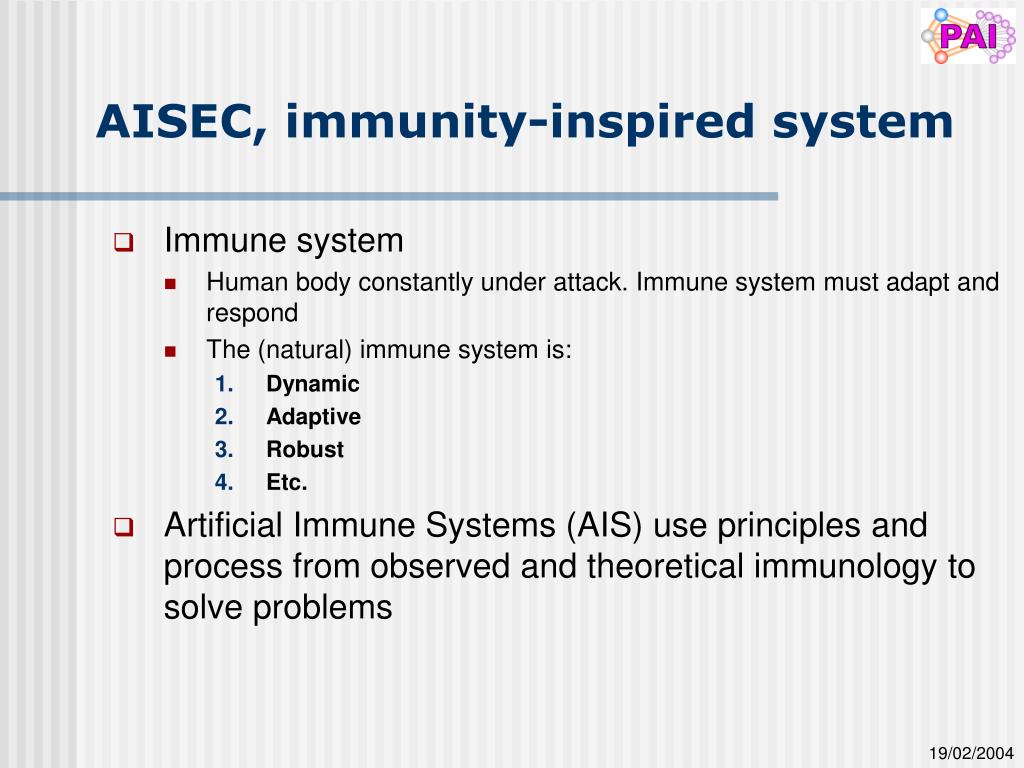

4. AISEC, immunity-inspired system • Immune system • Human body constantly under attack. Immune system must adapt and respond • The (natural) immune system is: • Dynamic • Adaptive • Robust • Etc. • Artificial Immune Systems (AIS) use principles and process from observed and theoretical immunology to solve problems

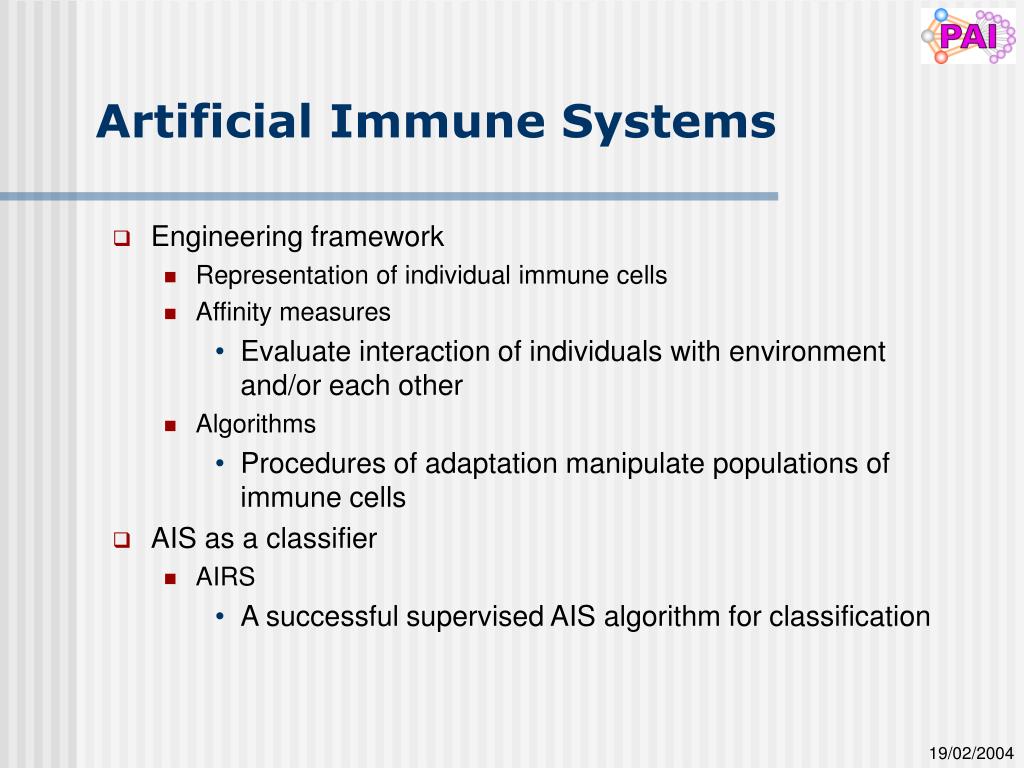

5. Artificial Immune Systems • Engineering framework • Representation of individual immune cells • Affinity measures • Evaluate interaction of individuals with environment and/or each other • Algorithms • Procedures of adaptation manipulate populations of immune cells • AIS as a classifier • AIRS • A successful supervised AIS algorithm for classification

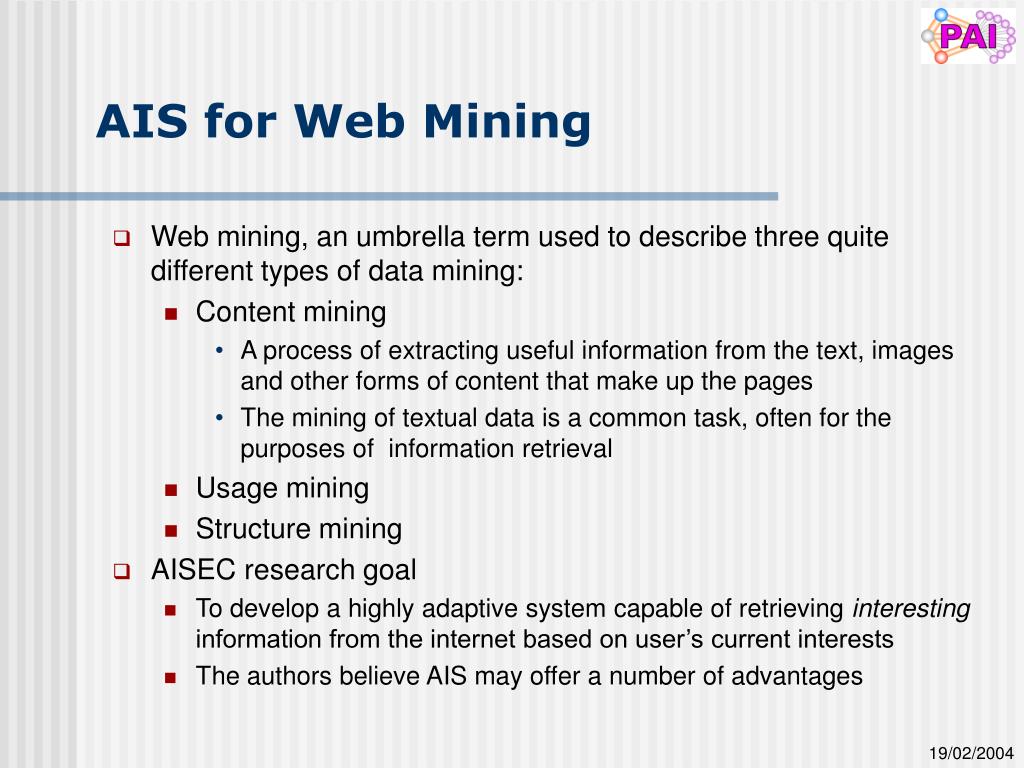

6. AIS for Web Mining • Web mining, an umbrella term used to describe three quite different types of data mining: • Content mining • A process of extracting useful information from the text, images and other forms of content that make up the pages • The mining of textual data is a common task, often for the purposes of information retrieval • Usage mining • Structure mining • AISEC research goal • To develop a highly adaptive system capable of retrieving interesting information from the internet based on user’s current interests • The authors believe AIS may offer a number of advantages

7. What is AISEC ? • AISEC isn’t a spam filter • It has no methods to penalize false positives (loss of important e-mail) • Without a very low false positive rate, a spam filter would not be trusted

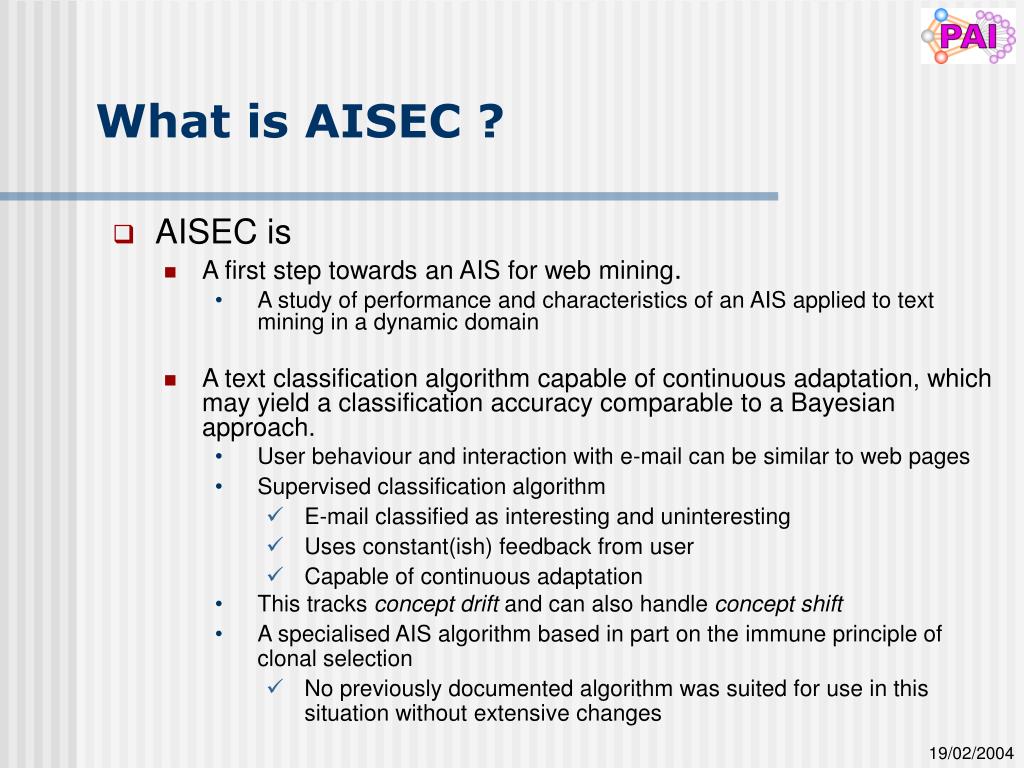

8. What is AISEC ? • AISEC is • A first step towards an AIS for web mining. • A study of performance and characteristics of an AIS applied to text mining in a dynamic domain • A text classification algorithm capable of continuous adaptation, which may yield a classification accuracy comparable to a Bayesian approach. • User behaviour and interaction with e-mail can be similar to web pages • Supervised classification algorithm • E-mail classified as interesting and uninteresting • Uses constant(ish) feedback from user • Capable of continuous adaptation • This tracks concept drift and can also handle concept shift • A specialised AIS algorithm based in part on the immune principle of clonal selection • No previously documented algorithm was suited for use in this situation without extensive changes

9. Representation • Each cell contains 3 sets of words (+ state) • Punctuation is removed from fields • Research literature has suggested header information is enough to accurately classify e-mail* A = [<free,DVD> , <sales,com> , < canterbury,UK>] Subject field Title of the E-mail Sender field Sender’s name Return field (Sender’s address) * Diao, Lu & Wu (2000). A Comparative Study of Classification Based Personal E-mail Filtering, PAKDD 2000

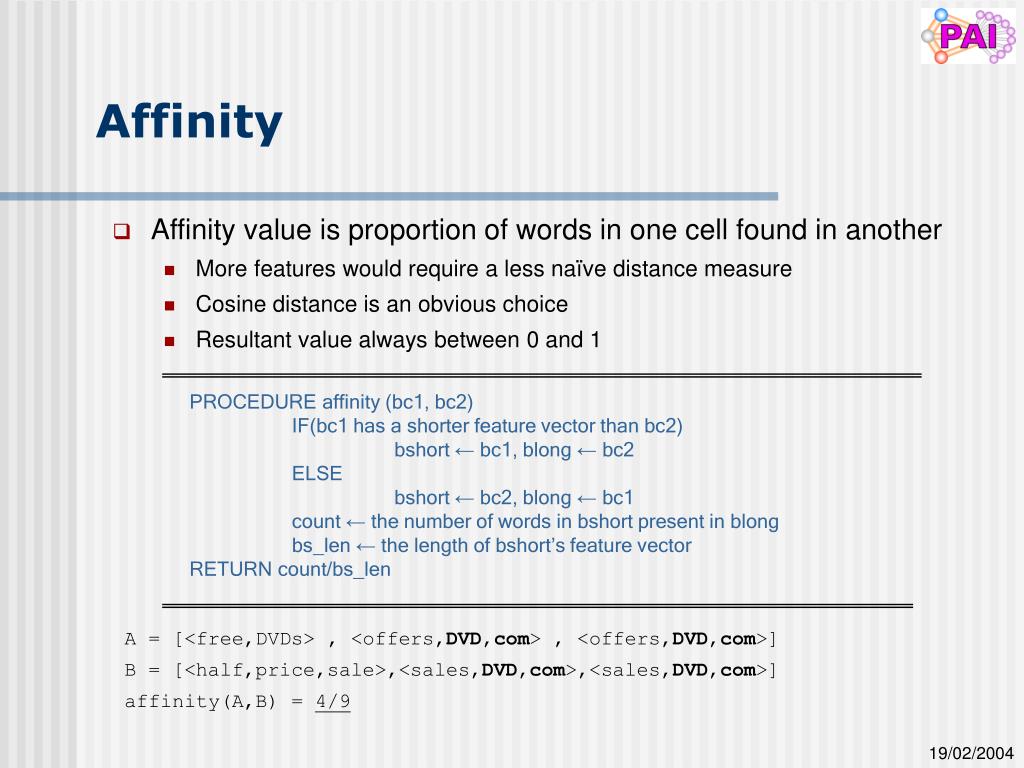

10. Affinity • Affinity value is proportion of words in one cell found in another • More features would require a less naïve distance measure • Cosine distance is an obvious choice • Resultant value always between 0 and 1 A = [<free,DVDs> , <offers,DVD,com> , <offers,DVD,com>] B = [<half,price,sale>,<sales,DVD,com>,<sales,DVD,com>] affinity(A,B) = 4/9 PROCEDURE affinity (bc1, bc2) IF(bc1 has a shorter feature vector than bc2) bshort ← bc1, blong ← bc2 ELSE bshort ← bc2, blong ← bc1 count ← the number of words in bshort present in blong bs_len ← the length of bshort’s feature vector RETURN count/bs_len

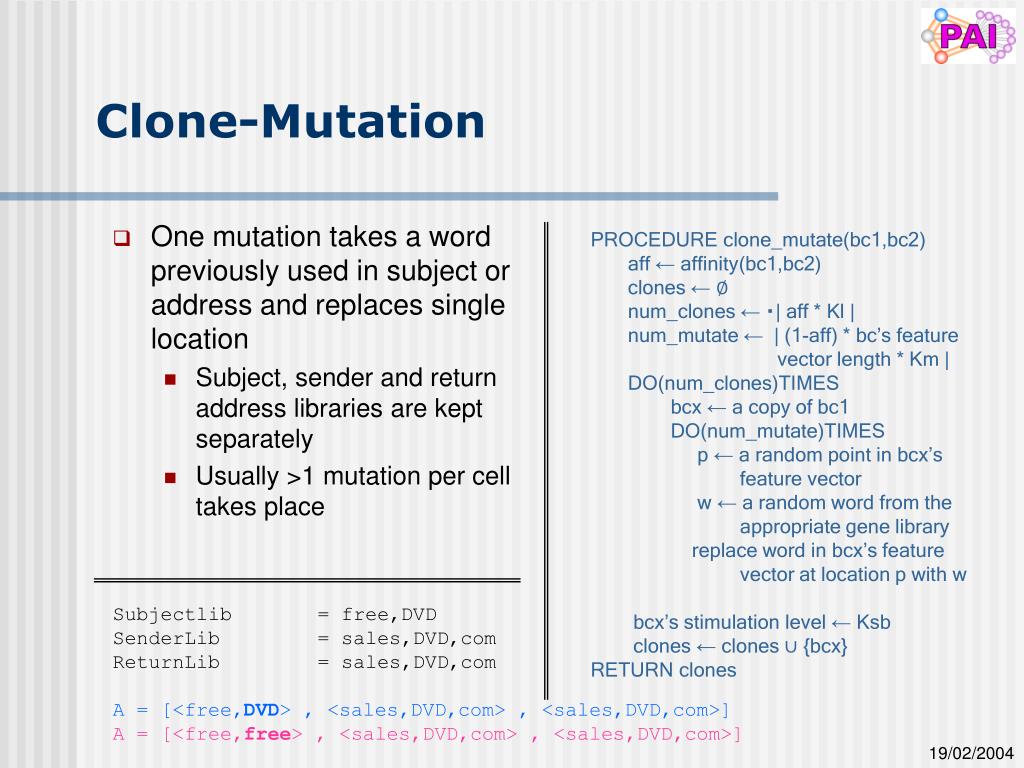

11. Clone-Mutation • One mutation takes a word previously used in subject or address and replaces single location • Subject, sender and return address libraries are kept separately • Usually >1 mutation per cell takes place PROCEDURE clone_mutate(bc1,bc2) aff ← affinity(bc1,bc2) clones ← ∅ num_clones ← | aff * Kl | num_mutate ← | (1-aff) * bc’s feature vector length * Km | DO(num_clones)TIMES bcx ← a copy of bc1 DO(num_mutate)TIMES p ← a random point in bcx’s feature vector w ← a random word from the appropriate gene library replace word in bcx’s feature vector at location p with w bcx’s stimulation level ← Ksb clones ← clones ∪ {bcx} RETURN clones Subjectlib = free,DVD SenderLib = sales,DVD,com ReturnLib = sales,DVD,com A = [<free,DVD> , <sales,DVD,com> , <sales,DVD,com>] A = [<free,free> , <sales,DVD,com> , <sales,DVD,com>]

12. The algorithm - classification • System is initialised with known uninteresting e-mail Memory cells Naive cells 2. E-mail presented for classification. Classified as uninteresting as it stimulates close cells

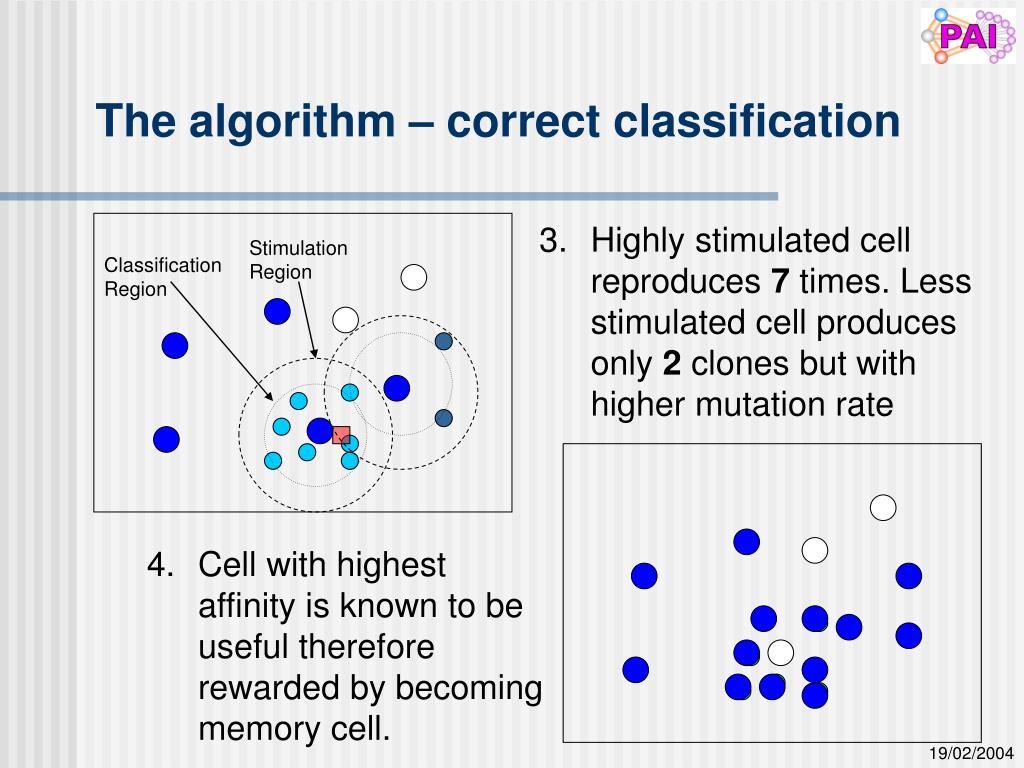

13. The algorithm – correct classification • Highly stimulated cell reproduces 7 times. Less stimulated cell produces only 2 clones but with higher mutation rate Stimulation Region Classification Region 4. Cell with highest affinity is known to be useful therefore rewarded by becoming memory cell.

14. The algorithm cont… • Incorrect classification • Any cell responsible for incorrect classification is removed (memory or otherwise) • Cell removal • Aged naïve cells deleted. Memory cells placed in already covered areas also deleted.

15. Results – Classification accuracy • 2268 e-mails (742 uninteresting) received over 6 months • E-mails presented in the order of date received • Feedback given after EVERY classification • AISEC run 10 times, results show mean • C5.0, neural network and C&R tree all run in “Clementine” data mining package • Bayesian algorithm used feedback to update like AISEC Traditional Learning Continuous Learning

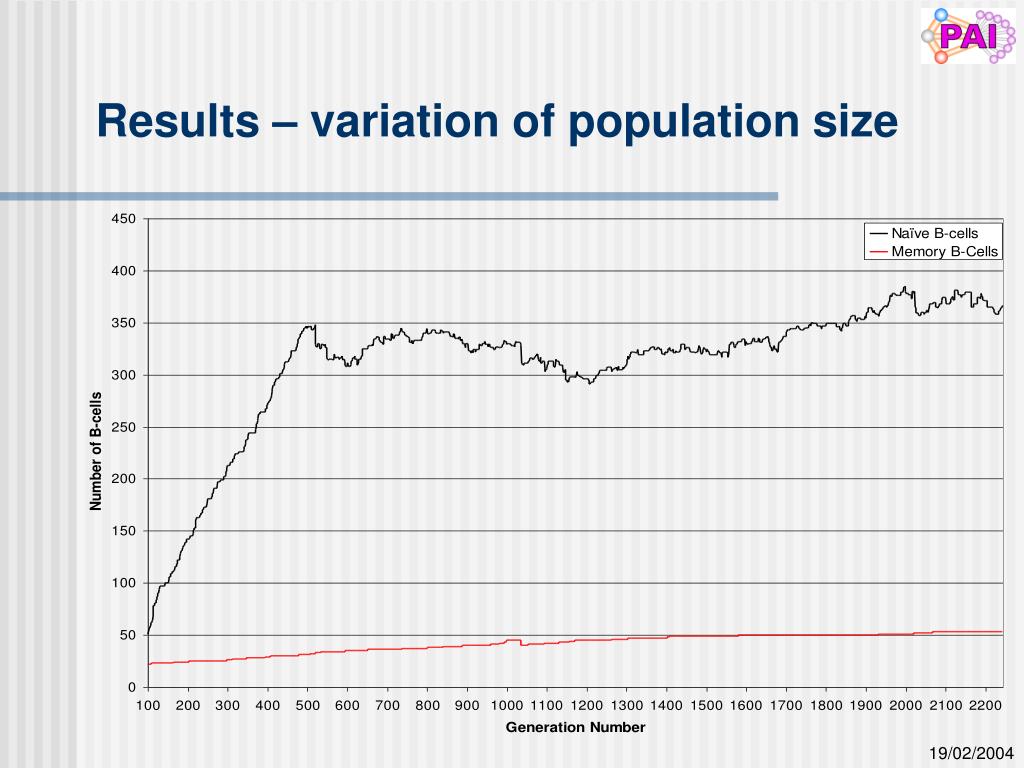

16. Results – variation of population size

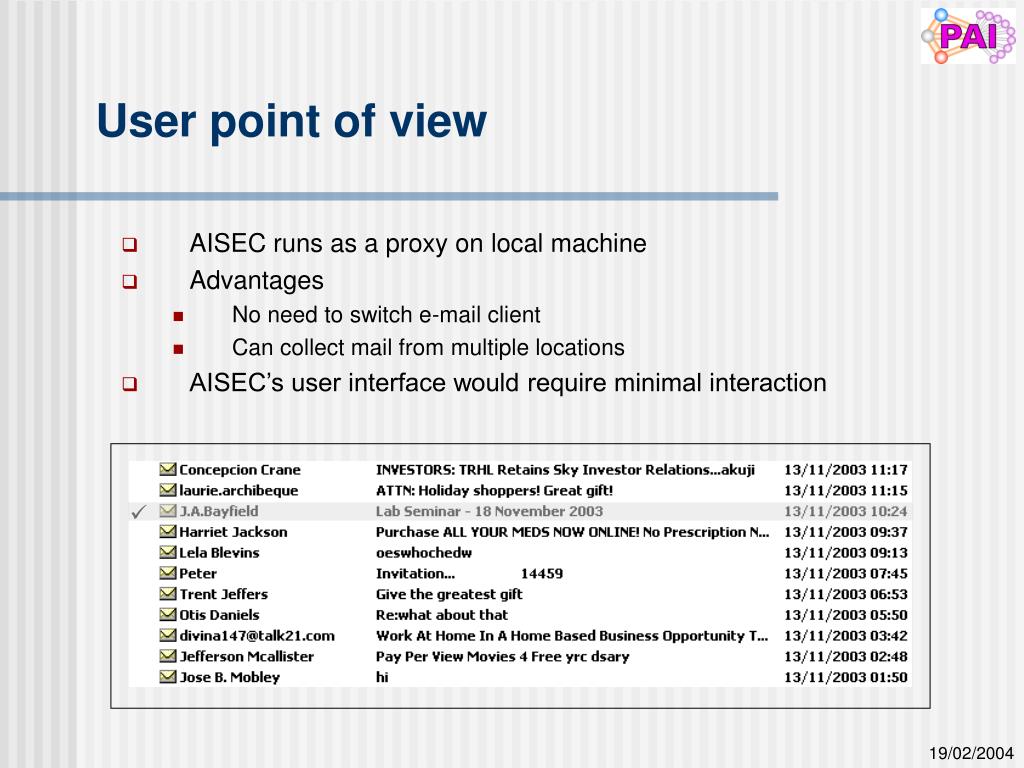

17. User point of view • AISEC runs as a proxy on local machine • Advantages • No need to switch e-mail client • Can collect mail from multiple locations • AISEC’s user interface would require minimal interaction 

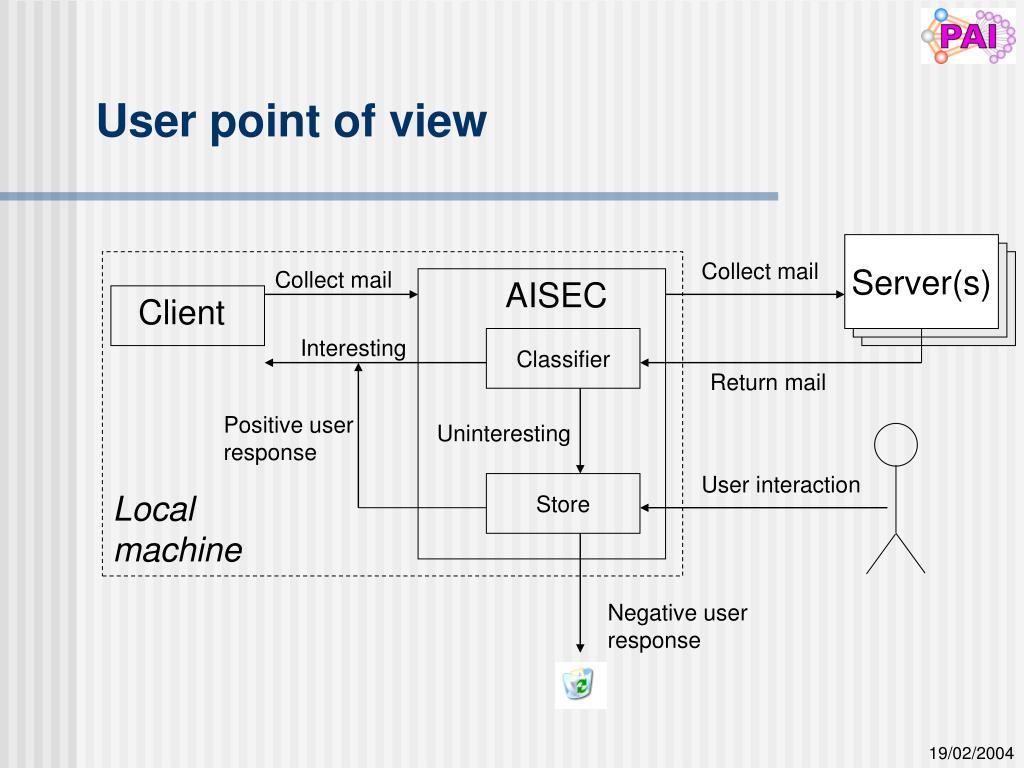

18. User point of view Server(s) Collect mail Collect mail AISEC Client Interesting Classifier Return mail Positive user response Uninteresting User interaction Store Local machine Negative user response

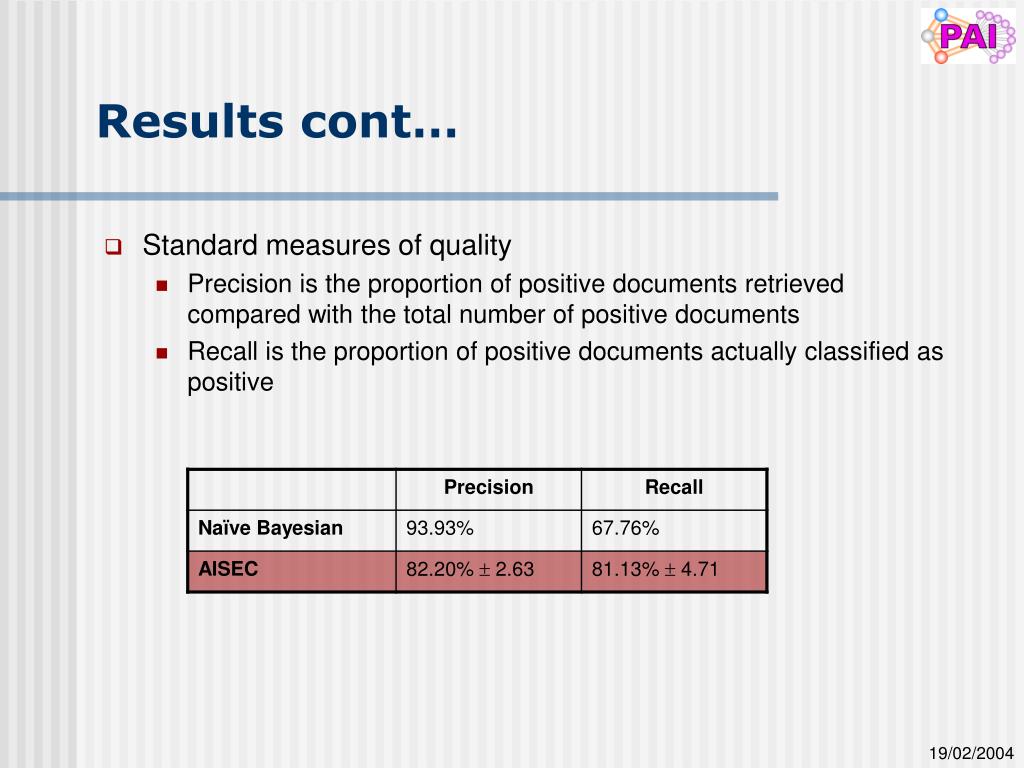

19. Results cont… • Standard measures of quality • Precision is the proportion of positive documents retrieved compared with the total number of positive documents • Recall is the proportion of positive documents actually classified as positive

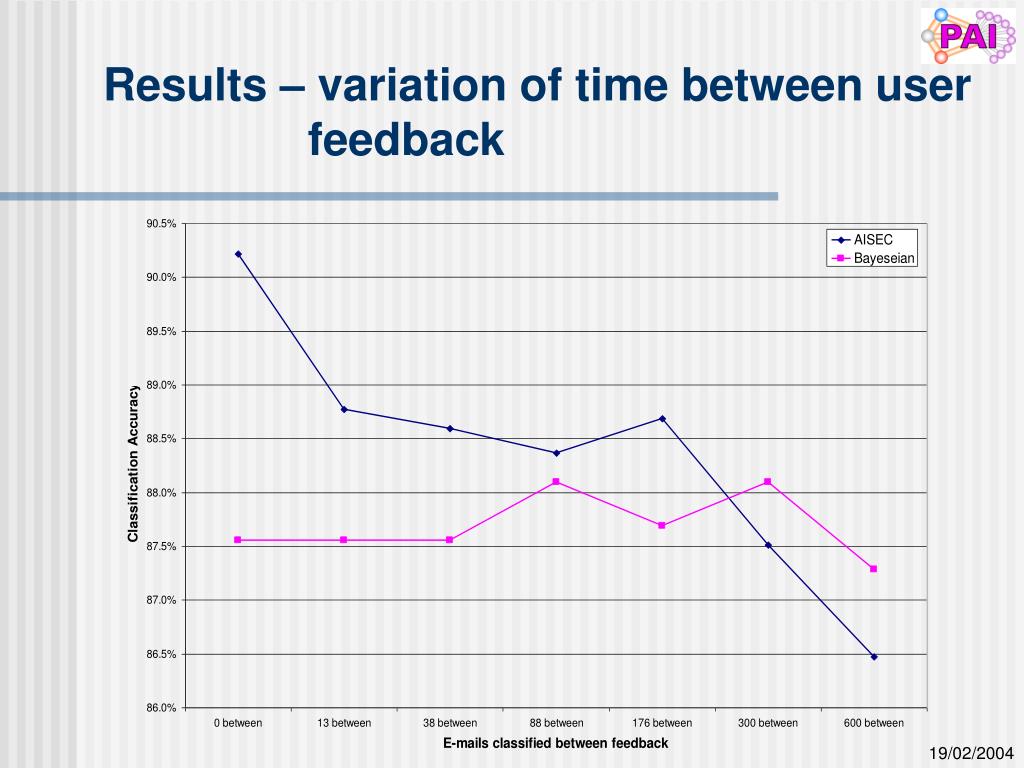

20. Results – variation of time between user feedback

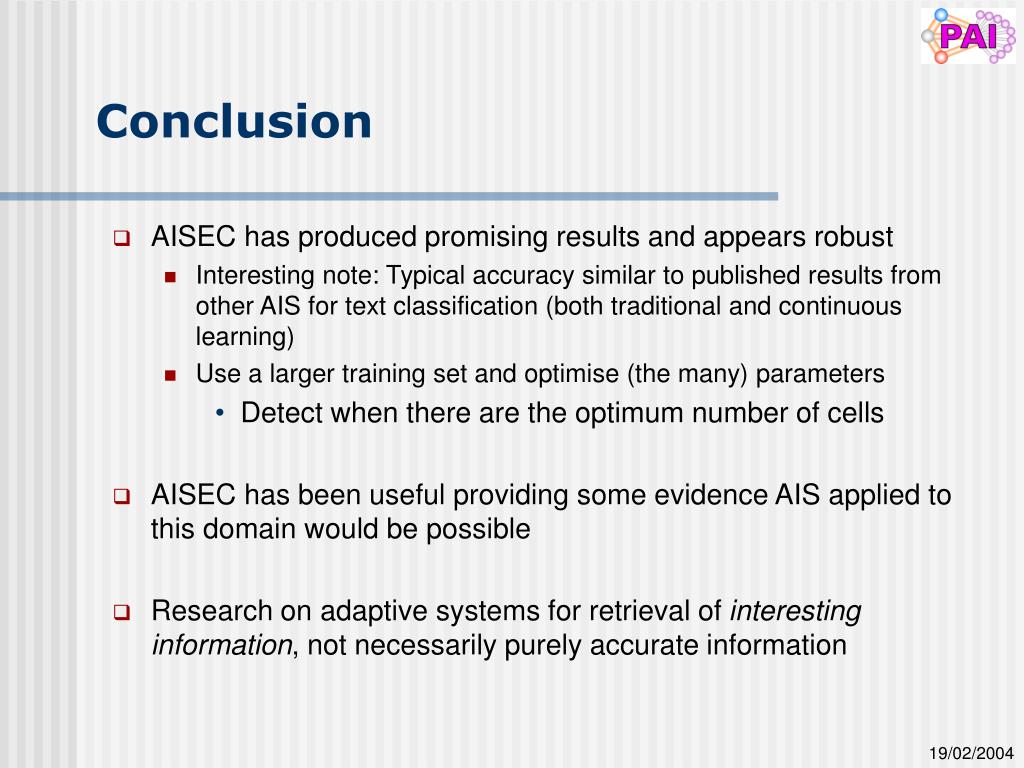

21. Conclusion • AISEC has produced promising results and appears robust • Interesting note: Typical accuracy similar to published results from other AIS for text classification (both traditional and continuous learning) • Use a larger training set and optimise (the many) parameters • Detect when there are the optimum number of cells • AISEC has been useful providing some evidence AIS applied to this domain would be possible • Research on adaptive systems for retrieval of interesting information, not necessarily purely accurate information

22. Questions & Discussions An Artificial Immune System for E-mail Classification Andy Secker, Alex Freitas, Jon Timmis Computing Laboratory, University of Kent More information: http://www.cs.kent.ac.uk/~ads3c
