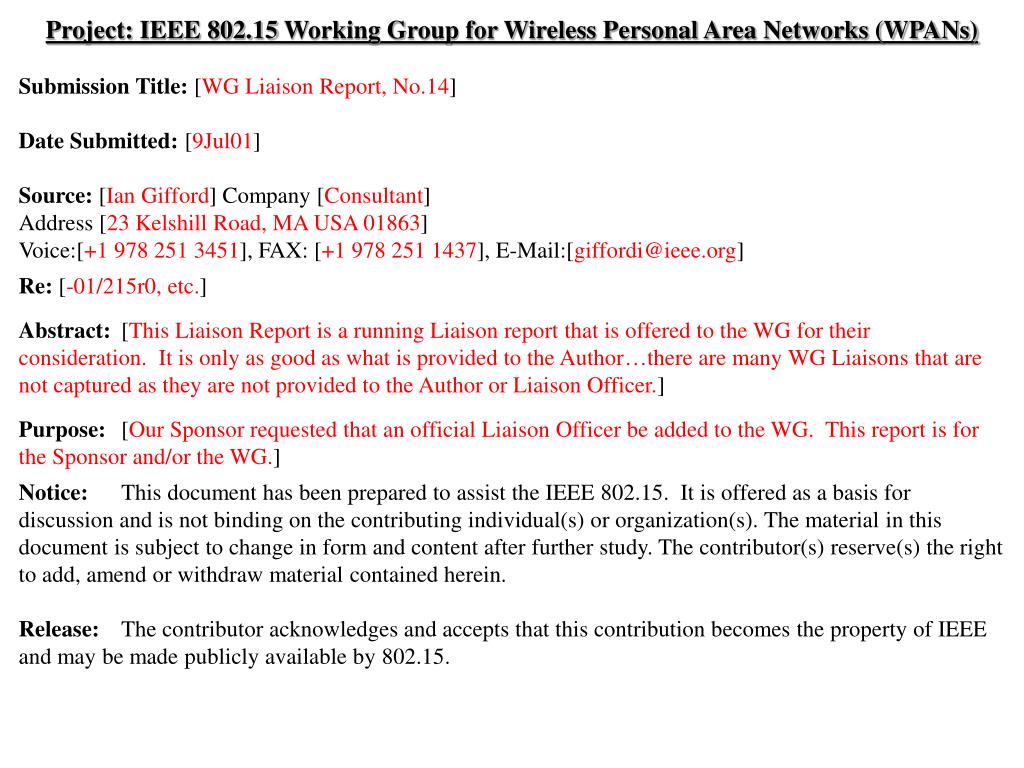

  1. Project: IEEE 802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [WG Liaison Report, No.14] Date Submitted: [9Jul01] Source: [Ian Gifford] Company [Consultant] Address [23 Kelshill Road, MA USA 01863] Voice:[+1 978 251 3451], FAX: [+1 978 251 1437], E-Mail:[giffordi@ieee.org] Re: [-01/215r0, etc.] Abstract: [This Liaison Report is a running Liaison report that is offered to the WG for their consideration. It is only as good as what is provided to the Author…there are many WG Liaisons that are not captured as they are not provided to the Author or Liaison Officer.] Purpose: [Our Sponsor requested that an official Liaison Officer be added to the WG. This report is for the Sponsor and/or the WG.] Notice: This document has been prepared to assist the IEEE 802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by 802.15. Ian Gifford, Consultant

  2. IEEE 802.15 Working Group for Wireless Personal Area Networks™ Liaison Report #14 July 2001 Portland, OR USA Ian Gifford, Consultant

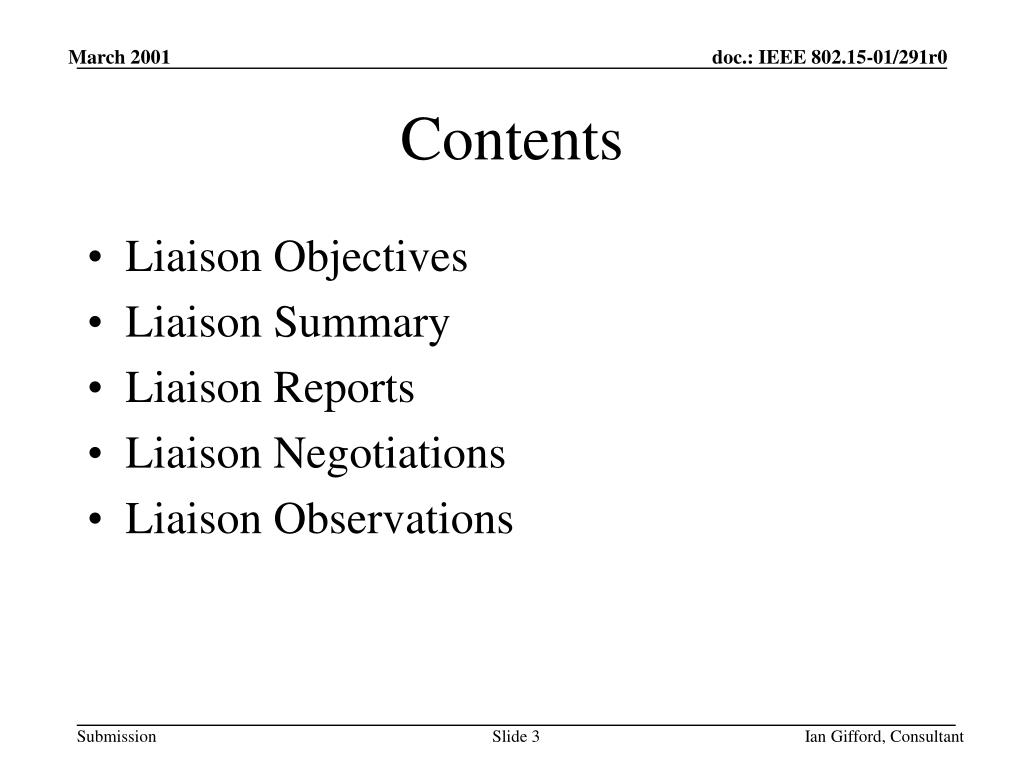

  3. Contents • Liaison Objectives • Liaison Summary • Liaison Reports • Liaison Negotiations • Liaison Observations Ian Gifford, Consultant

  4. Liaison Objectives • Promote the IEEE as a Value Add • Promote the IEEE 802 as a leader in Wireless Standards-Making • Promote P802.15 as an expert in WPANs • Request/Receive Draft Standard Submissions from External and Internal (IEEE) from our Liaison activities Ian Gifford, Consultant

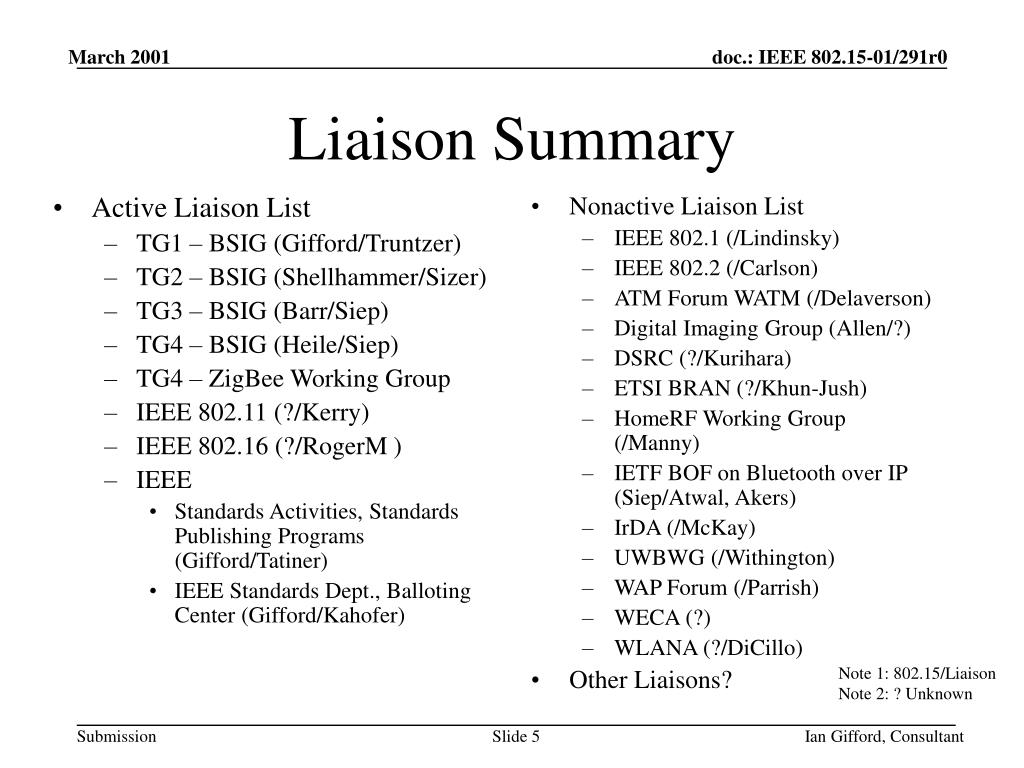

  5. Active Liaison List TG1 – BSIG (Gifford/Truntzer) TG2 – BSIG (Shellhammer/Sizer) TG3 – BSIG (Barr/Siep) TG4 – BSIG (Heile/Siep) TG4 – ZigBee Working Group IEEE 802.11 (?/Kerry) IEEE 802.16 (?/RogerM ) IEEE Standards Activities, Standards Publishing Programs (Gifford/Tatiner) IEEE Standards Dept., Balloting Center (Gifford/Kahofer) Nonactive Liaison List IEEE 802.1 (/Lindinsky) IEEE 802.2 (/Carlson) ATM Forum WATM (/Delaverson) Digital Imaging Group (Allen/?) DSRC (?/Kurihara) ETSI BRAN (?/Khun-Jush) HomeRF Working Group (/Manny) IETF BOF on Bluetooth over IP (Siep/Atwal, Akers) IrDA (/McKay) UWBWG (/Withington) WAP Forum (/Parrish) WECA (?) WLANA (?/DiCillo) Other Liaisons? Liaison Summary Note 1: 802.15/Liaison Note 2: ? Unknown Ian Gifford, Consultant

  6. IEEE 802.15 Working Group for Wireless Personal Area Networks External Liaison Report Ian Gifford, Consultant

  7. Bluetooth™ TG1 Report • Telecon & Meetings • Miscellaneous • E-Mail’s to Bluetooth SIG • 30May01 “IEEE 802.15.1 - BSIG Word Usage and IEEE Style Manual” request • 27Jun01 “WPAN/ LB11 begins today and closes Friday July 6 at 11pm edt” alert • Miscellaneous • E-Mail’s from Bluetooth SIG • 18Jun01 “BARB review of must2shalls” reply • Miscellaneous • Next Steps • Update BSIG PM during/post Session #13/Portland • Bluetooth SIGnal Editor/Publisher and Issue No. 7, 8, 9, etc., follow up Ian Gifford, Consultant

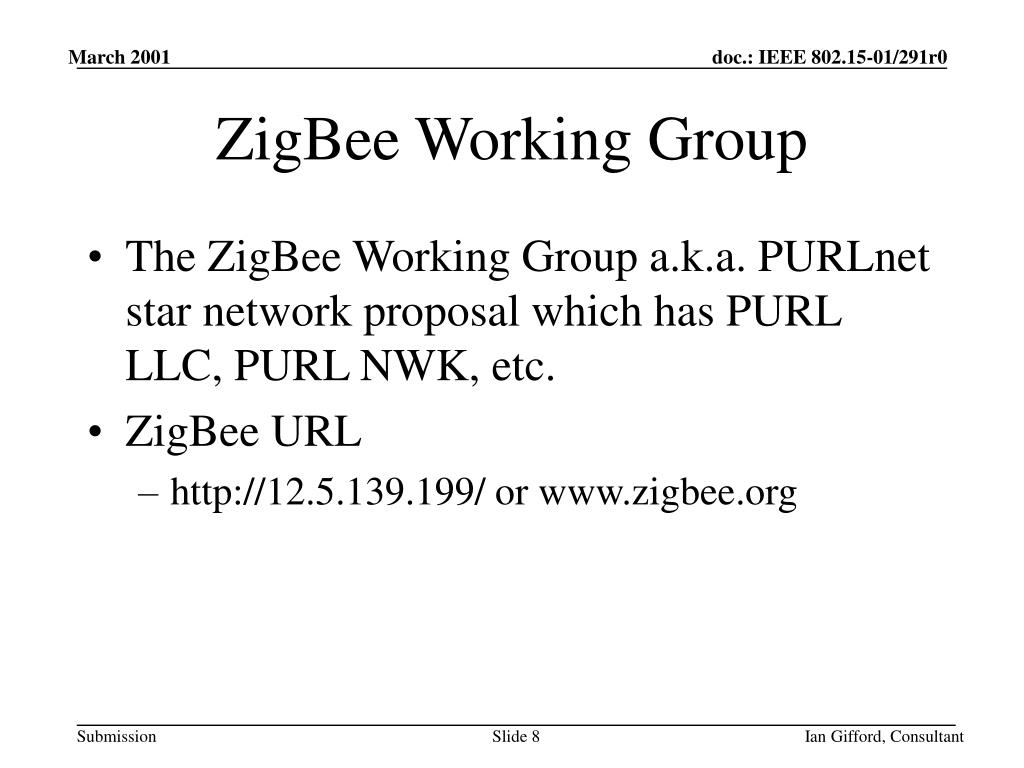

  8. ZigBee Working Group • The ZigBee Working Group a.k.a. PURLnet star network proposal which has PURL LLC, PURL NWK, etc. • ZigBee URL • http://12.5.139.199/ or www.zigbee.org Ian Gifford, Consultant

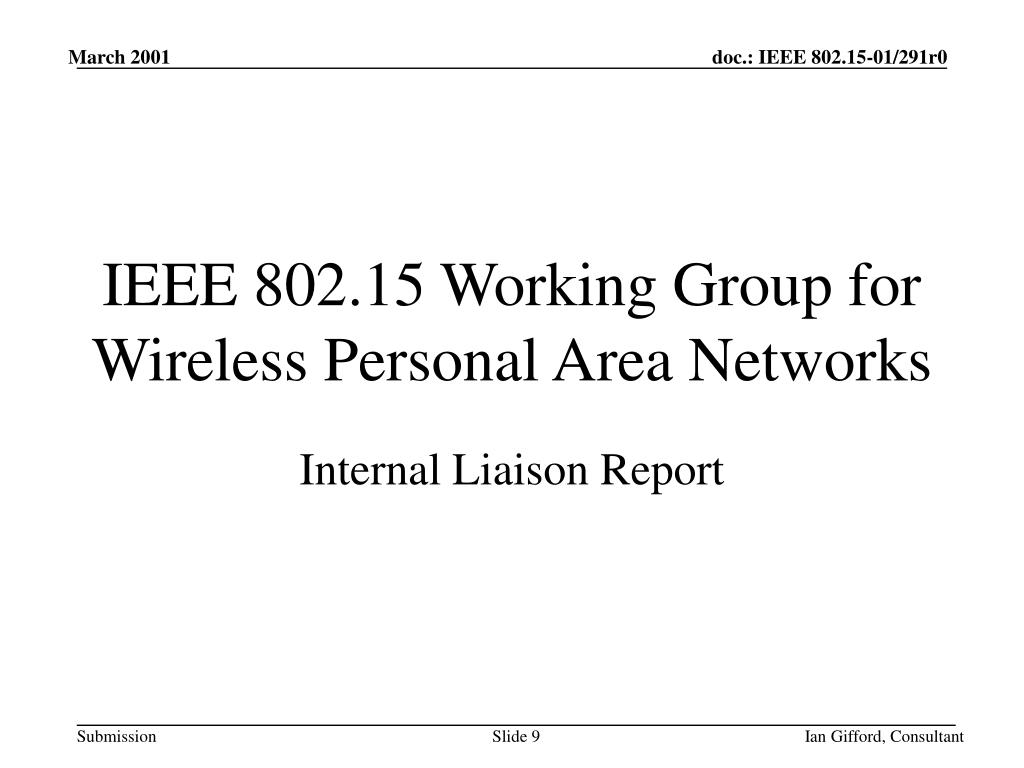

  9. IEEE 802.15 Working Group for Wireless Personal Area Networks Internal Liaison Report Ian Gifford, Consultant

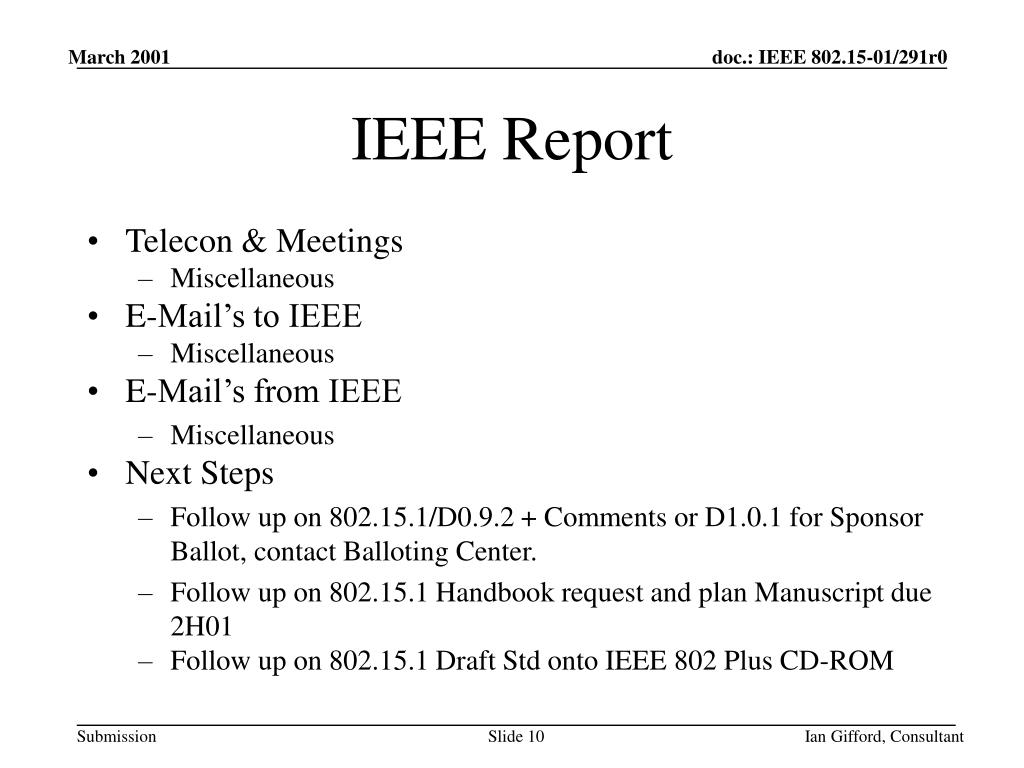

  10. IEEE Report • Telecon & Meetings • Miscellaneous • E-Mail’s to IEEE • Miscellaneous • E-Mail’s from IEEE • Miscellaneous • Next Steps • Follow up on 802.15.1/D0.9.2 + Comments or D1.0.1 for Sponsor Ballot, contact Balloting Center. • Follow up on 802.15.1 Handbook request and plan Manuscript due 2H01 • Follow up on 802.15.1 Draft Std onto IEEE 802 Plus CD-ROM Ian Gifford, Consultant

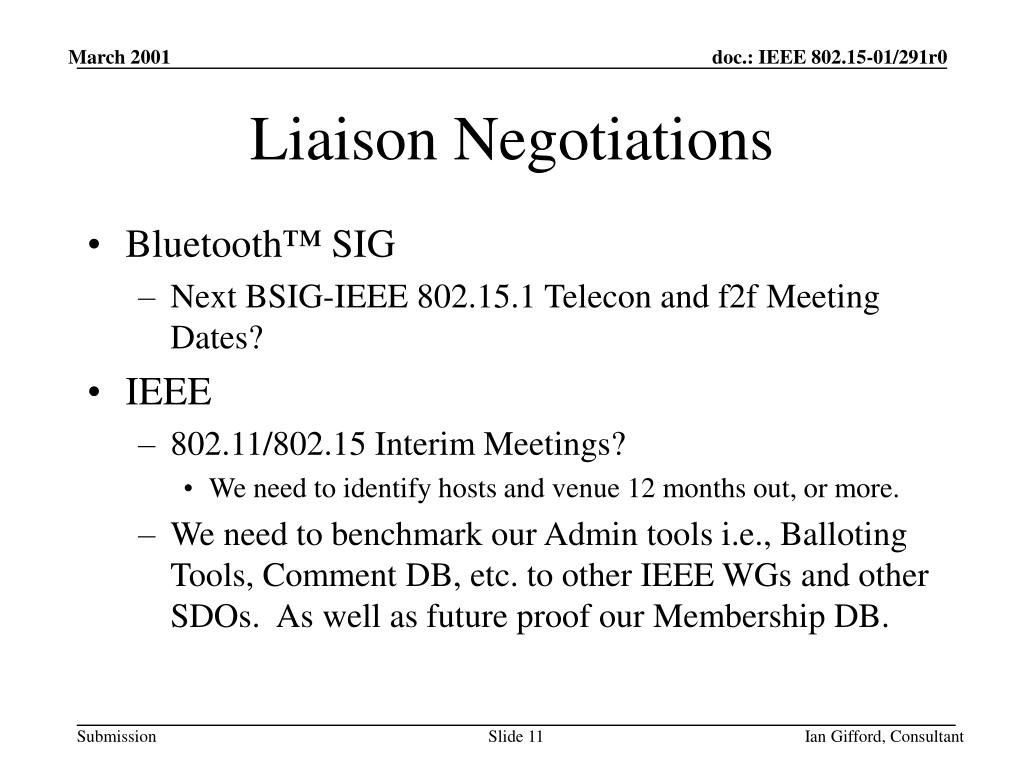

  11. Liaison Negotiations • Bluetooth™ SIG • Next BSIG-IEEE 802.15.1 Telecon and f2f Meeting Dates? • IEEE • 802.11/802.15 Interim Meetings? • We need to identify hosts and venue 12 months out, or more. • We need to benchmark our Admin tools i.e., Balloting Tools, Comment DB, etc. to other IEEE WGs and other SDOs. As well as future proof our Membership DB. Ian Gifford, Consultant

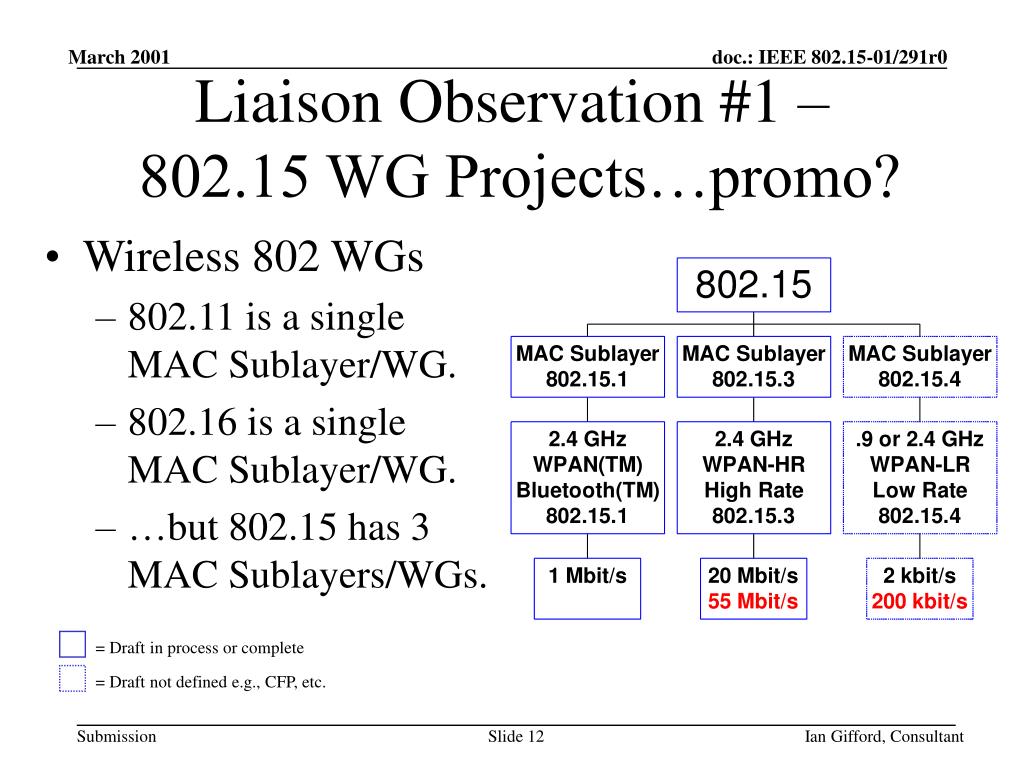

  12. Wireless 802 WGs 802.11 is a single MAC Sublayer/WG. 802.16 is a single MAC Sublayer/WG. …but 802.15 has 3 MAC Sublayers/WGs. Liaison Observation #1 – 802.15 WG Projects…promo? = Draft in process or complete = Draft not defined e.g., CFP, etc. Ian Gifford, Consultant

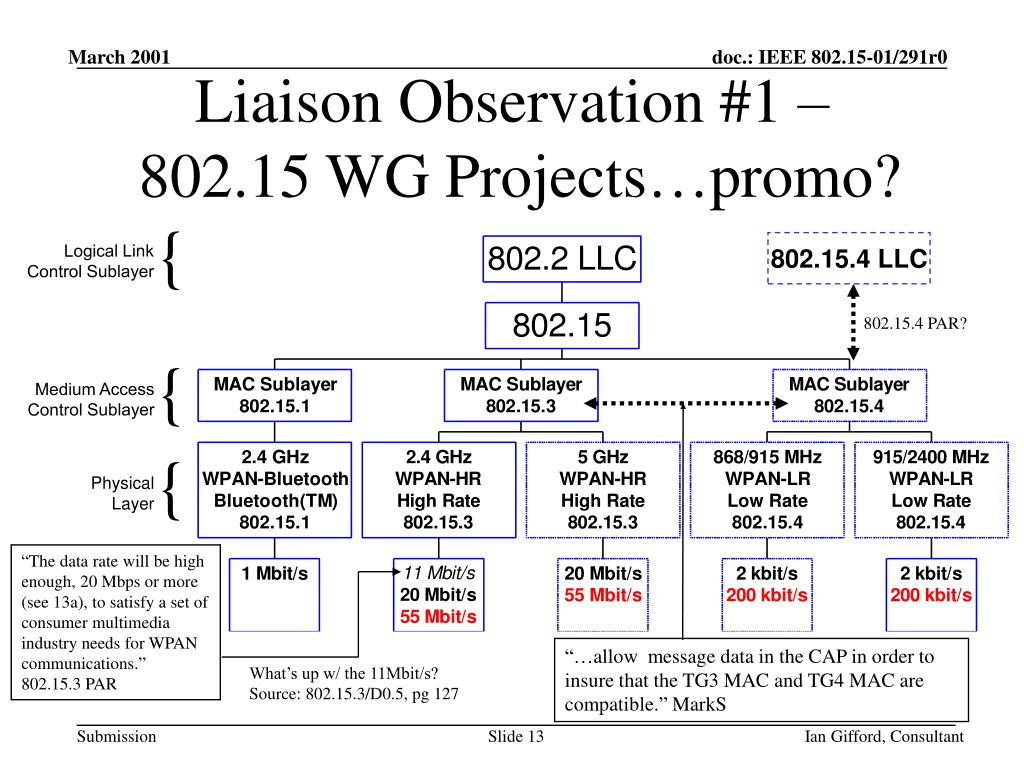

  13. Liaison Observation #1 – 802.15 WG Projects…promo? { 802.15.4 LLC Logical Link Control Sublayer 802.15.4 PAR? { Medium Access Control Sublayer { Physical Layer “The data rate will be high enough, 20 Mbps or more (see 13a), to satisfy a set of consumer multimedia industry needs for WPAN communications.” 802.15.3 PAR “…allow  message data in the CAP in order to insure that the TG3 MAC and TG4 MAC are compatible.” MarkS What’s up w/ the 11Mbit/s? Source: 802.15.3/D0.5, pg 127 Ian Gifford, Consultant

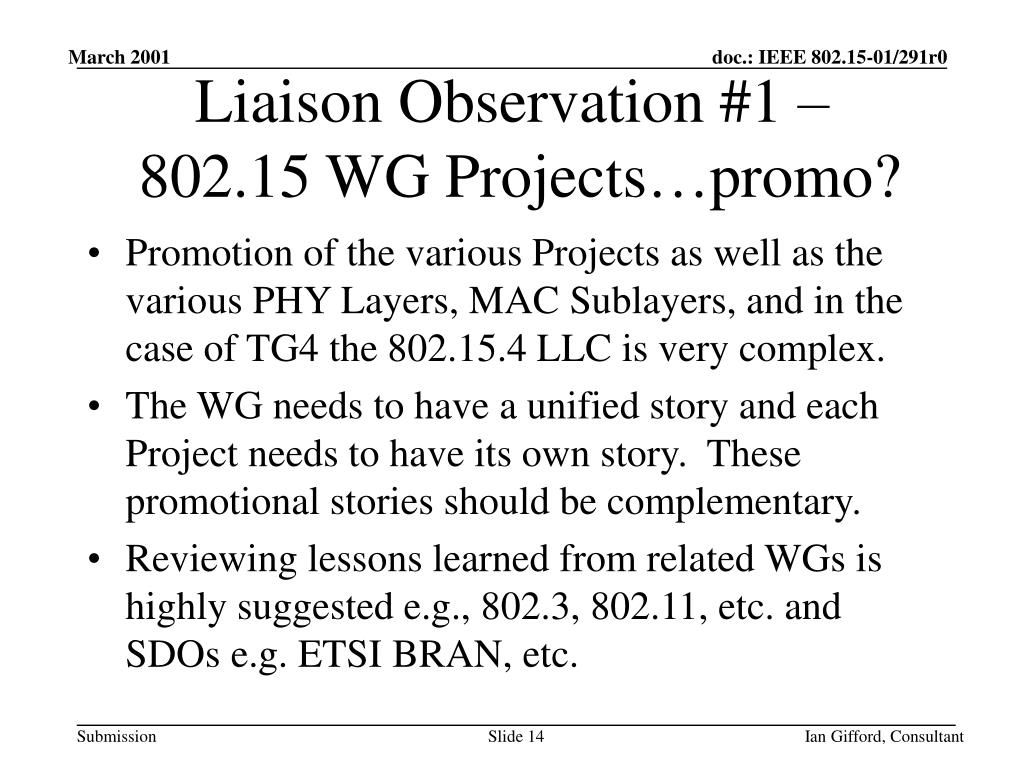

  14. Liaison Observation #1 – 802.15 WG Projects…promo? • Promotion of the various Projects as well as the various PHY Layers, MAC Sublayers, and in the case of TG4 the 802.15.4 LLC is very complex. • The WG needs to have a unified story and each Project needs to have its own story. These promotional stories should be complementary. • Reviewing lessons learned from related WGs is highly suggested e.g., 802.3, 802.11, etc. and SDOs e.g. ETSI BRAN, etc. Ian Gifford, Consultant

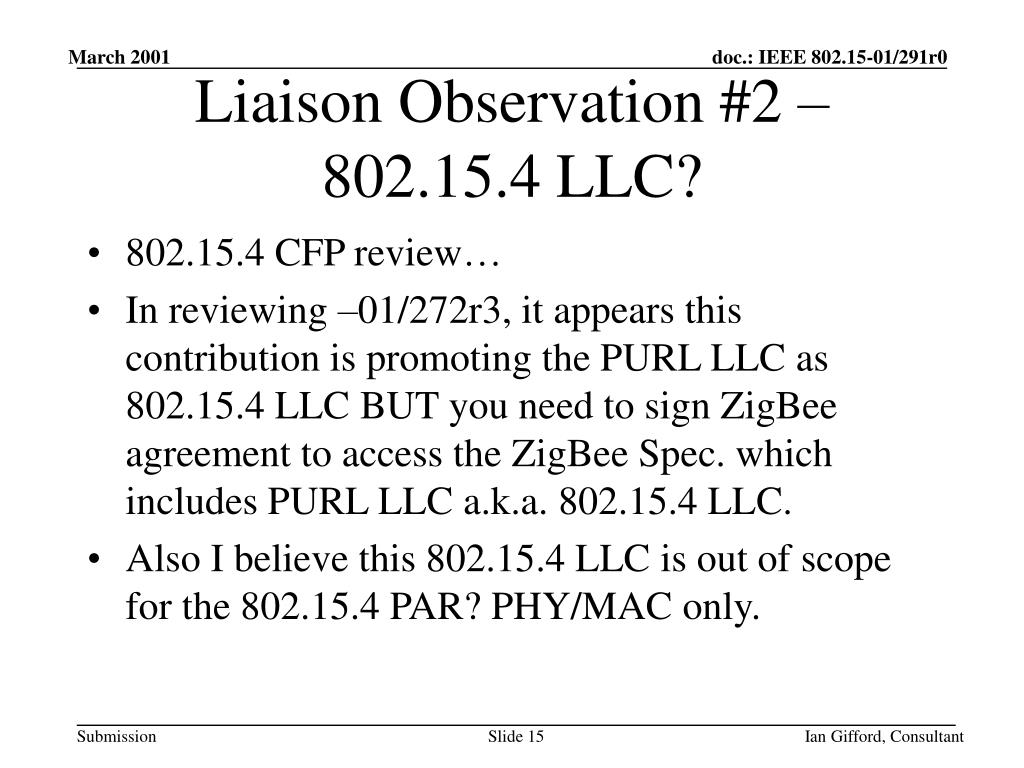

  15. Liaison Observation #2 – 802.15.4 LLC? • 802.15.4 CFP review… • In reviewing –01/272r3, it appears this contribution is promoting the PURL LLC as 802.15.4 LLC BUT you need to sign ZigBee agreement to access the ZigBee Spec. which includes PURL LLC a.k.a. 802.15.4 LLC. • Also I believe this 802.15.4 LLC is out of scope for the 802.15.4 PAR? PHY/MAC only. Ian Gifford, Consultant

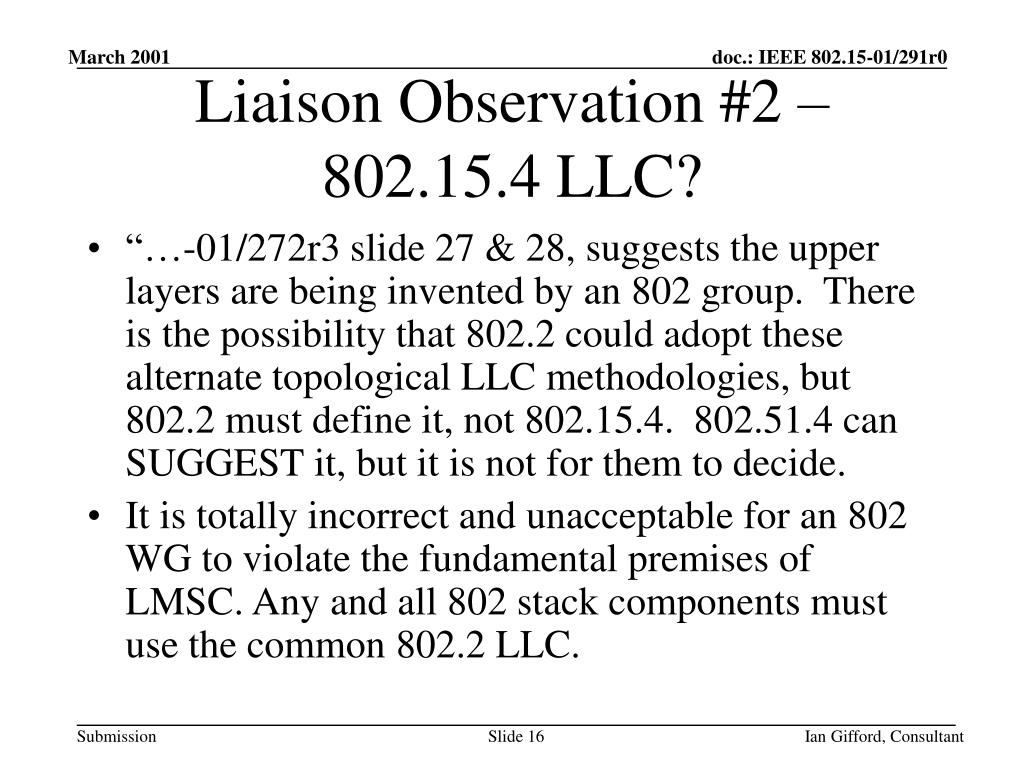

  16. Liaison Observation #2 – 802.15.4 LLC? • “…-01/272r3 slide 27 & 28, suggests the upper layers are being invented by an 802 group. There is the possibility that 802.2 could adopt these alternate topological LLC methodologies, but 802.2 must define it, not 802.15.4. 802.51.4 can SUGGEST it, but it is not for them to decide. • It is totally incorrect and unacceptable for an 802 WG to violate the fundamental premises of LMSC. Any and all 802 stack components must use the common 802.2 LLC. Ian Gifford, Consultant

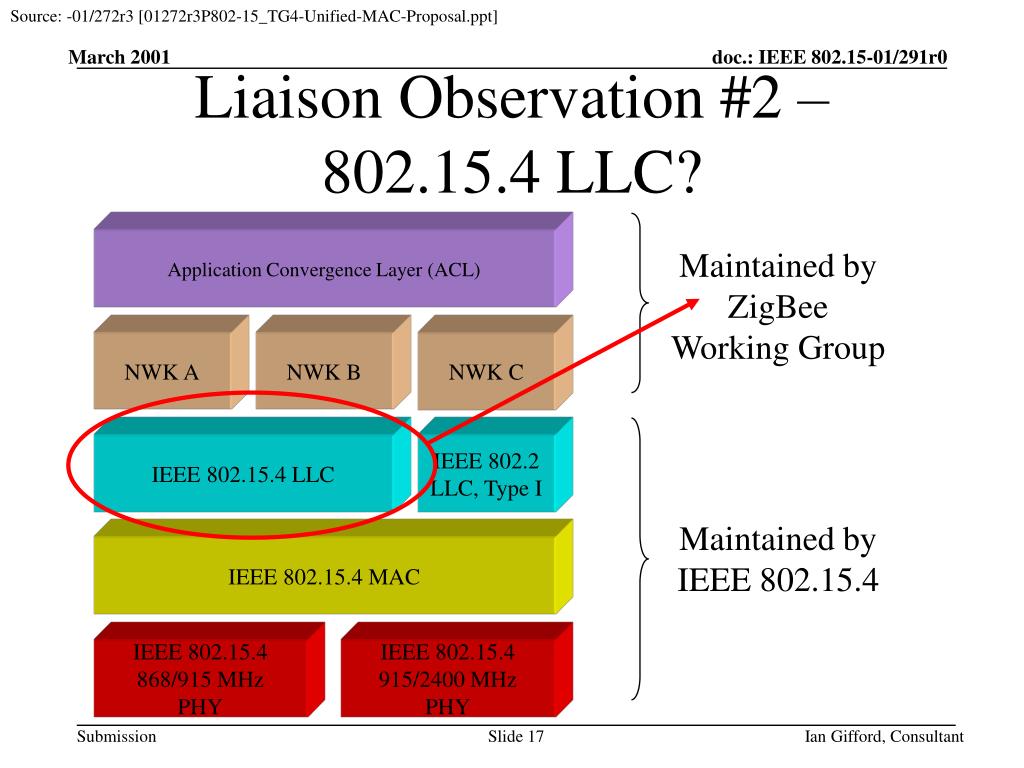

  17. Source: -01/272r3 [01272r3P802-15_TG4-Unified-MAC-Proposal.ppt] Liaison Observation #2 – 802.15.4 LLC? Application Convergence Layer (ACL) Maintained by ZigBee Working Group NWK A NWK B NWK C IEEE 802.15.4 LLC IEEE 802.2 LLC, Type I Maintained by IEEE 802.15.4 IEEE 802.15.4 MAC IEEE 802.15.4 868/915 MHz PHY IEEE 802.15.4 915/2400 MHz PHY Ian Gifford, Consultant

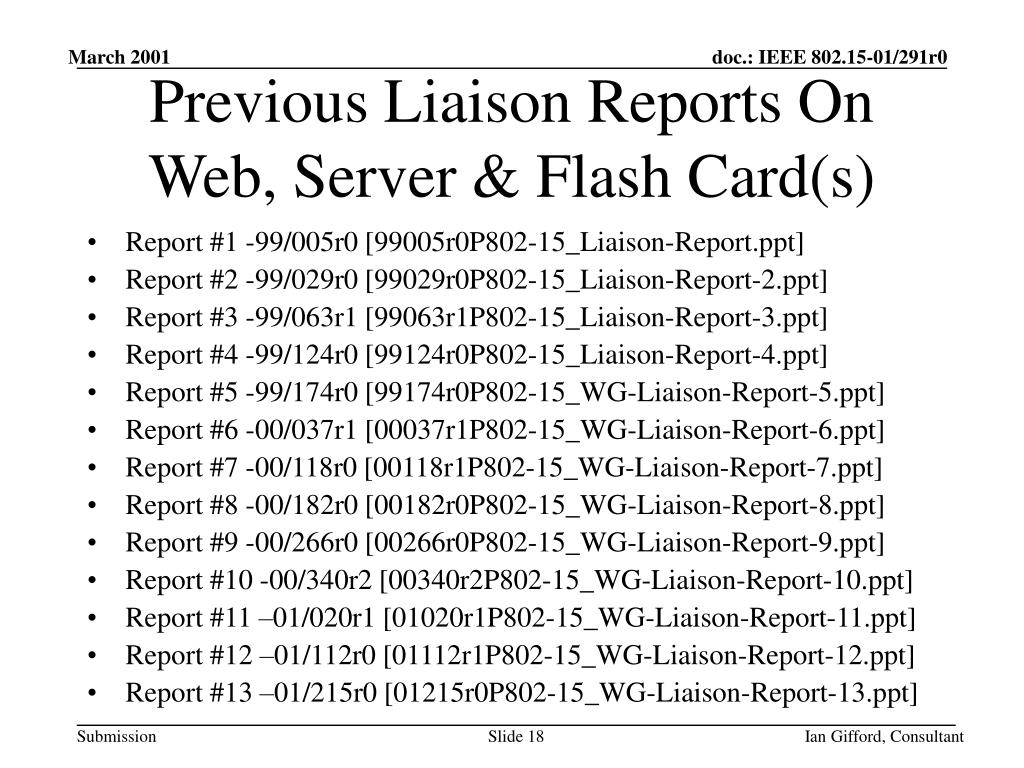

  18. Previous Liaison Reports On Web, Server & Flash Card(s) • Report #1 -99/005r0 [99005r0P802-15_Liaison-Report.ppt] • Report #2 -99/029r0 [99029r0P802-15_Liaison-Report-2.ppt] • Report #3 -99/063r1 [99063r1P802-15_Liaison-Report-3.ppt] • Report #4 -99/124r0 [99124r0P802-15_Liaison-Report-4.ppt] • Report #5 -99/174r0 [99174r0P802-15_WG-Liaison-Report-5.ppt] • Report #6 -00/037r1 [00037r1P802-15_WG-Liaison-Report-6.ppt] • Report #7 -00/118r0 [00118r1P802-15_WG-Liaison-Report-7.ppt] • Report #8 -00/182r0 [00182r0P802-15_WG-Liaison-Report-8.ppt] • Report #9 -00/266r0 [00266r0P802-15_WG-Liaison-Report-9.ppt] • Report #10 -00/340r2 [00340r2P802-15_WG-Liaison-Report-10.ppt] • Report #11 –01/020r1 [01020r1P802-15_WG-Liaison-Report-11.ppt] • Report #12 –01/112r0 [01112r1P802-15_WG-Liaison-Report-12.ppt] • Report #13 –01/215r0 [01215r0P802-15_WG-Liaison-Report-13.ppt] Ian Gifford, Consultant
