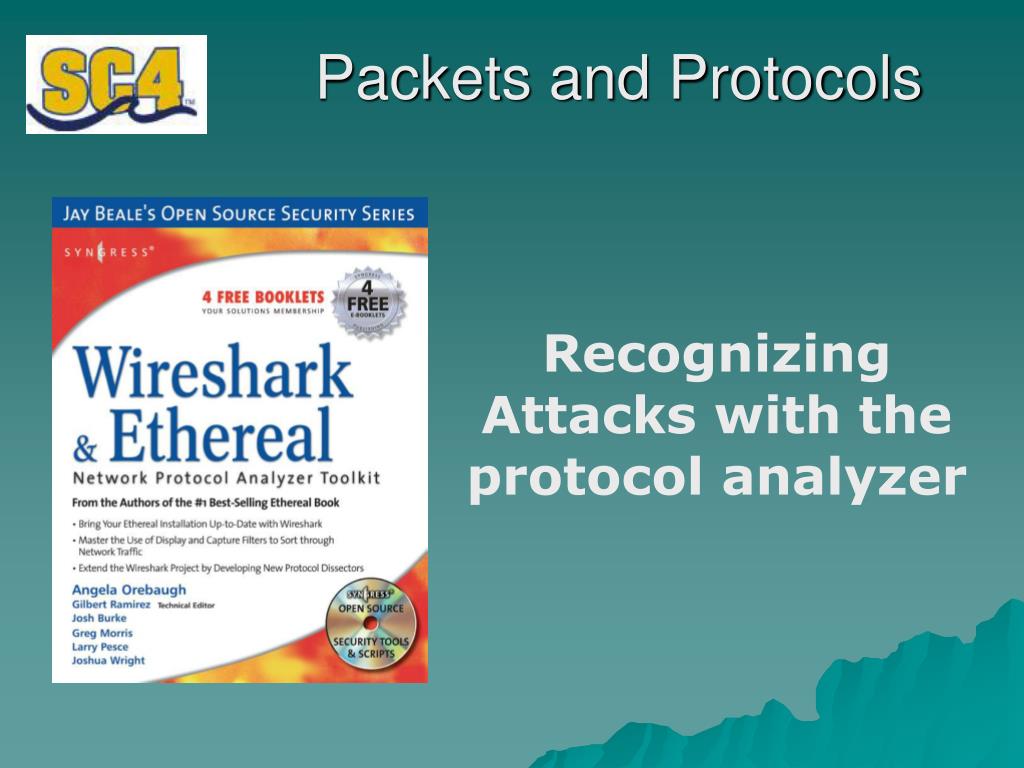

  1. Packets and Protocols Recognizing Attacks with the protocol analyzer

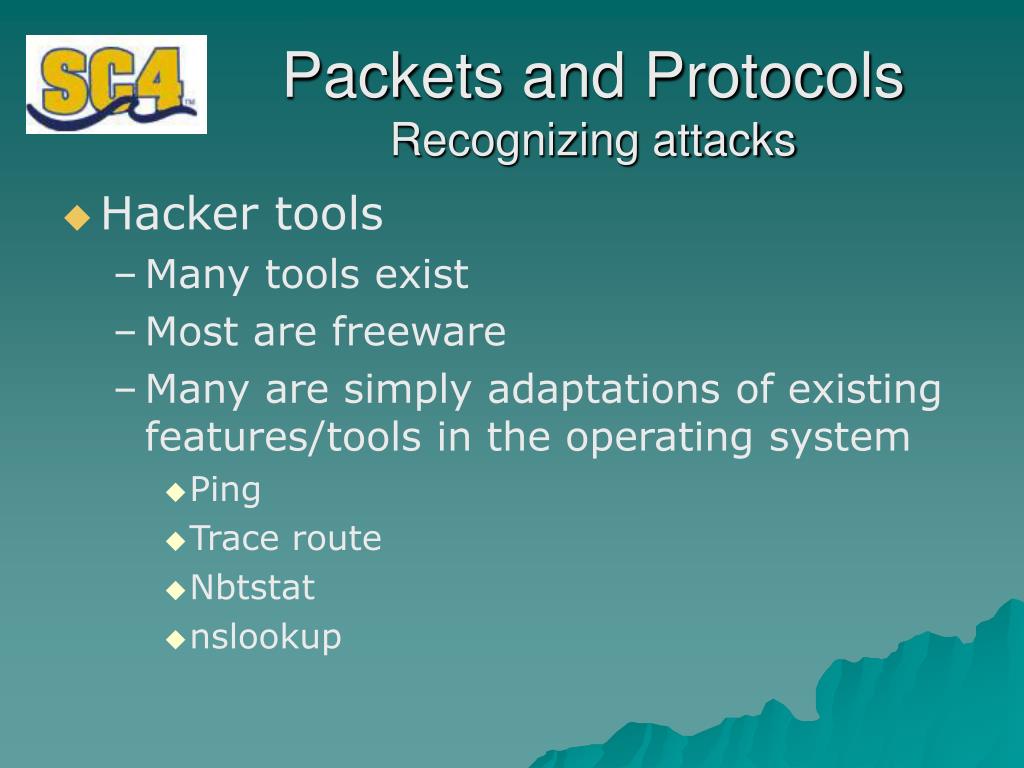

  2. Packets and ProtocolsRecognizing attacks • Hacker tools • Many tools exist • Most are freeware • Many are simply adaptations of existing features/tools in the operating system • Ping • Trace route • Nbtstat • nslookup

  3. Packets and ProtocolsRecognizing attacks • Ping • Uses ICMP • Many options exist for the ping command

  4. Packets and ProtocolsRecognizing attacks C:\WINDOWS>ping Usage: ping [-t] [-a] [-n count] [-l size] [-f] [-i TTL] [-v TOS] [-r count] [-s count] [[-j host-list] | [-k host-list]] [-w timeout] target_name Options: -t Ping the specified host until stopped. To see statistics and continue - type Control-Break; To stop - type Control-C. -a Resolve addresses to hostnames. -n count Number of echo requests to send. -l size Send buffer size. -f Set Don't Fragment flag in packet. -i TTL Time To Live. -v TOS Type Of Service. -r count Record route for count hops. -s count Timestamp for count hops. -j host-list Loose source route along host-list. -k host-list Strict source route along host-list. -w timeout Timeout in milliseconds to wait for each reply.

  5. Packets and ProtocolsRecognizing attacks • Trace route • Uses ICMP Type 8, type 0 and TTL • Sends type 8 w/TTL=1 • Receives TTL expired • Sends type 8 w/TTL=2 • Received TTL expired

  6. Packets and ProtocolsRecognizing attacks • NBTStat • Displays protocol statistics and current TCP/IP connections using NBT (NetBIOS over TCP/IP). • Yet another way a hacker can gather data to be used against you

  7. Packets and ProtocolsRecognizing attacks • Nslookup • DNS tool used to look resolve IP addresses to names and to give the DNS server servicing the request. • Similar to ping -a

  8. Packets and ProtocolsRecognizing attacks • There are many tools already written that bring together these common utilities • Common hacker tools can be found at • Sourceforge

  9. Packets and ProtocolsRecognizing attacks • Sam Spade • GUI tool used for gathering information from Websites

  10. Packets and ProtocolsRecognizing attacks • Ping sweep tools • Used to discover IP addresses on networks by using ICMP and ARP

  11. Packets and ProtocolsRecognizing attacks • Port scan tools • Used to find what ports are open on what devices • Can scan sequentially or random

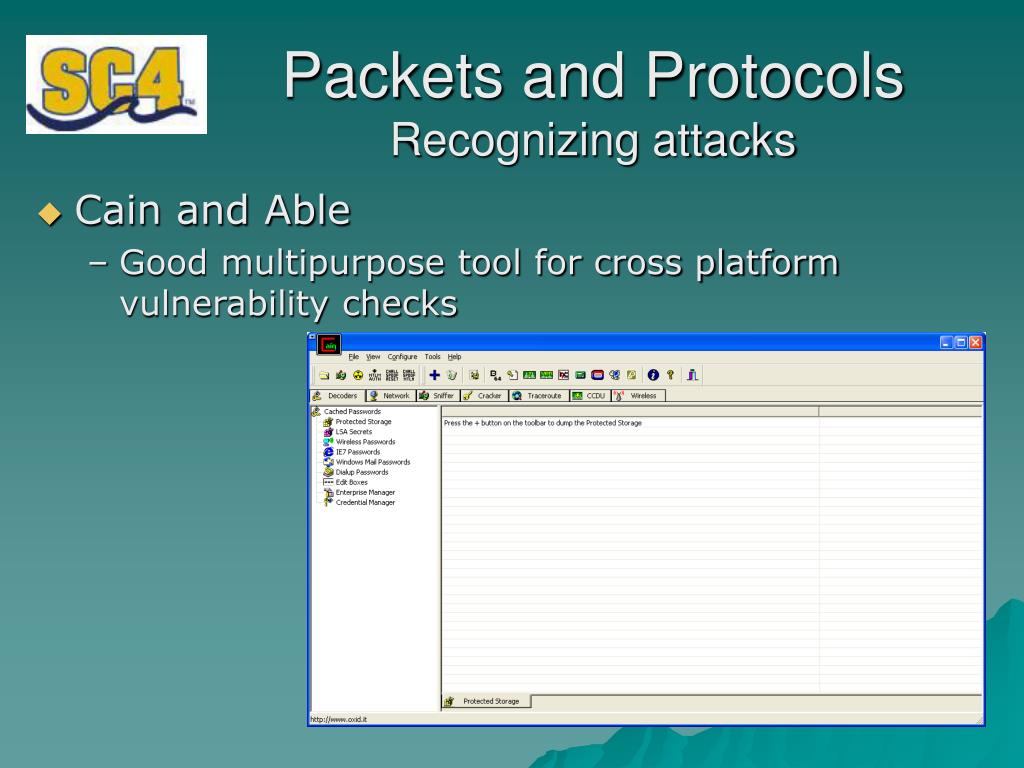

  12. Packets and ProtocolsRecognizing attacks • Cain and Able • Good multipurpose tool for cross platform vulnerability checks

  13. Packets and ProtocolsRecognizing attacks • ZenMap • Another multipurpose tool to gather information against network nodes

  14. Packets and ProtocolsRecognizing attacks • SNMP Sweeps • Two types • Brute force • Simple guessing program • Starts with the password of a then b -> z then aa, ab, ac ->zz then aaa, aab etc • Dictionary • Uses a pre-made list of common words or phrases

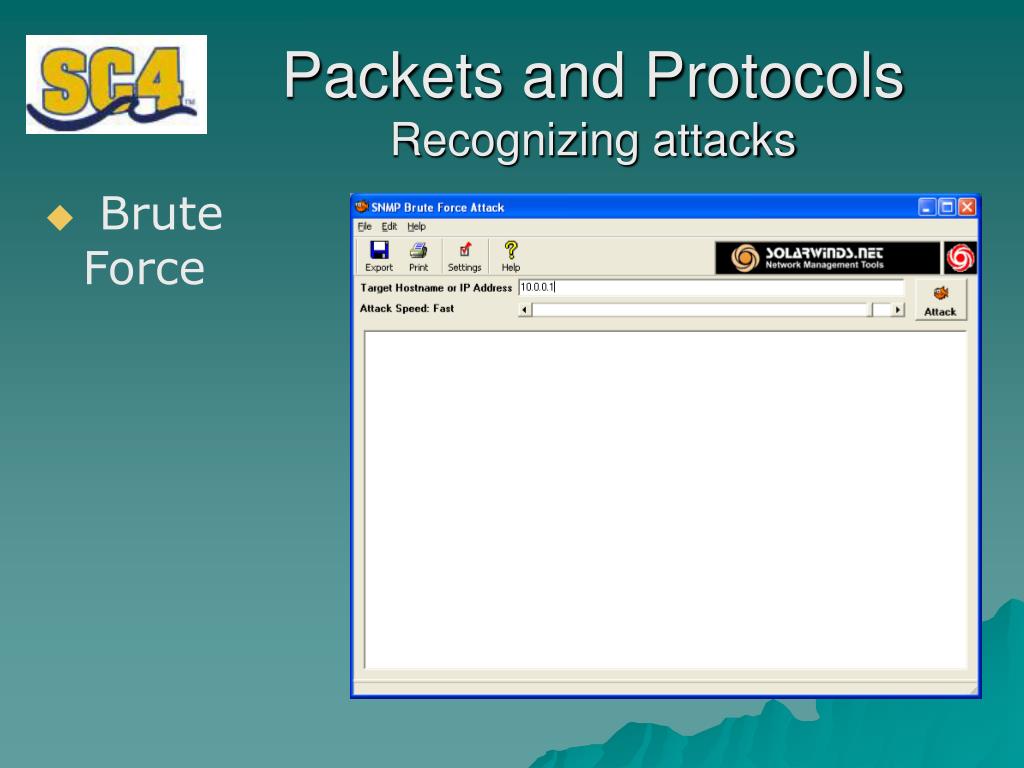

  15. Packets and ProtocolsRecognizing attacks • Brute Force

  16. Packets and ProtocolsRecognizing attacks • Dictionary Attack

  17. Packets and ProtocolsRecognizing attacks • What to look for: • Ping sweep • Look for an inordinate amount of ICMP traffic • Port Scan • Look for incrementing destination ports • SNMP Attack • Look for a sudden bust of SNMP traffic and monitor the community field in the capture

  18. Packets and ProtocolsRecognizing attacks • How to defend: • Ping • Filter out unwanted ICMP types • Port Scan • Lock down devices and turn off unneeded applications and ports • SNMP attacks • Use strong passwords

  19. Packets and ProtocolsRecognizing attacks

  20. Packets and ProtocolsRecognizing attacks • The best solution? • Get an IDS/IPS • Intrusion detection system – passive • Intrusion prevention system - active
