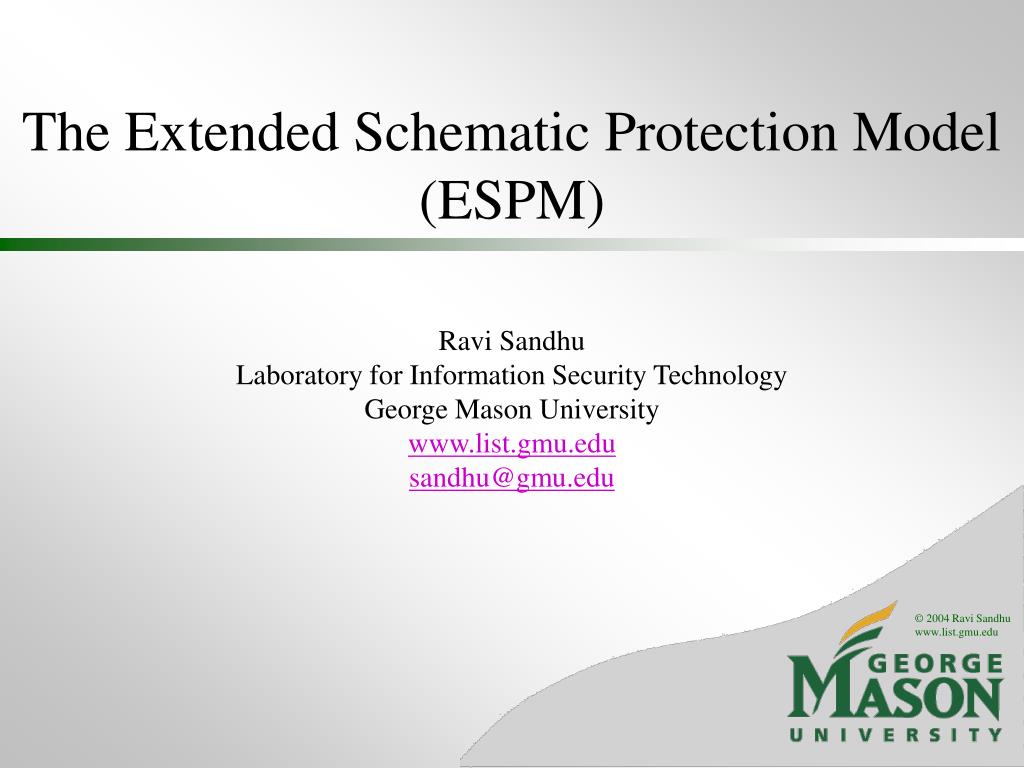

The Extended Schematic Protection Model (ESPM)

1. The Extended Schematic Protection Model(ESPM) Ravi Sandhu Laboratory for Information Security Technology George Mason University www.list.gmu.edu sandhu@gmu.edu

2. Recap • HRU has undecidable safety under very weak assumptions • Bi-conditional monotonic • Take-Grant and variations • Efficiently decidable safety • Unexpected aggregate policy • Schematic protection model (SPM) • Useful demarcation of efficiently decidable safety • Decidable for acyclic attenuating schemes • polynomial in size of initial state • exponential in number of types (for dense cc relation) • open question: acyclic non-attenuating • Undecidable for cyclic schemes • Copy flag and demand operation turn out to be redundant • SPM can simulate Bell LaPadula multilevel security

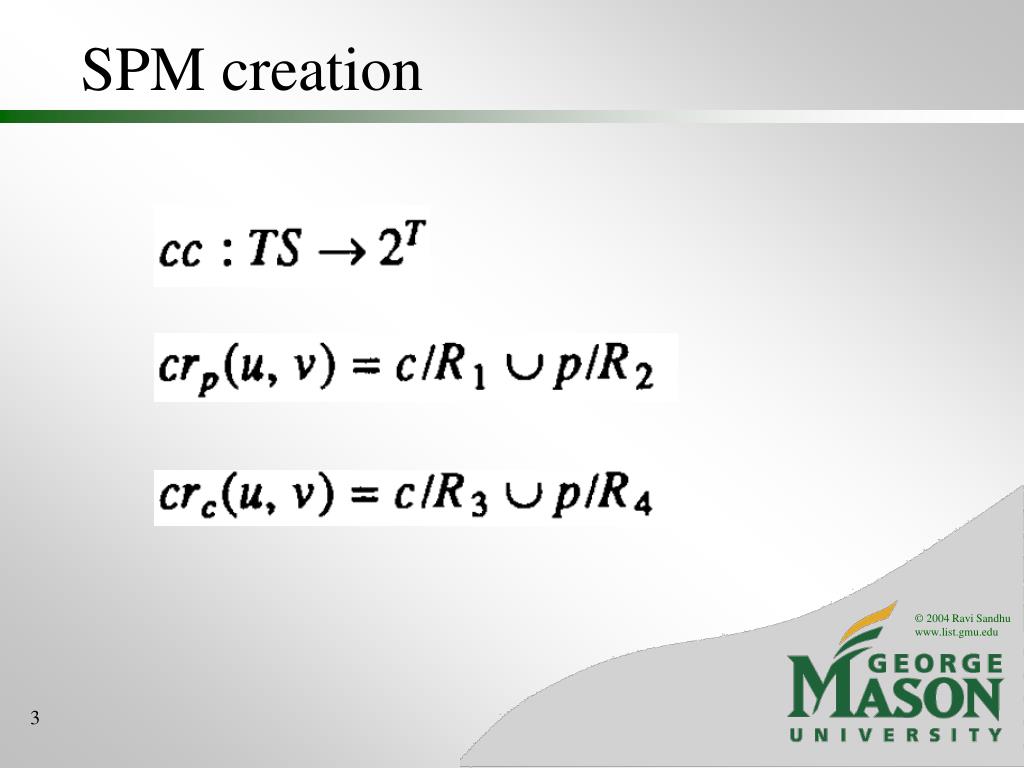

3. SPM creation

4. ESPM joint creation

5. Monotonic HRU command

6. ESPM simulation • Parameter list generation • Marshall parameter set of size Ji • Validating the conditional • Simulating the HRU command body • Simulating creates • Unconditional create with alive right, so X/alive  dom(X) is required for X to participate in any command • Simulating enters • straightforward

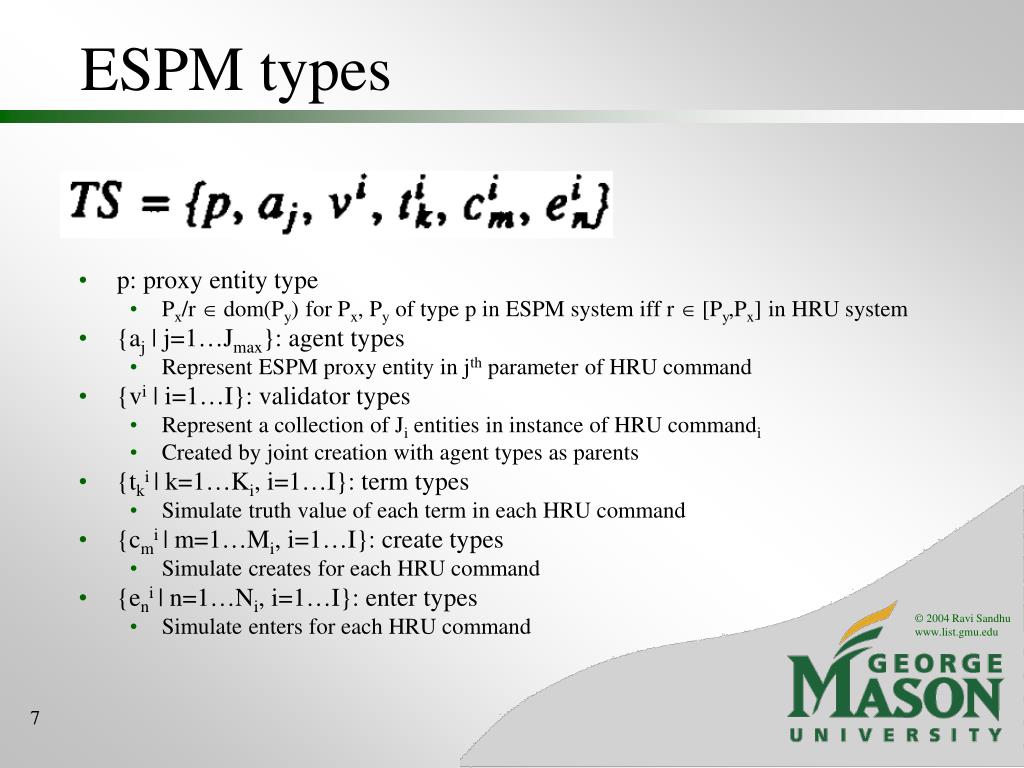

7. ESPM types • p: proxy entity type • Px/r  dom(Py) for Px, Py of type p in ESPM system iff r  [Py,Px] in HRU system • {aj | j=1…Jmax}: agent types • Represent ESPM proxy entity in jth parameter of HRU command • {vi | i=1…I}: validator types • Represent a collection of Ji entities in instance of HRU commandi • Created by joint creation with agent types as parents • {tki | k=1…Ki, i=1…I}: term types • Simulate truth value of each term in each HRU command • {cmi | m=1…Mi, i=1…I}: create types • Simulate creates for each HRU command • {eni | n=1…Ni, i=1…I}: enter types • Simulate enters for each HRU command

8. ESPM creation

9. ESPM attenuating loops If type(ui) = type(v) Except that one such parent can have attenuating rule crpj(u1, u2, …, uN, v) = pj/R2j c/R1j crc(u1, u2, …, uN, v) = pj/R3j c/R4j so R1j R2j and R3j R2j and R4j R1j

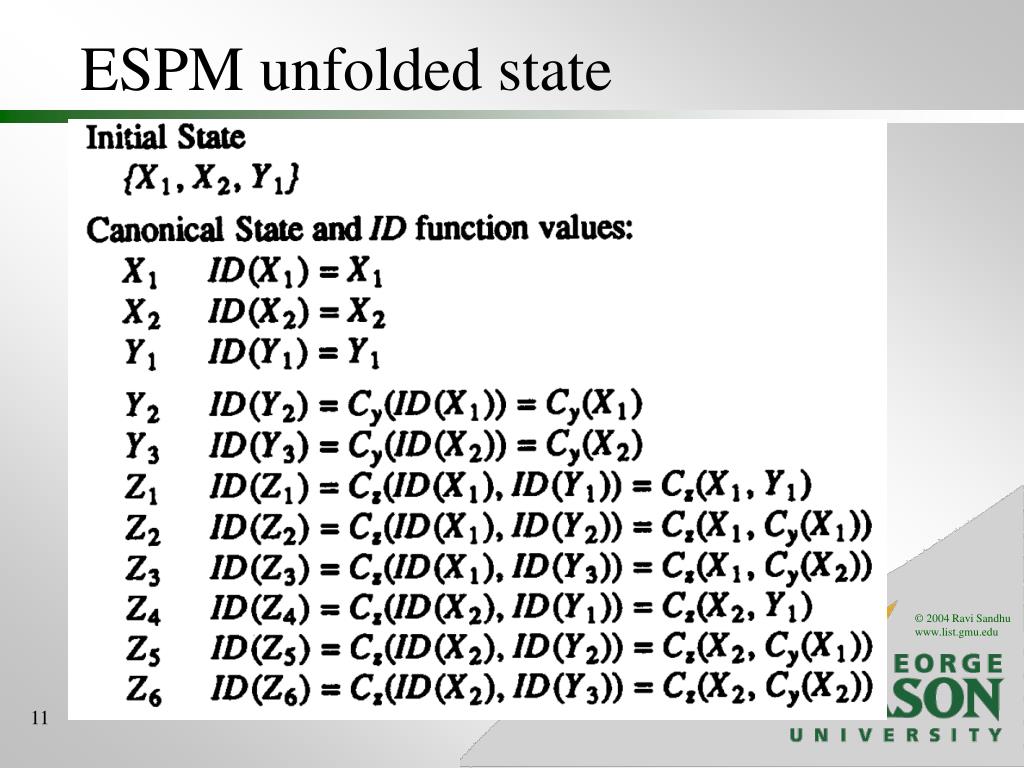

10. ESPM unfolded state

11. ESPM unfolded state

12. ESPM safety analysis • exponential in types (like SPM) • exponential in size of initial state (unlike SPM)

13. ESPM safety analysis

14. Expressive power of SPM and ESPM • both are monotonic • ESPM is equivalent to monotonic HRU • HRU can simulate ESPM • ESPM can simulate HRU • ESPM with double-parent creation is equivalent to ESPM • ESPM is at least as expressive as SPM • ESPM can simulate SPM trivially • it turns out that SPM is less expressive than ESPM (and thereby less expressive than monotonic) HRU

15. Monotonic access graph model • nodes are strongly typed • type of a node cannot change • edges are strongly typed • type of an edge cannot change • graph operations • initial state operations • node operations • multi-parent • creates new edges from each parent to child • edge operations • cannot create new nodes • must be monotonic (edges cannot be removed)

16. Simulation: scheme B simulates scheme A

17. Scheme A has double-parent creation

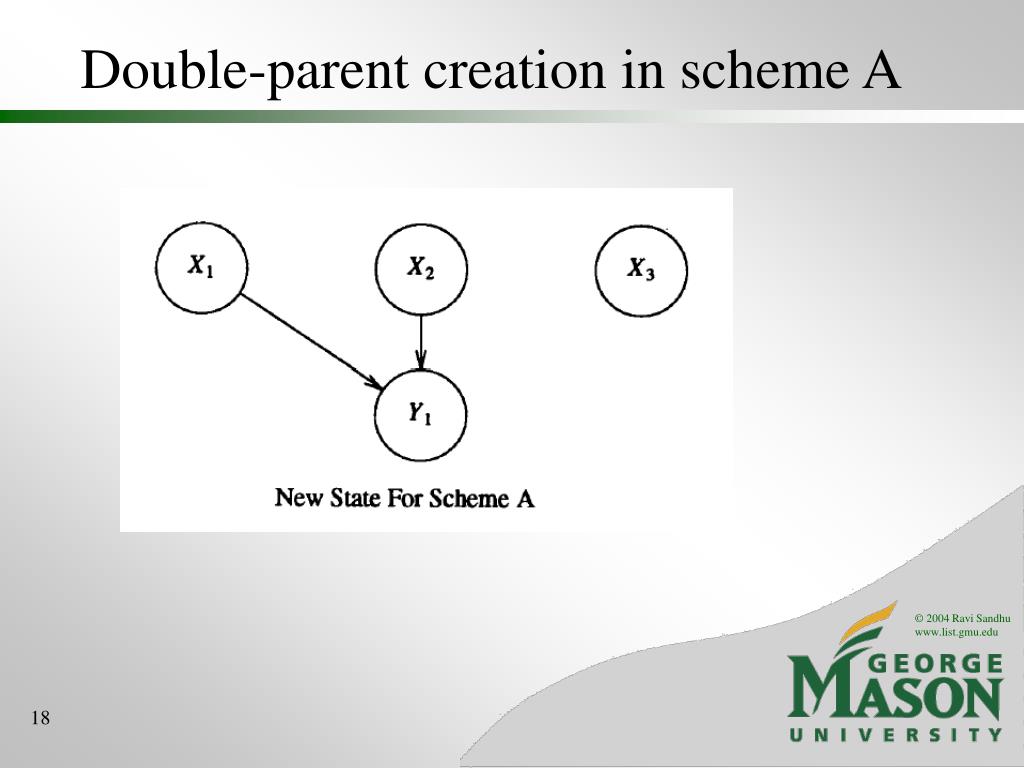

18. Double-parent creation in scheme A

19. Double-parent creation in scheme A

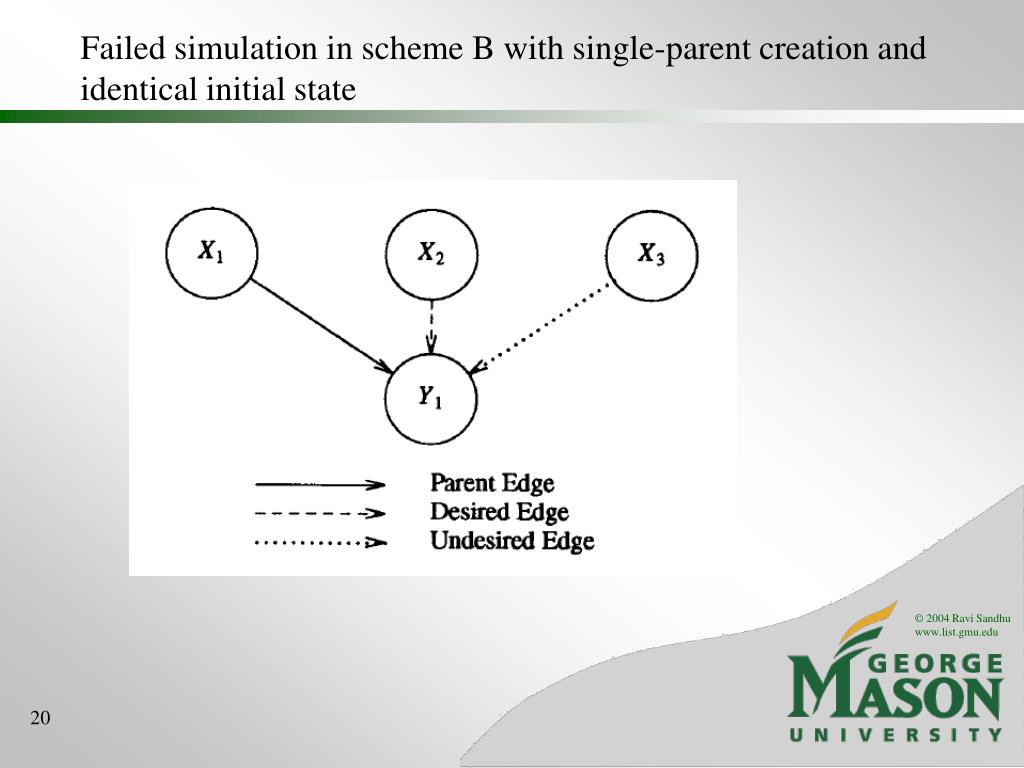

20. Failed simulation in scheme B with single-parent creation and identical initial state

21. Failed simulation in scheme B with single-parent creation and arbitrary initial state

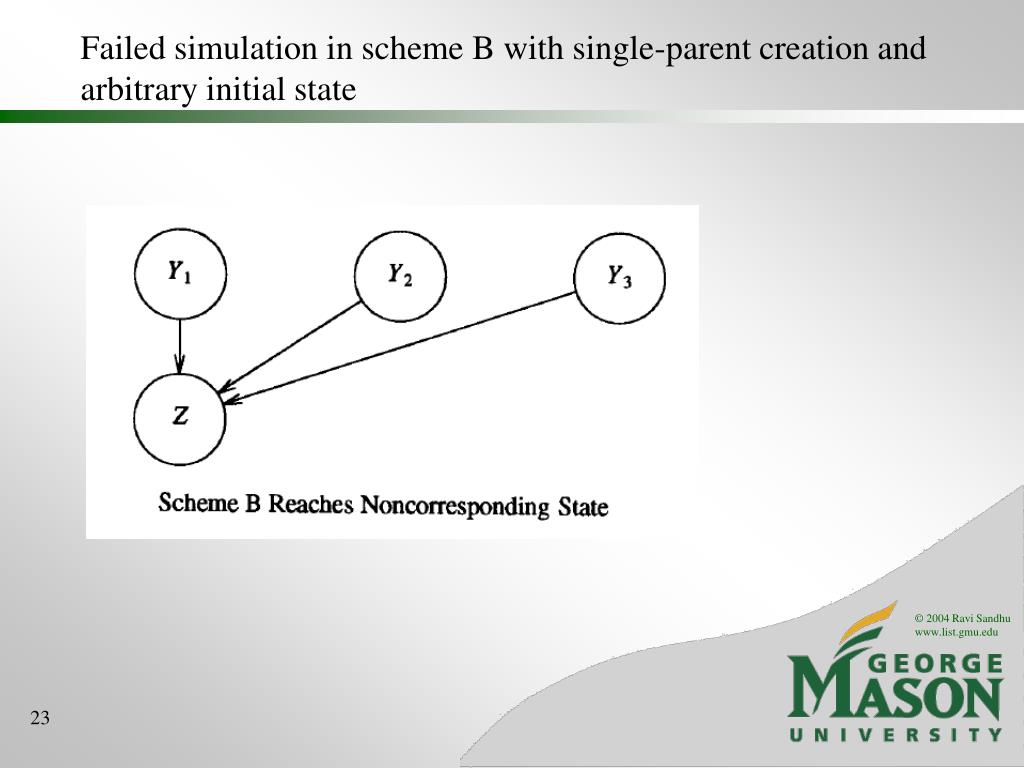

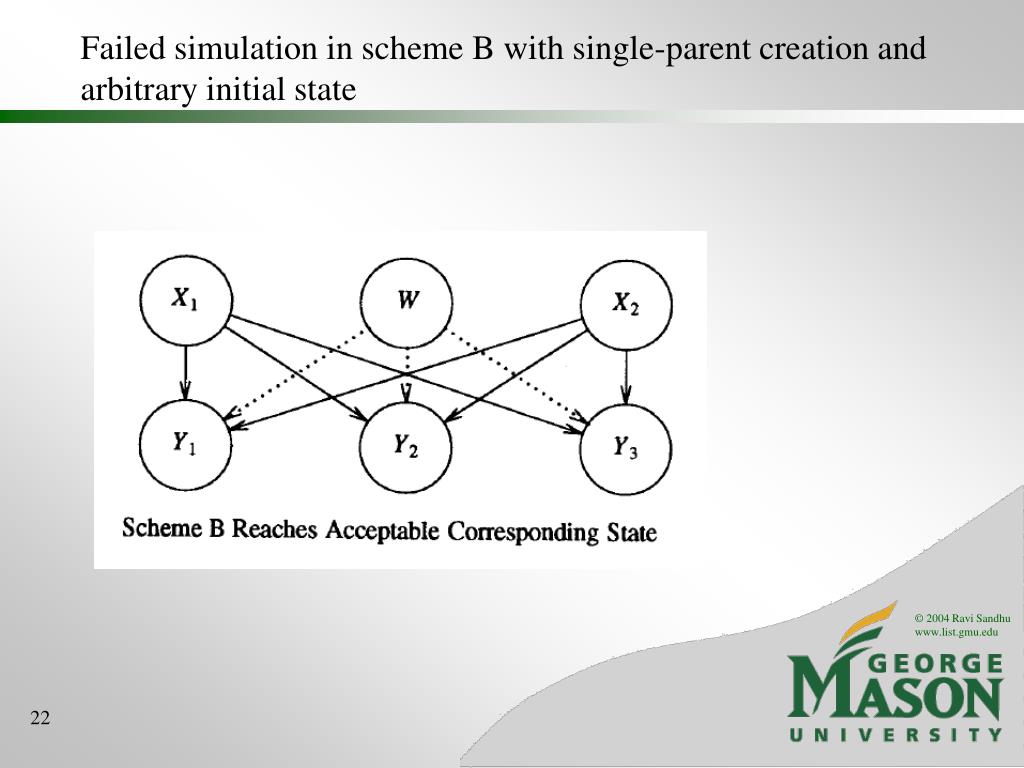

22. Failed simulation in scheme B with single-parent creation and arbitrary initial state

23. Failed simulation in scheme B with single-parent creation and arbitrary initial state

24. Multi-parent creation does not add power in non-monotonic systems

25. Multi-parent creation • Adds power to monotonic models • Perhaps should be viewed as a non-monotonic binding operation
