  1. Outline What is Interconnect Verification? Why Interconnect Verification? Interconnect Verification Algorithms Goal Understand IV problem Understand IV algorithms Interconnect Verification 1

  2. Netlist comparison Are two netlists equivalent? If not, where are they different? useless without this Sometimes called layout vs. schematic (LVS) Goals determine if layout implements schematic map layout to schematic for back-annotation Approach graph isomorphism 4/2 4/2 What is Interconnect Verification? Equality, Differences Circuit Extractor Interconnect Verification Extracted Netlist

  3. Schematic --> layout an imperfect process bugs in layout synthesis tools hand design Schematic --> layout transformations swap gate inputs AND-OR => NAND-NAND structures Back-annotation user may not label all nets map geometry at (x,y) to net in schematic e.g. insert extracted parasitic into schematic A B vs. B A 4/2 4/2 Why Interconnect Verification? vs.

  4. Convert netlist to graph device nodes type, terminal labels attributes, e.g. size net nodes bipartite graph edges only between device and net nodes Perform graph isomorphism test given graphs G1 and G2 is there a 1:1 function f mapping vertices of G1 onto vertices of G2 such that x and y are adjacent in G1 (connected by an edge) iff f(x) and f(y) are adjacent in G2 x x g g D D x x x x E E g g x x Interconnect Verification Algorithms

  5. Partitioning algorithm compute vertex invariants or color function of vertex properties - labels, degree, etc. function of neighboring vertices - type, color, equivalence class partition vertices by color into equivalence classes recolor based on new neighboring classes repeat until single vertex in each class or no progress sort each graph by vertex color and compare lists Time Complexity unknown in general case (NP-Intermediate) known algorithms are exponential in worst case partitioning is O(V) in practice if graphs are equivalent and unambiguous Graph Isomorphism

  6. for G in G1...G2 do { do { for i = 0...V do { G.vertex[i].color = VertexColor(G.vertex[i]) AddToClass(G.vertex[i].color, G.vertex[i]) } } until all vertex[i].color are unique or no progress SortByColor(G) } for i = 0...V do { if G1.vertex[i].color != G2.vertex[i].color report error } Partitioning Algorithm

  7. AddToClass(color, vertex) { append(class[color],vertex) vertex.class = class[color] } VertexColor(vertex) { compute color from vertex properties current vertex color, neighboring vertex colors } Partitioning Algorithm

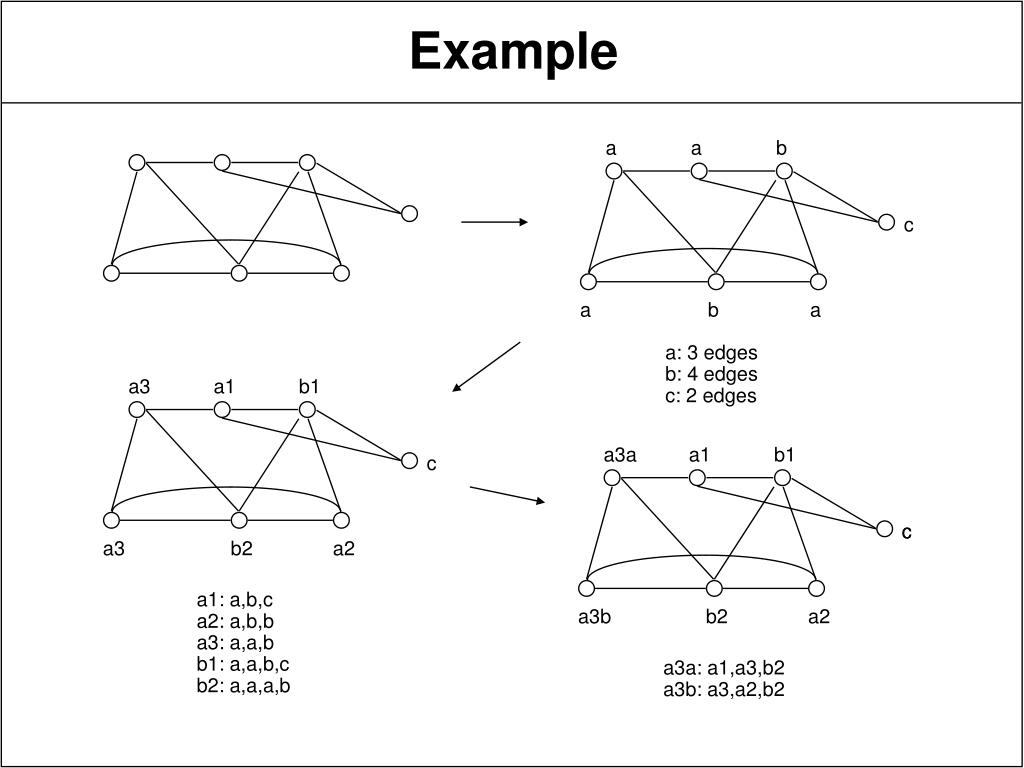

  8. Example a a b c a b a a: 3 edges b: 4 edges c: 2 edges a3 a1 b1 a3a a1 b1 c c c a3 b2 a2 a1: a,b,c a2: a,b,b a3: a,a,b b1: a,a,b,c b2: a,a,a,b a3b b2 a2 a3a: a1,a3,b2 a3b: a3,a2,b2

  9. x x x x g g g g D D D D x x x x x x x x E E E E g g g g x x x x x x g g D D x x x x E E g g x x GEMINI Example N2 DD DD N4 N2 N2 DE DE N2 (N2 (x: DD DD)) (DD (g: N4) (x: N2 N4)) (DD (g: N2) (x: N2 N2)) (N2 (x: DD DE)) (N2 (g: DD DE)) (DE (g: N4 (x: N2 N2)) (DE (g: N2) (x: N2 N4)) (N2 (x: DE DE))

  10. x x g g P P x x x x g g P P x x x x x x N N N N g g g g x x x x CMOS Example NxP DP N2xP DP NgPgN NxP2xN NgPgN DN DN NxP N2xN color devices by type color nets by adjacent device, terminal type create graph

  11. x x g g P P x x x x g g P P x x x x x x N N N N g g g g x x x x CMOS Example NxP NxP DPgPgNxP2xP DPgPgNxP2xP (P1) N2xP N2xP DPgPgN2xPxP2xN DPgPgN2xPxP2xN (P2) NgPgN NgP1gN NxP2xN NgPgN NxP2xN NgP2gN DNgP1gN2xNxP2xN DNgPgN2xNxP2xN DNgP2gN2xNxP2xN N2xN N2xN DNgPgN2xNxP2xN color nets by adjacent devices color devices by adjacent nets all vertices uniquely colored color devices by adjacent nets

  12. Hashing colori+1 = f(colori, g(colorneighbor1, edge-classneighbor1), g(colorneighbor2, edge-classneighbor2),...) edge class - e.g. source, drain, gate g - source and drain are equivalent hash to get compact colors - color is an integer Signatures snext = scurrent + csdssource + csdsdrain + cgsgate s - signature c - weights to treat transistor terminals differently snetnext = snetcurrent + wisdevice i + wjsdevice j + ... w - weights for terminal types Coloring Functions

  13. Speed recoloring is main computation want to be fast ideally look only at attributes of vertex, adjacent vertices can initially look at very few attributes only look at more if recoloring stops Good Hash Function hash/signature collisions slow down convergence mistakenly give two vertices the same color later have to detect they are really different iterations must continue until all vertices are uniquely colored Compromise between the two Coloring Function Issues

  14. Recolor only on frontier only color vertices adjacent to singleton classes likely to provide most useful coloring singleton classes will not be recolored only color vertices adjacent to recolored vertices only these vertices can change color Speed 2-10X speedup recolor each vertex ~2 times speed limited by netlist I/O B B B B B B B B A A B C Refinements

  15. Automorphism detection Matching non-unique G1 and G2 classes cannot be subdivided causes invariant not sufficiently powerful - unlikely in real circuits circuit is automorphism - ring oscillator, logic equivalence force vertex in G1 and G2 to be equivalent and continue may have to backtrack require user to add labels Ambiguous Circuits A B vs. B A Legal mappings: {A,a} (B,b} {C,c} {A,b} {B,c} {C,a} {A,c} {B,a} {C,b} vs. A B C a b c

  16. Example Vdd connection missing from pullup transistor result - Vdd vertices are colored differently in G1 and G2 different degree => different color color difference rapidly propagated to all vertices no vertex colors match, no useful diagnostic Solution label classes that do not have corresponding class in other graph as suspect corresponding = same vertex count, same color remove suspect vertices from class refinement process do not use when recoloring other vertices when no further recoloring possible, examine suspects differences will be isolated to suspect classes e.g. difference in Vdd net, pullup transistor Finding Circuit Errors
