Presentation Transcript

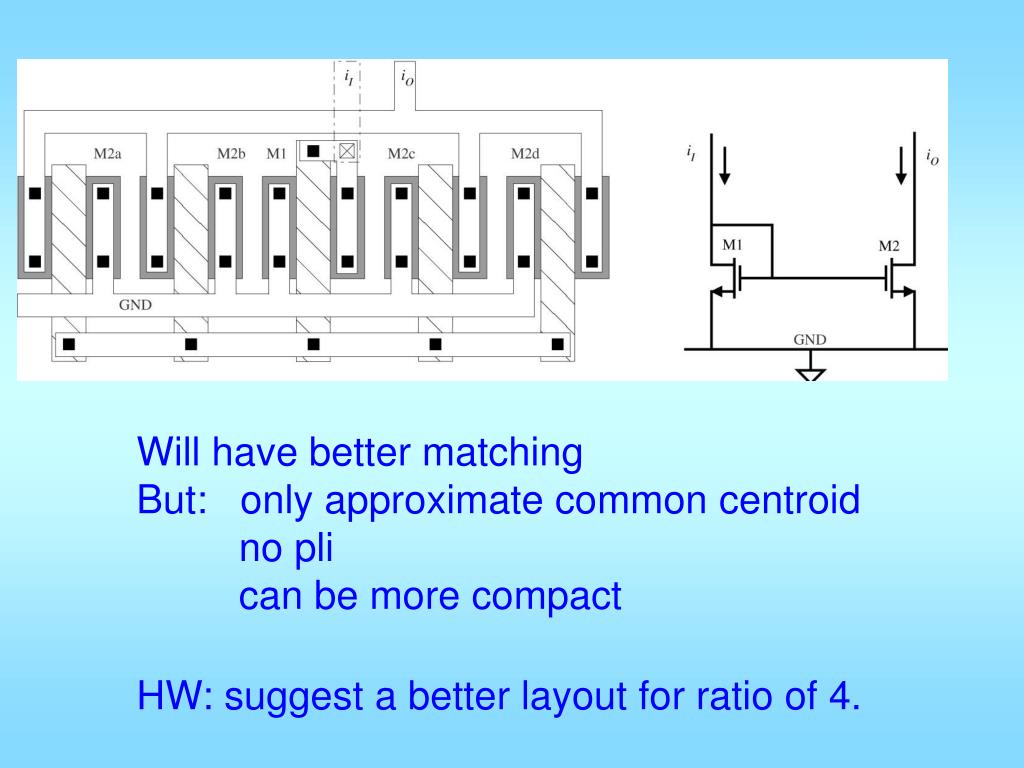

  1. S G G S G G S G G S G G S G G S Will have better matching But: only approximate common centroid no pli can be more compact HW: suggest a better layout for ratio of 4.

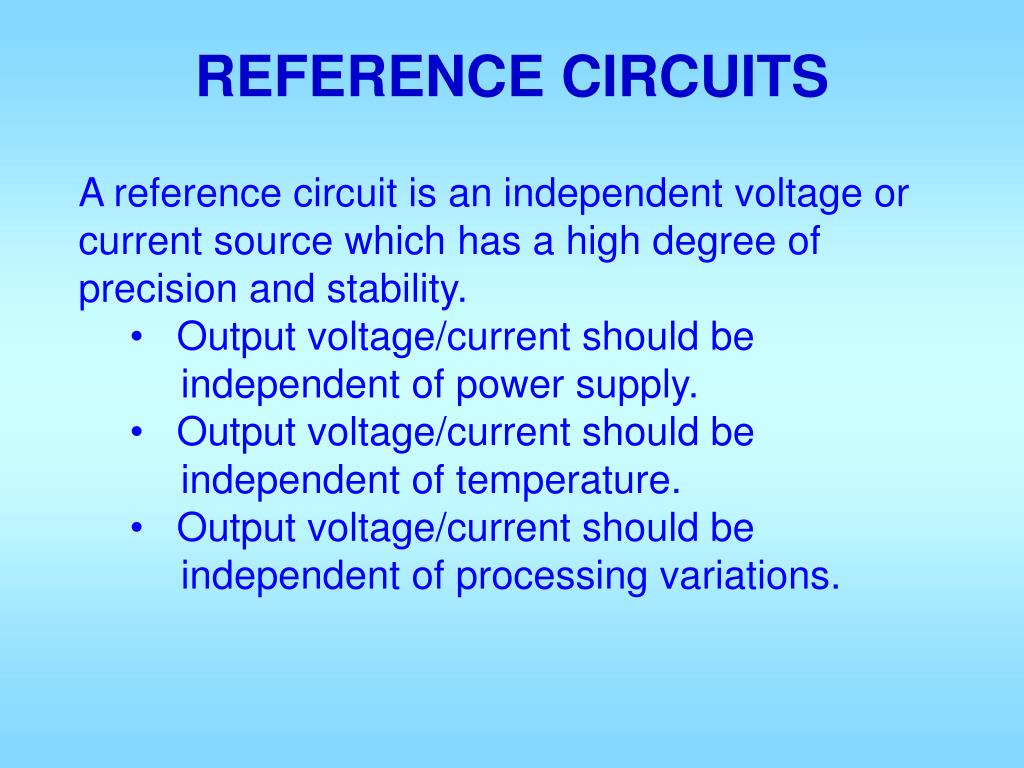

  2. REFERENCE CIRCUITS • A reference circuit is an independent voltage or current source which has a high degree of precision and stability. • Output voltage/current should be independent of power supply. • Output voltage/current should be independent of temperature. • Output voltage/current should be independent of processing variations.

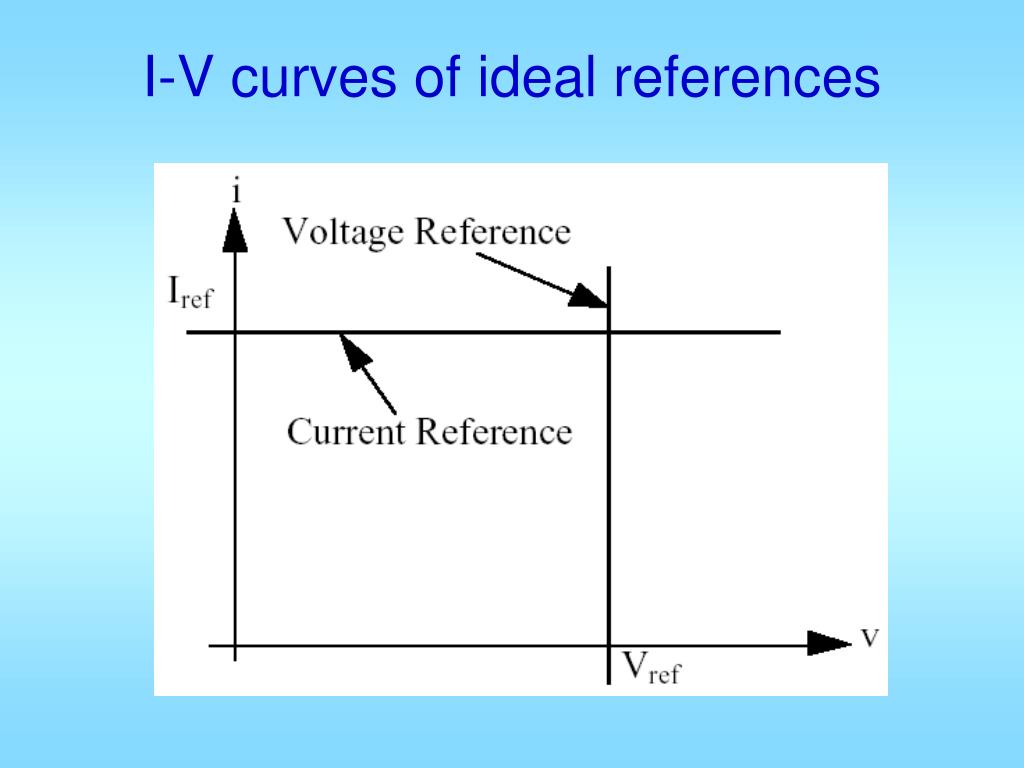

  3. I-V curves of ideal references

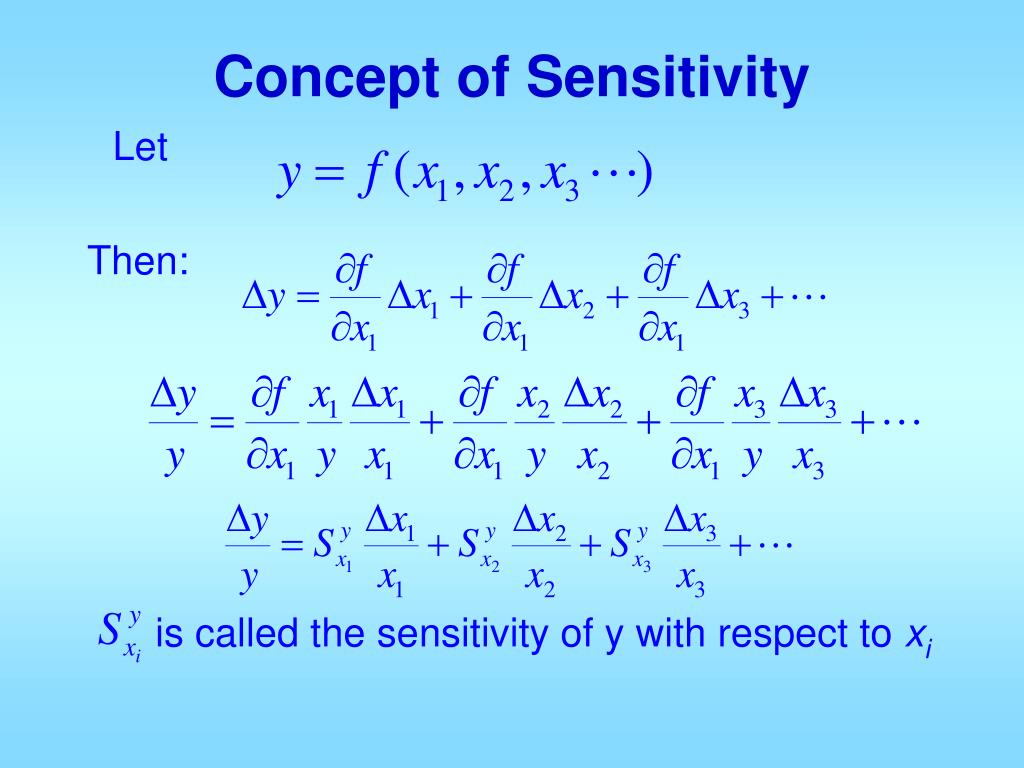

  4. Concept of Sensitivity Let Then: is called the sensitivity of y with respect to xi

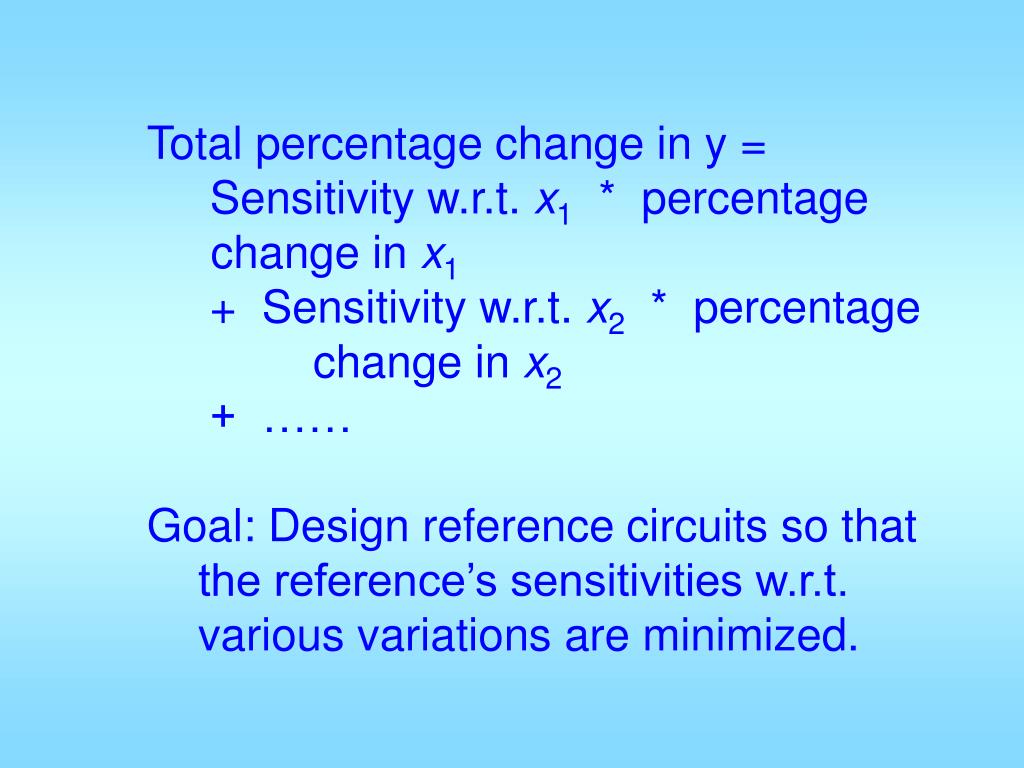

  5. Total percentage change in y = Sensitivity w.r.t. x1 * percentage change in x1 + Sensitivity w.r.t. x2 * percentage change in x2 + …… Goal: Design reference circuits so that the reference’s sensitivities w.r.t. various variations are minimized.

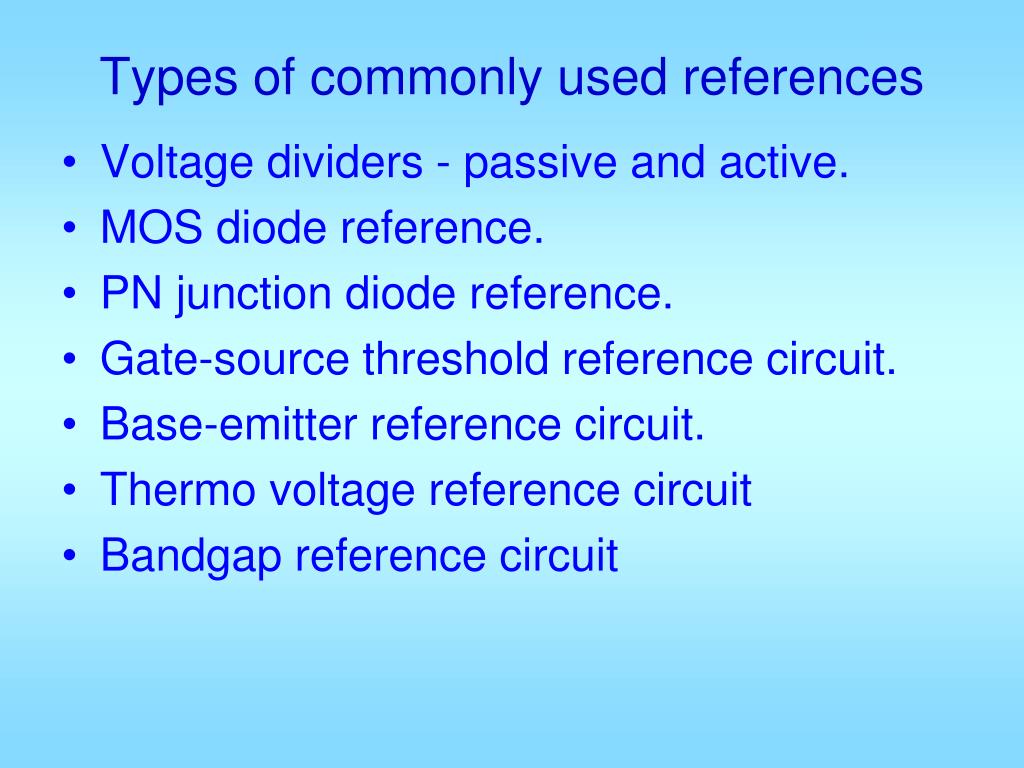

  6. Types of commonly used references • Voltage dividers - passive and active. • MOS diode reference. • PN junction diode reference. • Gate-source threshold reference circuit. • Base-emitter reference circuit. • Thermo voltage reference circuit • Bandgap reference circuit

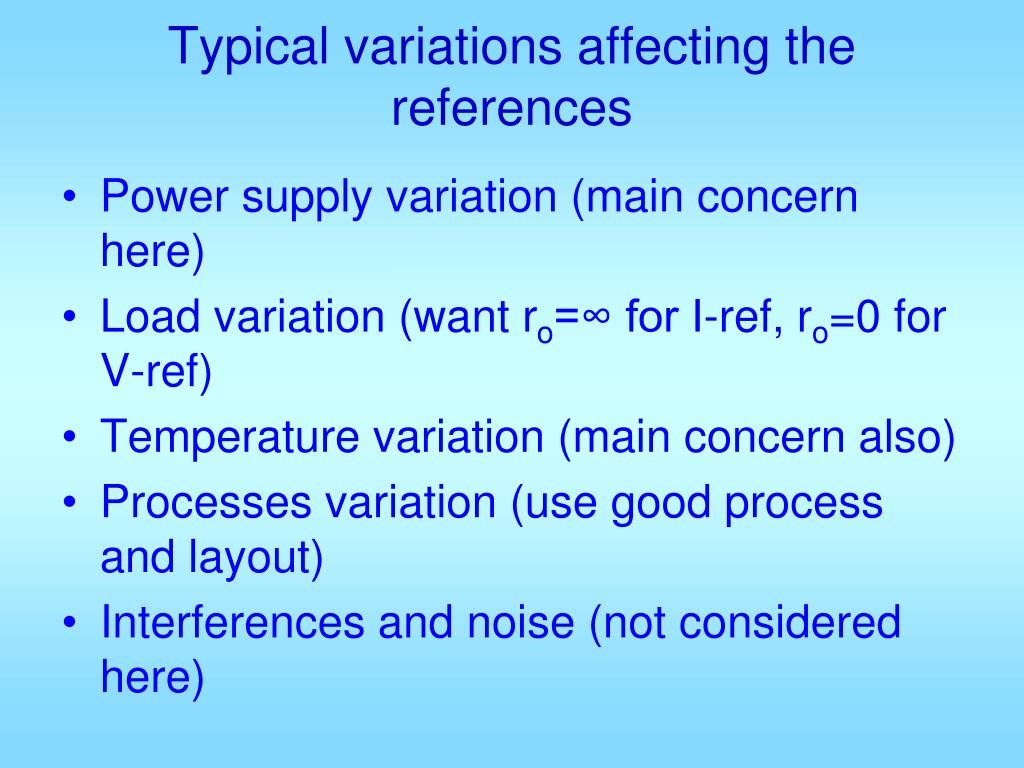

  7. Typical variations affecting the references • Power supply variation (main concern here) • Load variation (want ro=∞ for I-ref, ro=0 for V-ref) • Temperature variation (main concern also) • Processes variation (use good process and layout) • Interferences and noise (not considered here)

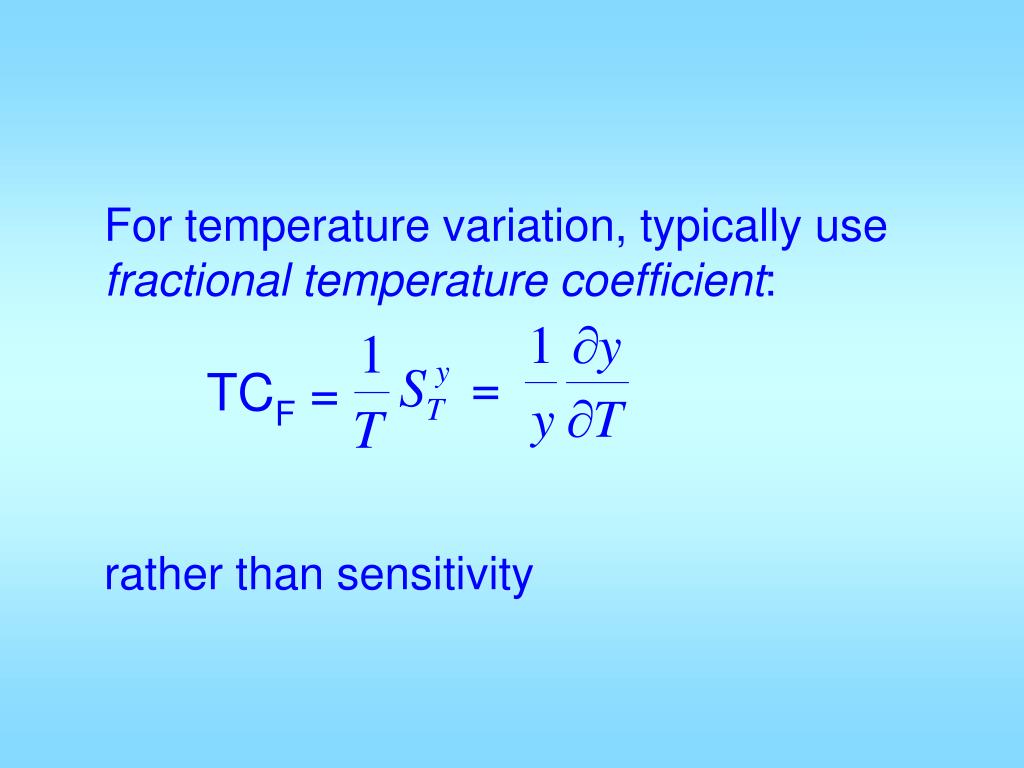

  8. For temperature variation, typically use fractional temperature coefficient: TCF = rather than sensitivity =

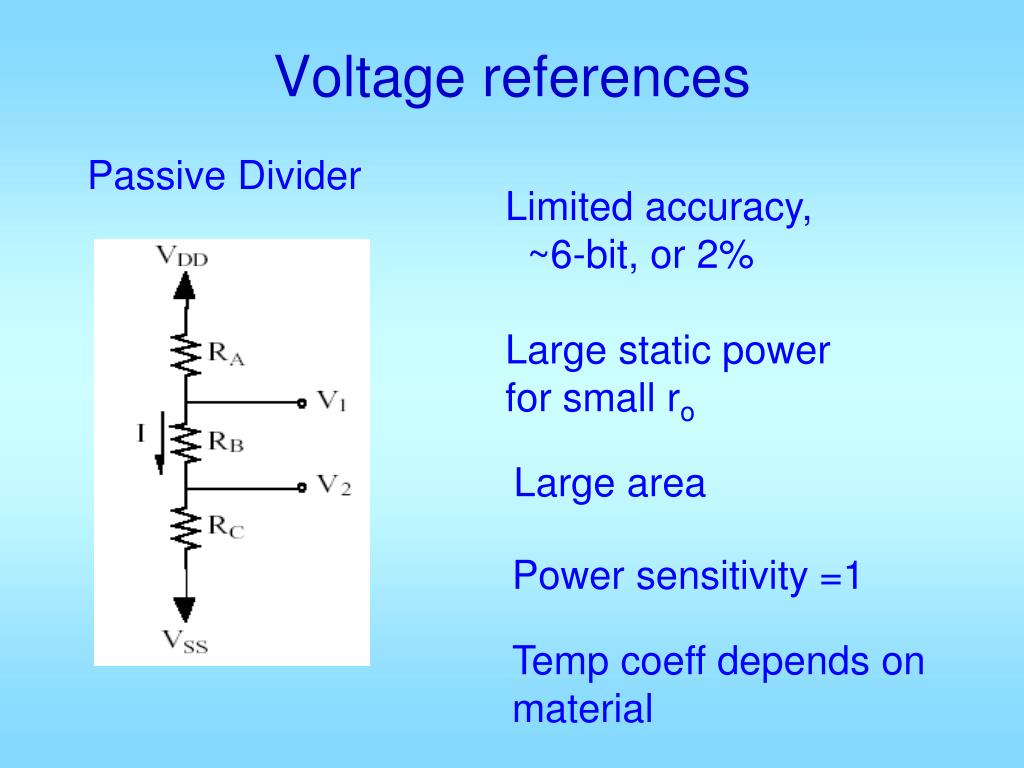

  9. Voltage references Passive Divider Limited accuracy, ~6-bit, or 2% Large static power for small ro Large area Power sensitivity =1 Temp coeff depends on material

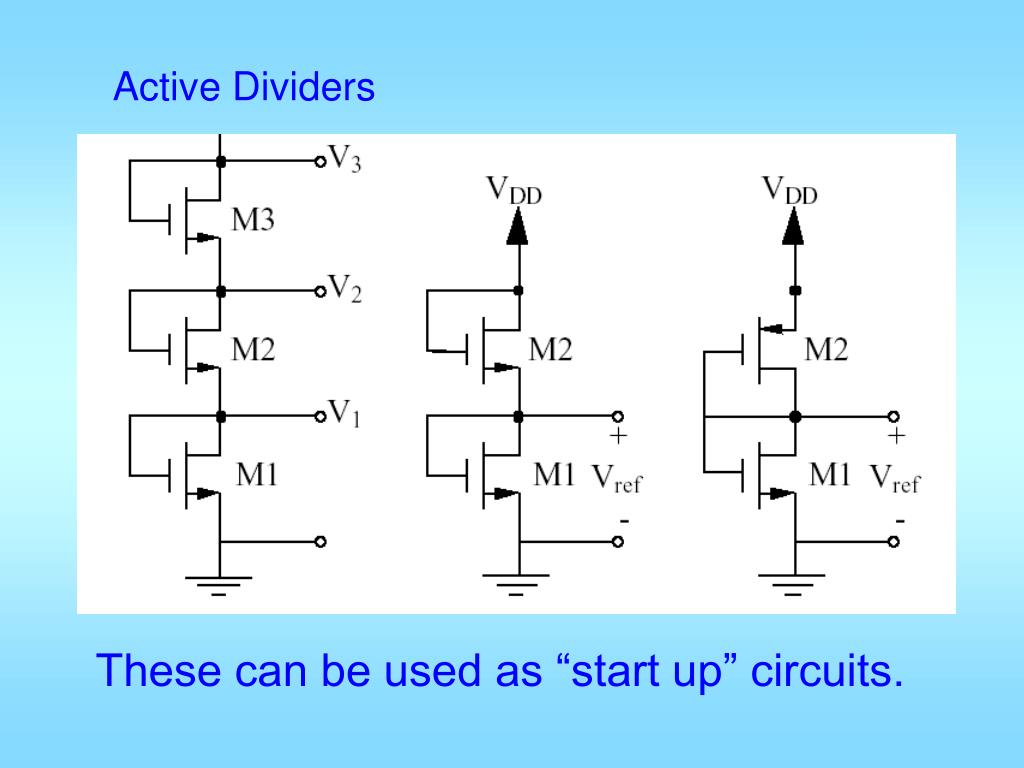

  10. Active Dividers These can be used as “start up” circuits.

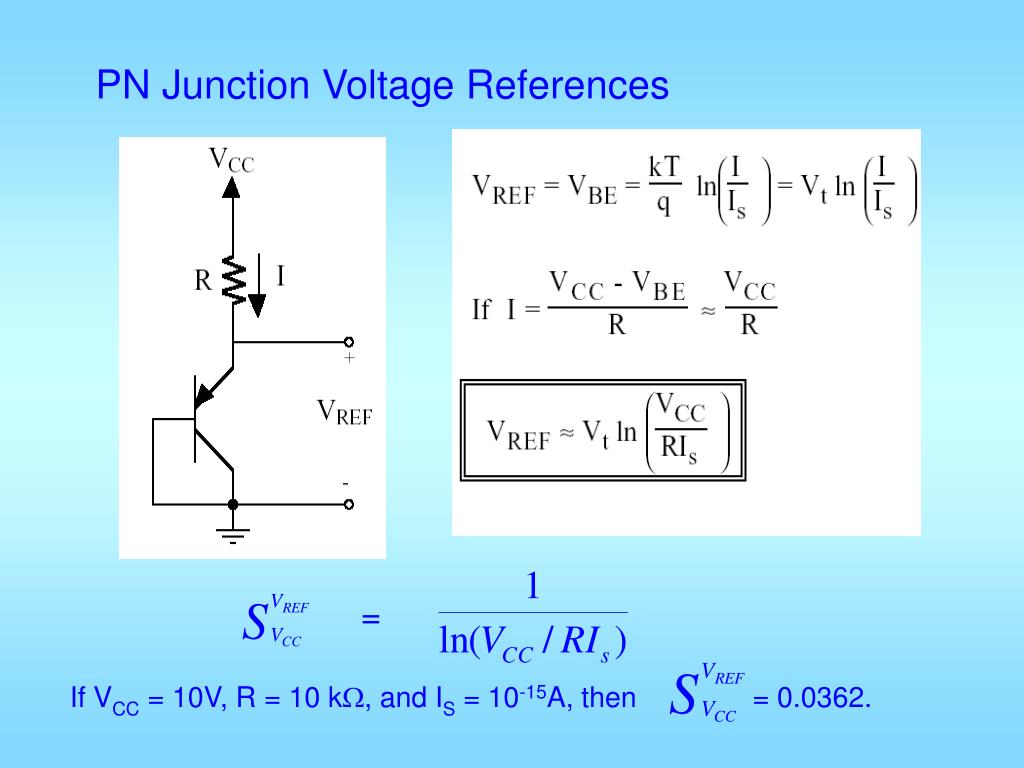

  11. PN Junction Voltage References = If VCC = 10V, R = 10 kW, and IS = 10-15A, then = 0.0362.

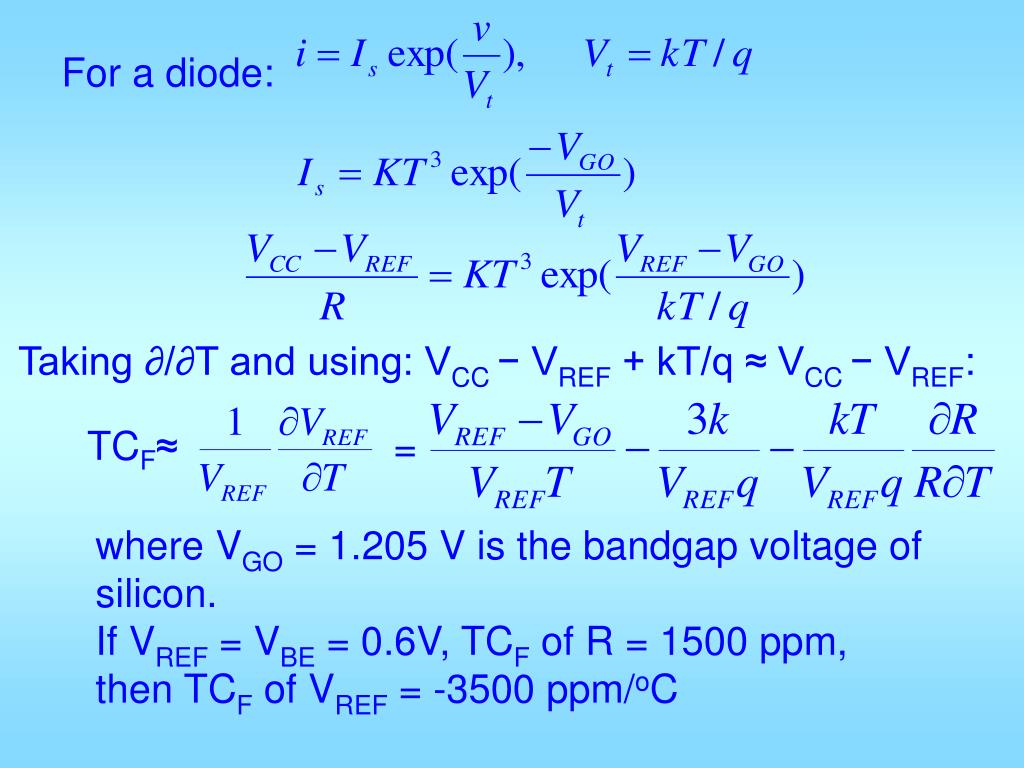

  12. For a diode: Taking ∂/∂T and using: VCC − VREF + kT/q ≈ VCC − VREF: TCF≈ = where VGO = 1.205 V is the bandgap voltage of silicon. If VREF = VBE = 0.6V, TCF of R = 1500 ppm, then TCF of VREF = -3500 ppm/oC

  13. HW: Calculate Calculate TCF

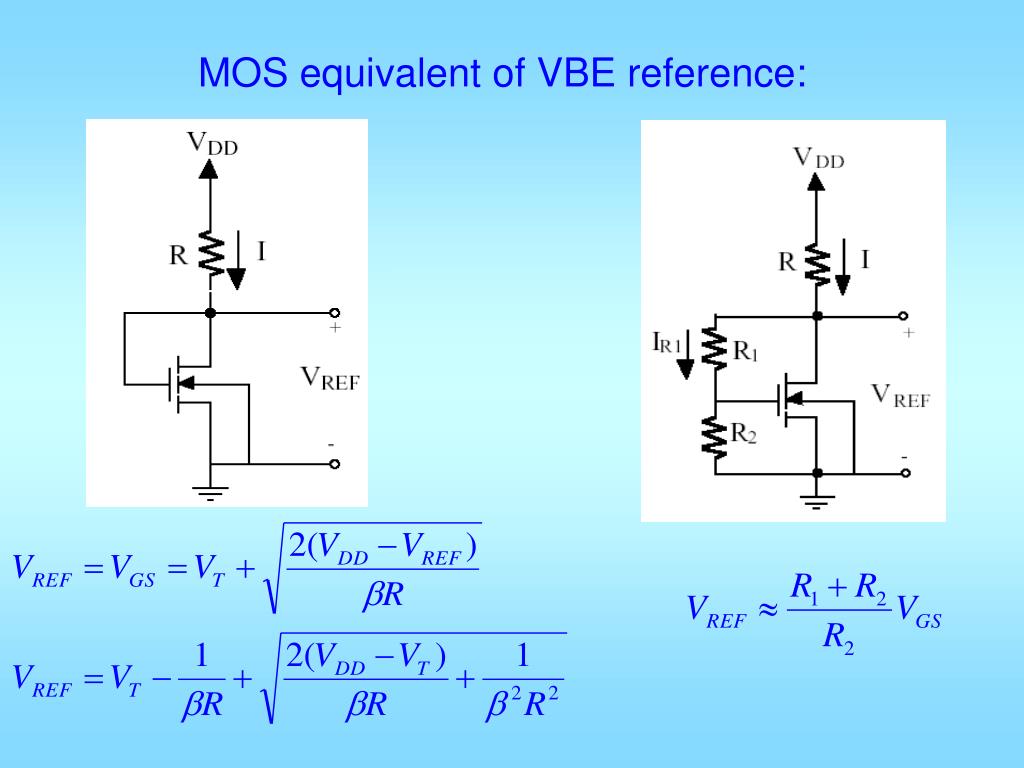

  14. MOS equivalent of VBE reference:

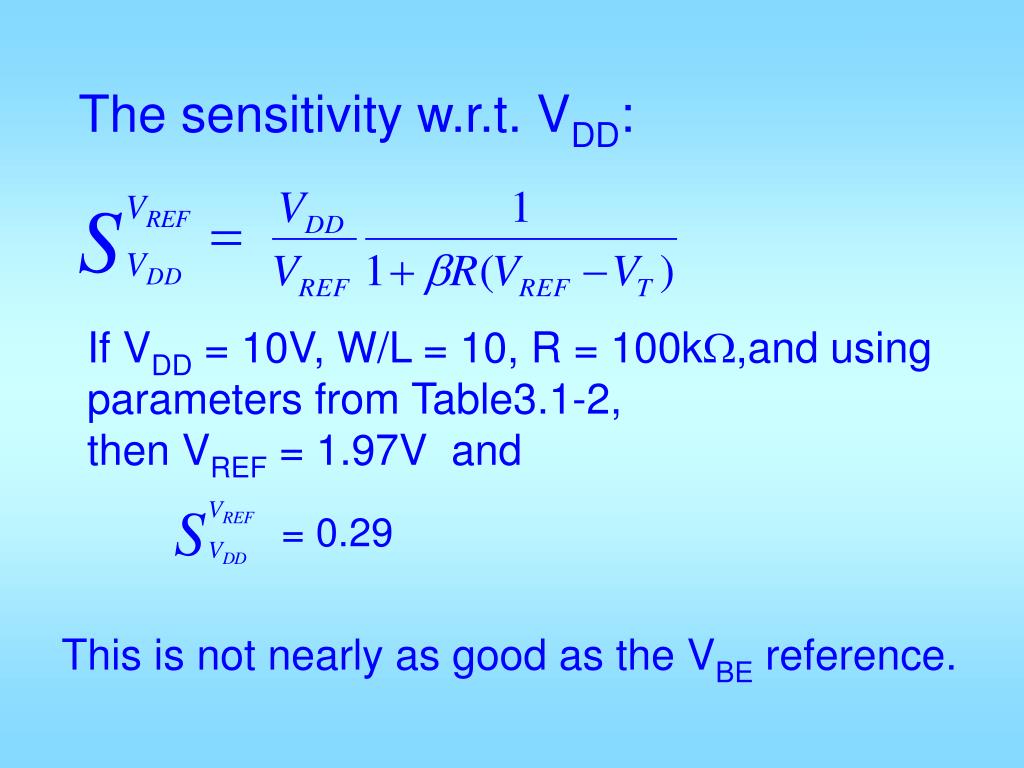

  15. The sensitivity w.r.t. VDD: If VDD = 10V, W/L = 10, R = 100kW,and using parameters from Table3.1-2, then VREF = 1.97V and = 0.29 This is not nearly as good as the VBE reference.

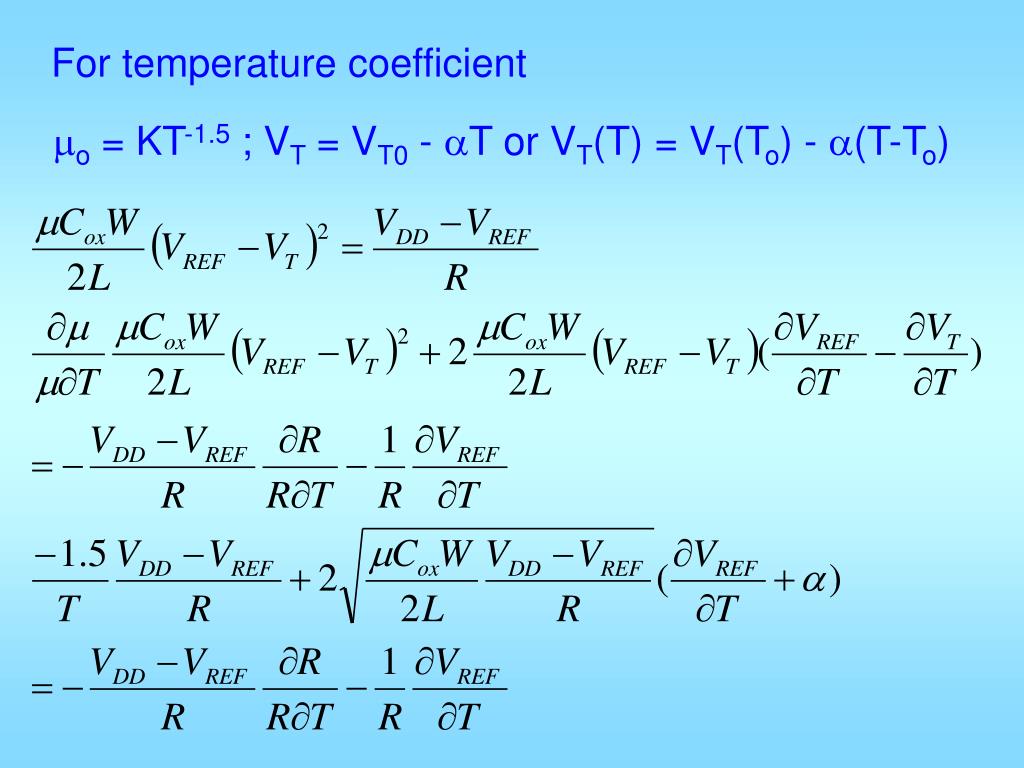

  16. For temperature coefficient mo = KT-1.5 ; VT = VT0 - aT or VT(T) = VT(To) - a(T-To)

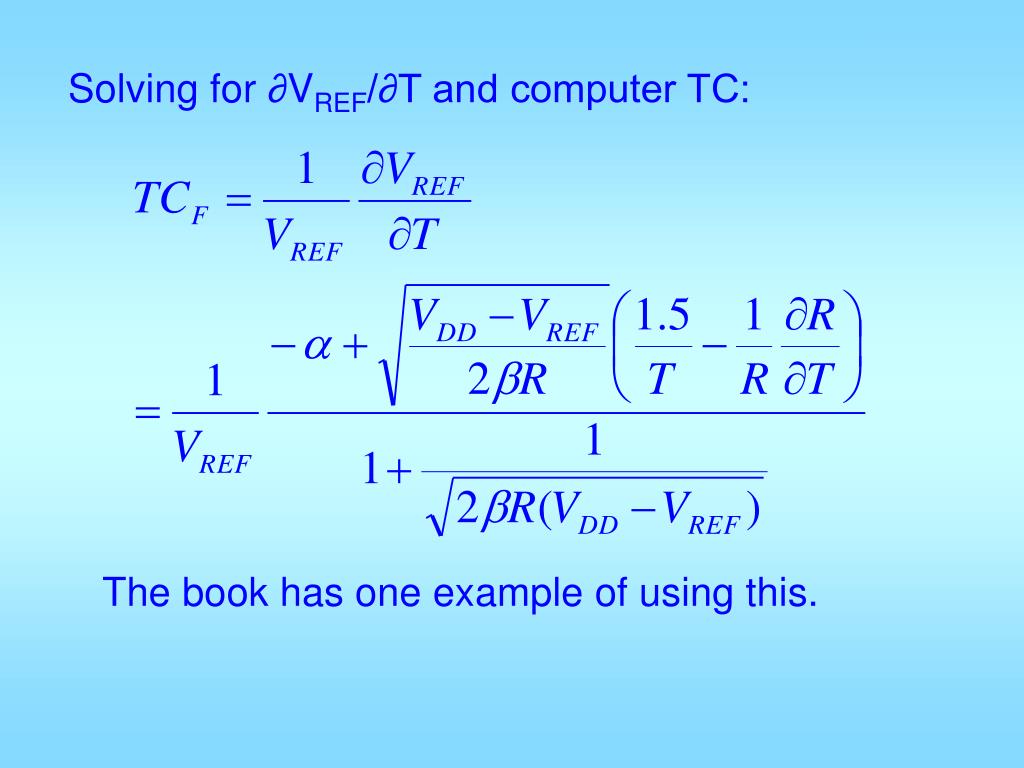

  17. Solving for ∂VREF/∂T and computer TC: The book has one example of using this.

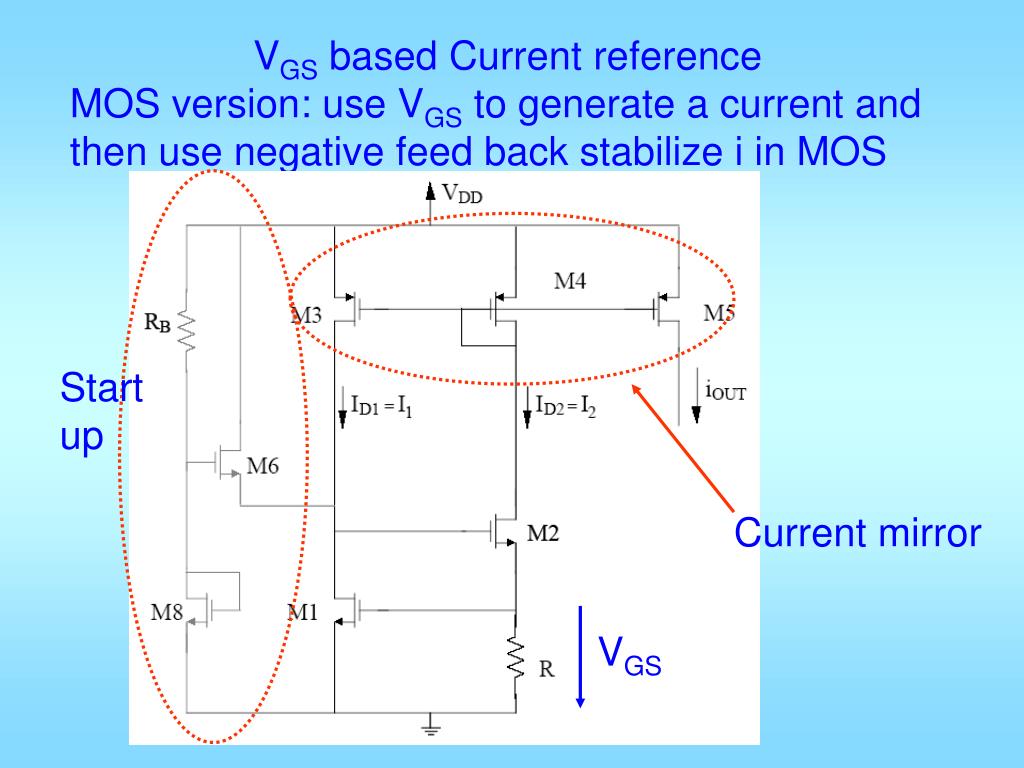

  18. VGS based Current reference MOS version: use VGS to generate a current and then use negative feed back stabilize i in MOS Start up Current mirror VGS

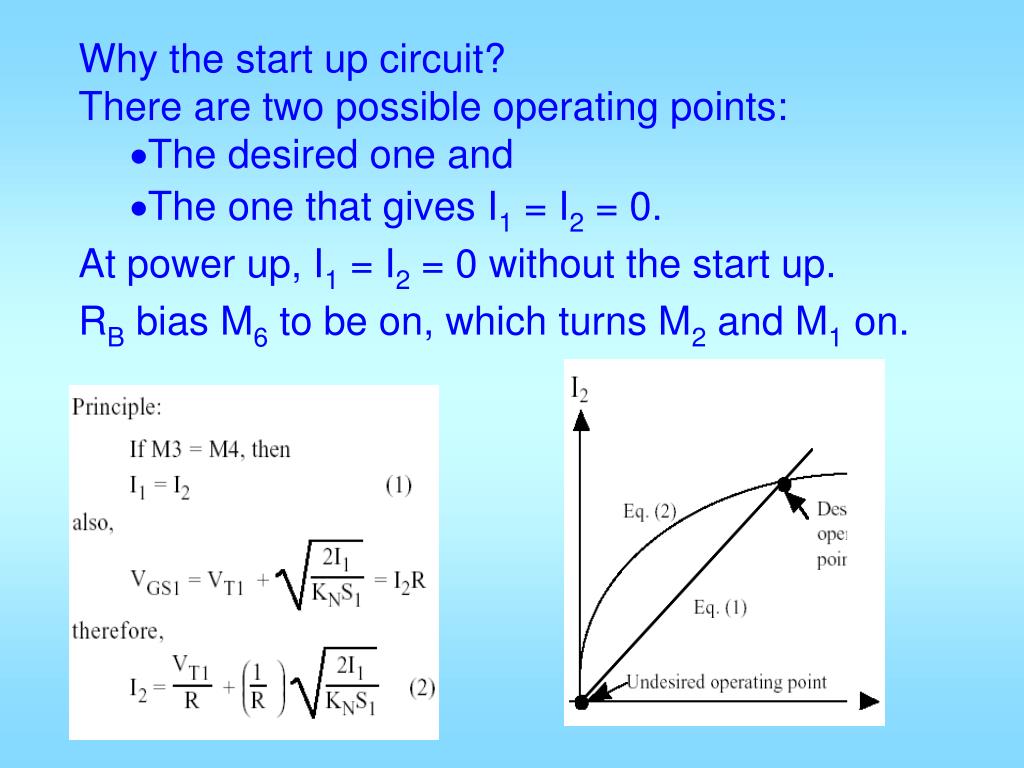

  19. Why the start up circuit? • There are two possible operating points: • The desired one and • The one that gives I1 = I2 = 0. • At power up, I1 = I2 = 0 without the start up. • RB bias M6 to be on, which turns M2 and M1 on.

  20. Considering the l-effect, (1) is more like: Then: Differentiating wrt VDD and assuming constant VDS1 and VGS4 gives the sensitivity of IOUT wrt VDD.

  21. HW: Verify the following sensitivity expression: HW: Find approximately the temperature coefficient of Iout

  22. Start up Current mirror VGS

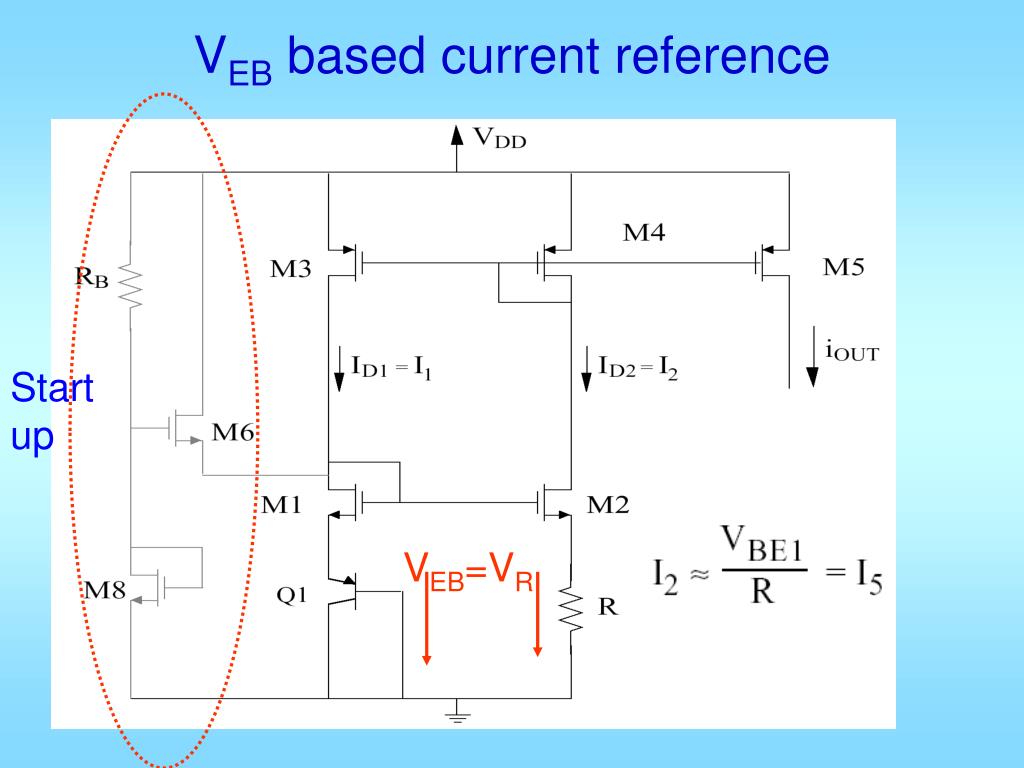

  23. VEB based current reference Start up VEB=VR

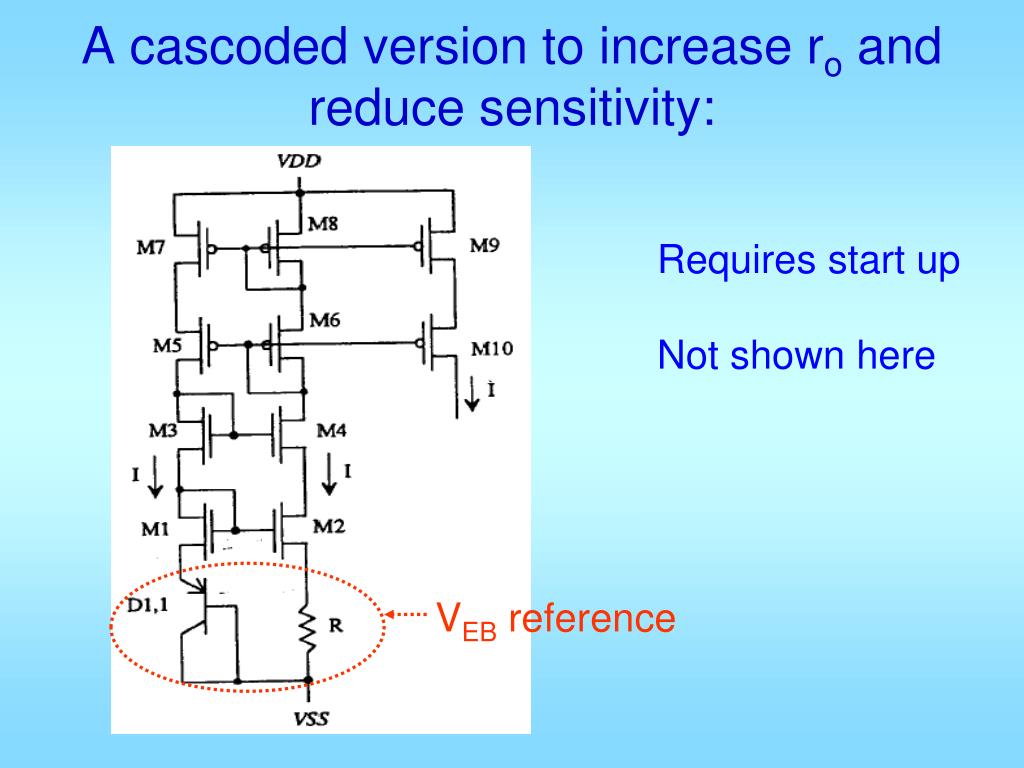

  24. A cascoded version to increase ro and reduce sensitivity: Requires start up Not shown here VEB reference

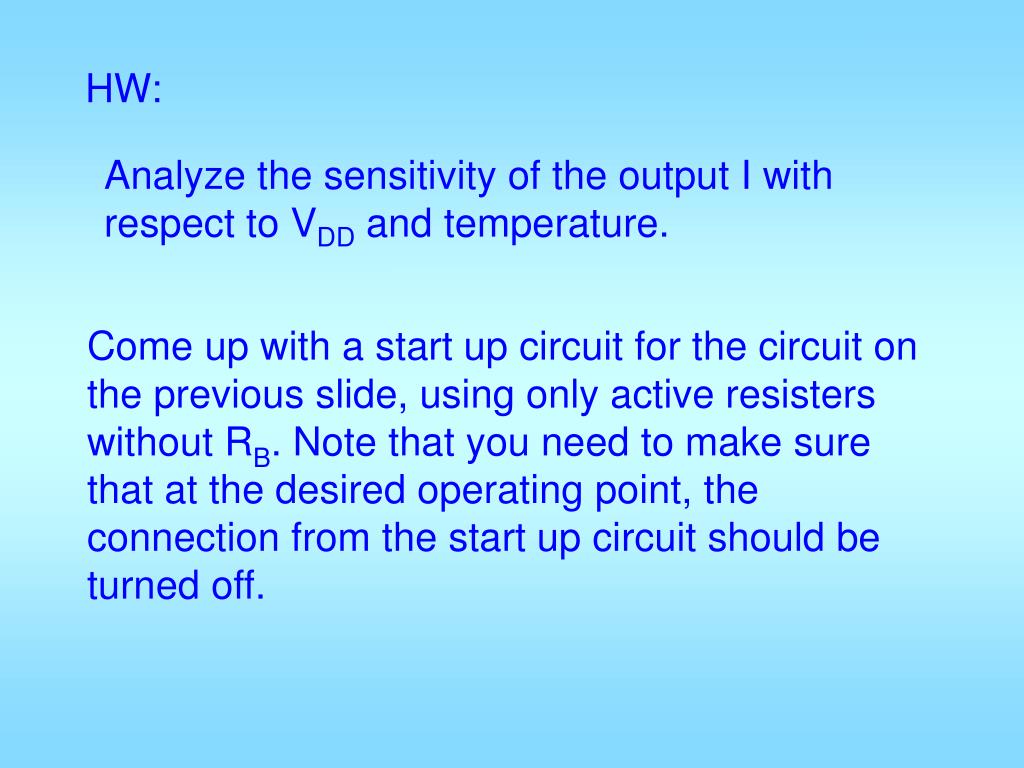

  25. HW: Analyze the sensitivity of the output I with respect to VDD and temperature. Come up with a start up circuit for the circuit on the previous slide, using only active resisters without RB. Note that you need to make sure that at the desired operating point, the connection from the start up circuit should be turned off.

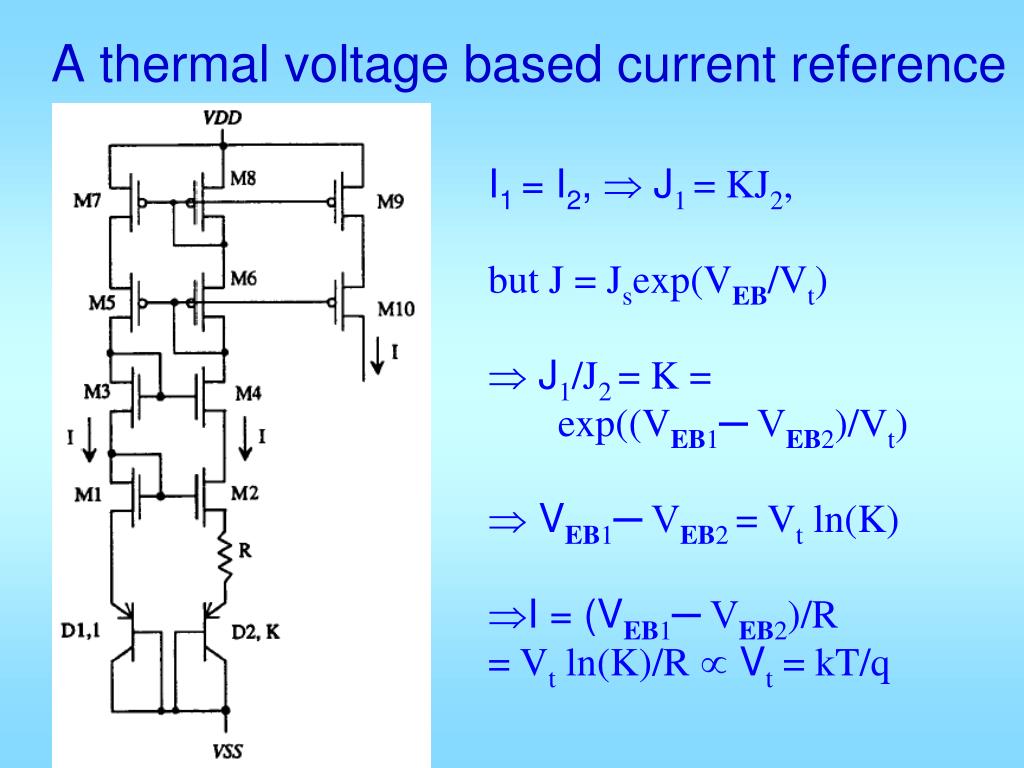

  26. A thermal voltage based current reference I1 = I2,  J1 = KJ2, but J = Jsexp(VEB/Vt)  J1/J2 = K = exp((VEB1─ VEB2)/Vt)  VEB1─ VEB2 = Vt ln(K) I = (VEB1─ VEB2)/R = Vt ln(K)/R  Vt = kT/q

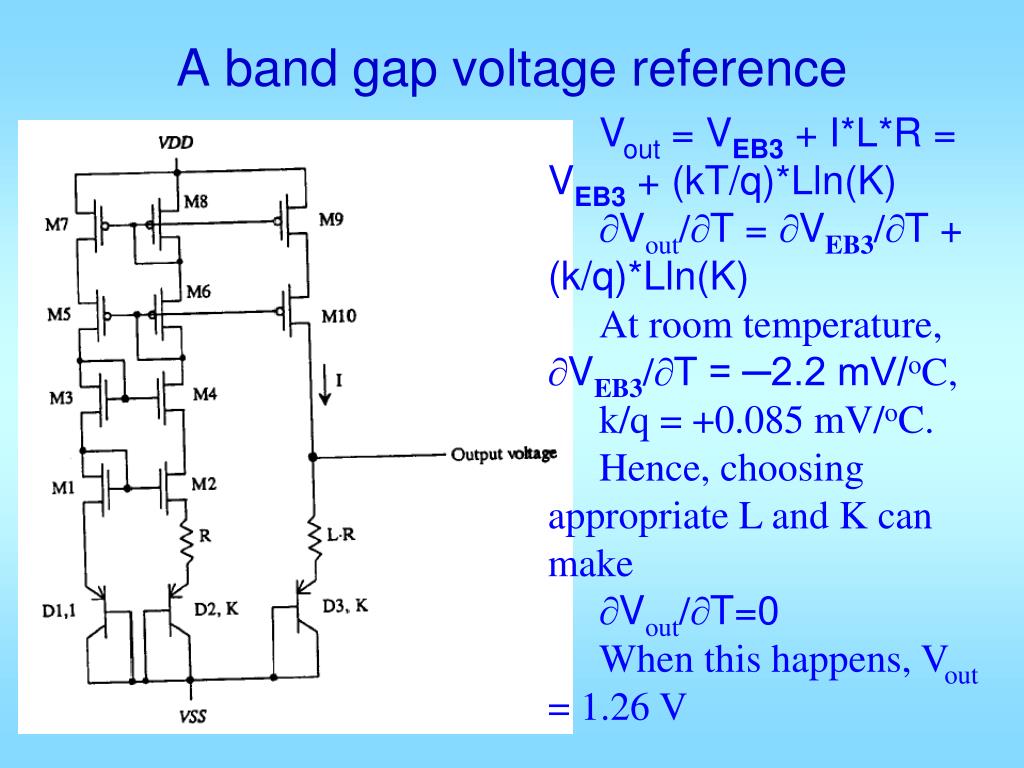

  27. A band gap voltage reference Vout = VEB3 + I*L*R = VEB3 + (kT/q)*Lln(K) Vout/T = VEB3/T + (k/q)*Lln(K) At room temperature, VEB3/T = ─2.2 mV/oC, k/q = +0.085 mV/oC. Hence, choosing appropriate L and K can make Vout/T=0 When this happens, Vout = 1.26 V
