  1. COMP2121 Internet Technology Richard Henson University of Worcester March 2011

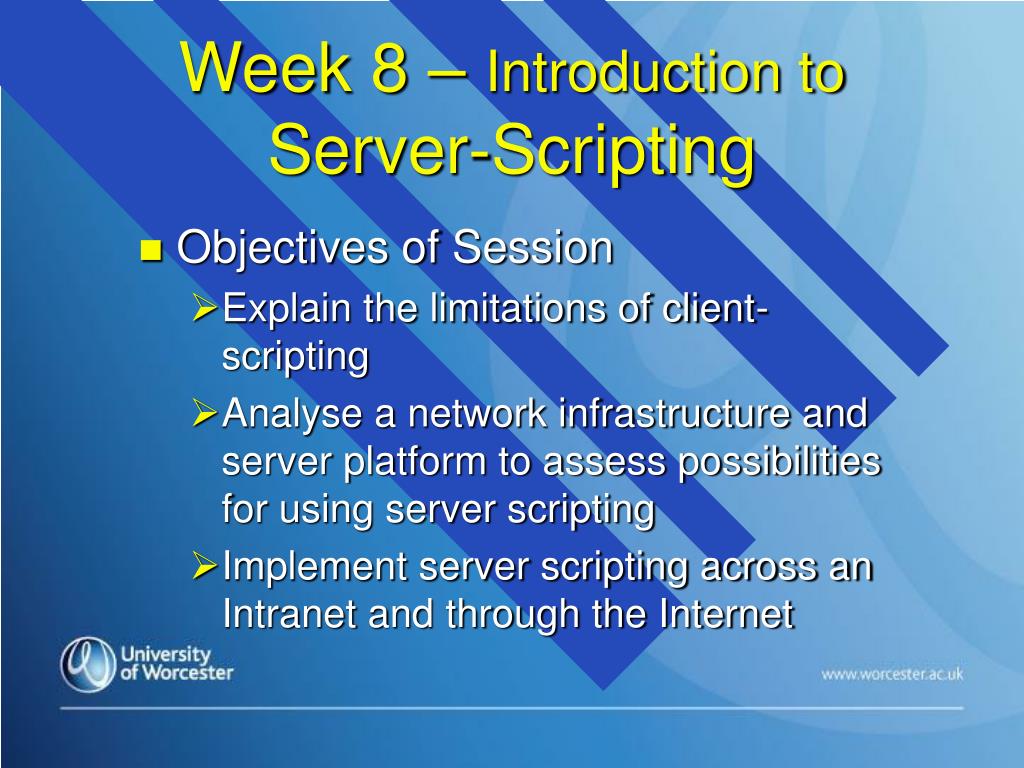

  2. Week 8 – Introduction to Server-Scripting • Objectives of Session • Explain the limitations of client-scripting • Analyse a network infrastructure and server platform to assess possibilities for using server scripting • Implement server scripting across an Intranet and through the Internet

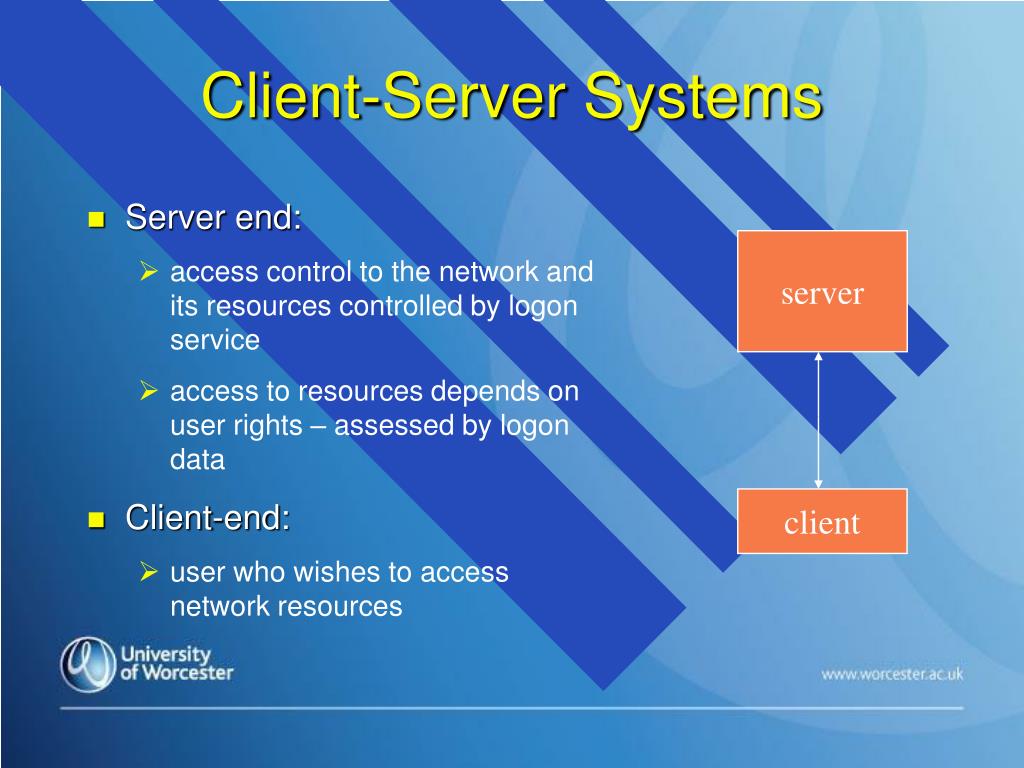

  3. Client-Server Systems • Server end: • access control to the network and its resources controlled by logon service • access to resources depends on user rights – assessed by logon data • Client-end: • user who wishes to access network resources server client

  4. Requests and responses Client requests information Server processes the request, sends a response back to the client

  5. Bandwidth and Client/Server processes • Messages transferred between client and server via network

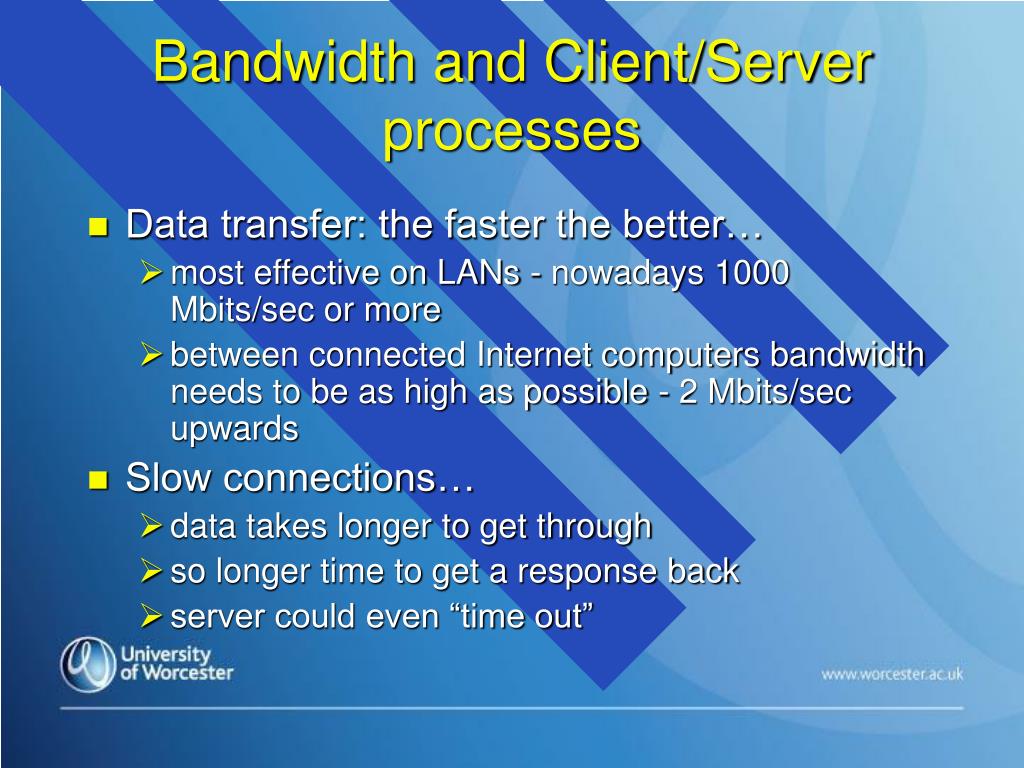

  6. Bandwidth and Client/Server processes • Data transfer: the faster the better… • most effective on LANs - nowadays 1000 Mbits/sec or more • between connected Internet computers bandwidth needs to be as high as possible - 2 Mbits/sec upwards • Slow connections… • data takes longer to get through • so longer time to get a response back • server could even “time out”

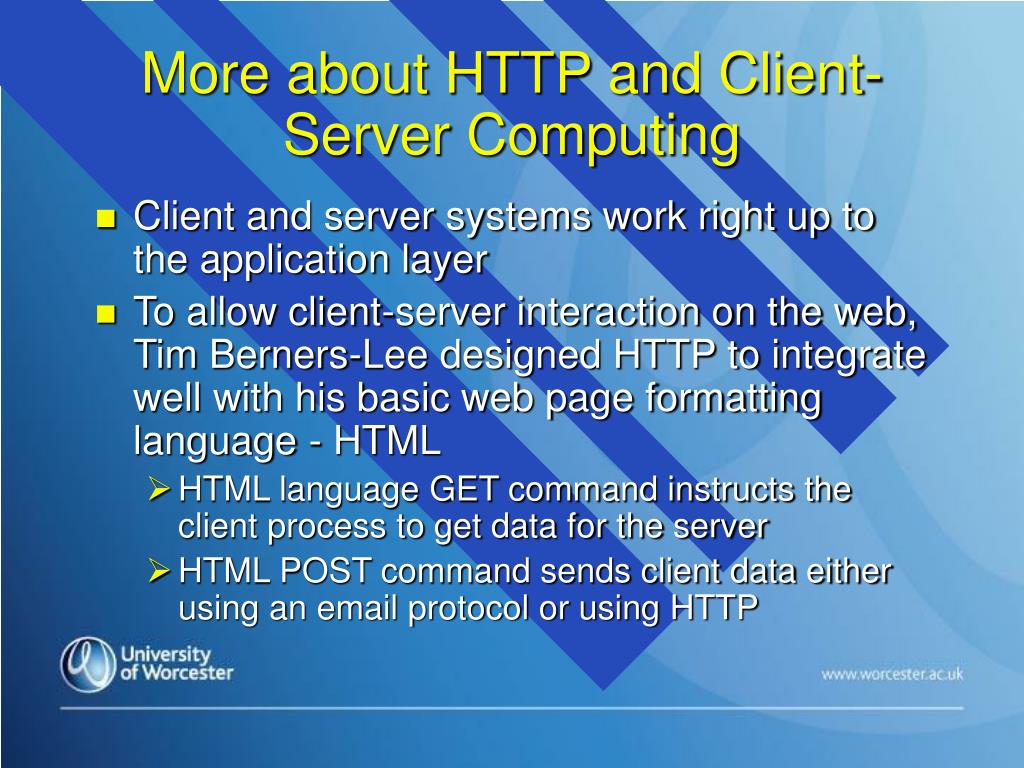

  7. More about HTTP and Client-Server Computing • Client and server systems work right up to the application layer • To allow client-server interaction on the web, Tim Berners-Lee designed HTTP to integrate well with his basic web page formatting language - HTML • HTML language GET command instructs the client process to get data for the server • HTML POST command sends client data either using an email protocol or using HTTP

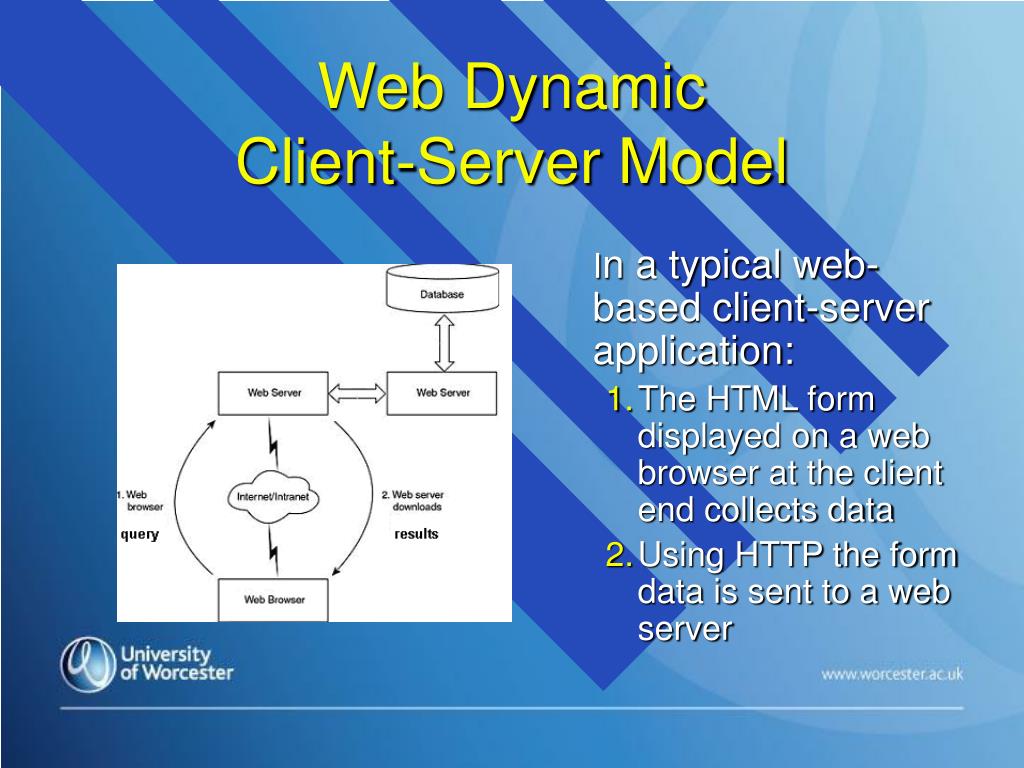

  8. Web Dynamic Client-Server Model In a typical web-based client-server application: • The HTML form displayed on a web browser at the client end collects data • Using HTTP the form data is sent to a web server

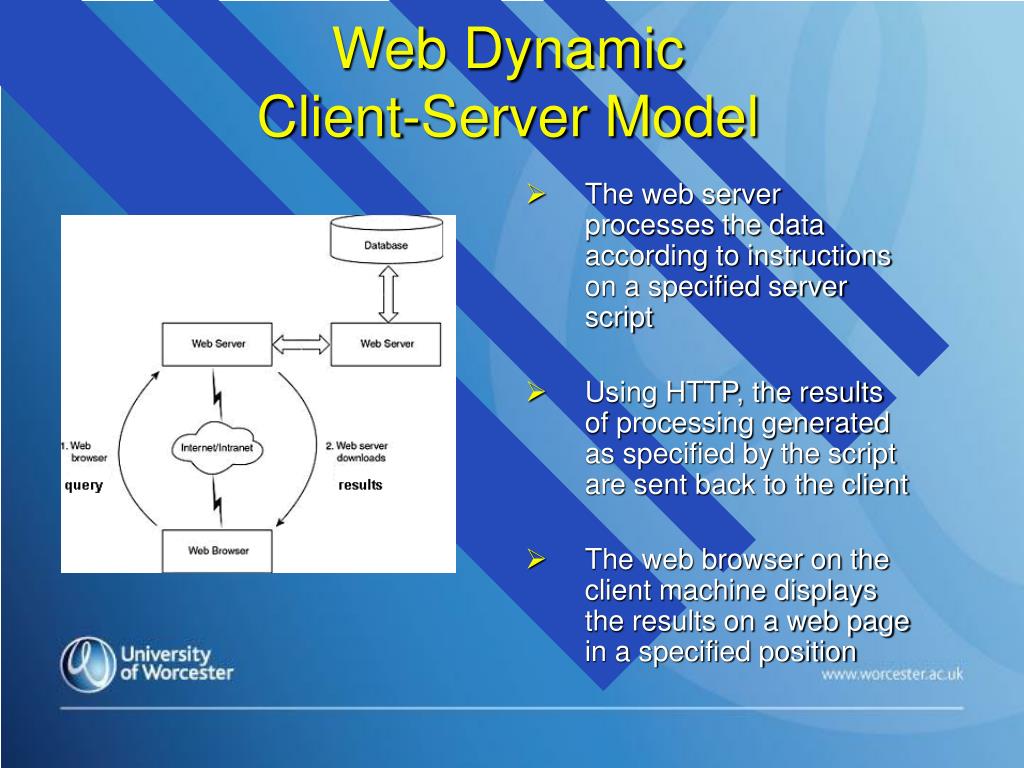

  9. Web Dynamic Client-Server Model • The web server processes the data according to instructions on a specified server script • Using HTTP, the results of processing generated as specified by the script are sent back to the client • The web browser on the client machine displays the results on a web page in a specified position

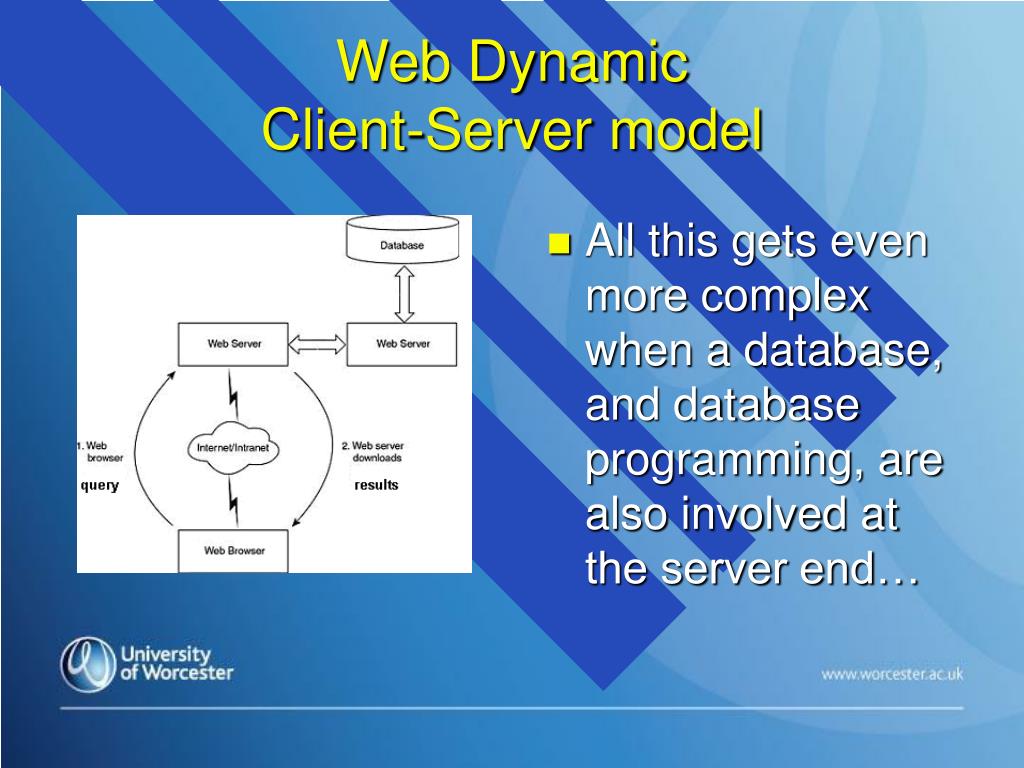

  10. Web Dynamic Client-Server model • All this gets even more complex when a database, and database programming, are also involved at the server end…

  11. Server-scripting and dynamic pages on The Web • The following apply to ALL types of scripting used on the web… • scripts need to use real programming code • note: HTML is a FORMATTING language, NOT a programming language • both client and server ends have programming code: • client end…embedded within a HTML page • server end… could be embedded or separate

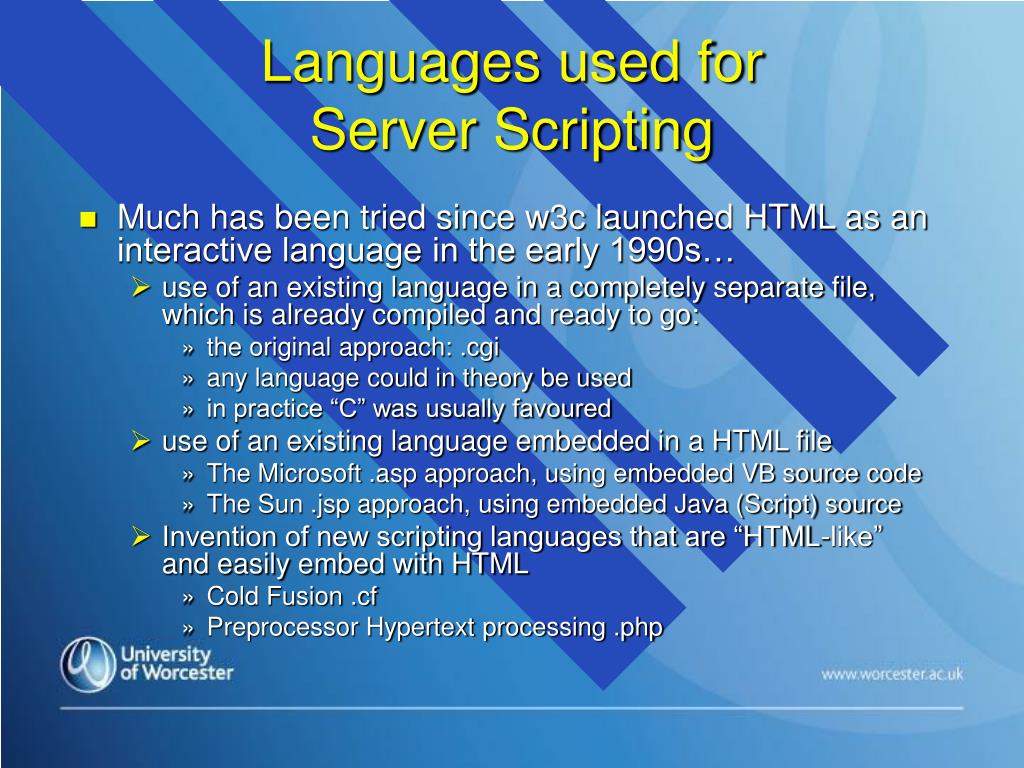

  12. Languages used for Server Scripting • Much has been tried since w3c launched HTML as an interactive language in the early 1990s… • use of an existing language in a completely separate file, which is already compiled and ready to go: • the original approach: .cgi • any language could in theory be used • in practice “C” was usually favoured • use of an existing language embedded in a HTML file • The Microsoft .asp approach, using embedded VB source code • The Sun .jsp approach, using embedded Java (Script) source • Invention of new scripting languages that are “HTML-like” and easily embed with HTML • Cold Fusion .cf • Preprocessor Hypertext processing .php

  13. Microsoft’s first attempt at server scripting… • In 1996, Microsoft introduced active server pages (asp) • hugely successful (VB very popular…) • soon became more popular than .cgi • However, in spite of the great success of asp, big problems were emerging… • by 2000, hackers were attacking Microsoft servers and finding many security holes in IIS • Microsoft only coped by offering hotfixes • further problem: use of VB source code • if server not secure, code could be copied or compromised • Scripts could not be truly “object oriented”

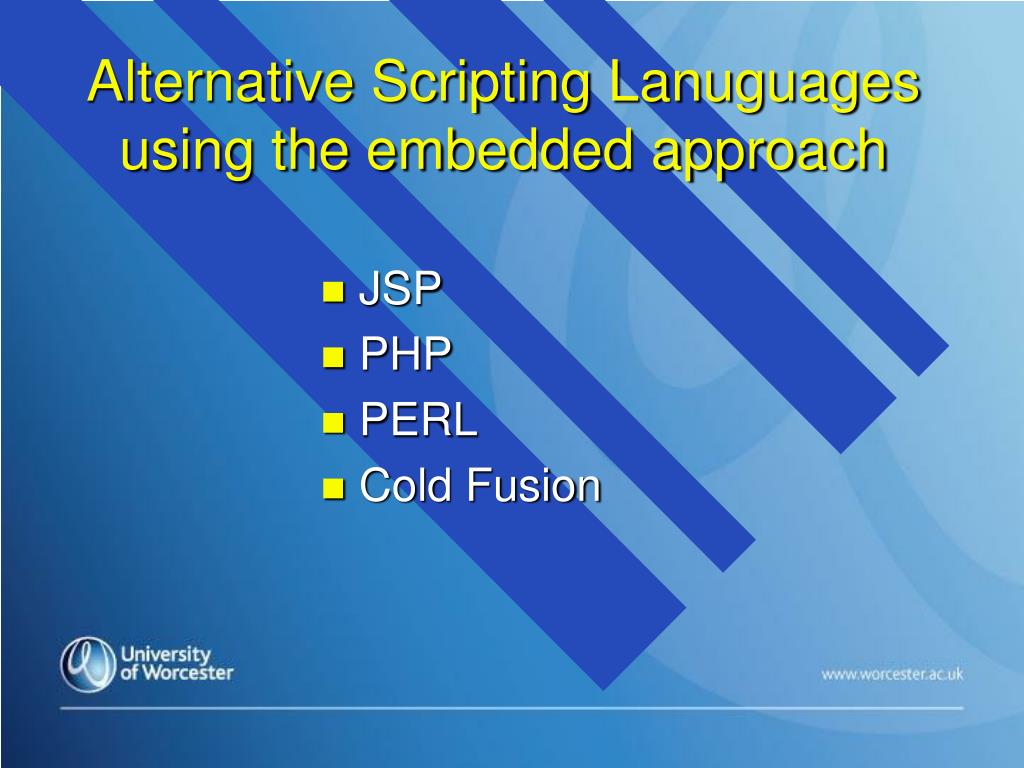

  14. Alternative Scripting Lanuguages using the embedded approach • JSP • PHP • PERL • Cold Fusion

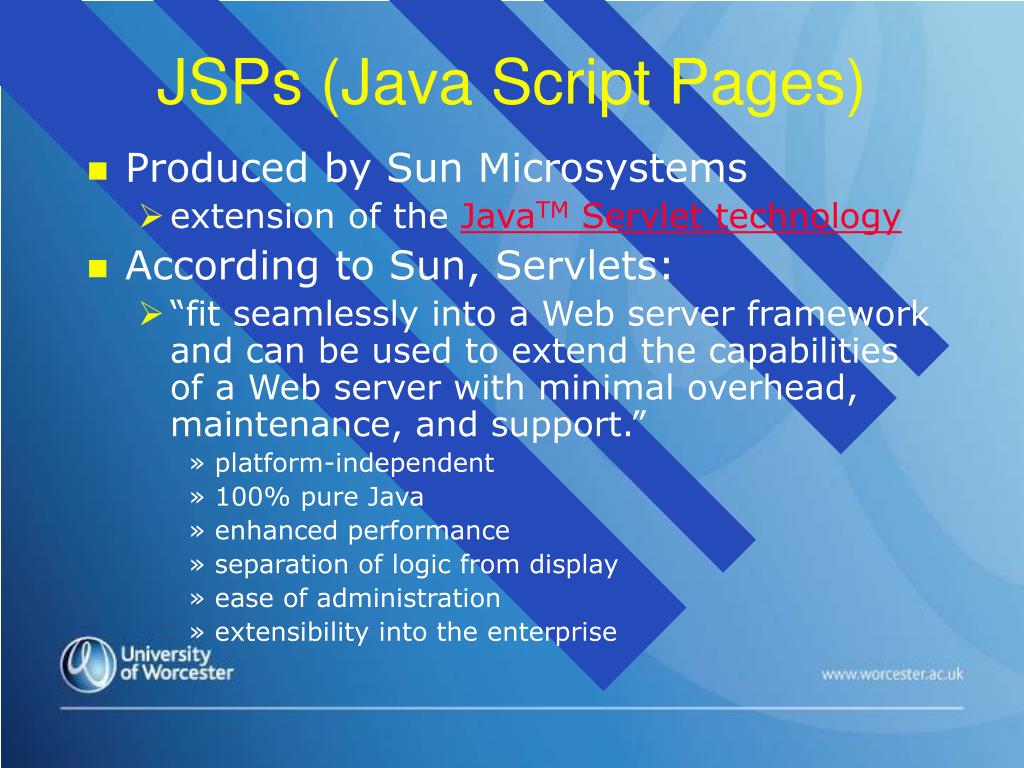

  15. JSPs (Java Script Pages) • Produced by Sun Microsystems • extension of the JavaTM Servlet technology • According to Sun, Servlets: • “fit seamlessly into a Web server framework and can be used to extend the capabilities of a Web server with minimal overhead, maintenance, and support.” • platform-independent • 100% pure Java • enhanced performance • separation of logic from display • ease of administration • extensibility into the enterprise

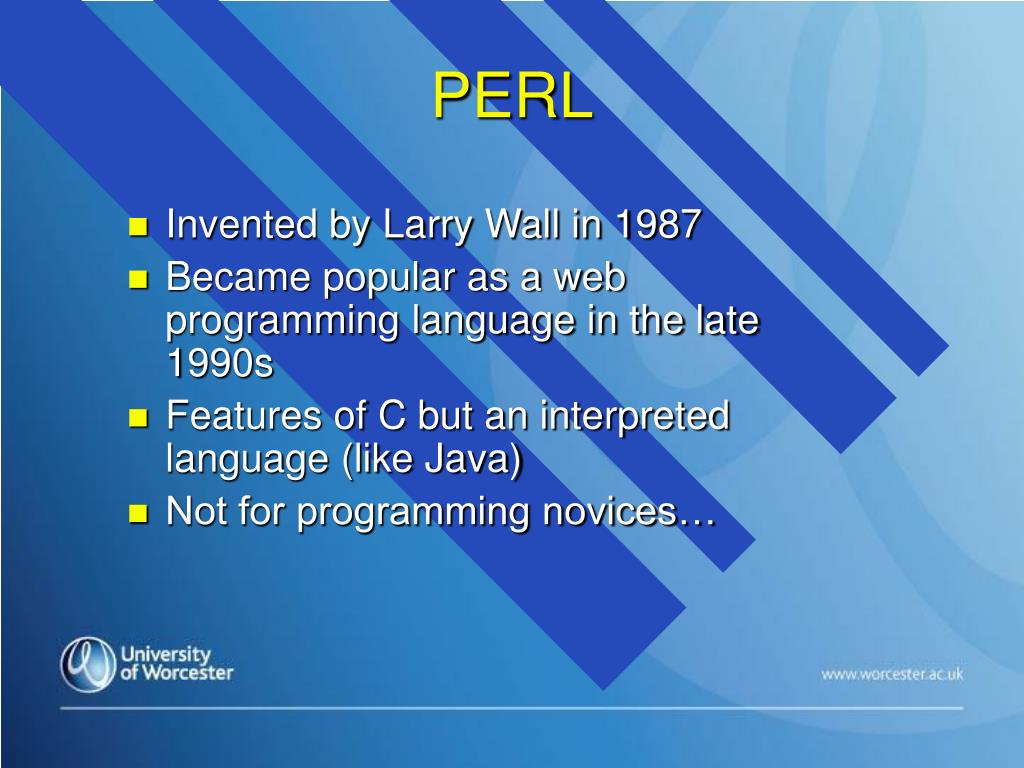

  16. PERL • Invented by Larry Wall in 1987 • Became popular as a web programming language in the late 1990s • Features of C but an interpreted language (like Java) • Not for programming novices…

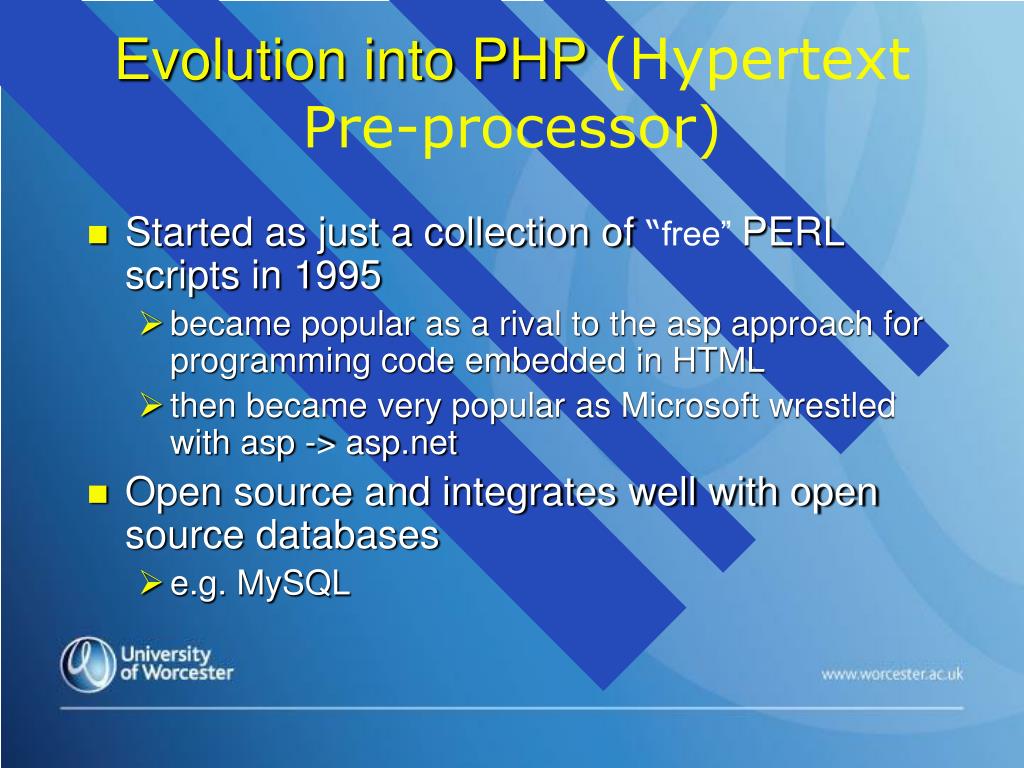

  17. Evolution into PHP (Hypertext Pre-processor) • Started as just a collection of “free” PERL scripts in 1995 • became popular as a rival to the asp approach for programming code embedded in HTML • then became very popular as Microsoft wrestled with asp -> asp.net • Open source and integrates well with open source databases • e.g. MySQL

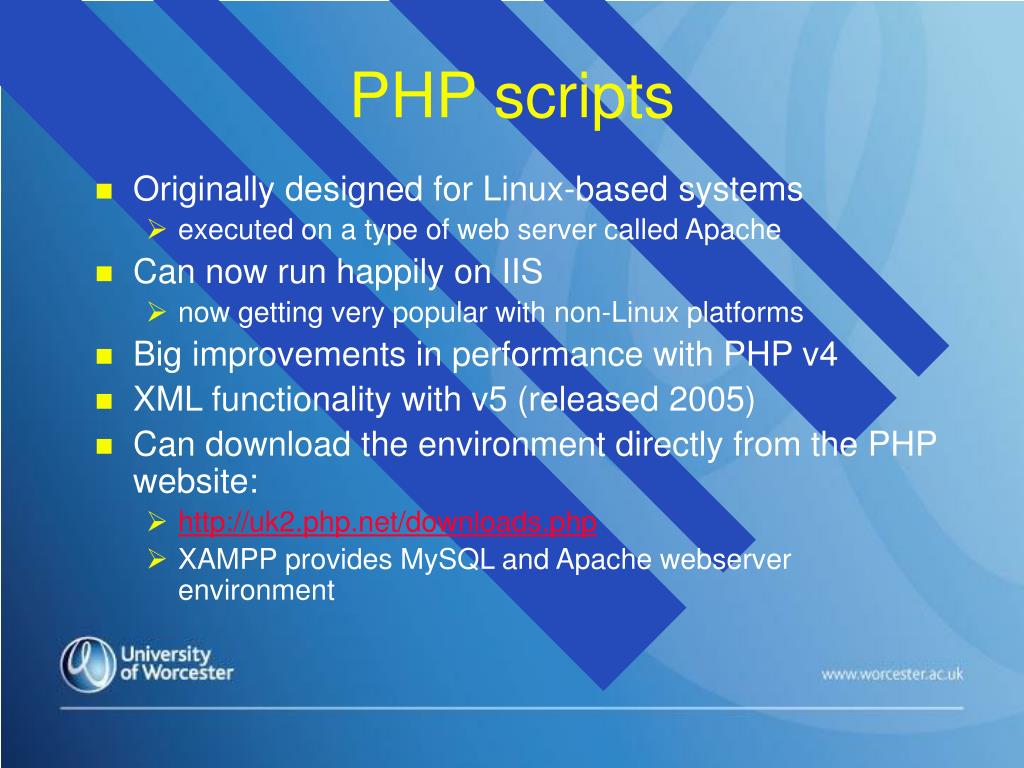

  18. PHP scripts • Originally designed for Linux-based systems • executed on a type of web server called Apache • Can now run happily on IIS • now getting very popular with non-Linux platforms • Big improvements in performance with PHP v4 • XML functionality with v5 (released 2005) • Can download the environment directly from the PHP website: • http://uk2.php.net/downloads.php • XAMPP provides MySQL and Apache webserver environment

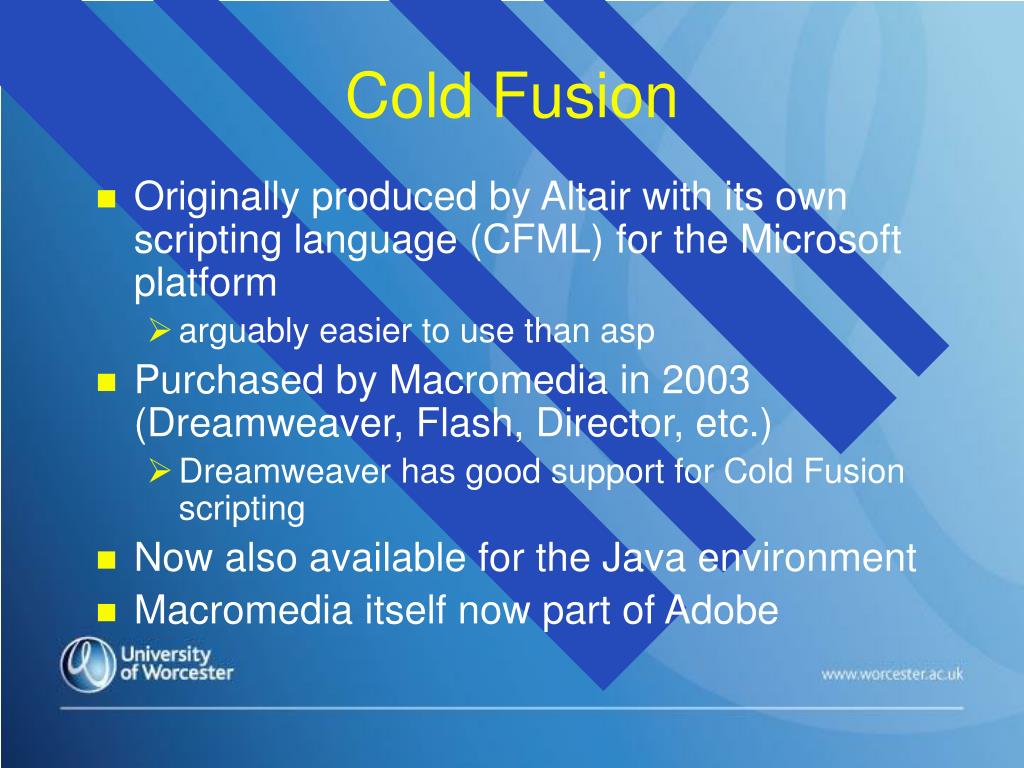

  19. Cold Fusion • Originally produced by Altair with its own scripting language (CFML) for the Microsoft platform • arguably easier to use than asp • Purchased by Macromedia in 2003 (Dreamweaver, Flash, Director, etc.) • Dreamweaver has good support for Cold Fusion scripting • Now also available for the Java environment • Macromedia itself now part of Adobe

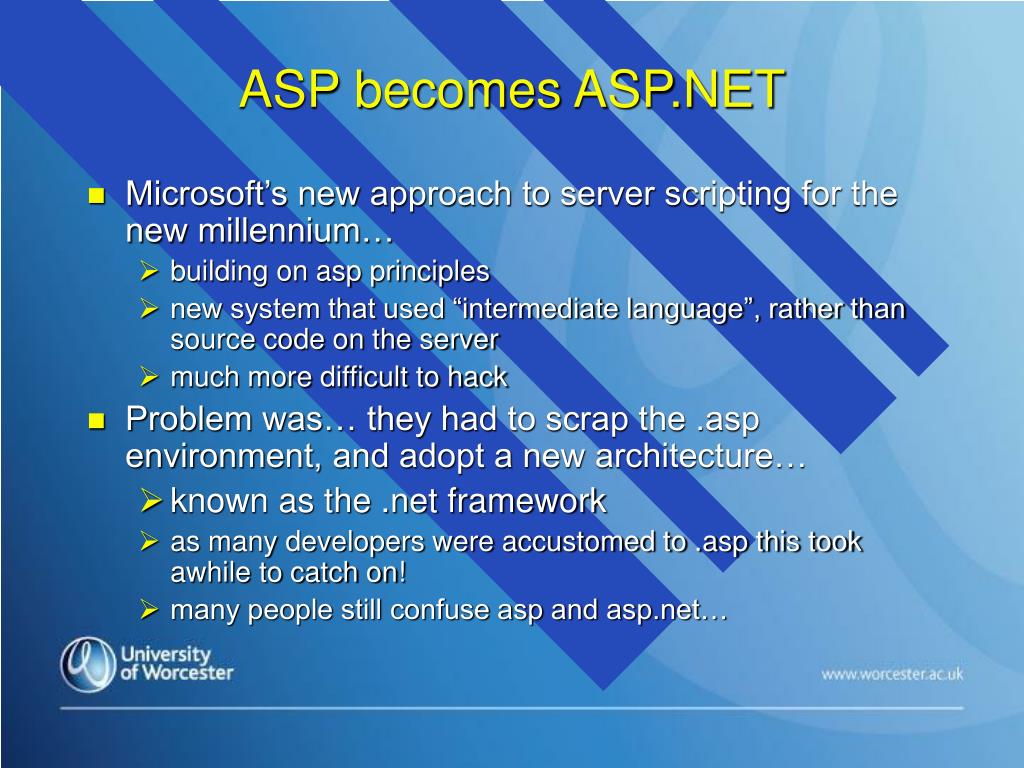

  20. ASP becomes ASP.NET • Microsoft’s new approach to server scripting for the new millennium… • building on asp principles • new system that used “intermediate language”, rather than source code on the server • much more difficult to hack • Problem was… they had to scrap the .asp environment, and adopt a new architecture… • known as the .net framework • as many developers were accustomed to .asp this took awhile to catch on! • many people still confuse asp and asp.net…

  21. Evolution of .net framework (2001) • Version 1.1 • intermediate language • run-time environment for scripts • compiled code can’t easily be hacked • Programming Code can be separated from HTML; • as with cgi… • but without degradation in performance • Web controls introduced by drag-and-drop for ease of development • XML can replace HTML code…

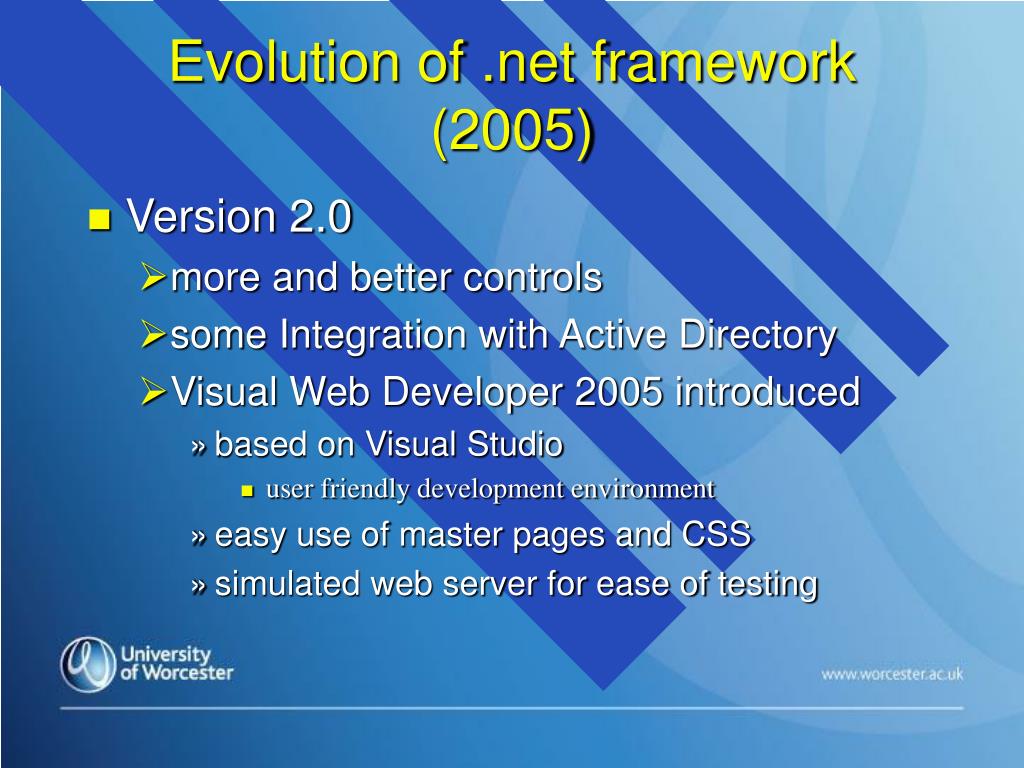

  22. Evolution of .net framework (2005) • Version 2.0 • more and better controls • some Integration with Active Directory • Visual Web Developer 2005 introduced • based on Visual Studio • user friendly development environment • easy use of master pages and CSS • simulated web server for ease of testing

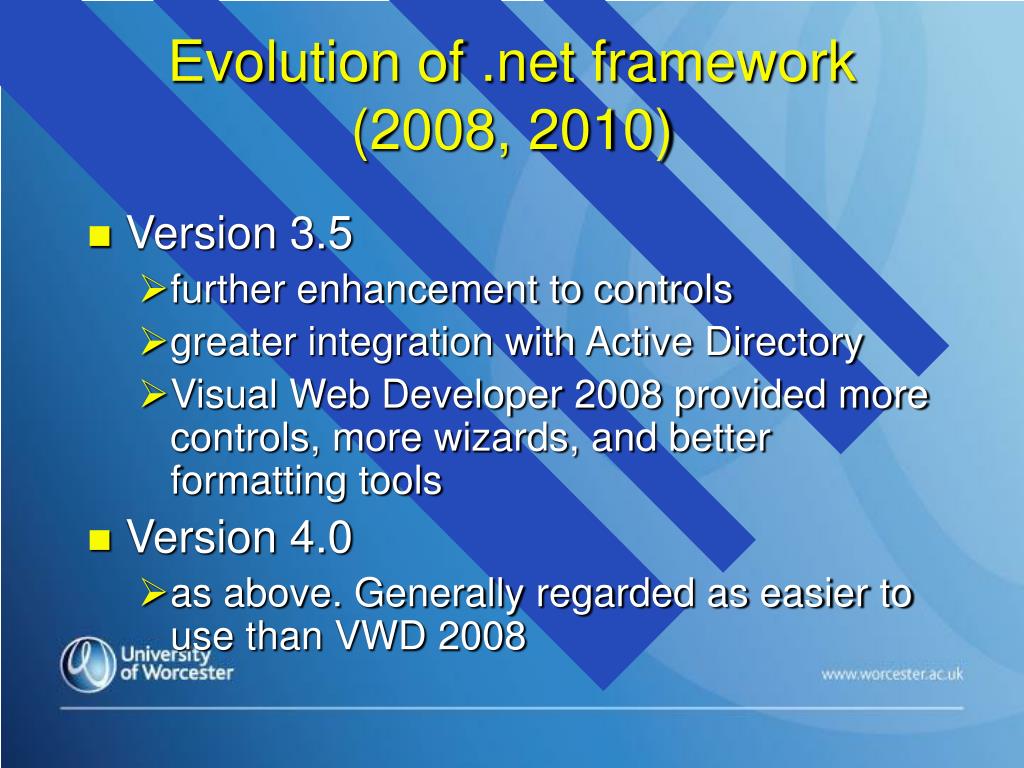

  23. Evolution of .net framework (2008, 2010) • Version 3.5 • further enhancement to controls • greater integration with Active Directory • Visual Web Developer 2008 provided more controls, more wizards, and better formatting tools • Version 4.0 • as above. Generally regarded as easier to use than VWD 2008

  24. PHPs & asp.net today • PHPs attractive for serious programmers who dislike the Microsoft approach… • integration of cut-and-paste code still needs an environment like Dreamweaver • Industry view (post-millenium) • Unix-based Servers running PHPs considered to be more secure against hackers than Windows 2000/IIS running asp • asp.net running on Windows 2003/IIS v6/7 later accepted as being a very stable platform • Both widely in use today…

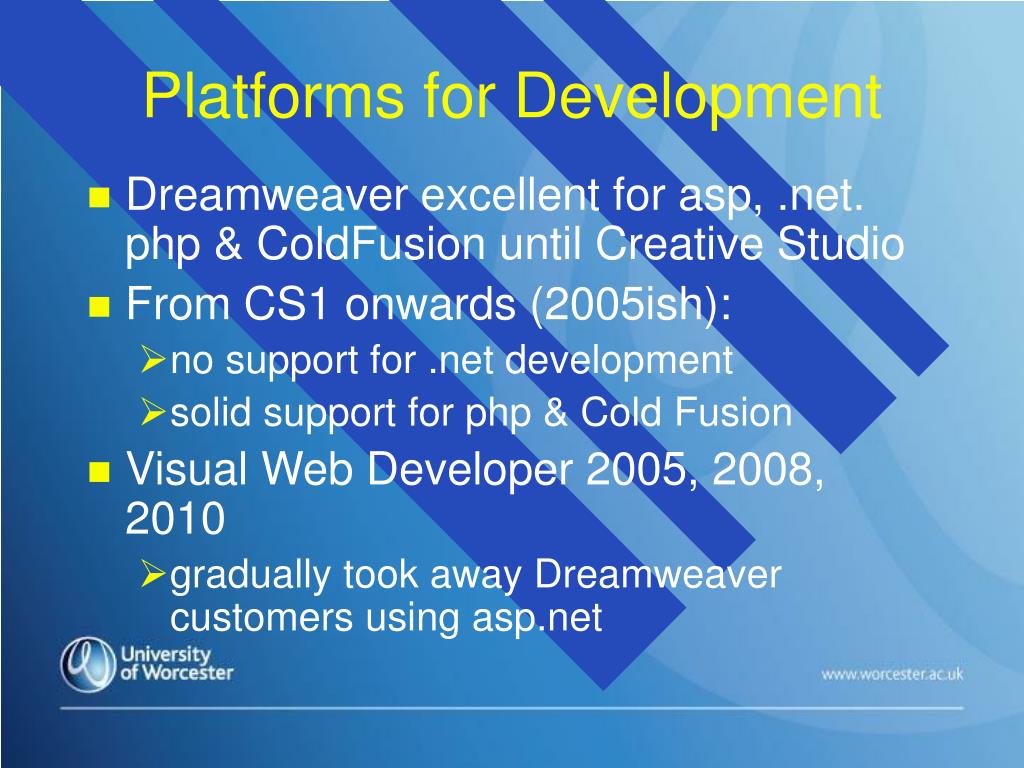

  25. Platforms for Development • Dreamweaver excellent for asp, .net. php & ColdFusion until Creative Studio • From CS1 onwards (2005ish): • no support for .net development • solid support for php & Cold Fusion • Visual Web Developer 2005, 2008, 2010 • gradually took away Dreamweaver customers using asp.net

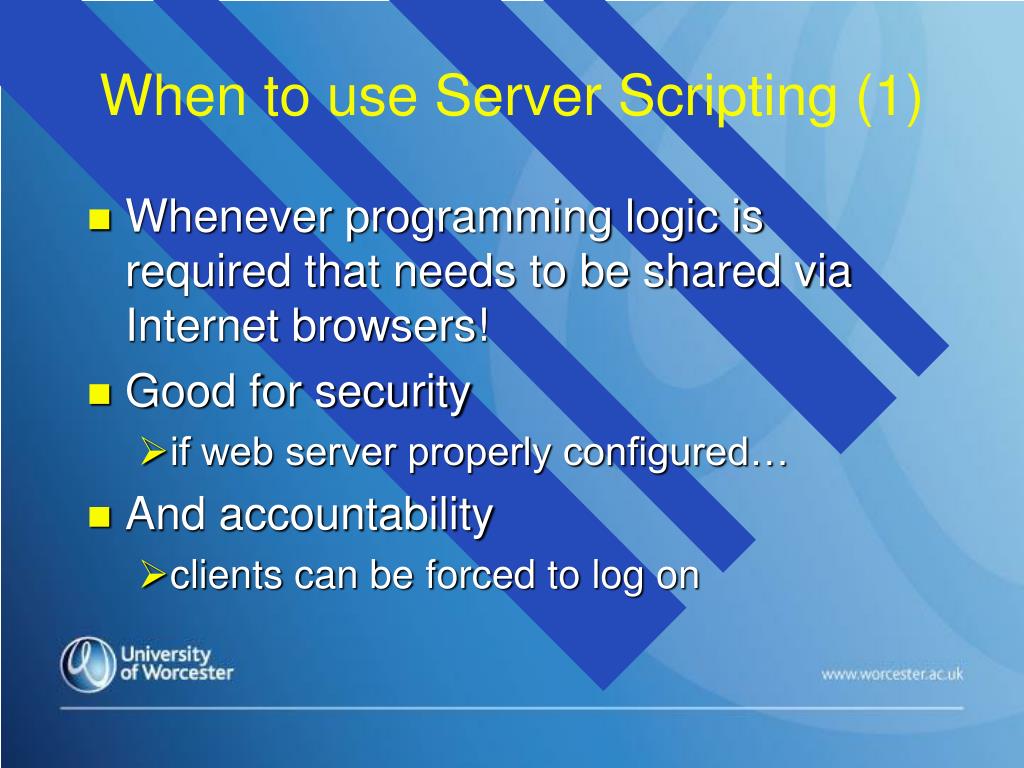

  26. When to use Server Scripting (1) • Whenever programming logic is required that needs to be shared via Internet browsers! • Good for security • if web server properly configured… • And accountability • clients can be forced to log on

  27. When to use Server Scripting (2) • When client end lacks storage & processing power • fits well with the thin client model for web & network computing • very popular for massively multiplayer games • Client just sends the requests and asks the questions • server does the processing and provides the web pages with answers/responses to requests

  28. When to use Server Scripting (3) • Whenever centralised data storage & processing is needed to support activities of a website • essential for security of sensitive data • waste of space and resources to store & process databases locally

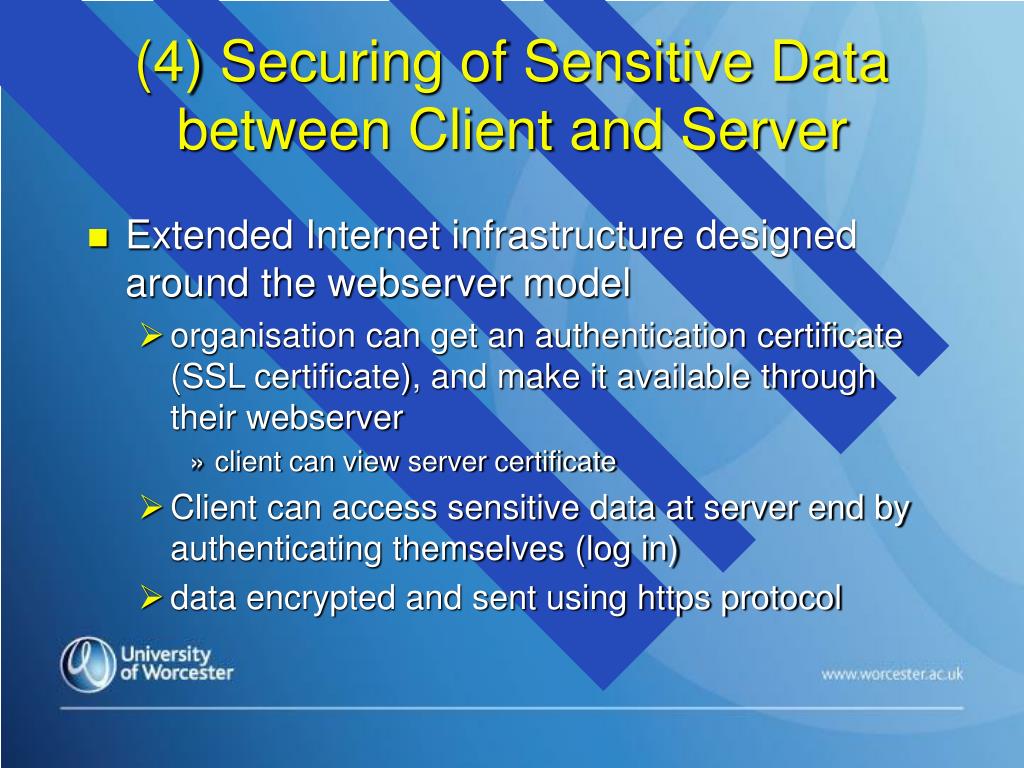

  29. (4) Securing of Sensitive Data between Client and Server • Extended Internet infrastructure designed around the webserver model • organisation can get an authentication certificate (SSL certificate), and make it available through their webserver • client can view server certificate • Client can access sensitive data at server end by authenticating themselves (log in) • data encrypted and sent using https protocol

  30. Platforms for developing a website running server-scripts • Computer capable of supporting Windows XP/2003/Vista/7 or an equivalent Unix-based operating system • TCP/IP protocol stack running on server • Web Server software such as: • Internet Information Server • Apache • Broadband connection to the Internet

  31. Typical Infrastructure for putting Server Scripting online • Make sure the internal “client-server” computer network is secure • EITHER use the firewall/proxy server as a router to separate the internal (local) network from the External (i.e. Internet) network • OR, if OSI level 3-4 protocol conversion needed, use a gateway • converts data into appropriate protocol and diverts it between the Internet and the local network • can be used to link networks running different protocols

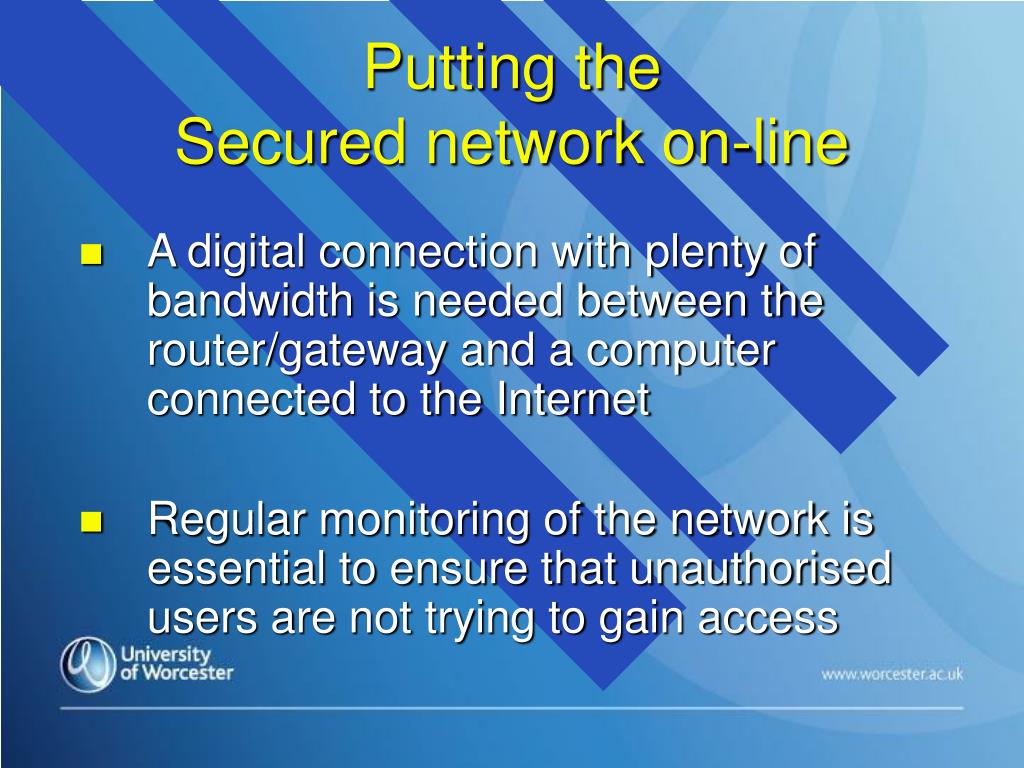

  32. Putting the Secured network on-line • A digital connection with plenty of bandwidth is needed between the router/gateway and a computer connected to the Internet • Regular monitoring of the network is essential to ensure that unauthorised users are not trying to gain access

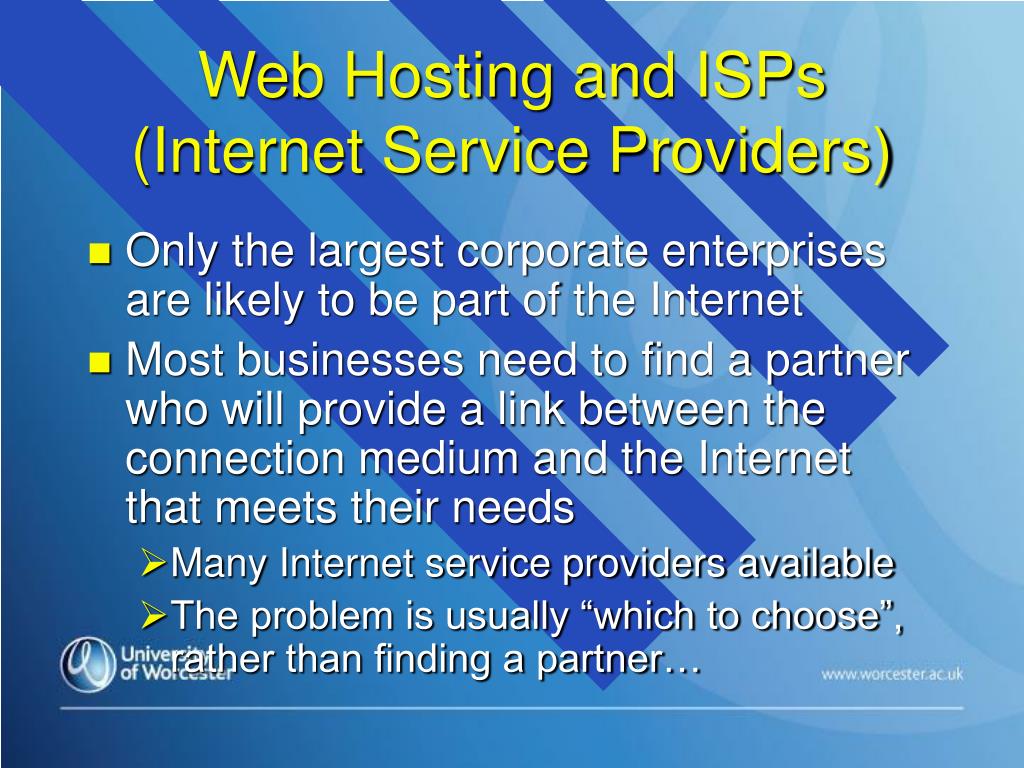

  33. Web Hosting and ISPs (Internet Service Providers) • Only the largest corporate enterprises are likely to be part of the Internet • Most businesses need to find a partner who will provide a link between the connection medium and the Internet that meets their needs • Many Internet service providers available • The problem is usually “which to choose”, rather than finding a partner…

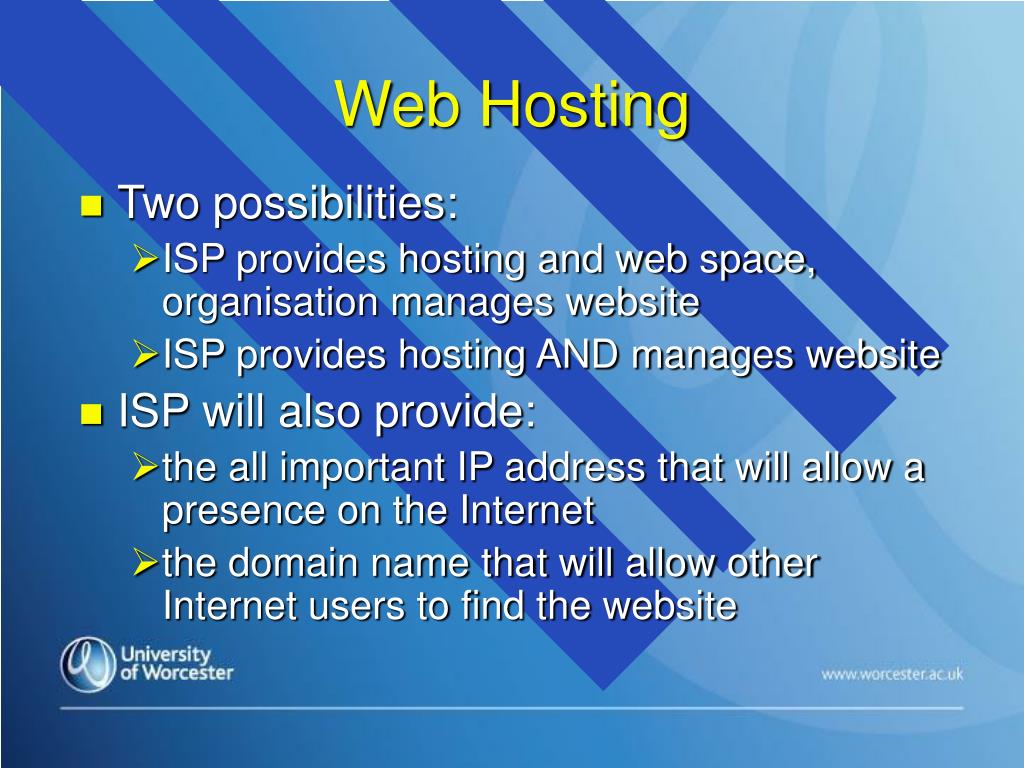

  34. Web Hosting • Two possibilities: • ISP provides hosting and web space, organisation manages website • ISP provides hosting AND manages website • ISP will also provide: • the all important IP address that will allow a presence on the Internet • the domain name that will allow other Internet users to find the website

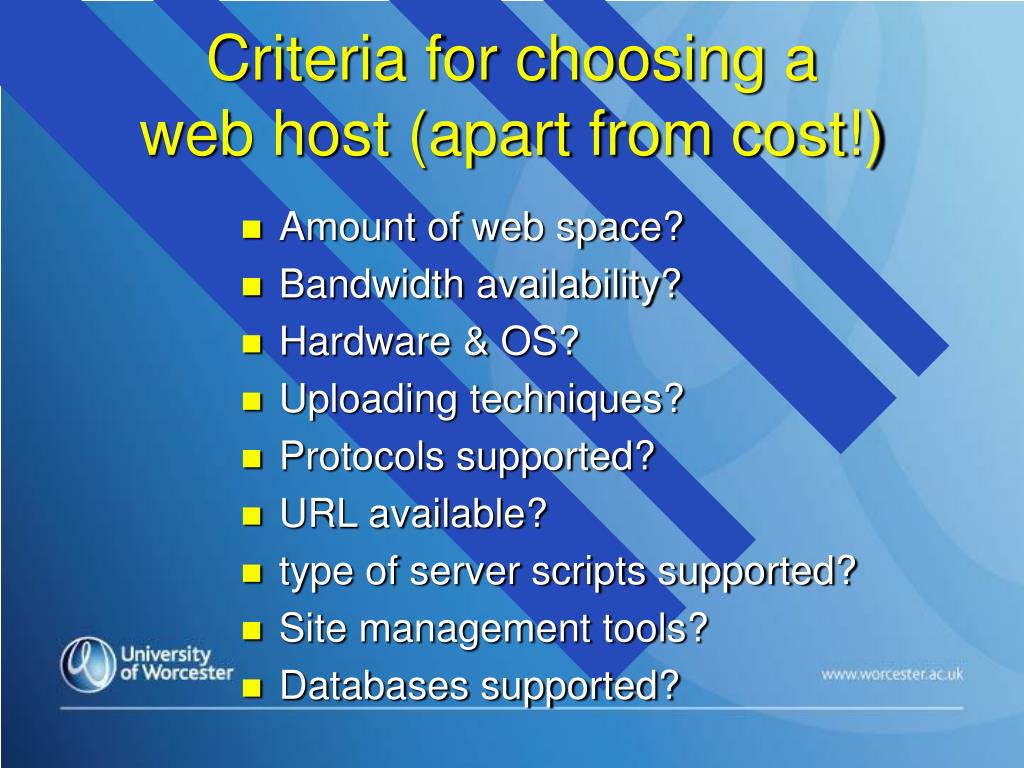

  35. Criteria for choosing a web host (apart from cost!) • Amount of web space? • Bandwidth availability? • Hardware & OS? • Uploading techniques? • Protocols supported? • URL available? • type of server scripts supported? • Site management tools? • Databases supported?

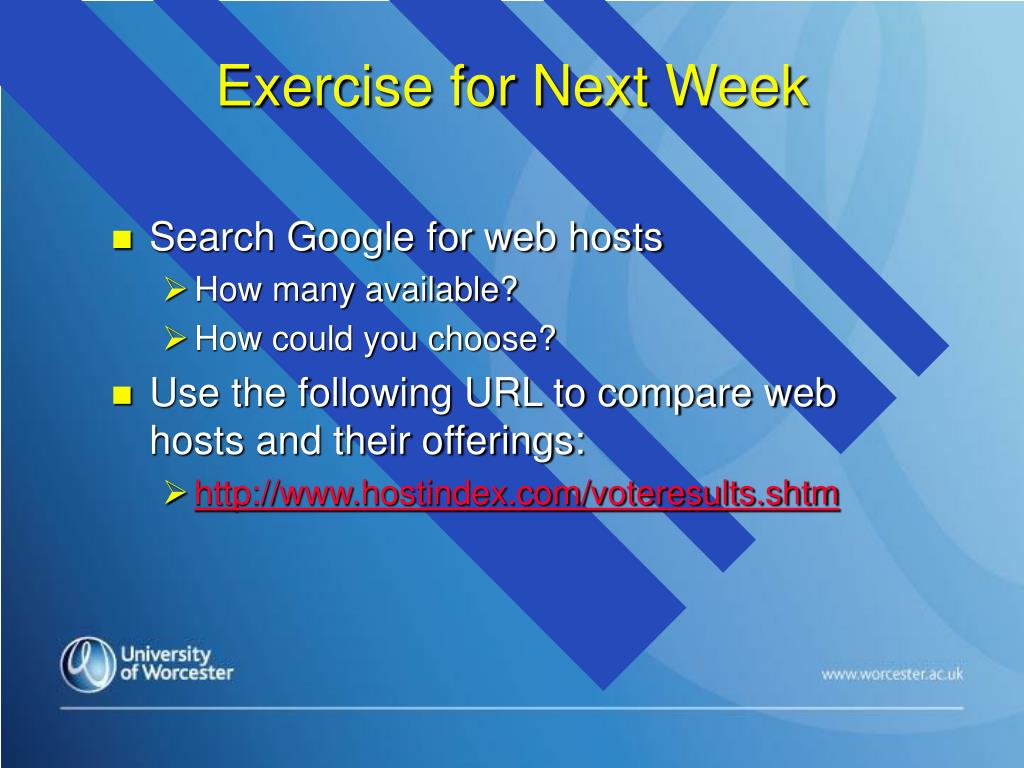

  36. Exercise for Next Week • Search Google for web hosts • How many available? • How could you choose? • Use the following URL to compare web hosts and their offerings: • http://www.hostindex.com/voteresults.shtm
