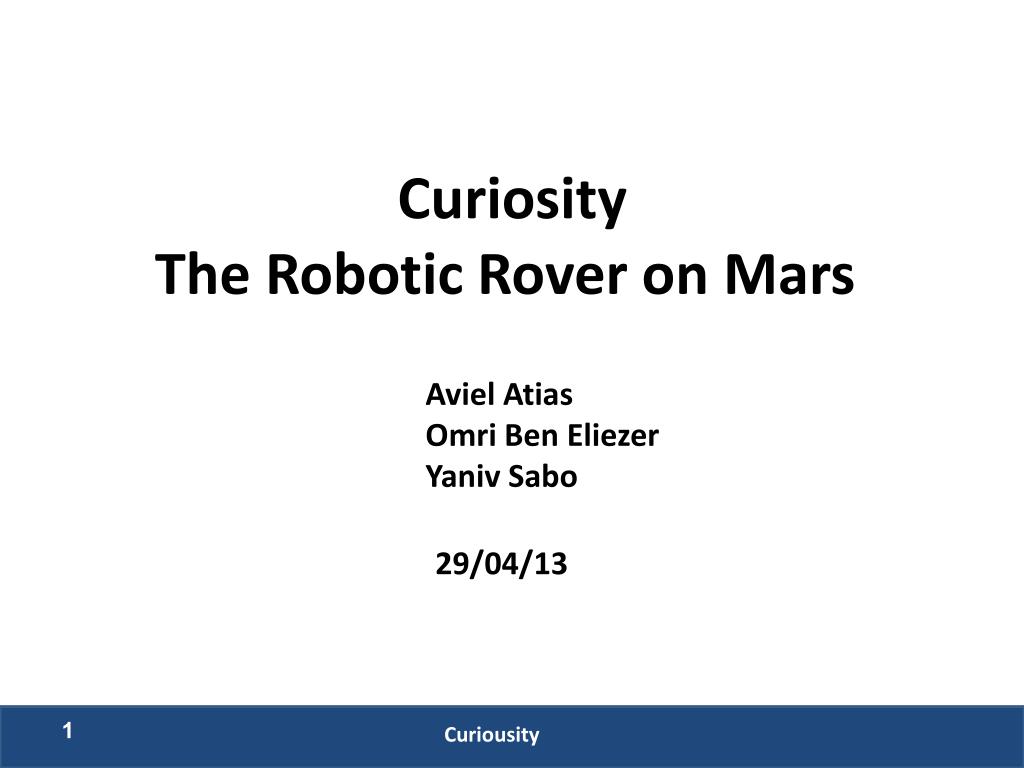

  1. CuriosityThe Robotic Rover on Mars AvielAtias Omri Ben Eliezer Yaniv Sabo 29/04/13 Curiousity

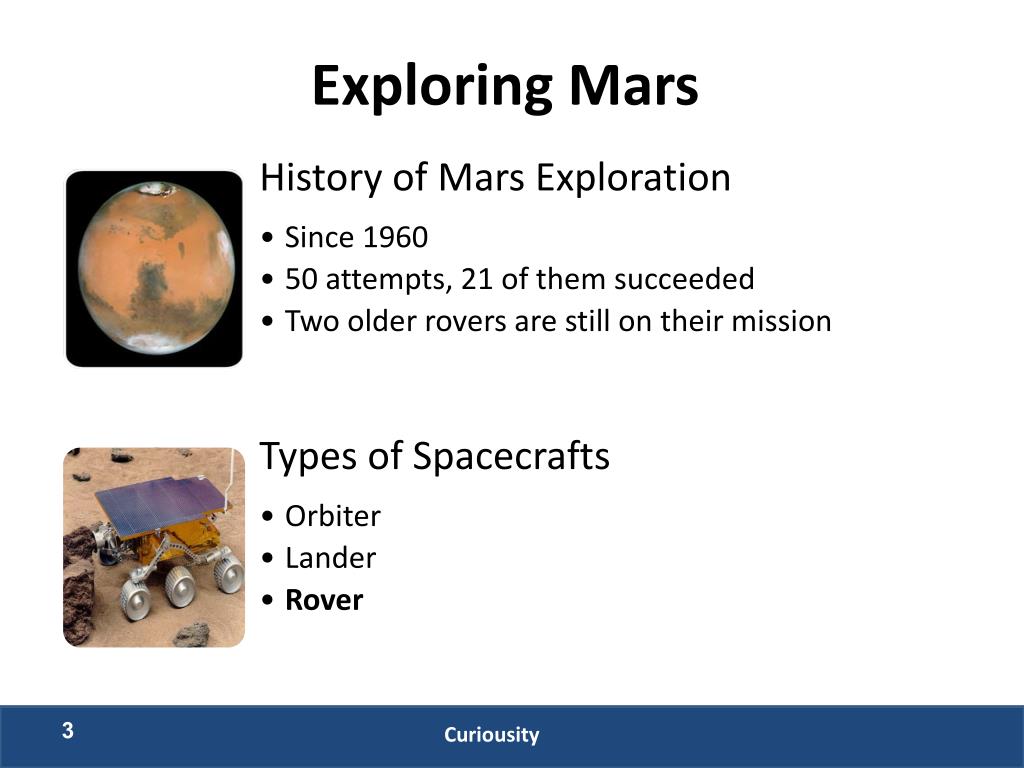

  2. Exploring Mars Curiousity

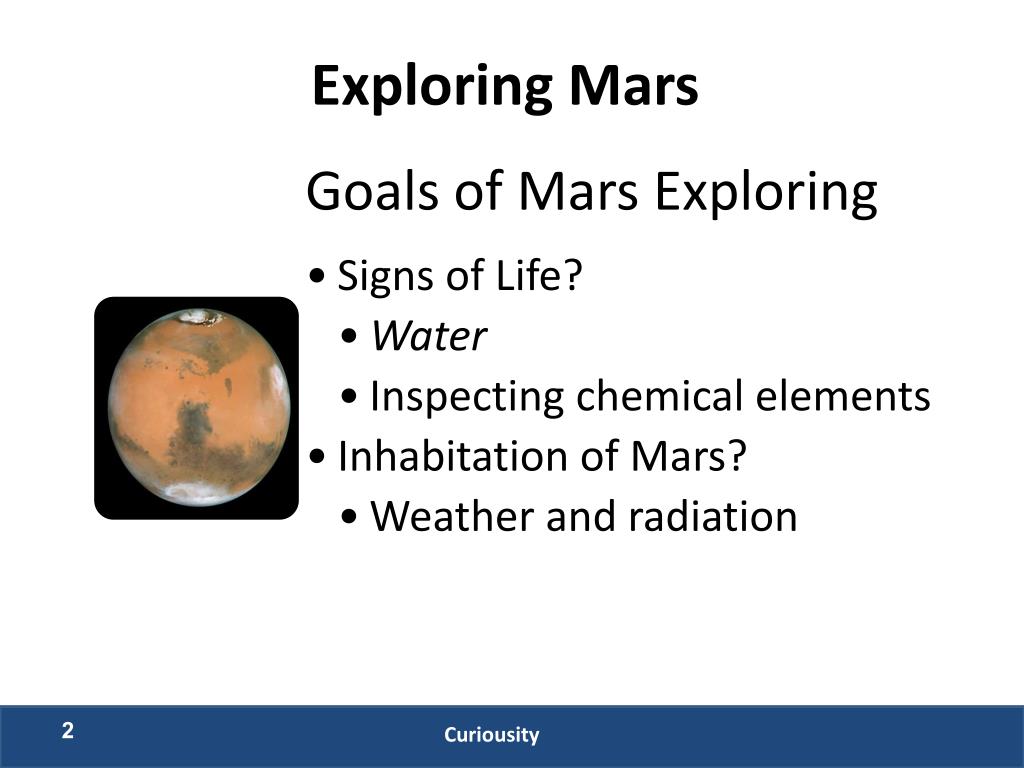

  3. Exploring Mars Curiousity

  4. Curiousity

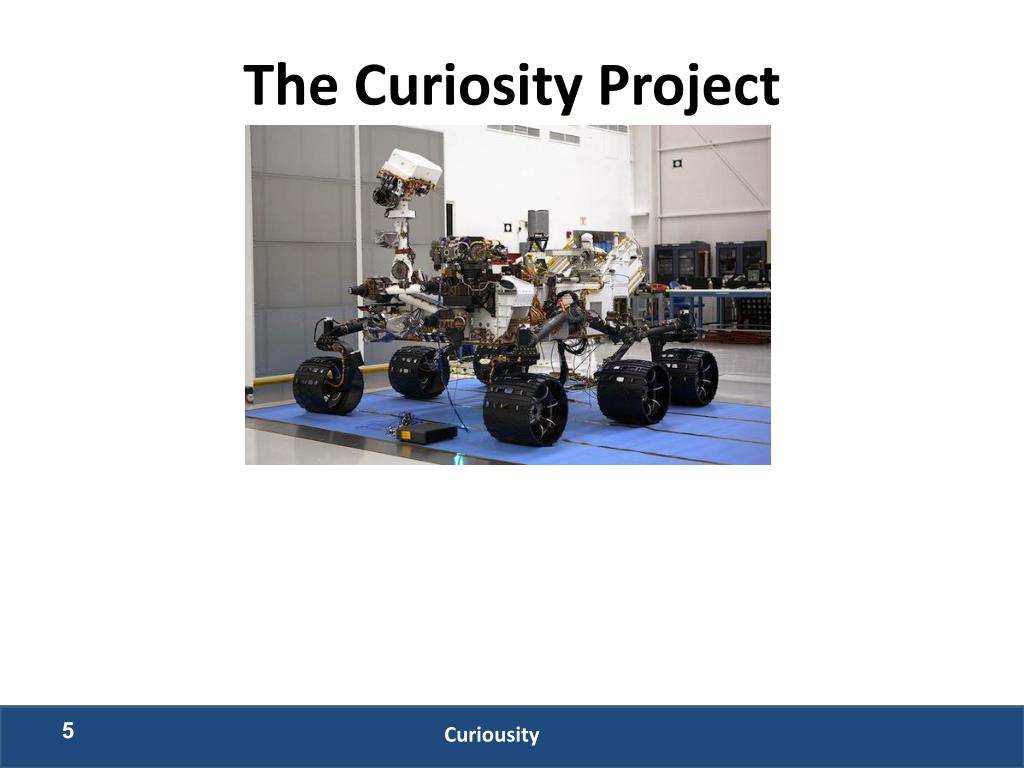

  5. The Curiosity Project Curiousity

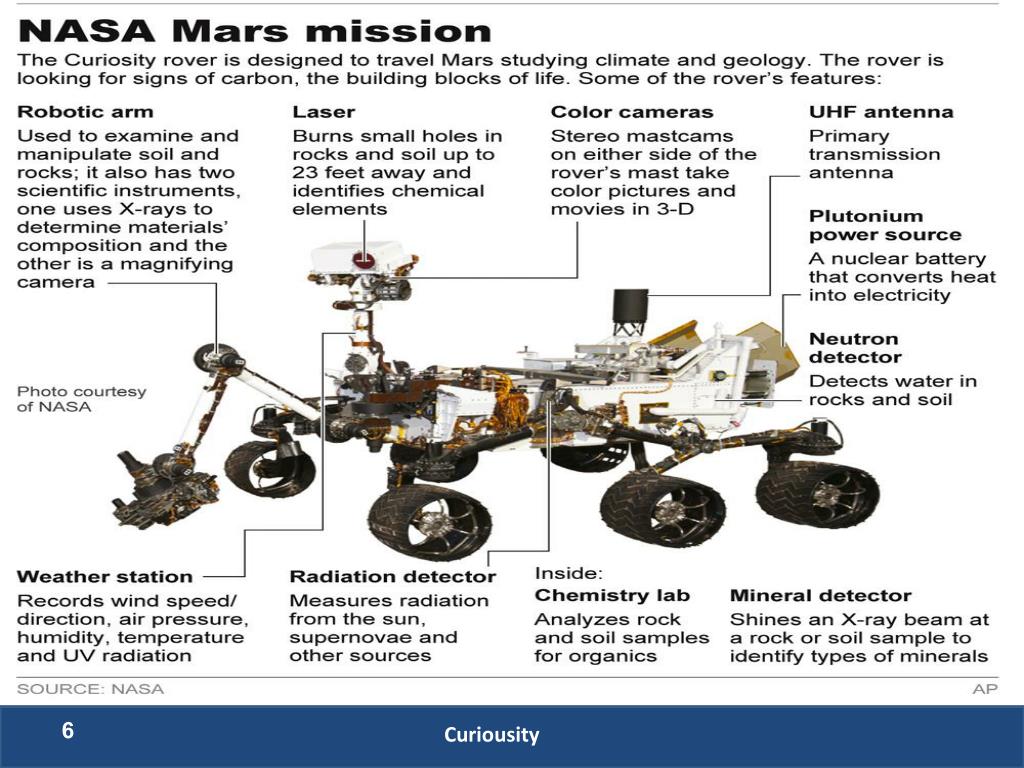

  6. Curiousity

  7. Structure of Curiosity Curiousity

  8. Structure of Curiosity Curiousity

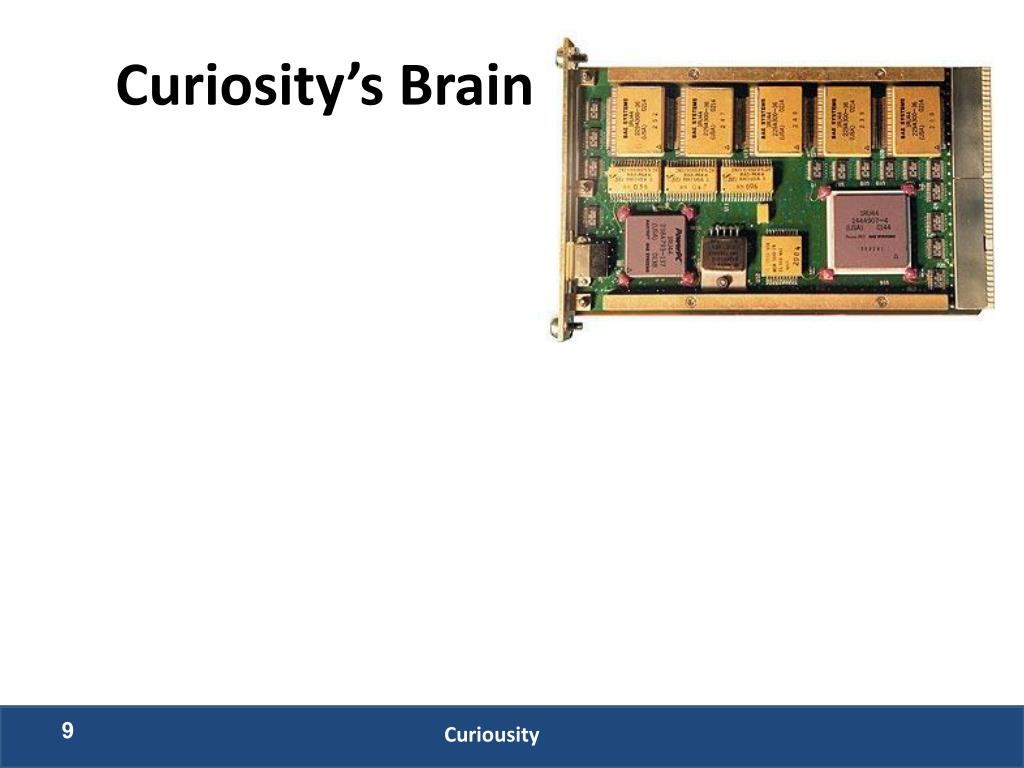

  9. Curiosity’s Brain Curiousity

  10. Curiosity’s Brain Curiousity

  11. Curiosity’s Brain Curiousity

  12. Curiosity’s Brain Curiousity

  13. RoboticArm • The rover has a 2.1 m long arm with holding five devices that can spin through a 350-degree • The arm makes use of three joints to extend it forward and to stow it again while driving • It has a mass of 30 kg and its diameter is about 60 cm • Two of the five devices are contact instruments known as the X-ray spectrometer (APXS), and the Mars Hand Lens Imager (MAHLI camera) • The remaining three are associated with sample acquisition and sample preparation functions: a percussion drill, a brush, and mechanisms for scooping, sieving and portioning samples of powdered rock and soil • The diameter of the hole in a rock after drilling is 1.6 cm and up to 5 cm deep Curiousity

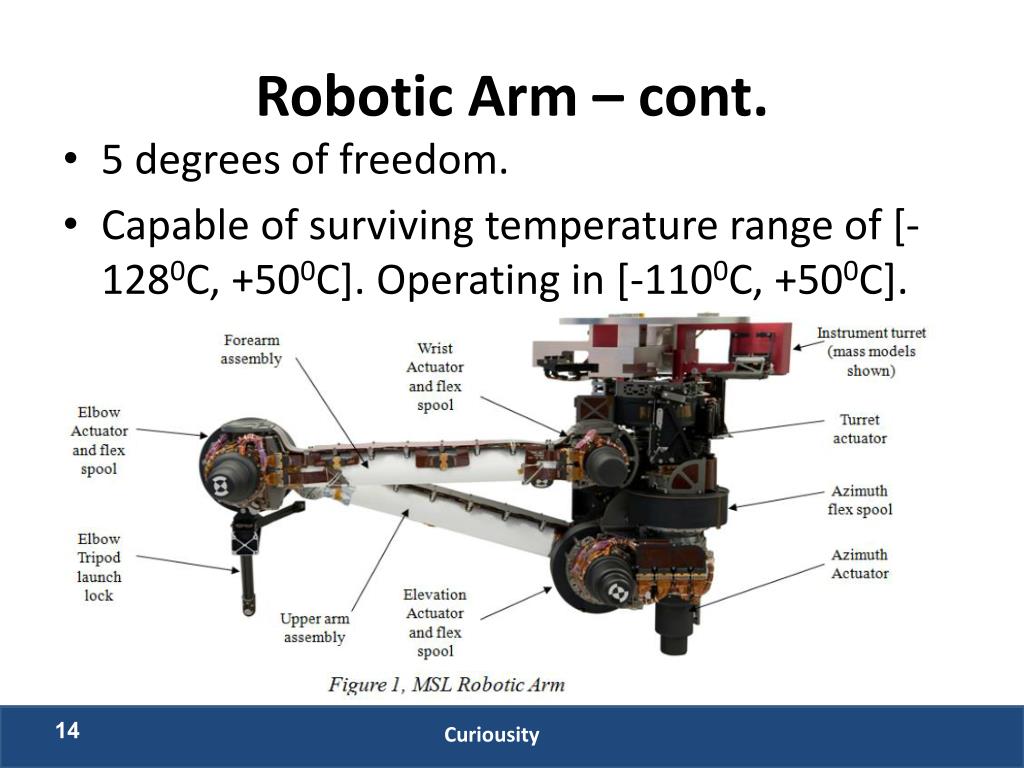

  14. Robotic Arm – cont. 5 degrees of freedom. Capable of surviving temperature range of [-1280C, +500C]. Operating in [-1100C, +500C]. Curiousity

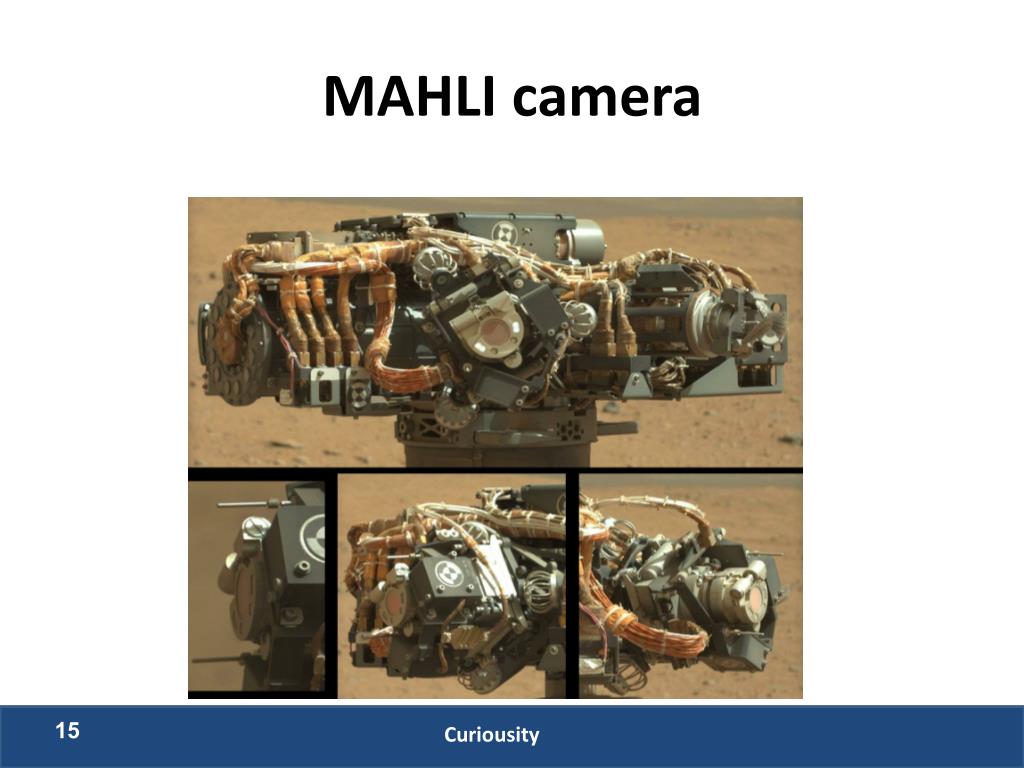

  15. MAHLI camera Curiousity

  16. Navigation Cameras (Navcams) • The rover has two pairs of black and white navigation cameras mounted on the mast to support ground navigation • The cameras have a 45 degree angle of view and use visible light to capture stereoscopic 3-D imagery. • These cameras support use of the ICER image compression format. Curiousity

  17. Hazard Avoidance Cameras The rover has four pairs of black and white navigation cameras called Hazcams—two pairs in the front and two pairs in the back They are used for autonomous hazard avoidance during rover drives and for safe positioning of the robotic arm on rocks and soils The cameras use visible light to capture stereoscopic three-dimensional (3-D) imagery The cameras have a 120 degree field of view and map the terrain at up to 3 m in front of the rover This imagery safeguards against the rover crashing into unexpected obstacles, and works in tandem with software that allows the rover to make its own safety choices Curiousity

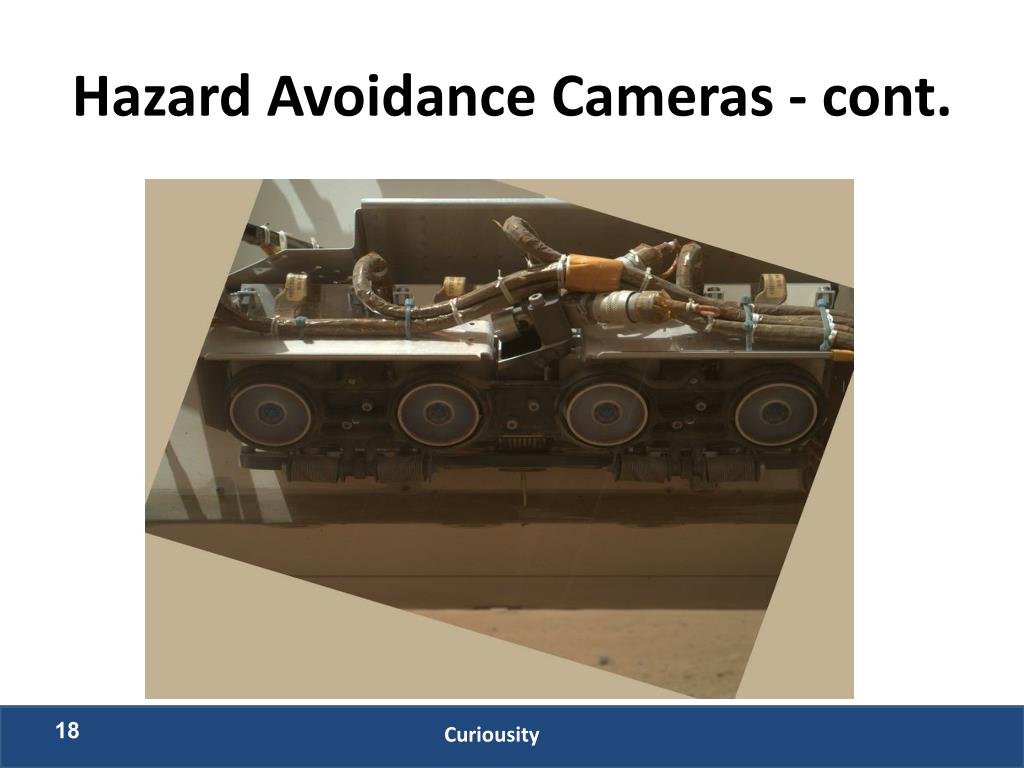

  18. Hazard Avoidance Cameras - cont. Curiousity

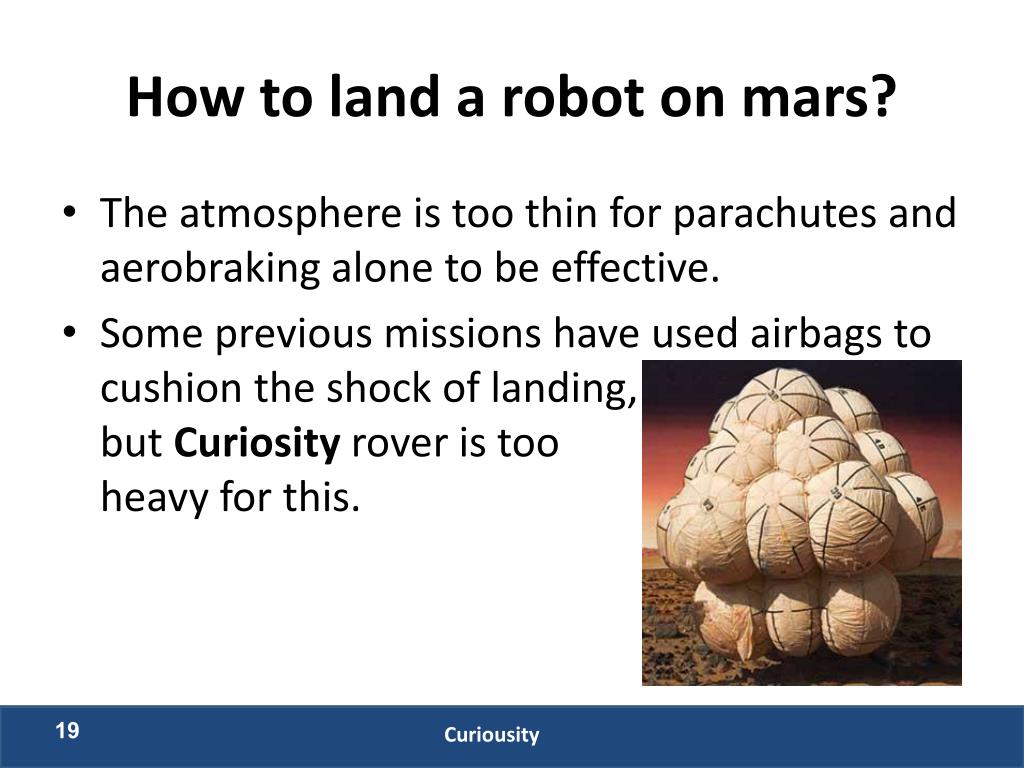

  19. How to land a robot on mars? • The atmosphere is too thin for parachutes and aerobraking alone to be effective. • Some previous missions have used airbags to cushion the shock of landing,but Curiosity rover is too heavy for this. Curiousity

  20. The EDL (entry-descent-landing) system • During the entire landing phase, the vehicle acts autonomously. • This system is more than 20 times accurate, compared to older landing systems. Curiousity

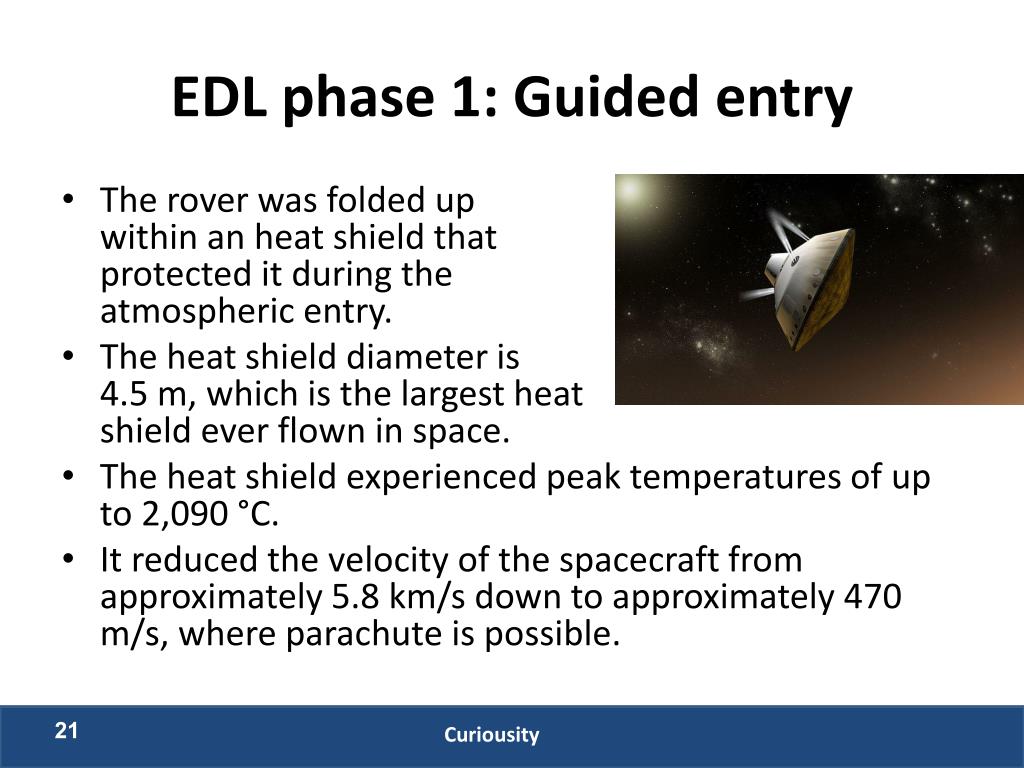

  21. EDL phase 1: Guided entry • The rover was folded up within an heat shield that protected it during the atmospheric entry. • The heat shield diameter is 4.5 m, which is the largest heat shield ever flown in space. • The heat shield experienced peak temperatures of up to 2,090 °C. • It reduced the velocity of the spacecraft from approximately 5.8 km/s down to approximately 470 m/s, where parachute is possible. Curiousity

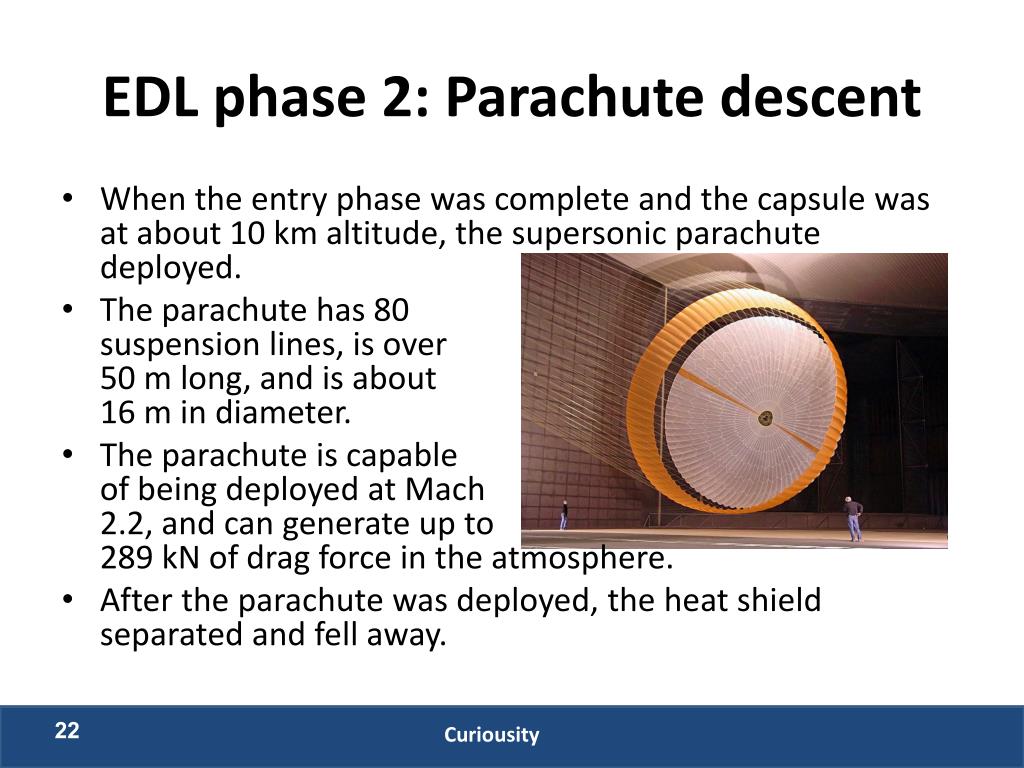

  22. EDL phase 2: Parachute descent • When the entry phase was complete and the capsule was at about 10 km altitude, the supersonic parachute deployed. • The parachute has 80 suspension lines, is over50 m long, and is about16 m in diameter. • The parachute is capableof being deployed at Mach2.2, and can generate up to289 kN of drag force in the atmosphere. • After the parachute was deployed, the heat shield separated and fell away. Curiousity

  23. Parachute descent (contd.) • The Mars Reconnaissance Orbiter team were able to acquire this image: Curiousity

  24. EDL phase 3: Powered descent • At about 1.8 km altitude, stilltravelling at about 100 m/s,the rover and descent stagedropped out of the aeroshell. • The descent stage is a platform above the rover with eight hydrazine rockets on arms extending around this platform to slow the descent. • Each rocket produces 400 N to 3,100 N of thrust. Curiousity

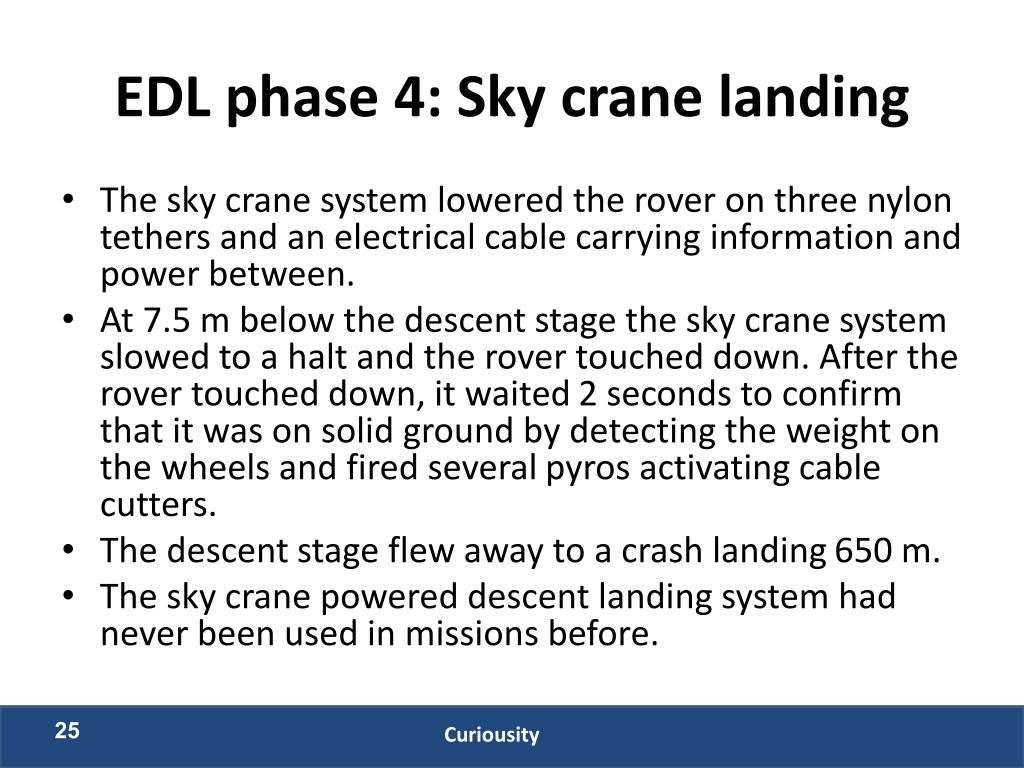

  25. EDL phase 4: Sky crane landing • The sky crane system lowered the rover on three nylon tethers and an electrical cable carrying information and power between. • At 7.5 m below the descent stage the sky crane system slowed to a halt and the rover touched down. After the rover touched down, it waited 2 seconds to confirm that it was on solid ground by detecting the weight on the wheels and fired several pyros activating cable cutters. • The descent stage flew away to a crash landing 650 m. • The sky crane powered descent landing system had never been used in missions before. Curiousity

  26. Sky crane landing (contd.) Curiousity

  27. Thriller Curiousity
