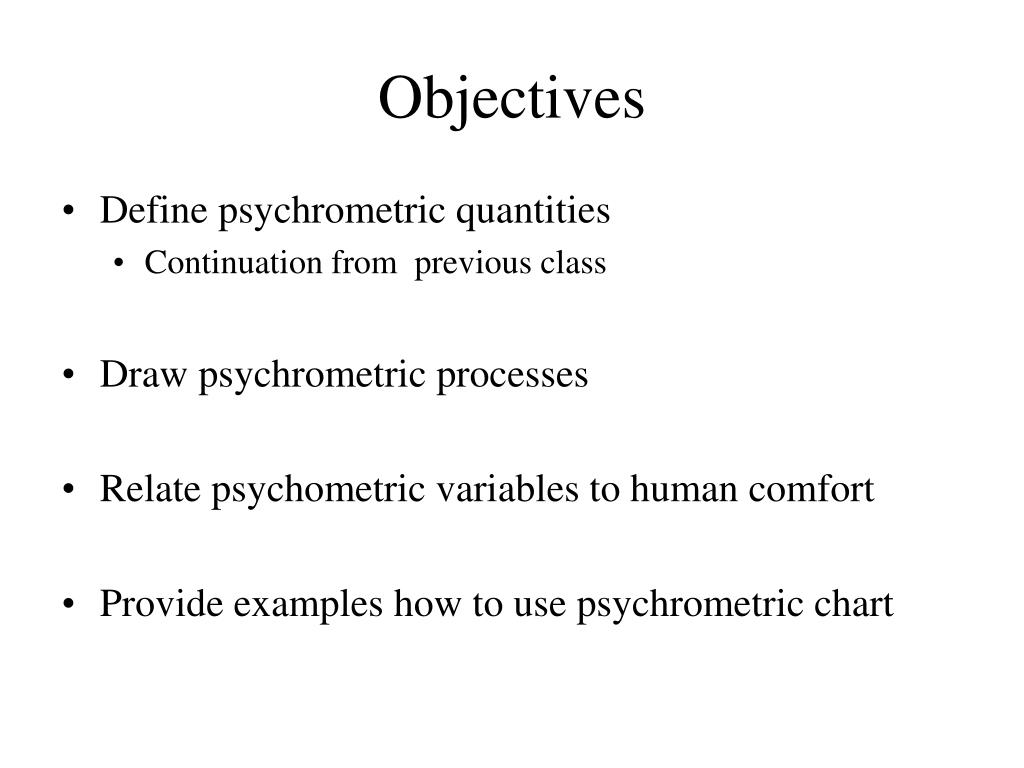

  1. Objectives • Define psychrometric quantities • Continuation from previous class • Draw psychrometric processes • Relate psychometric variables to human comfort • Provide examples how to use psychrometric chart

  2. Psychrometric Chart • Need two quantities for a state point • Can get all other quantities from a state point • Can do all calculations without a chart • Often require iteration • Many “digital” psychrometric charts available • Can make your own • Best source is ASHRAE Fundamentals (Chapter 6)

  3. Temperature • Absolute Temperature (T) (K, R) • Dry-bulb temperature (t) [°F, °C] • Wet-bulb temperature (t*) • Dew-point temperature (td) • Mean radiant temperature (tr) • Operative temperature (to) • Effective temperature (ET*)

  4. Wet-bulb Dry-bulb Which temperature do you expect to be higher?

  5. Wet-bulb temperature (t*) • Temperature measured by a psychrometer • Lower than dry-bulb temperature • Evaporating moisture removes heat from thermometer bulb • The higher the humidity • Smaller difference between wet-bulb and dry-bulb temperature

  6. Dew-Point Temperature, td • Define temperature at which condensation happen • td is defined as temperature of that air at saturation • i.e. RH = 100% • Surfaces below the dew point temperature will have condensation • Measured with a chilled-mirror apparatus

  7. Enthalpy, h or H • Sensible – energy associate with temperature change • Latent – energy associated with moisture change • Often more important than sensible • Enthalpy (from Psychrometric chart) = total energy in air [J/kg, BTU/lb] • Sensible + latent • Very valuable for calculations

  8. Enthalpy

  9. Which of the following statements is not true? • Adding steam to a room increases its relative humidity • Placing a cup of ice water in a room decreases the humidity ratio of the room’s air • Lowering the temperature of a room increases its humidity ratio • Lowering the temperature while increasing the humidity ratio in a room will eventually cause the air in the room to become saturated

  10. Example 1) Condensation on windows when taking a shower • How cold does it have to be outside for condensation to form on windows? • Assumption is that windows are the same temperature as outside air • 80 °F, RH = 80%

  11. Example 2) Cooling with a oversized air conditioner • How much moisture is removed? • A central air conditioner fan blows 1500 CFM of 80 °F air @ 50 % RH past a coil. • The thermostat is satisfied when the air coming off the coil reaches 65 °F.

  12. Changing the mass of water in an air sample always • Causes you to move vertically on the psychrometric chart • Changes the absolute humidity of the sample • Changes the relative humidity of the sample • Causes you to move horizontally on the psychrometric chart • A. and B.

  13. Other Temperatures • Not on psychrometric chart because they are environment specific • Important for comfort • Typically calculated, not measured • Often combine many factors into one parameter

  14. Comfort temperatures • Mean Radiant Temperature , tr • Temperature of an imaginary enclosure that would cause the same radiant heat loss as the present environment • Operative Temperature, to • Temperature that is weighted average of dry bulb and mean radiant temperature • Effective Temperature, ET* • Temperature at 50% RH that yields the same heat loss as for the actual environment • Environments at the same ET* should have the same comfort response

  15. 1993 ASHRAE Comfort Zone

  16. 1997/2001 ASHRAE Comfort Zone

  17. ASHRAE Comfort Zones • Still a matter of some debate • Implications of use in design: • Check to make sure that you are using the most recent version

  18. If you know the dew point temperature (td) and the dry bulb temperature (t) for a sample of air • You can’t get the statepoint because the problem is overspecified (you know the RH = 100%, t and td). • You get the state point by the intersection of the t and td lines. • You get the state point by moving horizontally from td until you intersect the t line • You get the state point by moving vertically from td until you intersect the t line

  19. Psychrometric Charts • Make sure chart is appropriate for your environment • Figure out what two quantities you know • Understand their slopes on the chart • Find the intersection • Watch for saturation
