  1. DAQ for Test&Commissioningat Point 2 Klaus Schossmaier CERN PH-AID ALICE TPC Collaboration Meeting Heidelberg, Germany 12-13 February 2004

  2. Planning Parameters • System: DAQ system for Test&Commissioning (= LHCC milestone) • Size: 12 DDLs for TPC 8 DDLs for others • Place: LHC Point 2 • Date: Q1 2005 • People: ALICE DAQ team TPC Collaboration meeting, 12-13 Feb 2004

  3. DAQ Installation at Point 2 SR Hall SX Hall SXL Hall (ALICE sub-detector assembly) (Networking) ACR WR1 WR2 DDL PX24/CR1 (DAQ) LAN LAN PX24/CR2 (HLT) Access Shaft PX24/CR3 (DCS) PX24/CR4 (Misc.) UX25 (Experimental Area) TPC Collaboration meeting, 12-13 Feb 2004

  4. PX24/CR2 1 DSS (DAQ Server Services): rackmount PCU4 heighthot-swap SCSI disks RunControl, Logger  On-line Monitoring HLT (HighLevel Trigger) 1 KVM switch DDL patch panels PDS (Permanent Data Storage) CERN computer center 20 DDLs GE switches 1 FC switch 10 LDCs (Local Data Concentrator): rackmount PCsU1, U2, U4 heightequipped with 20 D-RORC cards DDL readout, sub-event building  HLT interface 4 GDCs (Gobal Data Collector): rackmount PCsU1 height equipped with FC cards full-event building 1 TDS (Transient Data Storage): rackmount disk arrayU2 heightIDE of FC disks event buffering Installation at PX24/CR1 TPC Collaboration meeting, 12-13 Feb 2004

  5. Installation Issues • Hardware/Mechanical issues: • Equipment: rackmount PCs, switches, disk array, … • Rack assembly, DDL installation, cabling, … • Infrastructure: power supply, networking, cooling, … • Software/Testing issues: • Operating System: Linux + customizations • DAQ Software: DATE + configuration • Standalone tests • Integration tests • Reference System in our AID lab: • small, complete DAQ system with 6 DDLs • to spot problems in advance • to tackle problems during operation TPC Collaboration meeting, 12-13 Feb 2004

  6. Reference Setup – Front L3 rack DDLs: - to the DDL lab 4x LDCs: - 1U, 2U, 4U height- dual Xeon- 6x D-RORC cards DDL 2x GB Ethernet switch: 3COM SuperStack 3 KVM switch: Raritan Paragon UMT2161 2x GDCs: - 1U height- dual Xeon- Qlogic QLA2310F cards Fibre Channel switch: Broacade SilkWorm 3800 2x disk arrays: - Infortrend IFT-6330 - DotHill SANnet II- Fibre Channel DSS: - 4U height- quad Xeon- 3x 36GB SCSI disks TPC Collaboration meeting, 12-13 Feb 2004

  7. Reference Setup - Rear L3 rack Cat5 cables: - Ethernet- KVM- RJ45 connectors Mounting rails (!) Power distributor Fiber Channel cable: - 2 Gbit/s multimode - LC-LC connectors TPC Collaboration meeting, 12-13 Feb 2004

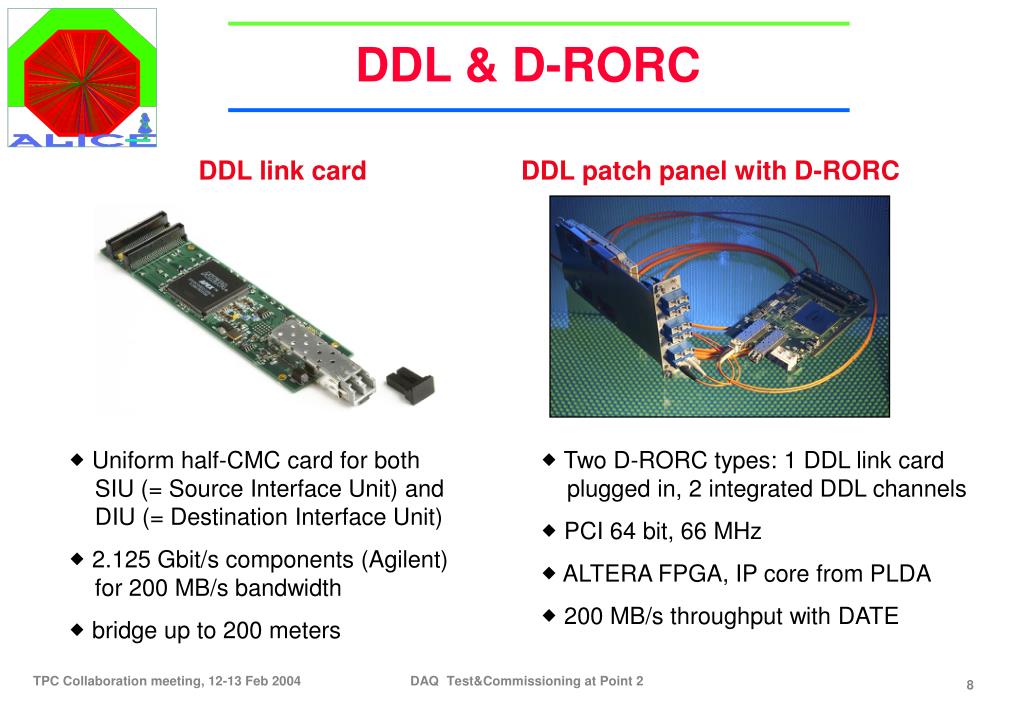

  8. DDL link card DDL patch panel with D-RORC • Uniform half-CMC card for both SIU (= Source Interface Unit) and DIU (= Destination Interface Unit) • 2.125 Gbit/s components (Agilent) for 200 MB/s bandwidth • bridge up to 200 meters • Two D-RORC types: 1 DDL link card plugged in, 2 integrated DDL channels • PCI 64 bit, 66 MHz • ALTERA FPGA, IP core from PLDA • 200 MB/s throughput with DATE DDL & D-RORC TPC Collaboration meeting, 12-13 Feb 2004

  9. Rackmount PCs TPC Collaboration meeting, 12-13 Feb 2004

  10. Disk Array Systems • Infortrend IFT-6330-12F2D: • 12x 300 GB IDE-based disks • dual 2 Gbit/s Fibre Channel ports • Embedded manager via front panel, RS232C, or IP • 2x logical volumes: each one has 1.1 TB, RAID5, with 5 disks • DotHill SANnet II 200: • 12x 36.7 GB FC-based disks • dual 2 Gbit/s Fibre Channel ports • RAID configurations via RS232C front view (IFT-6330) rear view (IFT-6330) TPC Collaboration meeting, 12-13 Feb 2004

  11. DAQ Software: DATE • DATE (= Data Acquisition and Test Environment)is the software framework of the ALICE DAQ. • Runs on Linux platforms (e.g. Red Hat 7.3) • Released (latest is version 4.7) and documented • DATE evolves with requirements and technology • Features/Packages: • Dataflow: DDL readout, event building • System configuration and Run control • Monitoring: on-line performance, on/off-line data quality • Utilities: message logger, control/configure front-end electronics, … TPC Collaboration meeting, 12-13 Feb 2004

  12. Readout with DATE • Step 0: Hardware is in place • Step 1: Run Linux with the physmem and the rorc driver • Step 2: Install DATE with a general configuration for the LDC • Step 3: Set up configuration file to enter parameters like D-RORC serial number, channel number, page size, checks, etc. • Step 4: Start/Stop the acquisition • Step 5: Analyse the raw data files, e.g. /tmp/run123.000, /tmp/run123.001, … TPC RCU 3 with SIU  FEC DDL D-RORC with DIU  LDC TPC Collaboration meeting, 12-13 Feb 2004

  13. DATE Run Control TPC Collaboration meeting, 12-13 Feb 2004

  14. FEE Configuration/Control • Step 0: Hardware is in place • Step 1: Run Linux with the the rorc driver on the LDC • Step 2: Write a script (ASCII file) for the FeC2 interpreter • Step 3: Run this script, e.g. typeFeC2 123 example.fec2 TPC RCU 3 with SIU  FEC DDL S/N of D-RORC # send command, 19 bit information write_command 0x10f # read status, 19 bit address, 19 bit reply read_and_print 0x100 “Register XYZ: 0x%x” # download data block, 19 bit address, file write_block 0x600 pedestal.hex “%x” # verify data block, 19 bit address, file read_and_check_block 0x600 pedestal.hex “%x” stop_if_failed -1 D-RORC with DIU  LDC TPC Collaboration meeting, 12-13 Feb 2004

  15. On-line Monitoring • MOOD Framework: • DATE + ROOT environment • Interfaces to detector code • MOOD Applications: • Visualization, e.g. TPC sector test data (Hall 167) • Data integrity • Detector performance • Execution: • DSS machine TPC Collaboration meeting, 12-13 Feb 2004

  16. DAQ Performance • ALICE Computing Data Challenge: • 1750 MB/s event building without recording, 5 days • 280 MB/s event building and recording to CASTOR, 7 days • D-RORC readout of one DDL channel with DATE: 206 MB/s readout only 118 MB/s readout with event building TPC Collaboration meeting, 12-13 Feb 2004

  17. DAQ Installations §Given that the RCU 3 is fully functional in time, see Joachim’s presentation. TPC Collaboration meeting, 12-13 Feb 2004

  18. Summary + Future Work • Objective: • DAQ system for Test&Commissioning at Point 2 • Surface tests of ALICE sub-detectors (e.g. TPC sector) • Operational in Q1 2005 • Installation Layout: • 20 DDL links between the PX24/CR1 counting room and the SXL mounting hall • L3 racks: DDL patch panels, 15 rackmount PCs, 1 disk array, switches for Gigabit Ethernet, Fiber Channel and KVM • DAQ Reference System in the AID lab • Future work concerning TPC and DAQ: • Bergen: Development of RCU 3 firmware for the DDL interface • Luciano’s lab: Integration test of RCU 3 with the DDL • TPC sector test at T10§: DAQ chain with RCU 3 + DDL + DATE TPC Collaboration meeting, 12-13 Feb 2004
