  1. Formal Requirements for Virtualizable Third Generation Architectures Authors Gerald J. Popek and Robert P. Goldberg Prepared by FazleElahi Faisal and Tariq Iqbal

  2. Introduction • A virtual machine (VM) is an efficient, isolated duplicate of a real machine. • A virtual machine monitor (VMM) is a piece of software which • Provides an environment for programs that are identical with the original machine • Allows programs to run an environment such that decrease in speed is insignificant • Occupies the complete control of system resources

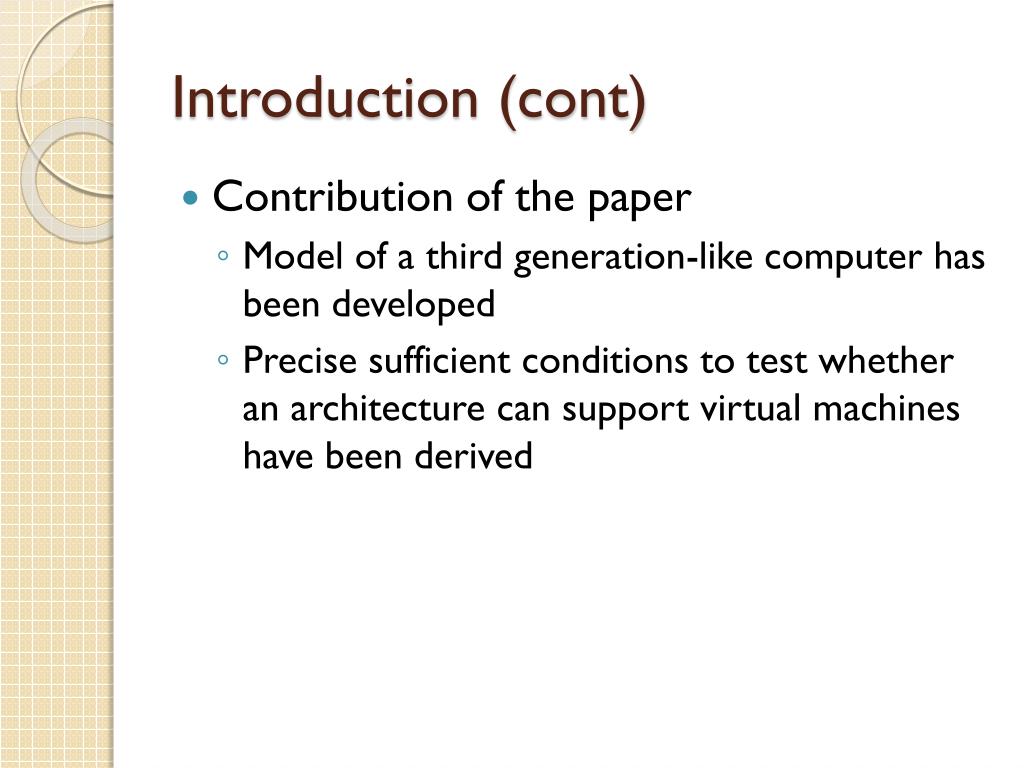

  3. Introduction (cont) • Contribution of the paper • Model of a third generation-like computer has been developed • Precise sufficient conditions to test whether an architecture can support virtual machines have been derived

  4. Machine States S = <E, M, P, R> State Executable Storage Processor Mode Program Counter Relocation Register

  5. Machine States (cont) S = <E, M, P, R> State Executable Storage Processor Mode Program Counter Relocation Register • State • The state S is intended to specify the current state of the real computer system. • The machine can exist in any one of a finite number of states where each state has four components.

  6. Machine States (cont) S = <E, M, P, R> State Executable Storage Processor Mode Program Counter Relocation Register • Executable Storage • Executable storage is a conventional word or byte addressed memory of size q. • E[i] refers to the contents of the i-th unit of storage in E • E=E´ iffE[i]=E´[i] for any 0≤i<q

  7. Machine States (cont) S = <E, M, P, R> State Executable Storage Processor Mode Program Counter Relocation Register • Processor Mode • Operating modes of some computer architectures that place restrictions on type and scope of operations • Supervisor mode (s) • User mode (u)

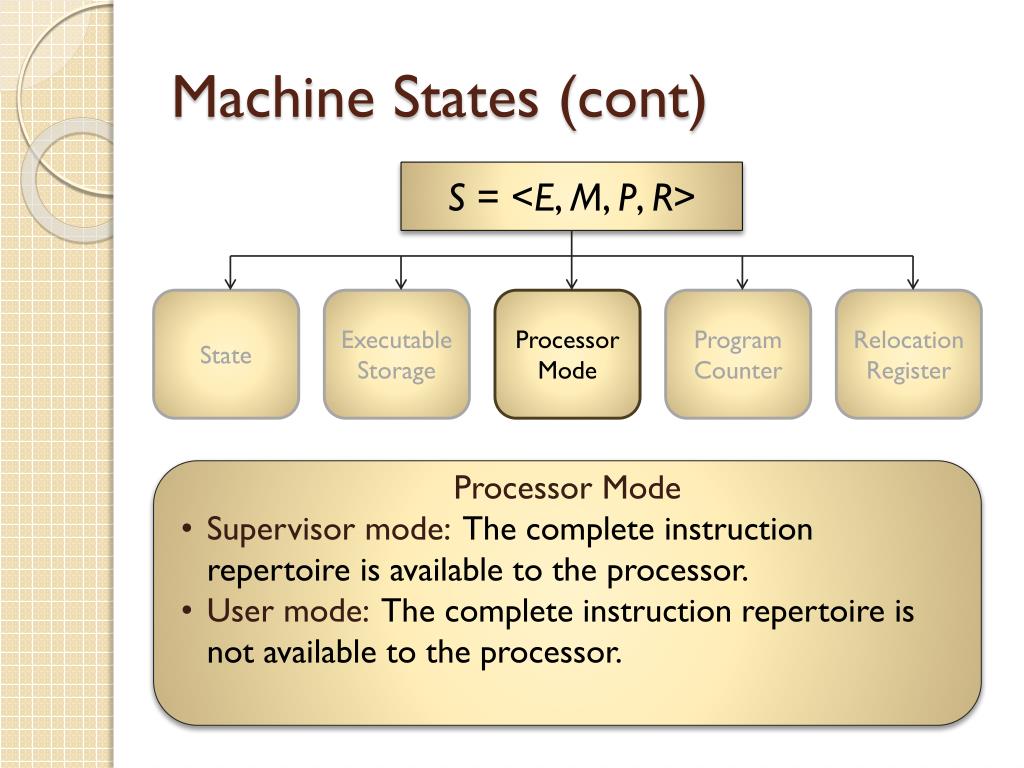

  8. Machine States (cont) S = <E, M, P, R> State Executable Storage Processor Mode Program Counter Relocation Register • Processor Mode • Supervisor mode: The complete instruction repertoire is available to the processor. • User mode: The complete instruction repertoire is not available to the processor.

  9. Machine States (cont) S = <E, M, P, R> State Executable Storage Processor Mode Program Counter Relocation Register • Program Counter • Program counter P is an address relative to the contents of R (explained in the next slide), which acts as an index into E, indicating the next instruction to be executed.

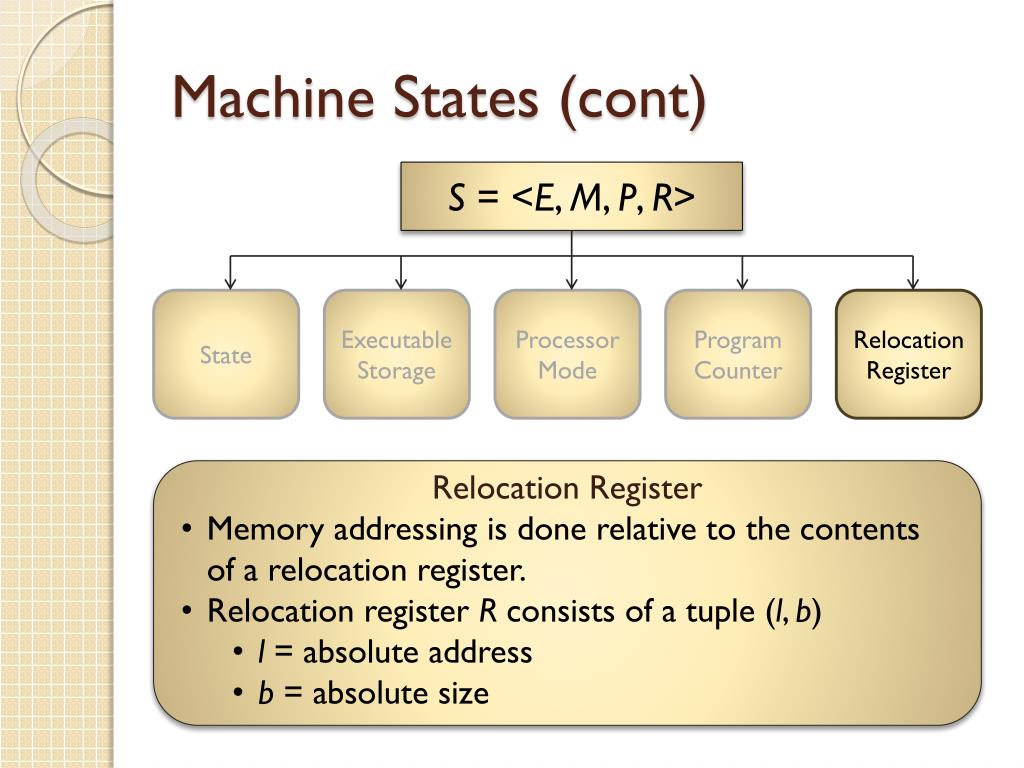

  10. Machine States (cont) S = <E, M, P, R> State Executable Storage Processor Mode Program Counter Relocation Register • Relocation Register • Memory addressing is done relative to the contents of a relocation register. • Relocation register R consists of a tuple (l, b) • l = absolute address • b = absolute size

  11. Program Status Word • The contents of the triplet <M, P, R> are often referred to as the program status word (PSW). • Each PSW is assumed to be recorded in one storage location. • E[0] is assumed to store old-PSW. • E[1] is assumed to store new-PSW.

  12. Instruction • A instruction is a discrete statement of a processor that usually specify the arithmetic, addressing, or control functions of registers or memory locations. • Given a set of states C, an instruction i is a function from C to C, i:C→C. • For example, i(S1)=S2, or i(E1, M1, P1, R1) = (E2, M2, P2, R2)

  13. Traps • A trap is a type of interrupt caused by an exceptional condition, i.e. “memory trap”. • A trap automatically saves the current state of the machine and passes control of a pre-specified routine by changing M, R, P to the values specified in new-PSW location.

  14. Traps (cont) • An instruction i is said to trap if i(E1, M1, P1, R1)=(E2, M2, P2, R2) where • E2[j]=E1[j], for 0<j<q • E2[0]=(M1, P1, R1) • (M2, P2, R2)=E1[1] • The state of the machine is stored in such a way as to be reversible to the point at which the instruction causing the trap.

  15. Memory Trap • A memory trap is a trap caused as a result of an attempt by an instruction to develop an address which is greater than the bounds in R or physical memory. // an instruction produces address a if a+1≥q then memory-trap else if a≥b then memory-trap else use E[a+l]

  16. Types of Instructions • Privileged instruction • Sensitive instruction • Control sensitive • Behavior sensitive • Location sensitive • Mode sensitive • Innocuous instruction

  17. Privileged Instruction • Intuitively, if an instruction is trapped in user mode, but not trapped in supervisor mode, then the instruction is privileged.

  18. Privileged Instruction (cont) • Instruction i is privileged iff for a pair of states S1=<e, s, p, r> and S2=<e, u, p, r>, • Both i(S1) and i(S2) do not memory trap • i(S2) traps but i(S1) does not // IBM System/360 LPSW if M=s then load_PSW else trap // Honeywell 6000 LBAR // DEC PDP-10 DATAO APR if M=s then load_R else trap

  19. Sensitive Instruction • Sensitive instructions are those that interact with hardware. • There are two types of sensitive instruction • Control sensitive • Behavior sensitive

  20. Control Sensitive Instruction • An instruction i is control sensitive if there exists a state S1=<e1, m1, p1, r1> and i(S1)=S2=<e2, m2, p2, r2> such that • i(S1) does not memory trap • (a) r1 ≠ r2, or (b) m1 ≠ m2, or (c) both holds • Intuitively, an instruction is control sensitive if it attempts to change relocation register (R), or mode (M), or both.

  21. Behavior Sensitive Instruction • Before we define behavior sensitive instruction, we need to define the following two operators • “Å”:We define “Å” such that if r=(l, b), then r´=r Å x=(l+x, b), such that the relocation part l is shifted by the value of x. • “|”: The notation E|R means the contents of the part of the memory that can be accessed from a particular state specified in the relocation register R.

  22. Behavior Sensitive Instruction (cont) • Combining “Å” and “|” • E | rÅx represents the contents of the memory from [l+x] to [l+b+x] • E | r = E´ | rÅx means that E[l+i]=E´[l+x+i] for 0 ≤ i< b

  23. Behavior Sensitive Instruction (cont) • An instruction i is behavior sensitive if there exist an integer x and states • S1= <e|r, m1, p, r> • S2 = <e|rÅx, m2, p, rÅx> where • i(S1)=<e1|r, m1, p1, r> • i(S2)=<e2|rÅx, m2, p2, rÅx> • Neither i(S1) nor i(S2) memory trap such that, (a) e1|r ≠ e2| rÅx, or (b) p1 ≠ p2, or (c) both holds. • An instruction is behavior sensitive if the effect of its execution depends on the value of the relocation register (R), or the mode (M).

  24. Behavior Sensitive Instruction (cont) • There are two types of behavior sensitive instructions • Location sensitive: An instruction is location sensitive if its execution behavior depends on its location in real memory. • Mode sensitive: An instruction is mode sensitive if its execution behavior depends on the mode of previous instruction space.

  25. Innocuous Instruction • An instruction is innocuous if it is not sensitive.

  26. Virtual Machine Monitor • The Virtual Machine Monitor (VMM) is a particular piece of software (called as control program) that exhibits following properties • Dispatcher • Allocator • Interpreter

  27. Virtual Machine Monitor (cont) • Dispatcher (D): Dispatcher is the top level control module of the control program.

  28. Virtual Machine Monitor (cont) • Allocator (A): An allocator decides on allocating the system resources to a virtual machine (VM). • Given a VMM hosts several VMs, it is an allocator’s task to avoid giving the same resource to more than one VM concurrently.

  29. Virtual Machine Monitor (cont) • Interpreter: Interpreter simulates the effect of a privileged instruction, when it is trapped. • There exists one interpreter routine per privileged instruction. • Given vi represents a series of instructions of an interpretive routine, {vi} indicates the set of all interpretive routines, i = 1 to m, where m is the number of privileged instructions.

  30. Control Program • A control program (CP) is specified by its three parts: CP=<D, A, {vi}> • D: Dispatcher • A: Allocator • {vi}: Set of interpretive routines • CP is assumed to run in supervisor mode whereas all other programs are assumed to run in user mode.

  31. Virtual Machine Properties • There are three properties of interest when any arbitrary program is run while the control program is resident • Efficiency • Resource control • Equivalence

  32. Efficiency • A program running in VMM environment shows at worst only minor decreases in speed. • All innocuous instructions are executed by the hardware directly. • All innocuous instructions are executed without intervention on the part of the control program.

  33. Resource Control • VMM is in complete control of system resources. • An arbitrary program can not effect the system resources, i.e. memory. • The allocator of the control program is to be invoked upon any attempt to effect system resources.

  34. Equivalence • VMM provides an environment for programs which is essentially identical with the original machine. • More specifically, a program K executing with a CP resident performs in a manner indistinguishable from the case when CP does not exist.

  35. Exceptions to Equivalence Property • Timing • Because of the occasional intervention of CP, certain instruction sequences in K may take longer to execute. • Resource availability • The allocator does not satisfy a request to attempt to change relocation register (R).

  36. Virtual Machine • The environment which any program sees when running with a virtual machine monitor present is called a virtual machine (VM). • It is composed of the original real machine and the VMM.

  37. Third Generation Computer • A third generation computer consists of the following operations: • Relocation mechanisms • Supervisor/user mode • Trap mechanisms

  38. Third Generation Computer Theorem 1: For any conventional third generation computer, a virtual machine monitor may be constructed if the set of sensitive instructions for that computer is a subset of the set of privileged instructions.

  39. Set of Machine States • C: The set of machine states • Cv: The set of states for which the VMM is present in memory • Cr: The set of states of the real machine without a VMM

  40. Set of Instruction Sequences • I is the set of instruction sequences, where each instruction sequence en(S1)=ij…k(S1)=S2 has n instructions.

  41. Virtual Machine Map • A virtual machine map (VM map) f:Cr → Cv is a one-one homomorphism with respect to all the operators ei in the instruction sequence I. • Intuitively, for any state Si ϵ Cr and any instruction sequence ei, there exists an instruction sequence ei´ such that f(ei(Si)=ei´(f(Si)).

  42. Virtual Machine Map • Properties • Mathematical existence of a particular mapping from the states of the real machine to the virtual machine system. • Actual existence of instruction sequences ei´ on the Cv domain that correspond to the sequences ei on the Cr domain.

  43. Virtual Machine Map • Essentially identical effect • Two machines are started, one in state S1, the other in state S1´=f(S1) • VMM is equivalent to the real machine iff for any state S1, if the real machine halts in state S2; then the VM halts in state S2´=f(S2)

  44. A Demonstration of a VM Map • Assumptions • Control program occupies the first k locations of physical memory • VM occupies next w locations • f(E, M, P, R)=(E´, M´, P´, R´), where S=<E, M, P, R> is the machine without a VMM present

  45. A Demonstration of a VM Map • VM map • E´[i+k]= E[i], for i = 0, w – 1 • E´[i] = the control program, for i = 2 to k – 1 • E´[i] = <m´, p´, r´>, where • m´ = supervisor • p´ = first location of the control program • r´ = (0, q-1) • E´[0] = <m, p, r> as last set by trap handler • M´ = u (user) • P´ = p • R´ = (l+k, b), where R = (l, b)

  46. Recursive Virtualization • Intuitively, a machine is recursively virtualizable, if • The virtual machine system can run under itself a copy of the VMM so that the copy exhibits all the properties of VMM. • Procedure 1 can be repeated until the resources of the system are consumed. Theorem 2: A conventional third generation computer is recursively virtualizable if it is: (a) virtualizable, and (b) a VMM without any timing dependencies can be constructed for it.

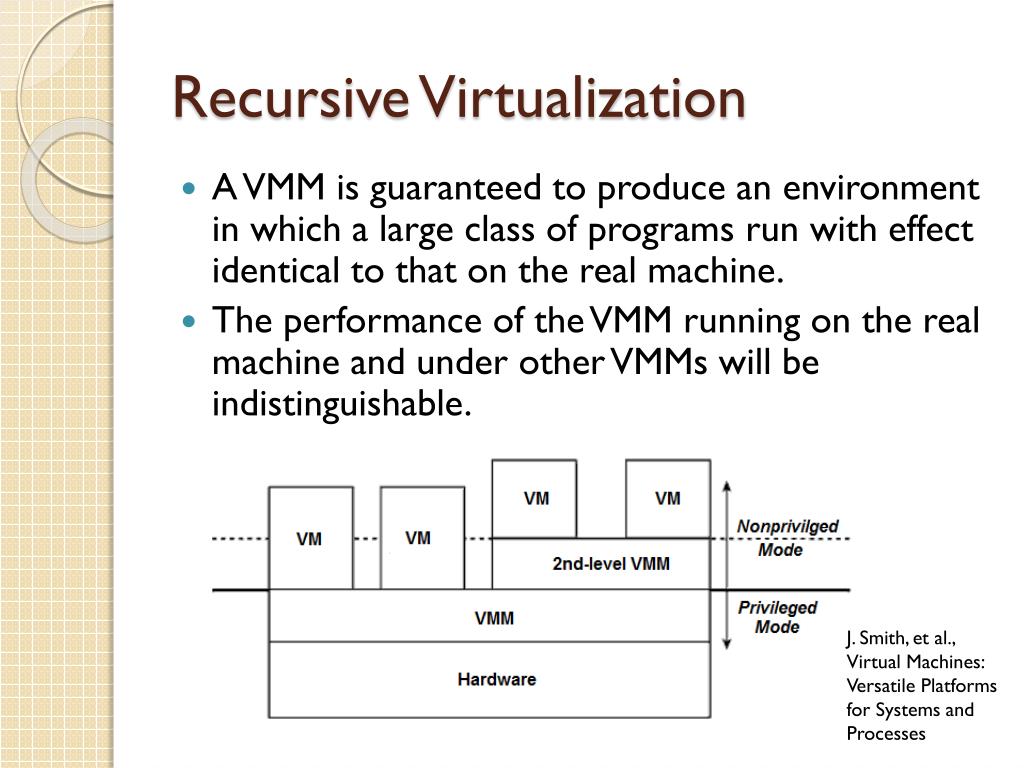

  47. Recursive Virtualization • A VMM is guaranteed to produce an environment in which a large class of programs run with effect identical to that on the real machine. • The performance of the VMM running on the real machine and under other VMMs will be indistinguishable. J. Smith, et al., Virtual Machines: Versatile Platforms for Systems and Processes

  48. Hybrid Virtual Machines • Very few third generation architectures are virtualizable. • The definition of third generation architecture has been relaxed to more general, but less efficient form that is labeled as hybrid virtual machine (HVM) system. • More instructions are interpreted rather than being directly executed in HVM.

  49. Hybrid Virtual Machines • An instruction i is said to be user sensitive if there exists a state S=<E, u, P, R> for which i is control sensitive or behavior sensitive. • User sensitivity is only applicable in user mode. • Intuitively, the user sensitive instructions are the instructions that cause difficulty when executed from user mode.

  50. Hybrid Virtual Machines • An instruction i is said to be supervisor sensitive if there exists a state S=<E, s, P, R> for which i is control sensitive or behavior sensitive. • Supervisor sensitivity is only applicable in supervisor mode.
