Cavity package. T.Saeki BCD meeting 20 Dec 2005. Cavity shape. BCD: TESLA shape Pros: small wakefield, HOM thoroughly investigated single-cell: 43 MV/m 9-cell: 40 MV/m (Q=10**10) Cavities and modules have operated in TTF.

lenci
Télécharger la présentation

Cavity package

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Cavity package T.SaekiBCD meeting20 Dec 2005

  2. Cavity shape BCD: TESLA shape Pros: small wakefield, HOM thoroughly investigated single-cell: 43 MV/m 9-cell: 40 MV/m (Q=10**10) Cavities and modules have operated in TTF. Cons: high Epk/Eacc ACD1: KEK/DESY low-loss shape Pros: low Hpk/Eacc single-cell: 45-47 MV/m 9-cell: fabricated and tested. Cons: high Epk/Eacc, small aperture ACD2: Cornell Re-entrant shape Pros: low Hpk/Eacc single-cell: 52 MV/m 9-cell: fabrication underway Cons: high Epk/Eacc, HPR problematic

  3. Cavity-shape designs with low Bpeak/Eacc made the breakthrough.

  4. Cavity shape ACD3: Superstructure pairs of 9-cell cavities. (two pairs of 7-cell cavities studied at DESY) Pros. Cost savings : ½ of input couplers (8000 couplers) Wake-fields are less. Cons. How to process/test a long assembly (BCP, EP, etc…)

  5. Cavity material BCD: Nb fine grain sheet Pros: Best known material Cons: Expensive rolling, cleaning and annealing steps. R&D: Impurity of Ta, how many melts, EBM conditions etc. ACD1: Large grain /single crystal (Jlab, DESY, Cornell, FNAL) Pros: Simplification of fabrication and processing => cost savings Potential elimination of EP => Only BCP Cons: Little experience R&D: Acceptable yield strength of material after cut from ingot Cutting techinque: wire EDM is slow ACD2: Nb/Cu clad Pros: Saving Nb material => Cost savings. No EBW at equator, comparable performance to bulk Nb cavity. 3-cell cavity demonstration by DESY. Cons: Contamination risk at welding of endgroup. => Sputterd Nb on Cu with endgroup flanged to cell-structure. Complex cool down (Thermo-current/frozen-in flux)

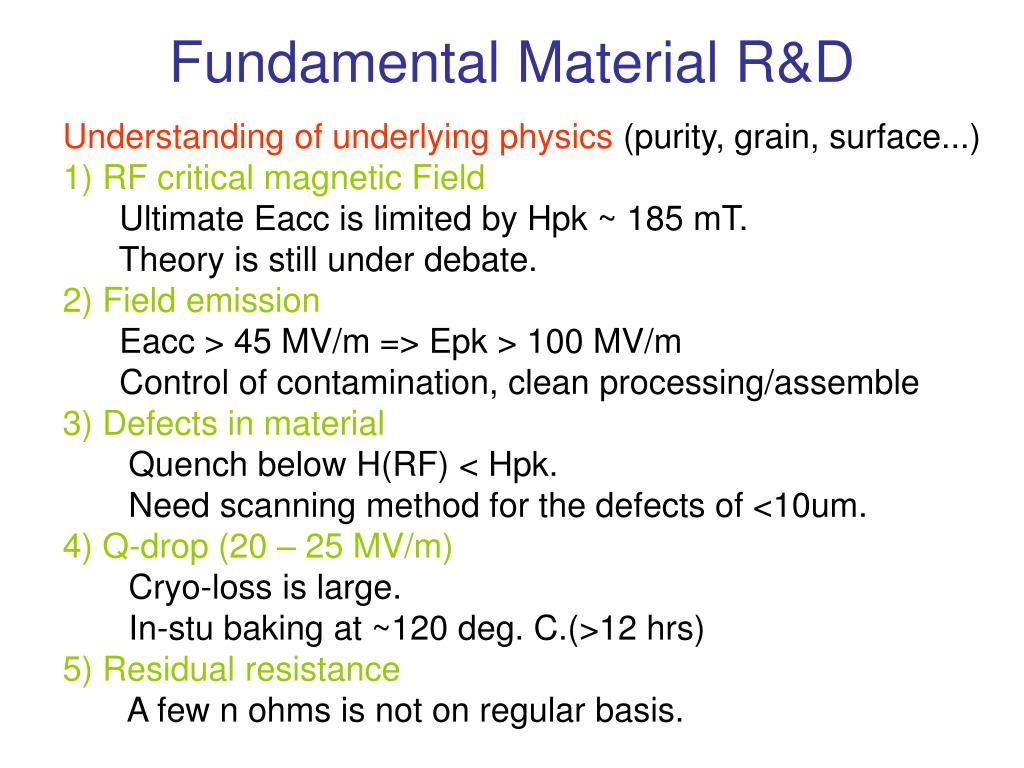

  6. Fundamental Material R&D Understanding of underlying physics (purity, grain, surface...) 1) RF critical magnetic Field Ultimate Eacc is limited by Hpk ~ 185 mT. Theory is still under debate. 2) Field emission Eacc > 45 MV/m => Epk > 100 MV/m Control of contamination, clean processing/assemble 3) Defects in material Quench below H(RF) < Hpk. Need scanning method for the defects of <10um. 4) Q-drop (20 – 25 MV/m) Cryo-loss is large. In-stu baking at ~120 deg. C.(>12 hrs) 5) Residual resistance A few n ohms is not on regular basis.

  7. Cavity Fabrication BCD: Bulk fine-grained Nb sheet, Machining, deep draw forming, Mechanical polishing, pre-cleaning, EBW, inelastic deformation tuning with appropriate intermediate cleaning steps. Options: 1) fine-grain sheet deep drawing + EBW => spinning deep drawing + EBW => hydro-forming endgroup => Nb film on Cu + flanges 2) large/single grain sheet Wire EDM cut of ingot to form sheet 3)Bulk Nb/Cu clad material deep drawing + EBW => hydro-form Nb/Cu clad pipe (9-cell + beam-tubes ???)

  8. Cavity Fabrication ACD1: Hydro-forming of cell-structure (DESY, KEK) Single-cell cavity: 42 MV/m, Q = 10**10 (KEK & DESY) 3-cell cavity : fabricated. Pros: Saving fabrication cost. Nb material reduction by 75%. Adoidance of machining. Automation. Etc… Cons: Endgroup welding. Contamination of Cu. R&D: Magnetic flux trap by Nb/Cu thrmo-coupling. CARE program in Europe. Bulk Nb seamless 9-cell cavity installation in the cryomodule (2006) ACD2: Spining (INFN) Single-cell cavity: 40 MV/m (INFN) 9-cell cavity: fabricated. Pros: Saving fabrication costs. Cons: Need removal of fissures by substantial grinding. ACD3: Nb films on Cu for endgroups (KEK) Pros: Successful SC flanging => new type of modularity. Inspection, cleaning, assembly separately. Cost savings (Nb and EBW => Cu and brazing) Cons: Complex shape of endgroup => difficult Nb coating. Additional complexity in SC joint.

  9. Cavity preparation BCD: 1)Leak check, mechanical checks, inspection 2)Freq. tuning, field flatness 3)Cleaning 4)Damage layer removal 5)Furnace treatment 6)Final freq. tuning, field flatness 7)Final surface preoparation 8)Final cleaning 9)Bake-out at 120 -130 deg C. 10)Low-power acceptance tests 11)Tank-welding 12)Assembly for high-power operation 13)High-power test

  10. Cavity preparation ACD1: post-purification at 1400 deg C with Ti. ACD2: Eliminate outside etching ACD3: Hot water rinsing ACD4: Tumbling/barrel polishing to reduce amount of EP necessary (KEK) ACD5: Dry-ice cleaning instead of HPR (DESY) ACD6: Air baking out instead of in-situ vacuum bake at 120 – 130 deg C.
