  1. Chapter 26, part 1 The Urinary System

  2. Learning Objectives • Identify the components and functions of the urinary system • Describe the location and structural features of the kidneys • Describe the structure of a nephron, and outline the processes involved in the formation of urine • Describe the normal characteristics, composition, and solute concentrations of a representative urine sample

  3. Learning Objectives • List and describe the factors that influence filtration pressure and the rate of filtrate formation • Identify the types of transport mechanisms found along the nephron • Describe how antidiuretic hormone and aldosterone levels influence the volume and concentration of urine

  4. SECTION 26-1An Overview of the Urinary System

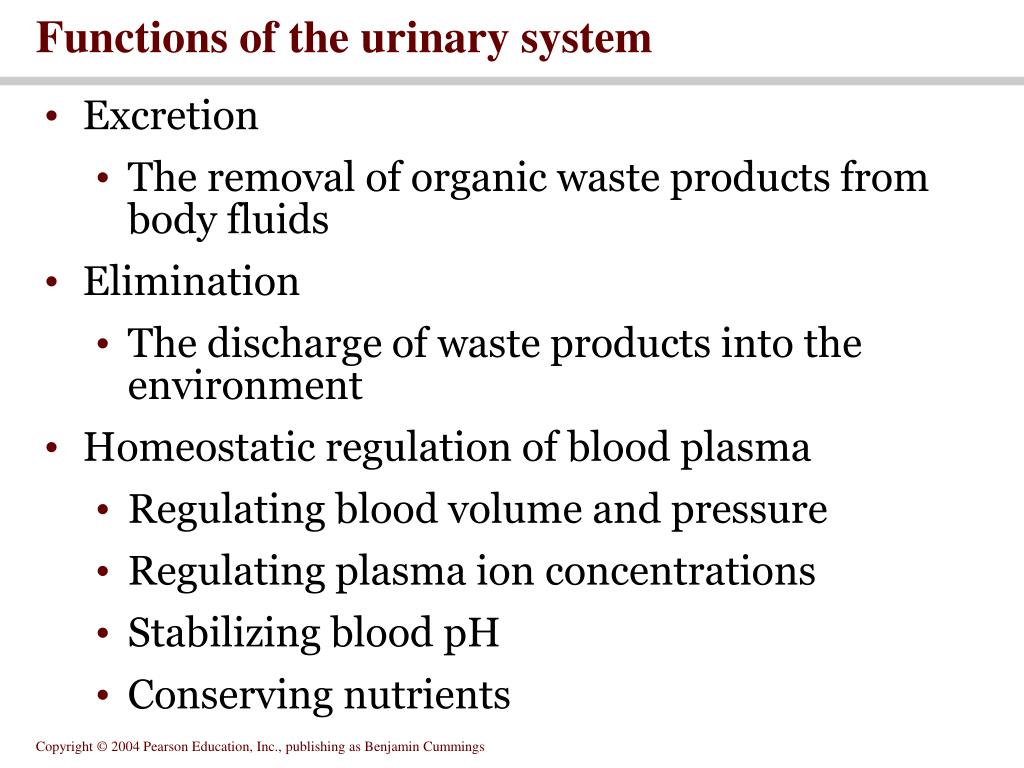

  5. Functions of the urinary system • Excretion • The removal of organic waste products from body fluids • Elimination • The discharge of waste products into the environment • Homeostatic regulation of blood plasma • Regulating blood volume and pressure • Regulating plasma ion concentrations • Stabilizing blood pH • Conserving nutrients

  6. Urinary system includes: • The kidneys • Produce urine • The ureters • The urinary bladder • Stores urine • The urethra

  7. Figure 26.1 An introduction to the Urinary System Figure 26.1

  8. SECTION 26-2The Kidneys

  9. The kidneys • Left kidney extends slightly more superiorly than right • Both kidneys and adrenal glands are retroperitoneal • Hilus • Entry for renal artery and renal nerves • Exit for renal veins and ureter

  10. Figure 26.2 The Position of the Kidneys Figure 26.2a, b

  11. Figure 26.3 The Urinary System in Gross Dissection Figure 26.3

  12. Sectional anatomy of the kidneys • Superficial outer cortex and inner medulla • The medulla consists of 6-18 renal pyramids • The cortex is composed of roughly 1.25 million nephrons • Major and minor calyces along with the pelvis drain urine to the ureters

  13. Figure 26.4 The Structure of the Kidney Figure 26.4a, b

  14. Blood supply and innervation of the kidneys • Renal arteries branch repeated • Renal artery • Segmental artery • Interlobar artery • Arcuate artery • Interlobular artery • Afferent arterioles • Renal venules follow similar opposing pattern ending with renal veins

  15. Figure 26.5 The Blood Supply to the Kidneys Figure 26.5a, b

  16. Figure 26.5 The Blood Supply to the Kidneys Figure 26.5c, d

  17. The nephron consists of a renal corpuscle and renal tubule • The renal corpuscle is composed of • Bowman’s capsule and the glomerulus • The renal tubule consists of • Proximal convoluted tubule (PCT) • Loop of Henle • Distal convoluted tubule (DCT)

  18. Filtrate is produced at the renal corpuscle • Nephron empties tubular fluid into collecting system • Collecting ducts and papillary ducts

  19. Figure 26.6 A Representative Nephron Figure 26.6

  20. Nephron functions include: • Production of filtrate • Reabsorption of organic nutrients • Reabsorption of water and ions • Secretion of waste products into tubular fluid

  21. Two types of nephron • Cortical nephrons • ~85% of all nephrons • Located in the cortex • Juxtamedullary nephrons • Closer to renal medulla • Loops of Henle extend deep into renal pyramids

  22. Figure 26.7 Cortical and Juxtamedullary Nephrons Figure 26.7a

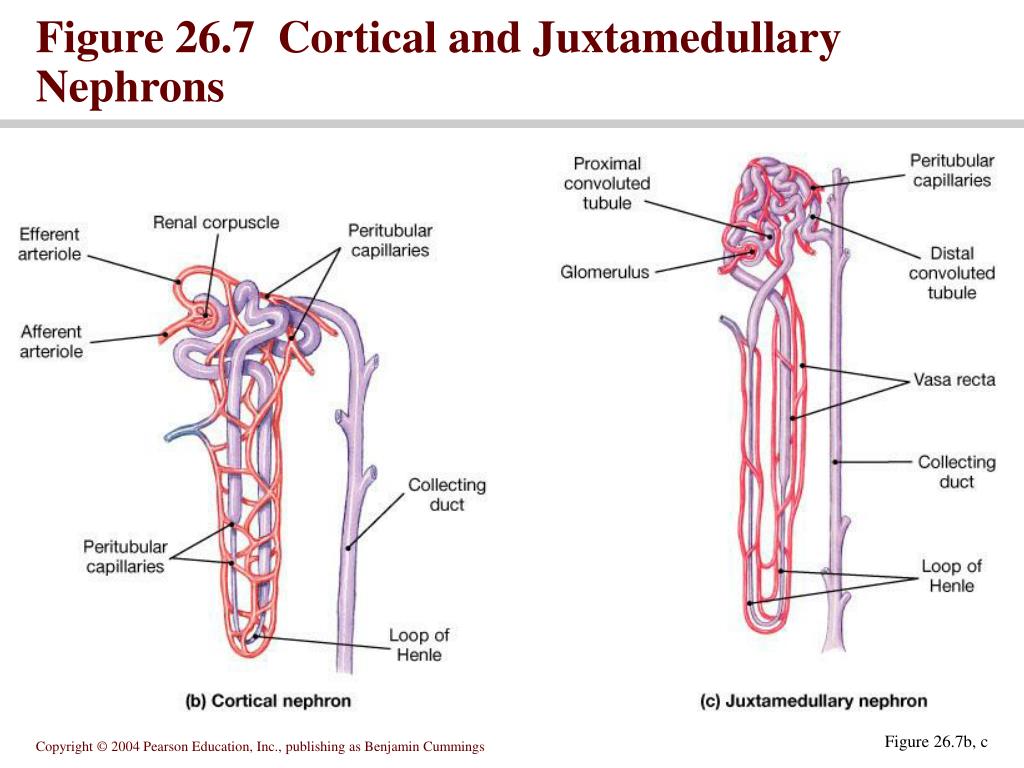

  23. Figure 26.7 Cortical and Juxtamedullary Nephrons Figure 26.7b, c
