  1. PetroMod Schlumberger Application to 1-D Basin Modeling

  2. PurposeBasin and Petroleum System Modeling • Simulation of basin evolution: tracking hydrocarbon generation and expulsion • Estimate volume hydrocarbon entrapment, flow and accumulation • Spatial scale: 10s to 100s of Kms. • Time scale: 100s to Mas • Dynamic reservoir geometry • 1D model: examines burial history at a point location. • 2-D model: either in map or cross section, can be used to reconstruct oil and gas generation, migration and accumulation along a cross section. • 3-D model: reconstructs petroleum systems at reservoir and basin scales and has the ability to display the output in 1D, 2D or 3D, and through time • Al-Hajeri and Al Saeed et al. (2009)

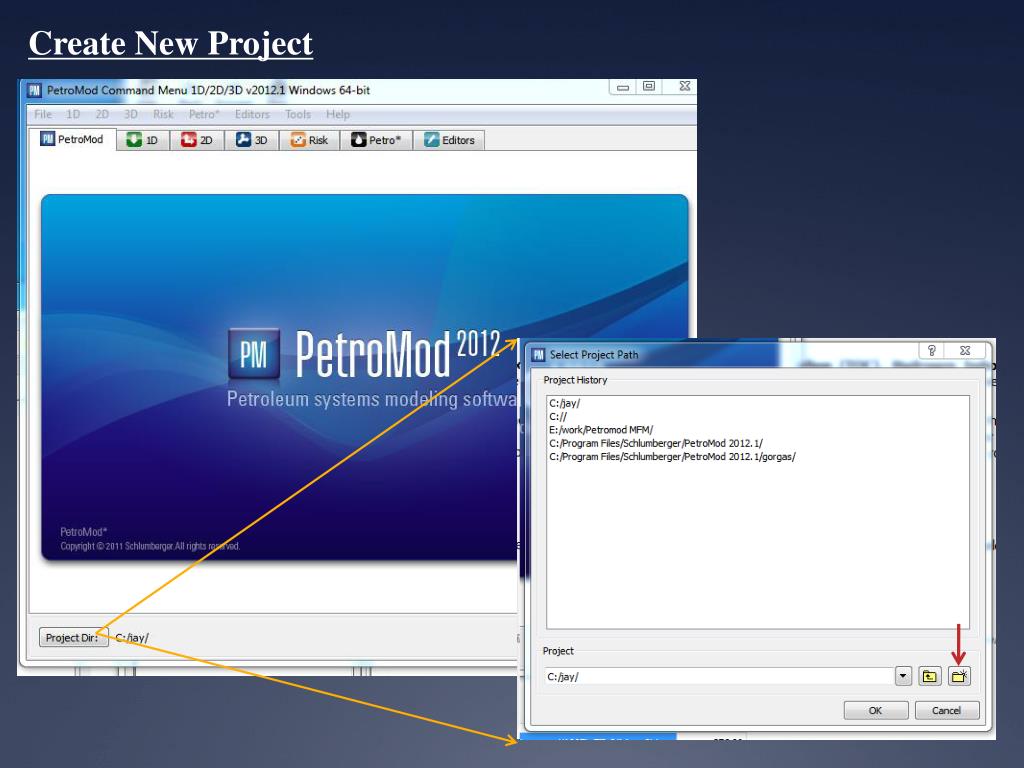

  3. Create New Project

  4. New model folders

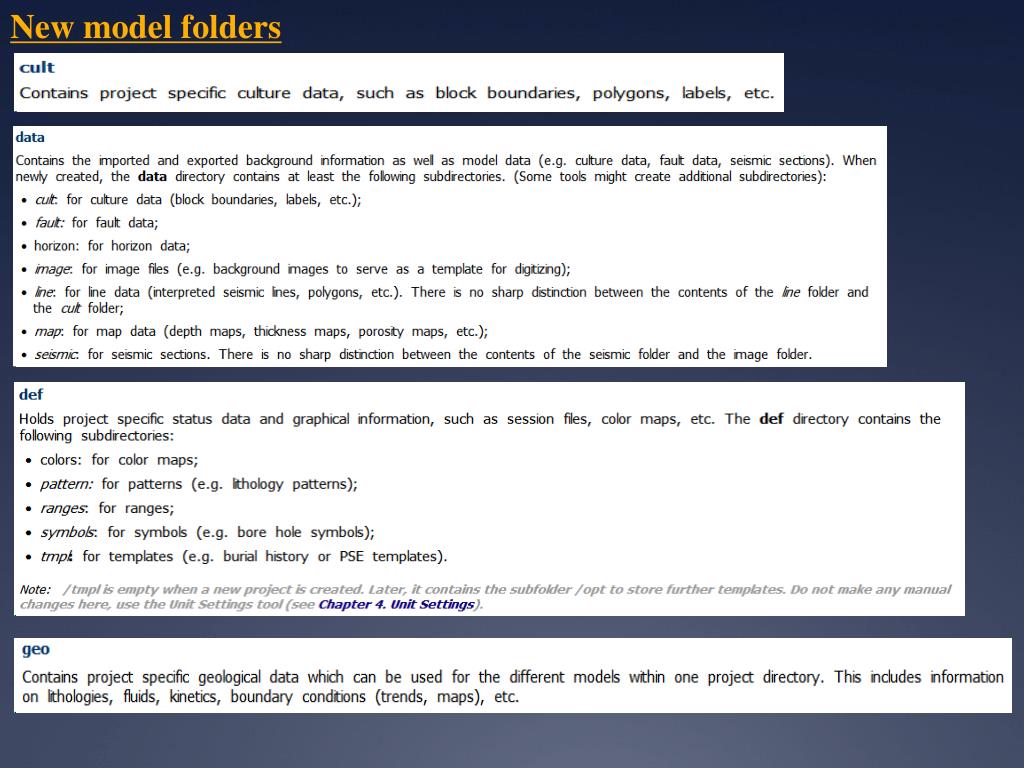

  5. New model folders

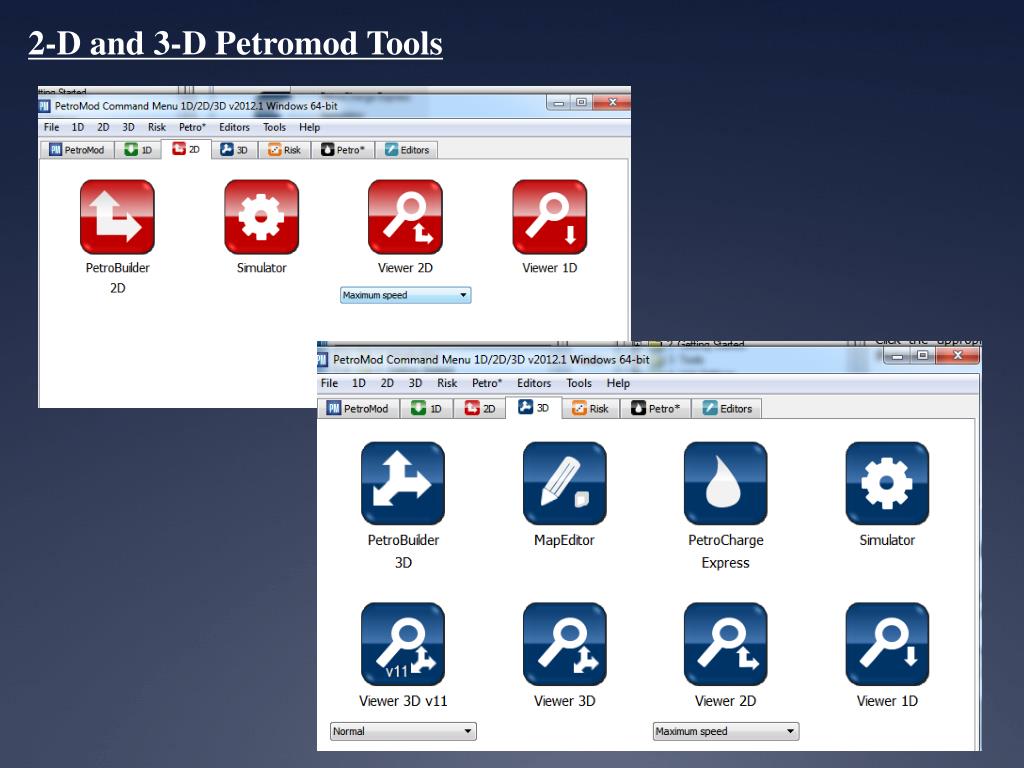

  6. 2-D and 3-D Petromod Tools

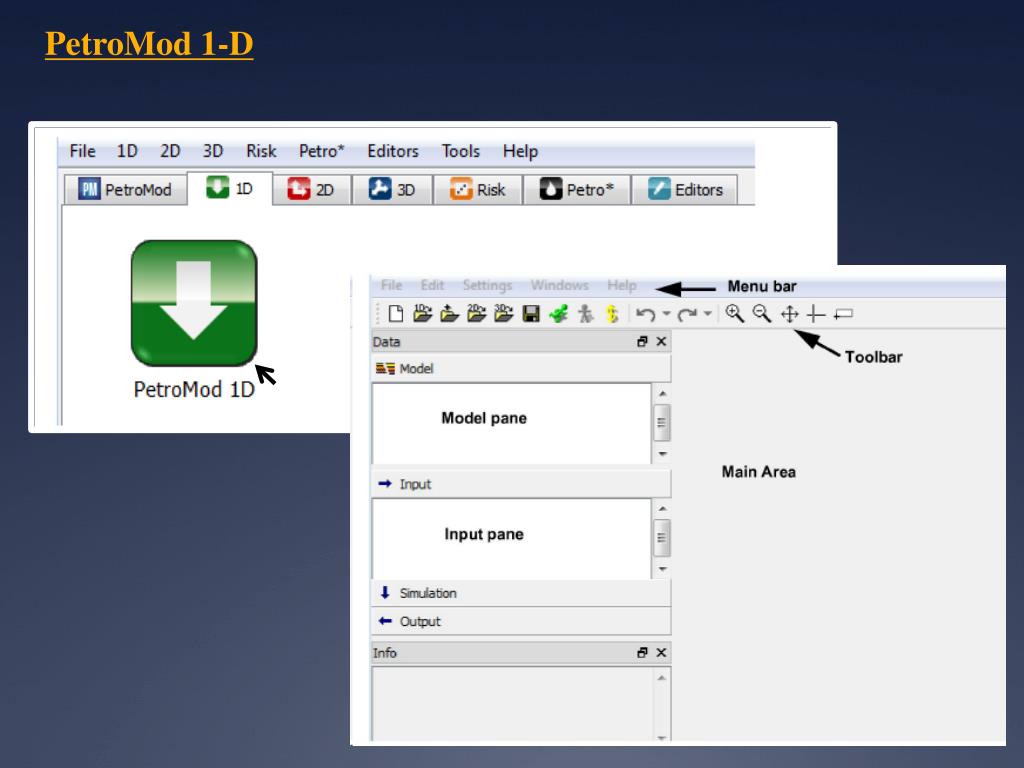

  7. PetroMod 1-D

  8. Create new model

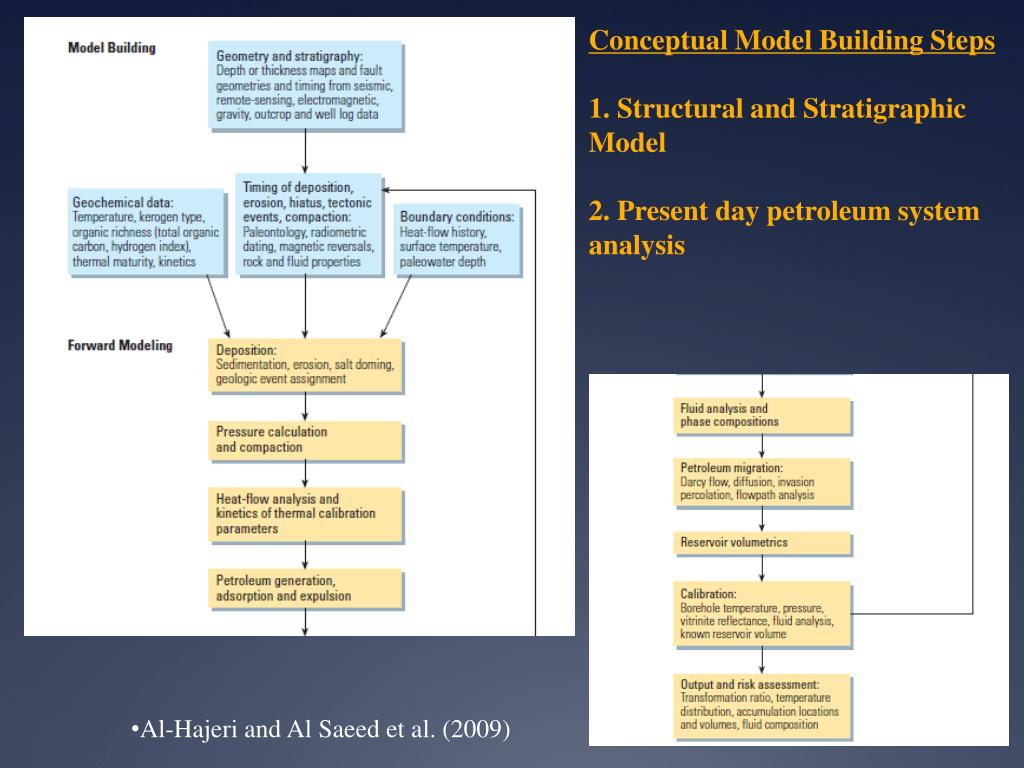

  9. Conceptual Model Building Steps1. Structural and Stratigraphic Model2. Present day petroleum system analysis • Al-Hajeri and Al Saeed et al. (2009)

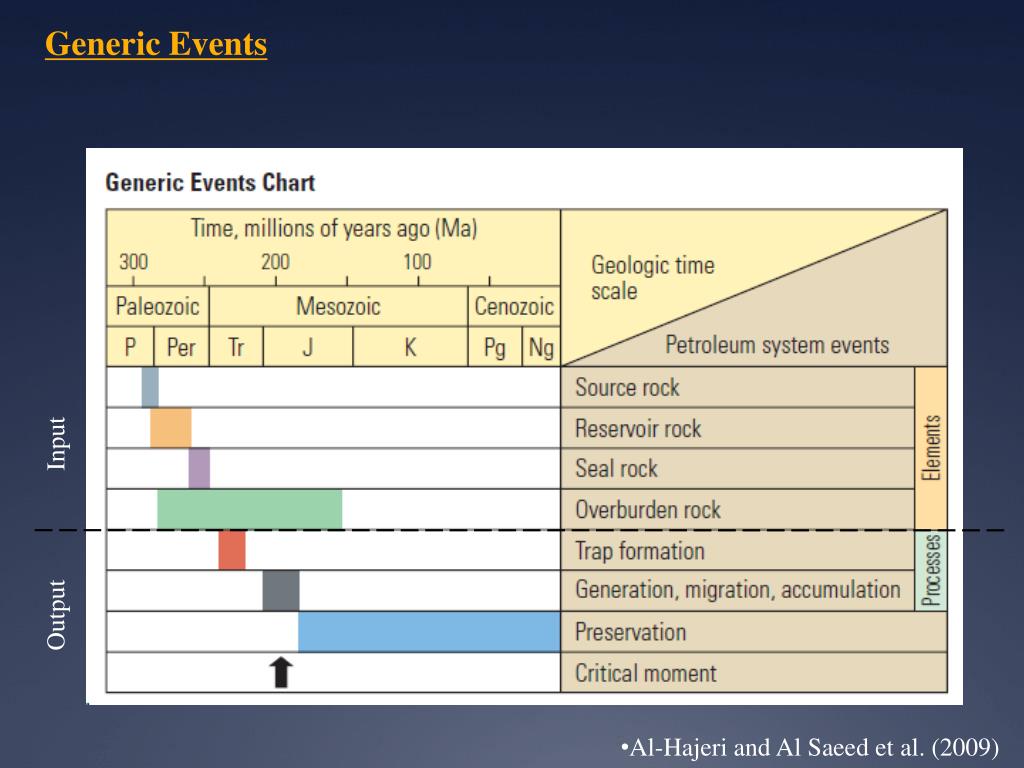

  10. Generic Events Input Output • Al-Hajeri and Al Saeed et al. (2009)

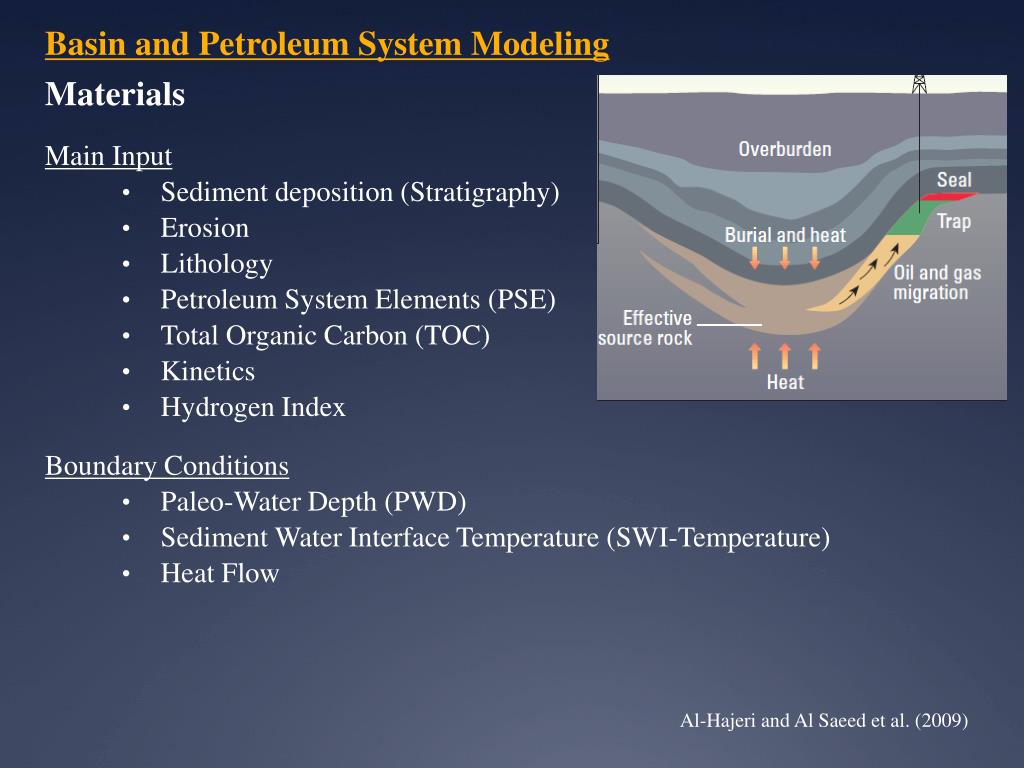

  11. Basin and Petroleum System Modeling Materials Main Input • Sediment deposition (Stratigraphy) • Erosion • Lithology • Petroleum System Elements (PSE) • Total Organic Carbon (TOC) • Kinetics • Hydrogen Index Boundary Conditions • Paleo-Water Depth (PWD) • Sediment Water Interface Temperature (SWI-Temperature) • Heat Flow • Al-Hajeri and Al Saeed et al. (2009)

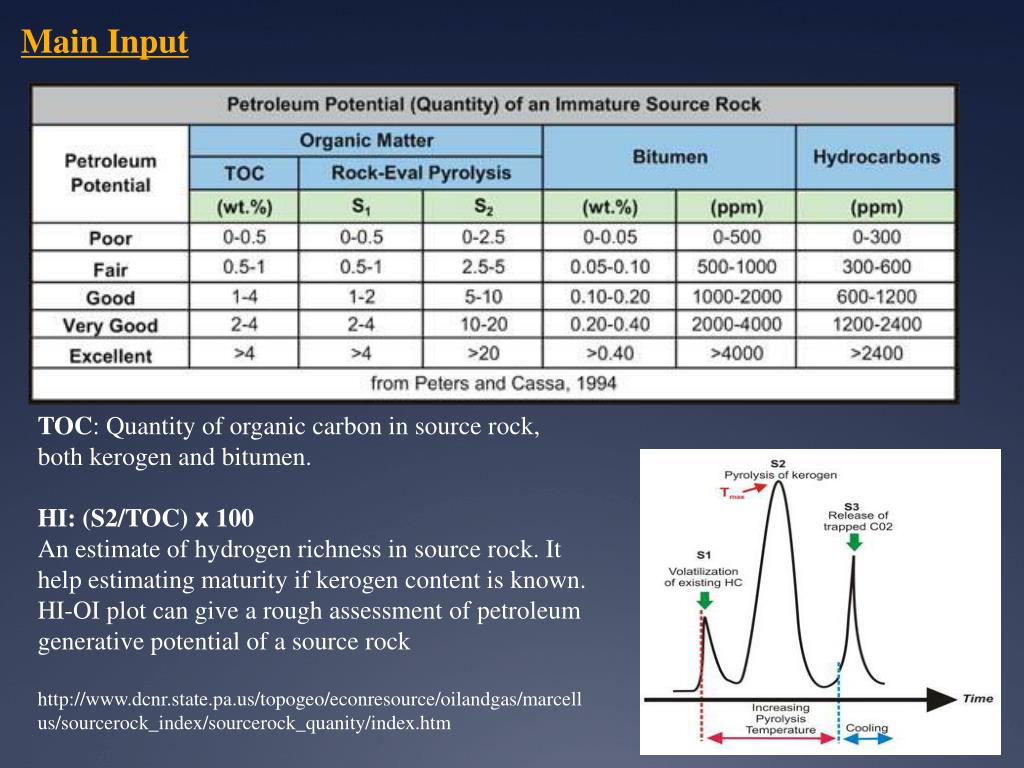

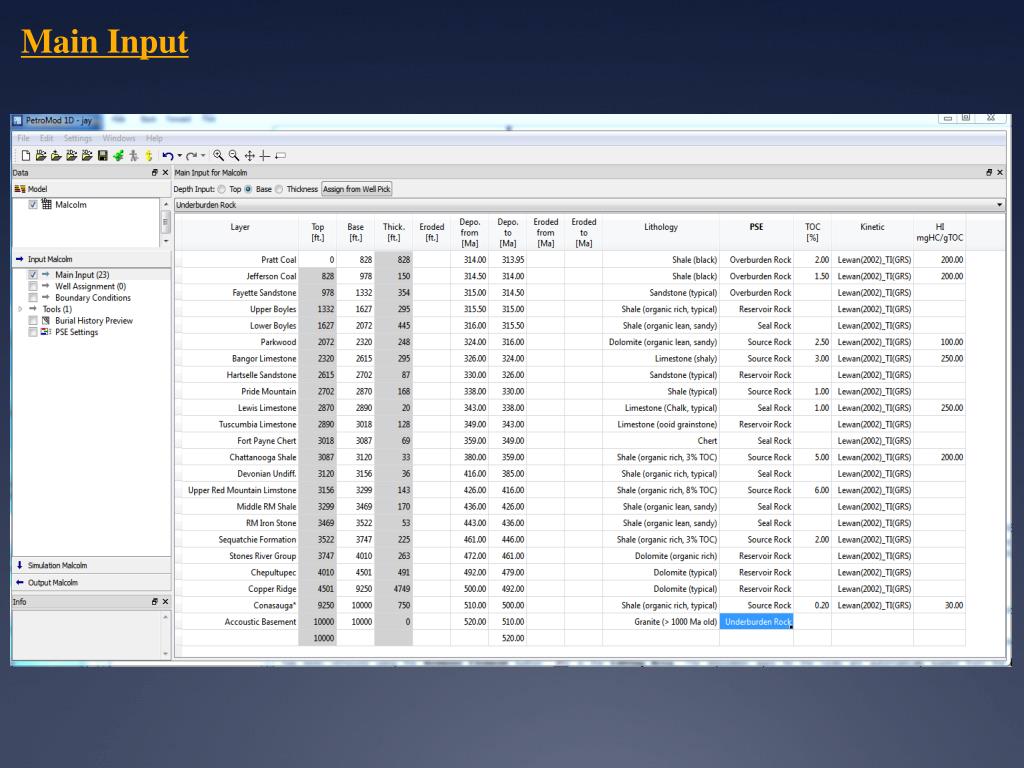

  12. Main Input TOC: Quantity of organic carbon in source rock, both kerogen and bitumen. HI: (S2/TOC) x 100 An estimate of hydrogen richness in source rock. It help estimating maturity if kerogen content is known. HI-OI plot can give a rough assessment of petroleum generative potential of a source rock http://www.dcnr.state.pa.us/topogeo/econresource/oilandgas/marcellus/sourcerock_index/sourcerock_quanity/index.htm

  13. Main Input

  14. Main Input

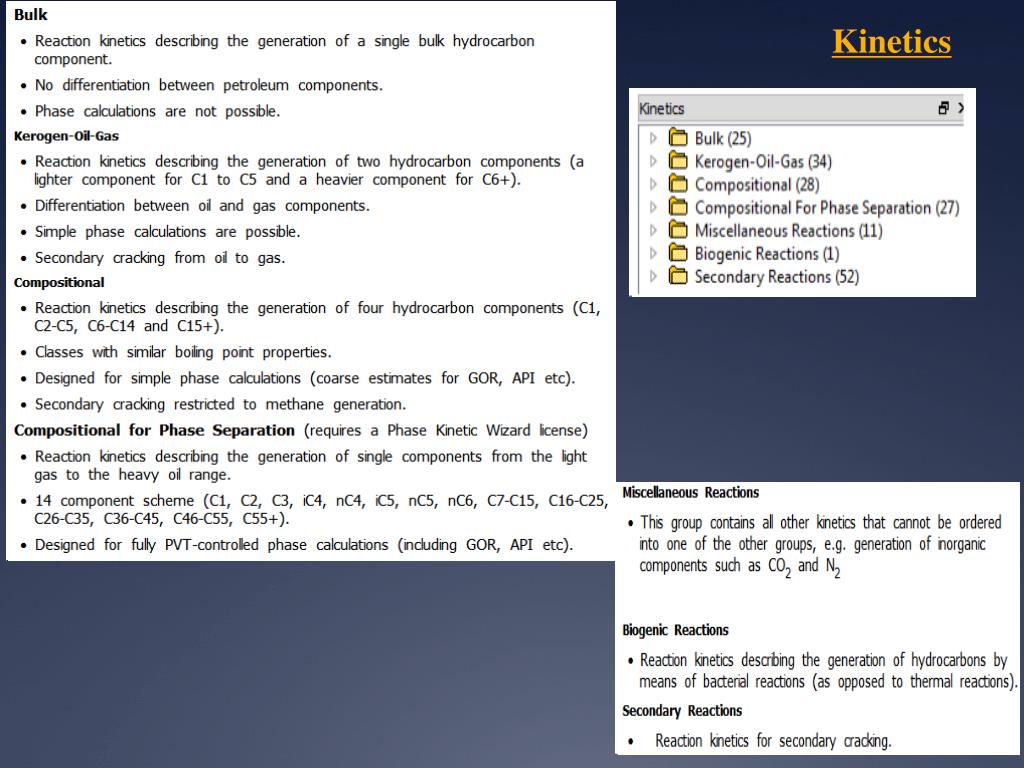

  15. Kinetics

  16. Reaction tabs

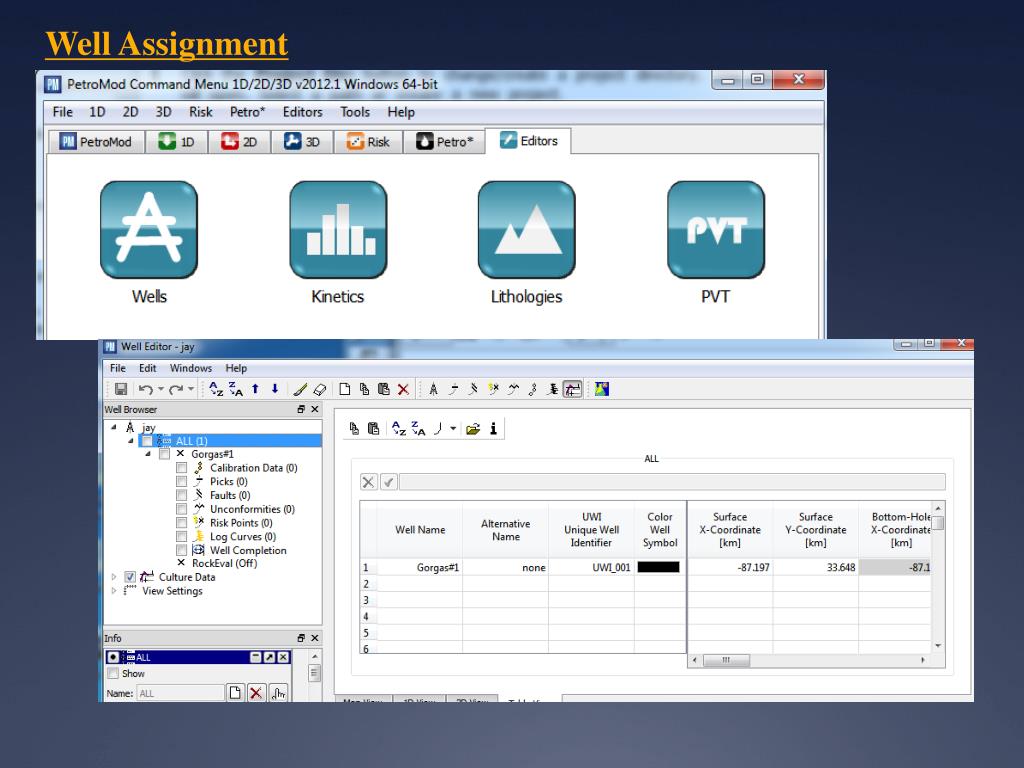

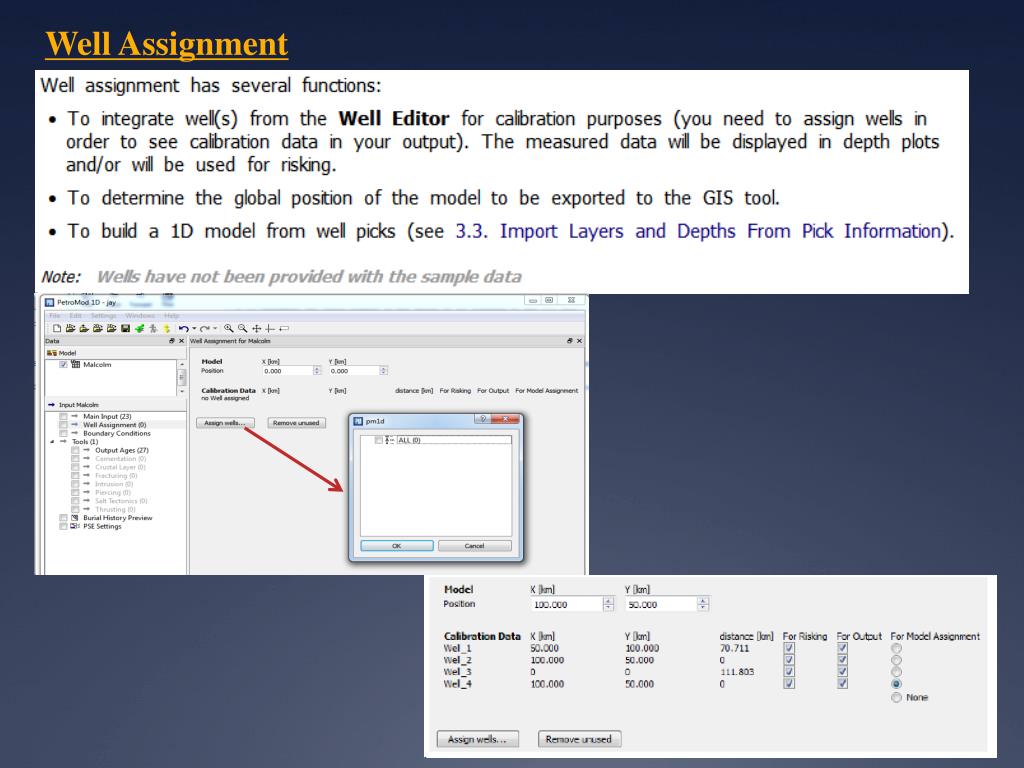

  17. Well Assignment

  18. Well Assignment

  19. Boundary Conditions • Paleo-Water Depth (PWD) is an important parameter which controls the rate of sedimentation, erosion, and the volume of water controls pressure load on top of a system. • Temperature controls transformation of kerogen into petroleum • Paleo-Heat flow • Sediment-Water Interface Temperature (SWIT) • Al-Hajeri and Al Saeed et al. (2009)

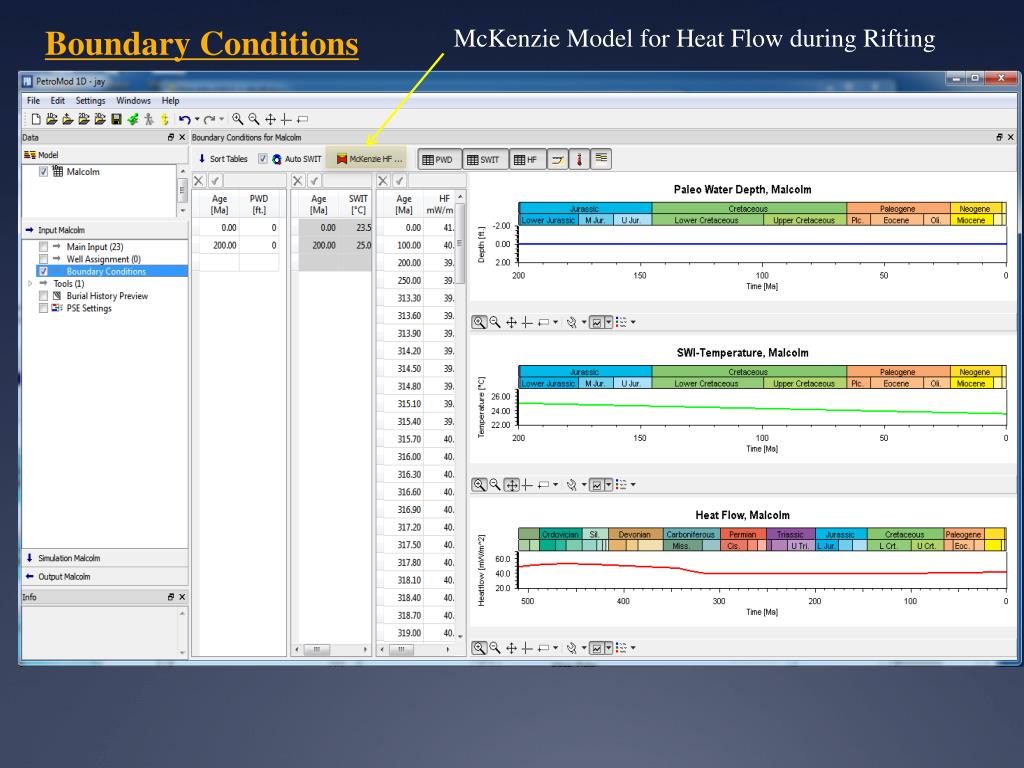

  20. McKenzie Model for Heat Flow during Rifting Boundary Conditions

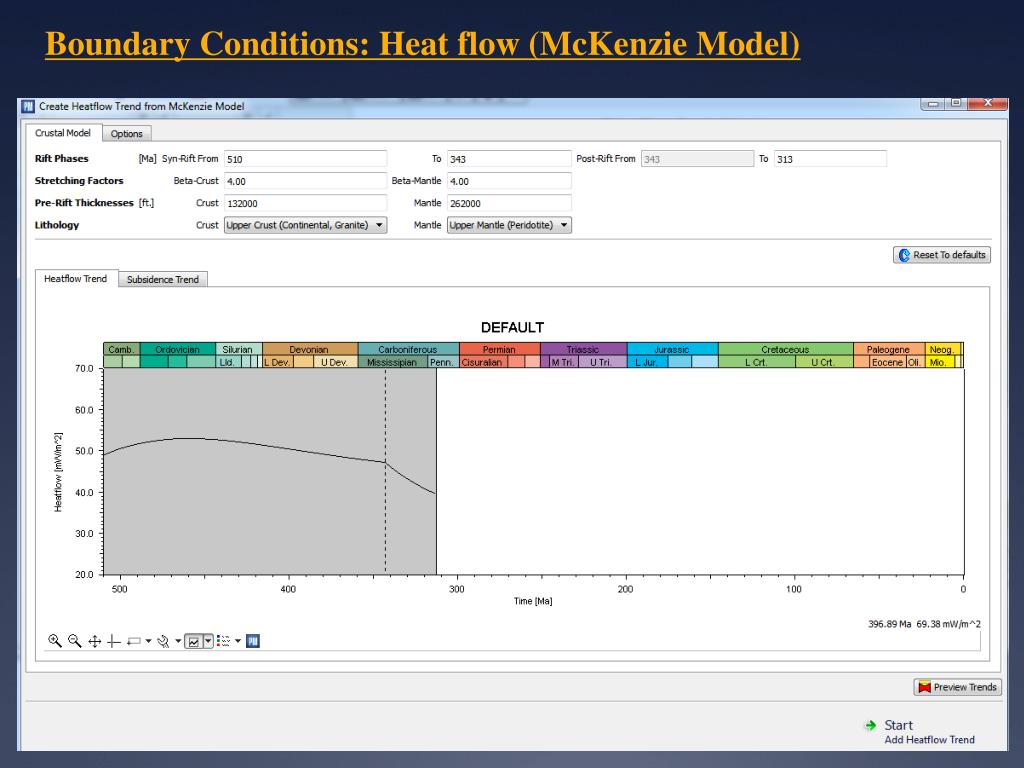

  21. Boundary Conditions: Heat flow (McKenzie Model)

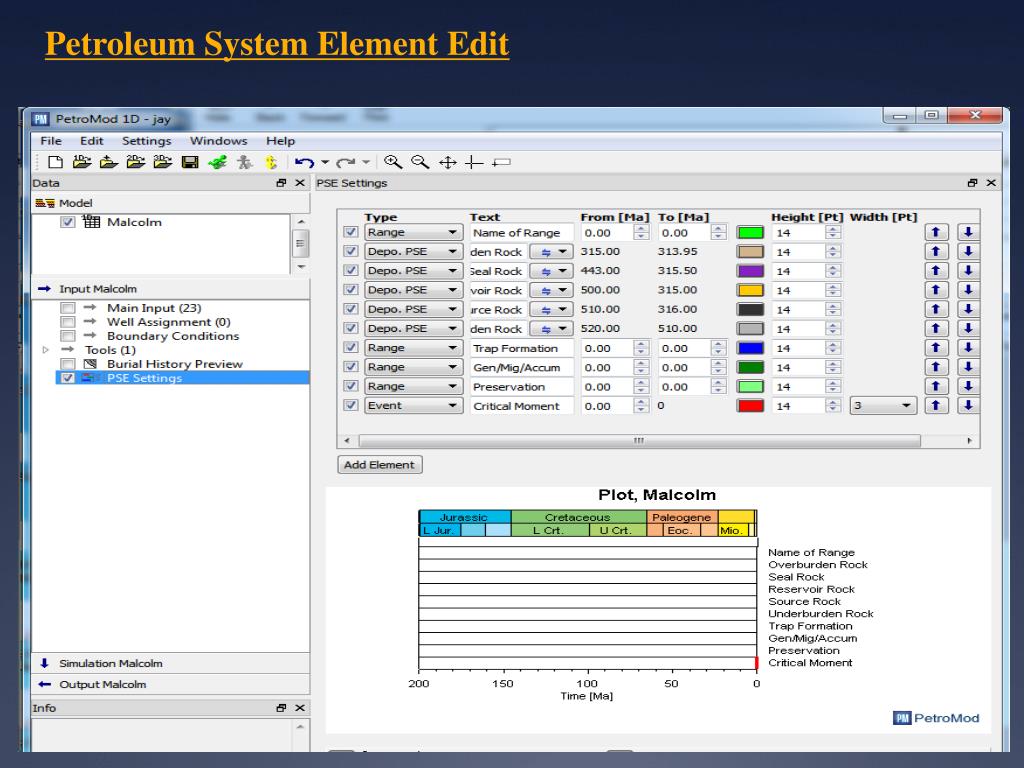

  22. Petroleum System Element Edit

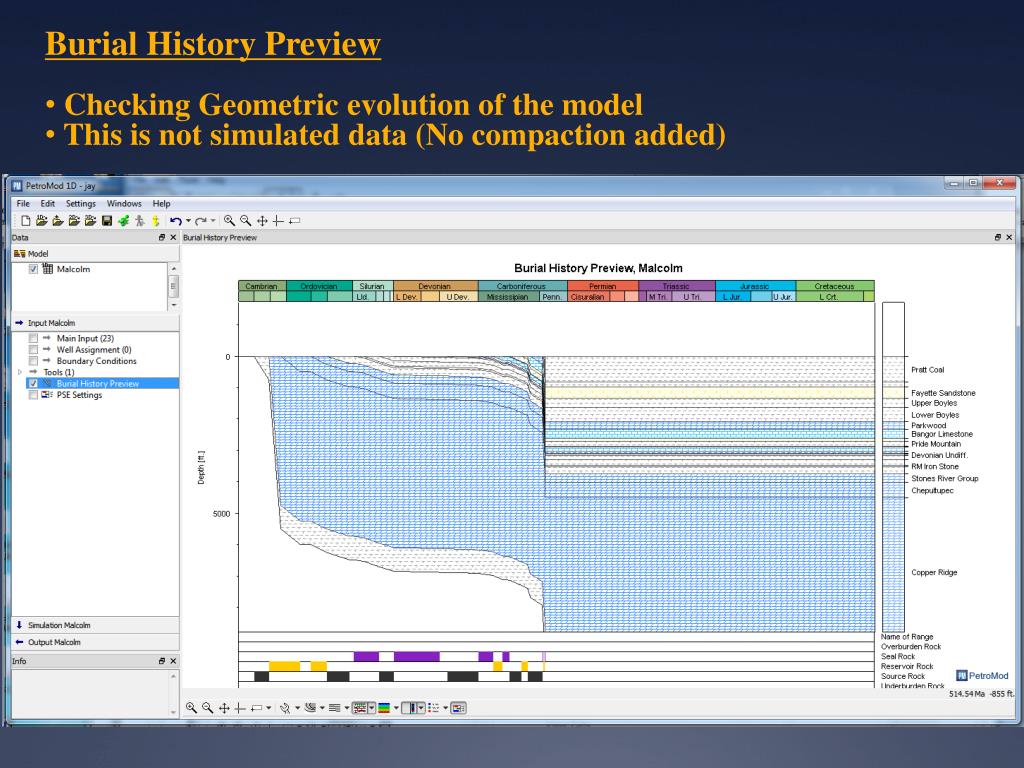

  23. Burial History Preview • Checking Geometric evolution of the model • This is not simulated data (No compaction added)

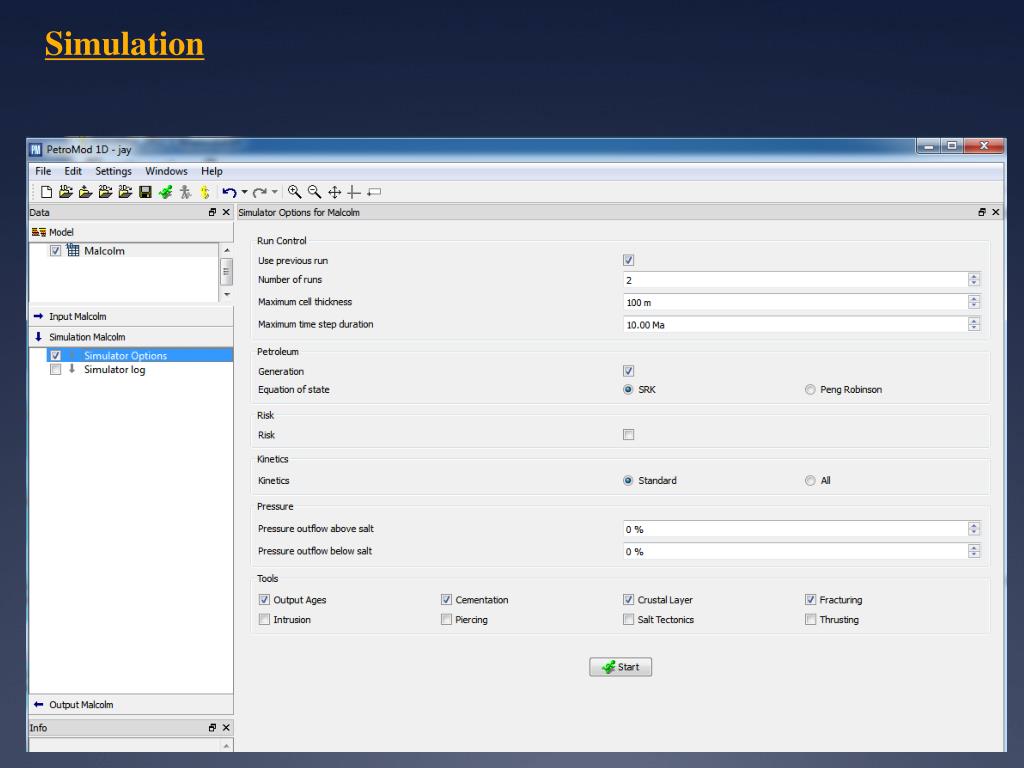

  24. Simulation

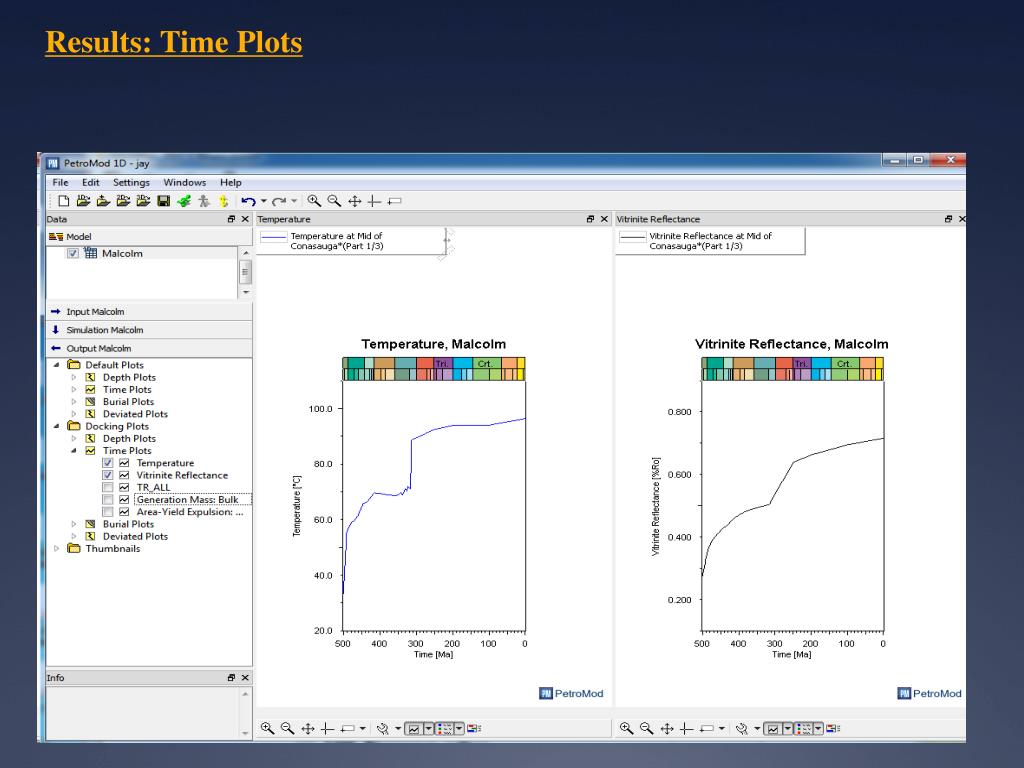

  25. Results: Time Plots

  26. Results: Burial History Plot with HC Potential Overlay

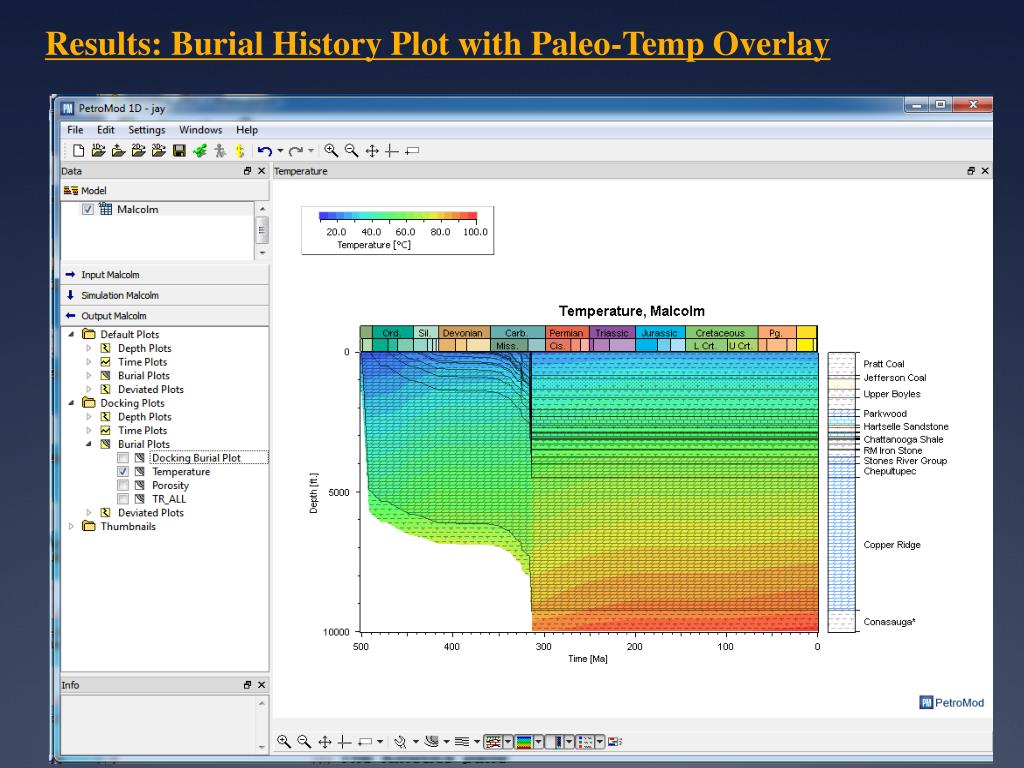

  27. Results: Burial History Plot with Paleo-Temp Overlay
