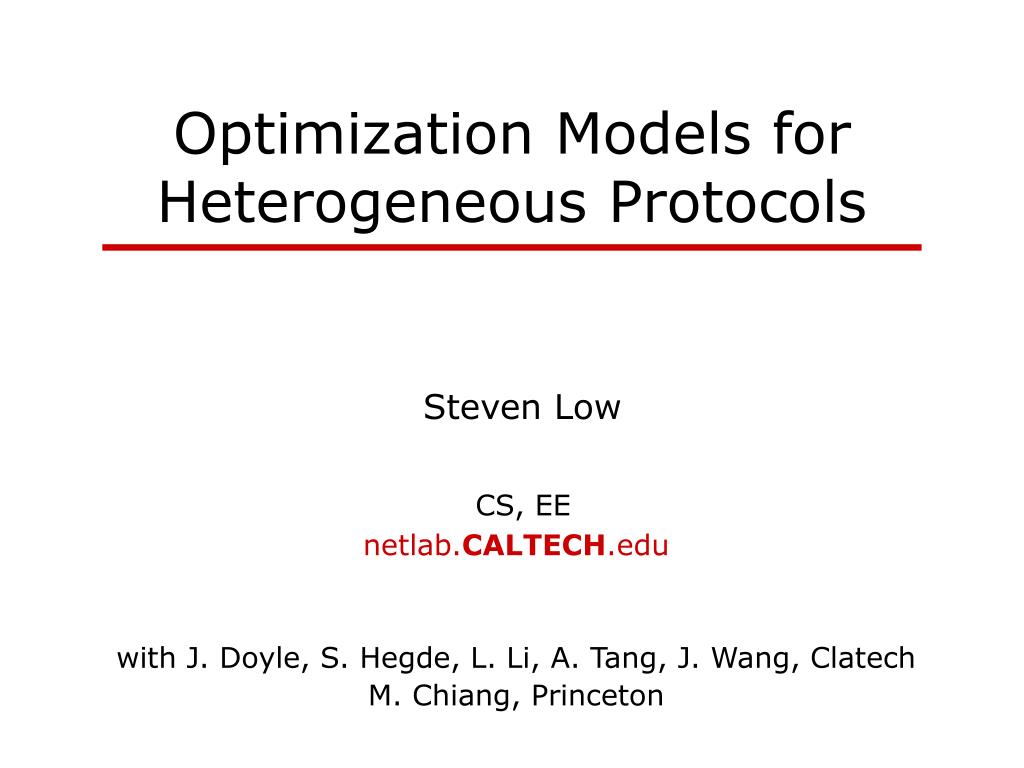

  1. Optimization Models for Heterogeneous Protocols Steven Low CS, EE netlab.CALTECH.edu with J. Doyle, S. Hegde, L. Li, A. Tang, J. Wang, Clatech M. Chiang, Princeton

  2. Outline Application TCP/AQM IP Link • Internet protocols • Horizontal decomposition • TCP-AQM • Some implications • Vertical decomposition • TCP/IP, HTTP/TCP, TCP/wireless, … • Heterogeneous protocols

  3. Internet Protocols pl(t) xi(t) • Protocols determines network behavior • Critical, yet difficult, to understand and optimize • Local algorithms, distributed spatially and vertically  global behavior • Designed separately, deployed asynchronously, evolves independently Application TCP/AQM IP Link

  4. Internet Protocols pl(t) xi(t) • Protocols determines network behavior • Critical, yet difficult, to understand and optimize • Local algorithms, distributed spatially and vertically  global behavior • Designed separately, deployed asynchronously, evolves independently Need to reverse engineer … to understand stack and network as whole Application TCP/AQM IP Link

  5. Internet Protocols pl(t) xi(t) • Protocols determines network behavior • Critical, yet difficult, to understand and optimize • Local algorithms, distributed spatially and vertically  global behavior • Designed separately, deployed asynchronously, evolves independently Need to reverse engineer … to forward engineer new largenetworks Application TCP/AQM IP Link

  6. Internet Protocols pl(t) xi(t) Minimize response time (web layout) Application Maximize utility (TCP/AQM) TCP/AQM IP Minimize path costs (IP) Link Minimize SIR, max capacities, …

  7. Internet Protocols Application TCP/AQM IP Link • Each layer is abstracted as an optimization problem • Operation of a layer is a distributed solution • Results of one problem (layer) are parameters of others • Operate at different timescales

  8. Protocol Decomposition Application TCP/AQM IP Link • Each layer is abstracted as an optimization problem • Operation of a layer is a distributed solution • Results of one problem (layer) are parameters of others • Operate at different timescales 1) Understand each layer in isolation, assuming other layers are designed nearly optimally 2) Understand interactions across layers 3) Incorporate additional layers 4) Ultimate goal: entire protocol stack as solving one giant optimization problem, where individual layers are solving parts of it

  9. Layering as Optimization Decomposition • Layering as optimization decomposition • NetworkNUM problem • LayersSubproblems • LayeringDecomposition methods • InterfacePrimal or dual variables • Enables a systematic study of: • Network protocols as distributed solutions to global optimization problems • Inherent tradeoffs of layering • Vertical vs. horizontal decomposition (M. Chiang, Princeton)

  10. Outline Application TCP/AQM IP Link • Internet protocols • Horizontal decomposition • TCP-AQM • Some implications • Vertical decomposition • TCP/IP, HTTP/TCP, TCP/wireless, … • Heterogeneous protocols

  11. x y R F1 G1 Network AQM TCP GL FN q p RT Reno, Vegas IP routing DT, RED, … Network model

  12. Reno, Vegas DT, RED, … IP routing Network model: example TCP Reno: currently deployed TCP AI MD TailDrop

  13. Reno, Vegas DT, RED, … IP routing Network model: example TCP FAST: high speed version of Vegas

  14. Duality model • TCP-AQM: • Equilibrium (x*,p*) primal-dual optimal: • Fdetermines utility function U • Gdetermines complementary slackness condition • p* are Lagrange multipliers Uniqueness of equilibrium • x* is unique when U is strictly concave • p* is unique when R has full row rank

  15. Duality model • TCP-AQM: • Equilibrium (x*,p*) primal-dual optimal: • Fdetermines utility function U • Gdetermines complementary slackness condition • p* are Lagrange multipliers The underlying concave program also leads to simple dynamic behavior

  16. Duality model • Global stability in absence of feedback delay • Lyapunov function • Kelly, Maulloo & Tan (1988) • Gradient projection • Low & Lapsley (1999) • Singular perturbations • Kunniyur & Srikant (2002) • Passivity approach • Wen & Arcat (2004) • Linear stability in presence of feedback delay • Nyquist criteria • Paganini, Doyle, Low (2001), Vinnicombe (2002), Kunniyur & Srikant (2003) • Global stability in presence of feedback delay • Lyapunov-Krasovskii, SoSTool • Papachristodoulou (2005) • Global nonlinear invariance theory • Ranjan, La & Abed (2004, delay-independent)

  17. a = 1 : Vegas, FAST, STCP • a = 1.2: HSTCP (homogeneous sources) • a = 2 : Reno (homogeneous sources) • a = infinity: XCP (single link only) Duality model • Equilibrium (x*,p*) primal-dual optimal: (Mo & Walrand 00)

  18. Outline Application TCP/AQM IP Link • Internet protocols • Horizontal decomposition • TCP-AQM • Some implications • Vertical decomposition • TCP/IP, HTTP/TCP, TCP/wireless, … • Heterogeneous protocols

  19. FAST Architecture Each component • designed independently • upgraded asynchronously

  20. Is large queue necessary for high throughput?

  21. Efficient and Friendly • Fully utilizing bandwidth • Does not disrupt interactive applications One-way delay Requirement for VoIP • DSL upload (max upload capacity 512kbps) • Latency: 10ms

  22. Resilient to Packet Loss max FAST Current TCP collapses at packet loss rate bigger than a few %! • Lossy link, 10Mbps • Latency: 50ms

  23. Implications • Is fair allocation always inefficient ? • Does raising capacity always increase throughput ? Intricate and surprising interactions in large-scale networks … unlike at single link

  24. Implications • Is fair allocation always inefficient ? • Does raising capacity always increase throughput ? Intricate and surprising interactions in large-scale networks … unlike at single link

  25. Daulity model (Mo, Walrand 00) • a = 1 : Vegas, FAST, STCP • a = 1.2: HSTCP (homogeneous sources) • a = 2 : Reno (homogeneous sources) • a = infinity: XCP (single link only)

  26. Fairness (Mo, Walrand 00) • a = 0: maximum throughput • a = 1: proportional fairness • a = 2: min delay fairness • a = infinity: maxmin fairness

  27. Fairness (Mo, Walrand 00) • Identify allocation with a • An allocation is fairer if its a is larger

  28. Efficiency: aggregate throughput • Unique optimal rate x(a) • An allocation is efficient if T(a) is large

  29. Conjecture Conjecture T(a) is nonincreasing i.e. a fair allocation is always inefficient

  30. max throughput proportional fairness maxmin fairness 1/(L+1) 1/2 0 1 L/L(L+1) 1/2 Example 1 Conjecture T(a) is nonincreasing i.e. a fair allocation is always inefficient

  31. Example 1 Conjecture T(a) is nonincreasing i.e. a fair allocation is always inefficient

  32. Results • Theorem: Necessary & sufficient condition for general networks (R, c) provided every link has a 1-link flow • Corollary 1: true if N(R)=1

  33. Results • Theorem: Necessary & sufficient condition for general networks (R, c) provided every link has a 1-link flow • Corollary 1: true if N(R)=1

  34. Results • Theorem: Necessary & sufficient condition for general networks (R, c) provided every link has a 1-link flow • Corollary 2: true if • N(R)=2 • 2 long flows pass through same# links

  35. Counter-example • Theorem: Given any a0>0, there exists network where • Compact example

  36. Counter-example • There exists a network such that dT/da > 0 for almost all a>0 • Intuition • Largea favors expensive flows • Long flows may not be expensive • Max-min may be more efficient than proportional fairness long expensive

  37. Outline Application TCP/AQM IP Link • Internet protocols • Horizontal decomposition • TCP-AQM • Some implications • Vertical decomposition • TCP/IP, HTTP/TCP, TCP/wireless, … • Heterogeneous protocols

  38. TCP-AQM Link Protocol decomposition Applications TCP/ AQM IP TCP-AQM: • TCP algorithms maximize utility with different utility functions Congestion prices coordinate across protocol layers

  39. TCP-AQM TCP-AQM Link Protocol decomposition Applications IP TCP/ AQM IP TCP/IP: • TCP algorithms maximize utility with different utility functions • Shortest-path routing is optimal using congestion prices as link costs …… Congestion prices coordinate across protocol layers

  40. ap(0) ap(1) TCP/AQM IP … … R(t),R(t+1), R(0) R(1) Two timescales • Instant convergence of TCP/IP • Link cost = a pl(t) + b dl • Shortest path routing R(t) static price

  41. TCP-AQM/IP Model TCP AQM Link cost IP

  42. ap(0) ap(1) TCP/AQM IP … … R(t),R(t+1), R(0) R(1) Questions • Does equilibrium routing Ra exist ? • What is utility at Ra? • Is Ra stable ? • Can it be stabilized?

  43. Equilibrium routing Theorem • If b=0, Ra exists iff zero duality gap • Shortest-path routing is optimal with congestion prices • No penalty for not splitting

  44. TCP-AQM TCP-AQM Link Protocol decomposition Applications IP TCP/ AQM IP TCP/IP (with fixed c): • Equilibrium of TCP/IP exists iff zero duality gap • NP-hard, but subclass with zero duality gap is P • Equilibrium, if exists, can be unstable • Can stabilize, but with reduced utility Inevitable tradeoff bw utility max & routing stability

  45. TCP-AQM TCP-AQM Link Protocol decomposition Applications Link IP IP TCP/ AQM IP TCP/IP with optimal c: • With optimal provisioning, static routing is optimal using provisioning cost a as link costs TCP/IP with static routing in well-designed network

  46. TCP-AQM Summary Link IP • TCP algorithms maximize utility with different utility functions • IP shortest path routing is optimal using congestion prices as link costs,with given link capacities c • With optimal provisioning, static routing is optimal using provisioning cost a as link costs Congestion prices coordinate across protocol layers

  47. Outline Application TCP/AQM IP Link • Internet protocols • Horizontal decomposition • TCP-AQM • Some implications • Vertical decomposition • TCP/IP, HTTP/TCP, TCP/wireless, … • Heterogeneous protocols

  48. Congestion control x y R F1 G1 Network AQM TCP FN GL q p RT same price for all sources

  49. Heterogeneous protocols x y R F1 G1 Network AQM TCP FN GL q p RT Heterogeneous prices for type j sources

  50. Heterogeneous protocols eq 2 eq 1 Tang, Wang, Hegde, Low, Telecom Systems, 2005
