Wireless Communications Security Issues, Solutions and Challenges

1. Wireless Communications Security Issues, Solutions and Challenges Michel Barbeau and Jeyanthi Hall

2. Outline • Availability • Privacy • Integrity • Legitimate Participants • Absence of misbehavior

3. Security Requirements • Availability • no jamming, adaptability to unforeseen topologies • Privacy • nondisclosure of cell phone communications and 802.11 frames • Integrity • data is not intercepted and tampered • Legitimate participants • no cell phone cloning and 802.11 frame spoofing • Absence of misbehavior • fairness, greedy user detection

4. Availability • Jamming • Inability to deal with unforeseen topologies

5. Jamming • Shannon’s model:

6. How to Deal With Jamming? • Increase the bandwidth • Frequency Hopping/Direct Sequence Spread Spectrum • 801.11(b) : 2.4 - 2.4835 Giga Hertz • 801.11(a): 5.15- 5.35 Giga Hertz; 5.725- 5.825 Giga Hertz • Ultra Wide Band • Bandwidth greater than 25% if center frequency • Increase the power • GPS III, planned for 2010 [Ashley, Next-Generation GPS, Scientific American, September 2003.]

7. Inability to Deal With Unforeseen Topologies Images by: J.&G. Naudet (9/11/2001)

8. Privacy • Cellular phone eavesdropping • Overview of privacy techniques in 2G and 3G of cellular mobile radiophones • Refs.: • V. Niemi and K. Nyberg, UMTS Security, Wiley, 2003. • M.Y. Rhee, CDMA Cellular Mobile Communications and Network Security, Prentice Hall PTR,1998. • GSM, UMTS • Challenges • Future • Reconfigurable security • Chaotic communication • Quantum cryptography

9. Cellular Phone Eavesdropping • Inexpensive equipment for intercepting analog communications is easy to obtain in Canada. • In US, the regulations authorize the sale of scanners to the general public only is cellular frequencies are blocked. However, there are several workarounds • Web sites publish modifications to restore reception of cellular frequencies by scanners. • Frequency converters can translate cellular frequencies to the frequency range supported by a receiver. • With receivers using non quadrature mixing, the image frequency technique can be used. • Digital communications can also be intercepted with the appropriate equipment!

10. Generations of Cellular Mobile Radiophones* • 1G • Advanced Mobile Phone System (AMPS): 1980s, Frequency Modulation (FM), Frequency Division Multiple Access (FDMA), handover between cells, limited roaming between networks • 2G • Global System for Mobile communications (GSM): 1990s, digital-coding of voice, Time Division Multiple Access (TDMA), Subscriber Identity Module (SIM), data communications • 3G • 3G Partnership Project (3GPP), Universal Mobile Telecommunications System (UMTS): 1998-, Wideband Code Division Multiple Access (WCDMA), use of GSM network model, global roaming; 2 Mbps data • 4G • All-IP-based, 100 Mbps data * List of cited technologies is not exhaustive.

11. Security Associations in GSM

12. Authentication in GSM RAND Random Number SRES Signed Response

13. Encryption/Decryption in GSM

14. Stream Cipher Weakness

15. Security Holes in GSM [Niemi & Nyberg ‘03] • Active attack • Attacker masquerades as a legitimate base station/cell phone • Encryption keys • Plain text session key inter-network forwarding • Brute force attack • Some encryption algorithms are kept secret • Were not subjected to a comprehensive analysis/peer review

16. Security Associations in UMTS

17. Mutual Authentication and Key Agreement in UMTS AUTN Authentication Token RES User Response XRES Expected Response

18. Encryption/Decryption in UMTS COUNT-C: Frame number plus Hyper frame number, incremented when the frame number wraps around Direction: up/down-link

19. Integrity in UMTS COUNT-I: similar to COUNT-C, replay protection FRESH: start value of COUNT-I

20. Challenge: Co-existence of analog technology and digital technology • The digital technology has higher potential for being secure than analog technology. For example, the Cellular Digital Packet Data (CDPD) uses data encryption and provides privacy. • Most of the cellular phones use hybrid technology, both analog and digital. The reason for that is that digital communications require a relatively stronger signal, for intelligibility, than analog communications, all other things being equal (such as bandwidth of a voice channel). A cell phone will hence operate in digital mode over relatively short distances. • In order to enable long range communications, cell phones fall back to the analog mode when the signal gets too weak for digital communications. As a result, digital systems inherit all the security vulnerabilities of analog systems. • Co-existence of legacy analog technology and digital technology is a challenge for system security design.

21. Challenge: Introduction of new defense method in existing systems • Attack methods evolve • Defense methods evolve • New defense methods are difficult to introduce in existing systems

22. Reconfigurable security Reference • Al-Muhtadi at al., A lightweight reconfigurable security mechanism for 3G/4G mobile devices, IEEE Wireless Communications, April 2002. Definition • Security mechanisms are reconfigured dynamically according to capabilities, processing power, and needs • Loading/configuration/unloading of software components that implement security services

23. Chaotic Communication (1)

24. Chaotic Communication (2) Background • Abel and Schwarz, Chaos Communications—Principles, Schemes, and System Analysis, Proceedings of the IEEE, 2002. • Itoh, Spread Spectrum Communication via Chaos, World Scientific Publishing Company, International Journal of Bifurcation and Chaos, 1999. Theoretical Attacks • Guojie, Zhengjin, and Ruiling, Chosen Ciphertext Attack on Chaos Communication Based on Chaotic Synchronization, IEEE Transactions on Circuits and Systems, 2003. • Ogorzatek and Dedieu, Some Tools for Attacking Secure Communication Systems Employing Chaotic Carriers, IEEE, 1998.

25. Theoretically Broken Chaotic Communication (cont’d) • Chaotic masking • Low amplitude modulating signal, high amplitude chaotic carrier • Chaotic switching • Two waveforms representing binary values zero and one • Has a differential version • Chaotic modulation • Chaotic carrier influenced by a non invertible function, according to the information

26. Quantum Cryptography • Wiesner, “Quantum Money”, 1960 (unpublished) • Polarity of photons (angle of vibration) can be verified, but not measured • Bennett, Brassard, and Ekert, Quantum Cryptography, Scientific American, October 1992. • Hughes et al., Quantum cryptography for secure satellite communications, Aerospace Conference Proceedings, 2000. • 0.5 km free-space link • Kurtsiefer et al., Long Distance Free Space Quantum Cryptography, SPIE, 2002. • 23.4 km free-space link (try to achieve 1000 km) • First Quantum Cryptography Network Unveiled, NewScientist.com news service, June 2004. • Quantum Net: six servers, 10 km links, software-controlled optical switches

27. Legitimate Devices PROBLEM AUTHENTICATION OF USERS IS INSUFFICIENT DUE TO MALLEABILITY OF USER IDENTITY

28. Need for Device Authentication • Outline • Problem: User Authentication is incapable of detecting identity theft • Malleability of user identity • Result • Unauthorized access to network resources • Within cellular domain (cloning fraud) and wireless network domain (Media Access Control – MAC address spoofing)

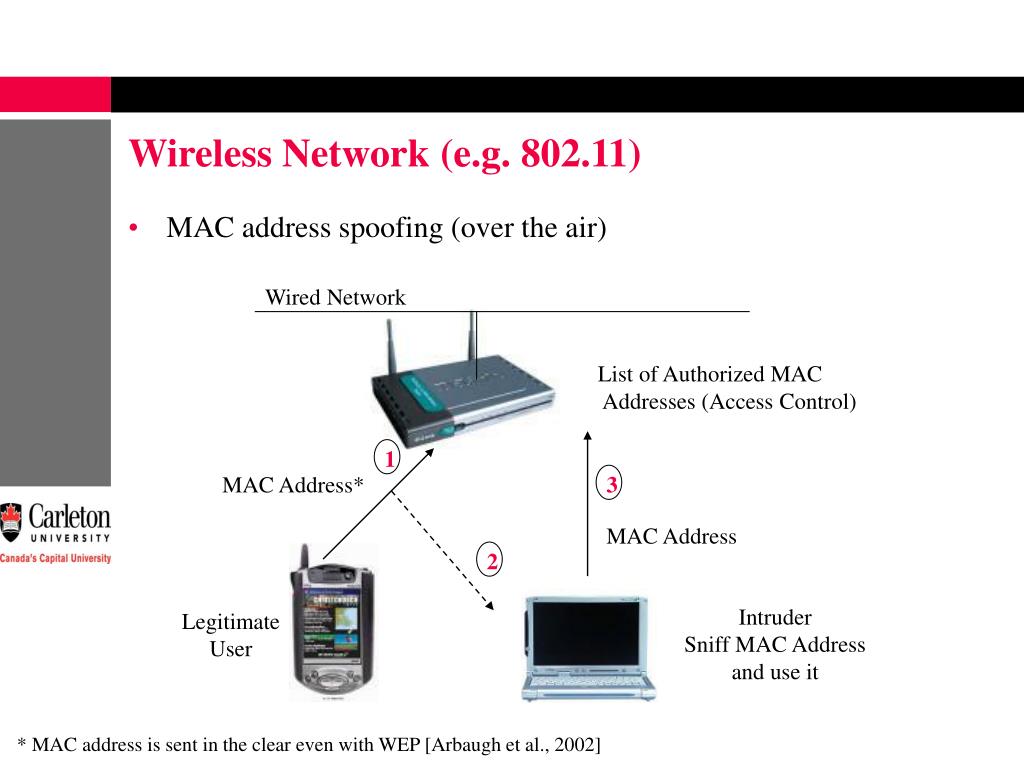

29. Wireless Network (e.g. 802.11) • MAC address spoofing (over the air) Wired Network List of Authorized MAC Addresses (Access Control) 1 MAC Address* 3 MAC Address 2 Intruder Sniff MAC Address and use it Legitimate User * MAC address is sent in the clear even with WEP [Arbaugh et al., 2002]

30. Cellular Network - Identification of 1G Cell Phone • Every cellular phone is assigned, • by the service provider, a phone number (Mobile station Identification Number (MIN)): • 10 digits: area code (3), switching station (3), and individual number (4) • by the manufacturer, an Electronic Serial Number (ESN)

31. Identification of 2G or 3G Cell Phones [Koien, 2004] According to: ITU-T Recommendation E.212 International Mobile Station Equipment Identity (IMEI) - Check against the Equipment Identity Register

32. Cellular Network • Cloning fraud • 1 [J. Hynninen, 2000] • 2 [I. Goldberg and M. Briceno, 2002] • With a smartcard reader, derive the secret key by challenging the SIM-card (approx. 150,000 queries; eight to 11 hours) • 3 [R.Lemos, 2002] • Ask seven questions and analyze electromagnetic field changes and power fluctuations for each response

33. User Authentication in GSM SIM RAND Random Number SRES Signed Response SIM Subscriber Identity Module (IMSI, AuthKey Ki, CipherKey Kc, Algorithms, PIN)

34. References • Wireless Network • Arbaugh et al. Your 802.11 Wireless Network has no clothes, IEEE Wireless Communications. Dec. 2002. • Mishra and Arbough. An Initial Security Analysis of the IEEE 802.1X Standard. 2002. • Cellular Network • G. Koien et al. An Introduction to Access Security in UMTS, IEEE Wireless Communications. Feb. 2004. • I. Goldberg and M. Briceno. GSM Cloning. 2002 [Web]. • J. Hynninen. Experiences in Mobile Phone fraud. Helsinki University of Technology [Web]. • R.Lemos. IBM: Cell phones easy targets for hackers. CNET News. 2002. • Others • J. Schiller. Mobile Communications. Addison-Wesley. 2000.

35. Radio Frequency Fingerprinting Mechanism for addressing the malleability of user identity

36. Radio Frequency Fingerprinting (RFF) • Background • Technique used by research teams including [H. Choe et al., 1995, Ureten 1999] for the purpose of identifying RF transceivers • Premise: a transceiver can be uniquely identified based on the characteristics of the transient section of the signal it generates • Primary benefit: Non-malleability of device identity • based on hardware characteristics of the transceiver • Key Objective: • Create a profile of the user’s device (transceiver) using RFF • Make use of both user and device profiles for authentication purposes • Wireless Network – device profile and MAC address • Cellular Network – device profile and IMSI

37. RFF • Key Phases • Create profile for each transceiver • Phase 1: Collection of Signals • Phase 2: Extraction of Transient • Phase 3: Extraction of Features (transceiverprint - TP) • Phase 4: Definition of Transceiver Profile • Classify/Compare an observed TP with transceiver profiles • Phase 1-3: Repeated for each observed TP • Phase 5: Identification of transceiver • Improve Classification Success Rate (CSR) – Proposed Extension to RFF process • Phase 6: Enhancement of CSR(work in progress)

38. RFF: Phase 1 - Collect Signals GSM Protocol Stack 802.11 Protocol Stack[Schiller, 2000] CM TCP MM IP RR LLC LAPDm – TDMA Frame MAC - Frame Radio - Burst PHY – FHSS/DSSS Frame Layer 1 Analog Signal transmitted by physical layer = 1 frame Authentication Response = more than 1 frame/signal CM – Call Management MM – Mobility Management RR – Radio Resource Management LAPD – Link Access Procedure for D-Channel in ISDN system LLC – Logical Link Control FHSS – Frequency Hopping Spread Spectrum DSSS – Direct Sequence Spread Spectrum

39. RFF: Phase 2 – Extraction of Transient • Extract transient section of digital signal • Step 1: Preprocessing • Segmenting the signal and applying first-order statistics (data reduction exercise) • Results in a smaller vector – data/fractal trajectory • Step 2: Detection of the start of the transient using data trajectory • Using the variance in the amplitude characteristics of the signal • Threshold Detection • Bayesian Step Change Detection • Using the variance in the phase characteristics of the signal • Threshold Detection using Phase Characteristics

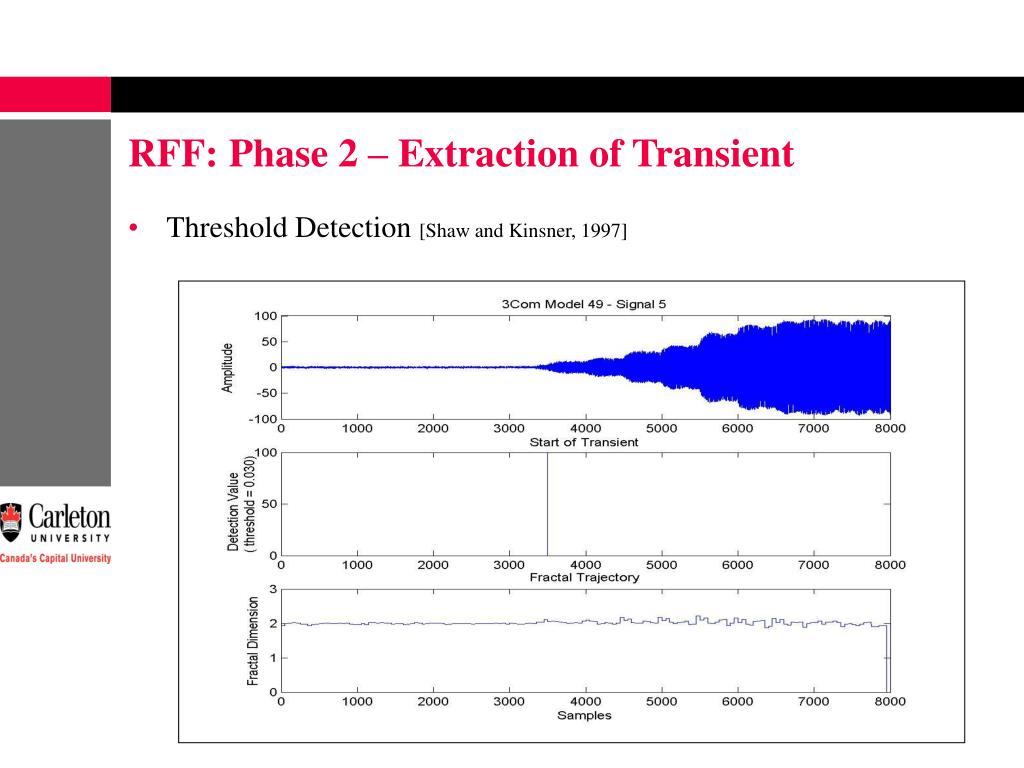

40. RFF: Phase 2 – Extraction of Transient • Threshold Detection [Shaw and Kinsner, 1997]

41. RFF: Phase 2 – Extraction of Transient • Bayesian Step Change Detection [Ureten, 1999]

42. RFF: Phase 2 – Extraction of Transient • Threshold Detection using Phase Characteristics [Hall, Barbeau, Kranakis (IASTED, 2003)] demo

43. RFF: Phase 3 – Extraction of Components • Extract components/characteristics from the transient • Instantaneous amplitude [Proakis and Manolakis, 1996] • Instantaneous phase • Instantaneous frequency components [Polikar, 1999] • using Discrete Wavelet Transform (Daubechies filter) • Wavelet function • Scaling function

44. RFF: Phase 3 – Extraction of Components

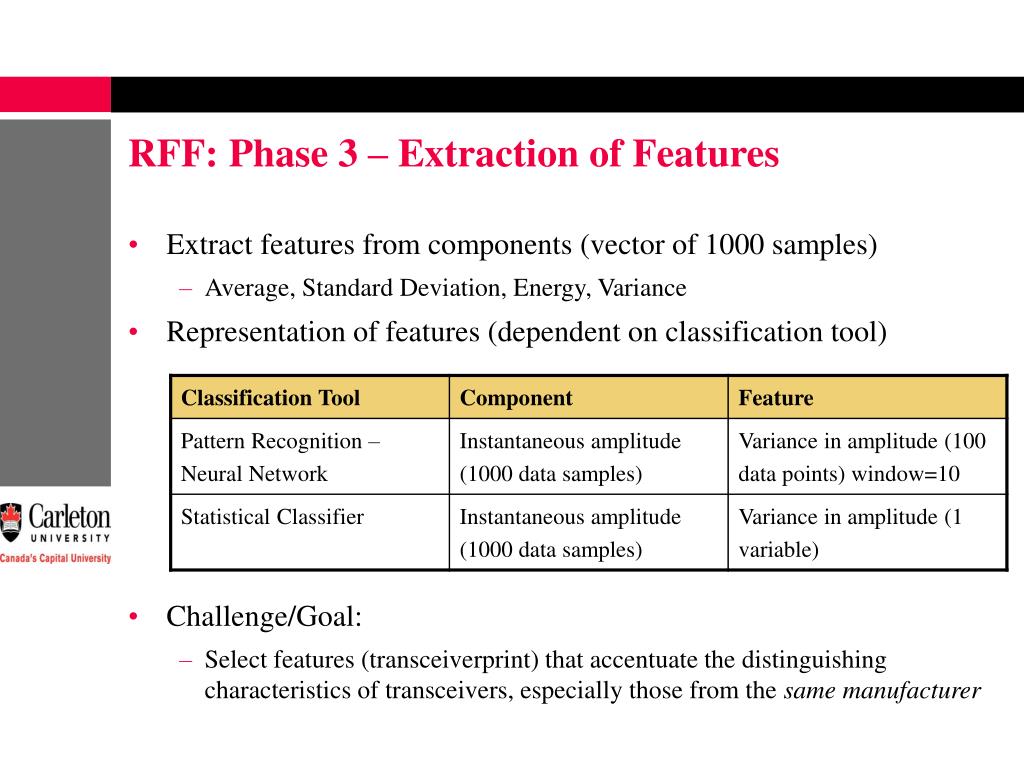

45. RFF: Phase 3 – Extraction of Features • Extract features from components (vector of 1000 samples) • Average, Standard Deviation, Energy, Variance • Representation of features (dependent on classification tool) • Challenge/Goal: • Select features (transceiverprint) that accentuate the distinguishing characteristics of transceivers, especially those from the same manufacturer

46. RFF: Phase 4 – Definition of Profile • Create profile for each transceiver • Obtain TPs from each signal in the collected data set (Phases 2-3) • Select a subset of TPs and store them in a profile (remaining TPs used for testing/classification) • Using Self-Organizing Maps [Fausett, 1994] • Take TPs from the data set as input • Create group(s) / cluster(s) of transceiverprints based on their distance (Euclidean distance) from a given centroid • Select a representative sample of TPs from the various clusters to create a profile • Other approaches include • Random selection of TPs from the data set • Use of probabilistic neural network [Hunter, 2000]

47. V RFF: Phase 5 – Identification of transceiver • Classification Techniques • Pattern matching – e.g. Neural Networks (Artificial NN, Probabilistic NN, etc.) [Fausett, 1994] • Based on Bayes Probabilistic Model • Genetic Algorithms [Toonstra and Kinsner, 1995] • Achieve an optimized solution through multiple iterations • Statistical classifiers [Brickle, 2003] • Determine probability of a match between an observed transceiverprint (TP) and each of the transceiver profiles TP to be classified centroid – center of cluster covariance matrix of TPs in profile Modified Kalman Filter

48. RFF: Phase 6 – Enhancement of CSR • Weakness in current classification techniques • attempt to identify transceiver using a single observation (TP) • unable to accommodate moderate level of variation (interference and noise) in the TPs being classified • Address weakness using the Bayes Filter [Fox et al., 2003] • Identify transceiver with highest probability after several rounds (using consecutive TPs) of classification xt =Transceiver at time t Bel(xt) = Probability of Transceiver x at time t Bel(xt) = p(xt|ot)Bel(xt-1) p(xt | ot) = Probability of TP belonging to transceiver x at time t Bel(xt-1) = Probability of transceiver xat t-1

49. RFF: Phase 6 – Enhancement of CSR
