  1. CLIC MODULE Progress of thermal tests for CLIC duty cycles

  2. Preparation phase Duty cycles 20 oC • Power measurements • Air speed measurements • FEA simulator • Nominal operation mode • Failure modes • Transients

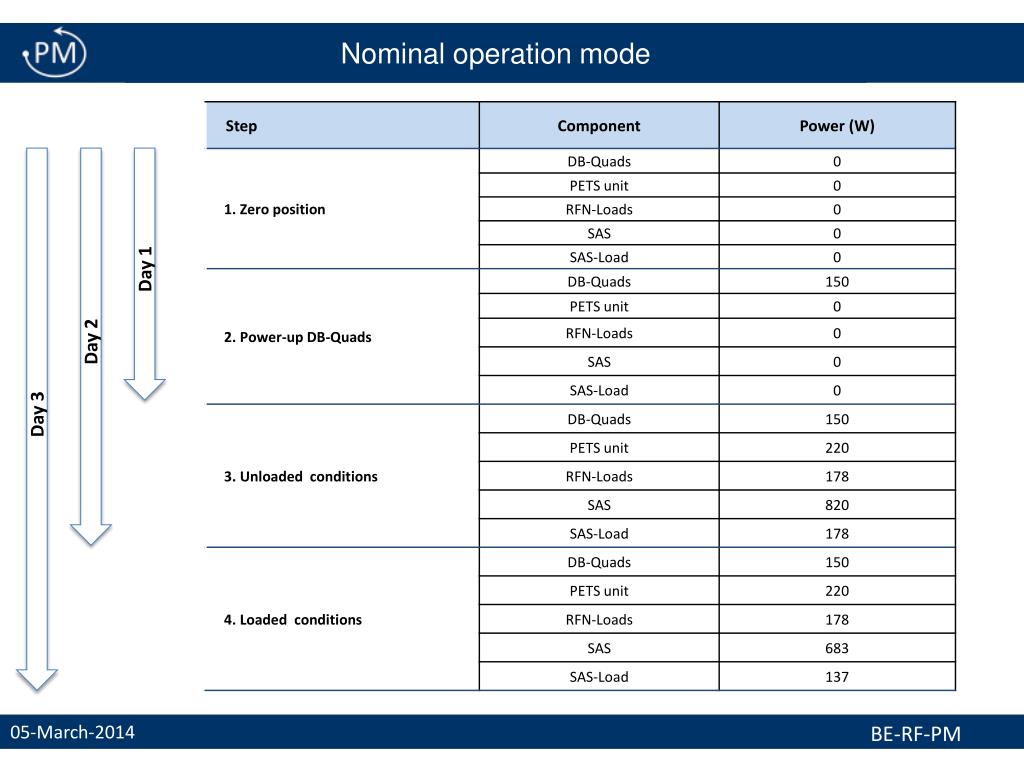

  3. Nominal operation mode Day 3 Day 2 Day 1

  4. Tests flowchart Zero position DB and MB 20/02/14 DBQ#1 every 1 oC Power-up DBQ DB and MB 24/02/14 PETS#1 and AS#5 every 1 oC Unloaded conditions DB and MB AS#5 every 1 oC 25/02/14 Loaded conditions DB and MB

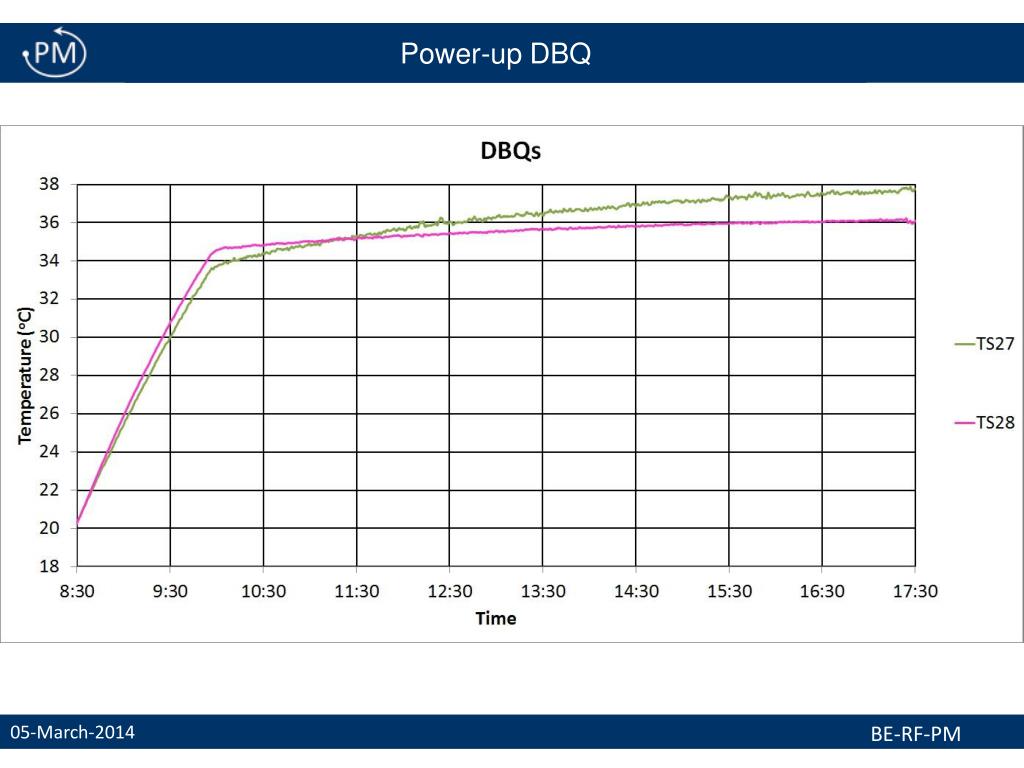

  5. Power-up DBQ

  6. Unloaded conditions

  7. Unloaded conditions

  8. Loaded conditions

  9. Loaded conditions

  10. Thermal transients Thermal transients in minutes
