  1. Gene Clustering by Latent Semantic Indexing of MEDLINE Abstracts Ramin Homayouni, Kevin Heinrich, Lai Wei, and Michael W. Berry University of Tennessee presented by J. Jiang

  2. Outline • Brief Overview of Biomedical Literature Mining • The Gene Clustering Problem • Latent Semantic Indexing • Experiments • Conclusions and Discussions

  3. Biomedical Literature MiningBrief Overview • Goal: to find useful information from the large amount of biomedical literature • Tasks include: • Identifying relevant literature for a given gene/protein • Connecting genes with diseases • Grouping genes/proteins by functions • Reconstructing and predicting gene networks (ISMB 05’ Tutorial Proposal, H. Shatkay)

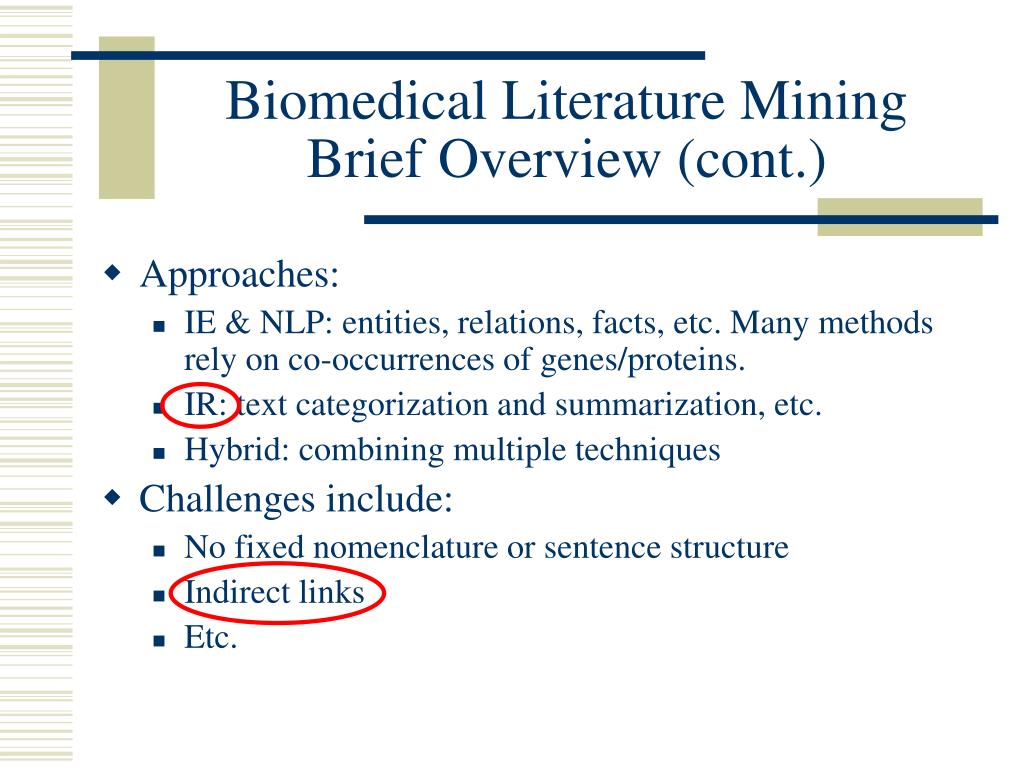

  4. Biomedical Literature MiningBrief Overview (cont.) • Approaches: • IE & NLP: entities, relations, facts, etc. Many methods rely on co-occurrences of genes/proteins. • IR: text categorization and summarization, etc. • Hybrid: combining multiple techniques • Challenges include: • No fixed nomenclature or sentence structure • Indirect links • Etc.

  5. The Gene Clustering Problem • To group genes based on their functions • Previous work: • Co-occurrence of gene symbols to extract gene relationships • Implicit textual relationships • Gene clustering using functional information in annotated indices or MEDLINE abstracts

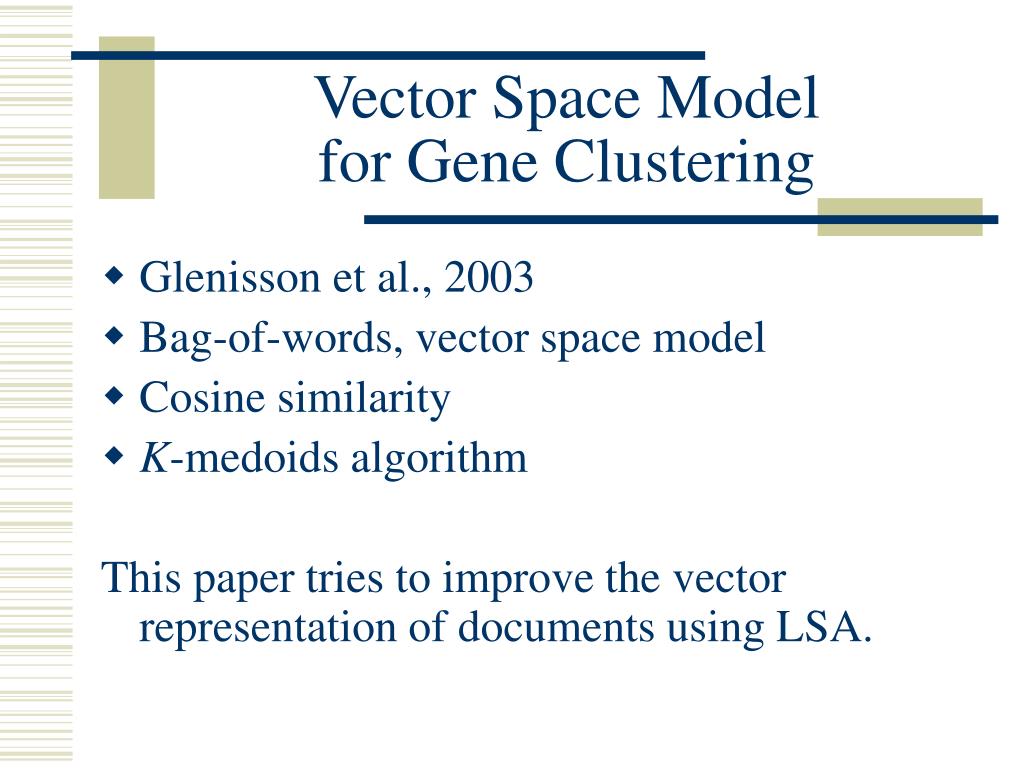

  6. Vector Space Modelfor Gene Clustering • Glenisson et al., 2003 • Bag-of-words, vector space model • Cosine similarity • K-medoids algorithm This paper tries to improve the vector representation of documents using LSA.

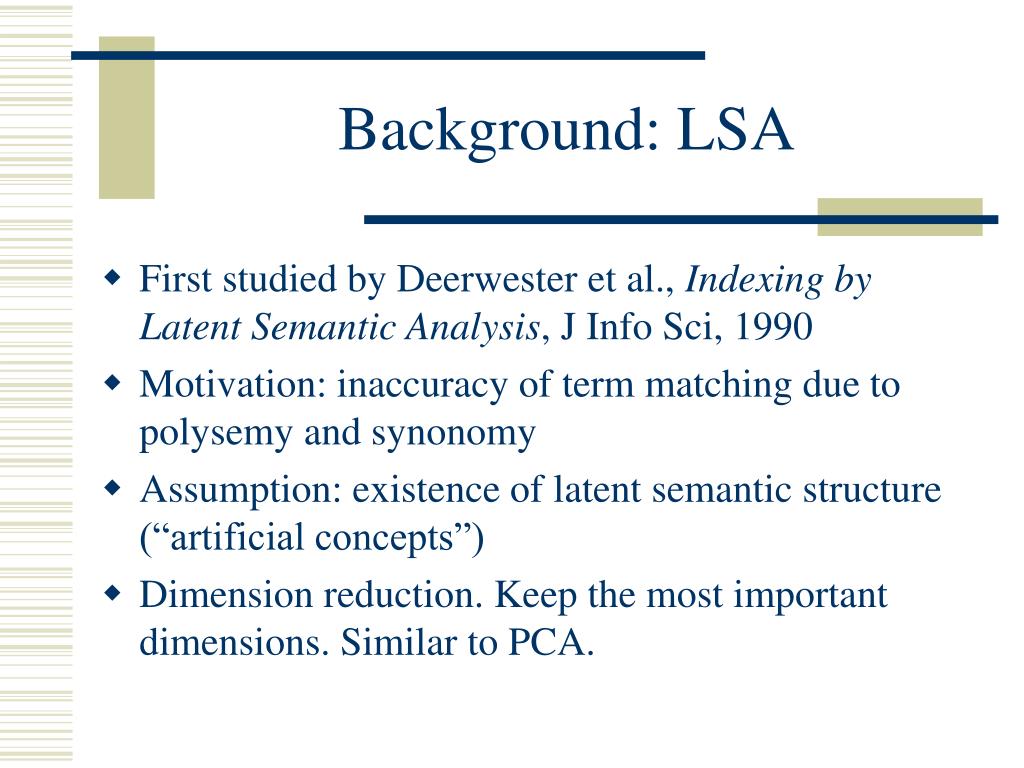

  7. Background: LSA • First studied by Deerwester et al., Indexing by Latent Semantic Analysis, J Info Sci, 1990 • Motivation: inaccuracy of term matching due to polysemy and synonomy • Assumption: existence of latent semantic structure (“artificial concepts”) • Dimension reduction. Keep the most important dimensions. Similar to PCA.

  8. Singular Value Decomposition • d documents, t terms (in general, t >> d) • d t matrix X = [xij], where xij denotes the frequency of term j in document i • X can be decomposed as: X = T0S0D0, where columns of T0 are the eigenvectors of XX, and columns of D0 are the eigenvectors of X X. S0 is diagonal. S02 is the matrix of eigenvalues of XX (or X X).

  9. SVD (cont.) • The diagonal elements of S0 are constructed to be positive and ordered in decreasing magnitude.

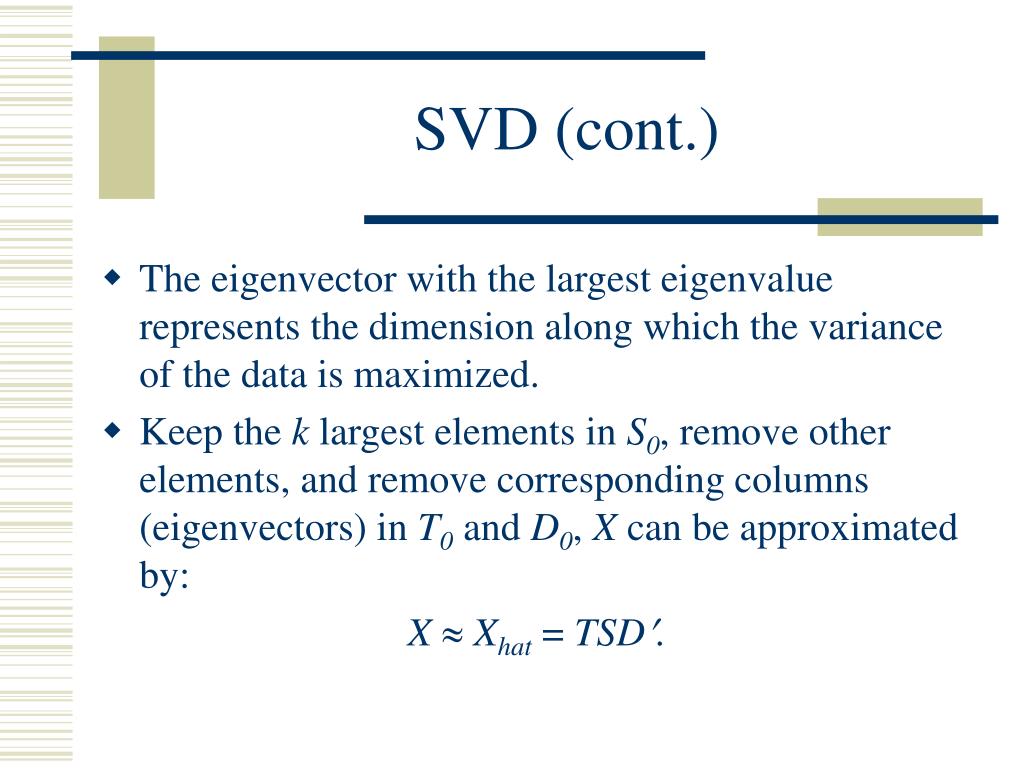

  10. SVD (cont.) • The eigenvector with the largest eigenvalue represents the dimension along which the variance of the data is maximized. • Keep the k largest elements in S0, remove other elements, and remove corresponding columns (eigenvectors) in T0 and D0, X can be approximated by: XXhat = TSD.

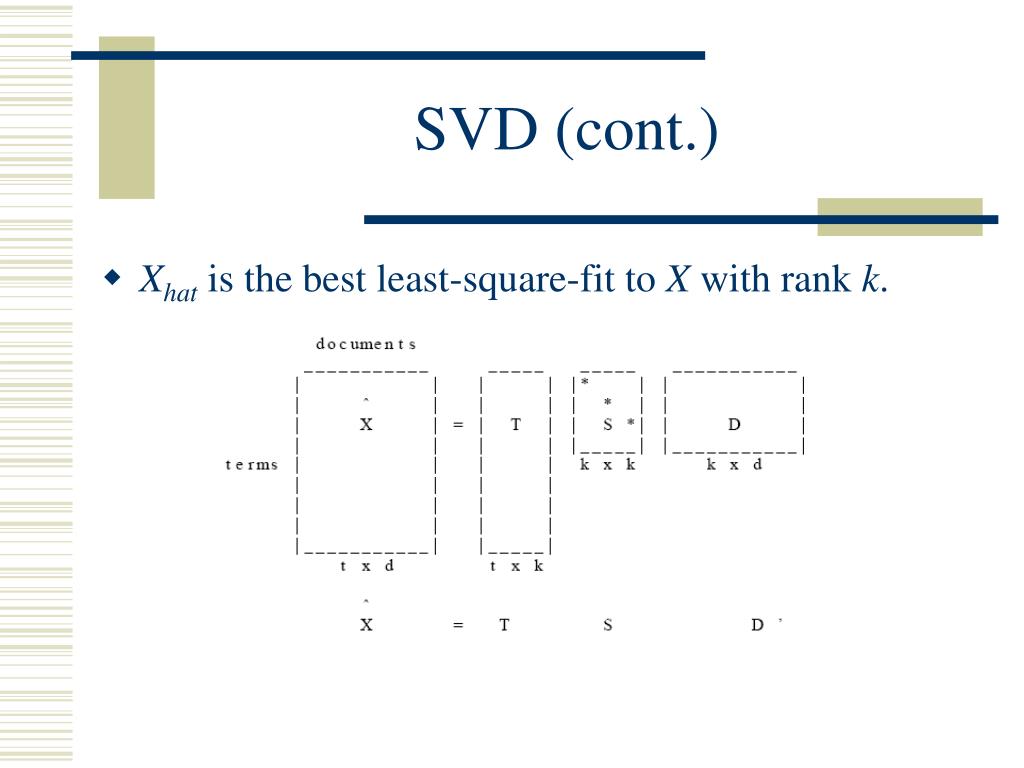

  11. SVD (cont.) • Xhat is the best least-square-fit to X with rank k.

  12. Illustration The first eigenvector The second eigenvector (taken from “A Tutorial on PCA” by Lindsay Smith)

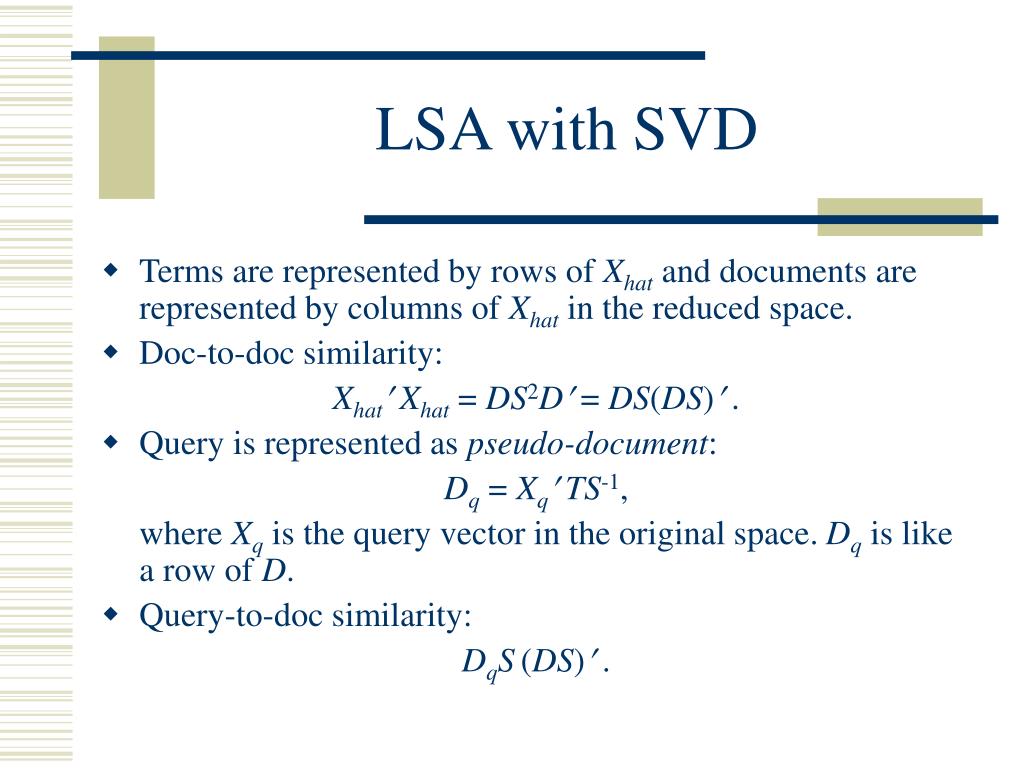

  13. LSA with SVD • Terms are represented by rows of Xhat and documents are represented by columns of Xhat in the reduced space. • Doc-to-doc similarity: Xhat Xhat = DS2D = DS(DS) . • Query is represented as pseudo-document: Dq = Xq TS-1, where Xq is the query vector in the original space. Dq is like a row of D. • Query-to-doc similarity: DqS(DS) .

  14. Experiments • 50 genes in (1) development, (2) Alzheimer Disease, and (3) Cancer Biology are selected • Gene-document: concatenation of abstracts known to be related the gene • Gene-document represented as vectors:

  15. Experiments (cont.) • Keyword query and accession number query • Reelin signaling pathway • GO classification terms and human disease • Direct genes and indirect genes • Hierarchical Clustering

  16. Results

  17. Results (cont.)

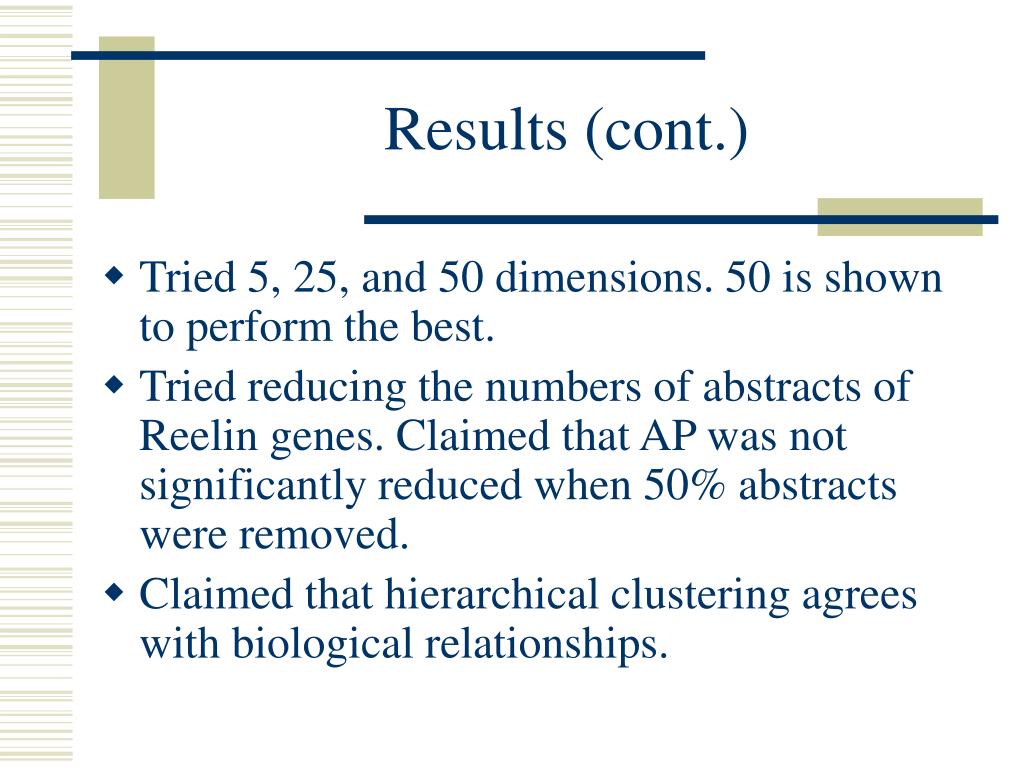

  18. Results (cont.) • Tried 5, 25, and 50 dimensions. 50 is shown to perform the best. • Tried reducing the numbers of abstracts of Reelin genes. Claimed that AP was not significantly reduced when 50% abstracts were removed. • Claimed that hierarchical clustering agrees with biological relationships.

  19. Discussions • Pros • Gene clustering by textual information. • Applied LSA to biomedical literature. Indirect linkage can be found through latent concepts. • Cons • Requires human annotation to construct gene-documents. Not applicable to new domain. • Genes in the experiments are carefully chosen in 3 categories. How does the method perform in general? • Other gene clustering methods?

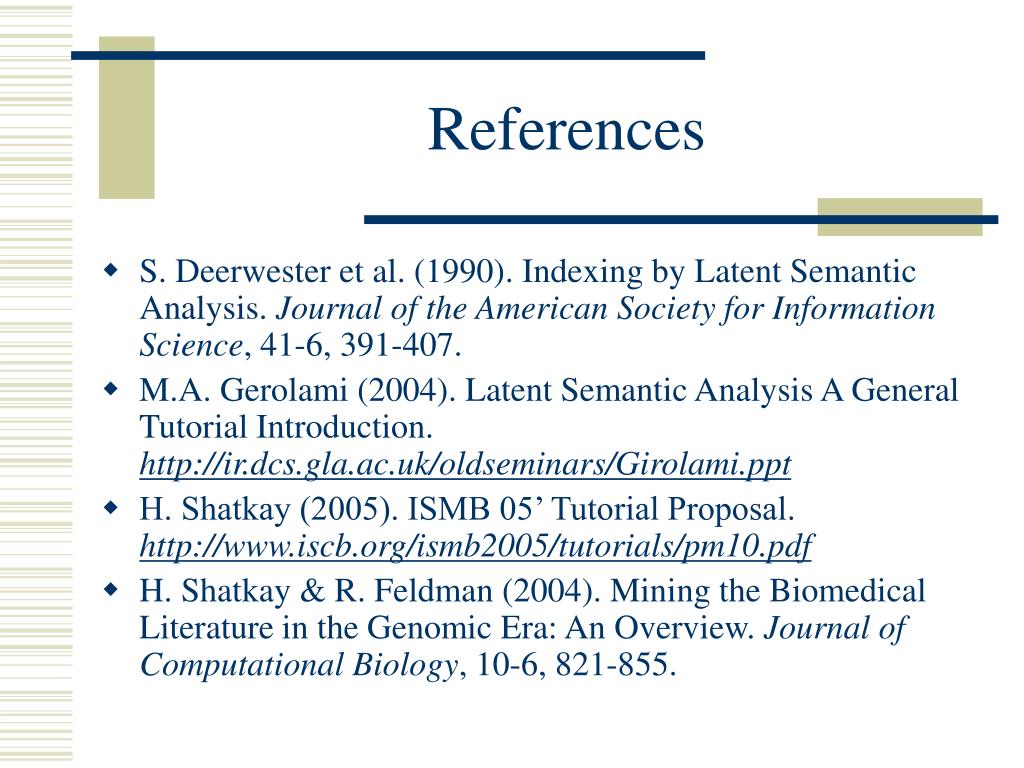

  20. References • S. Deerwester et al. (1990). Indexing by Latent Semantic Analysis. Journal of the American Society for Information Science, 41-6, 391-407. • M.A. Gerolami (2004). Latent Semantic Analysis A General Tutorial Introduction. http://ir.dcs.gla.ac.uk/oldseminars/Girolami.ppt • H. Shatkay (2005). ISMB 05’ Tutorial Proposal. http://www.iscb.org/ismb2005/tutorials/pm10.pdf • H. Shatkay & R. Feldman (2004). Mining the Biomedical Literature in the Genomic Era: An Overview. Journal of Computational Biology, 10-6, 821-855.

  21. The End • Questions? • Thank you!
