  1. NOTEBOOKS

  2. CELL PHONE OVERVIEW • ARIMA COMMUNICATIONS – FOUNDED 1999 • 950+ Employees • GSM, GPRS, Cell Phones and Wireless Modules • Strong synergies with Arima Display, Arima DynaPack, etc. • PRODUCTS • Dual-band, Tri-band GSM/GPRS Handsets • GSM/GPRS Data Modules • PCMCIA Sampling, IOT Labs and Field Testing Complete • Compact Flash Q1’03 • Embedded solutions Q2’03 • SHIPPING 4 MILLION+ PHONES THIS YEAR • Sony/Ericsson, NEC, and Toshiba

  3. SERVERS

  4. SERVER OVERVIEW • DIVISION FOUNDED IN 1998 • 60+ Engineers – EE, ME, Software, and Test • STRONG ENGINEERING TEAM • Seasoned engineers from DEC, Acer, and Intel • Broad system architecture and operating system experience • X86: Intel, AMD, VIA, SiS, and ATI • RISC: MIPS • OS: Windows, Linux, FreeBSD, SCO-Unix, Solaris • System Validation across all operating systems • Cost effective 4P, 2P, and 1P Intel & AMD Servers • Forward looking “Brick” and “Bladed” server designs • CURRENT CUSTOMERS • NEC, Intel, Legend (China), RioWorks, Archway

  5. DESKTOP OVERVIEW • DIVISION FOUNDED IN 1998 • 60+ Engineers – EE, ME, Software, and Test • STRONG ENGINEERING TEAM • Seasoned engineers from DEC, Acer, and Intel • Broad system architecture and operating system experience • X86: Intel, AMD, VIA, SiS, and ATI • RISC: MIPS (server team) • OS: Windows, Linux, FreeBSD, SCO-Unix, Solaris • System Validation across all operating systems • COST EFFECTIVE, DIFFERENTIATED PRODUCTS • LCD PC, AV PC desktops • CURRENT CUSTOMERS • NEC, Intel, Legend (China), RioWorks, Archway

  6. EMERGING PRODUCTS OVERVIEW • Arima continues to investigate emerging product categories. A few of the products we build… • PORTABLE DEVICES • Black Berry Communicator • GSM/GPRS enabled PDAs • IA DEVICES • Home Gateway – 802.11 and HomeRF • iPaq Internet Appliance • Wireless Web Pad

  7. BACKUP

  8. Arima Communications • Founded 1999 • 950+ Employees • GSM, GPRS, Cell Phones and Wireless Modules • Ying-Ko Taiwan; WuJiang, China Factories • 220+ Engineering Resources • R&D (HW & SW) Teams in Taiwan, China, and US • Shipping over 4 million phones this year • Sony/Ericsson, NEC, and Toshiba

  9. 2002 Roadmap 2850 2300 Color LCD Embedded Antenna Triple band JAVA 2800 2100 Color LCD GPRS Class 8 Clam shape With GPRS

  10. Entry level 900/1800 or 1900 GSM 2100 Band: 900, 1800 or 1900 Maximum dimension: 106 x 45 x 21 mm Weight: ~ 85 g LCD: 101 x 54 pixels 3 line content Battery: Li-Ion (650 mAh) Standby time: min. 200 hrs. Talk time: min. 2 hrs. Major Features: Dual band GSM 900/1800 Single band PCS 1900 T9 English text input Exchangeable front cover (B Type) SIM Toolkit class 1, USSD Calculator User Friendly MMI A B

  11. Mono Dual display GSM/GPRS - 2800 Frequency: E-GSM 900, 1800 GPRS Class 8 Maximum dimension: 80 x 48 x20.5 Weight: ~ 80 g LCD: 64 x 27 pixels (Top LCD) 110 x 80 pixels ( Main LCD) 6 line content Battery: Li-Ion (650 mAh) Standby time: min. 200 hrs. Talk time: min. 3 hrs. Voice Encoding: HR,FR, EFR Features: Dual display Clam shape SMS-EMS Voice dialing WAP 1.2.1 STK Class 2 VIP caller with ring tone, antenna light color

  12. Color Tri-band GSM/GPRS - 2850 Frequency: E-GSM, 900, 1800, 1900 GPRS Class 8 Maximum dimension: 80 x 48 x22 Weight: ~ 100 g LCD: Full graphic 65K Color LCD 120 x 160 pixels 16 lines content Battery: Li-Ion (860 mAh) Standby time: min. 200 hrs. Talk time: min. 3 hrs. Voice Encoding: HR, FR, EFR Features: Embedded Antenna EMS WAP 2.0 65K color display J2ME STK Class 3 Voice dialing/Command Digital still camera

  13. Arima GSM/GPRS Wireless Data Modules

  14. 2002 2003 Q2 Q3 Q4 Q1 Q2 Q3 Arima GPRS Data Module Roadmap Wireless Module PCMCIA GPRS Class 8/10 Tri-Band • Sample in Now • MP in Q4 /Y2002 Wireless Module Compact Flash GPRS Class 8/10 Tri-Band • Under Development Wireless Module Embedded GPRS Class 10 Tri-Band • Under Development • Product for Y2002 • Under Planning • Product for Y2003 Wireless Module Embedded CDMA 1xRTT

  15. GCF Testing Status – GSM/GPRS Module • Tested and passed against the latest GCF CC V3.2.0 (GSM900/1800) and PTCRB (PCS 1900) • Passed all 65 GPRS Non-PCCCH Test Cases per GCF CC V3.2.0 • Passed all 12 GPRS PCCCH Test Cases per GCF CC V3.2.0. • Passed all GPRS Test Cases at the Motorola GPRS IOT Lab. • Passed all GPRS PCCCH Test Cases at the Alcatel IOT Lab.

  16. GCF Test Status – May 29th, 2002

  17. GPRS IOT Lab. Status – May 29th 2002

  18. GPRS Field Testing Status • Live network testing • GPRS network implementations are all different • Critical to test against all leading network equipments to validate operation • Full network testing to be completed by June ’02 • Summary • Attach and PDP Context Activate, initiate Dial-Up Networking verified • Applications: ping, FTP, web-browse, chat, MS Outlook email • Class 10 GPRS validated (2 Tx, 4 Rx, Max 5 slots) • Throughput: up to 10-11Kbps per slot • GPRS IOT Lab Testing • Ericsson, Nokia, Motorola, Siemens, Alcatel, Lucent, Nortel • Multiple visits at each lab required to pass all GPRS test cases • Completion by June ’02

  19. Validated GPRS Networks

  20. GPRS Functional Test Status

  21. Arima Display

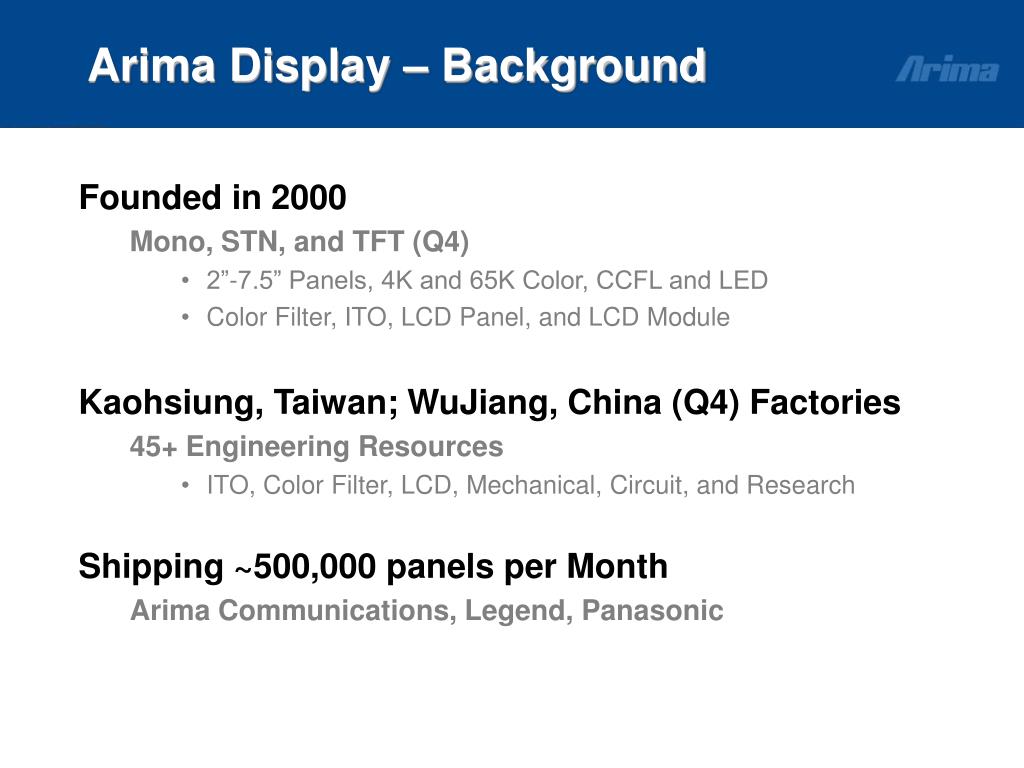

  22. Arima Display – Background • Founded in 2000 • Mono, STN, and TFT (Q4) • 2”-7.5” Panels, 4K and 65K Color, CCFL and LED • Color Filter, ITO, LCD Panel, and LCD Module • Kaohsiung, Taiwan; WuJiang, China (Q4) Factories • 45+ Engineering Resources • ITO, Color Filter, LCD, Mechanical, Circuit, and Research • Shipping ~500,000 panels per Month • Arima Communications, Legend, Panasonic

  23. Development Sample Arima Display – PDA/SP Roadmap 2003 2002 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 TFT Module 3.5 ” (320*RGB*240 ) 3.5 ” (320*RGB*240 ) Transflective Color STN 2.8 ” (320*RGB*240 ) 2.8 ” (320*RGB*240 ) Transflective Transmissive With CCFL With LED With LED Mono STN Ready for MP Lead time for any custom design LCM is 4 weeks.

  24. Development Sample Arima Display – Roadmap 2002 2003 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 TFT Module 5.7”~14” OEM Assembly 7.5” 640*RGB*480 Transmissive Low power Color STN 6.5” 640*RGB*240 Transmissive Low power 3.9” 320*RGB*240 Transmissive Low power Mono STN Ready for MP Lead time for any custom design LCM is 4~6 weeks.

  25. Arima Display - Datasheet Arima STN Panel Specifications – PDA • Module Size : 74.6(W) x 58.4(H) x 4.8(D) (MM) • Viewing Area : 59.6(W) x 45.2 (H) (MM) • Resolution : 320(W) x 240(H) • Dot Size : 0.044(W) x 0.164(H) (MM) • Dot Pitch : 0.06(W) x 0.18(H) (MM) • LCD Type : Color-STN, .55(MM) Glass • Upper glare polarizer • Transmissive rear polarizer • Contrast Ratio : 30 • Duty : 1/242 • Viewing Direction : 6 o’clock • Operating Temp. : 0 – 40 C • Backlight : CCFL • Power : 3.3V

  26. Arima DynaPack

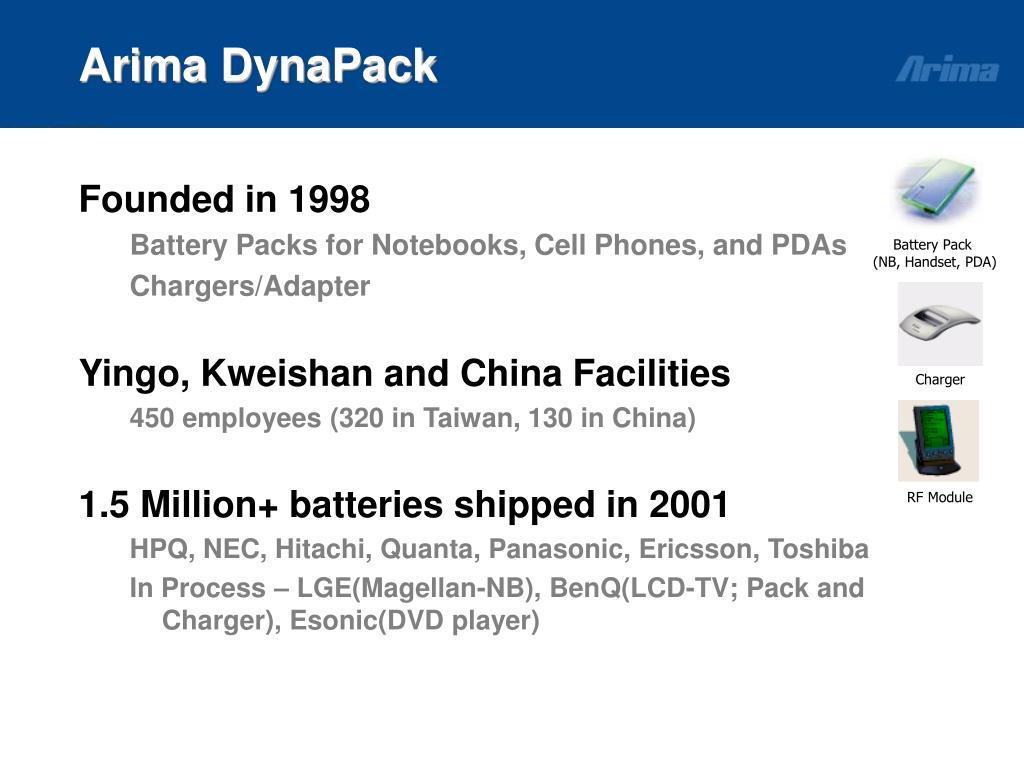

  27. Arima DynaPack • Founded in 1998 • Battery Packs for Notebooks, Cell Phones, and PDAs • Chargers/Adapter • Yingo, Kweishan and China Facilities • 450 employees (320 in Taiwan, 130 in China) • 1.5 Million+ batteries shipped in 2001 • HPQ, NEC, Hitachi, Quanta, Panasonic, Ericsson, Toshiba • In Process – LGE(Magellan-NB), BenQ(LCD-TV; Pack and Charger), Esonic(DVD player) Battery Pack (NB, Handset, PDA) Charger RF Module

  28. System Voltage Capacity Energy Run Time* Battery Pack Gas Gauge Model Full 14.8 2000 29.6 1.0 4S1P, 4 2.0 Ah Li-ion Cells bq2060 ╳ Size 3200 47.4 1.6 4S2P, 8 1.6 Ah Li-ion Cells bq2040 ╳ 3600 53.3 1.8 4S2P, 8 1.8 Ah Li-ion Cells bq2060, ps331 ╳ 4000 59.2 2.0 4S2P, 8 2.0 Ah Li-ion Cells Ps331/334/401, ╳ 11.1 3600 40.0 1.4 3S2P, 6 1.8 Ah Li-ion Cells bq2060 ╳ 10.8 4500 48.6 1.7 9S, 9 4.5 Ah Ni-MH Cells bq2040 ╳ 9.6 4500 43.2 1.5 8S, 8 4.5 Ah Ni-MH Cells bq2060, ps331 ╳ 4000 38.4 1.3 8S, 8 4.0 Ah Ni-MH Cells bq2040 ╳ 7.2 4500 32.4 1.1 6S, 6 4.5 Ah Ni-MH Cells bq2060, ps331 ╳ Mini 11.1 1700 18.9 1.1 3S1P, 3 1.7 Ah Li-ion Cells bq2060 ╳ Size 3400 37.7 2.2 3S2P, 6 1.7 Ah Li-ion Cells bq2060 ╳ 14.8 3000 44.4 2.6 4S2P, 8 1.5 Ah Li-poly Cells bq2060 ╳ Li-ion Cylindrical 18650 Ni-Mh Cylindrical 18650 Li-ion Prismatic 103450 Li-polymer385385 * Based on system power consumption of 29.1W for Full size, 16.7 for Mini size Arima DynaPack

  29. Arima DynaPack - Datasheet Sample PDA Battery Specification • Cell Brand/Capacity : Sanyo/E-One Moli/RYD • Smart IC System : 700 mAh (2P1S) BQ-2019 • Protection IC : S-8261AAJMD-G2J-T2 • Nominal Capacity (Avg) : 1400mAh • Nominal Voltage : 3.7V (From 4.2V to 3V) • Charging Method : CC-CV • Max Charging Voltage : 5.0V • Max Charging Current : 1.5Amp • Max Discharging Current : 1.5Amp • Pack Weight : 41.35 +/-2g • Internal Resistance : <160 Ohms • Operating Temp Range : 0C-45C • Storage Temp Rance : -10C-60C

  30. Arima Server Overview

  31. Arima Server Division • Server Division Started in 1998 • 60+ person team • EE, Software, Validation • Layout, DQA, Mechanical • Diverse Architectural Experience • X86, RISC • Unix, Linux, NT • Current Products • Barebones and Complete Systems • Intel, NEC, AMI, Legend, RioWorks

  32. Design Experience • Strong Engineering Team • Seasoned engineers from DEC, Acer, and Intel • HB Lin AVP: 15 years X86/MIPS chipset, desktop/server design. • Mason Huang : 15 years Networking and server system. • Patrick Lin : 12 years Software/BIOS development • Charles Yang : 15 years server system validation. • Diverse system architecture experience • X86: Intel, AMD, ServerWorks, and VIA • RISC: MIPS • 1P, 2P, and 4P Servers • Broad SW and System Validation • FreeBSD, Linux, SCO-Unix, Solaris, Novell, Windows • Server Management

  33. MT1056 MT1055 MT1054 MT1053 MT1052 MT1051 MT3053 MT3054 • 300 W x 340 D x 329 H • 2 IDE HDD bays • FDD & CD-ROM • 3xPCI Slots; 200W PS • P4 Celeron • 300 W x 340 D x 329 H • 2 IDE HDD bays • FDD & CD-ROM • 3xPCI Slots; 200W RPS • P4 Celeron • 210 W x 445 D x 420 H • 7 Driver Bays • 6 xPCI Slots; 350WPS • 1* Xeon • 210 W x 460 D x 390 H • 7 Driver Bays • 5 xPCI Slots; 250WPS • 1* P4 Celeron • 210 W x 445 D x 420 H • 7 Driver Bays • 5 xPCI Slots; 300WPS • 1*K8(Hammer) • 210 W x 445 D x 420 H • 7 Driver Bays • 5 xPCI Slots; 300WPS • 1*K7 • 210 W x 460 D x 390 H • 7 Driver Bays • 5 xPCI Slots; 250WPS • 1* P4 Celeron • 210 W x 445 D x 420 H • 7 Driver Bays • 6 xPCI Slots; 350WPS • 1* Xeon MT5062 MT5061 • Tower (5U support) • 6*5.25 + 3*3.5 bays • 450 W SPS • 2 * Xeon • Tower (5U support) • 6*5.25 + 3*3.5 bays • 450 W SPS • 2 * Xeon Pedestal Server Roadmap Mid-tier Low-End 2H’02 ’03

  34. R5211 • 2U Rack, 605mm • 6 SCSI HDD bays • Slim FDD & CD-ROM • 3xPCI Slots; 265W RPS • 2* Tualatin, TDRCA MB R5212 R5213 • 2U Rack, 605mm • 6 SCSI HDD bays • Slim FDD & CD-ROM • 3X PCI slots, 450W SPS • 2*Xeon, PDPLA MB • 2U Rack, 605mm • 6 SCSI HDD bays • Slim FDD & CD-ROM • 5X PCI slots, 450W RPS • 2*Xeon, PDPLB MB R5141 • 1U Rack, 630mm • 4*Ultra160 Hot-swap • CD-ROM, 1xPCI-X slot • 350W SPS • 2* Xeon, PDPLB MB • 1U Rack, 605mm • 4*IDE HDD bays • CD-ROM, PCI-X • 350W SPS, 1*PCI slots • 1* Xeon, PURCB MB R5140 • 1U Rack, 630mm • 3*Ultra160 Hot-swap • Slim FDD & CD-ROM • 200W SPS, 2*PCI slots • 2* Tualatin, TDRCA MB R5130 R1141 • 1U Rack, 630mm • 4*Ultra160 Hot-swap • CD-ROM, 1xPCI-X slot • 350W SPS • 2* Xeon, PDPLA MB R1140 • 1U Rack, 605mm • 4 IDE HDD bays • CD-ROM, PCI-X • 300W SPS • 1* Xeon, PURCA M.B. Rack-Optimized Server Roadmap 2U Performance 1U Value 1U 2H’02 Mass Production

  35. Low-Cost AMD Server (3Q) • Processor : AMD Athlon 1700+ • Chipset : VIA KM266 & VT8235 • Memory : 128M Up to 2GB ECC Memory • HDD : IBM 40GB ATA (7200RPM) HD • NIC : Realtek RTL8100 • Video : Embedded (ProSavage8 GFX On VIA Chipset) • CD-ROM : IDE 50X • Slots : 5 PCI (32/33) • I/O : Serial x2, Parallel, USB2.0 x2, PS2 Mouse x1 • Keyboard x1, Video x1 • Form Factor : ATX Motherboard, Tower Chassis • Power Supply : 300W Power-Supply • O/S Support : FreeBSD/Linux/Windows • Chassis Size : Type : Mini Tower; Device Bay : 5.25" x 3, & 3.5"x3; Dimension : 210mm(W) x 390mm(H) x 460mm(D) Barebones & VA/Warranty : $ ~150 FOB Taiwan/China *Less Processor, Memory, HD, CD-ROM, KBD

  36. Low-Cost Celeron Server (3Q) • Processor : Intel P4 Celeron 1.8G • Chipset : Intel 845GL • Memory : 128M Up to 2GB ECC Memory • HDD : IBM 40GB ATA (7200RPM) HD • NIC : Realtek RTL8100 • Video : Embedded • CD-ROM : IDE 50X • Slots : 5 PCI (32/33) • I/O : Serial x2, Parallel, USB2.0 x2, PS2 Mouse x1 • Keyboard x1, Video x1 • Form Factor : ATX Motherboard, Tower Chassis • Power Supply : 250W Power-Supply • O/S Support : FreeBSD/Linux/Windows • Chassis Size : Type : Mini Tower; Device Bay : 5.25" x 3, & 3.5"x3; Dimension : 210mm(W) x 390mm(H) x 460mm(D) Barebones & VA/Warranty : $ ~160 FOB Taiwan/China *Less Processor, Memory, HD, CD-ROM, KBD

  37. Book Size Server Dimensions: 130mm(W) x 320mm(H) x 380mm(D) 5.1”(w) x 12.6”(H) x 14.9”(D)

  38. Book Size Server • Processor : Intel P4 Celeron • Chipset : Intel 845GL • Memory : 128M Up to 1GB ECC Memory • HDD : 2 Swappable IDE HDD • NIC : Realteck RTL8100 • Video : Embedded • CD-ROM : Slim Type • Slots : 3 PCI (32/33) • I/O : Serial x1, Parallel, USB2.0 x3, PS2 Mouse x1 • Keyboard x1, Video x1 • Form Factor : uATX Motherboard • Power Supply : 200W Power-Supply • O/S Support : FreeBSD/Linux/Windows W2K • Chassis Size : Dimension : 130mm(W) x 320mm(H) x 380mm(D) Barebones & VA/Warranty : $ ~185 FOB Taiwan/China *Less Processor, Memory, HD, CD-ROM, KBD

  39. Arima Desktop Overview

  40. Arima Desktop PC Division • Desktop Division • 50+ person team • EE, Software, Validation • Layout, DQA, Mechanical • Current Desktop Products • Focused on cost-effective, differentiated products • AV PC • LCD PC • Current Customers • Toshiba, Gateway

  41. Design Experience • Strong Engineering Team • Ken Kan, SVP • 25 years designing desktop and mobile systems • HB Lin, AVP • 15 years X86/MIPS chipset, desktop/server design. • SW Cheng, Director • 25 years Chipset, Desktop system design. • Diverse system architecture experience • X86: Intel, AMD, VIA, SiS, and ATI • RISC: MIPS (server team) • OS: Windows, Linux, FreeBSD, SCO-Unix, Solaris • System Validation across all operating systems

  42. Desktop Roadmap – LCD PC Q1/2002 Q2/2002 Q3/2002 Q4/2002 Q1/2003 LCD PC P3-t 15”, Celeron-T P3T P4L 15”, P4, low cost P4 17“, P4 with TV P3-t 15” TFT, XGA Intel Celeron-T Intel 815EB Embedded VGA LAN On-board 1394 SPDIF P4L Intel P4 CPU SiS 651 + 962 L Embedded VGA USB 2.0 *4 1394 *1 PS2 KB/Mouse PCMCIA II *2 P4 Intel P4 CPU SiS 651 + 962 L Embedded VGA TV tuner SPDIF 1394 *1 , USB 2.0 *4 RF KB/Mouse TV remote control Front stereo SP 3W with 6W Woofer SP PCMCIA II *2 SD *1

  43. LCD PC –P4L High-performance flat panel desktop PC • Processor : Intel P4 • Chipset : SiS 651 • Memory : 2 SODIMM support 128M Up to 512M Memory • HDD : 1 * 3.5” IDE HDD • NIC : Intel 82511 • Video : UMA • CD-ROM : Slim Type • I/O : USB2.0 x4, PS2 Mouse x1, Keyboard x1, 1394x1, • PCMCIA-II x2, RJ11 x 1. • Power Supply : External Power Adaptor 90W • O/S Support : Windows XP Barebones & VA/Warranty : $ ~560 FOB Taiwan/China Less Processor, Memory, HD, CR-ROM KBD Includes 15” XGA TFT

  44. Desktop Roadmap – AV PC Q1/2001 Q2/2002 Q3/2002 Q4/2002 Q1/2003 AV PC AV-3 Celeron-T AV-4 P4 AV-4G Northwood AV-3 Intel Celeron-T Intel 810E Embedded VGA Mini-PCI, PCMCIA, DVI 1394/ LAN AV-4 Intel P4 Intel 845 Ati M6 PC133 Mini-PCI, PCMCIA, DVI 1394/ LAN AV-4G Intel P4, Northwood Intel 845GL Embedded VGA DDR266 Mini-PCI, PCMCIA, DVI 1394/ LAN

  45. AV-4G Small form factor, high-performance multimedia PC • Processor : Intel P4 • Chipset : Intel 845GL • Memory : 2 SODIMM support 128M Up to 512M Memory • HDD : 1 * 3.5” IDE HDD • NIC : Intel ICH4 embedded NIC • Video : Embedded • CD-ROM : Slim Type • I/O : USB2.0 x4, PS2 Mouse x1, Keyboard x1, 1394x1, • PCMCIA-II x1, RJ11 x 1, VGA x1, DVI x1. • Power Supply : External Power Adaptor 90W • O/S Support : Windows XP Barebones & VA/Warranty : $ ~220 FOB Taiwan/China Less Processor, Memory, HD, CD-ROM, KBD

  46. Book Size Server Dimensions: 130mm(W) x 320mm(H) x 380mm(D) 5.1”(w) x 12.6”(H) x 14.9”(D)

  47. Book Size Server • Processor : Intel P4 Celeron 1.8G • Chipset : Intel 845GL • Memory : 128M Up to 2GB ECC Memory • HDD : 2 Swappable IDE HDD • NIC : Realtek RTL8100 • Video : Embedded • CD-ROM : Slim Type • Slots : 3 PCI (32/33) • I/O : Serial x1, Parallel, USB2.0 x3, PS2 Mouse x1 • Keyboard x1, Video x1 • Form Factor : uATX Motherboard • Power Supply : 200W Power-Supply • O/S Support : W2K/RedHat/FreeBSD Barebones & VA/Warranty : $ ~185 FOB Taiwan/China *Less Processor, Memory, HD, CD-ROM, KBD

  48. Desktop Version • Cost Reductions • Remove Swappable IDE HDD Back plane, and Tray • Change Slim CD-ROM to Standard size CD-ROM Barebones & VA/Warranty : $ ~150 FOB Taiwan/China *Less Processor, Memory, HD, CD-ROM, KBD

  49. Arima PDA Overview

  50. IA RD Division Organization
