  1. Slicer3 plugins Common architecture for interactive and batch processing

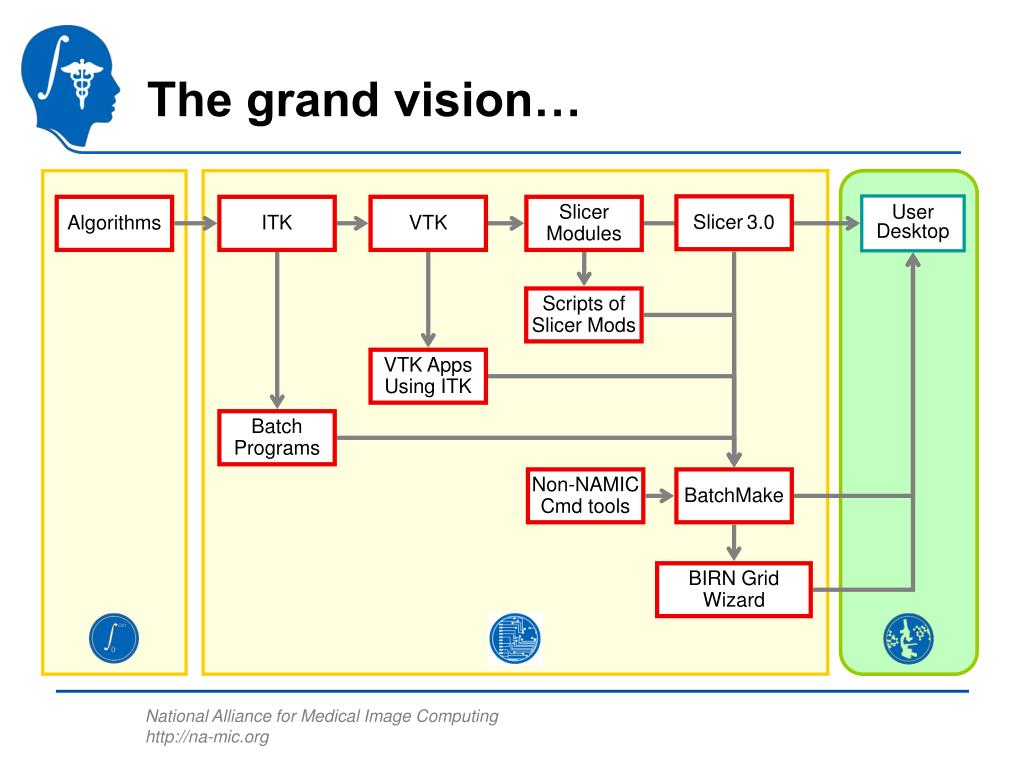

  2. User Desktop Slicer3.0 Algorithms ITK VTK Slicer Modules Scripts of Slicer Mods VTK Apps Using ITK Batch Programs Non-NAMIC Cmd tools BatchMake BIRN Grid Wizard The grand vision…

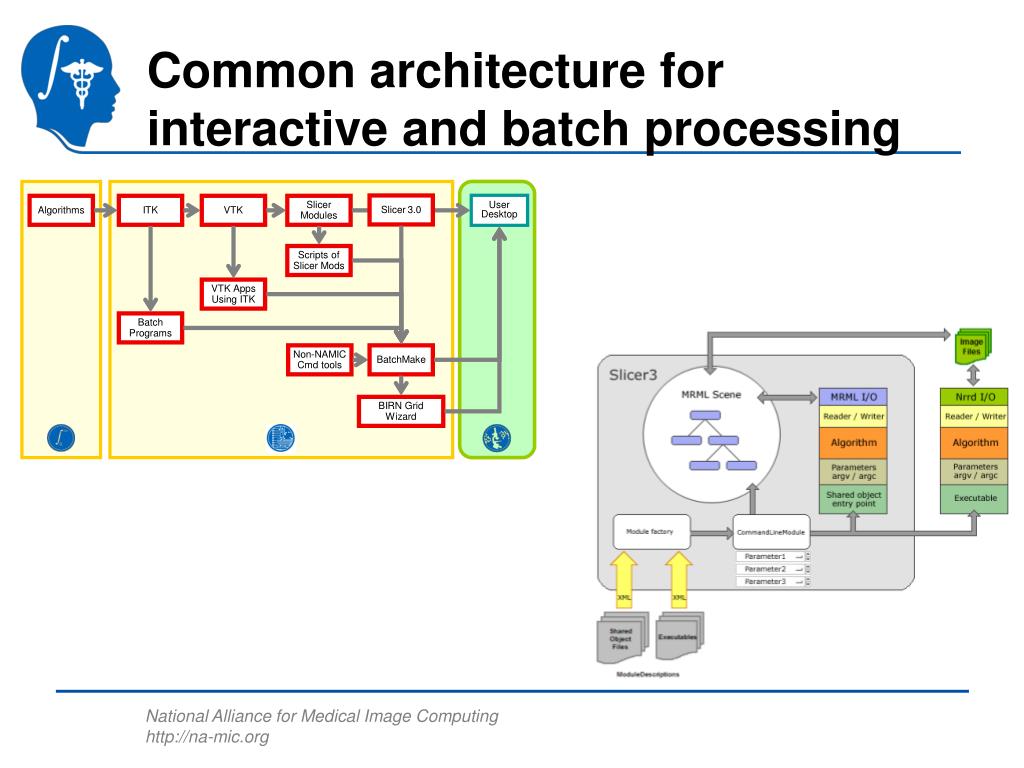

  3. User Desktop Slicer3.0 Algorithms ITK VTK Slicer Modules Scripts of Slicer Mods VTK Apps Using ITK Batch Programs Non-NAMIC Cmd tools BatchMake BIRN Grid Wizard Common architecture for interactive and batch processing

  4. Each module has … … an entry in the module menu … a panel of user interface controls

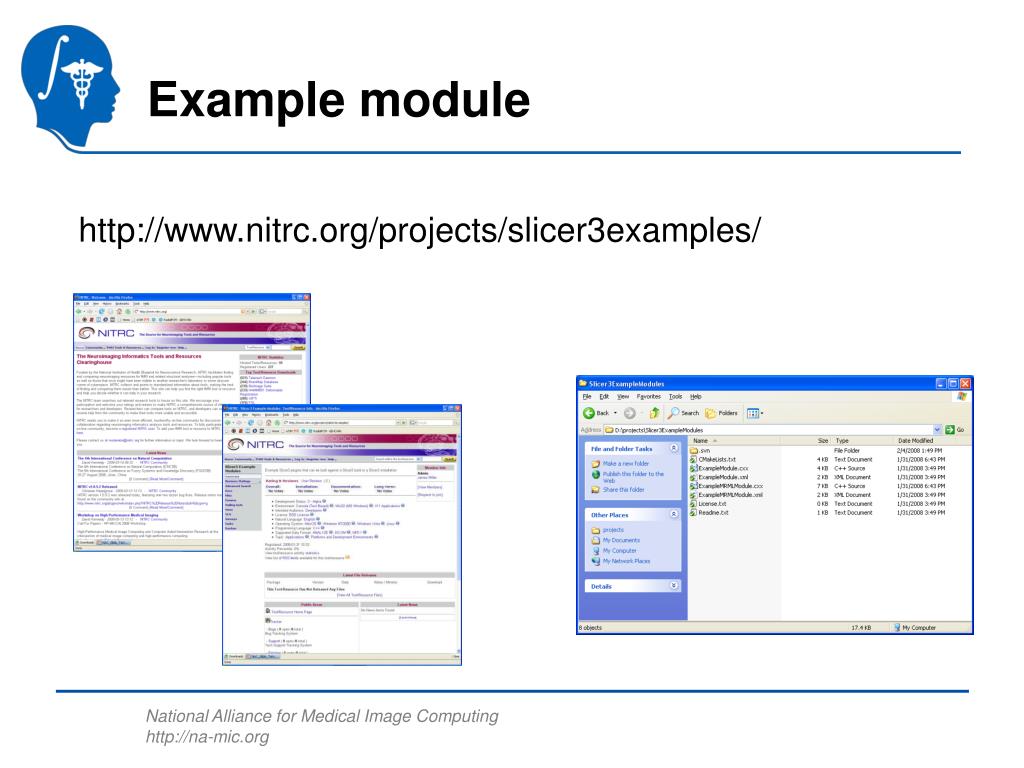

  5. Example module http://www.nitrc.org/projects/slicer3examples/

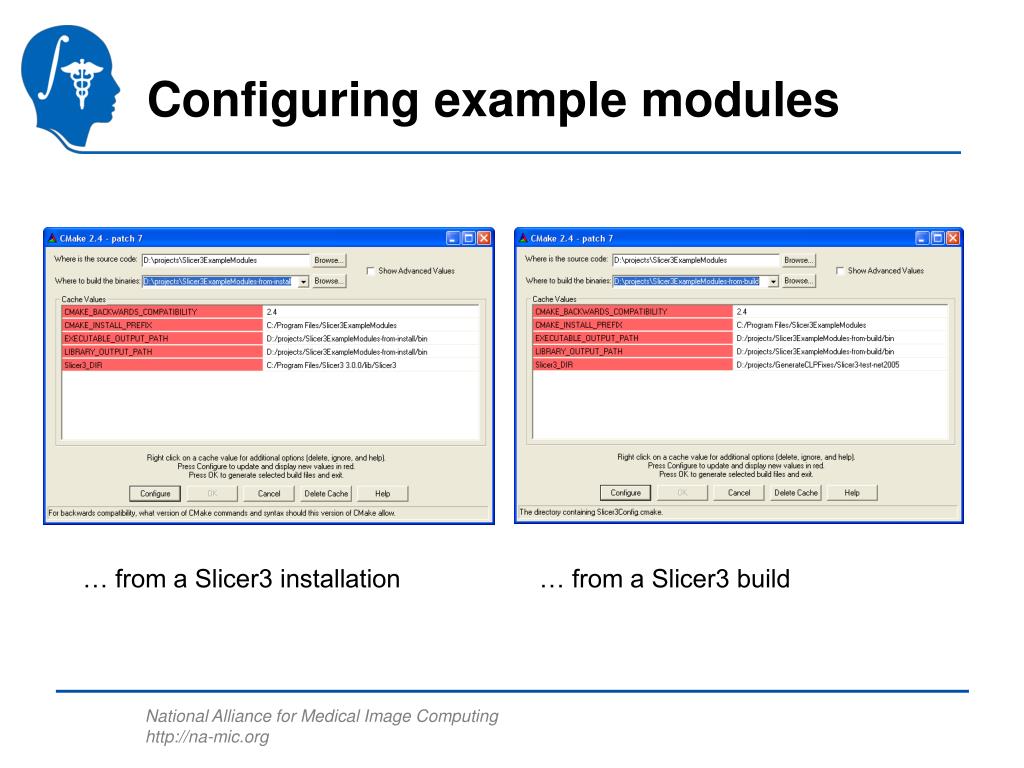

  6. Configuring example modules … from a Slicer3 installation … from a Slicer3 build

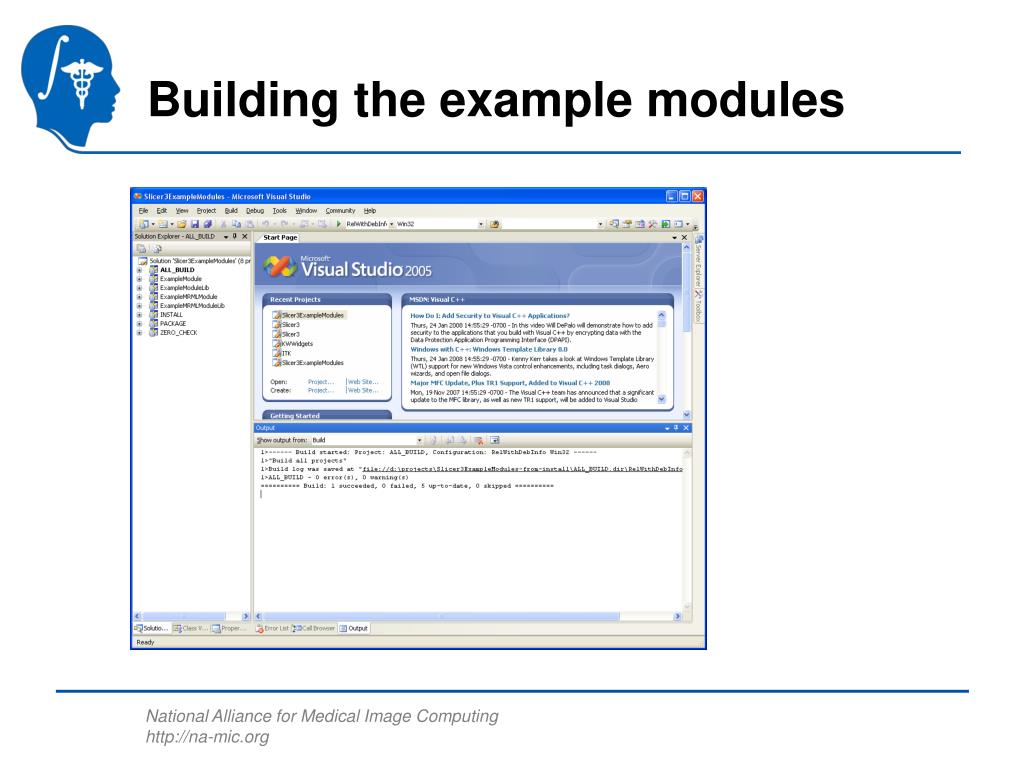

  7. Building the example modules

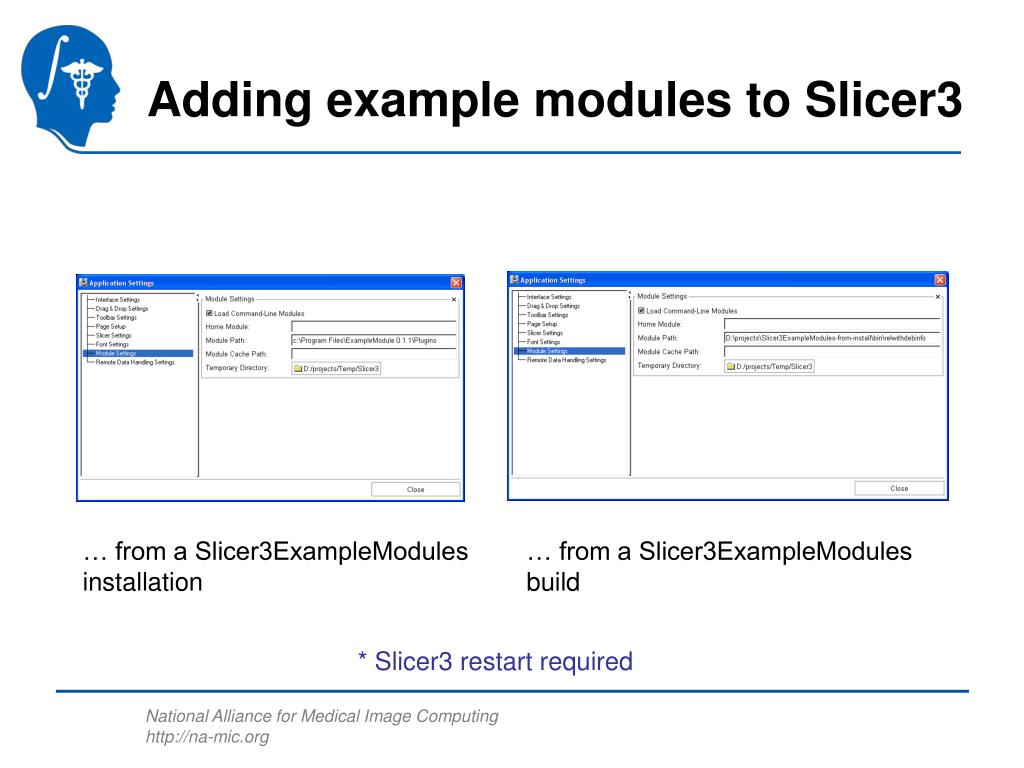

  8. Adding example modules to Slicer3 … from a Slicer3ExampleModules installation … from a Slicer3ExampleModules build * Slicer3 restart required

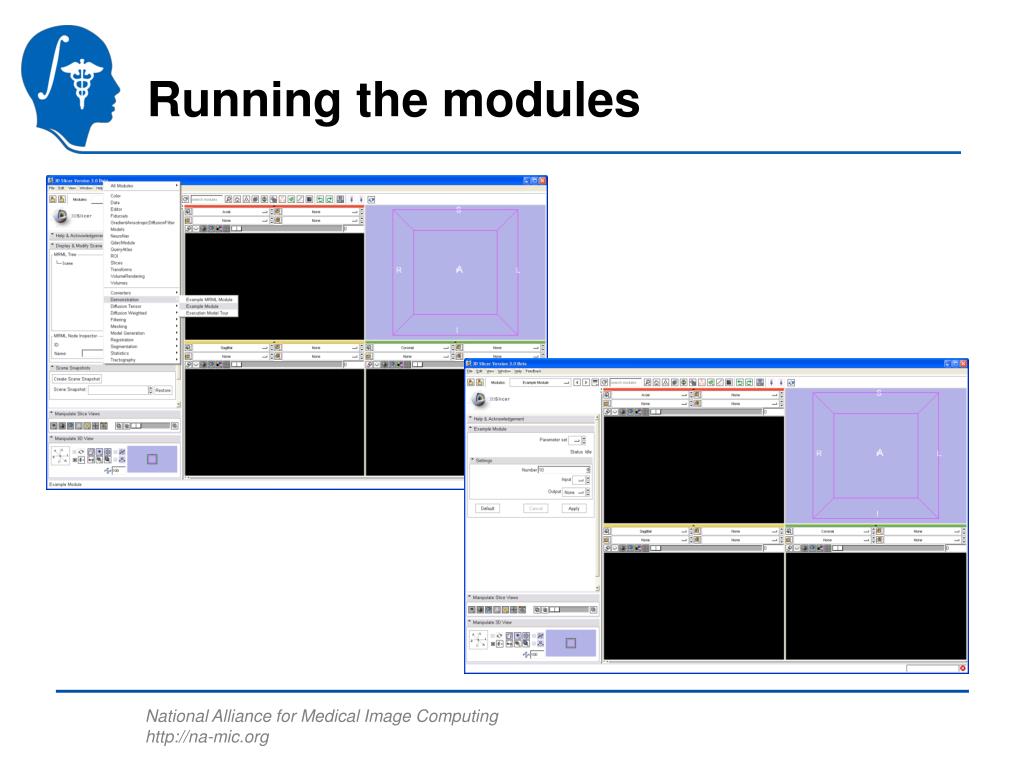

  9. Running the modules

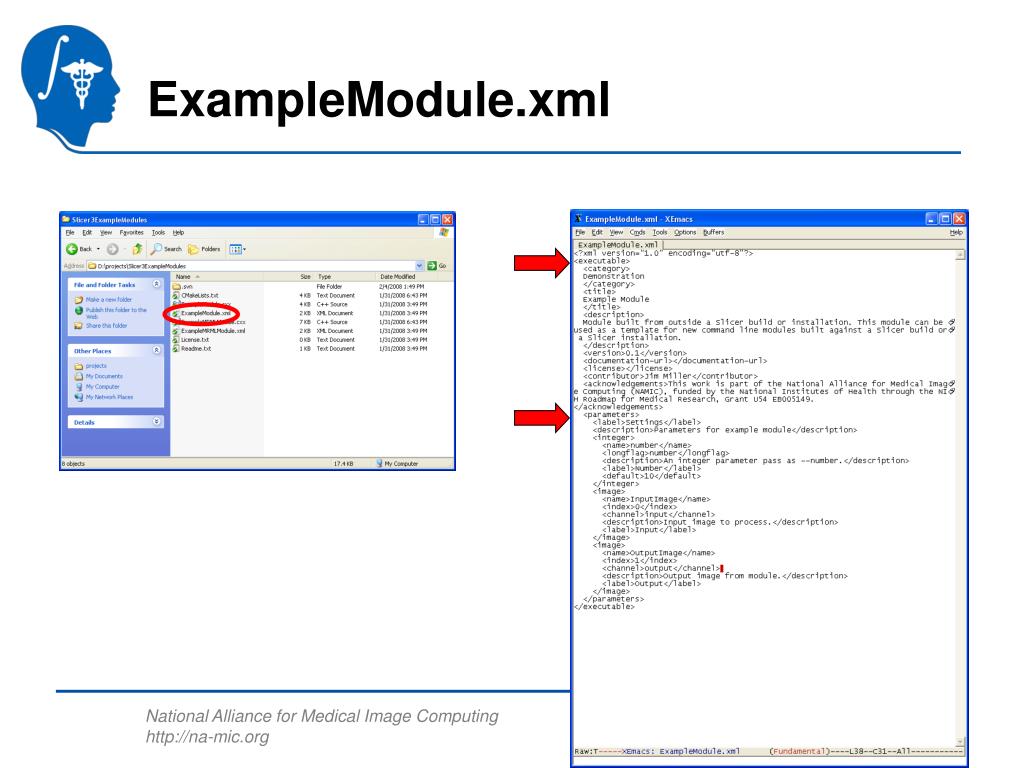

  10. ExampleModule.xml

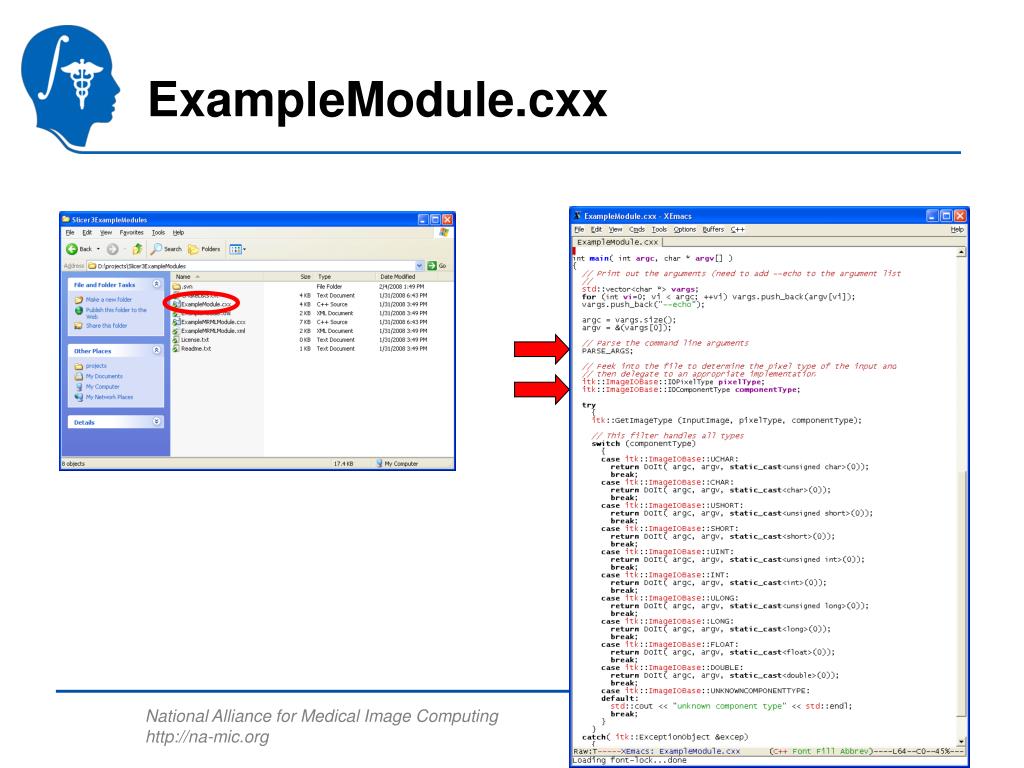

  11. ExampleModule.cxx

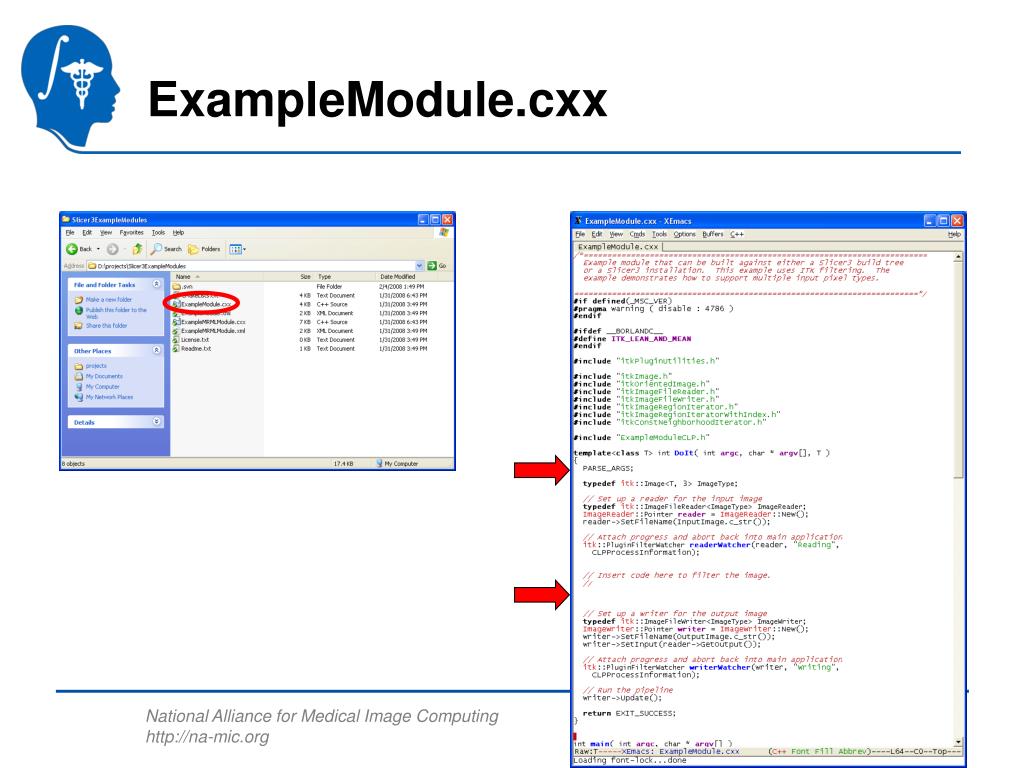

  12. ExampleModule.cxx

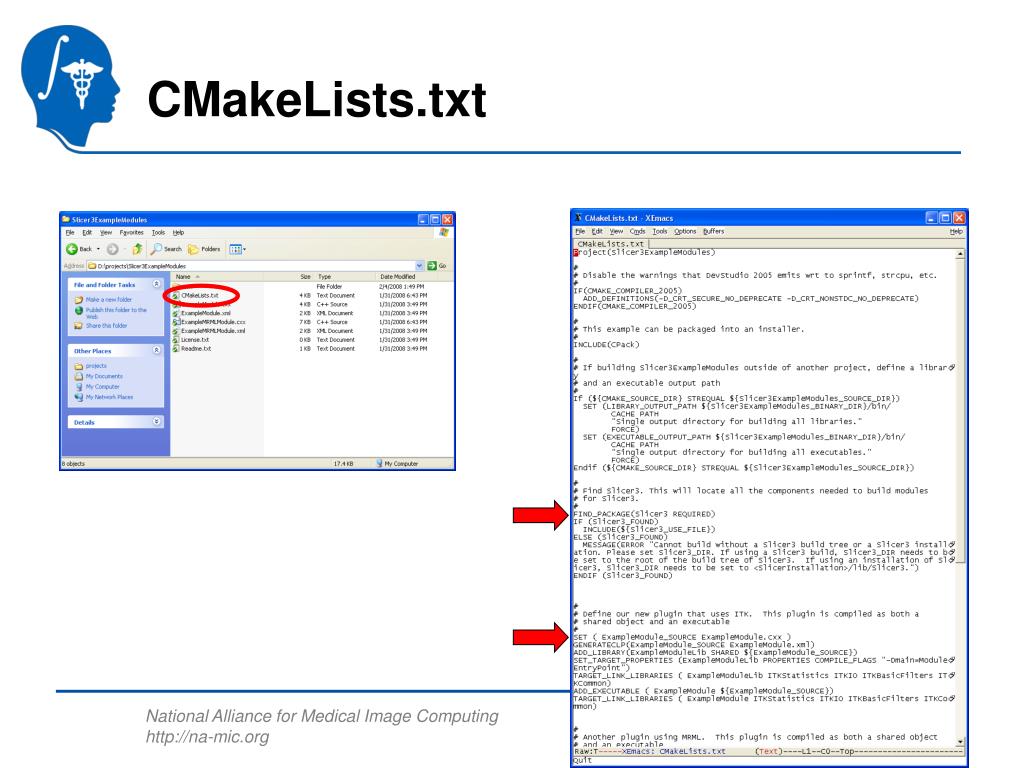

  13. CMakeLists.txt

  14. Communicating status (easy) VTK #include "vtkPluginFilterWatcher.h" ... vtkMarchingCubes *cubes = vtkMarchingCubes::New(); cubes->SetInput(reader->GetOutput()); vtkPluginFilterWatcher watchCubes(cubes, "Generate Isosurface", CLPProcessInformation, .5, 0.0); vtkDecimatePro *decimate = vtkDecimatePro::New(); decimate->SetInput(cubes->GetOutput()); vtkPluginFilterWatcher watchDecimate(decimate, "Reduce Triangle Count", CLPProcessInformation, .5, 0.5); decimate->Update(); ITK #include "itkPluginFilterWatcher.h ... typedef itk::MedianImageFilter<ImageType,ImageType> FilterType; FilterType::Pointer median = FilterType::New(); itk::PluginFilterWatcher watchMedian(median, "Denoise Image", CLPProcessInformation); Median->Update();

  15. Communicating status (hard) Executable <filter-start> <filter-name> name of program section or algorithm </filter-name> <filter-comment> description of program section or algrotihm </filter-comment> </filter-start> <filter-progress> floating number from 0 to 1 </filter-progress> <filter-end> <filter-name> name of program section or algorithm </filter-name> <filter-time> execution time </filter-time> </filter-end> Shared object extern "C" { struct ModuleProcessInformation { /** Inputs from calling application to the module **/ unsigned char Abort; /** Outputs from the module to the calling application **/ float Progress; char ProgressMessage[1024]; void (*ProgressCallbackFunction)(void *); void *ProgressCallbackClientData; double ElapsedTime; } }

  16. Python modules XML = """<?xml version="1.0" encoding="utf-8"?> <executable> <category>Filtering.Denoising</category> ... def toXML(): return XML; def Execute ( inputVolume, outputVolume, conductance=1.0, timeStep=0.0625, iterations=1 ): print "Executing Python Demo Application!" Slicer = __import__ ( "Slicer" ); slicer = Slicer.Slicer() in = slicer.MRMLScene.GetNodeByID ( inputVolume ); out = slicer.MRMLScene.GetNodeByID ( outputVolume ); filter = slicer.vtkITKGradientAnisotropicDiffusionImageFilter.New() filter.SetConductanceParameter ( conductance ) filter.SetTimeStep ( timeStep ) filter.SetNumberOfIterations ( iterations ) filter.SetInput ( in.GetImageData() ) filter.Update() out.SetAndObserveImageData(filter.GetOutput()) return

  17. Parameters <integer> | <float> | <double> | <boolean> | <string> | <integer-vector> | <float-vector> | <double-vector> | <string-vector> | <integer-enumeration> | <float-enumeration> | <double-enumeration> | <string-enumeration> | <file> | <directory> | <image>[type="scalar|label|tensor|diffusion-weighted|vector|model"] | <geometry> [type="fiberbundle|model"] | <point>[multiple="true|false"] [coordinateSystem="lps|ras|ijk"] | <region>[multiple="true|false"] [coordinateSystem="lps|ras|ijk"]

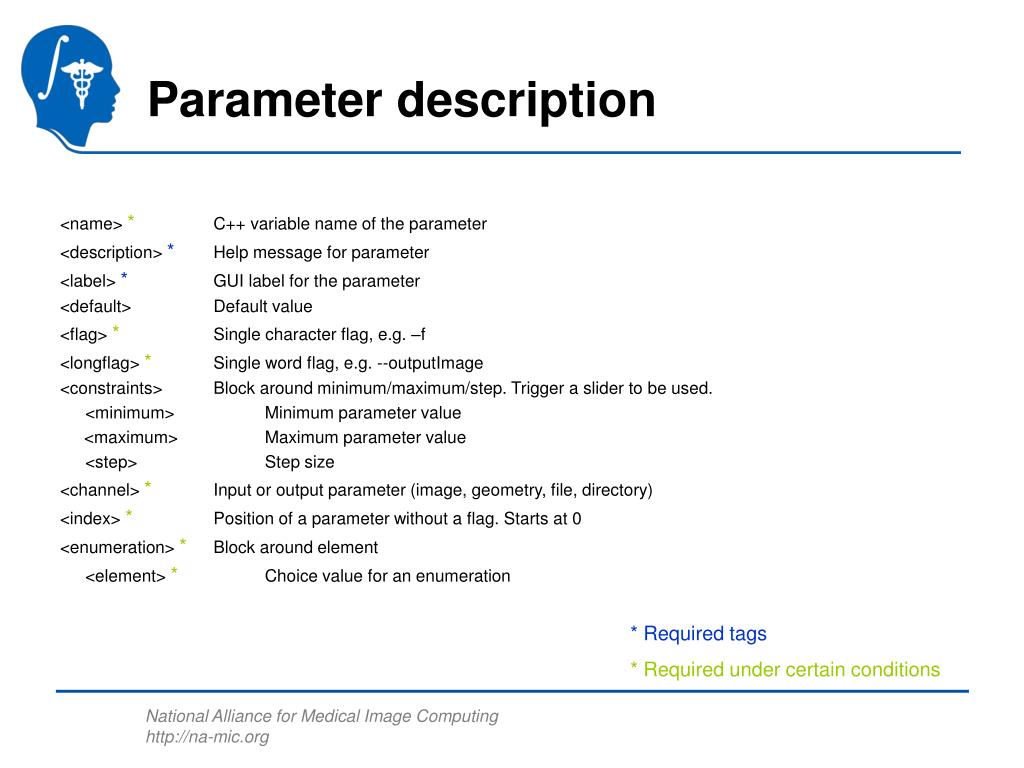

  18. Parameter description <name> * C++ variable name of the parameter <description> * Help message for parameter <label> * GUI label for the parameter <default> Default value <flag> * Single character flag, e.g. –f <longflag> * Single word flag, e.g. --outputImage <constraints> Block around minimum/maximum/step. Trigger a slider to be used. <minimum> Minimum parameter value <maximum> Maximum parameter value <step> Step size <channel> * Input or output parameter (image, geometry, file, directory) <index> * Position of a parameter without a flag. Starts at 0 <enumeration> * Block around element <element> * Choice value for an enumeration * Required tags * Required under certain conditions

  19. Behind the scenes • Tasks queued for processing thread • Three types of modules: • executable, • shared object, and • Python modules • Scalar images sent via files for executables and memory* for shared objects and python • Vector images, tensor images, geometry, tables, transforms sent via files • Scalars, file names, directories, fiducials, regions sent via command line * VTK-based modules using scalar images are only supported as executable (command line) modules.

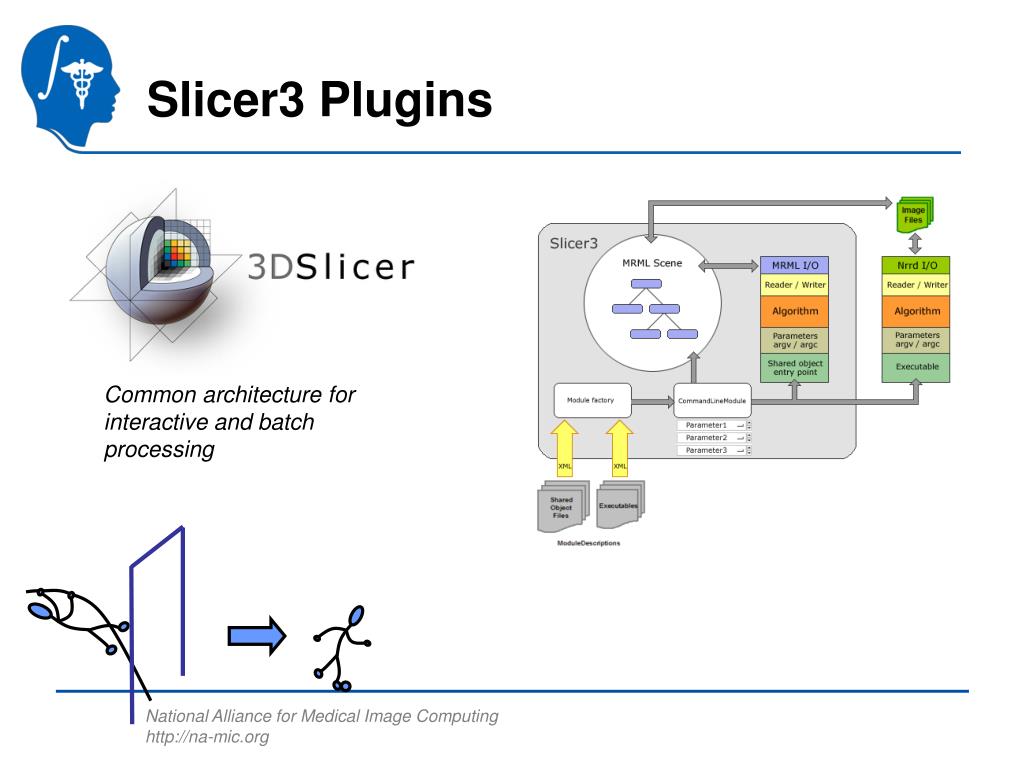

  20. Slicer3 Plugins Common architecture for interactive and batch processing
