  1. Peripheral Devices

  2. Device Drivers • A program to tell the system software how to work with that piece of hardware • Some common device drivers are built in the system software (Operating System) e.g. keyboard and mouse drives

  3. Plug-n-Play Devices • Devices designed such that Windows can detect them, install and configure the device driver automatically • For non plug-n-play devices, we have to install and configure the device driver manually.

  4. Input Devices (1) • Keyboard • P/S2 keyboard • USB keyboard • Wireless keyboard

  5. Input Devices (2) • Pointing Devices • Mouse, trackball, touch pad, light pen, digitizer • Touch screen

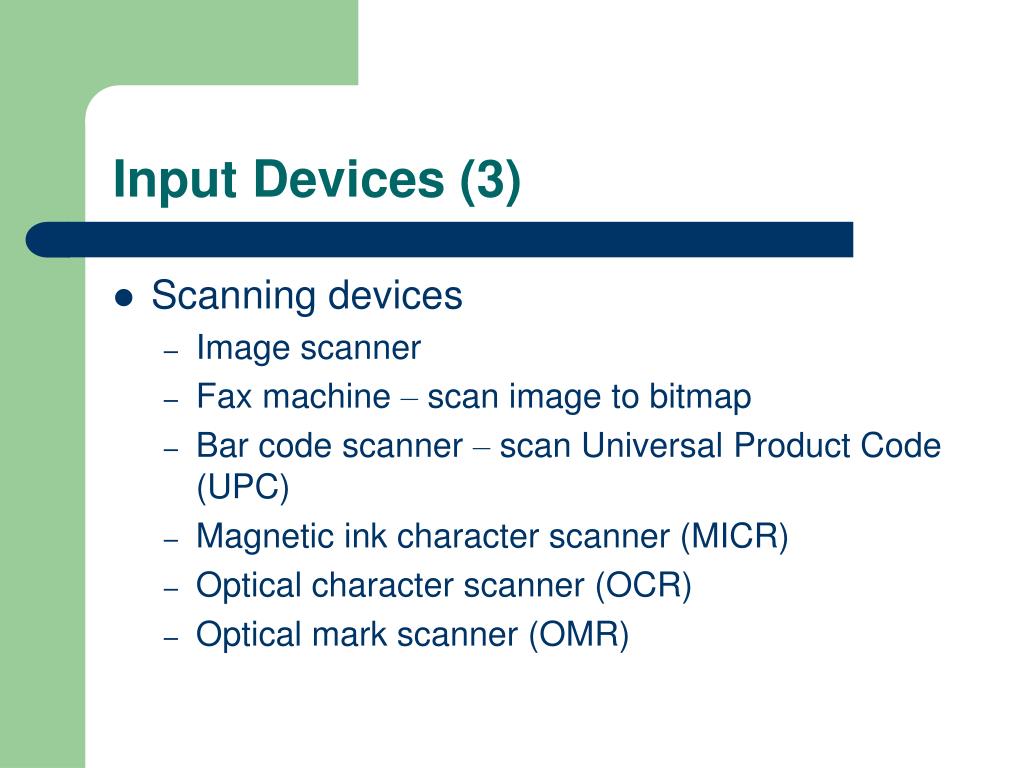

  6. Input Devices (3) • Scanning devices • Image scanner • Fax machine – scan image to bitmap • Bar code scanner – scan Universal Product Code (UPC) • Magnetic ink character scanner (MICR) • Optical character scanner (OCR) • Optical mark scanner (OMR)

  7. Input Devices (4) • Voice Input Device • Microphone – to receive the sound signal • Sound card – to convert the sound signal to digital form • Use speech recognition software to recognize human speech

  8. Input Devices (5) • Handwriting Recognition Device • Need handwriting recognition software • Called natural input • Slow inputting speed

  9. Output Devices (1) • Visual Display Unit (VDU) • Commonly called monitor • 2 common types of monitor • CRT (Cathode Ray Tube) monitor • High radiation and bulky • LCD (Liquid Crystal Display) monitor • No radiation and slim

  10. Output Devices (2) • Printer – to produce hard copy • Laser printer • to produce high quality output • resolution up to 2400 dpi (dot per inch) • use carbon toner, usually for black and white printout, colour is very expensive

  11. Output Devices (3) • Inkjet printer • produce good quality colour output • resolution up to 1440 dpi • use ink droplets to compose the image • The printer is much cheaper than laser printer but the ink is very expensive

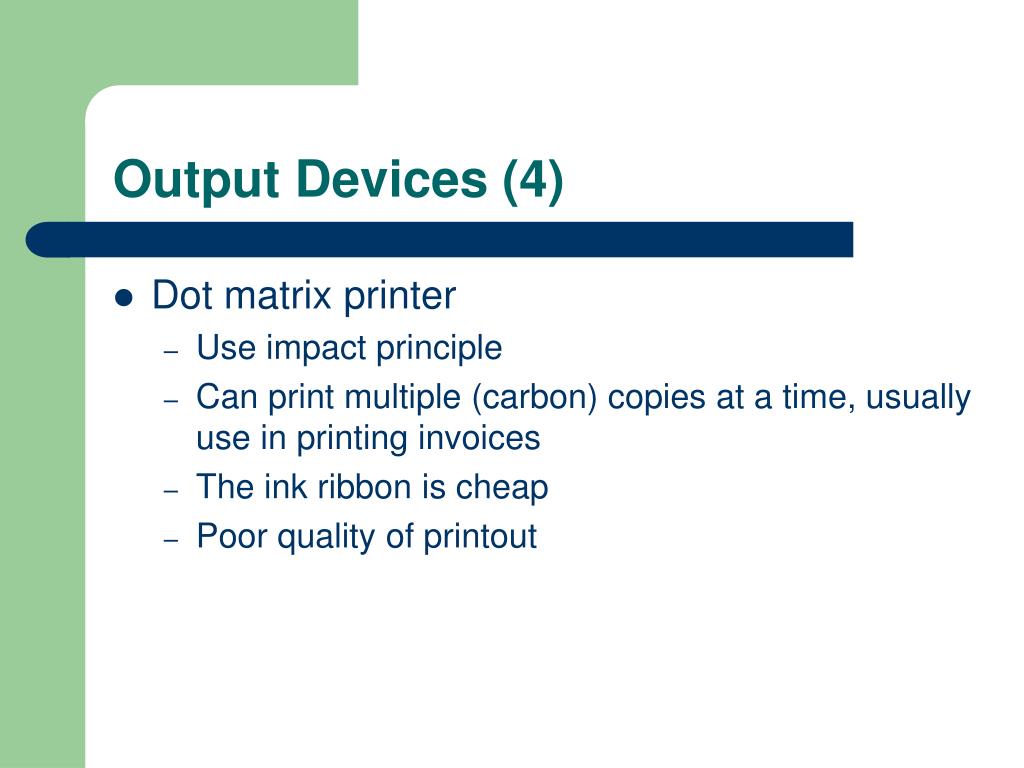

  12. Output Devices (4) • Dot matrix printer • Use impact principle • Can print multiple (carbon) copies at a time, usually use in printing invoices • The ink ribbon is cheap • Poor quality of printout

  13. Output Devices (5) • Plotter • Drawing high quality image, use colour pens, can draw smooth curves • Can print on large paper size, use roll of paper • To draw posters and maps • Use in CAD (Computer Aided Design)

  14. Output Device (6) • Voice output devices • Sound card, to convert computer signals to sound • Speakers, to amplify the sound output

  15. Storage Devices (1) • Floppy Disk (Diskette) • A flexible plastic circular disc • Packed in a plastic square jacket • Formatted to 1.44MB • Divided to many circular tracks • Each track is divided to many sectors • Use magnetic technology to store data ‘0’ or ‘1’ • Random access • Slow accessing speed

  16. Storage Devices (2) • Hard Disk • High storage capacity, over 100 GB • Hard metallic surface • Consists of several metallic disks • Data are stored in cylinder (a deck of tracks) (see p.86) • Use magnetic technology • Very high access speed • Random access

  17. Storage Device (3) • Optical disk • CDROM, DVDROM, CDRW, DVDRW • Use optical technology, laser reflection on pits • ‘1’ will reflect the laser beam while ‘0’ does not • High storage capacity, 700 MB for a CDROM, 17GB for a DVDROM • Random access • High access speed

  18. Storage Device (4) • Tape • Cheap • Sequential access • Use magnetic technology • Ideal for backup data, we need to backup and restore all data • High storage capacity • Slow access speed • Group of records are stored in a block • Inter-block gaps are needed for stopping and starting the read/write head.

  19. Storage Device (5) • Other Storage devices – can be read/write • Removable disks -Zip disk(100/250MB), superdisk(120MB), Jazz disk(1GB) • MO disk • Flash memory cards – compact flash, smart media and memory stick, commonly used in digital camera

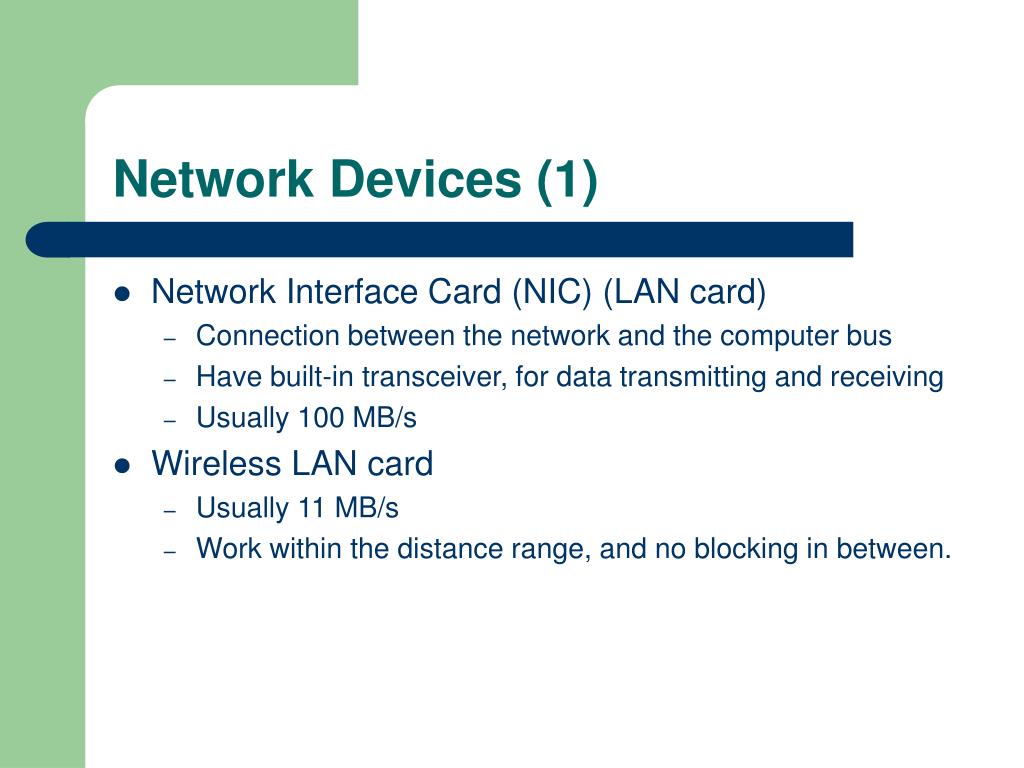

  20. Network Devices (1) • Network Interface Card (NIC) (LAN card) • Connection between the network and the computer bus • Have built-in transceiver, for data transmitting and receiving • Usually 100 MB/s • Wireless LAN card • Usually 11 MB/s • Work within the distance range, and no blocking in between.

  21. Network Devices (2) • Connectors • RJ-45 telephone jack connector • For connecting twisted pairs LAN cable • BNC connector • For connecting coaxial cables

  22. Network Device (3) • Terminators • Use in bus network, to prevent signal rebounce and echo at the ends of bus.

  23. Network Device (4) • Hub • To connect the workstations within a room on same floor • Switch • To connect the workstations for different floors in a building, it is faster and more efficient than a Hub. • Router • To connect different LANs together to form a Wide Area Network (WAN)

  24. Network Device (5) • Repeater • When a network spans a long distance, the signal weaken, repeater is used to reproduce the signal. • Exchange • To boost the signals along the network path for a Wide Area Network.

  25. Network Device (6) • Computer • Different computers play different roles on a network • Server • Provide services to other computers connected to the network, usually have higher processing power and larger storage capacity. • Workstation • The computers connected to the network but not act as a server.

  26. Network Device (7) - Servers • File server • control the sharing and access of files over the network, must have a huge storage capacity. • Print server • Manage the print jobs from different computers to different network printers, and manage the print queues. • Web server • To host a web site and publish web pages on the web, support HTML, Java script, CGI, PHP and ASP web languages • Email server • To store, send and receive emails over the Internet • Internet server • To provide Internet access

  27. Communication Device • Modem - Modulator-demodulator • It transforms digital signals of computer to analog signals to be transmitted through telephone lines. (Modulation) • It also transforms analog signals back to digital signals for the computer that receives the signals. (Demodulation)

  28. Data/Signal Rate • Data Rate • Refer to the no. of bits per second sent • Signaling Rate (Baud Rate) • Refer to the no. of signals per second sent • Each signal may consists of several bits e.g. 101 • Bandwidth • The frequency range of a particular media • is directly proportional to the data rate

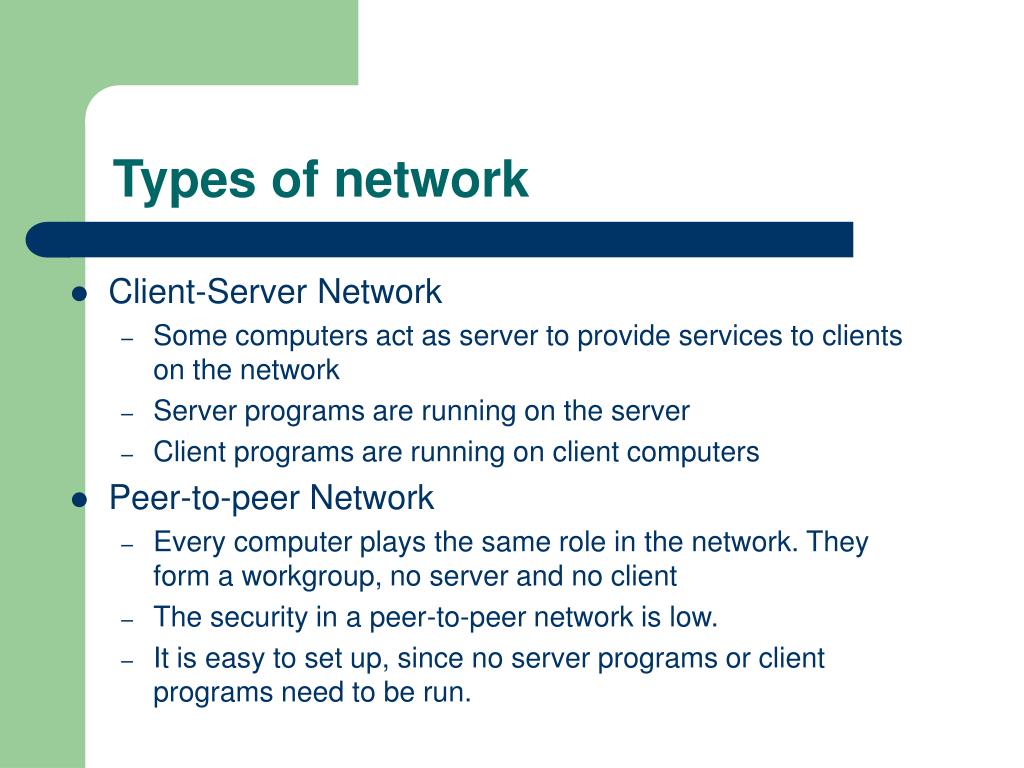

  29. Types of network • Client-Server Network • Some computers act as server to provide services to clients on the network • Server programs are running on the server • Client programs are running on client computers • Peer-to-peer Network • Every computer plays the same role in the network. They form a workgroup, no server and no client • The security in a peer-to-peer network is low. • It is easy to set up, since no server programs or client programs need to be run.
