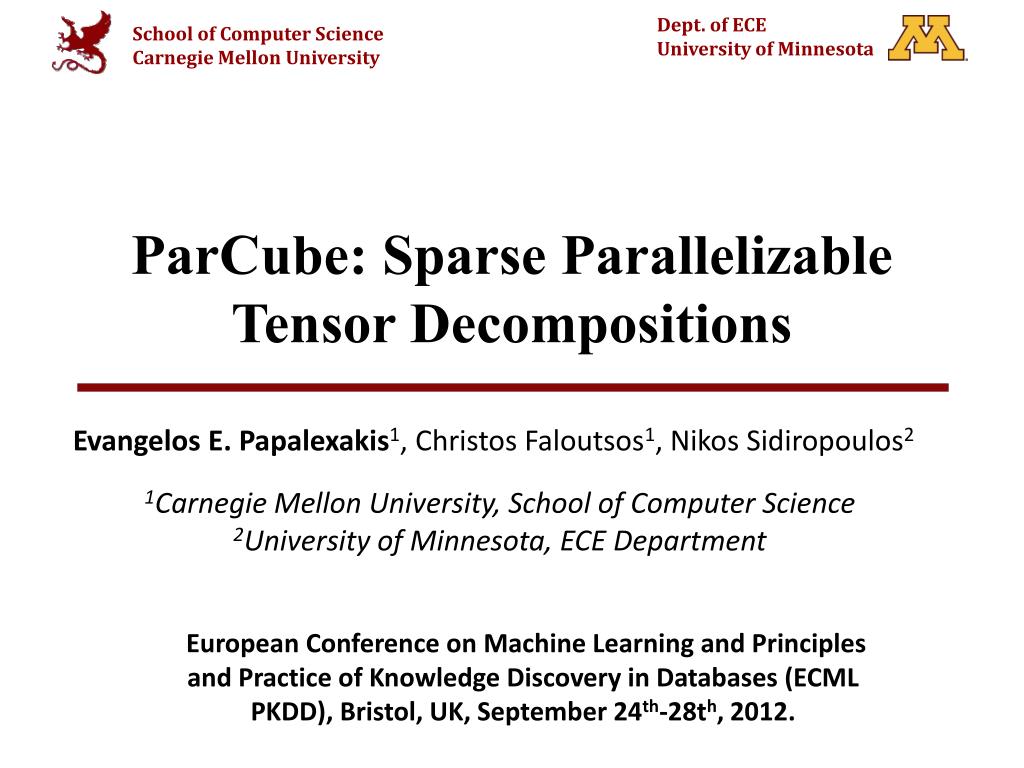

  1. ParCube: Sparse Parallelizable Tensor Decompositions Evangelos E. Papalexakis1, Christos Faloutsos1, Nikos Sidiropoulos2 1Carnegie Mellon University, School of Computer Science 2University of Minnesota, ECE Department European Conference on Machine Learning and Principles and Practice of Knowledge Discovery in Databases (ECML PKDD), Bristol, UK, September 24th-28th, 2012.

  2. Outline • Introduction Problem Statement Method Experiments Conclusions Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  3. Introduction • Facebook has ~800 Million users • Evolves over time • How do we spot interesting patterns & anomalies in this very large network? Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  4. Introduction • Suppose we have Knowledge Base data • E.g. Read the Web Project at CMU • Subject – verb – object triplets, mined from the web • Many gigabytes or terabytes of data! • How do we find potential new synonyms to a word using this knowledge base? Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  5. Introduction to Tensors • Tensors are multidimensional generalizations of matrices • Previous problems can be formulated as tensors! • Time-evolving graphs/social networks, Multi-aspect data (e.g. subject, object, verb) • Focus on 3-way tensors • Can be viewed as Data cubes • Indexed by 3variables (IxJxK) verb subject object Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  6. Introduction to Tensors • PARAFAC decomposition • Decompose a tensor into sum of outer products/rank 1 tensors • Each rank 1 tensor is a different group/”concept” • “Similar” to the Singular Value Decomposition in the matrix case verb Store the factor vectors ai, bi, ci as columns of matrices A, B, C subject object “products” “leaders/CEOs” Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  7. Outline Introduction • Problem Statement Method Experiments Conclusions Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  8. Why not PARAFAC? • Today’s datasets are in the orders of terabytes • e.g. Facebook has ~ 800 Million users! • Explosive complexity/run time for truly large datasets! • Also, data is very sparse • We need the decomposition factors to be sparse • Better interpretability / less noise • Can do multi-way soft co-clustering this way! • PARAFAC is dense! Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  9. Problem Statement • Wish-list: • Significantly drop the dimensionality • Ideally 1 or more orders of magnitude • Parallelize the computation • Ideally split the problem into independent parts and run in parallel • Yield sparse factors • Don’t loose much in the process Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  10. Previous work • A.H. Phanet al. Block decomposition for very large-scale nonnegative tensor factorization • Partition & merge parallel algorithm for NN PARAFAC • No sparsity • Q. Zhanget al. A parallel nonnegative tensor factorization algorithm for mining global climate data. • D. Nionet al. Adaptive algorithms to track the parafacdecomposition of a third-order tensor & J. Sunet al. Beyond streams and graphs: dynamic tensor analysis • Tensor is a stream, both methods seek to track the decomposition • C.E. TsourakakisMach: Fast randomized tensor decompositions & J. Sun et al. Multivis:Content- based social network exploration through multi-way visual analysis • Sampling based TUCKER models. • E.E. Papalexakis et al. Co-clustering as multilinear decomposition with sparse latent factors. • Sparse PARAFAC algorithm applied to co-clustering None combines all requirements! Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  11. Our proposal • We introduce ParCubeand set the following goals: • Goal 1: Fast • Scalable & parallelizable • Goal 2: Sparse • Ability to yield sparse latent factors and a sparse tensor approximation • Goal 3: Accurate • provable correctness in merging partial results, under appropriate conditions Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  12. Outline Introduction Problem Statement • Method Experiments Conclusions Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  13. ParCube: The big picture Break up tensor into small pieces using sampling G1 G2 Match columns and distribute non-zero values to appropriate indices in original (non-sampled) space G1 Fit dense PARAFAC decomposition on small sampled tensors • Sampling selects small portion of indices • PARAFAC vectors ai bi ciwill be sparse by construction G2 Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  14. The ParCube method • Key ideas: • Use biased sampling to sample rows, cols & fibers • Sampling weight • During sampling, always keep a common portion of indices across samples • For each smaller tensor, do the PARAFAC decomposition. • Need to specify 2 parameters: • Sampling rate: s • Initial dimensions I, J, K  I/s, J/s, K/s • Number of repetitions / different sampled tensors: r Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  15. Putting the pieces together Details • Say we have matrices Asfrom each sample • Possibly have re-ordering of factors • Each matrix corresponds to different sampled index set of the original index space • All factors share the “upper” part (by construction) … G3 Proposition: Under mild conditions, the algorithm will stitch components correctly & output what exact PARAFAC would Proof on paper Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  16. Outline Introduction Problem Statement Method • Experiments Conclusions Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  17. Experiments • We use the Tensor Toolbox for MatlabPARAFAC for baseline and core implementation • Evaluation of performance • Algorithm correctness • Execution speedup • Factor sparsity Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  18. Experiments – Correctness for multiple repetitions • Relative cost = ParCube approximation cost / PARAFAC approximation cost • The more samples we get, the closer we are to exact PARAFAC • Experimental validation of our theoretical result. Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  19. Experiments - Correctness & Speedup for 1 repetition • Relative cost = ParCube approximation cost / PARAFAC approximation cost • Speedup = PARAFAC execution time / ParCube execution time • Extrapolation to parallel execution for 4 repetitions yields 14.2x speedup (and improves accuracy) Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  20. Experiments – Correctness & Sparsity • Output size = NNZ(A) + NNZ(B) + NNZ(C) • 90% sparser than PARAFAC while maintaining the same approximation error Same as PARAFAC Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  21. Experiments • Knowledge Discovery • Enron email/social network 186×186×44 • Network traffic data (Lbnl) 65170 × 65170 × 65327 • Facebook Wall posts 63891 × 63890 × 1847 • Knowledge Base data (Never Ending Language Learner – Nell) 14545 × 14545 × 28818 Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  22. Discovery - Enron • Who-emailed-whom data from the ENRON email dataset. • Spans 44 months • 184×184×44 tensor • We picked s = 2, r = 4 • We were able to identify social cliques and spot spikes that correspond to actual important events in the company’s timeline Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  23. Discovery – Lbnl Network Data 1 src • Network traffic data of form (src IP, dst IP, port #) • 65170 × 65170 × 65327 tensor • We pick s = 5, r = 10 • We were able to identify a possible Port Scanning Attack 1 dst Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  24. Discovery – Facebook Wall posts 1 Wall • Small portion of Facebook’s users • 63890 users for 1847 days • Picked s = 100, r = 10 • Data in the form (Wall owner, poster, timestamp) • Downloaded from http://socialnetworks.mpi-sws.org/data-wosn2009.html • We were able to identify a birthday-like event. 1 day Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  25. Discovery - Nell • Knowledge base data • Taken from the Read The Web project at CMU • http://rtw.ml.cmu.edu/rtw/Special thanks to Tom Mitchell for the data. • Noun phrase x Context x Noun phrase triplets • e.g. ‘Obama’ – ‘is’ – ‘the president of the United States’ • Discover words that may be used in the same context • We picked s = 500, r = 10. Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  26. Outline Introduction Problem Statement Method Experiments • Conclusions Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  27. Conclusions • Goal 1: Fast • Scalable & parallelizable • Goal 2: Sparse • Ability to yield sparse latent factors and a sparse tensor approximation • Goal 3: Accurate • provable correctness in merging partial results, under appropriate conditions • Experiments that also demonstrate that • Enables processing of tensors that don’t fit in memory • Interesting findings in diverse Knowledge Discovery settings Evangelos Papalexakis (CMU) – ECML-PKDD 2012

  28. The End Evangelos E. Papalexakis Email: epapalex@cs.cmu.edu Web: http://www.cs.cmu.edu/~epapalex Thank you! Any questions? Christos Faloutsos Email: christos@cs.cmu.edu Web: http://www.cs.cmu.edu/~christos Nicholas Sidiropoulos Email: nikos@umn.edu Web: http://www.ece.umn.edu/users/nikos/ Evangelos Papalexakis (CMU) - ASONAM 2012
