  1. Grid Computing for High Energy Physics in Japan Hiroyuki Matsunaga International Center for Elementary Particle Physics (ICEPP), The University of Tokyo International Workshop on e-Science for Physics 2008

  2. Major High Energy Physics Program in Japan • KEK-B (Tsukuba) • Belle • J-PARC (Tokai) • Japan Proton Accelerator Research Complex • Operation will start within this year • T2K (Tokai to Kamioka) • long baseline neutrino experiment • Kamioka • SuperKamiokande • KamLAND • International collaboration • CERN LHC (ATLAS, ALICE) • Fermilab Tevatron (CDF) • BNL RHIC (PHENIX)

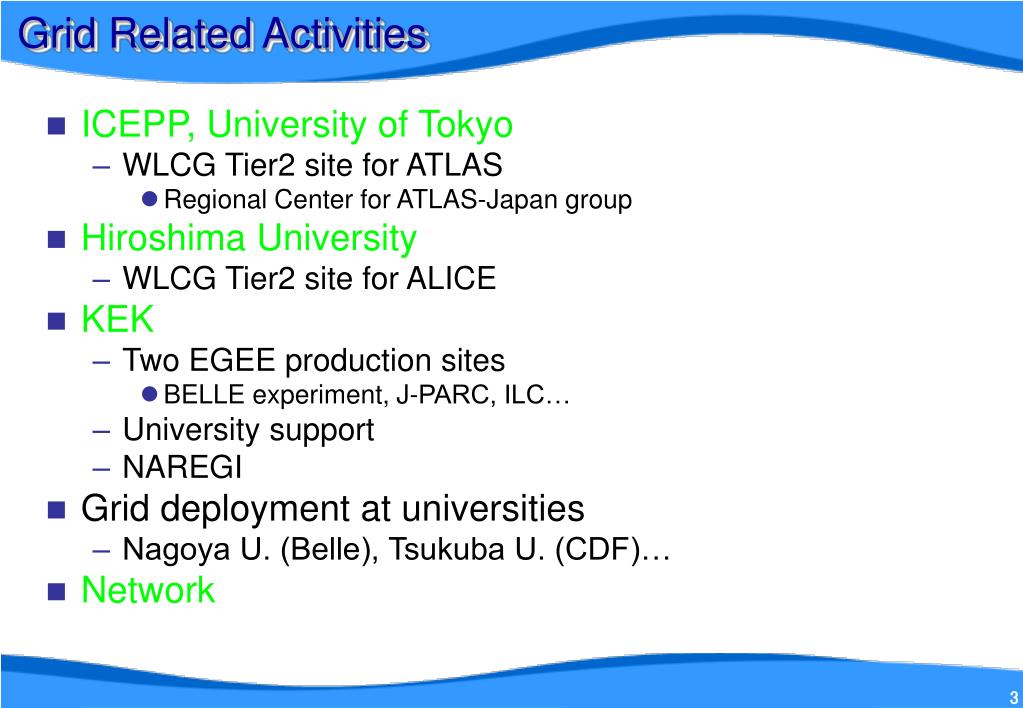

  3. Grid Related Activities • ICEPP, University of Tokyo • WLCG Tier2 site for ATLAS • Regional Center for ATLAS-Japan group • Hiroshima University • WLCG Tier2 site for ALICE • KEK • Two EGEE production sites • BELLE experiment, J-PARC, ILC… • University support • NAREGI • Grid deployment at universities • Nagoya U. (Belle), Tsukuba U. (CDF)… • Network

  4. Grid Deployment at University of Tokyo • ICEPP, University of Tokyo • Involved in international HEP experiments since 1974 • Operated pilot system since 2002 • Current computer system started working last year • TOKYO-LCG2. gLite3 installed • CC-IN2P3 (Lyon, France) is the associated Tier 1 site within ATLAS computing model • Detector data from CERN go through CC-IN2P3 • Exceptionally far distance for T1-T2 • RTT ~280msec, ~10 hops • Challenge for efficient data transfer • Data catalog for the files in Tokyo located at Lyon • ASGC (Taiwan) could be additional associated Tier1 • Geographically nearest Tier 1 (RTT ~32msec) • Operations have been supported by ASGC • Neighboring timezone

  5. Hardware resources • Tier-2 site plus (non-grid) regional center facility • Support local user analysis by ALTAS Japan group • Blade servers • 650 nodes (2600 cores) • Disk arrays • 140 Boxes (~6TB/box) • 4Gb Fibre-Channel • File servers • Attach 5 disk arrays • 10 GbE NIC • Tape robot (LTO3) • 8000 tapes, 32 drives Tape robot Blade servers Disk arrays Disk arrays

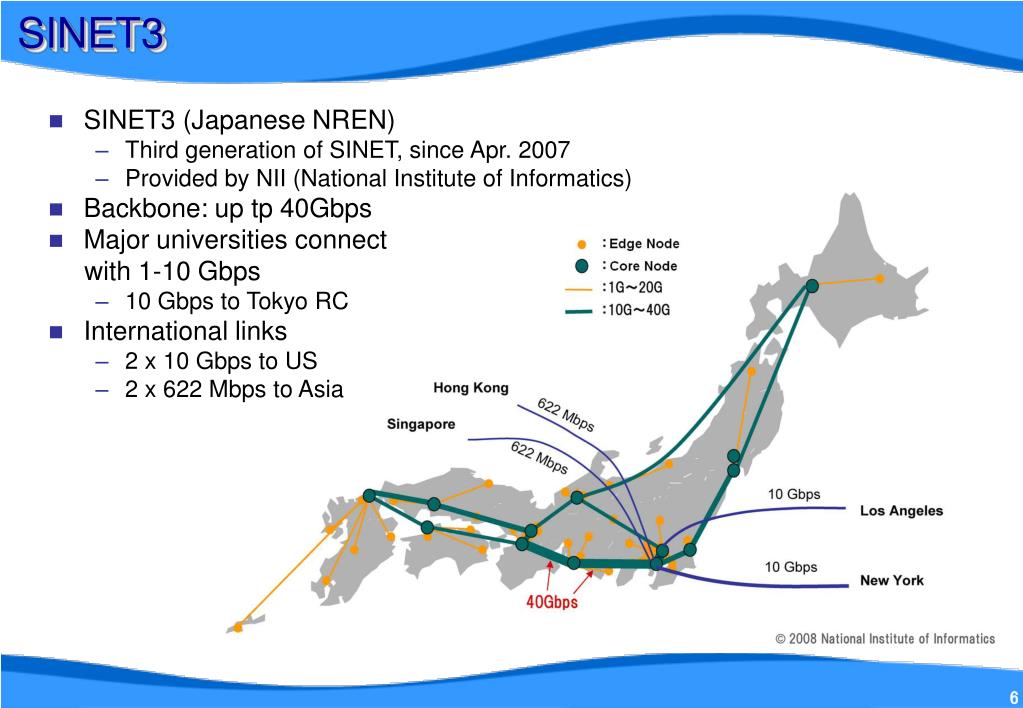

  6. SINET3 • SINET3 (Japanese NREN) • Third generation of SINET, since Apr. 2007 • Provided by NII (National Institute of Informatics) • Backbone: up tp 40Gbps • Major universities connect with 1-10 Gbps • 10 Gbps to Tokyo RC • International links • 2 x 10 Gbps to US • 2 x 622 Mbps to Asia

  7. International Link • 10Gbps between Tokyo and CC-IN2P3 • SINET3 + GEANT + RENATER (French NREN) • public network (shared with other traffic) • 1Gbps link to ASGC (to be upgraded to 2.4 Gbps) GEANT (10Gbps) SINET3 (10Gbps) RENATER (10Gbps) Lyon New York Tokyo Taipei

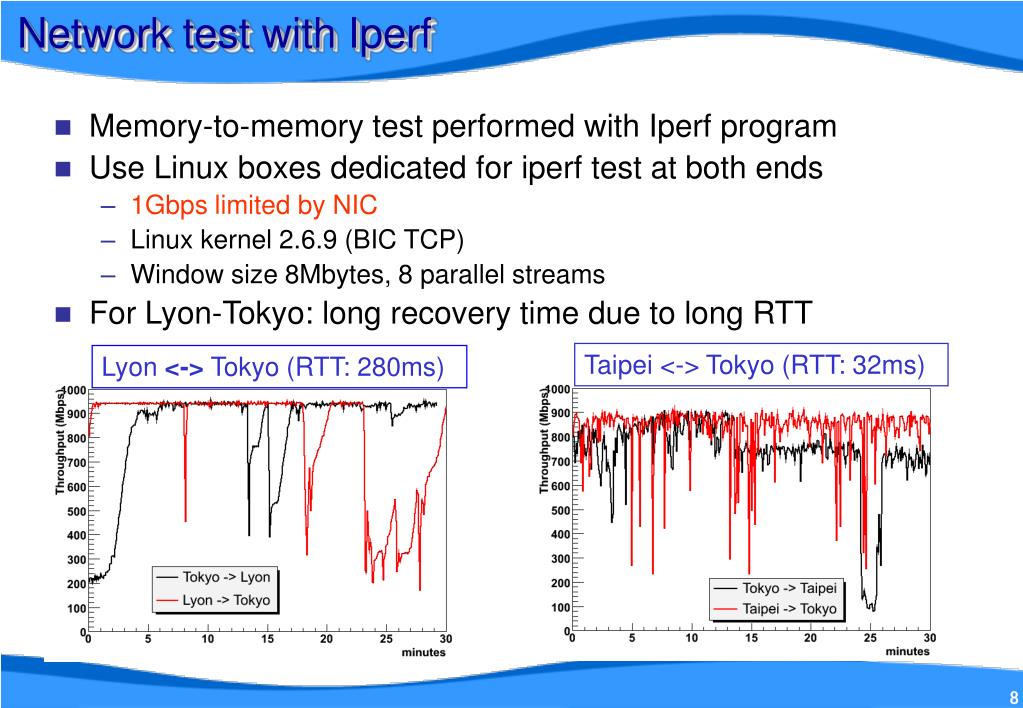

  8. Network test with Iperf • Memory-to-memory test performed with Iperf program • Use Linux boxes dedicated for iperf test at both ends • 1Gbps limited by NIC • Linux kernel 2.6.9 (BIC TCP) • Window size 8Mbytes, 8 parallel streams • For Lyon-Tokyo: long recovery time due to long RTT Taipei <-> Tokyo (RTT: 32ms) Lyon <-> Tokyo (RTT: 280ms)

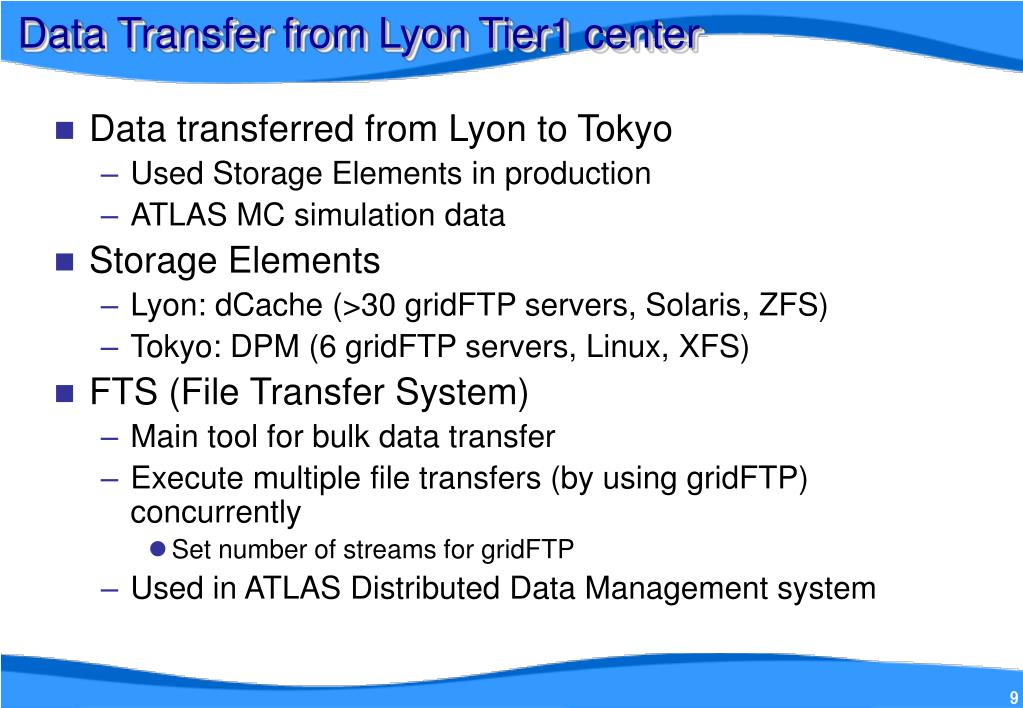

  9. Data Transfer from Lyon Tier1 center • Data transferred from Lyon to Tokyo • Used Storage Elements in production • ATLAS MC simulation data • Storage Elements • Lyon: dCache (>30 gridFTP servers, Solaris, ZFS) • Tokyo: DPM (6 gridFTP servers, Linux, XFS) • FTS (File Transfer System) • Main tool for bulk data transfer • Execute multiple file transfers (by using gridFTP) concurrently • Set number of streams for gridFTP • Used in ATLAS Distributed Data Management system

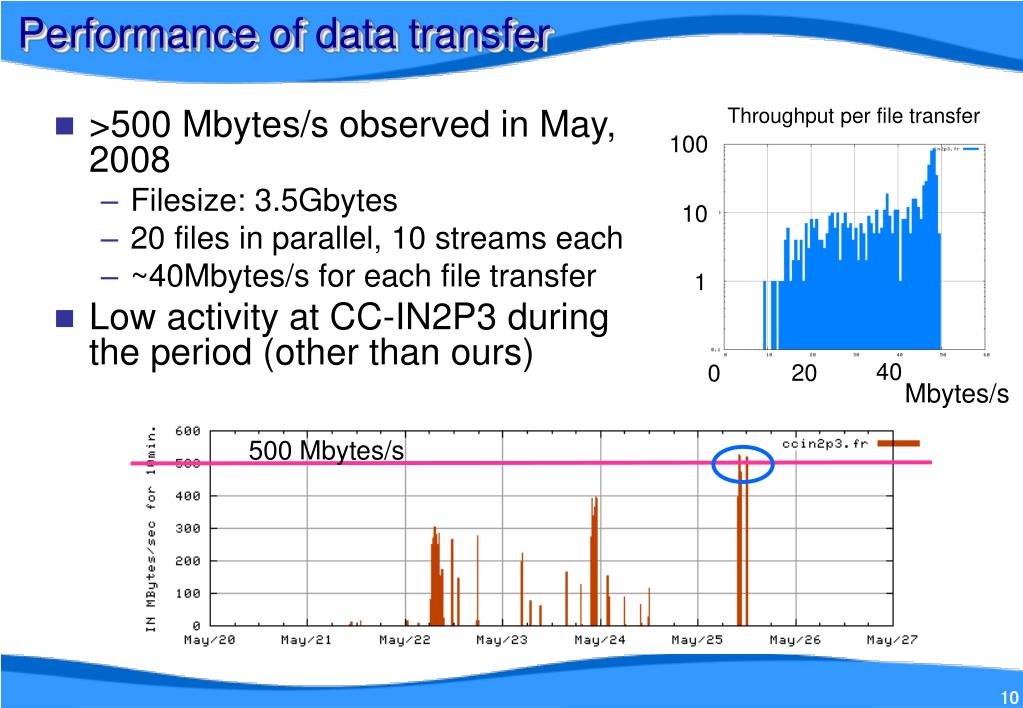

  10. Performance of data transfer Throughput per file transfer • >500 Mbytes/s observed in May, 2008 • Filesize: 3.5Gbytes • 20 files in parallel, 10 streams each • ~40Mbytes/s for each file transfer • Low activity at CC-IN2P3 during the period (other than ours) 100 10 1 40 20 0 Mbytes/s 500 Mbytes/s

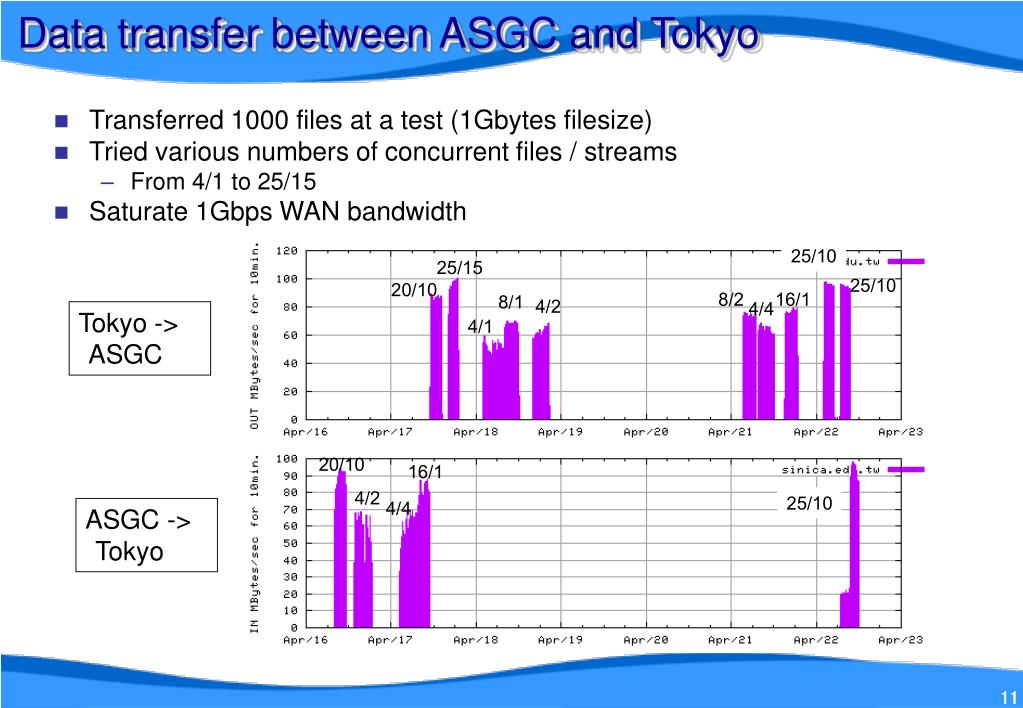

  11. Data transfer between ASGC and Tokyo • Transferred 1000 files at a test (1Gbytes filesize) • Tried various numbers of concurrent files / streams • From 4/1 to 25/15 • Saturate 1Gbps WAN bandwidth 25/10 25/15 25/10 20/10 8/2 16/1 8/1 4/2 4/4 Tokyo -> ASGC 4/1 20/10 16/1 4/2 25/10 4/4 ASGC -> Tokyo

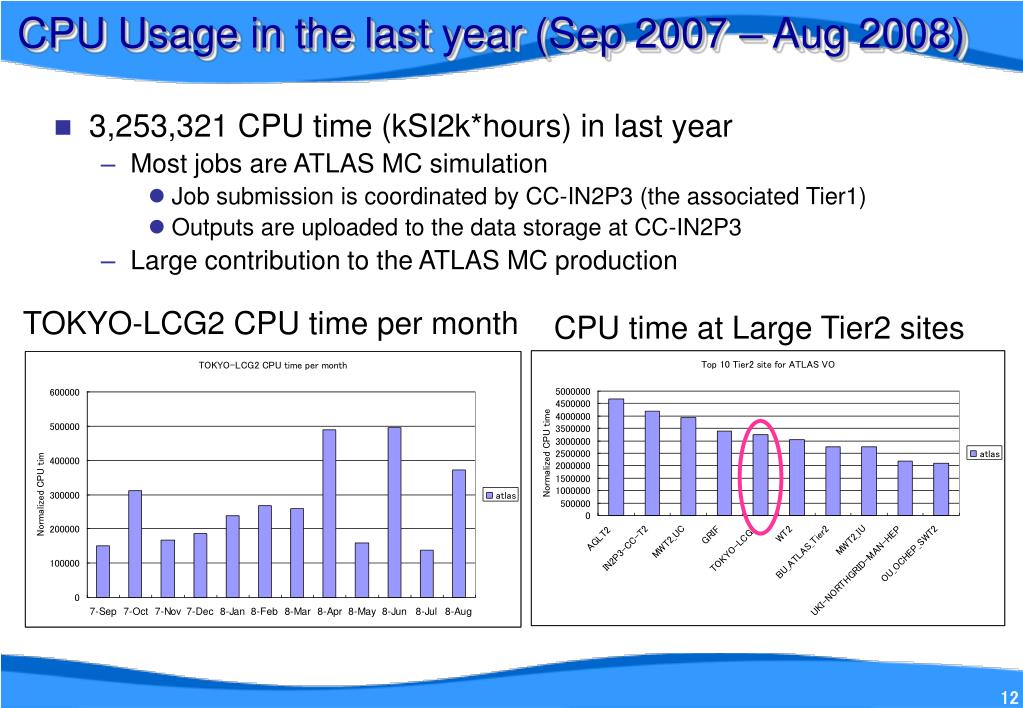

  12. CPU Usage in the last year (Sep 2007 – Aug 2008) • 3,253,321 CPU time (kSI2k*hours) in last year • Most jobs are ATLAS MC simulation • Job submission is coordinated by CC-IN2P3 (the associated Tier1) • Outputs are uploaded to the data storage at CC-IN2P3 • Large contribution to the ATLAS MC production TOKYO-LCG2 CPU time per month CPU time at Large Tier2 sites

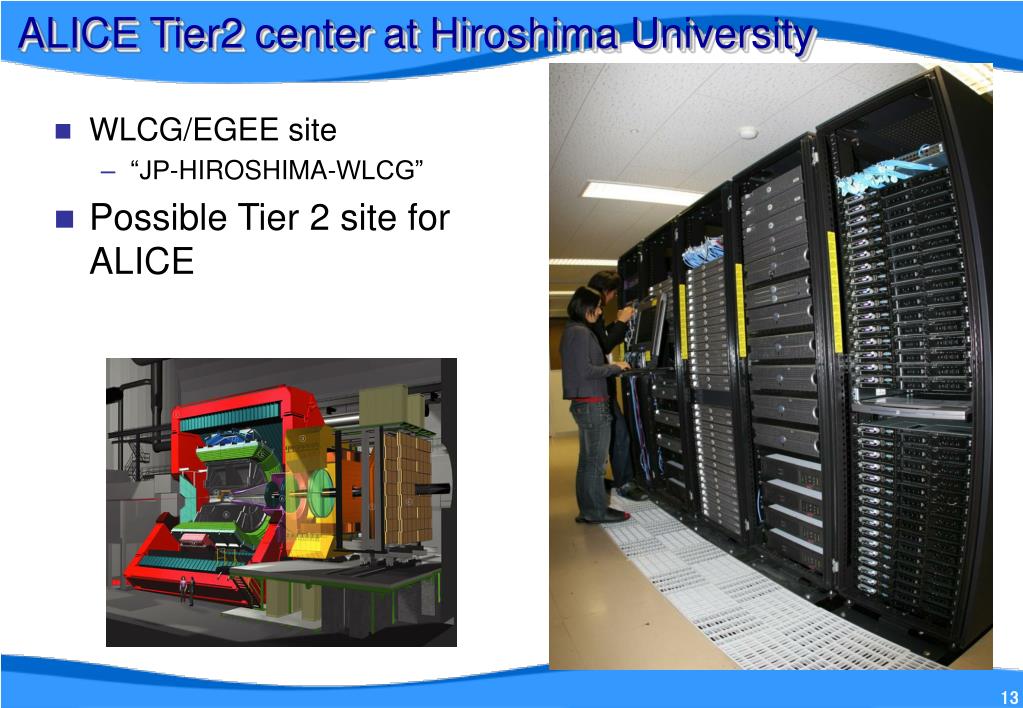

  13. ALICE Tier2 center at Hiroshima University • WLCG/EGEE site • “JP-HIROSHIMA-WLCG” • Possible Tier 2 site for ALICE

  14. Status at Hiroshima • Just became EGEE production site • Aug. 2008 • Associated Tier1 site will likely be CC-IN2P3 • No ALICE Tier1 in Asia-Pacific region • Resources • 568 CPU cores • Dual-Core Xeon(3GHz) X 2cpus X 38boxes • Quad-Core Xeon(2.6GHz) X 2cpus X 32boxes • Quad-Core Xeon(3GHz) X 2cpus X 20blades • Storage: ~200 TB next year • Network: 1Gbps • On SINET3

  15. KEK • Belle experiment has been running • Need to have access to existing peta-bytes of data • Site operations • KEK does not support any LHC experiment • Try to gain experience by operating sites in order to prepare for future Tier1 level Grid center • University support • NAREGI KEK Tsukuba campus Mt. Tsukuba Belle exp. KEKB Linac

  16. Grid Deployment at KEK • Two EGEE sites • JP-KEK-CRC-1 • Rather experimental use and R&D • JP-KEK-CRC-2 • More stable services • NAREGI • Used beta version for testing and evaluation • Supported VOs • belle (main target at present), ilc, calice, … • Not support LCG VOs • VOMS operation • belle (registered in CIC) • ppj (accelerator science in Japan), naokek • g4med, apdg, atlasj, ail

  17. Belle VO • Federation established • 5 countries, 7 institutes, 10 sites • Nagoya Univ., Univ. of Melbourne, ASGC, NCU, CYFRONET, Korea Univ., KEK • VOMS is provided by KEK • Activities • Submit MC production jobs • Functional and performance tests • Interface to existing peta-bytes of data

  18. Takashi Sasaki (KEK)

  19. ppj VO • Federated among major universities and KEK • Tohoku U. (ILC, KamLAND) • U. Tsukuba (CDF) • Nagoya U. (Belle, ATLAS) • Kobe U. (ILC, ATLAS) • Hiroshima IT (ATLAS, Computing Science) • Common VO for accelerator science in Japan • NOT depend on specific projects, but resources shared • KEK acts as GOC • Remote installation • Monitoring • Based on Nagios and Wiki • Software update

  20. KEK Grid CA • Started since Jan. 2006 • Accredited as an IGTF (International Grid Trust Federation) compliant CA Numbers of Issued certificates

  21. NAREGI • NAREGI: NAtional REsearch Grid Initiative • Host institute: National Institute of Infrmatics (NII) • R&D of the Grid middleware for research and industrial applications • Main targets are nanotechnology and biotechnology • More focused on computing grid • Data grid part integrated later • Ver. 1.0 of middleware released in May, 2008 • Software maintenance and user support services will be continued

  22. NAREGI at KEK • NAREGI-b version installed on the testbed • 1.0.1: Jun. 2006 – Nov. 2006 • Manual installation for all the steps • 1.0.2: Feb 2007 • 2.0.0: Oct. 2007 • apt-rpm installation • 2.0.1: Dec. 2007 • Site federation test • KEK-NAREGI/NII: Oct. 2007 • KEK-National Astronomy Observatory (NAO): Mar. 2008 • Evaluation of application environment of NAREGI • job submission/retrieval, remote data stage-in/out

  23. Takashi Sasaki (KEK)

  24. Data Storage: Gfarm • Gfarm: distributed file system • DataGrid part in NAREGI • Data are stored in multiple disk servers • Tests performed : • Stage-in and stage-out to the Gfarm storage • GridFTP interface • Between gLite site and NAREGI site • File access from application • Have access with FUSE (Filesystem in userspace) • Without the need of changing application program • IO speed is several times slower than local disk

  25. Future Plan on NAREGI at KEK • Migration to the production version • Test of interoperability with gLite • Improve the middleware in the application domain • Development of the new API to the application • Virtualization of the middleware • for script languages (to be used at web portal as well) • Monitoring • Jobs, sites,…

  26. Summary • WLCG • ATLAS Tier2 at Tokyo • Stable operation • ALICE Tier2 at Hiroshima • Just started operation in production • Coordinated effort lead by KEK • Site operations with gLite and NAREGI middlewares • Belle VO: SRB • Will be replaced with iRODs • ppj VO: deployment at universities • Supported and monitored by KEK • NAREGI • R&D, interoperability
