Agilent IC-CAP Modeling Configuration - Block Diagram (0.045 - 67 GHz)

RF Subsystem. E8361A Vector Network Analyzer. GPIB. x1. 7. 8. 9. @. n. 4. 5. 6. M. m. 1. 2. 3. k. m. Computer controller and IC-CAP software (quoted separately). 0. -. RF Signal Flow Diagram. GPIB. 4156C Precision Semiconductor Parameter Analyzer.

marged
Télécharger la présentation

Agilent IC-CAP Modeling Configuration - Block Diagram (0.045 - 67 GHz)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

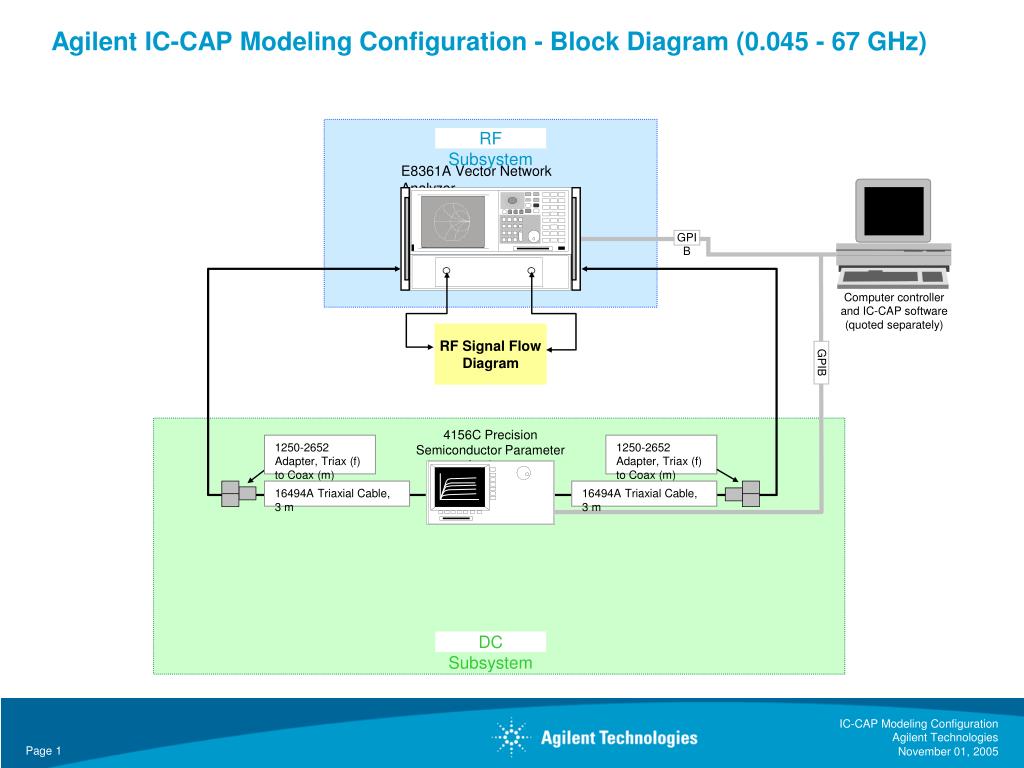

  1. RF Subsystem E8361A Vector Network Analyzer GPIB x1 7 8 9 @ n 4 5 6 M m 1 2 3 k m Computer controller and IC-CAP software (quoted separately) . 0 - RF Signal Flow Diagram GPIB 4156C Precision Semiconductor Parameter Analyzer 1250-2652 Adapter, Triax (f) to Coax (m) 1250-2652 Adapter, Triax (f) to Coax (m) 16494A Triaxial Cable, 3 m 16494A Triaxial Cable, 3 m CFIE DC Subsystem Agilent IC-CAP Modeling Configuration - Block Diagram (0.045 - 67 GHz) IC-CAP Modeling Configuration Agilent Technologies

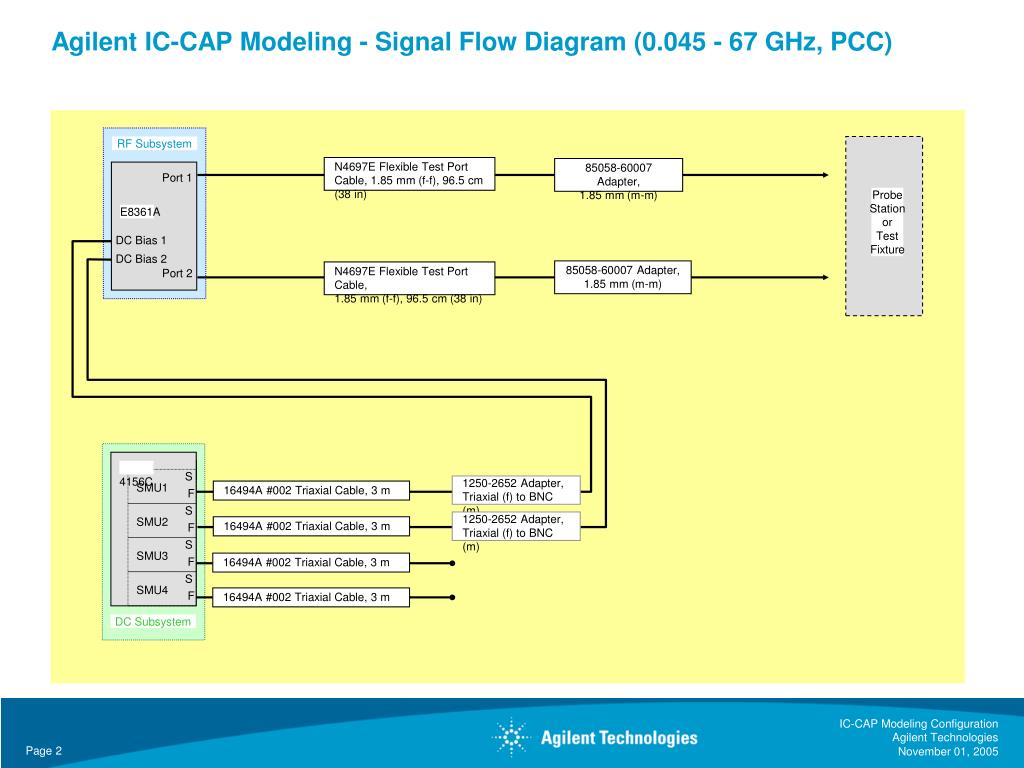

  2. RF Subsystem N4697E Flexible Test Port Cable, 1.85 mm (f-f), 96.5 cm (38 in) 85058-60007 Adapter, 1.85 mm (m-m) Port 1 E8361A Probe Station or Test Fixture DC Bias 1 4156C S DC Bias 2 SMU1 85058-60007 Adapter, 1.85 mm (m-m) N4697E Flexible Test Port Cable, 1.85 mm (f-f), 96.5 cm (38 in) F Port 2 S SMU2 F S SMU3 F S SMU4 F CFIE 1250-2652 Adapter, Triaxial (f) to BNC (m) 16494A #002 Triaxial Cable, 3 m 1250-2652 Adapter, Triaxial (f) to BNC (m) 16494A #002 Triaxial Cable, 3 m 16494A #002 Triaxial Cable, 3 m 16494A #002 Triaxial Cable, 3 m DC Subsystem Agilent IC-CAP Modeling - Signal Flow Diagram (0.045 - 67 GHz, PCC) IC-CAP Modeling Configuration Agilent Technologies

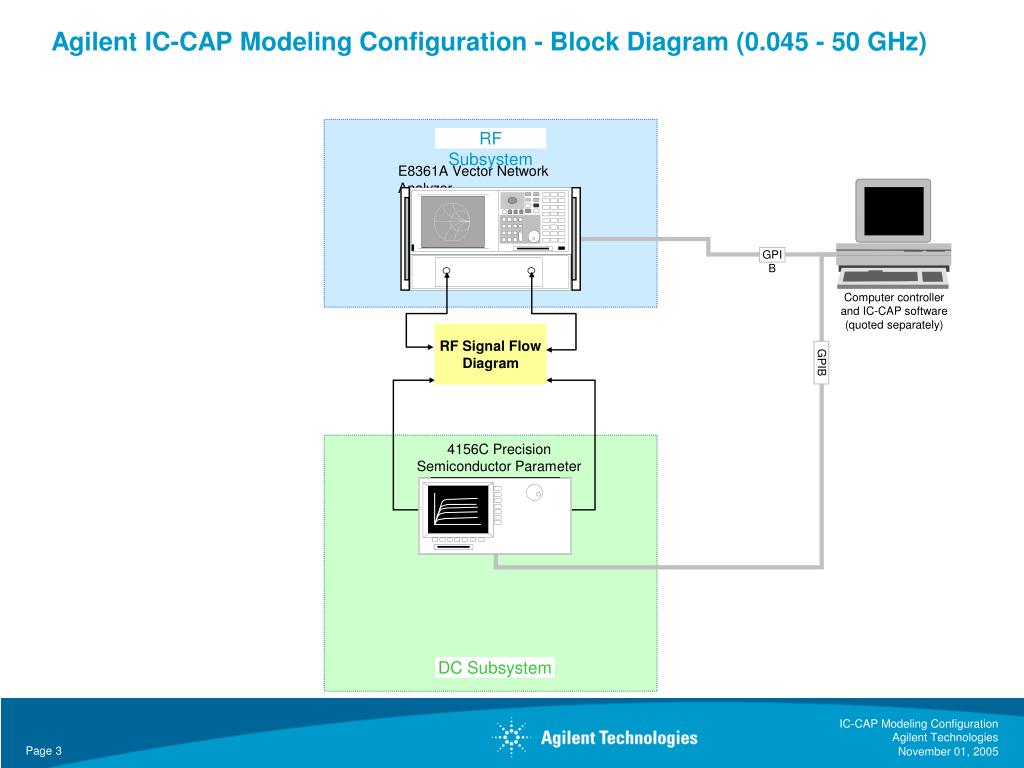

  3. RF Subsystem E8361A Vector Network Analyzer GPIB x1 7 8 9 @ n 4 5 6 M m 1 2 3 k m Computer controller and IC-CAP software (quoted separately) . 0 - RF Signal Flow Diagram GPIB 4156C Precision Semiconductor Parameter Analyzer DC Subsystem Agilent IC-CAP Modeling Configuration - Block Diagram (0.045 - 50 GHz) IC-CAP Modeling Configuration Agilent Technologies

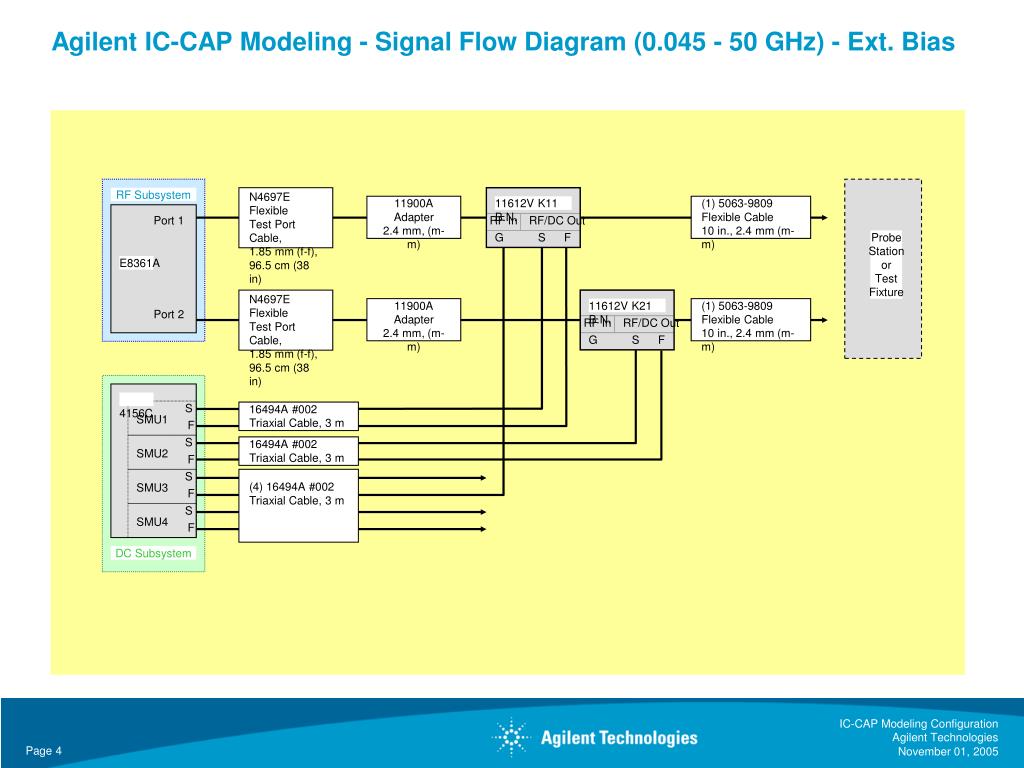

  4. RF Subsystem N4697E Flexible Test Port Cable, 1.85 mm (f-f), 96.5 cm (38 in) 11900A Adapter 2.4 mm, (m-m) 11612V K11 B.N. 11612V K21 B.N. (1) 5063-9809 Flexible Cable 10 in., 2.4 mm (m-m) Port 1 RF In RF In RF/DC Out RF/DC Out G G S S F F Probe Station or Test Fixture 4156C S E8361A SMU1 F S N4697E Flexible Test Port Cable, 1.85 mm (f-f), 96.5 cm (38 in) SMU2 F 11900A Adapter 2.4 mm, (m-m) (1) 5063-9809 Flexible Cable 10 in., 2.4 mm (m-m) Port 2 S SMU3 F S SMU4 F 16494A #002 Triaxial Cable, 3 m 16494A #002 Triaxial Cable, 3 m (4) 16494A #002 Triaxial Cable, 3 m DC Subsystem Agilent IC-CAP Modeling - Signal Flow Diagram (0.045 - 50 GHz) - Ext. Bias IC-CAP Modeling Configuration Agilent Technologies

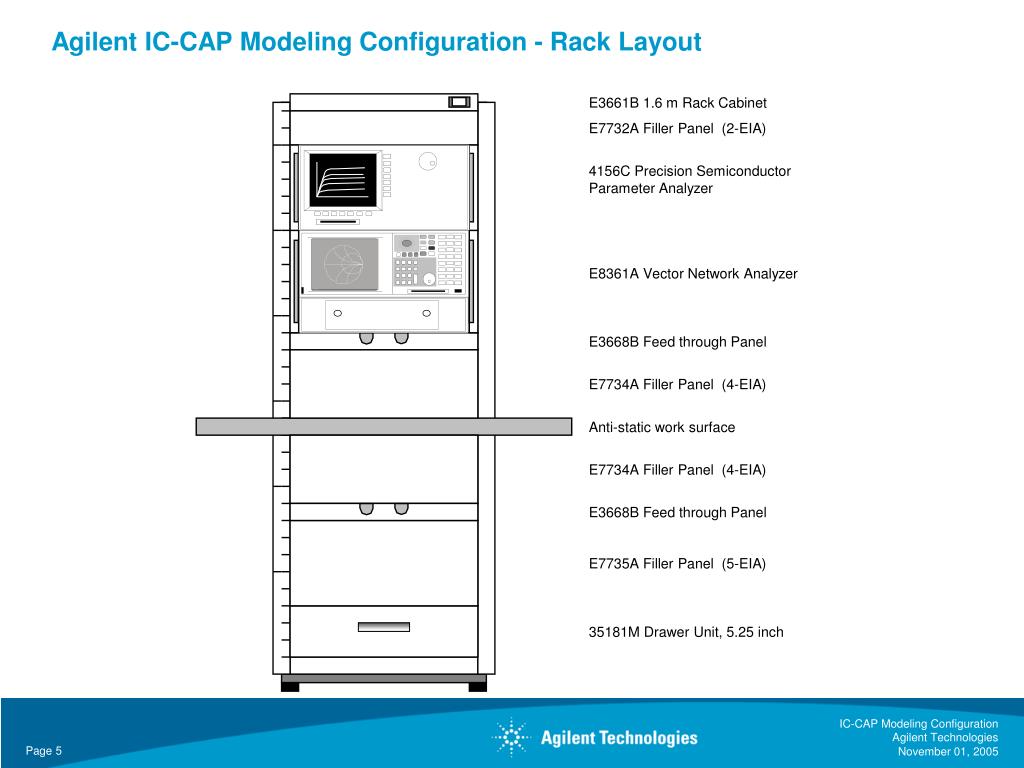

  5. E3661B 1.6 m Rack Cabinet E7732A Filler Panel (2-EIA) 4156C Precision Semiconductor Parameter Analyzer x1 E8361A Vector Network Analyzer 7 8 9 @ n 4 5 6 M m 1 2 3 k m . 0 - E3668B Feed through Panel E7734A Filler Panel (4-EIA) Anti-static work surface E7734A Filler Panel (4-EIA) E3668B Feed through Panel E7735A Filler Panel (5-EIA) 35181M Drawer Unit, 5.25 inch Agilent IC-CAP Modeling Configuration - Rack Layout IC-CAP Modeling Configuration Agilent Technologies

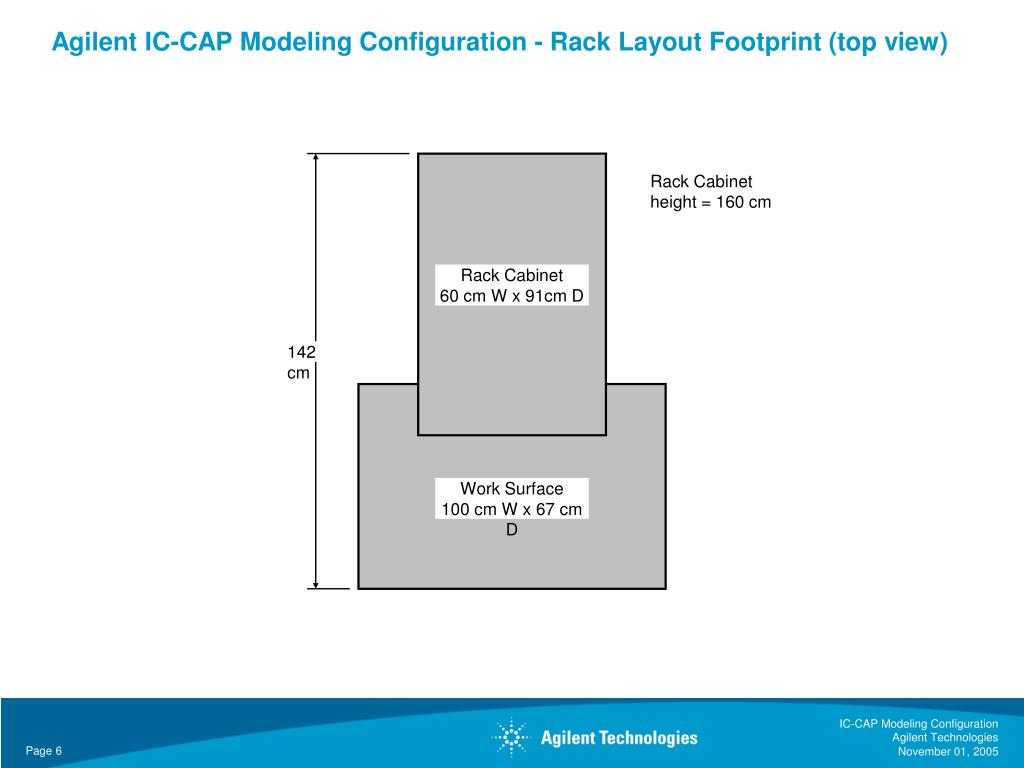

  6. Rack Cabinet height = 160 cm Rack Cabinet 60 cm W x 91cm D 142 cm Work Surface 100 cm W x 67 cm D Agilent IC-CAP Modeling Configuration - Rack Layout Footprint (top view) IC-CAP Modeling Configuration Agilent Technologies
