A tool for improved space weather predictions: the CME expansion speed.

Max-Planck-Institut für Aeronomie Katlenburg-Lindau Germany. Instituto Nacional de Pesquisas Espaciais Sao Jose dos Campos - SP Brazil. A tool for improved space weather predictions: the CME expansion speed. A. Dal Lago , R. Schwenn. Sept. , 2001. Space Weather.

marvel
Télécharger la présentation

A tool for improved space weather predictions: the CME expansion speed.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Max-Planck-Institut für Aeronomie Katlenburg-Lindau Germany Instituto Nacional de Pesquisas Espaciais Sao Jose dos Campos - SP Brazil • A tool for improved space weather predictions: • the CME expansion speed. A. Dal Lago, R. Schwenn Sept. , 2001

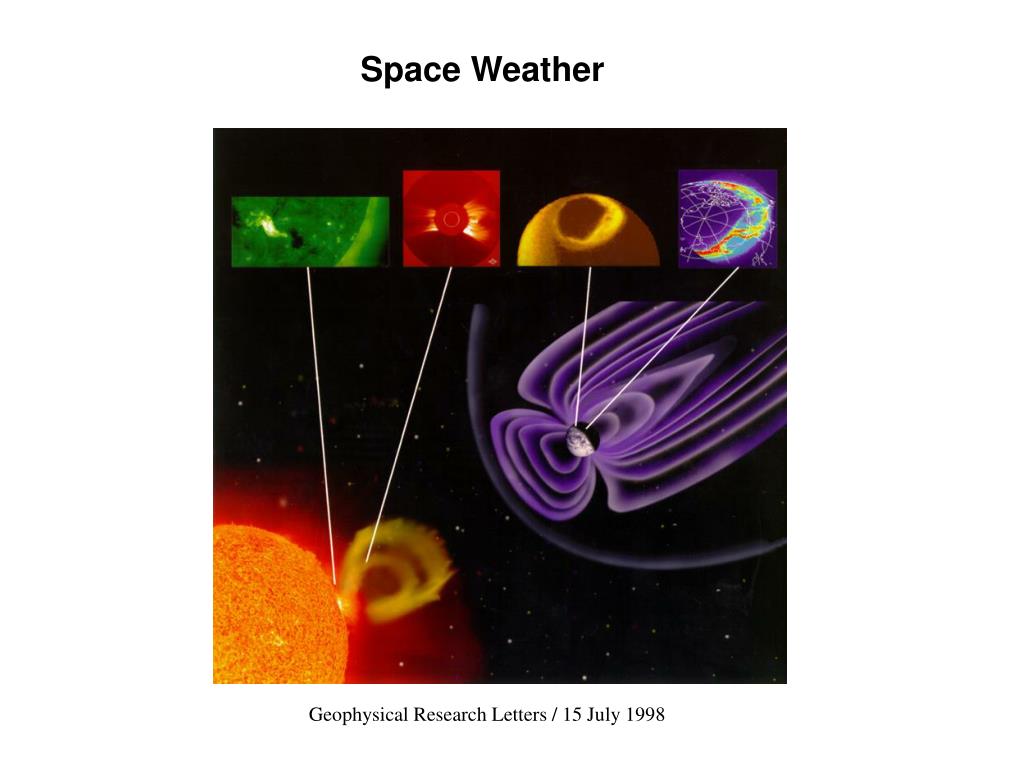

  2. Space Weather Geophysical Research Letters / 15 July 1998

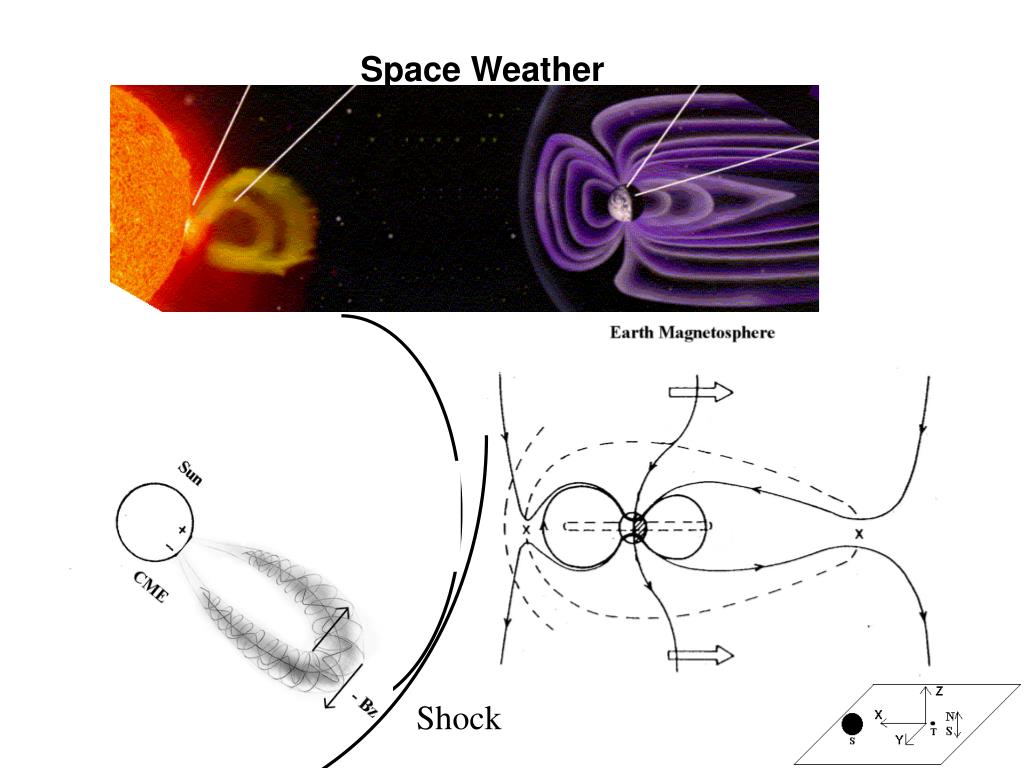

  3. Space Weather Shock

  4. Space Weather Shock Sun: EIT / CME L1: shock - sheath - magnetic cloud Earth: geomagnetic storm

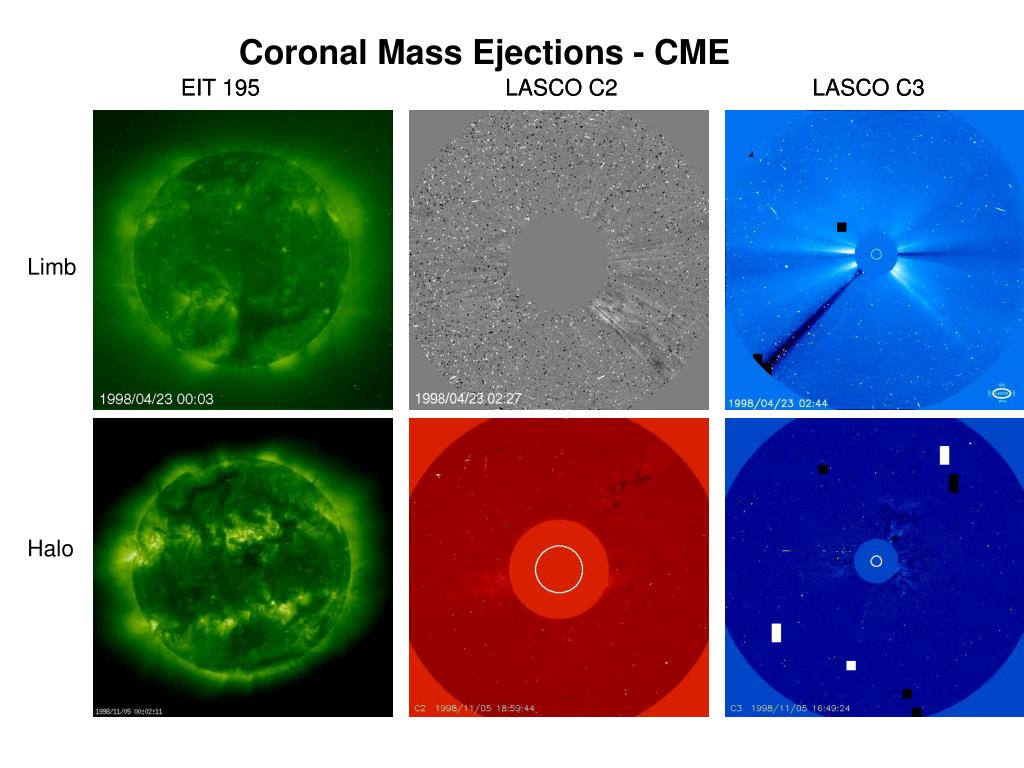

  5. Coronal Mass Ejections - CME EIT 195 EIT 195 LASCO C2 LASCO C2 LASCO C3 LASCO C3 Limb Halo

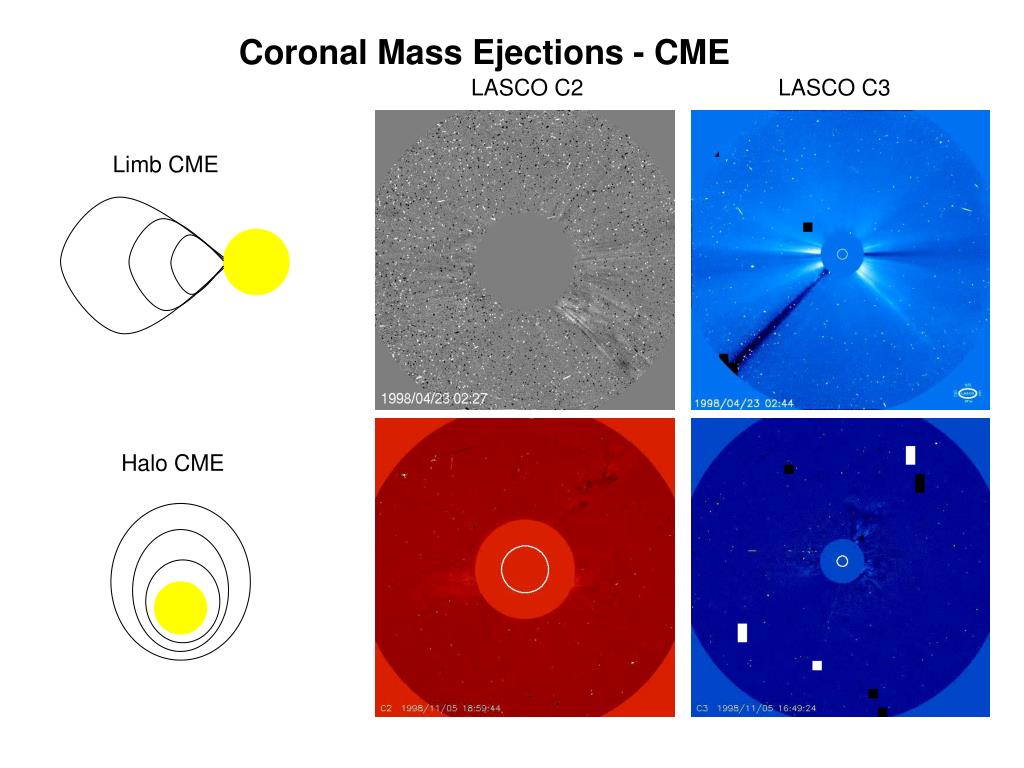

  6. Coronal Mass Ejections - CME LASCO C2 LASCO C3 Limb CME Halo CME

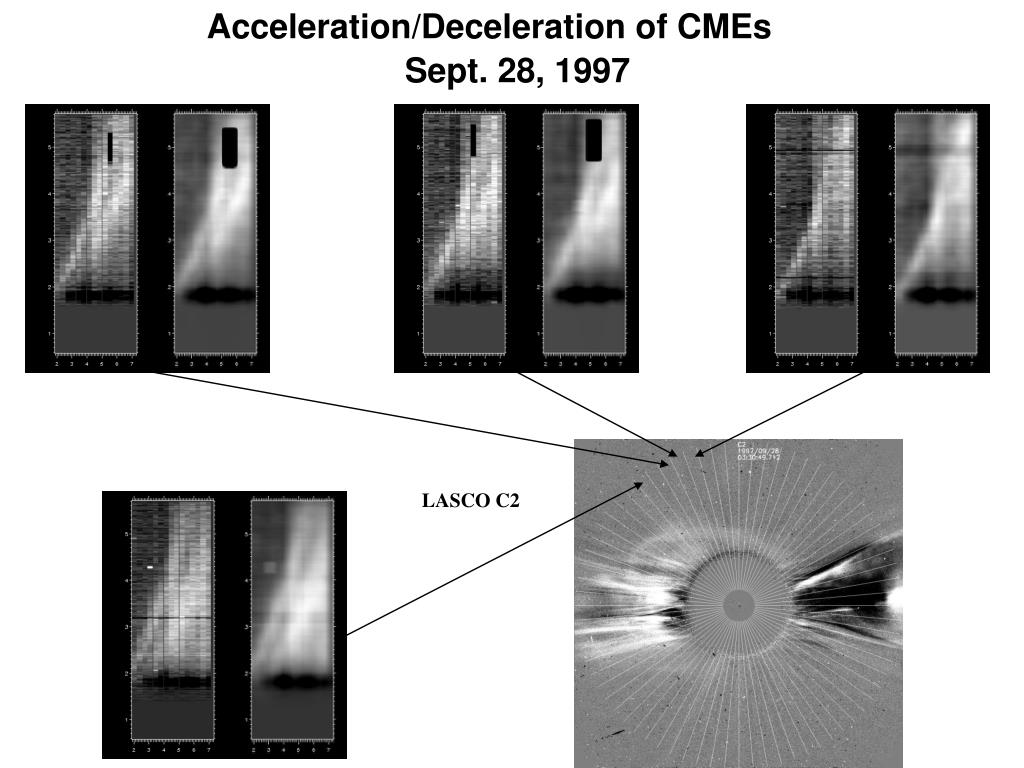

  7. Acceleration/Deceleration of CMEs Sept. 28, 1997 LASCO C2

  8. Acceleration/Deceleration of CMEs Sept. 28, 1997 LASCO C3

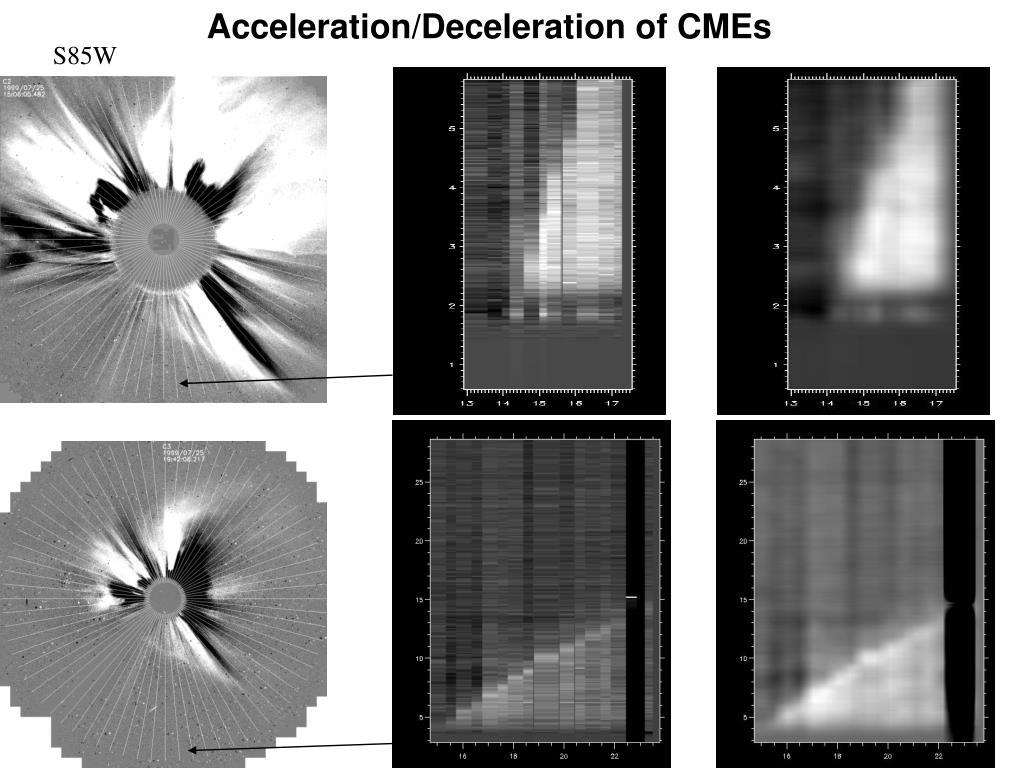

  9. Acceleration/Deceleration of CMEs S85W

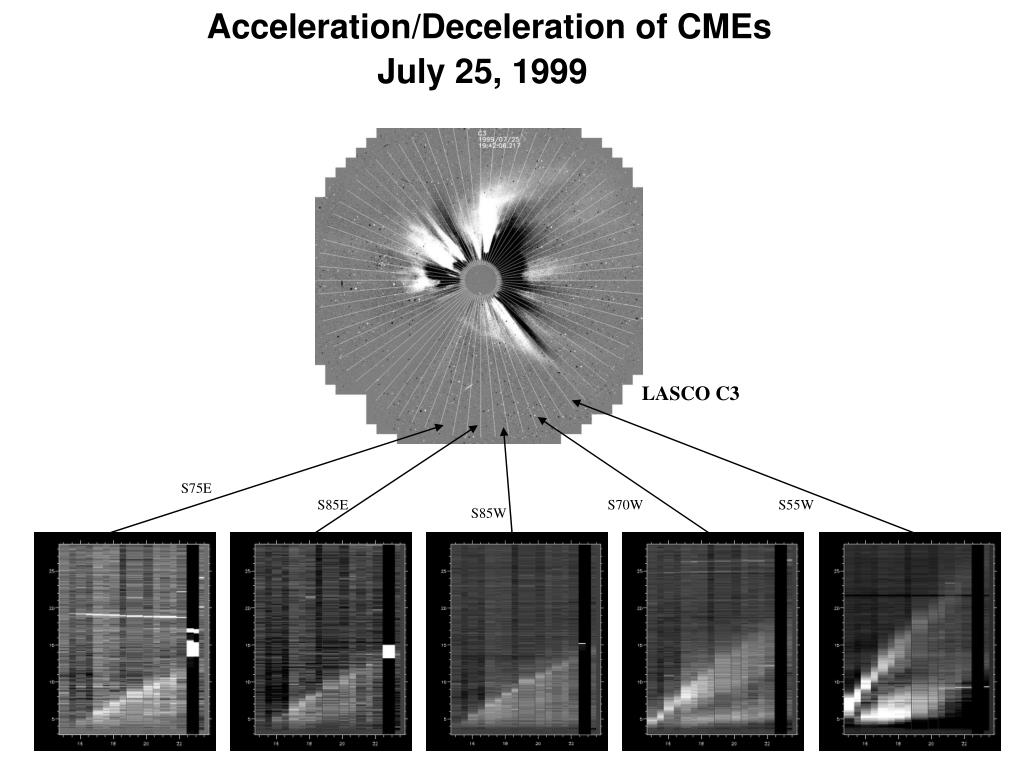

  10. Acceleration/Deceleration of CMEs July 25, 1999 LASCO C3 S75E S85E S70W S55W S85W

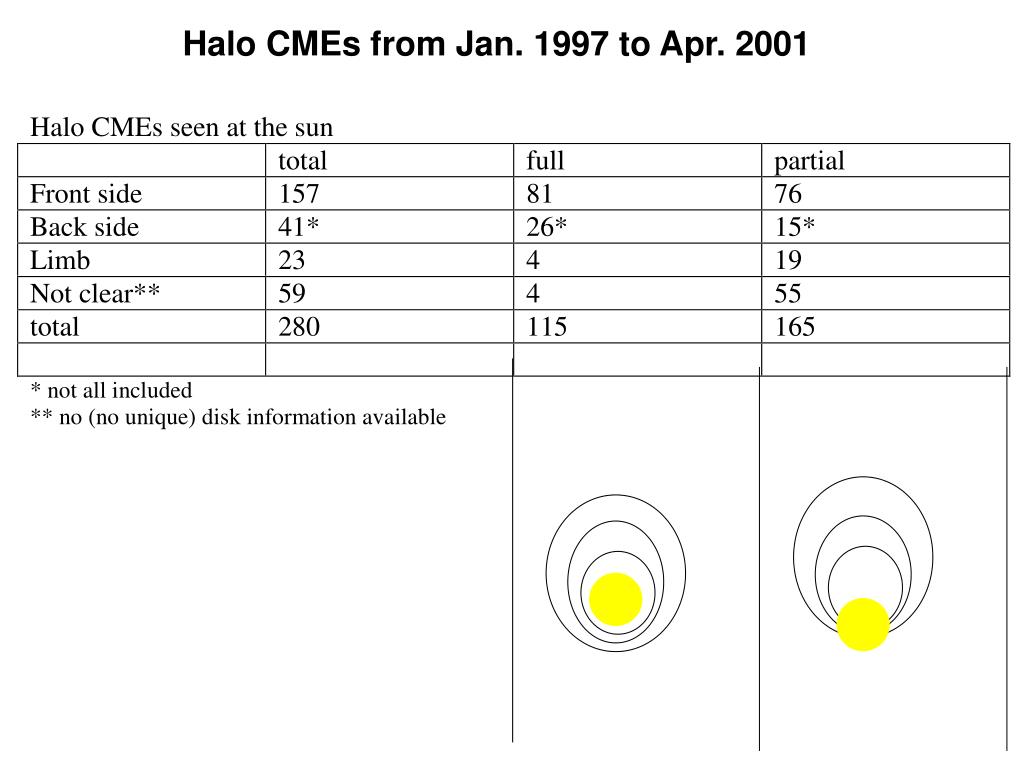

  11. Halo CMEs from Jan. 1997 to Apr. 2001

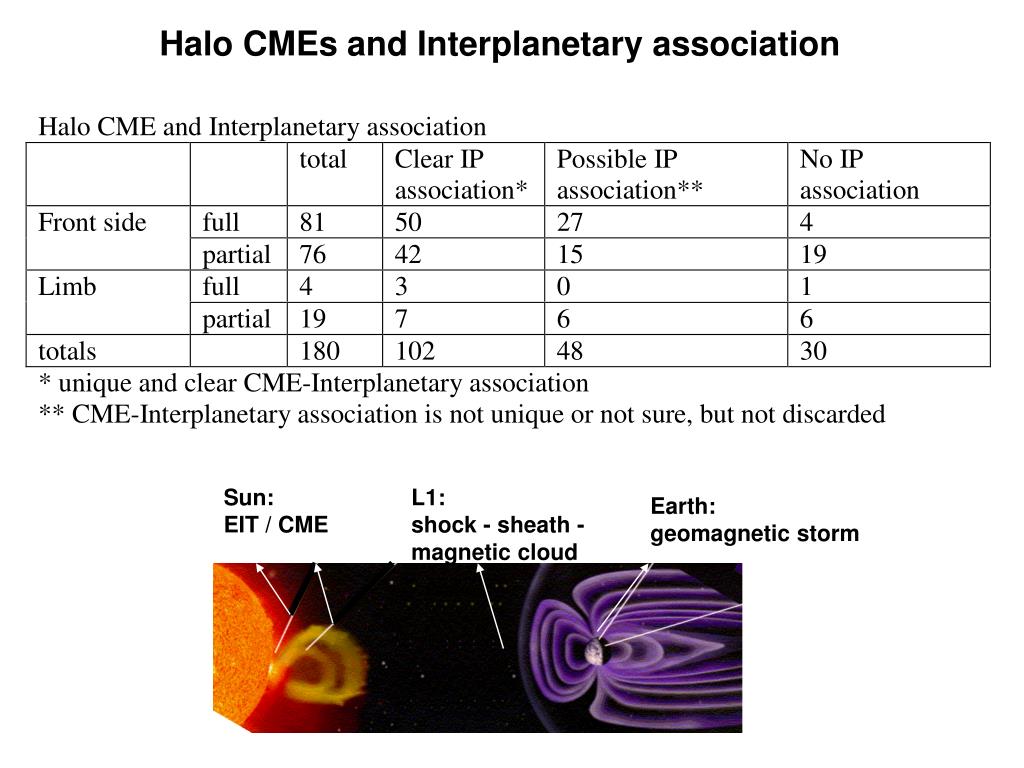

  12. Sun: EIT / CME L1: shock - sheath - magnetic cloud Earth: geomagnetic storm Halo CMEs and Interplanetary association

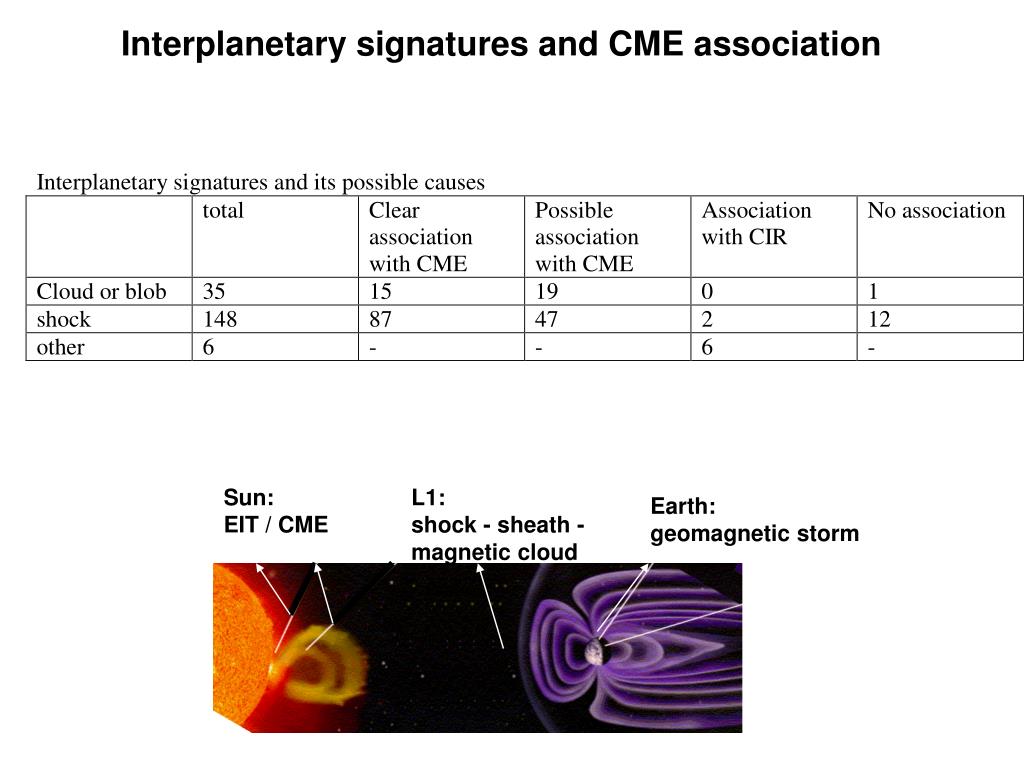

  13. Sun: EIT / CME L1: shock - sheath - magnetic cloud Earth: geomagnetic storm Interplanetary signatures and CME association

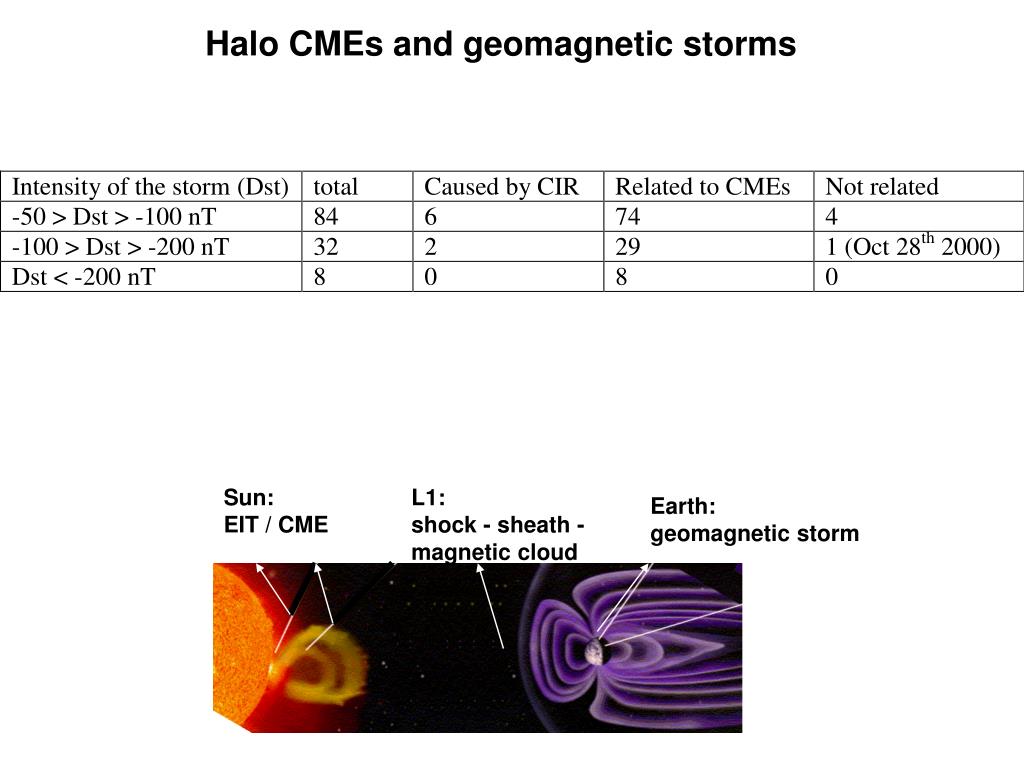

  14. Sun: EIT / CME L1: shock - sheath - magnetic cloud Earth: geomagnetic storm Halo CMEs and geomagnetic storms

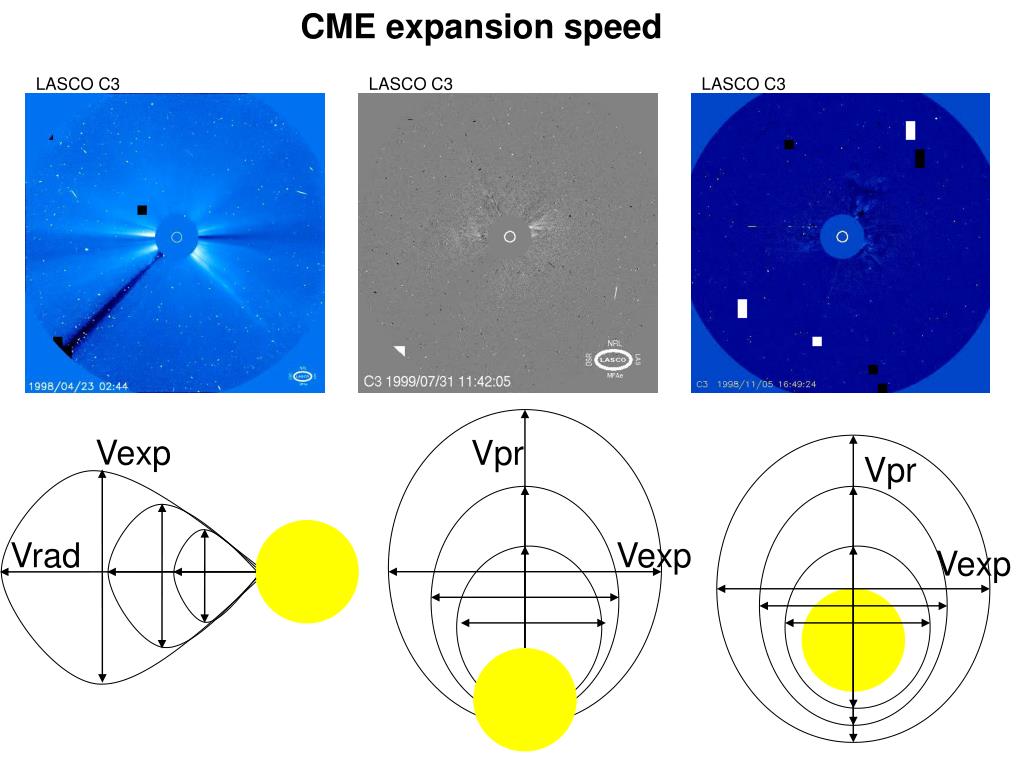

  15. CME expansion speed LASCO C3 LASCO C3 LASCO C3 Vexp Vpr Vpr Vrad Vexp Vexp

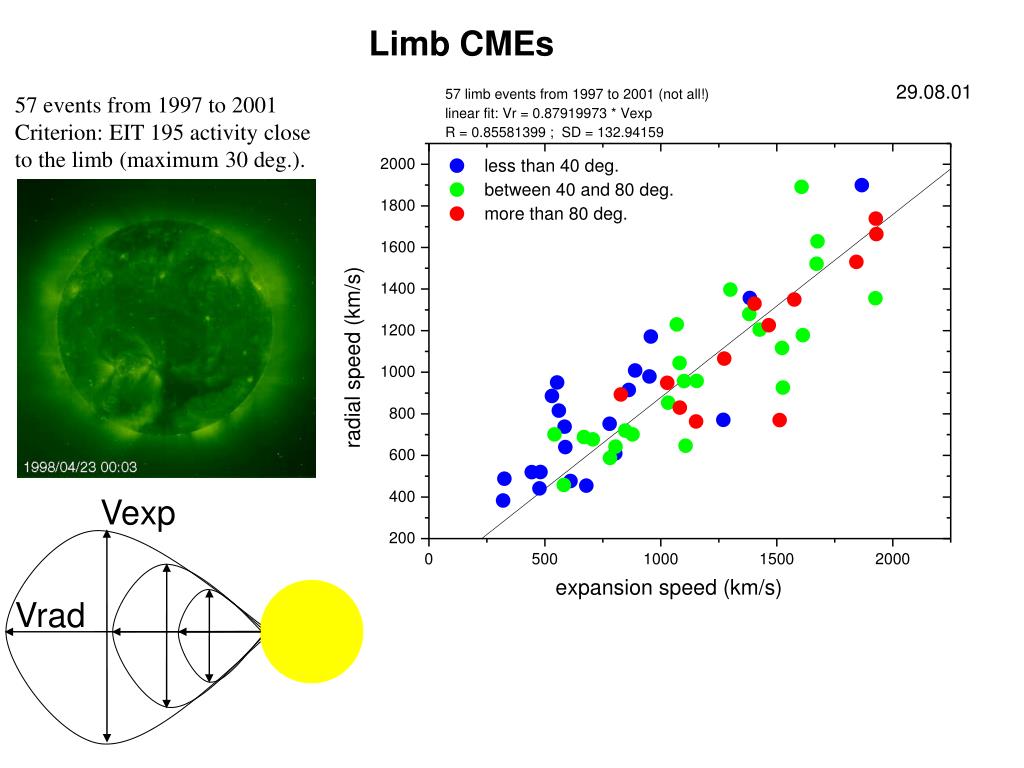

  16. Vexp Vrad Limb CMEs 57 events from 1997 to 2001 Criterion: EIT 195 activity close to the limb (maximum 30 deg.).

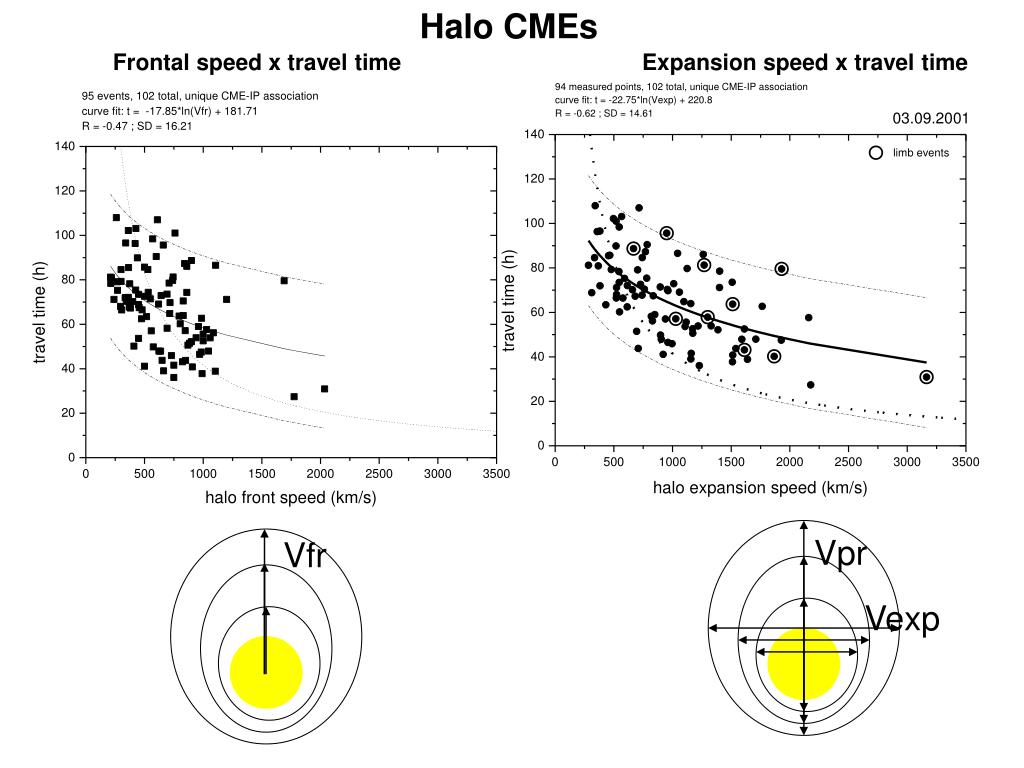

  17. Halo CMEs Vpr Vexp Frontal speed x travel time Expansion speed x travel time Vfr

  18. Halo CMEs Vpr Vexp Frontal speed x travel time Expansion speed x travel time Vfr

  19. Full halos only Ago. 25th 2001

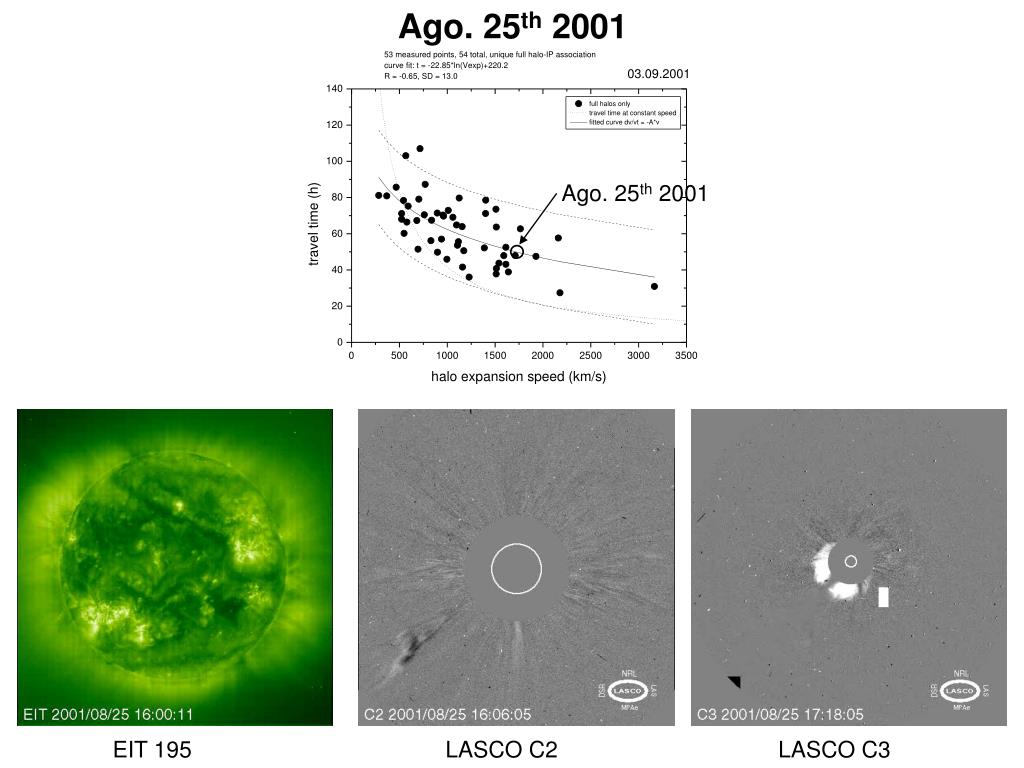

  20. Ago. 25th 2001 Ago. 25th 2001 EIT 195 LASCO C2 LASCO C3

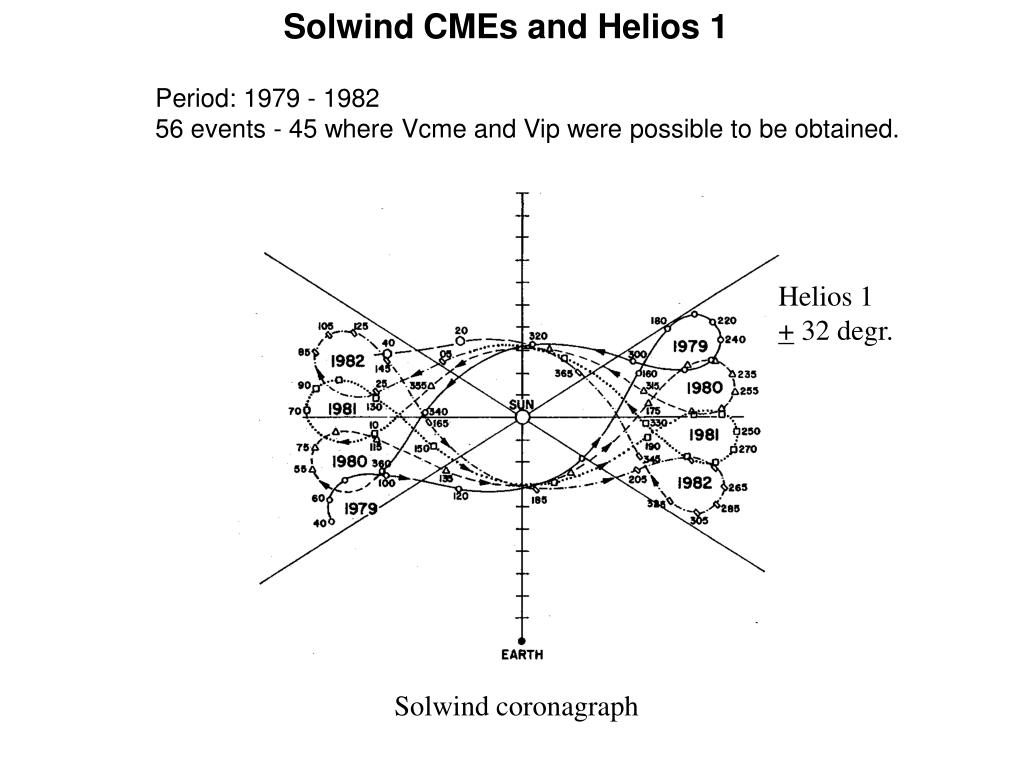

  21. Solwind CMEs and Helios 1 Period: 1979 - 1982 56 events - 45 where Vcme and Vip were possible to be obtained. Helios 1 + 32 degr. Solwind coronagraph

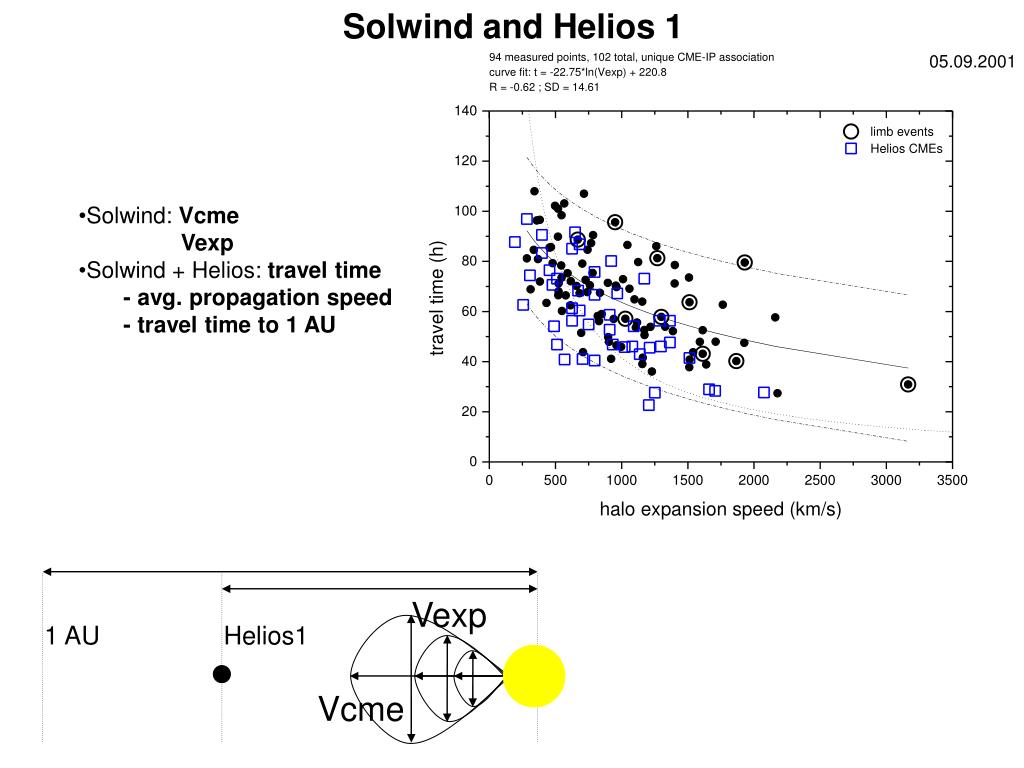

  22. Solwind and Helios 1 • Solwind: Vcme • Vexp • Solwind + Helios: travel time • -avg. propagation speed • - travel time to 1 AU Vexp 1 AU Helios1 Vcme

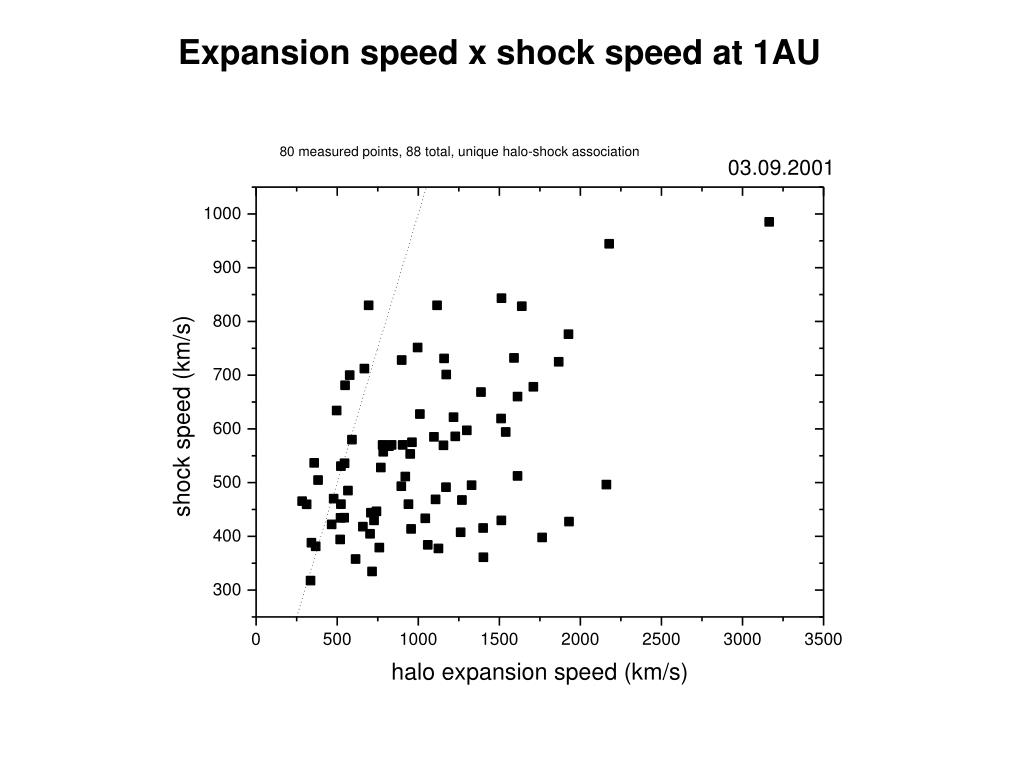

  23. Expansion speed x shock speed at 1AU

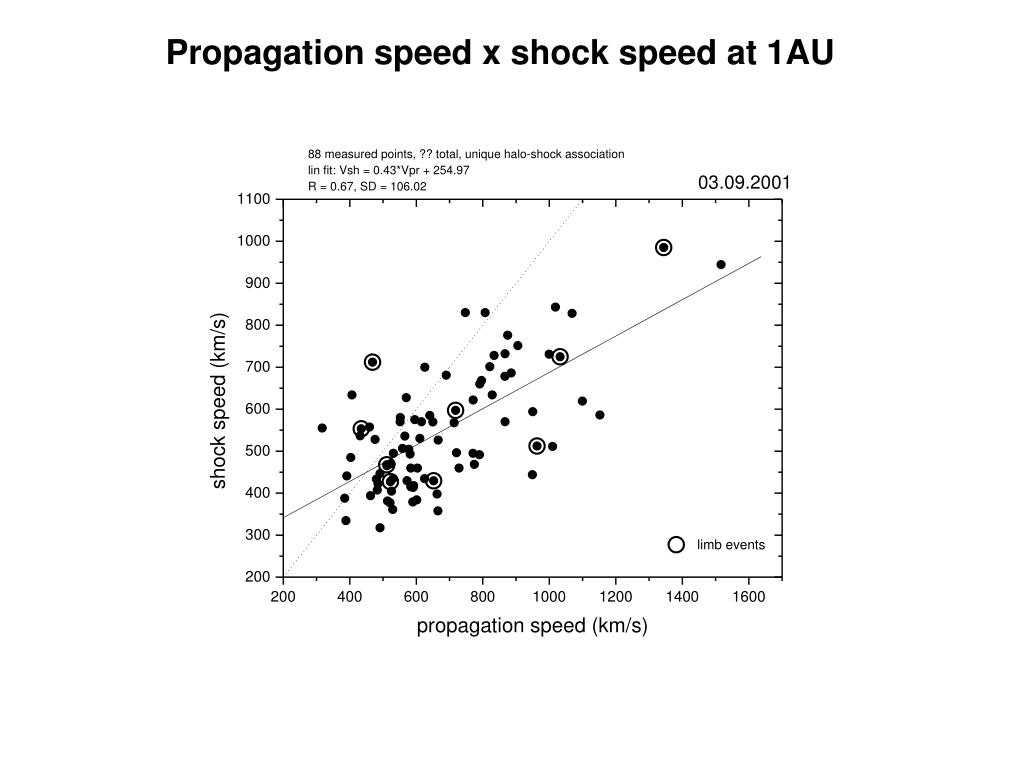

  24. Propagation speed x shock speed at 1AU

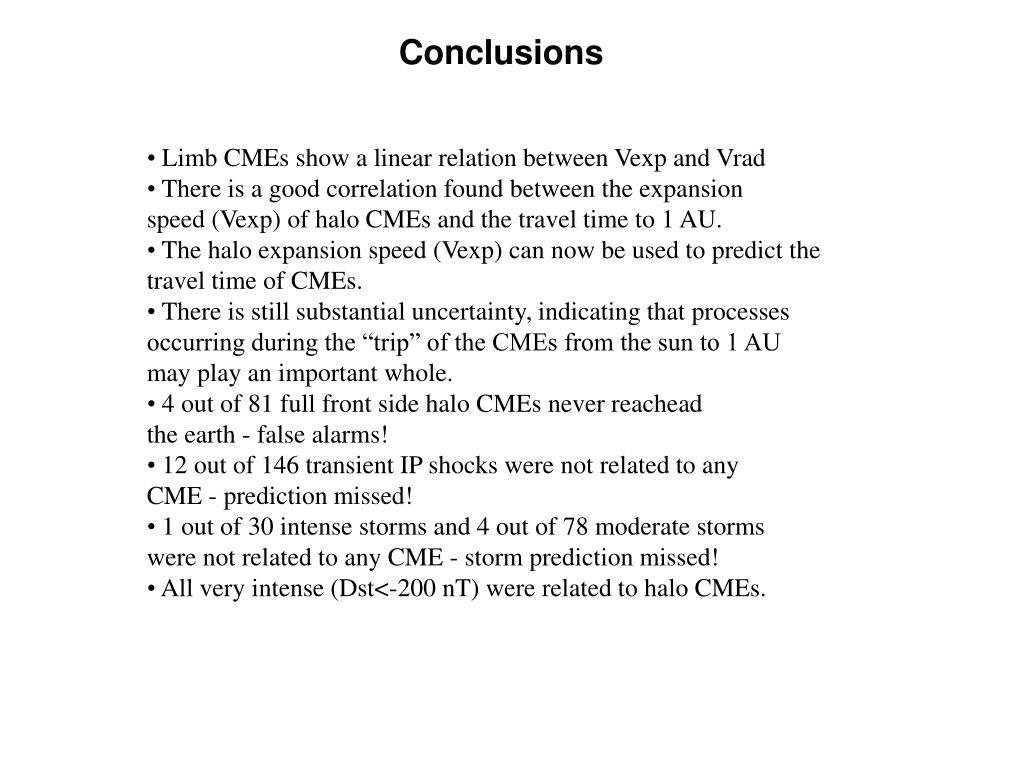

  25. Conclusions • Limb CMEs show a linear relation between Vexp and Vrad • There is a good correlation found between the expansion • speed (Vexp) of halo CMEs and the travel time to 1 AU. • The halo expansion speed (Vexp) can now be used to predict the • travel time of CMEs. • There is still substantial uncertainty, indicating that processes • occurring during the “trip” of the CMEs from the sun to 1 AU • may play an important whole. • 4 out of 81 full front side halo CMEs never reachead • the earth - false alarms! • 12 out of 146 transient IP shocks were not related to any • CME - prediction missed! • 1 out of 30 intense storms and 4 out of 78 moderate storms • were not related to any CME - storm prediction missed! • All very intense (Dst<-200 nT) were related to halo CMEs.
